 Posted: Sun Dec 16, 2012 5:06 pm Post subject: Iron Lion | prep thread | New York - Rio 2014 |
 |
|
Hey guys,
After our trips to Beijing and Cape Town with our bus it's time for another adventure. Our next trip starts in New York and we're driving all the way down to Rio. We're first going to drive to the west coast and from there all the way down through Mexico, Belize, Guatemala, Honduras, Nicaragua, Costa Rica, Panama, Colombia, Ecuador, Peru, Bolivia, Paraguay and finally into Brazil.
So, we've got about 15.000 miles ahead of us. Fortunately the bus is in pretty good condition. At the moment our to-do list is limited to finishing up the audio system, raising suspension further (raised spindles, coil-overs, 930cv's etc.) and some modifications to our oil cooling system.
Although the description is in Dutch, a google map of the route can be found here.
http://www.oranjetrophy.nl/2014/route.php
So, we left of the last thread with an unfinished audio system.
http://www.thesamba.com/vw/forum/viewtopic.php?t=448292&start=40
We finally got everything installed and upholstered. We still need to do some cleaning up in the interior and some bits of the wiring, but everything is up and running.

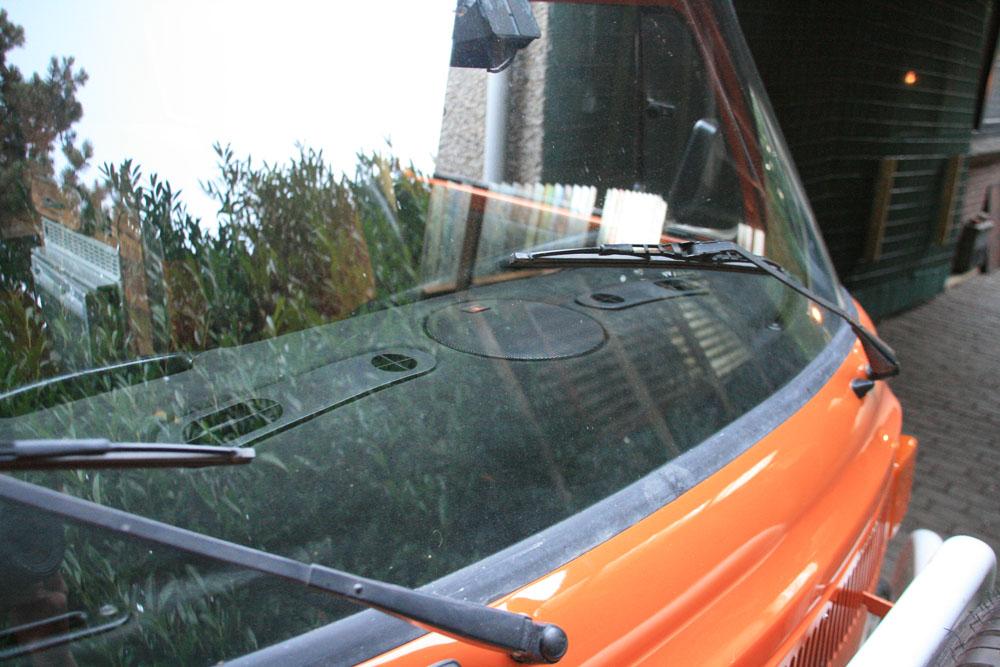

Dynaudio system 360 installed, tweeter and mid-range cross firing towards opposite passenger for best sound quality. Window winders had to be eliminated and are replaced by electric windows.

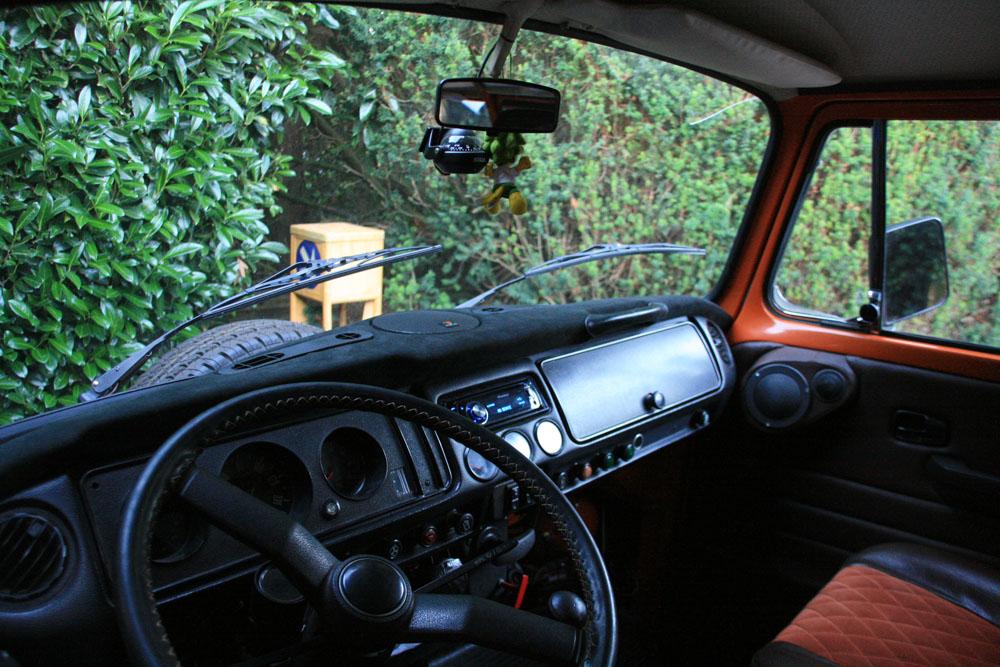

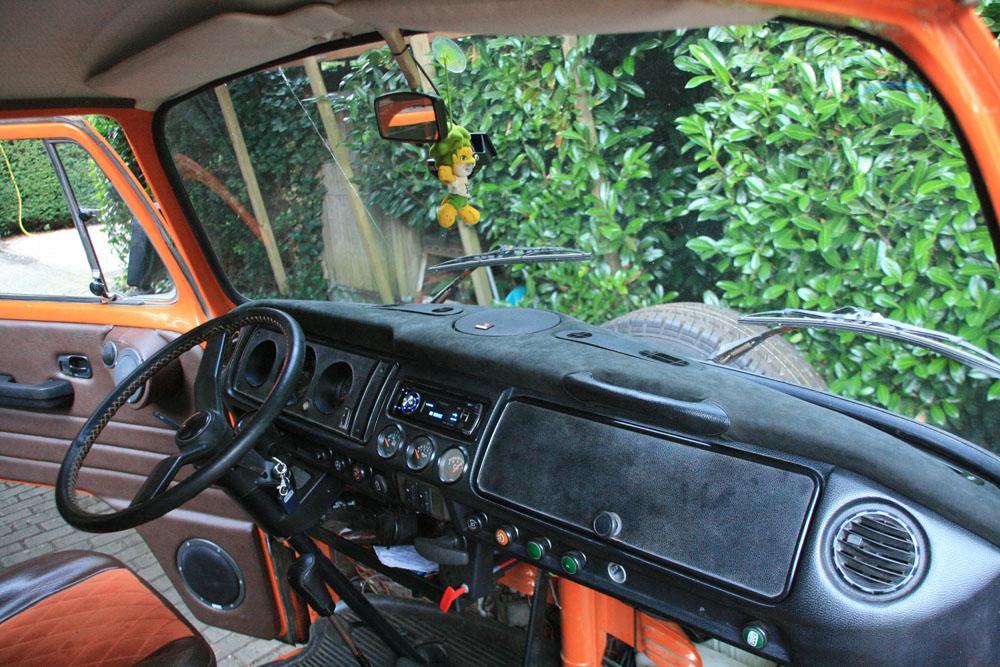

Modified dash with fiberglass to accommodate the Focal 130CVX center driver firing at the window for a wide sound stage.

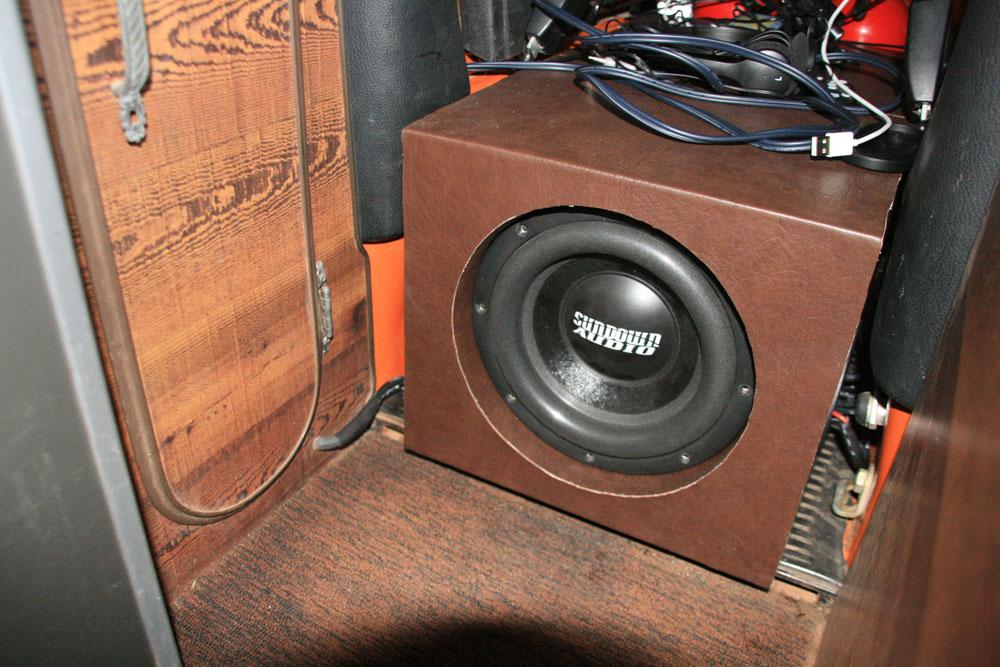

We built a new center console which now has a small housing for the 8 inch Sundown Audio driver. The enclosure for the woofer is only 6,5 liters. Leaves enough room in the console to store documents and two fire extinguishers. We still need to finish this with a nice black mesh to conceal the woofer.
When we had everything installed we had some trouble with the JBL MS-8. However, after a call with JBL they shipped me a new unit which arrived to my doorstep the next day. Probably best service experience ever.

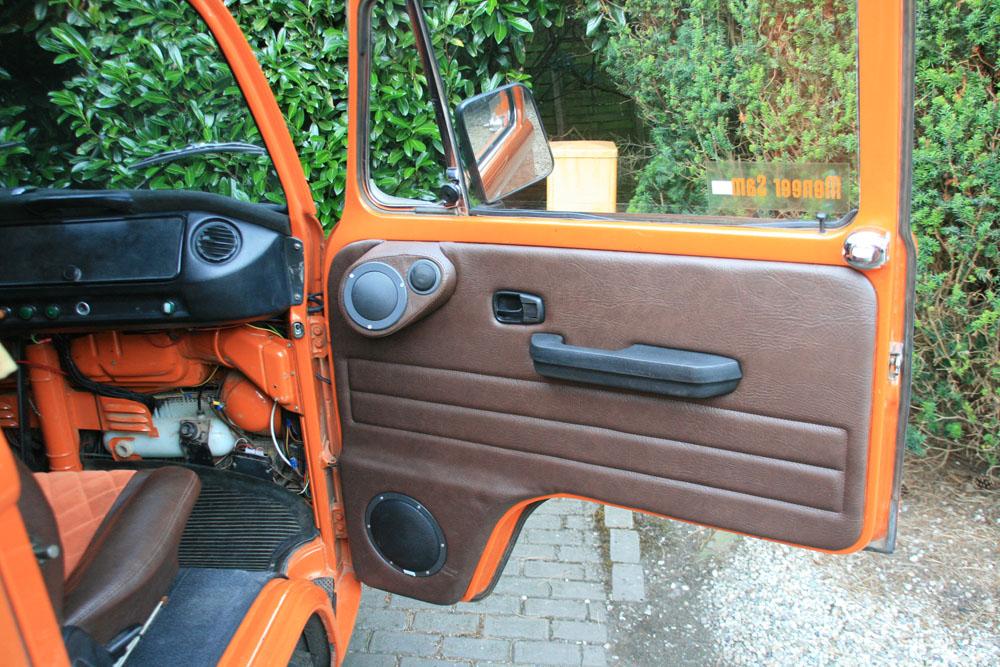

We still have some deadening to do on the left door, but the system sounds awesome. It has cost us a whole lot of time and money to get it done, but it was well worth the effort. It plays extremely loud without distorting with intense base.
So, that's it for now, we'll keep you posted as we go along.
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member |
|
| Back to top |
|
 |
germansupplyscott
Samba Member
Joined: May 22, 2004
Posts: 7231
Location: toronto
|
| Posted: Sun Dec 16, 2012 6:26 pm Post subject: |
|
|
let us know if you need anything!
_________________
SL |
|
| Back to top |
|
|
Bursch
Samba Member
Joined: October 28, 2006
Posts: 448
Location: Netherlands
|
| Posted: Sun Jun 23, 2013 5:23 am Post subject: |
|
|
Link
America!!!
Departing from New Amsterdam (currently known as NYC) on the 27th of March 2014, coast to coast in 2,5 weeks before crossing the border into Mexico.
80 days, 25.000 kilometres (15.500mi), 14 countries
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt & EDIS // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply, Busted Bus & Aircooled Technology
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 28.000km
***********************
Camper Special Club Member |
|
| Back to top |
|
|
williamM
Samba Member
Joined: August 07, 2008
Posts: 4341
Location: southwest Arizona
|
| Posted: Sun Jun 23, 2013 8:16 am Post subject: where |
|
|
where are you crossing (mexico) and when?
give us a call for Pizza.
_________________
some days I get up and just sit and think. Some days I just sit.
opinion untempered by fact is ignorance.
Don't step in any! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52505
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sun Jun 23, 2013 10:06 am Post subject: |
|
|
Looks like it's going to be epic boys!, can't wait for the pictures!
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Jake Raby
Samba Member
Joined: August 23, 2003
Posts: 7433
Location: Aircooled Heaven USA
|
| Posted: Sun Jun 23, 2013 12:39 pm Post subject: |
|
|
Too bad you can't dip a little bit south and let the engine return to Aircooled Heaven where it was conceived
Awesome trip!
_________________
Jake Raby
Raby Engine Development
www.rabyenginedevelopment.com
"I've never given anyone Hell, I just told them the truth and they thought it was Hell" |
|
| Back to top |
|
|
Bursch
Samba Member
Joined: October 28, 2006
Posts: 448
Location: Netherlands
|
| Posted: Sun Jun 23, 2013 1:55 pm Post subject: |
|
|
| Jake Raby wrote: |
Too bad you can't dip a little bit south and let the engine return to Aircooled Heaven where it was conceived
Awesome trip! |
We'll figure something out, don't wanna miss the opportunity!

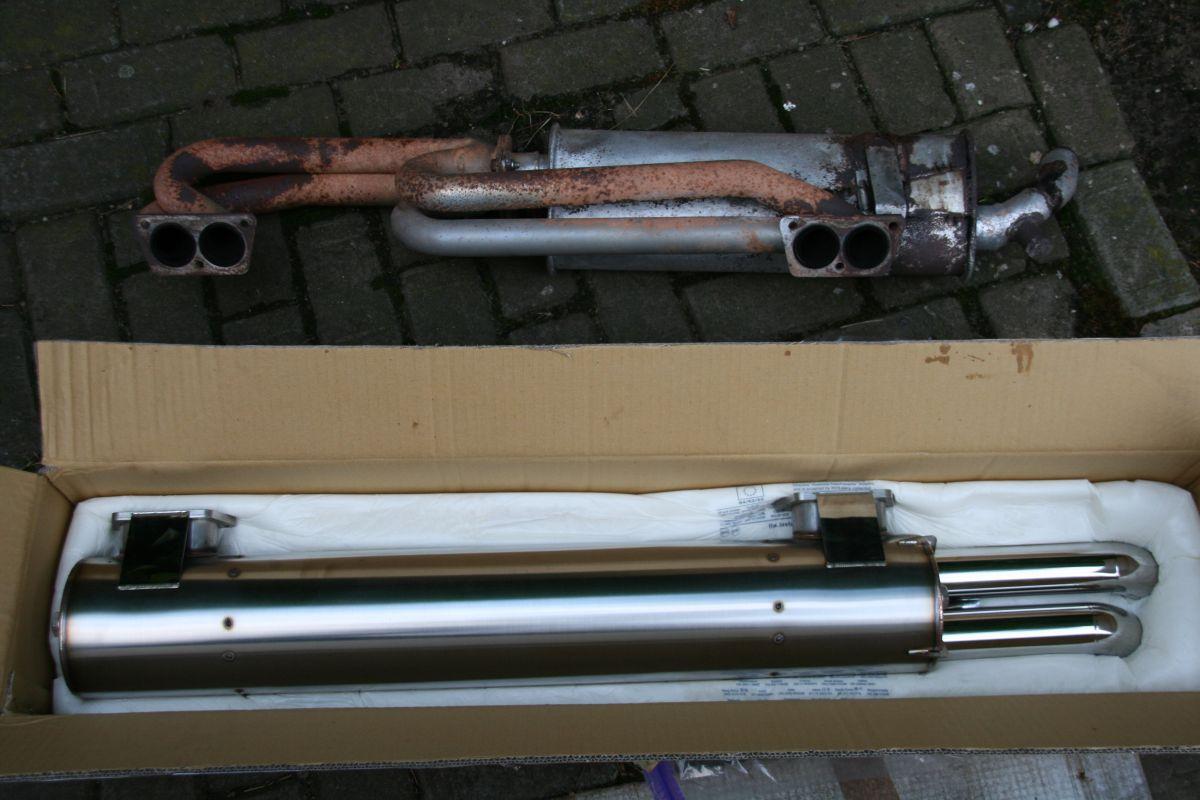

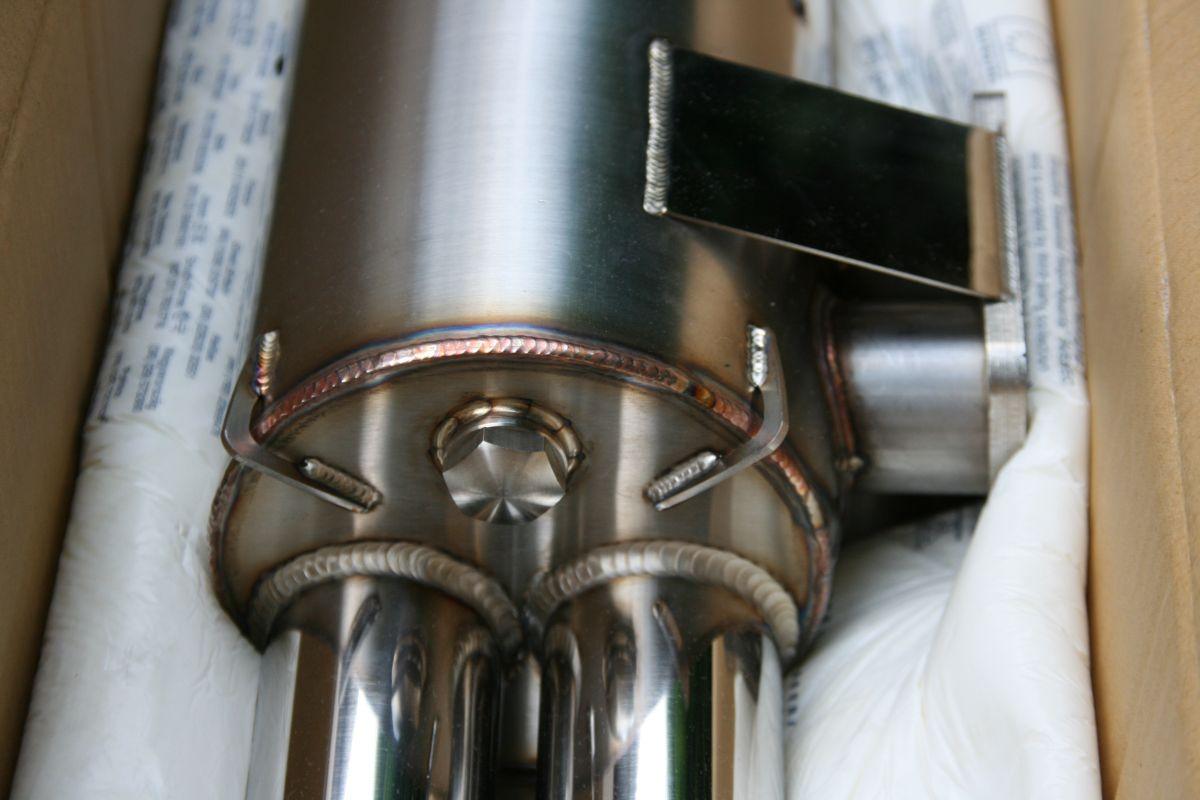

In the meantime, we swapped the Thunderbird exhaust for a Vintage Speed one. After 5 years, 30k miles and some patchwork the TB was f****ed up beyond recognition.
Vintage Speed was shipped in a matter of days and the packaging, as with everything else on this product is ace. Comes with studs and 12mm nuts for easy mounting.

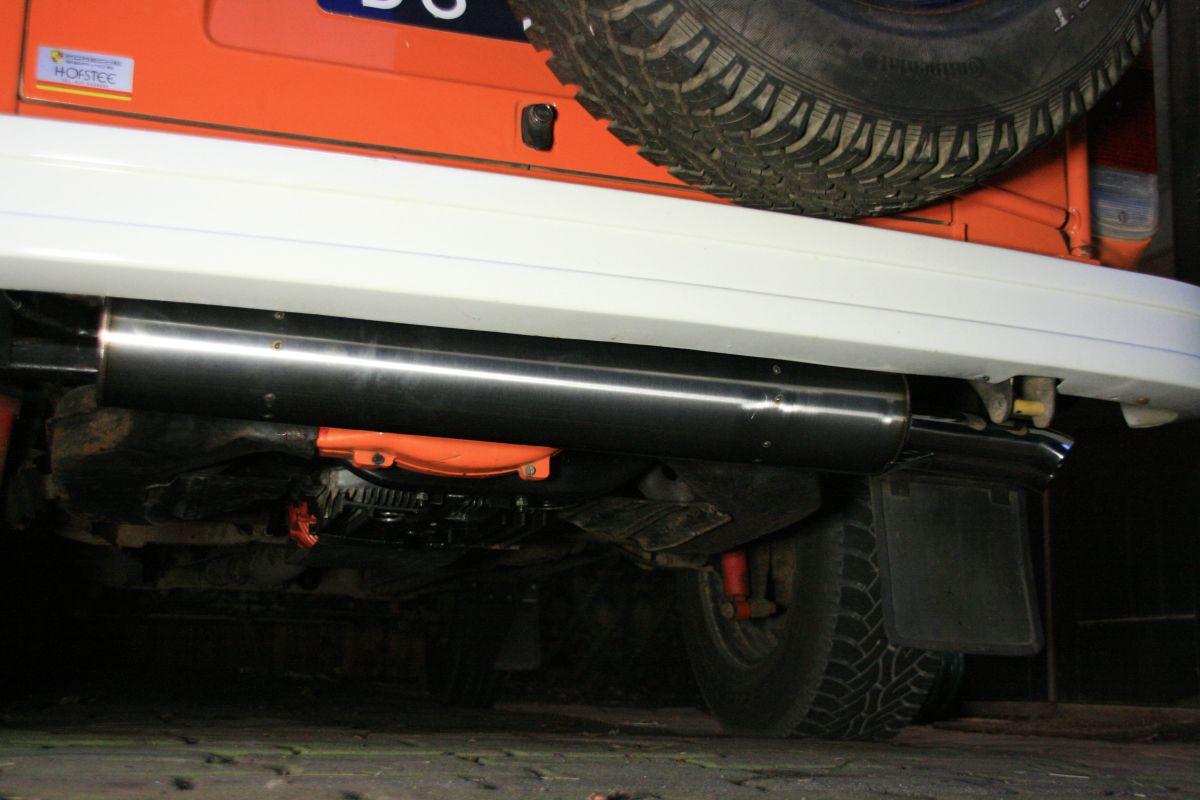

Getting dark here, pic of the end result doesn't do it justice.
Sound is a bit heavier compared to the TB, and a bit louder as well.
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt & EDIS // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply, Busted Bus & Aircooled Technology
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 28.000km
***********************
Camper Special Club Member |
|
| Back to top |
|
|
webwalker
Samba Member
Joined: January 26, 2006
Posts: 2803
Location: Mount Laurel, NJ
|
| Posted: Sun Jun 23, 2013 3:07 pm Post subject: |
|
|
Looks great. Please include all of your info on the Megasquirt system, which I assume your going to run on this trip.
M
_________________
"Consistent maintenance with quality products is the cheapest warranty you'll ever need."
1977 CE1 Transporter Deluxe, Subaru EJ22, Skills Cooling, Steedle HD 091 w/ GuardT .82 4th
Click to view image |
|
| Back to top |
|
|
MadMax78
Samba Member
Joined: May 26, 2007
Posts: 511
Location: The Netherlands
|
| Posted: Sun Jun 23, 2013 3:51 pm Post subject: |
|
|
Thanks!
We have always planned on doing a write-up on the MS install, but we had some problems during our trip through Africa.
The problems were most likely caused by a configuration problem. We have since upgraded to MS3 and we are going to re-tune it from scratch.
We also had some problems with failing O2 senders. We hope this was related to the way it was mounted, so hopefully it will work better with the new exhaust.
Also we're going to move the MS ecu out of the engine bay, to eliminate possible heat induced problems.
Once we got everything wired up and the O2 sensor replaced we'll start re-tuning with a set of new injectors. Once everything is dialed in and the system is running reliably we'll do a write-up. Don't expect anything soon though, still a lot of work to be done and nowadays we don't have that much spare time to put in the bus.
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member |
|
| Back to top |
|
|
chimneyfish
Samba Member
Joined: July 28, 2009
Posts: 881
Location: United Kingdom
|
| Posted: Sun Jun 23, 2013 4:58 pm Post subject: |
|
|
Thanks for this, I'm looking forward to following your further adventures, fantastic.
Are you going to dare the the Darién Gap or take the ferry? It looks like Samba member HastaAlaska tried it (or considered it - YouTube blocks the video, something to do with the music used) earlier this year from South to North, and in his thread he says he knows the way through and to message him on how to get across! But it seems from what I can deduce that he still opted for the ferry:
http://www.thesamba.com/vw/forum/viewtopic.php?t=535714&start=20
Three Corvairs successfully did the Gap in 1961, although it suspiciously looks like they had a considerable entourage of support staff with them:
Link
_________________
1965 Type 1 Deluxe (1200cc)
1976 Type 2 T2b Microbus L (1800cc Type 4)
Previously...
1972 T2 Camper (Devon), 1988 Golf, 1972 Type 1, 1984 Polo, 1972 T2 Camper (Danbury) |
|
| Back to top |
|
|
williamM
Samba Member
Joined: August 07, 2008
Posts: 4341
Location: southwest Arizona
|
| Posted: Sun Jun 23, 2013 8:19 pm Post subject: Wow |
|
|
Looks like a lot of fun. Keep up the posts.
One thought no many people know about O2 sensors is how sensitive they are to silicone spray. If you are "water proofing" anything that way- it might have an effect on your o-2 sensor.
Love the exhaust. Might get one for mine when the time comes.
_________________
some days I get up and just sit and think. Some days I just sit.
opinion untempered by fact is ignorance.
Don't step in any! |
|
| Back to top |
|
|
MadMax78
Samba Member
Joined: May 26, 2007
Posts: 511
Location: The Netherlands
|
| Posted: Tue Jun 25, 2013 10:31 am Post subject: |
|
|
| chimneyfish wrote: |
Thanks for this, I'm looking forward to following your further adventures, fantastic.
Are you going to dare the the Darién Gap or take the ferry? It looks like Samba member HastaAlaska tried it (or considered it - YouTube blocks the video, something to do with the music used) earlier this year from South to North, and in his thread he says he knows the way through and to message him on how to get across! But it seems from what I can deduce that he still opted for the ferry:
|
We're going to bypass the Darien by ferry. As you can see in the videos, it's quite a challenge to get through. It would take far too long and besides that, it is rather dangerous. Nice video btw
| williamM wrote: |
Looks like a lot of fun. Keep up the posts.
One thought no many people know about O2 sensors is how sensitive they are to silicone spray. If you are "water proofing" anything that way- it might have an effect on your o-2 sensor.
Love the exhaust. Might get one for mine when the time comes. |
Never put anything on the sensor. Let's just hope it was due to it's mounting position. Maybe the airflow was messed up where it was mounted, allowing it to build up soot on the sensor.
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member |
|
| Back to top |
|
|
airkooledchris
Samba Member
Joined: January 25, 2005
Posts: 2720
|
| Posted: Tue Jun 25, 2013 11:32 am Post subject: |
|
|
| MadMax78 wrote: |
| Maybe the airflow was messed up where it was mounted, allowing it to build up soot on the sensor. |
I think VW originally mounted theirs pointing straight down going into the top of the exhaust pipe. Is this angle what your referring to, or more related to the distance you place it from the point of exit? |
|
| Back to top |
|
|
MadMax78
Samba Member
Joined: May 26, 2007
Posts: 511
Location: The Netherlands
|
| Posted: Tue Jun 25, 2013 12:49 pm Post subject: |
|
|
The sensor should always be mounted between a 3 and 9 o'clock, this is too prevent moisture collecting around the sensor. Probably also the reason why they are mounted in the 12 o'clock position on the VW's and pretty much every other car.
We had the first one fail after about 7000 miles, at the time I thought it was due to leaded fuel we may have used in Africa. The replacement sensor we carried failed within a couple of days.
Once we got back to Europe we installed another new sensor and it failed within a couple hundred miles. These were all brand new Bosch units, so no crap quality.
The sensor was mounted in a weld on bung right between the collector and muffler on our Thunderbird exhaust. Maybe the bung caused some sort of weird turbulence causing soot to build up on the sensor tip. It could also be a temperature problem, if the exhaust flow is not hot enough it won't burn the soot of the sensor.
The guys at Vintage Speed said the ports on our new exhaust are suitable for continuous O2 sensor operation, so we'll see how it holds up.
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt Injection & Ignition // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply , Busted Bus, Aircooled Technology & DIYAutoTune
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 27.000km
http://www.oranjetrophy.nl
******************************************
Camper Special Club Member |
|
| Back to top |
|
|
topaz.
Samba Member
Joined: October 13, 2008
Posts: 155
Location: Athens Greece
|
| Posted: Tue Jun 25, 2013 1:49 pm Post subject: |
|
|
L
First of all good luck on your team and happy miles.

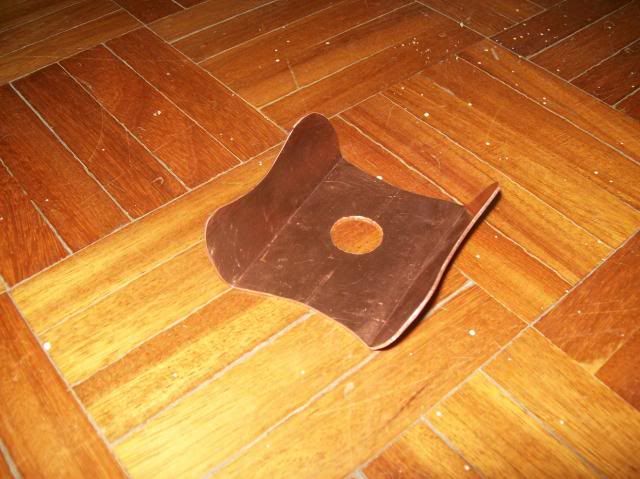

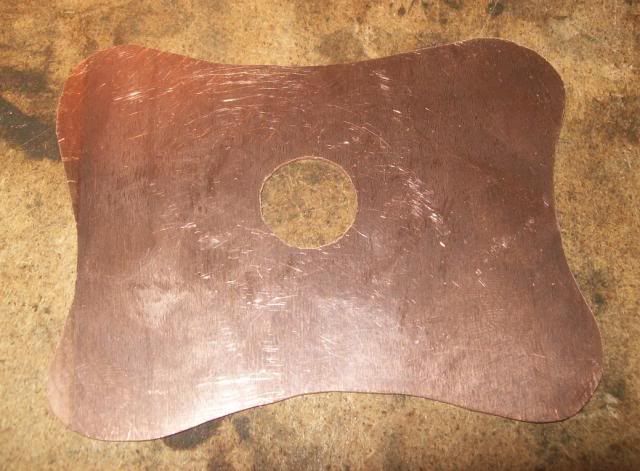

I think a heat sink bung extender from Innovate might do the trick or you may fabricate a copper butterfly and use it inbetween the exhaust and the sensor as long as there is an airflow.
http://www.innovatemotorsports.com/xcart/product.php?productid=16148
Good luck on your convoy once again. |
|
| Back to top |
|
|
Jake Raby
Samba Member
Joined: August 23, 2003
Posts: 7433
Location: Aircooled Heaven USA
|
| Posted: Tue Jun 25, 2013 4:33 pm Post subject: |
|
|
| Bursch wrote: |
| Jake Raby wrote: |
Too bad you can't dip a little bit south and let the engine return to Aircooled Heaven where it was conceived
Awesome trip! |
We'll figure something out, don't wanna miss the opportunity!
In the meantime, we swapped the Thunderbird exhaust for a Vintage Speed one. After 5 years, 30k miles and some patchwork the TB was f****ed up beyond recognition.
Vintage Speed was shipped in a matter of days and the packaging, as with everything else on this product is ace. Comes with studs and 12mm nuts for easy mounting.
Getting dark here, pic of the end result doesn't do it justice.
Sound is a bit heavier compared to the TB, and a bit louder as well. |
We'll see how the unit holds up internally, my experiences with it were less than positive.
_________________
Jake Raby
Raby Engine Development
www.rabyenginedevelopment.com
"I've never given anyone Hell, I just told them the truth and they thought it was Hell" |
|
| Back to top |
|
|
Bursch
Samba Member
Joined: October 28, 2006
Posts: 448
Location: Netherlands
|
| Posted: Wed Jun 26, 2013 4:53 am Post subject: |
|
|
| Jake Raby wrote: |
| Bursch wrote: |
In the meantime, we swapped the Thunderbird exhaust for a Vintage Speed one. After 5 years, 30k miles and some patchwork the TB was f****ed up beyond recognition.
|
We'll see how the unit holds up internally, my experiences with it were less than positive. |

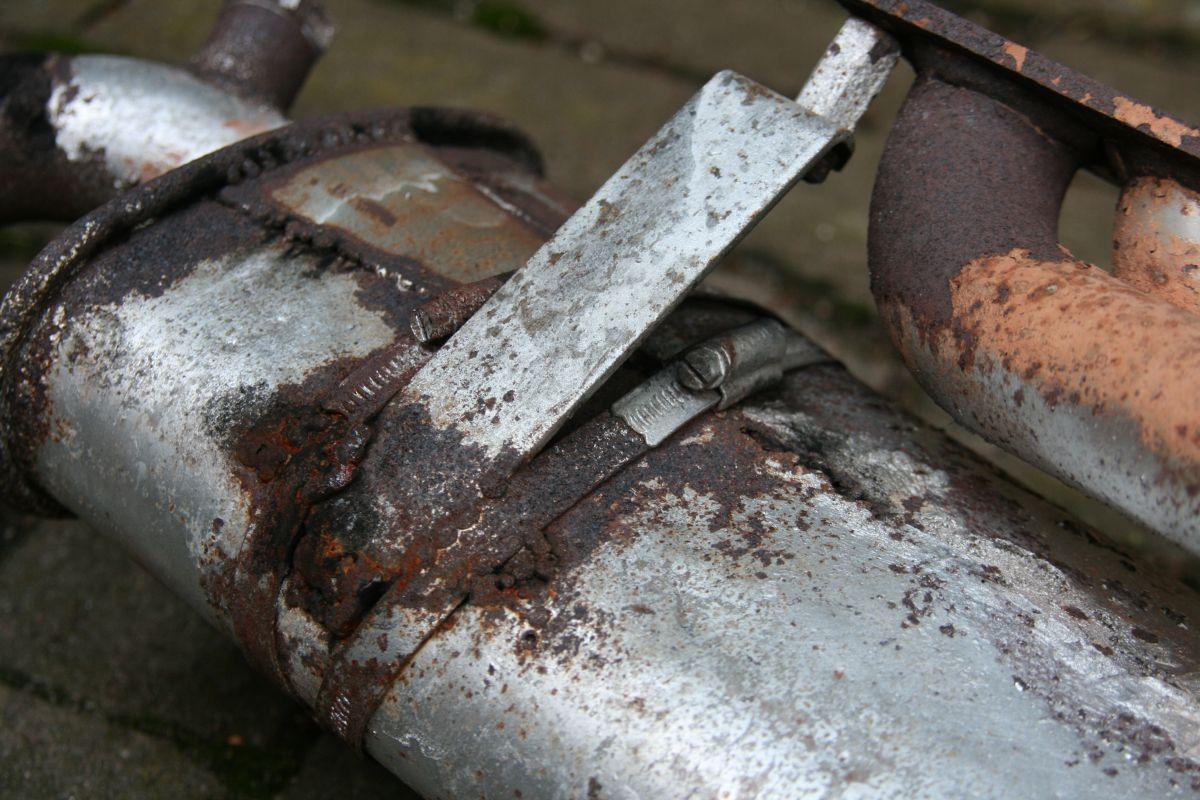

We'll see what happens indeed. The TB was beyond repair, tried to fix'r up a couple of times but the material was just too far gone
_________________
1978 T2b ASI Riviera Plan I // Camper Special with MegaSquirt & EDIS // 091 with 5.14 R/P and Peloquins LSD
Powered by Just Kampers, German Supply, Busted Bus & Aircooled Technology
2008: Amsterdam - Beijing - Olympics -- 17.500km
2010: Amsterdam - Cape Town - FIFA World Cup -- 26.000km
2014: New York - Rio de Janeiro - FIFA World Cup -- 28.000km
***********************
Camper Special Club Member |
|
| Back to top |
|
|
Stuartzickefoose
Samba Post Whore
Joined: February 07, 2008
Posts: 10350
Location: SoCal for now...
|
| Posted: Wed Jun 26, 2013 5:19 am Post subject: |
|
|
ill have to go back and read your other thread, but i cant wait to watch this one!
you should try and catch up with hastaalaska...that would be pretty sweet. i bet he would enjoy the company for a little bit
_________________
Stuart Zickefoose
2011 Jetta Sportwagen TDi 6 speed manual
206-841-7324
[email protected] |
|
| Back to top |
|
|
ned
Samba Member
Joined: June 28, 2004
Posts: 1574
Location: Arroyo Grande Ca.
|
| Posted: Wed Jun 26, 2013 9:14 am Post subject: |
|
|
| While on your trip through California, if you are in need of a camp spot or a maintainence stop I will volunteer my place here on the central coast. |
|
| Back to top |
|
|
Stuartzickefoose
Samba Post Whore
Joined: February 07, 2008
Posts: 10350
Location: SoCal for now...
|
| Posted: Wed Oct 02, 2013 10:21 pm Post subject: |
|
|
any updates?
_________________
Stuart Zickefoose
2011 Jetta Sportwagen TDi 6 speed manual
206-841-7324
[email protected] |
|
| Back to top |
|
|
|
