 Posted: Sat Dec 29, 2012 7:17 am Post subject: Full pan buggy bodies? |
 |
|
Are there are buggy bodies that utilize the full length of the bug pan?
I want a bit of a longer buggy that I would still have the two rows of seats like the normal bug had. It would also save me the time of cutting my pan. |
|
| Back to top |
|
 |
MURZI
Samba Member
Joined: August 25, 2005
Posts: 5066
Location: Madisonville, La
|
| Posted: Sat Dec 29, 2012 7:27 am Post subject: |
|
|
Do a google search. "Vegas buggies, MGM plastics, manxter 2+2, Texas buggies".
_________________
62 vert
2276
Tim’s welded heads
45 Dells
A1 sidewinder
Fk44 cam |
|
| Back to top |
|
|
Gary0302
Samba Member
Joined: August 29, 2007
Posts: 596
Location: Coastal NC
|
| Posted: Sat Dec 29, 2012 7:33 am Post subject: |
|
|
I believe that Berrien Buggy - Acme Car Co is going to release a 4 seater body for a full length pan in the near future. I don't have any details or photos, but I do know that they have been running a contest to name the body. Here is the link:
http://www.berrienbuggy.com/
_________________
Gary David Holbrook
Facebook and YouTube
Coastal North Carolina
Check out my videos on Youtube
"It's a buggy not a space shuttle...." - Dale M.
"When in doubt, blame it on the previous owner" - Gary0302 |
|
| Back to top |
|
|
dleberfinger
Samba Member
Joined: August 06, 2012
Posts: 82
Location: Bloomsburg, PA
|
| Posted: Sat Dec 29, 2012 7:37 am Post subject: |
|
|
| These were the ones I was already aware of. Were there any made in the past that I might be able to find used? Unfortunately I don't have 5 grand to spend on just the body. |
|
| Back to top |
|
|
MURZI
Samba Member
Joined: August 25, 2005
Posts: 5066
Location: Madisonville, La
|
| Posted: Sat Dec 29, 2012 8:14 am Post subject: |
|
|

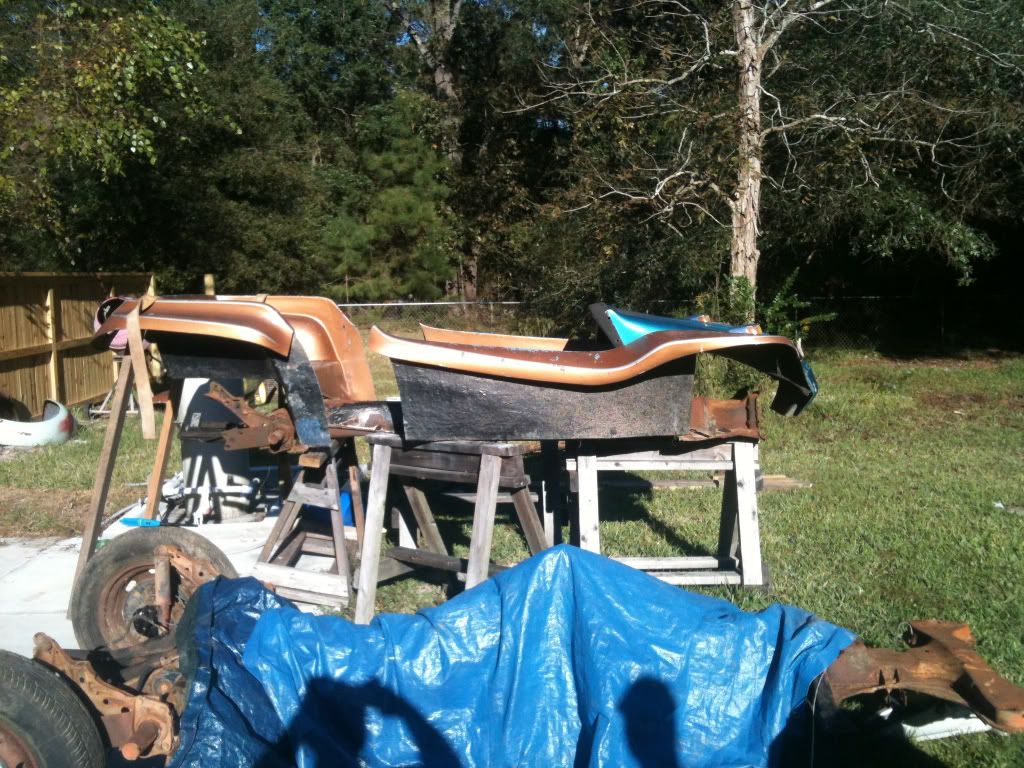

Here is the alternative....400 bucks and 26 Saturdays.
_________________
62 vert
2276
Tim’s welded heads
45 Dells
A1 sidewinder
Fk44 cam |
|
| Back to top |
|
|
dleberfinger
Samba Member
Joined: August 06, 2012
Posts: 82
Location: Bloomsburg, PA
|
| Posted: Sat Dec 29, 2012 8:37 am Post subject: |
|
|
| MURZI wrote: |
Here is the alternative....400 bucks and 26 Saturdays.
|
I've been thinking about doing that, and have plenty of free time, but how do I fill in the gap? |
|
| Back to top |
|
|
Wolfgangdieter
Samba Member
Joined: June 25, 2008
Posts: 1990
Location: FL Panhandle
|
| Posted: Sat Dec 29, 2012 8:47 am Post subject: |
|
|
Try fiberglass cloth and resin.
_________________
CMC '57 Porsche Speedster Replica and Dolphin boat tailed full pan VW MOD-T Street Buggy |
|
| Back to top |
|
|
dleberfinger
Samba Member
Joined: August 06, 2012
Posts: 82
Location: Bloomsburg, PA
|
| Posted: Sat Dec 29, 2012 8:54 am Post subject: |
|
|
| Wolfgangdieter wrote: |
| Try fiberglass cloth and resin. |
Figured there might be a different way.
I guess I'll just have to try and blend in the new paint or maybe just repainting it all considering I might not be able to find that color. |
|
| Back to top |
|
|
gr8cobbler
Samba Member
Joined: May 04, 2006
Posts: 916
Location: Midlife Crisis, Midwest
|
| Posted: Sat Dec 29, 2012 8:56 am Post subject: |
|
|

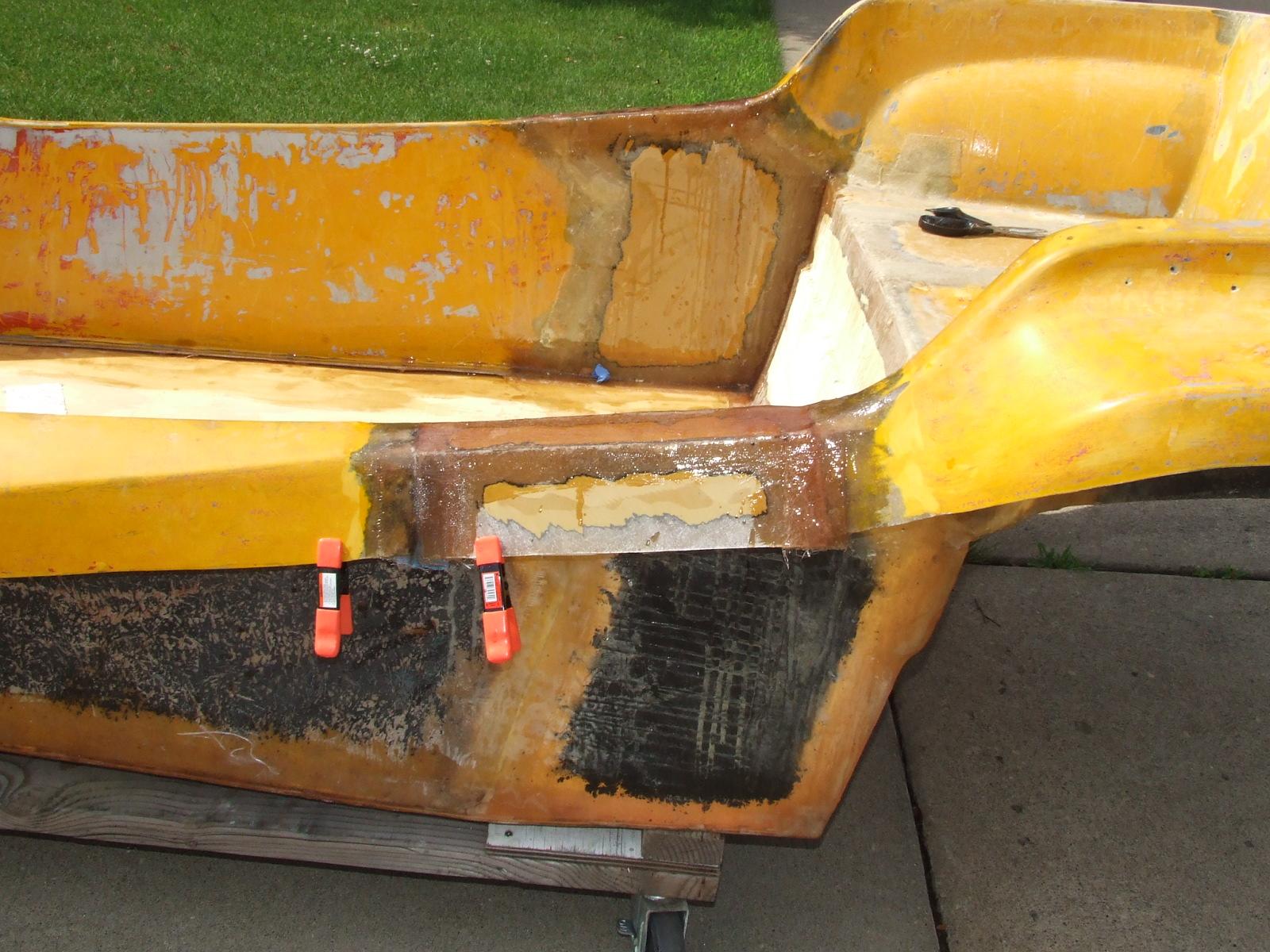

Lots of folks use a board covered with Aluminum foil and lay up on that in place on the buggy. I scabbed pieces of fiberglass in on my stretch. Not a bad idea to bolt the body to your pan when you do it to help keep the whole thing aligned. Been there, done that, no joke about the 26 saturdays in my case....
I took lots of pictures with the idea that I would someday post up my efforts. Have since realized that I may not always be a good example for others.  I am very happy with my results, just maybe not best practices. Learned a bunch, enjoyed the process.
_________________
Gary
Being a cheap old fart is just a front for my actual lack of money.
Last edited by gr8cobbler on Sat Dec 29, 2012 9:24 am; edited 2 times in total |
|
| Back to top |
|
|
dleberfinger
Samba Member
Joined: August 06, 2012
Posts: 82
Location: Bloomsburg, PA
|
| Posted: Sat Dec 29, 2012 9:03 am Post subject: |
|
|
| gr8cobbler wrote: |
Lots of folks use a board covered with Aluminum foil and lay up on that in place on the buggy. I scabbed pieces of fiberglass in on my stretch. Not a bad idea to bolt the body to your pan when you do it to help keep the whole thing aligned. Been there, done that, no joke about the 26 saturdays in my case....
I took lots of pictures with the idea that I would someday post up my efforts. Have since realized that I may not always be a good example for others. I am very happy with my results, just maybe not best practices. Learned a bunch, enjoyed the process. |
Is there any chance you would be willing to post those pictures up and sending me the link? I'm interested to see how others do things before I do. At the very least I could learn from any mistakes you made. |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 20751
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Sat Dec 29, 2012 9:05 am Post subject: |
|
|
To fill gap... get a piece of plywood and wrap it in "plastic wrap" (Saran or Glad wrap) and use some screws to mount it to INSIDE of body then you do a glass and mat/cloth lay up from the outside of body spanning "stretch" area..... Once you have several layers of resin/cloth and "structure" of body is stable, remove screws and plywood panel and do finish work on inside of body..... Yes you probable need original body parts mounted to pan or at least some sort of solid framework to mount body to so everything stay straight and inline till all the resin/mat/cloth has a few days or weeks to mature and become "rigid"...
Only issue is to get body contour lines to look natural... Most cut and stretch jobs I have seem always have some awkward lines where person doing the work did not get the lines and curves to follow what should be natural "flow" of body....
Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...
Last edited by Dale M. on Sat Dec 29, 2012 9:08 am; edited 1 time in total |
|
| Back to top |
|
|
gr8cobbler
Samba Member
Joined: May 04, 2006
Posts: 916
Location: Midlife Crisis, Midwest
|
| Posted: Sat Dec 29, 2012 9:06 am Post subject: |
|
|

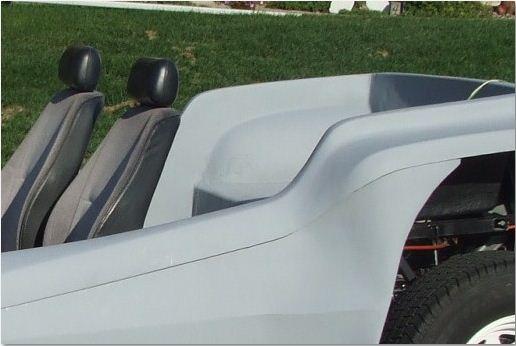

Was fetching the photo for the previous post, I am probably of best service to the community as an example of what not to do. Hope the photo helps a bit.
Dales explanation is more helpful than mine, he is one of the resources I have learned to respect here.
_________________
Gary
Being a cheap old fart is just a front for my actual lack of money. |
|
| Back to top |
|
|
dleberfinger
Samba Member
Joined: August 06, 2012
Posts: 82
Location: Bloomsburg, PA
|
| Posted: Sat Dec 29, 2012 9:29 am Post subject: |
|
|
| That doesn't look bad at all. I see no problem with how you did it. My main concern about doing it that way is just the fact that I'd have to repaint it, which in the case of buying a used one I probably would anyway. |
|
| Back to top |
|
|
Vealmonkey
Samba Member
Joined: August 28, 2007
Posts: 103
Location: Balltimore, MD
|
| Posted: Sat Dec 29, 2012 11:44 am Post subject: |
|
|
| The old "Tuff Tub" utilizied a full sized floorpan. |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 20751
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Sat Dec 29, 2012 11:46 am Post subject: |
|
|
| gr8cobbler wrote: |
Lots of folks use a board covered with Aluminum foil and lay up on that in place on the buggy. I scabbed pieces of fiberglass in on my stretch. Not a bad idea to bolt the body to your pan when you do it to help keep the whole thing aligned. Been there, done that, no joke about the 26 saturdays in my case....
I took lots of pictures with the idea that I would someday post up my efforts. Have since realized that I may not always be a good example for others. I am very happy with my results, just maybe not best practices. Learned a bunch, enjoyed the process.
|
Very good!....This seems to be one of the mods that got the lines and angles right.... Many do not....
Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ... |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 20751
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Sat Dec 29, 2012 11:50 am Post subject: |
|
|
| dleberfinger wrote: |
| That doesn't look bad at all. I see no problem with how you did it. My main concern about doing it that way is just the fact that I'd have to repaint it, which in the case of buying a used one I probably would anyway. |
Paint is a fact of life.... There is no way of doing any serious body mods with out new coat of color as final step..... You could use polished aluminum diamond plate but it will always look like a ugly patch....
Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ... |
|
| Back to top |
|
|
BIGMIKEY
Samba Member
Joined: September 24, 2007
Posts: 1130
Location: North East Pennsylvania
|
| Posted: Sat Dec 29, 2012 1:06 pm Post subject: |
|
|
| gr8cobbler wrote: |
Lots of folks use a board covered with Aluminum foil and lay up on that in place on the buggy. I scabbed pieces of fiberglass in on my stretch. Not a bad idea to bolt the body to your pan when you do it to help keep the whole thing aligned. Been there, done that, no joke about the 26 saturdays in my case....
I took lots of pictures with the idea that I would someday post up my efforts. Have since realized that I may not always be a good example for others. I am very happy with my results, just maybe not best practices. Learned a bunch, enjoyed the process.
|
I would be interested in seeing the process used for stretching the sidepods. Or are there full length sidepods available?
_________________
BIGMIKEY
Deserter Series 1 project.
https://www.thesamba.com/vw/forum/viewtopic.php?t=787047&highlight=
1973 Beetle Driver, Marina Blue. |
|
| Back to top |
|
|
HeidelbergJohn4.0
Samba Member
Joined: March 01, 2004
Posts: 1199
Location: Havre de Grace, MD
|
| Posted: Sat Dec 29, 2012 1:26 pm Post subject: |
|
|
I don't know of anyone selling new ones on the east coast. Other than the ones mentioned, There was a company in the denver area selling a long body. I was able to find a long body used, but it took a while. I had bought a couple short bodies with the intention of stretching. One had even already been cut in half but was cut wrong for how I would have stretched it. Some body lines are more easily stretched than others. I actually planned out a stratch that was much more complex than what gr8cobbler did but I was looking for something more like the manxter.
_________________
71 LWB Manx style dunebuggy
71 Beetle
71 Volksrod
Machette Speedster
2012 Passat TDI SE (sadly sitting in a buyback parking lot somewhere waiting for it's heart to be ripped out.) |
|
| Back to top |
|
|
gr8cobbler
Samba Member
Joined: May 04, 2006
Posts: 916
Location: Midlife Crisis, Midwest
|
| Posted: Sat Dec 29, 2012 2:33 pm Post subject: |
|
|
| Quote: |
| I would be interested in seeing the process used for stretching the sidepods. Or are there full length sidepods available? |
I actually fabricated those from scratch using the sides of a derelict boat. The boat had a nice body line that I incorporated into my sidepods and then carried that line into the bump out for the front and rear wheel wells. I think I saved a bundle in resin and mat and got a nice gelcoat finish to work with on large sections of the pods. The guy at the boat yard thought I was nuts cutting the sides out of a scrap boat. He was probably right... I get that a lot.
They look ok, not perfect by a long shot but I learned a lot on that project too, not as many pictures.
_________________
Gary
Being a cheap old fart is just a front for my actual lack of money. |
|
