US Virgin Islands Manx Pro Street Build

Deh Shark · Last edited by Deh Shark on Tue Sep 03, 2013 4:13 pm; edited 1 time in total

Here we go with another Manx built dune buggy. This buggy shell was founded in Charlotte NC. It's been over 10 yrs.' Weather in the islands is always stays in the 80's. Building this buggy will be fun and a nice driver. Without further due. It's time.

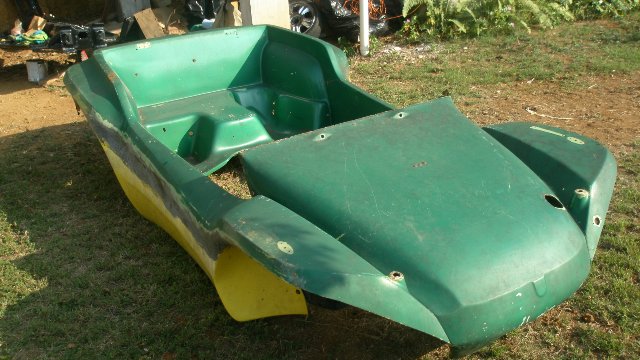

Sitting against a tree in NC. After I did some work on it.

Image may have been reduced in size. Click image to view fullscreen.

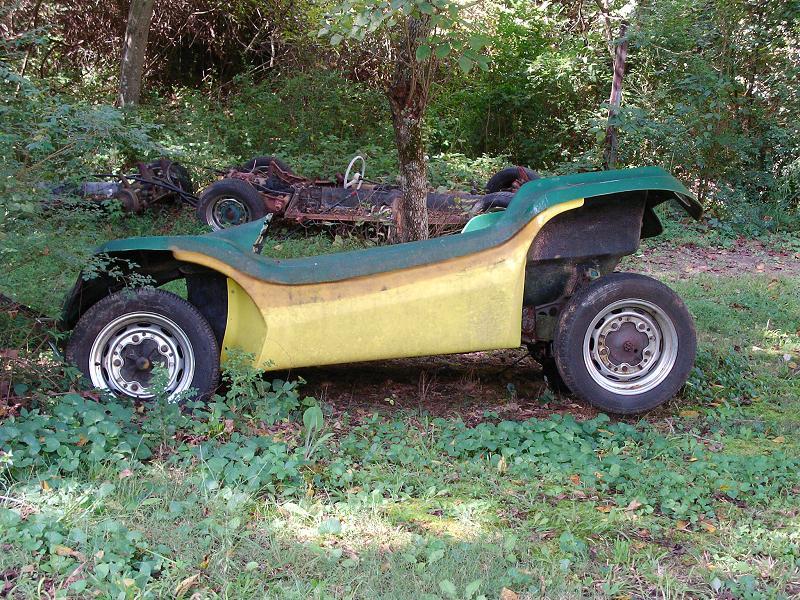

Here's sitting on a chassis I got from my buddy Sean.

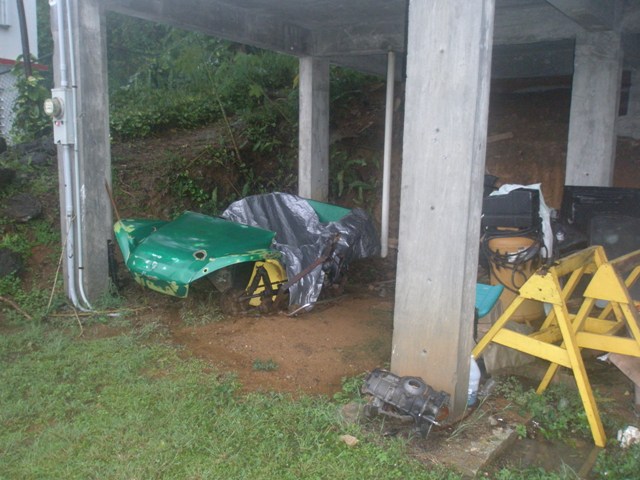

After it came to the Virgin Islands. I stripped it and worked on the chassis.

Did some welding, Oshpor then Por-15.

Which one to use?

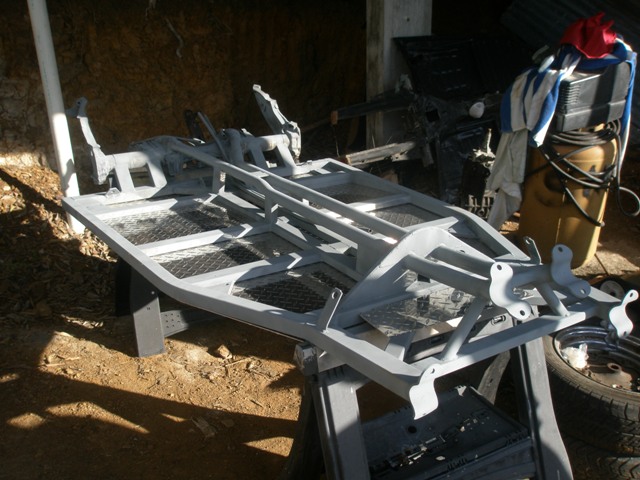

Then.. I decided to sell the chassis. Then bought a custom built chassis from David Barrett. Shorten the axles tubes 3 inches and raise torsion 3inches. Along with a full roll cage. Pro-Street. Gotta thanks David for building me a sweet chassis!

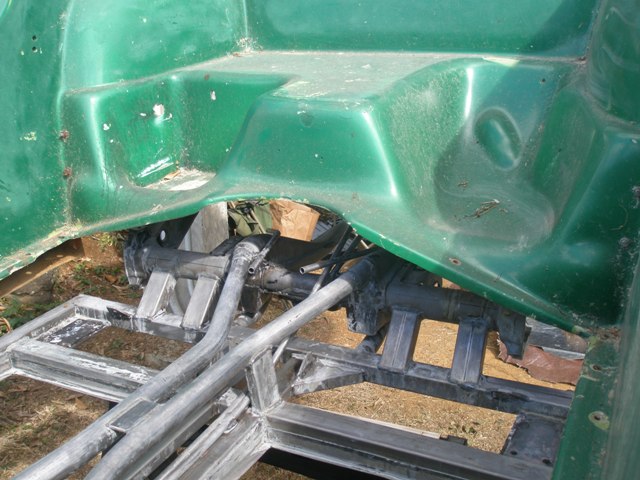

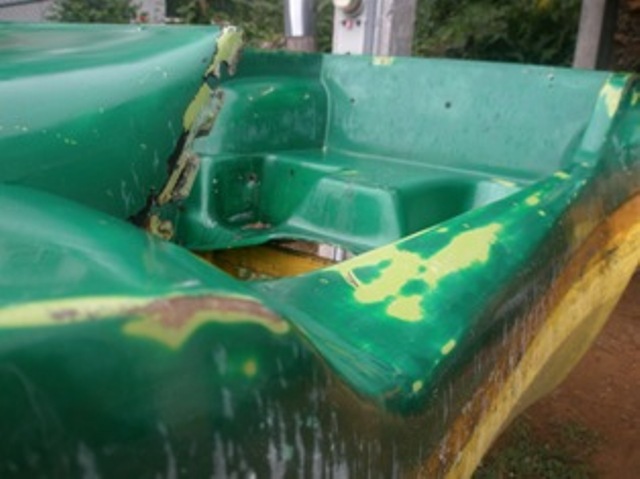

As you can see.. I don't want to cut the body. But I have to. So there will be some Mods going on here in this part section of the body.

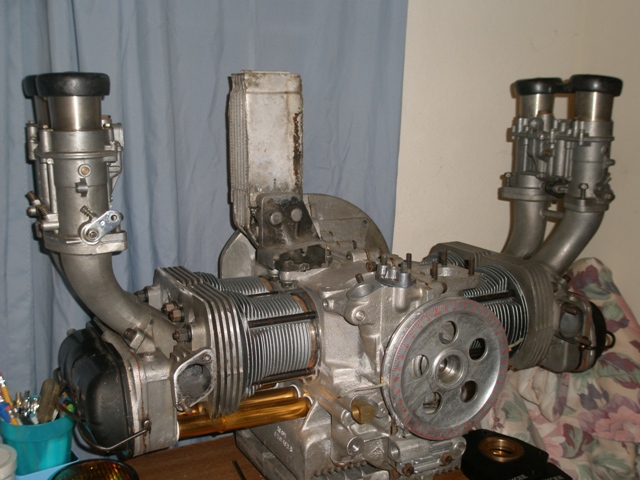

Here's the mill that going in. 2387cc 48IDA's Alum case, 251 Web cam, Super Flows heads & to many others to mention.

Mocked up and fitted the Tranny and 3inch shorten Ball Joint beam.

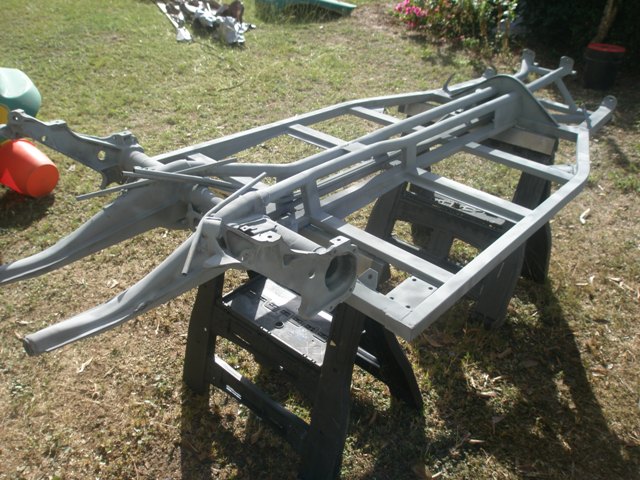

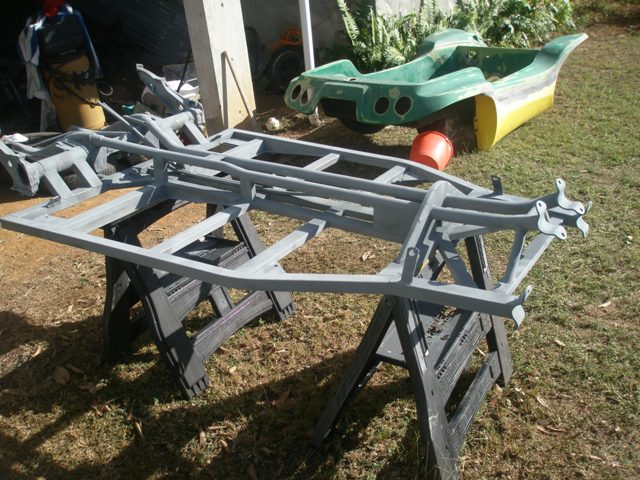

Finally painted the chassis with Por-15. She is a beauty to behold. maybe I shoot a clear on it to keep this lustrous shine! eh.

Any advise are welcome for a good overall build of this Manx dune buggy. This coming weekend the Disc brakes and lines will be added. The front end and rear end will be dialed in. More pictures to come. Enjoy!!
_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

flymanx · Posted: Fri Aug 09, 2013 4:50 pm Post subject:

The Great White keep the nice Pics coming.... Nice Manx !!!
_________________
Life is one big road with lots of signs. So when you riding through the ruts, don't you complicate your mind

Deh Shark · Posted: Sun Aug 11, 2013 5:52 am Post subject:

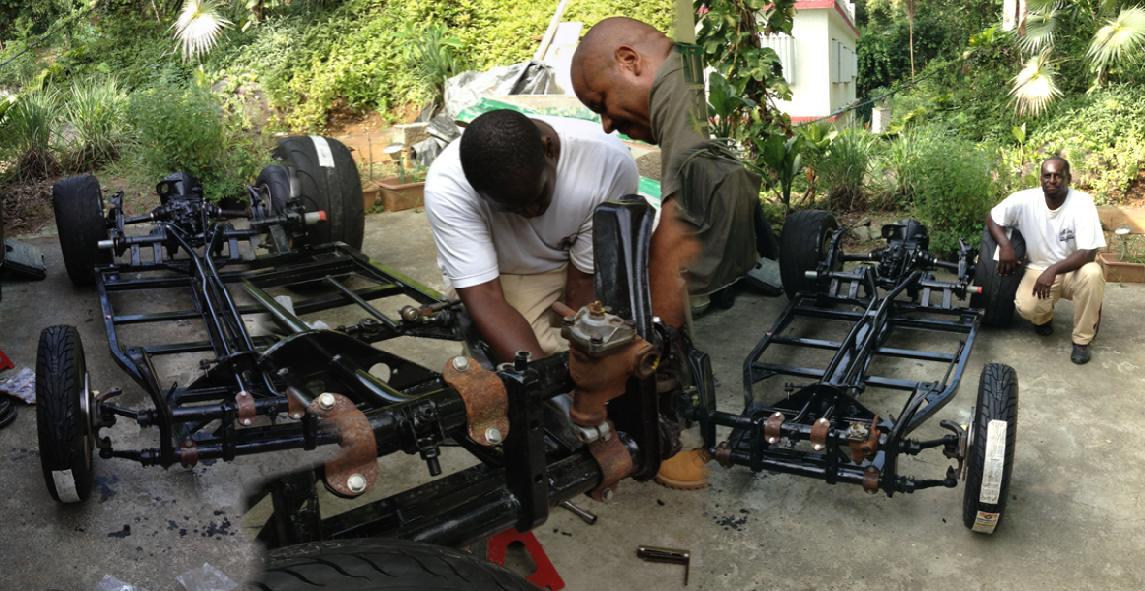

Thanks Flyman.. Today is suspension assembly time. Pic later
_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

MURZI · Posted: Sun Aug 11, 2013 8:19 am Post subject:

I love the "island look". My buggy copied a lot of you guys styling. Awesome.
_________________
62 vert
2276
Tim’s welded heads
45 Dells
A1 sidewinder
Fk44 cam

Khova · Posted: Tue Aug 13, 2013 2:52 pm Post subject:

Wah deh rasssss! SID starring! Yes sigh!
_________________
Virgin Islands Nice!

56 Rag http://www.thesamba.com/vw/forum/viewtopic.php?t=475262&postdays=0&postorder=asc&start=0
Virgin Islands Style

Yustrn · Posted: Tue Aug 13, 2013 3:40 pm Post subject:

Buggies are fun, I love mine!
_________________
I own a copy of "The Car of the Century" by Garwood. This means I am authorized to act like a twat in thesamba forums.

Deh Shark · Posted: Fri Aug 16, 2013 12:00 pm Post subject:

Thanks fellas.. This one here will be a nice build. Very Happy

_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

TSFR · Posted: Fri Aug 16, 2013 12:27 pm Post subject:

NICE BUILD!! What are the chrome tail lights called and where could I get a set? Thanks!

Deh Shark · Posted: Fri Aug 16, 2013 12:32 pm Post subject:

Thanks TSFR.. I'm getting it together. Also.. the chrome tail lights are repo split tail lights. I got them from Kaefer-Nostalgie. Check out the link. http://www.thesamba.com/vw/classifieds/detail.php?id=248899
_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

Deh Shark · Posted: Mon Sep 02, 2013 6:21 pm Post subject:

Shut It Down Racing Project Update:
On Sat Aug 31 2013

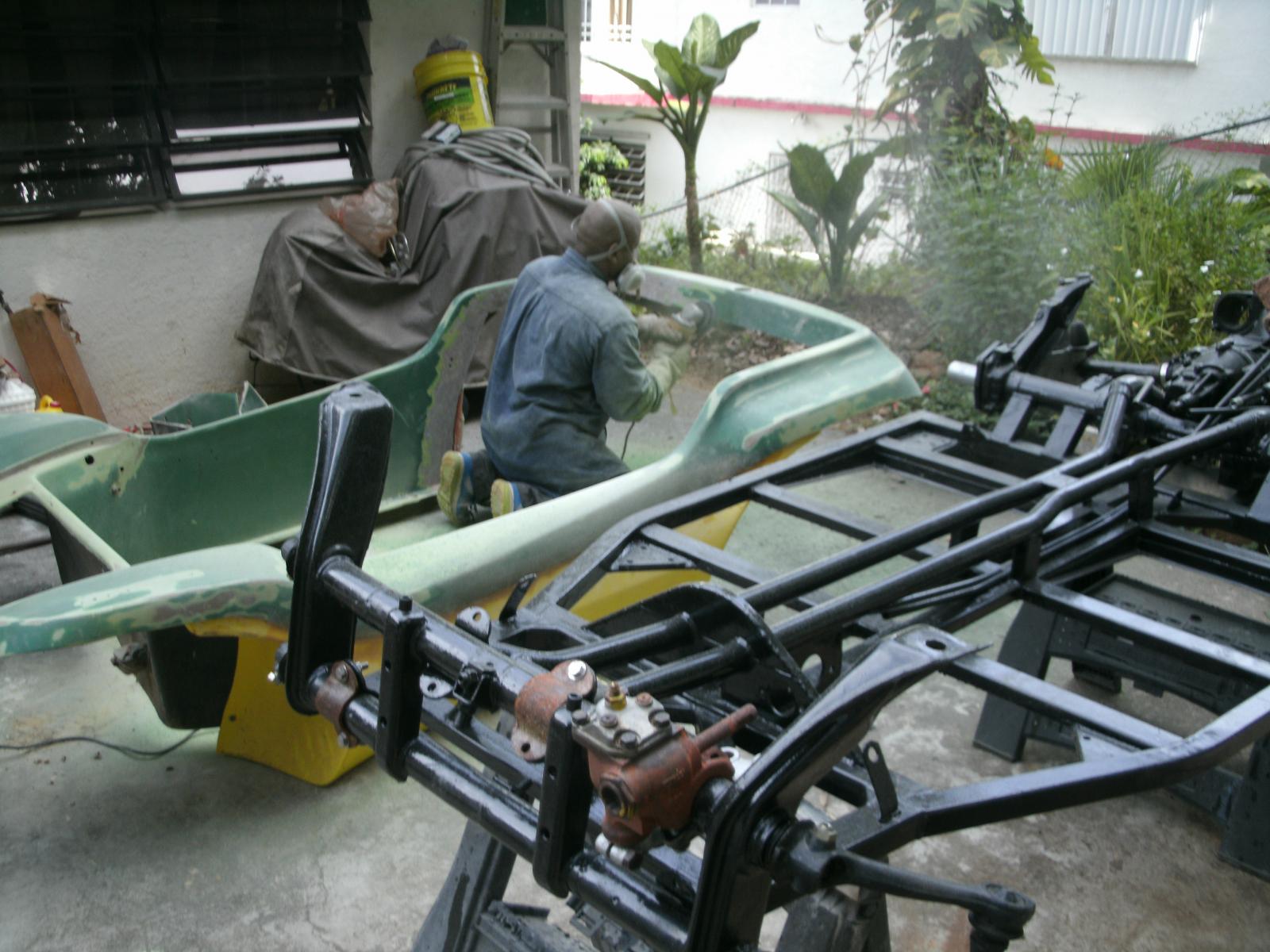

Some body work was done. I had to cut out the luggage compartment area so the body can sit flush flat on the chassis. The chassis torsion is raised 3 inches and Narrowed 3 inches.

Bugman Forsure doing his thing! Doing some Mods on the fiberglass.

Looking good! progress!!

Also the Disc brake were installed on all four corners plus the wheels!

I got to re adjust the suspension settings @ a later date once I get other stuff dialed in. Stay tune.. More pics & progress to come.
_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

gr8cobbler · Posted: Tue Sep 03, 2013 4:48 am Post subject:

Well, you should get good air flow to the engine...... Shocked

I'll keep checking in to see what you do with that opportunity. It ought to be a pretty trick little buggy.
_________________
Gary

Being a cheap old fart is just a front for my actual lack of money. Smile

Deh Shark · Posted: Tue Sep 03, 2013 4:14 pm Post subject:

Most def gr8cobbler. I'm enjoying this build. More stuff to come.
_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

Deh Shark · Posted: Thu Sep 05, 2013 8:32 am Post subject:

proud moment...

_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

Humdinger · Posted: Thu Sep 05, 2013 10:15 am Post subject:

I love the pro street buggy style! I see you have drag radials on the rear... what kind of tranny, axles, etc are you running to hold the power vs tire grip?

Humdinger · Posted: Thu Sep 05, 2013 10:20 am Post subject:

I love the pro street buggy style! I see you have drag radials on the rear... what kind of tranny, axles, etc are you running to hold the power vs tire grip?

Deh Shark · Posted: Thu Sep 05, 2013 7:39 pm Post subject:

@ Humdinger. The motor is a 2387cc 48IDA's Alum case, 251 Web cam, Super Flows heads 2 inch headers with stinger. Trans is basically rebuilt stock but some mods were done to suit gearings for the hills. Rear tires are 275/50/15 Mickey Thompson Drag radials. 3 inch shorten axles and torsion is raised 3 inchs as well. The buggy is just a driver... Pro Stock profile.. but just a driver Very Happy

lol..
_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

Deh Shark · Posted: Sat Sep 14, 2013 3:00 pm Post subject:

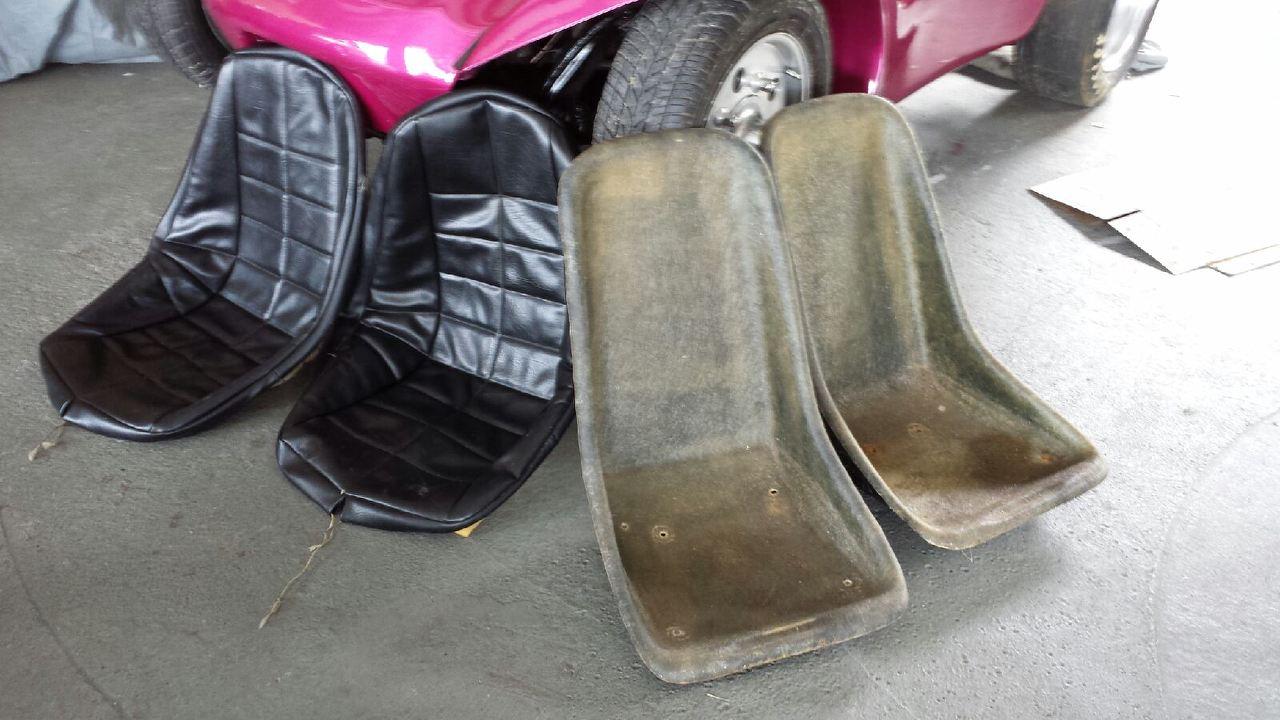

I got my Fiberglass seat from a fellow dune buggy owner from St Croix. Seat are sweet!!

_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

Art.b · Posted: Sat Sep 14, 2013 5:17 pm Post subject:

That's a real nice buggy project. Cant wait to see it finished!

Deh Shark · Posted: Thu Oct 17, 2013 9:15 am Post subject:

Updates:
I got my Gene Berg Shifter and Shift Box from DeluxeIron http://www.thesamba.com/vw/classifieds/detail.php?id=1425109
Doug make some sweet parts. I got my mid mount from him also. Great guy.

Here's me chilling like a villain in the tub. Great place to just relax and pass time. Work starts again. More pic to come.

_________________
AH TIYAD AH DAT DEH BAI!!!
Organize folks are just to lazy to look for stuff!!

55 3 fold Ragtop
Manx Dune buggy 2387cc

Deh Shark · Posted: Sun Oct 20, 2013 6:33 pm Post subject:

Some work was done today. A new Brake line was placed and the rear end was re-indexed to sit lower.
