 Posted: Sun Dec 08, 2013 8:59 am Post subject: Any Pics of a RMW grill guard for a GoWesty front bumper? |
 |
|
| I searched around quite a bit and can't seem to find a picture of a Rocky Mountain Westy grill guard on a gowesty front bumper. The reason is, I really need to see how it mounts and if there is tow points built into mounts on the front like the ones made for the RMW bumpers. It's a toss-up for me whether I build one myself or buy theirs. At the price they are selling them for I wouldn't be able to pay myself to do it. I just don't want to buy one then have to modify it to the point of diminishing returns. |
|
| Back to top |
|
 |
flyindutchman
Samba Member
Joined: December 09, 2012
Posts: 112
Location: Vancouver,WA.
|
| Posted: Tue Dec 10, 2013 11:02 am Post subject: |
|
|
| Common, somebody's got to have a picture some where......... Rocky mountain westy brush guard on a go westy bumper |
|
| Back to top |
|
|
dubbified
Samba Member
Joined: March 03, 2010
Posts: 1508
Location: Redmond, WA
|
| Posted: Tue Dec 10, 2013 1:59 pm Post subject: |
|
|

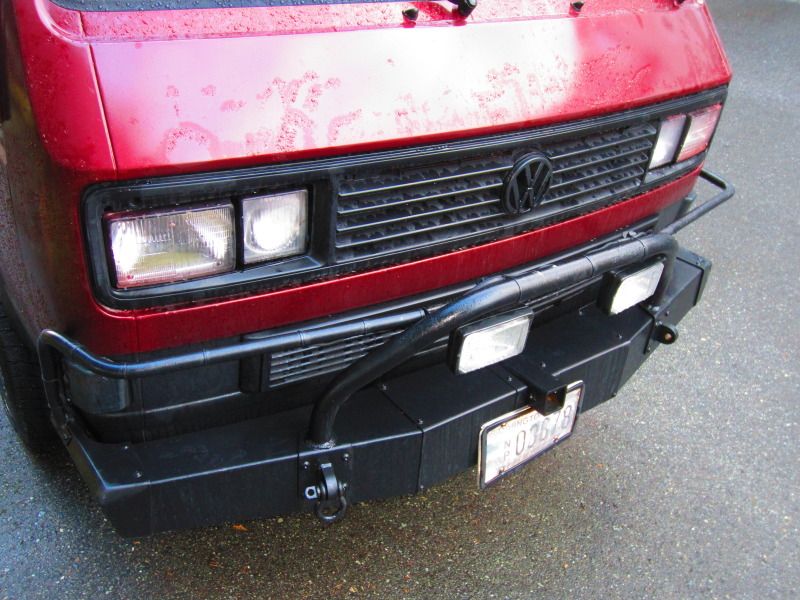

This is my brush guard with overriders on my RMW bumper..
|
|
| Back to top |
|
|
flyindutchman
Samba Member
Joined: December 09, 2012
Posts: 112
Location: Vancouver,WA.
|
| Posted: Tue Dec 10, 2013 2:18 pm Post subject: |
|
|
| Thanks Dubbified, I'm Hoping that the brush guard for the GW bumper has the same tow point as yours does. That looks great. |
|
| Back to top |
|
|
dubbified
Samba Member
Joined: March 03, 2010
Posts: 1508
Location: Redmond, WA
|
| Posted: Tue Dec 10, 2013 2:25 pm Post subject: |
|
|
I love me some GW products.. but this bumper just does not compare to the tube bumpers.
and you can buy the replacement center piece for a functional towing point.. anchors right into the front steels and is beefcake. Anyone hits my van, they are going to stop.
In looking at the GW Site to confirm if this pic was close to what you sought, I was seeing they offer a hi-lift mount! so the hilift is then functional anti collision steel.. too.
It is a fact your feet are some 6 inches behind the front unibody steel.
Putting these auxillary steels in place, upgrades the impact resistance..
and I am all about resistance.. to accidents...
atleast.. that's how I hope it goes. |
|
| Back to top |
|
|
flyindutchman
Samba Member
Joined: December 09, 2012
Posts: 112
Location: Vancouver,WA.
|
| Posted: Wed Dec 11, 2013 7:34 am Post subject: |
|
|
| Ok, so I originally posted this on a Sunday and was very impatient to figure things out. I finally called RMW yesterday and spoke to Joe who informed me of why he doesn't put tow points on GW bumpers, it all sounded pretty reasonable and savvy. The last post on this thread mentioned that our feet are only six inches behind the exterior body steel. So now,.... I guess I have some more considerations as far as bumper mods go before I dive in, I like the hi-lift mount location idea. does anybody have some pictures of custom front bumpers/ grill guards?????? |
|
| Back to top |
|
|
Mick Ord
Samba Member
Joined: April 26, 2008
Posts: 203
Location: Vancouver, BC
|
| Posted: Wed Dec 11, 2013 8:44 am Post subject: |
|
|
Im interested as to why you wouldn't want to fit tow points to gowesty bumpers ???
I was just about to order this rmw grill guard and D ring tow points to bolt onto my gowesty bumpers for a bit of a more " off road" look !
Now im wondering if theres an "issue " ????
_________________
1991 Syncro Westy- 2.5 Suby
1989 Syncro Tristar ( sold)
1988 2wd Tristar- about to start resto/rebuild !! |
|
| Back to top |
|
|
syncromike
Samba Member
Joined: November 14, 2011
Posts: 660
Location: Boise, ID
|
| Posted: Wed Dec 11, 2013 10:14 am Post subject: |
|
|
| Mick Ord wrote: |
Im interested as to why you wouldn't want to fit tow points to gowesty bumpers ???
I was just about to order this rmw grill guard and D ring tow points to bolt onto my gowesty bumpers for a bit of a more " off road" look !
Now im wondering if theres an "issue " ???? |
I'm uncrating my newly arrived GW bumper and front tow hitch mount today, so I'll hopefully post pics later, but I did some research and know that the GW bumper is just a bumper cover and only has 2 small bolts holding it to the frame. GW's front hitch does have 2 stronger bolts that drill through the structural steel of the front bumper and the bumper cover, so in a typical situation one could use the Hi-Lift Mount hitch adapter as a recovery point. Although it's not as strong as some other bumpers or a Gary Lee winch mount, it should work for where I plan on going. I still wouldn't put D-rings closer to the corners of the front bumper without drilling more reinforcements in to the body steel. I think Alaric did that for his van w/ GW front bumper. I might do that later, but not right away.
_________________
_____________________
'91 Syncro w/ Country Homes PopTop |
|
| Back to top |
|
|
tangojeff
Samba Member
Joined: February 20, 2005
Posts: 209
|
| Posted: Wed Dec 11, 2013 3:42 pm Post subject: GoWe$ty front bumper |
|
|
| The right corner of my GoWe$ty front "bumper cover" was hit by a new Japanese sub-compact going 25mph. The additional steel Z-bracket underneath that mounts the corner of the bumper to the frame did its job. The right end panel of the bumper was banged in less than 1/2", but the bumper still had its original minimal 1/8" clearance from the Vanagon sheet metal. My blinker was shattered and the opening for it was slightly bent. the passenger door got a small dent at the bottom. Dog leg was OK. Thank you Lucas. |
|
| Back to top |
|
|
Madeouttaglass
Samba Member
Joined: September 18, 2013
Posts: 228
Location: Shelter Cove, California
|
| Posted: Wed Dec 11, 2013 4:09 pm Post subject: |
|
|
| flyindutchman wrote: |
| does anybody have some pictures of custom front bumpers/ grill guards?????? |

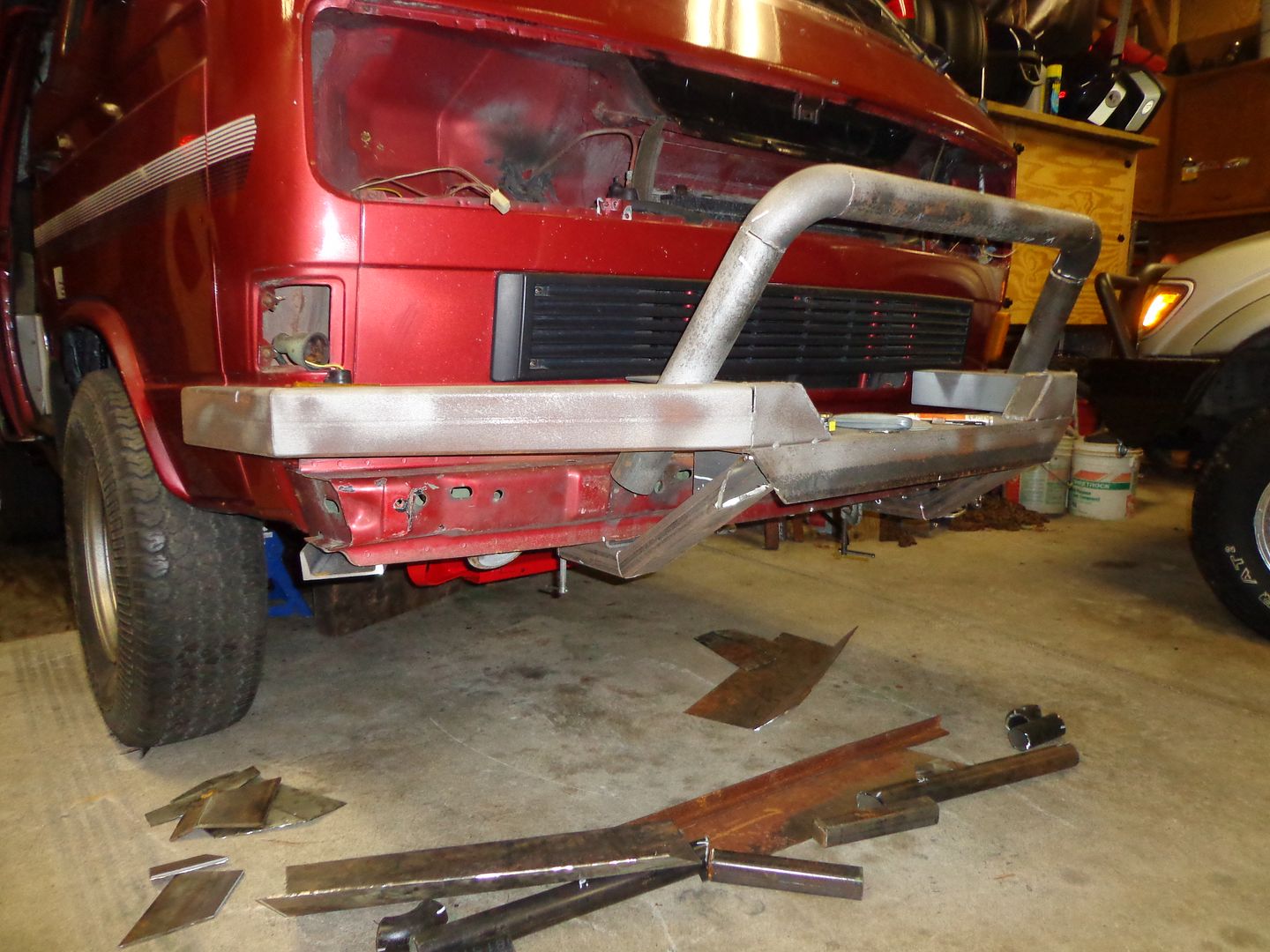

I too am concerned about that 6 inches. My bumper and subframe will be finished up this weekend. In the meantime, here is what I have so far. The corners will be attached to the lower channel arms that you can see under the end of the factory bumper mount. There is much more steel that will be welded on including braces that go against the factory bumper mount. I don't want this to simply curl up and back in an impact.
In the background you can see the bumper I built for my Tacoma earlier this summer.

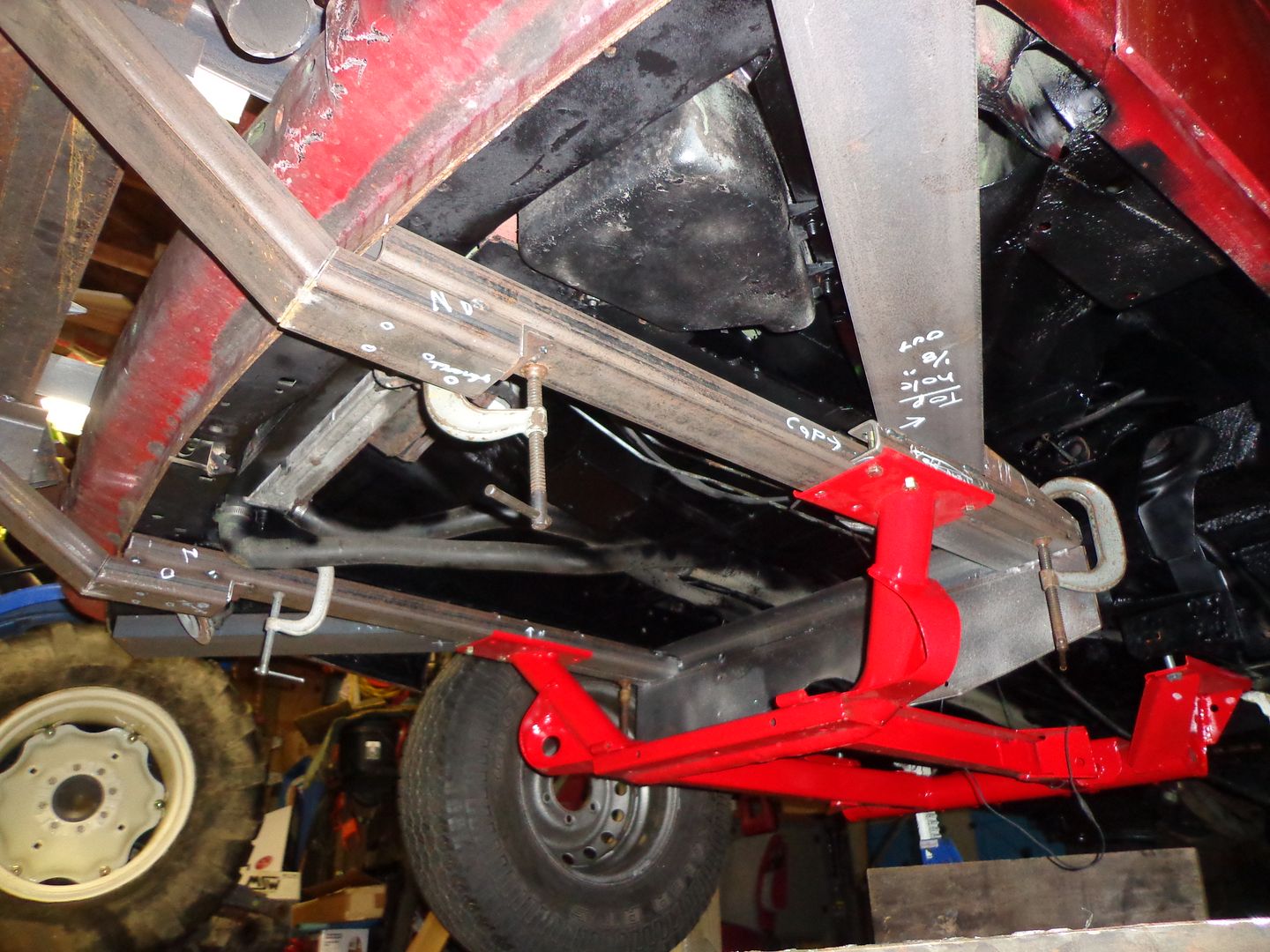

A shot from below:
At this point you can see it is only tacked together. There are braces and a front skirt already cut that will be welded on this weekend. I wanted to make it so the bumper would still unbolt from the subframe and that detail has added quite a bit of complexity to a simple bumper. The top will be aluminum diamond plate. I'll post pictures of the finished product in my build thread in a week or so. |
|
| Back to top |
|
|
flyindutchman
Samba Member
Joined: December 09, 2012
Posts: 112
Location: Vancouver,WA.
|
| Posted: Wed Dec 11, 2013 5:04 pm Post subject: |
|
|
From what I've gathered, the GW front bumper is mostly 1/8" (ish) sheet metal in the area where the mounts for the brush guard bolt, so it's not really a good idea to mount a tow point there with out more reinforcements to strengthen the bumper to the "framework" of the body. I've seen how the RMW bumper attaches and they keep real close (and strong) tolerances on the attachment points near the mentioned tow points on their bumpers. Still, at the price they sell the brush guard for, you couldn't pay yourself $10 an hr. + materials and build it yourself and beat it. I figure, mount the brush guard and fab tow points in another spot would be more better.
Madeouttaglass , that is a badass build bumper/sub frame project there, Inspiring, I'll have to check out your thread! |
|
| Back to top |
|
|
bluefirefly
Samba Member
Joined: March 16, 2011
Posts: 438
Location: Calgary, Ab
|
| Posted: Thu Dec 12, 2013 6:43 am Post subject: |
|
|
| Madeouttaglass wrote: |
| flyindutchman wrote: |
| does anybody have some pictures of custom front bumpers/ grill guards?????? |
I too am concerned about that 6 inches. My bumper and subframe will be finished up this weekend. In the meantime, here is what I have so far. The corners will be attached to the lower channel arms that you can see under the end of the factory bumper mount. There is much more steel that will be welded on including braces that go against the factory bumper mount. I don't want this to simply curl up and back in an impact.
In the background you can see the bumper I built for my Tacoma earlier this summer.
A shot from below:
At this point you can see it is only tacked together. There are braces and a front skirt already cut that will be welded on this weekend. I wanted to make it so the bumper would still unbolt from the subframe and that detail has added quite a bit of complexity to a simple bumper. The top will be aluminum diamond plate. I'll post pictures of the finished product in my build thread in a week or so. |
Good job. I cannot wait to see it done.
_________________
86 Syncro Tintop G60
work in progress ...as always! |
|
