My Ecotec swap into Baja Bug Thread.
Forum Index -> HBB Off-Road Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Mon Mar 16, 2015 9:46 pm    Post subject: My Ecotec swap into Baja Bug Thread. Reply with quote

Decided to make the switch and thought I'd document it along the way in hopes that other people interested in doing this swap can get an idea of cost & work involved.

I'm a die hard VW guy so it was hard to ween off the ol' aircooled VW engine.
The former power plant was a 2276 type1 that I built.
Ran good, made good power and never gave me any problems.
But I still had to do my fair share of tinkering with it and deal with the hiccups and sputters in the bigger bumps.

I Bought a used 2.4L LE5 Ecotec with MEFI 5 Computer and Humphrey Harness off of a Class 10 race team for $1400.
They were stepping up to the newest direct injected variant of the ecotec that makes more power. (Reportedly 20-30 more hp)

So Far Here's some cost breakdown
$1,400 2.4 Ecotec with ECU and Harness (race-dezert.com)

$112 Solstice Harmonic Balancer pulley w/ accessory drive for Power
Steering. (New, Amazon)
$30 Used Pierburg Fuel Pump for EFI. (craigslist)
$50 Used GM typeII Power steering pump w/ pulley (Swapmeet)
$20 Used Chevy Cobalt Gas pedal (Fly by wire, All steel for easy
modification/ integration into buggy)
$534 Kennedy Adapter plate to 091 VW (Moore Parts.com)
$62 Daikan HD 200mm Clutch Disk. (pacific customs)
$134 Stainless Cavalier Tri-Y Header. China's Finest (Ebay)
$32 Single Chamber Muffler. Flowmaster China knockoff (Ebay)
$40 2'' and 2.5'' L-bends ands U-bends to build rest of exhaust (B&C ind)
$18 (5)Bosch style relays for fuel pump fans ign etc for ecotec. (ebay)

So Far that's all I've purchased. And if my Math is right that's
$2,432

I still need:
Lots of fuel plumbing hose and fittings.
Fuel pressure regulator.
Upgraded flywheel bolts. (The ones in Kennedy Kit look Cheap)
Radiator Shroud & Fans
Radiator plumbing matl.
Water temp gauge & sender
New oil pressure gauge & sender ( old gauge maxes at 80psi. Ecotec is
suposed to make 80-90 under normal driving condition.)
Steel for rear engine mounts.
And more I'm sure.

During the swap I also added a little extra work of building a new more modern looking rear bumper/cage, moved front seats forward, adding junior sized bucket seats in the rear, and building new fuel tank to fit under and behind front seats.

Here are some pics.
Feel free to ask questions or add input. Very Happy
_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Mon Mar 16, 2015 9:53 pm    Post subject: Reply with quote

The Car.
65 Baja
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The ol' VW engine.
Sold it for $2,00 turnkey 2 weeks ago
Image may have been reduced in size. Click image to view fullscreen.


Ecotec engine shoved into the car.
Image may have been reduced in size. Click image to view fullscreen.


Had to cut the firewall to make it fit!
Image may have been reduced in size. Click image to view fullscreen.

_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Mon Mar 16, 2015 9:57 pm    Post subject: Reply with quote

Made a power steering bracket out of pieces of angle iron.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


PRP "Booster" Bucket seat install under way
Image may have been reduced in size. Click image to view fullscreen.

_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Mon Mar 16, 2015 10:02 pm    Post subject: Reply with quote

The ebay header
Image may have been reduced in size. Click image to view fullscreen.


Working on the new engine cage last weekend
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Hoping the final product looks something like this. With the paneling and air screens.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 2603
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Tue Mar 17, 2015 9:32 am    Post subject: Reply with quote

good luck on the build. I like your taste on the engine cage.
Have you heard anything about gear changes being needed with 091's when converting. I thought I would be doing never ending wheelies after I put in my 2.4 but it ended up being the opposite to my surprise. First gear barely gets it moving. I wonder if I got something wrong with my clutch? Reverse feels good though.
_________________
Brian H.
I may not know everything,but I will try to help if I can
OrangeCrushER
Berrien Warrior 2.4L Quad4
LAZY MARY 1970 Baja 1835cc
Back to top
View user's profile Send private message Gallery Classifieds Feedback
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Wed Mar 25, 2015 10:08 pm    Post subject: Reply with quote

Couple progress pics...
Little bit of exhaust work this afternoon:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
1fastbigguy
Samba Member


Joined: June 06, 2012
Posts: 310
Location: Ojai, CA
1fastbigguy is offline

PostPosted: Thu Mar 26, 2015 9:09 am    Post subject: Reply with quote

Nice work! You will enjoy the smooth power of the ecotec.

Welcome to the Wet Side!
_________________
Cheers!

59 Ragtop
61 Ragtop Baja
69 Squareback

@Dustydrone
#Ohibaja

Our Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=545394
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
no1clyde
Samba Member


Joined: August 27, 2013
Posts: 365
Location: Elko Nv.
no1clyde is offline

PostPosted: Sat Mar 28, 2015 6:11 pm    Post subject: Reply with quote

I like your cage, I built one kind of like it a couple of weeks ago.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I am going to move mine in a little more after I get the exhaust done.

Ed
Back to top
View user's profile Send private message Gallery Classifieds Feedback
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Sun Mar 29, 2015 9:06 am    Post subject: Reply with quote

^^^ Yeah they do look a lot alike. I'd be interested to see how the final product came out with your radiator and mounting.

I'm in a toss up between running a jeep cherokee radiator in the rear (35'' x11.5'')or mounting a radiator up front under the fiberglass.

Going to get back at it today.
Time to torque the flywheel with the ARP bolts i got, install the clutch and pressure plate (Kennedy Stage2 with HD Daikan Disk.) Get the engine back in and finalize the rear seat mounting! Cool pics likely to follow
_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
brooksinc1976
Samba Member


Joined: April 09, 2014
Posts: 140
Location: Pasadena
brooksinc1976 is offline

PostPosted: Wed Apr 01, 2015 2:25 pm    Post subject: Reply with quote

cool build. Got my 4 seater on the back burner till I decide to pull the trigger on the same.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Sun May 03, 2015 9:41 pm    Post subject: Reply with quote

Little progress shot:
Image may have been reduced in size. Click image to view fullscreen.


Went with a Jeep Cherokee Aluminum radiator, reconfigured the inlet & outlet and made an aluminum fan shroud for it.

Engine wise everything is about wrapped up and will be moving on to wiring and fuel system soon.
_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
turbodon1776
Samba Member


Joined: January 05, 2006
Posts: 626
Location: Costa Mesa
turbodon1776 is offline

PostPosted: Fri Jun 26, 2015 9:36 pm    Post subject: Reply with quote

Got the car running.
Liking the Ecotec power so far, Also love the sound with the Tri-Y header and single chamber muffler.
Cant wait to get this thing out to the desert. Cool

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Donald Michaelson

had a bad ass car but it has departed

2276 Turbo motor
fk87
superflo heads
490HP
9.56 ET

now I clunk around in a 65 baja bug
Chevy Ecotec Engine
091 trans
coilovers, bypasses and all the fun $tuff
Back to top
View user's profile Send private message Classifieds Feedback
1fastbigguy
Samba Member


Joined: June 06, 2012
Posts: 310
Location: Ojai, CA
1fastbigguy is offline

PostPosted: Sat Jun 27, 2015 7:46 am    Post subject: Reply with quote

Nice job on the installation! I think you are really going to like the smooth power delivery off-road and the fuel injection is great at any elevation.

We are running a different header and muffler so the car is very quite under 3000 rpm's but from 3k to redline she is a whole different animal! Twisted Evil
_________________
Cheers!

59 Ragtop
61 Ragtop Baja
69 Squareback

@Dustydrone
#Ohibaja

Our Build
http://www.thesamba.com/vw/forum/viewtopic.php?t=545394
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
LoopyAg02
Samba Member


Joined: December 31, 2014
Posts: 11
Location: Bellevue, NE
LoopyAg02 is offline

PostPosted: Sun Apr 30, 2017 9:15 am    Post subject: Re: My Ecotec swap into Baja Bug Thread. Reply with quote

Great build. What was your final cost for the engine swap?

Seems more economical than the CB engine builder kit (2110), plus smoother more reliable power.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cul-tech
Samba Member


Joined: December 22, 2015
Posts: 49
Location: Colorado
Cul-tech is offline

PostPosted: Tue May 02, 2017 7:18 am    Post subject: Re: My Ecotec swap into Baja Bug Thread. Reply with quote

Nice Build, you do good work.

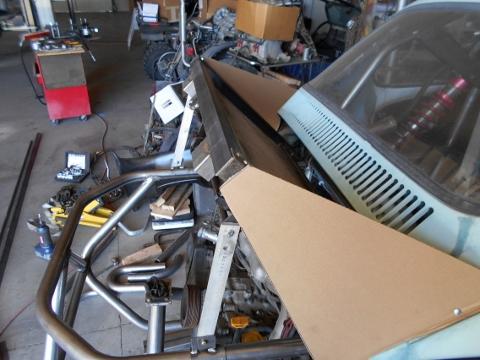

I love the wing by the way.
_________________
I'm just trying to recreate my RC buggy's as a kid to a real life buggy.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> HBB Off-Road All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
