johneliot Samba Member
Joined: August 29, 2005 Posts: 2189 Location: Chico, CA
|
Posted: Mon Aug 10, 2015 10:42 am Post subject: Headlight upgrade |
|
|
Can H4 headlights with a 55/60 bulb be used without wiring relays in a stock 69 bug, assuming the generator is working to specs and new wiring harness? I've been searching past posts but I don't seem to be able to find an answer. _________________ John
There is no distinctly American criminal class - except Congress.
Mark Twain
69 bug - "The Grey Ghost" |
|
Back to top |
|
|
windfish Samba Member
Joined: September 05, 2012 Posts: 1126 Location: NC
|
Posted: Mon Aug 10, 2015 10:53 am Post subject: |
|
|
Yep, should work fine.
I'm running a pair of 55/60 (these) in mine with its' original wiring harness, no problems. |
|
Back to top |
|
|
Cali_Army_Guy Samba Member
Joined: March 19, 2015 Posts: 2094 Location: Stockton, CA
|
Posted: Mon Aug 10, 2015 10:55 am Post subject: |
|
|
I have H4's with 55/60 bulbs in my '71 with the original wiring with no issues. |
|
Back to top |
|
|
Chochobeef Samba Member
Joined: May 01, 2013 Posts: 811 Location: Ft. Worth, Texas
|
Posted: Mon Aug 10, 2015 11:45 am Post subject: |
|
|
Just clean and put new connectors on as needed and stock wiring should be fine to handle them. I ran a new ground wire and put new terminal end on mine just because the old stuff was falling apart and corroded.
I have zero issues and a much better light output. |
|
Back to top |
|
|
EvileNV Samba Member
Joined: August 03, 2010 Posts: 161 Location: Boulder City, NV
|
Posted: Mon Aug 10, 2015 11:57 am Post subject: |
|
|
I put HIDs in mine, they're awesome! Spent about $80 for everything as a package on eBay. _________________ 69 Beetle, 64 GMC 1000 (1/2 ton), 59 Ford Ranch Wagon (for the wife and kiddos), 92 Motorhome for vacationing. |
|
Back to top |
|
|
bikeboy480 Samba Member
Joined: November 11, 2008 Posts: 105 Location: Houston,tx
|
Posted: Mon Aug 10, 2015 1:45 pm Post subject: |
|
|
I put LEDs in my bus about 6 months ago and I seriously regret waiting as long as I did to upgrade. Got em from here.
http://www.thesamba.com/vw/classifieds/detail.php?id=1801829
Lower wattage, less draw on the electrical system and less wear and tear on the relay. |
|
Back to top |
|
|
Cali_Army_Guy Samba Member
Joined: March 19, 2015 Posts: 2094 Location: Stockton, CA
|
Posted: Mon Aug 10, 2015 2:05 pm Post subject: |
|
|
Looks like I'm getting rid of the H4's lol. Thanks for the link. |
|
Back to top |
|
|
rockerarm Samba Member
Joined: December 16, 2009 Posts: 3552 Location: Los Angeles
|
Posted: Mon Aug 10, 2015 2:19 pm Post subject: |
|
|
Hi. All have agreed that the lower wattage bulbs will work ok. But, if you have a DVOM (digital volt ohmmeter) hook the positive from the meter to the positive batt terminal and the negative from the meter to either of the four conections on the back of the headlight ( low beam and high beam, rt and lt) and turn the lights on. The dvom will do the math and tell you what the voltage drop is in that circuit. So, doing this will give you 4 readings for the 4 individual circuits. You can do the same method for the ground circuit. I have seen voltage drops at the fuse box, headlight switch, hi/lo relay, and the ground circuit. Enjoy, Bill.
PS: youtube has videos on this process. |
|
Back to top |
|
|
Aussiebug Samba Member
Joined: June 03, 2002 Posts: 2162 Location: Adelaide Australia
|
Posted: Mon Aug 10, 2015 3:58 pm Post subject: Re: Headlight upgrade |
|
|
johneliot wrote: |
Can H4 headlights with a 55/60 bulb be used without wiring relays in a stock 69 bug, assuming the generator is working to specs and new wiring harness? I've been searching past posts but I don't seem to be able to find an answer. |
I've been running 55/60watt halogens in my 70 bug since the mid 70s. A straight bulb swap outside the USA where bulb and reflector lights remained stock.
No wiring changes needed at all, and excellent lights.
You can even get similar 6v halogen bulbs for older bugs these days. _________________ Rob
Rob and Dave's aircooled VW pages
Repairs and maintenance for the home mechanic
http://www.vw-resource.com |
|
Back to top |
|
|
tom_hd02 Samba Member
Joined: July 09, 2013 Posts: 53 Location: Massachusetts
|
Posted: Mon Aug 10, 2015 5:23 pm Post subject: |
|
|

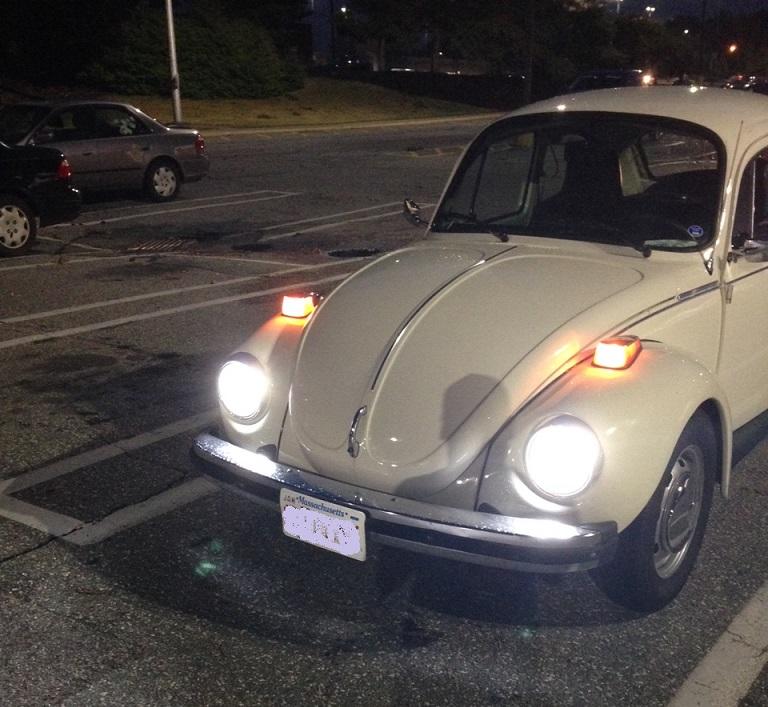

Last week I replaced the headlight halogen H4 bulbs with LED bulbs on my '74 SB.
HUGE difference. LED bulbs are way much brighter than halogen bulbs (although not as bright asHIDs) and have lower power consumption.
|
|
Back to top |
|
|
gringoloco2000 Samba Member
Joined: August 15, 2013 Posts: 150 Location: Debary, FL
|
Posted: Tue Aug 11, 2015 10:36 am Post subject: |
|
|
These look nice. Looking at their pictures there appears to be a cut off in the projection of the light. Can anyone confirm this? I don't want to get something that will blind other drivers.
Cali_Army_Guy wrote: |
Looks like I'm getting rid of the H4's lol. Thanks for the link. |
_________________ '68 Rust Bucket |
|
Back to top |
|
|
rockerarm Samba Member
Joined: December 16, 2009 Posts: 3552 Location: Los Angeles
|
Posted: Wed Aug 12, 2015 5:22 pm Post subject: |
|
|
Hi all. You state the led upgrade from halogen h4's are brighter. Ok. How are they brighter? When I upgraded to a European h4, such as Cibie, Hella, or Bosch, the, advertised, low beam reflective range was out to, somewhat like, 1000'. I would like to see what those led's look like. I'm not really concerned beyond 1000' but down at approx. 300-400 feet is respectable for low speed driving. As a former military contractor I viewed the newer big trucks called "HEMITT'S" are now using a led round headlight. But, I know I'm driving faster than that truck.
Bill. |
|
Back to top |
|
|
bikeboy480 Samba Member
Joined: November 11, 2008 Posts: 105 Location: Houston,tx
|
Posted: Thu Aug 13, 2015 7:15 pm Post subject: |
|
|
Bill, I'd be happy to shoot a short video of me driving around the neighborhood with the lights on, would that help? |
|
Back to top |
|
|
gringoloco2000 Samba Member
Joined: August 15, 2013 Posts: 150 Location: Debary, FL
|
Posted: Thu Aug 13, 2015 7:20 pm Post subject: |
|
|
I would like to see that also. If you could pull up to a wall too and show the cut off. Thanks.
bikeboy480 wrote: |
Bill, I'd be happy to shoot a short video of me driving around the neighborhood with the lights on, would that help? |
_________________ '68 Rust Bucket |
|
Back to top |
|
|
ps2375 Samba Member
Joined: April 24, 2014 Posts: 2471 Location: Meridian,ID
|
Posted: Thu Aug 13, 2015 8:08 pm Post subject: |
|
|
My Hella H-4's have a nice cut-off, but, they are units from the 80's. I have to remind myself that they aren't projectors when I see the cut-off when driving at night. I'm using Marchal relays left over from when the car used to 100w hi and 100w low bulbs in each light( they had separate low and hi bulbs in each). They are controlled by the stock hi/low relay. Not sure if I could justify the cost to change with what I have now and how little I drive at night. They also seem to put out plenty of light.
|
|
