| Author |
Message |
Flipseat
Samba Member
Joined: July 09, 2000
Posts: 1089
Location: Nursing 40 horses back to health.
|
 Posted: Tue Dec 21, 2004 6:12 pm Post subject: What does this tool do? |
 |
|

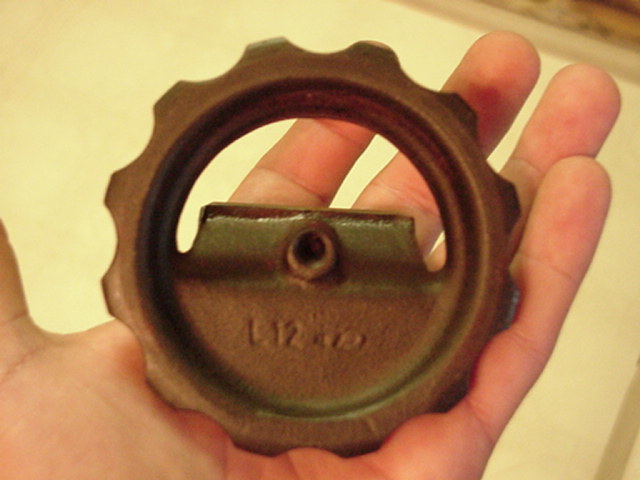

I recently bought a Matra industrial engine tool kit that has things like lifter retainers for mating the case halves, oil pump puller, main seal installer, various wrenches, gland nut socket/brace/breaker bar, etc. I've identified everything in it but this. It has a couple numbers on it, but the didn't turn out well in the casting... all that I can read is L12 then there are a couple numbers after it. It definitely belongs in the kit, matches everything in there, has the same cosmoline on it and such. Any idea what it is?
Edit - The number is L12423
_________________
Insert random important looking club initials here.
Last edited by Flipseat on Tue Dec 21, 2004 9:43 pm; edited 1 time in total |
|
| Back to top |
|
 |
Rocknrod
Samba Member
Joined: November 02, 2004
Posts: 2157
Location: North Carolina
|
| Posted: Tue Dec 21, 2004 8:51 pm Post subject: |
|
|
You might be able to get the rest of the numbers by laying a piece of paper over the numbers and running a crayon over it lightly.
Besides that... it looks like an "only by hand" tool. Every time I've seen a tool with the same style "gear" look its been a way to hold on to it.
 |
|
| Back to top |
|
|
65BAJA
Samba Member
Joined: October 07, 2003
Posts: 660
Location: SHINGLE SPRINGS,CA
|
| Posted: Tue Dec 21, 2004 9:24 pm Post subject: |
|
|
| Its a muffler bearing end play adjustment widget. |
|
| Back to top |
|
|
Flipseat
Samba Member
Joined: July 09, 2000
Posts: 1089
Location: Nursing 40 horses back to health.
|
| Posted: Tue Dec 21, 2004 9:26 pm Post subject: |
|
|
Ok... I found some paperwork. Well, a picture of the paperwork
The number is L12423 and before the numbers it says "oetrao" I believe... maybe "getrac" Its all in caps.. thats the best that I can make out. Perhaps thats the manufacturer? I can make out "L12" on the tool and the rest of it isn't clear, so I'm sure that they meant to cast "L12423" right into the tool and it just didn't turn out so hot.
The text says
"lehre, pruef-, anbau
Radialanlasser"
Which translates from German to English on Babelfish as "examines, cultivation radial starter teaches" Whatever that means...
_________________
Insert random important looking club initials here. |
|
| Back to top |
|
|
Flipseat
Samba Member
Joined: July 09, 2000
Posts: 1089
Location: Nursing 40 horses back to health.
|
| Posted: Tue Dec 21, 2004 9:38 pm Post subject: |
|
|
With the machined edge just under the "gear"... under the part I imagine you turn with your hand, I would think that it would sit into a hole in the case to measure something. Sit in the oil pump hole, in the sump hole, or maybe in the starter hole on the trans? I don't have any of these in front of me to try, and I'm just thinking out loud so maybe I'm off? Like it would sit in the hole and you'd reach through the tool to measure something or other off of that little rectangular machined flat on the tool.
_________________
Insert random important looking club initials here. |
|
| Back to top |
|
|
Rocknrod
Samba Member
Joined: November 02, 2004
Posts: 2157
Location: North Carolina
|
| Posted: Wed Dec 22, 2004 7:35 am Post subject: |
|
|
So "starter" is part of the translation... doesnt looks like it might be big enough to slide into a GM starter housing... but I dont think VW uses GM starters.
Are you sure its not "Getrag" as in the transmission company?
http://www.en.getrag.de/180/180
----
Wait! You brace a brick against the flat plate thats sticking out of it... and use it as a DOOR STOP!  |
|
| Back to top |
|
|
Flipseat
Samba Member
Joined: July 09, 2000
Posts: 1089
Location: Nursing 40 horses back to health.
|
| Posted: Wed Dec 22, 2004 7:54 am Post subject: |
|
|
Getrag... thats possible? I cut the description out of the image, blew it up, enhanced it some, and here it is. This is what I have to go off of as I do not have the original. Does anyone have any literature that lists the tools and their numbers?
_________________
Insert random important looking club initials here. |
|
| Back to top |
|
|
Rocknrod
Samba Member
Joined: November 02, 2004
Posts: 2157
Location: North Carolina
|
| Posted: Wed Dec 22, 2004 10:15 am Post subject: |
|
|
Is there another G in your paper work you could compare it to?
If it looks similar... I'd be calling up Getrag and asking about their tools to rebuild/spec transmission housings!
If you have some dial calipers I bet you could measure the size of the machined surface, and see if any openings on a VW/porsche transmission is anywhere close.
|
|
| Back to top |
|
|
Flipseat
Samba Member
Joined: July 09, 2000
Posts: 1089
Location: Nursing 40 horses back to health.
|
| Posted: Wed Dec 22, 2004 10:30 am Post subject: |
|
|
I fired off an email to them, so we'll see if they reply. Thanks
_________________
Insert random important looking club initials here. |
|
| Back to top |
|
|
a_67vdub
Samba Member
Joined: April 06, 2003
Posts: 504
Location: Long Beach
|
| Posted: Wed Dec 22, 2004 3:25 pm Post subject: |
|
|
Looks to me like it might have something to do with the starter bushing (maybe removal? ), but that would mean something is missing. Like maybe there is another part that grabs the bushing, and the piece you have is meant to ream it or pull it out or something. I don't know, just a guess.
Steve |
|
