Type 1 Wiring Diagrams
Contributions to this section are always welcome
| Instructions: | |
|
|
|
Please Note: Some of the fuse boxes
pictured in the diagrams are rotated 180 degrees from how they actually mount in the car |
|
|
For additional Wiring Diagrams info, see
Electrical
System (E) in the Technical Bulletins
Index. For wire sizes, also see Wiring size conversion chart - German mm to USA AWG Also see Understanding European Wiring Diagrams from Motor Magazine |
|
| Year | Diagram | Key | Fuse box | Comments | High-resolution/Notes |
| 1949-52 |
 |
 |
 |

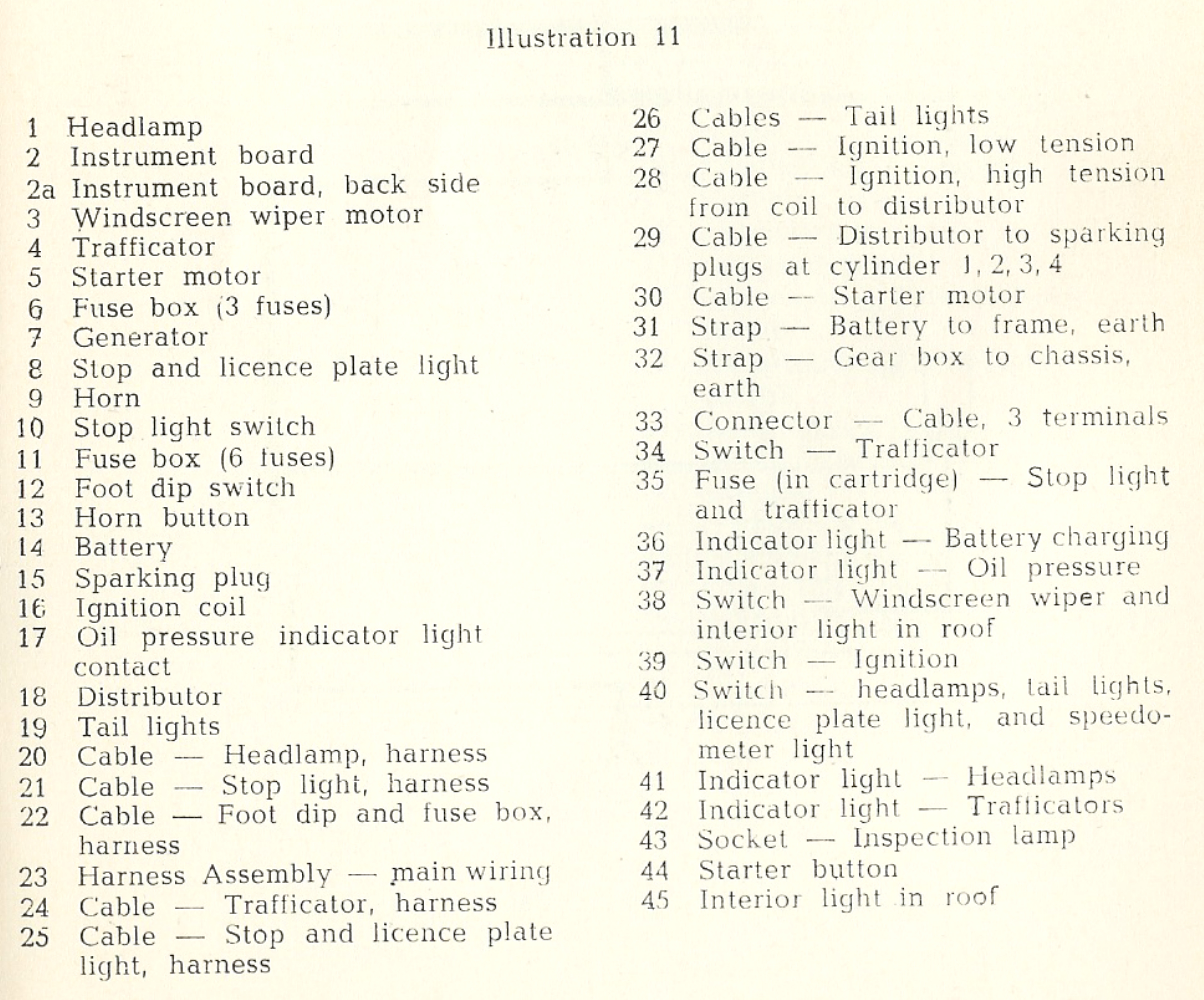

From the German Volkswagen Instruction
Book by Ford Clymer |
Large images |
| 1950 |
 |
 |
|||
| 1951 |
 |
 |
 |

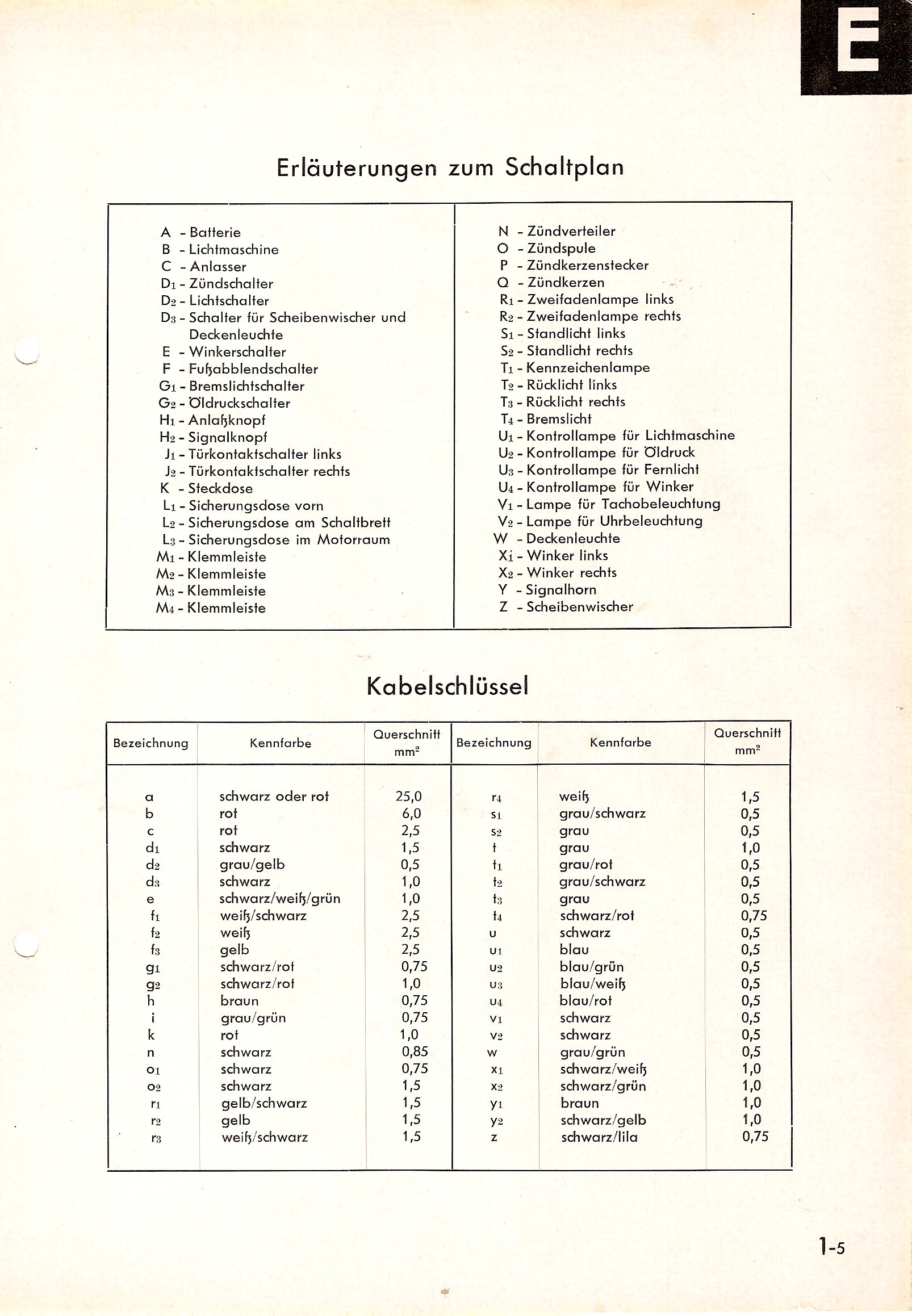

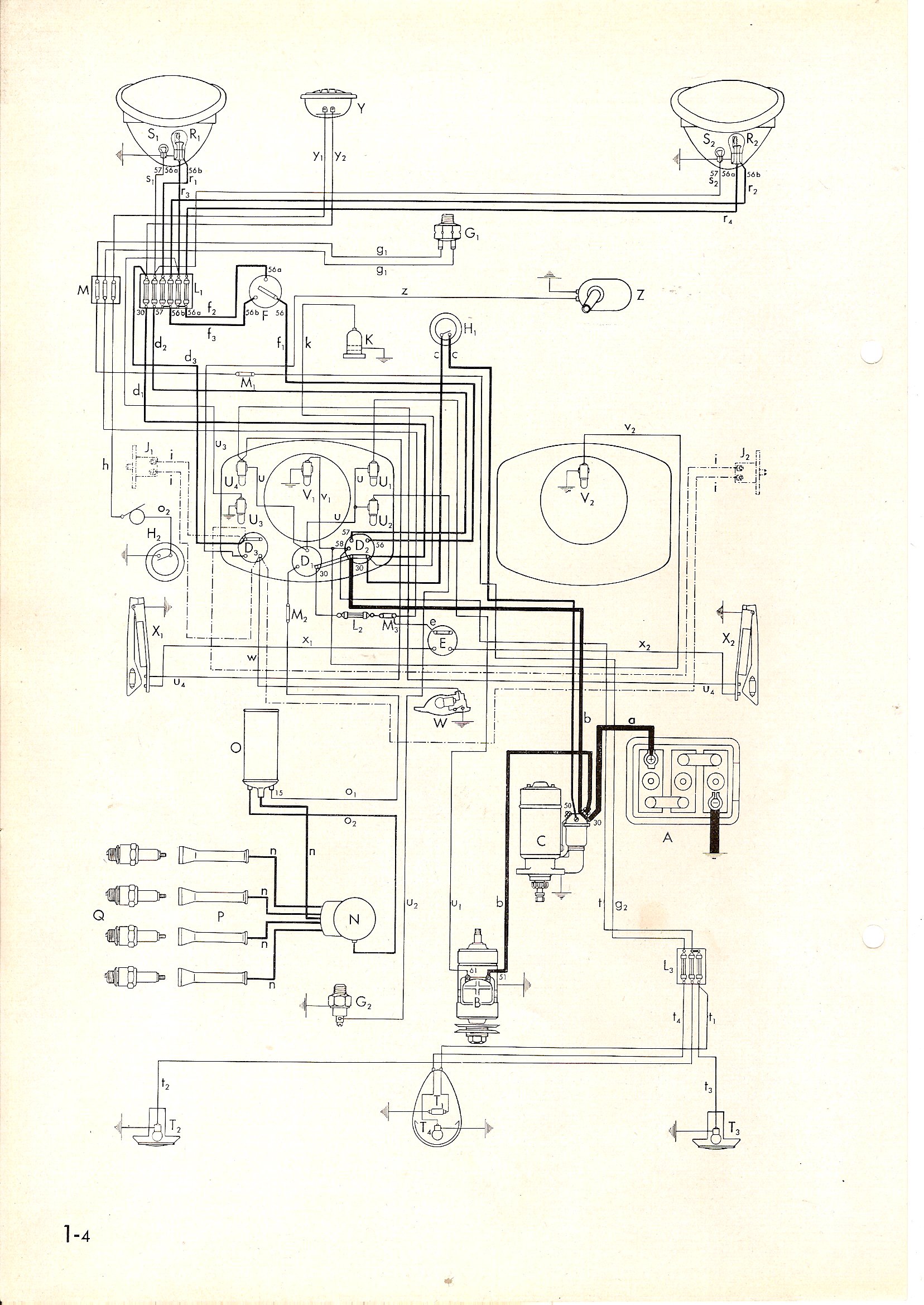

October, 1951 | |
| 1952 |
 |
 |
 |
April, 1952 |
 Fuses |

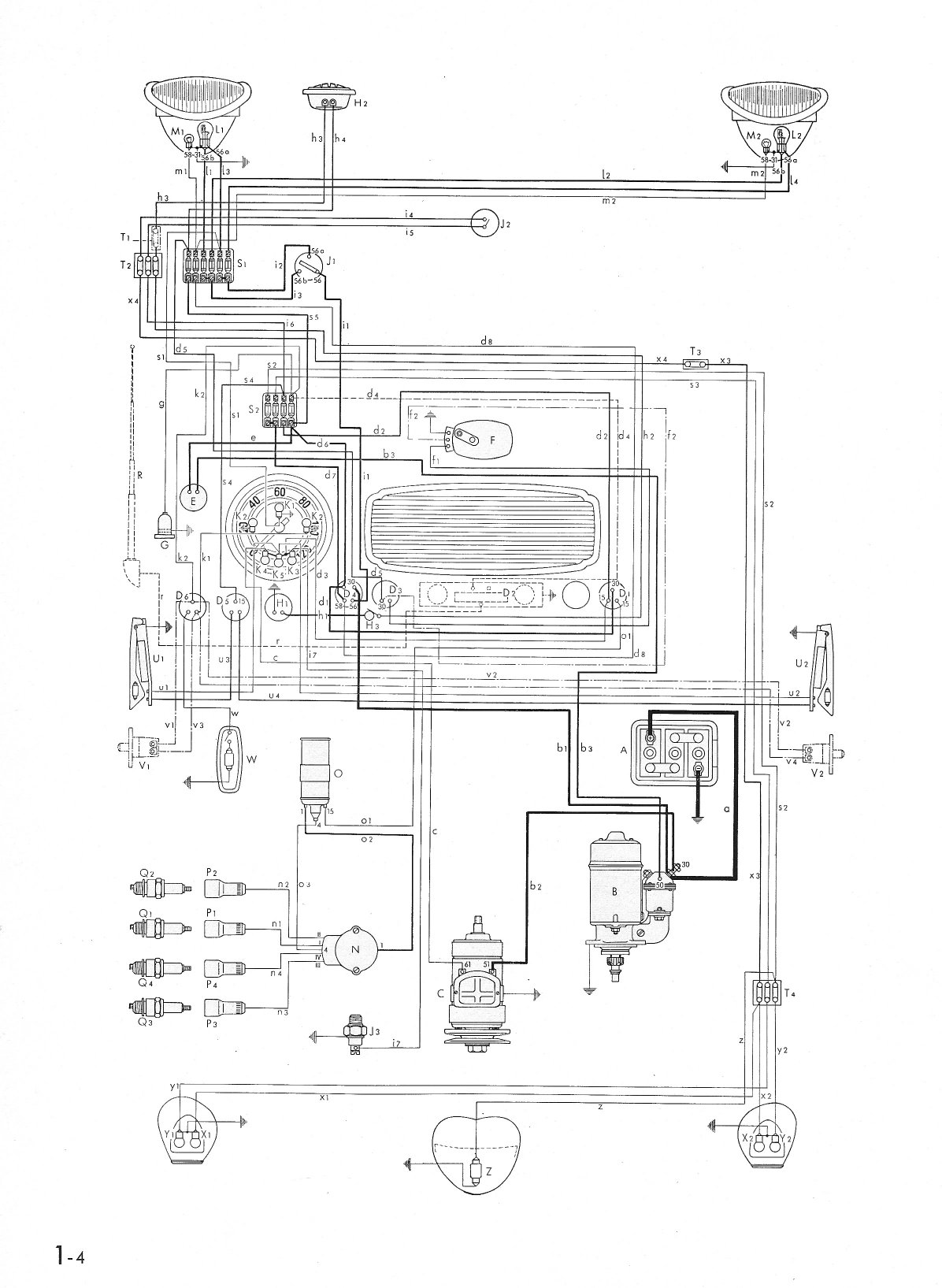

| 3/53-12/53 |
 |
 |
|
||
| 3/53-12/53 |
 |
 |
 |

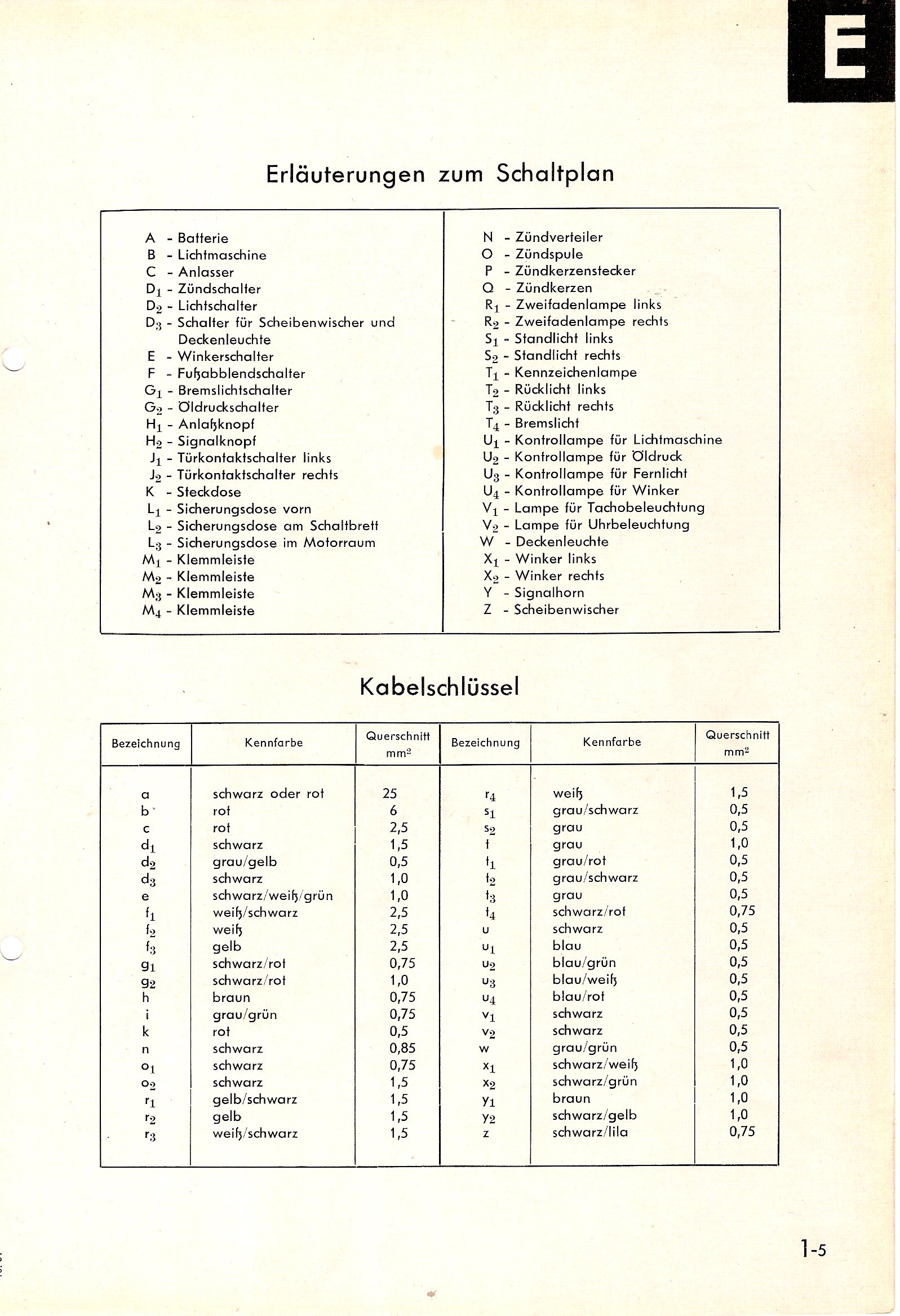

Diagram Key
Fuses |
|

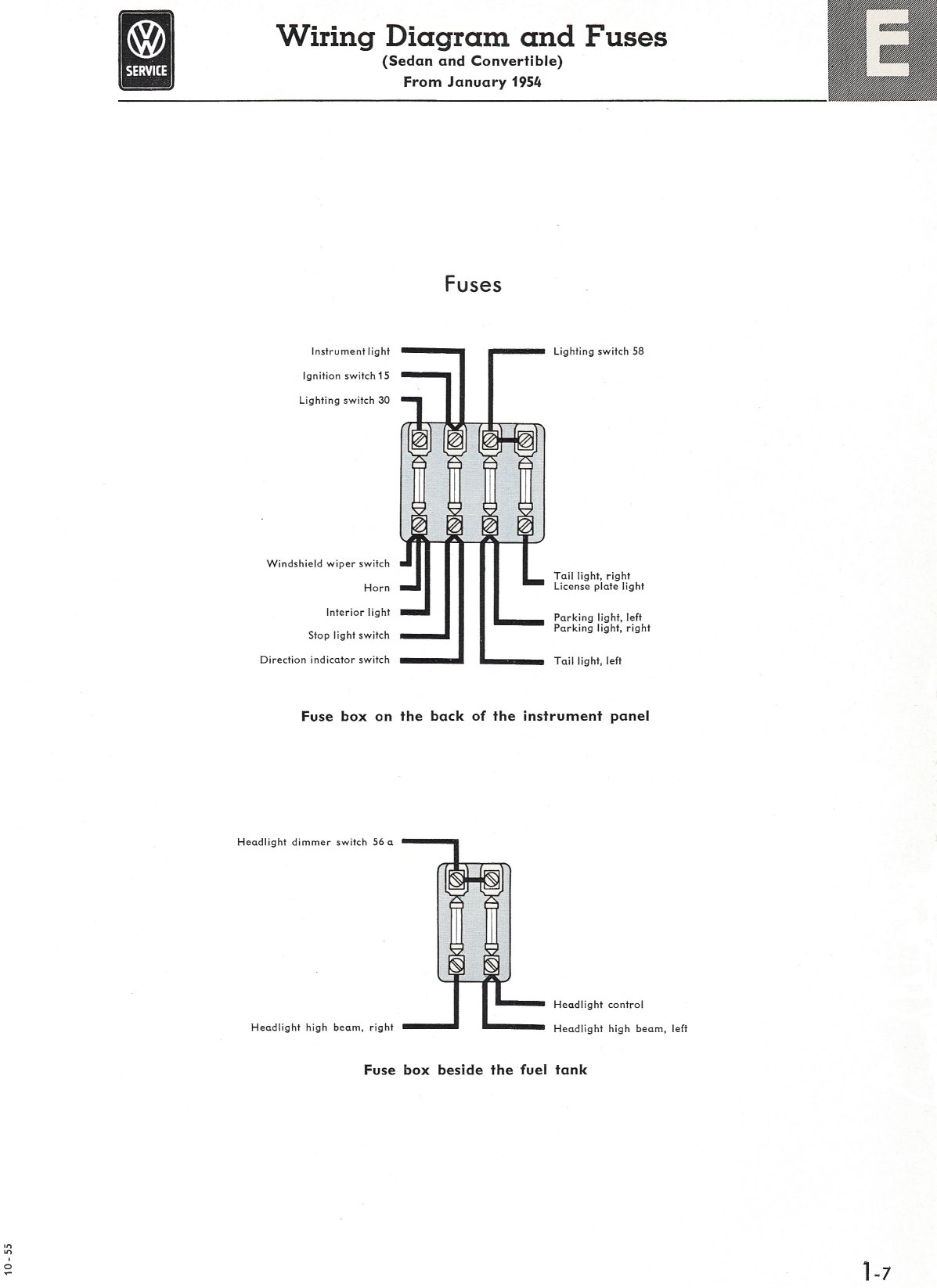

| 1954 |
 |
 |
 |

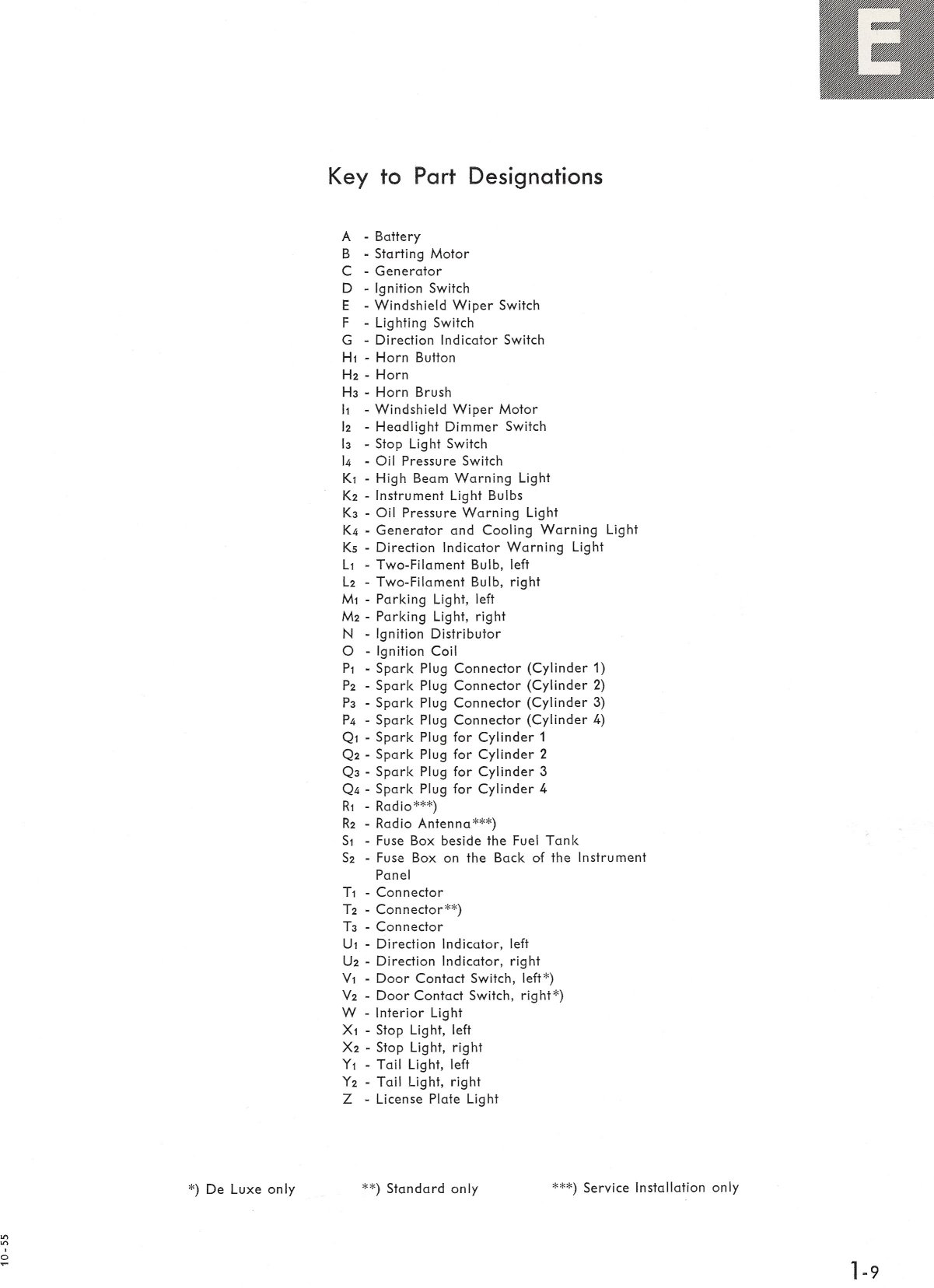

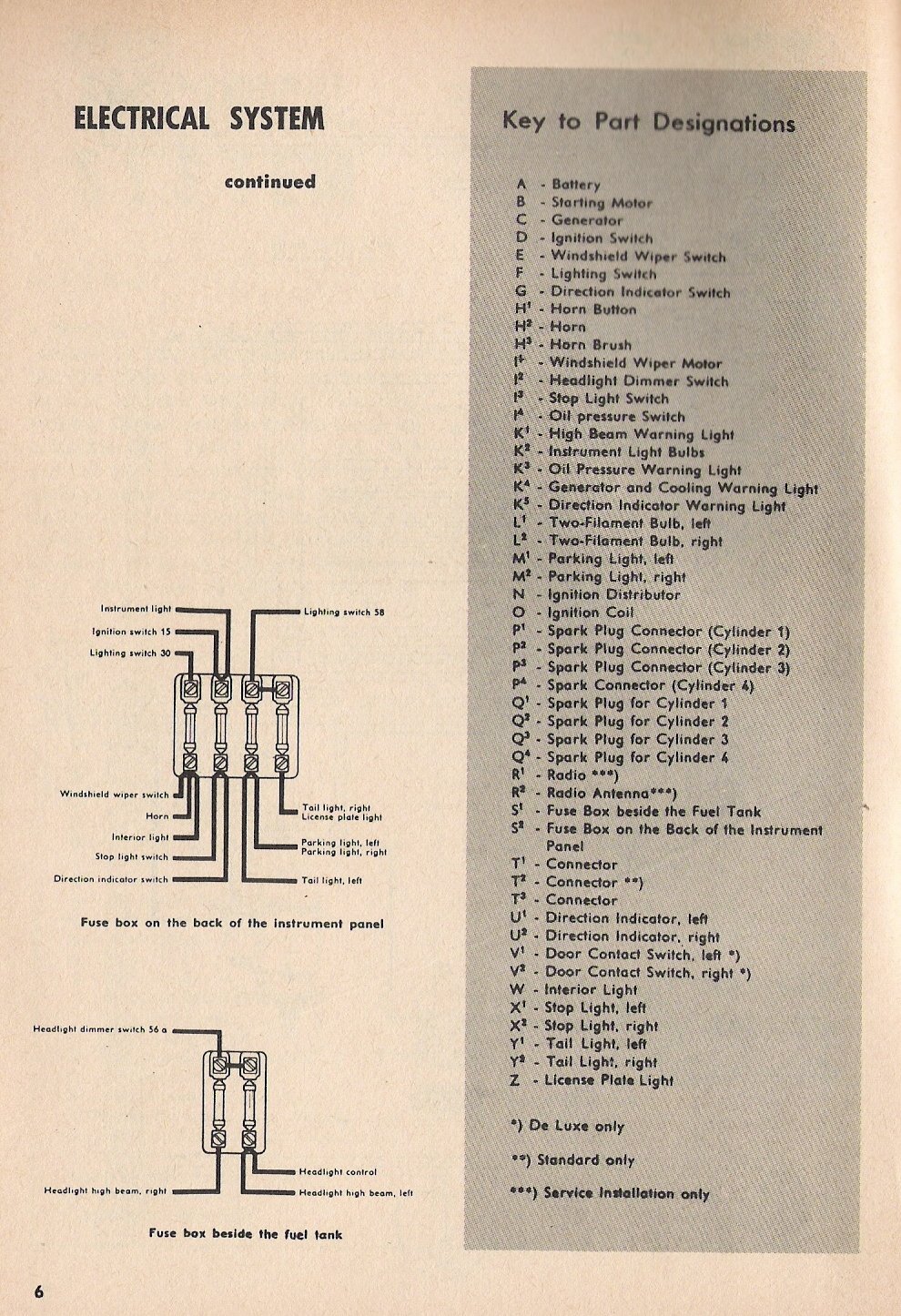

Diagram Key
Fuses |
|
| 1954 |
 |
 |
|

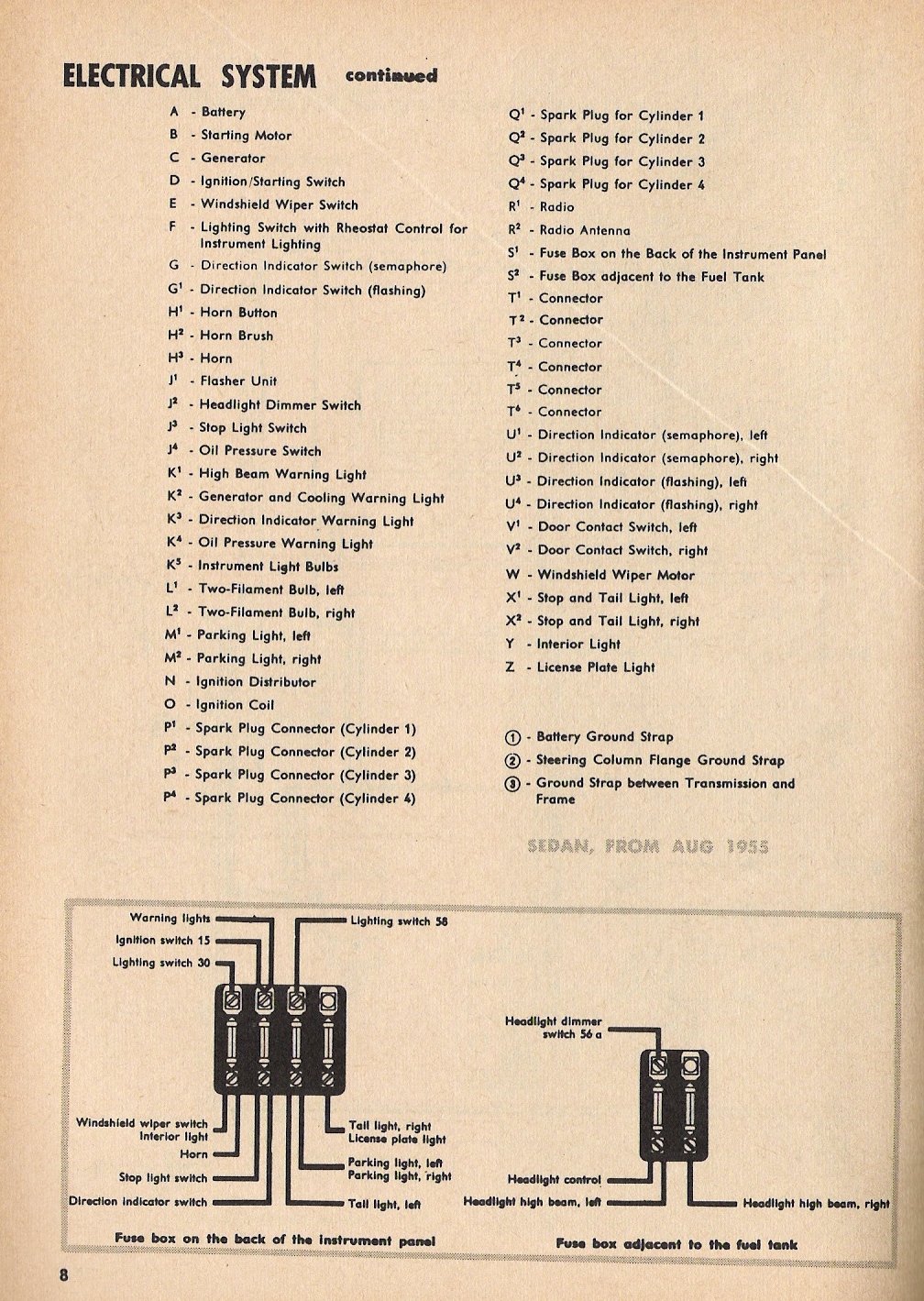

||
| 1955 |
 |
 |
|
||
| 1955 |
 |
USA, bullet turn signals | Member-created from 1956 diagram | ||
| 1956 |
 |
 |
 |

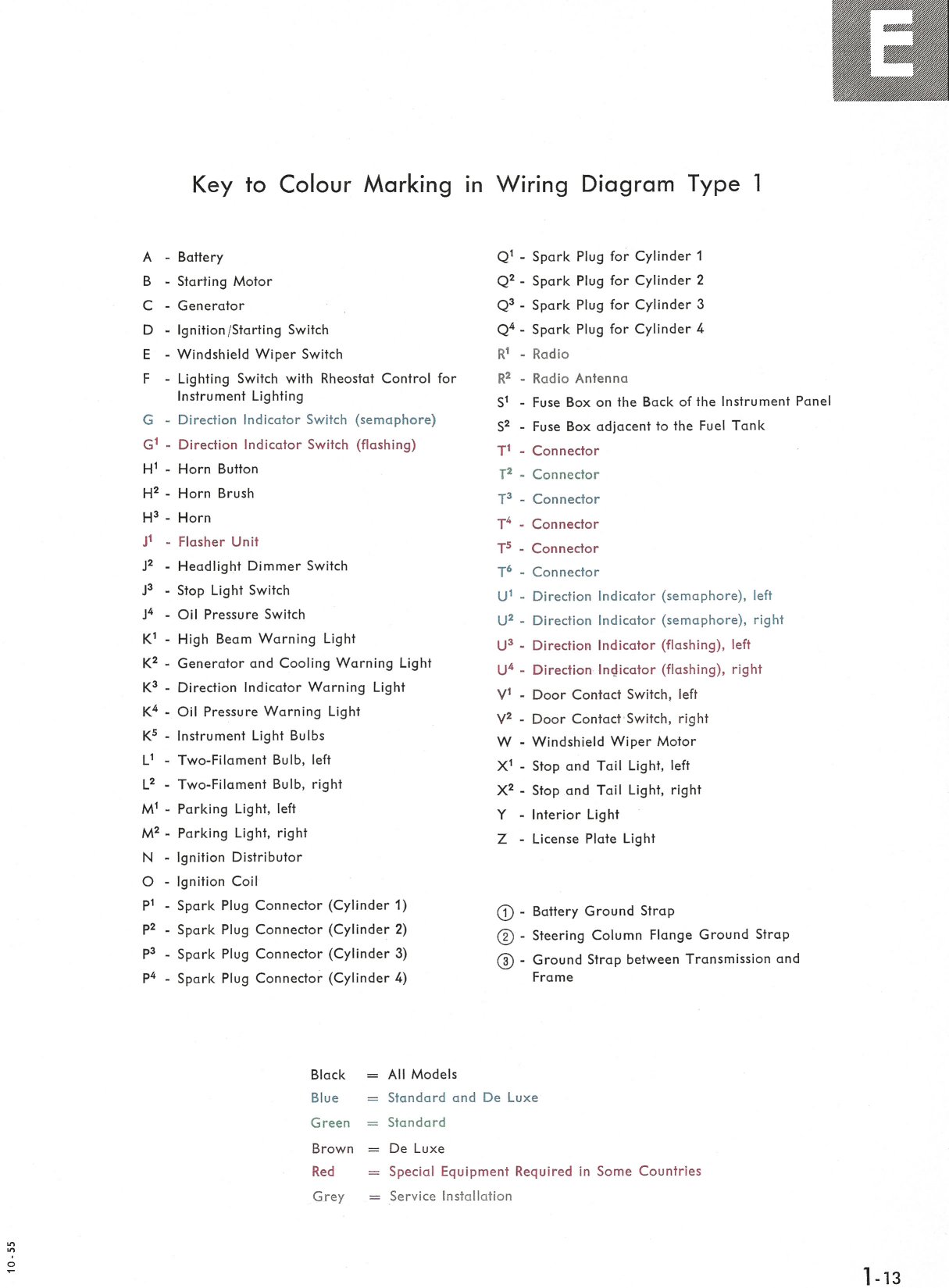

Diagram Key
Fuses |
|

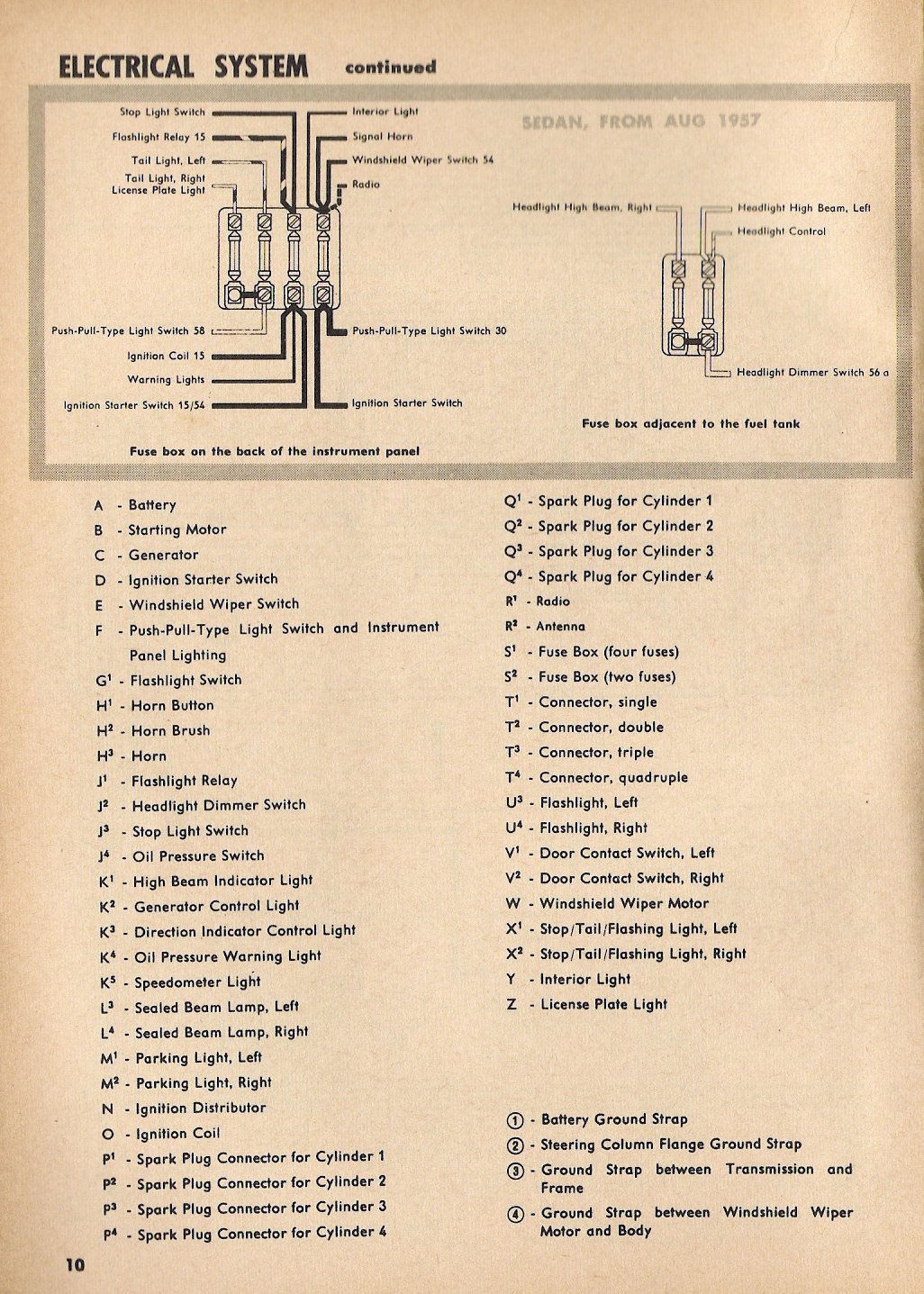

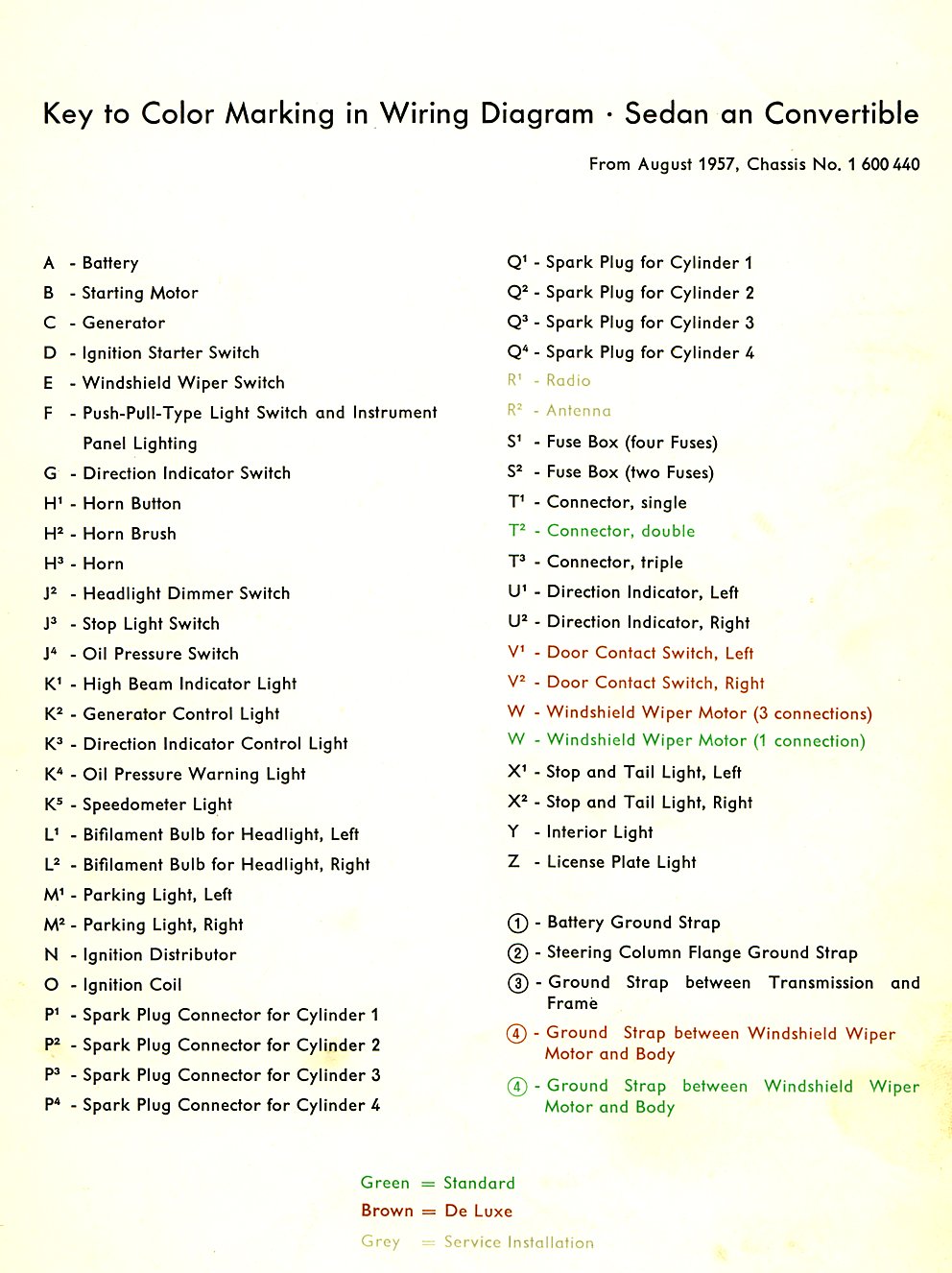

| 1958 |
 |
 |
 |
Non-USA | |

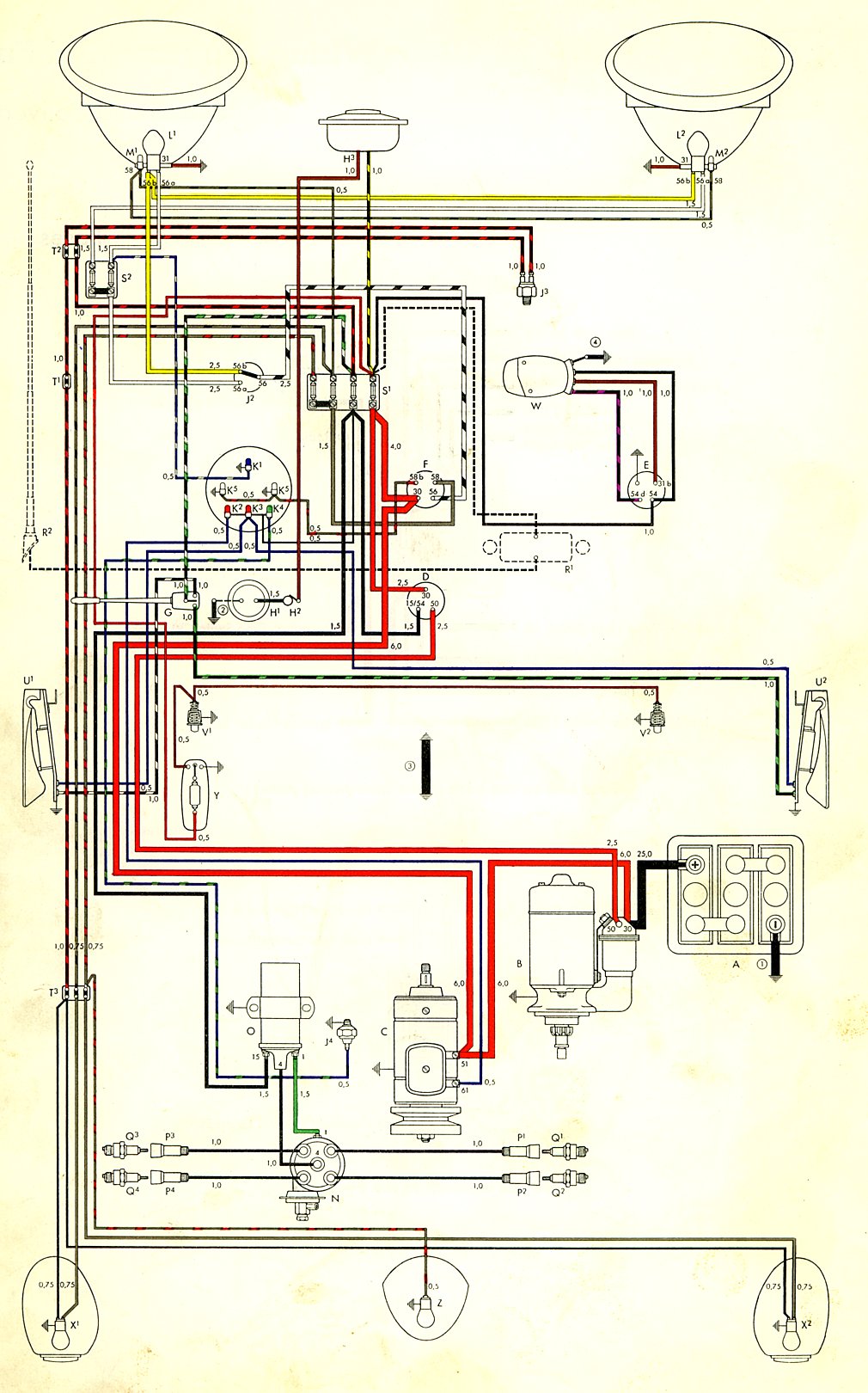

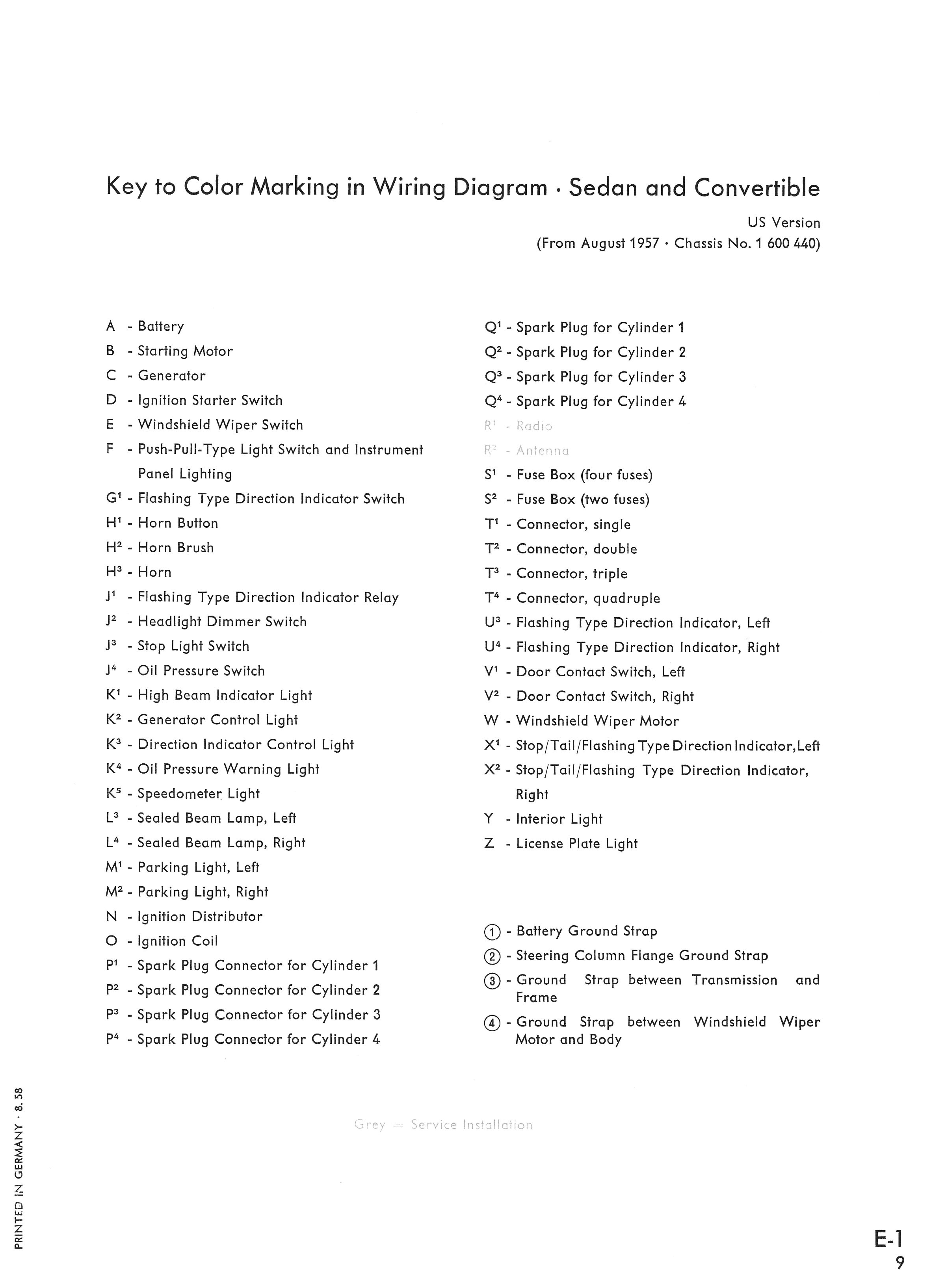

| 1958 |
 |
 |
 |
USA |
Diagram Key

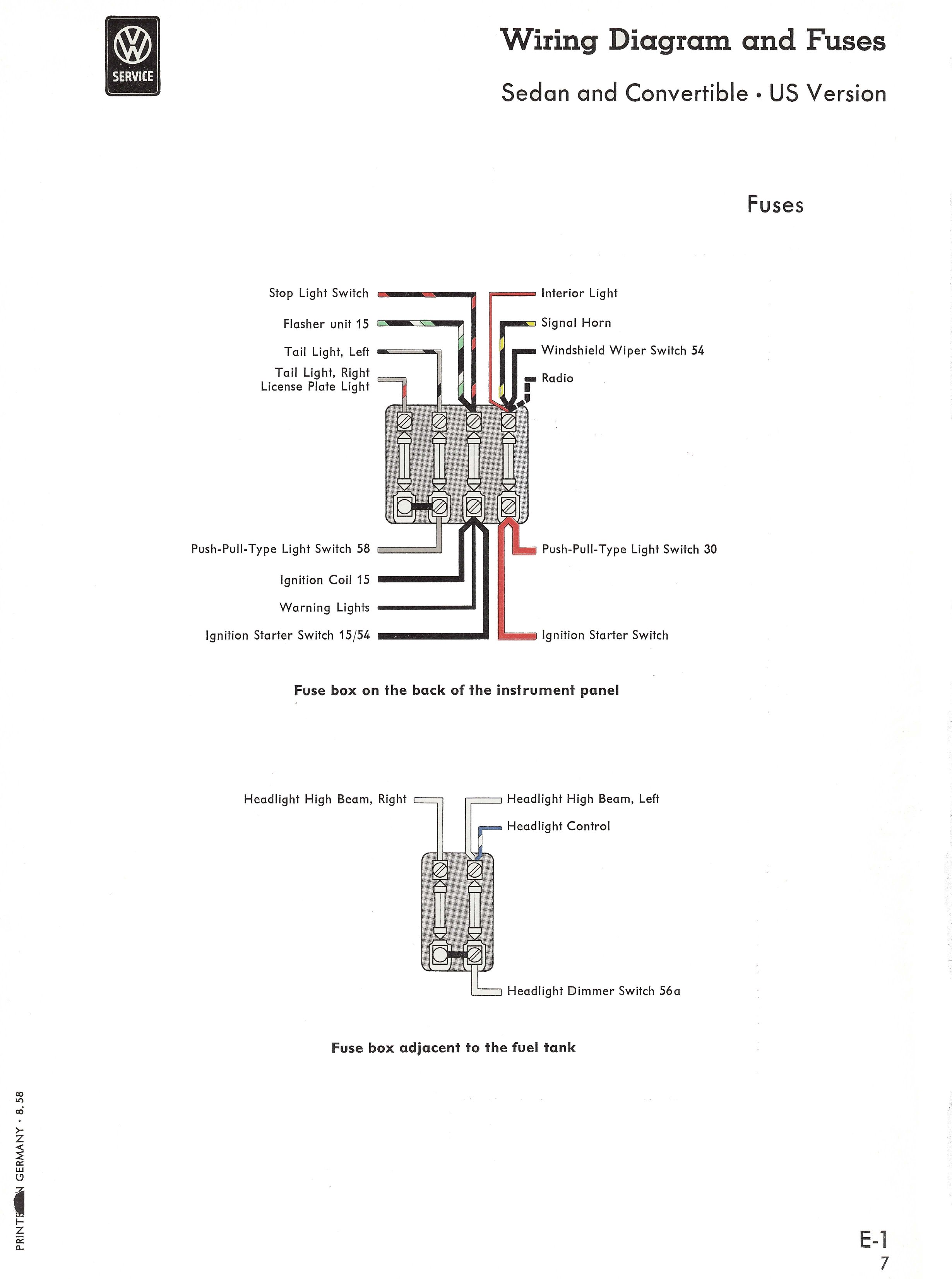

Fuses |
| 1958 |
 |
 |
|
Alternate diagram | |

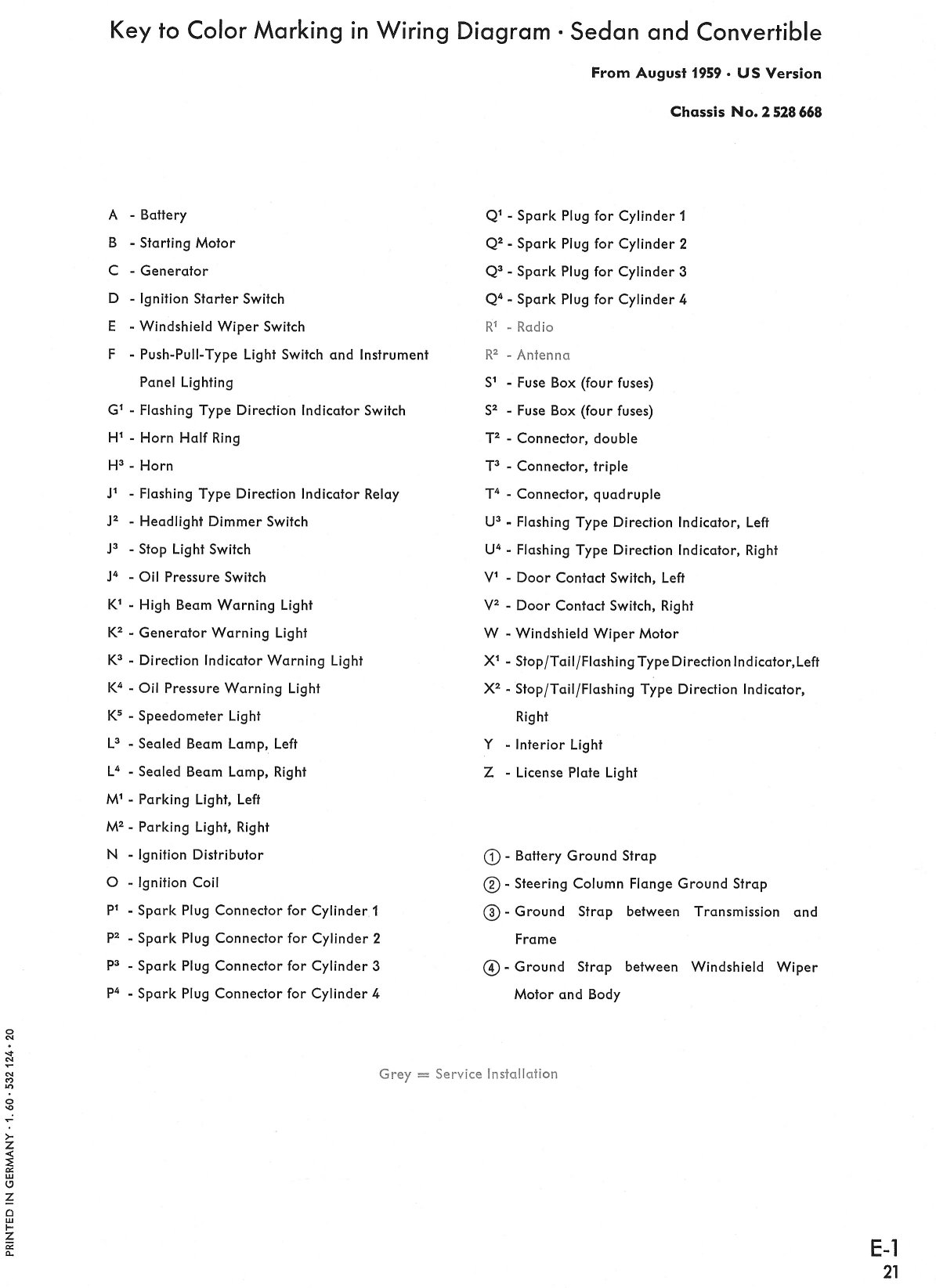

| 1960 |
 |
 |
 |
Diagram Key
Fuses |
|
| 1960 |
 |
 |
 |
Non-USA |
Diagram Key
Fuses |
| 1961 |
 |
 |
|||
| 1961 |
 |
 |
USA | ||
| 1961 |
 |
From Clymer's | |||

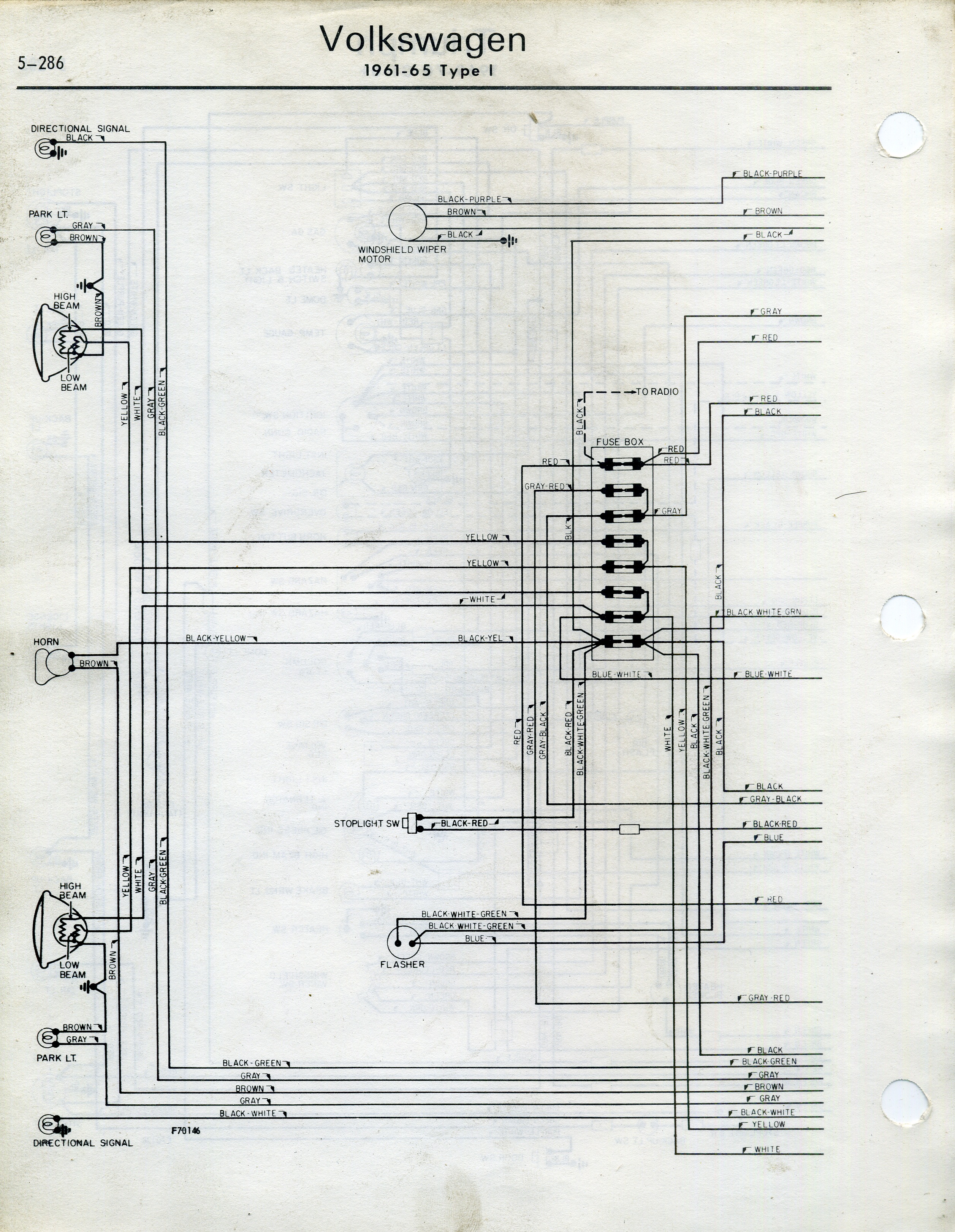

| 1961-65 |
 |
From National Automotive Service | |||

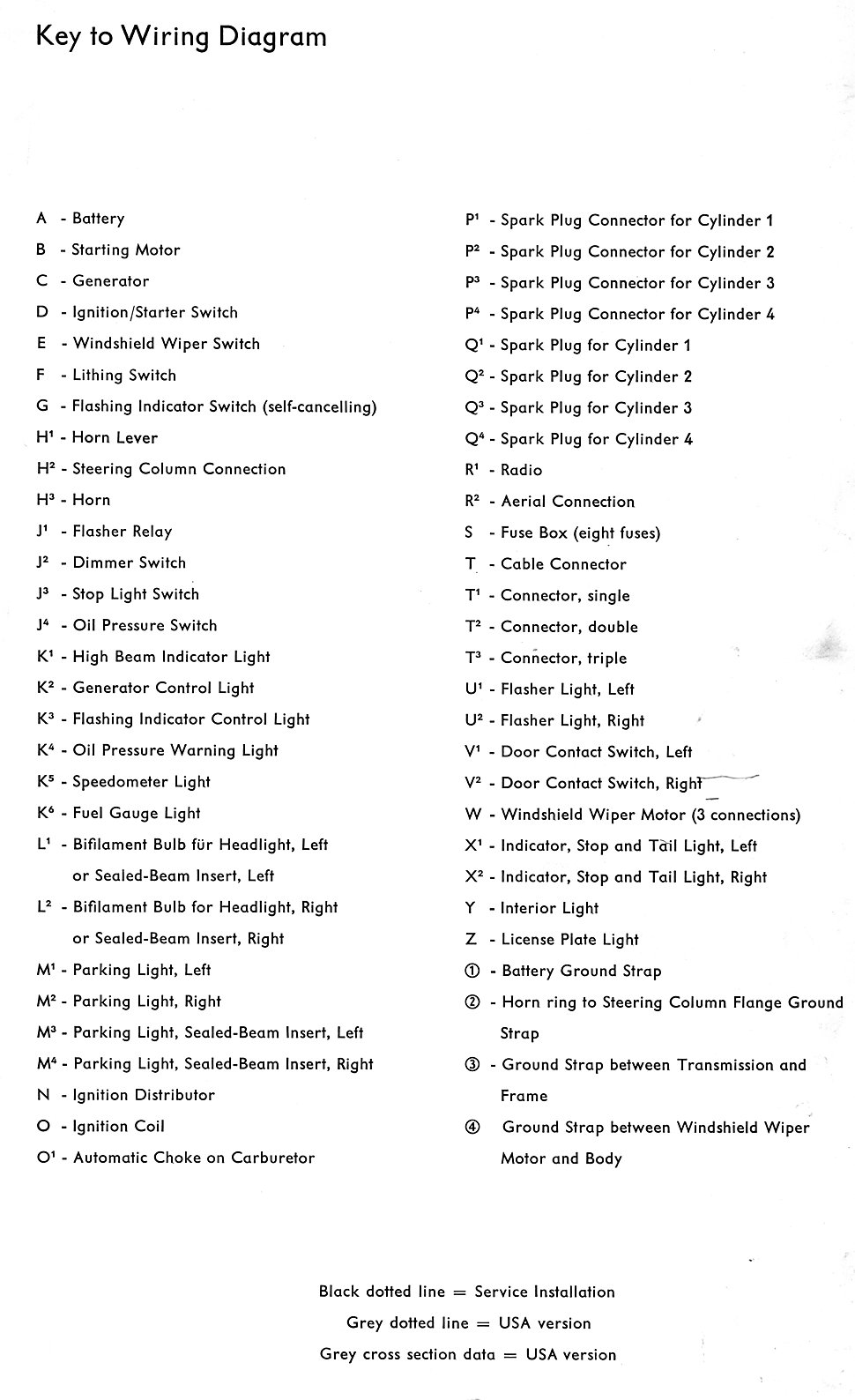

| 1962 |
 |
 |
 |
 With inset for 12v turn signal relay
US spec with sealed beams, by Culito |
|
| 1962-65 |
 |
From Clymer's | |||
| 1963 |
|
|
 |
With inset for 12v turn signal relay |
|
| 1964 |
|
|
 |
With inset for 12v turn signal relay |
|
| 1965 |
|
|
 |
With inset for 12v turn signal relay |
|

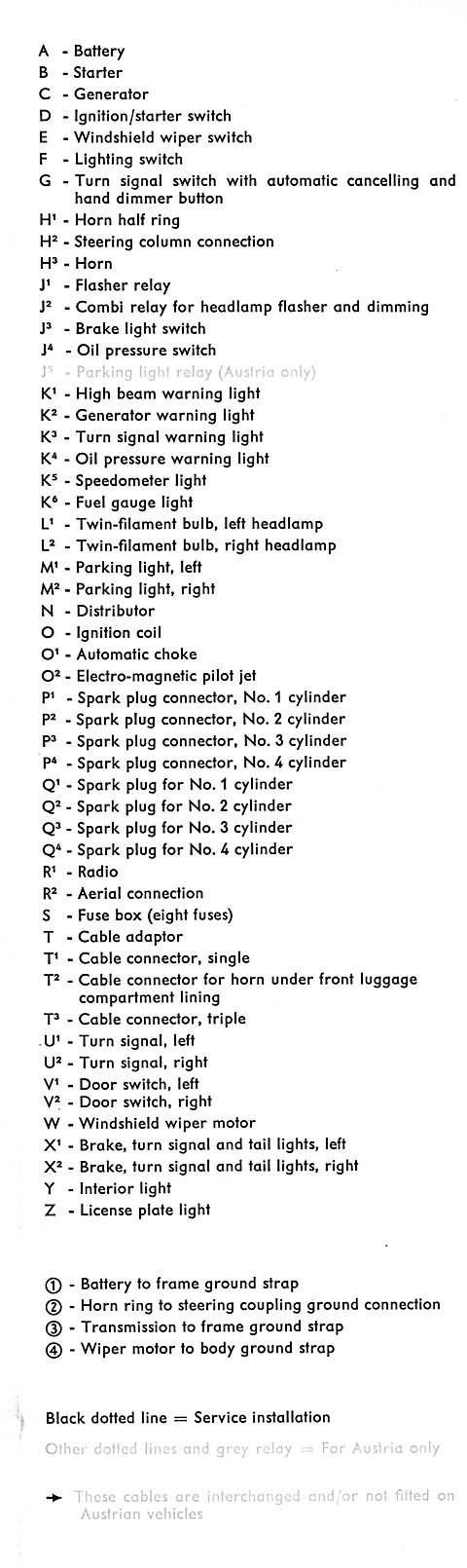

| 1966 |
 |
 |
|
Non-USA | |

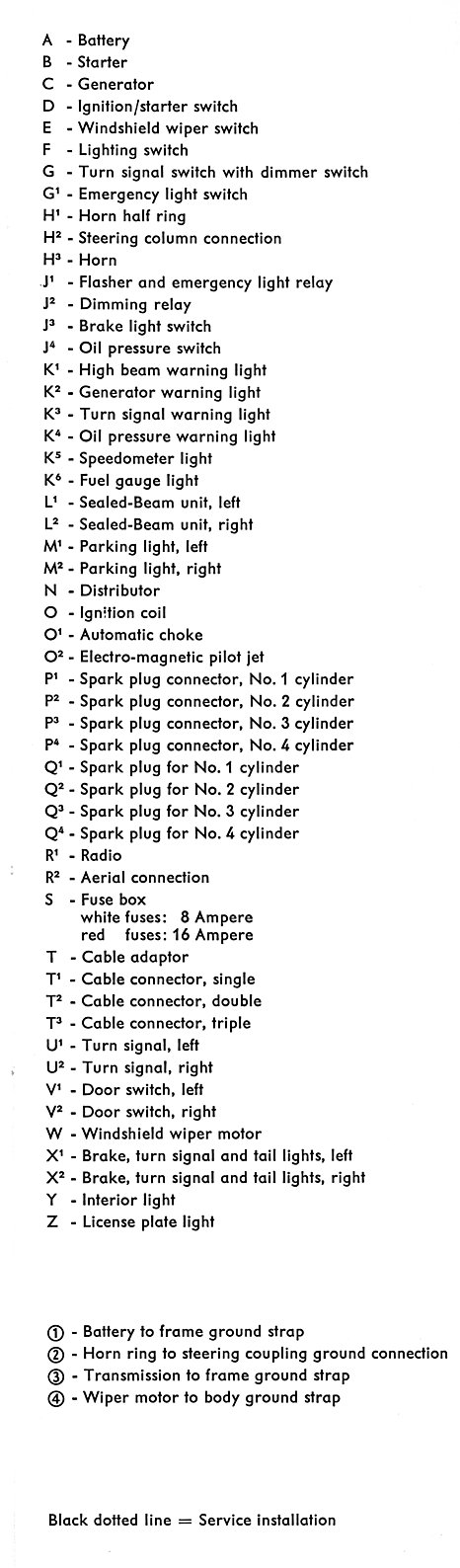

| 1966 |
 |
 |
USA | ||
| 1966 |
 |
USA, VW 1300 | |||
| 1966 |
 |
 |
 |

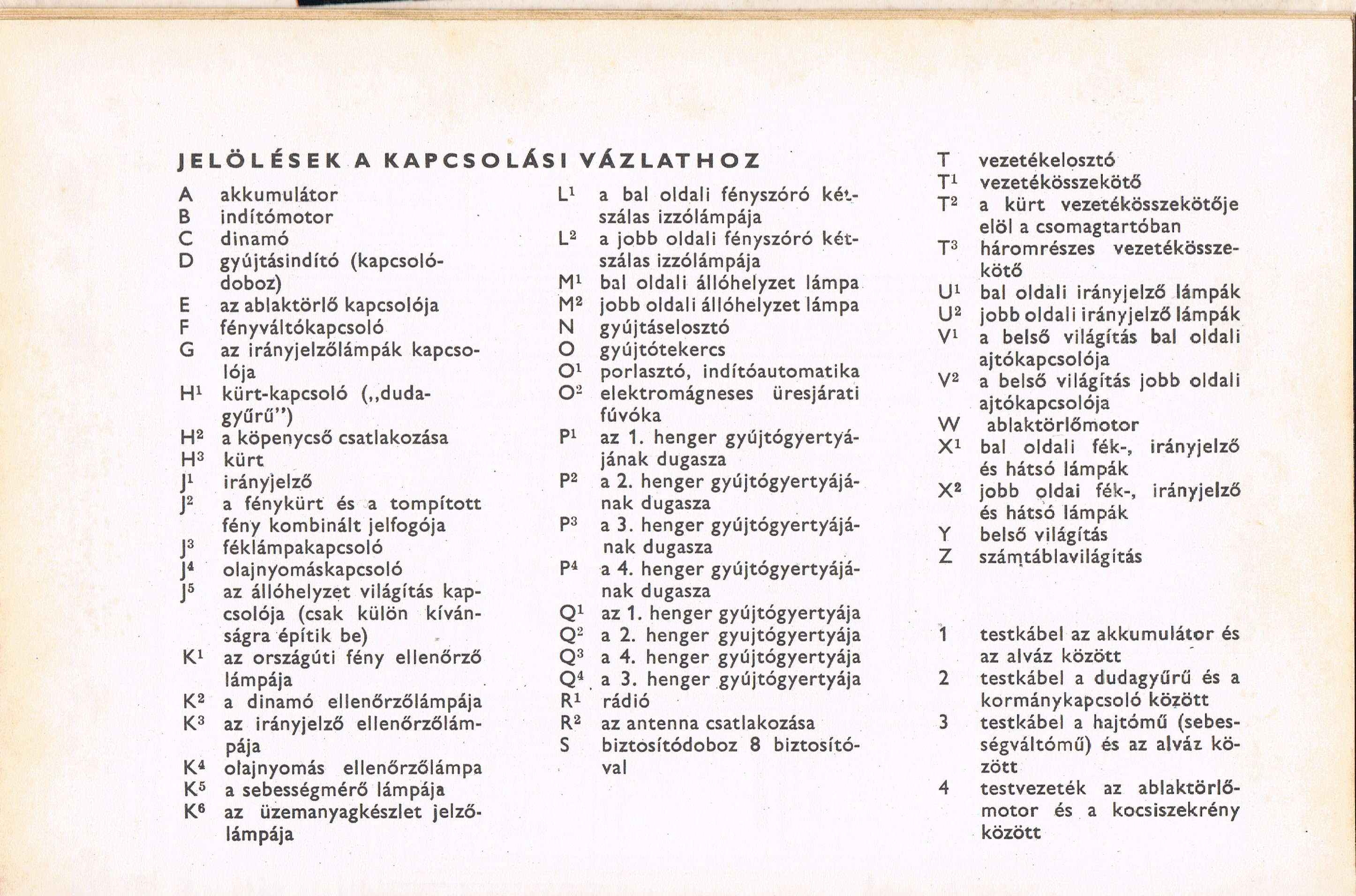

Hungarian | Large images |
| 1966 |
 |
From Clymer's | |||

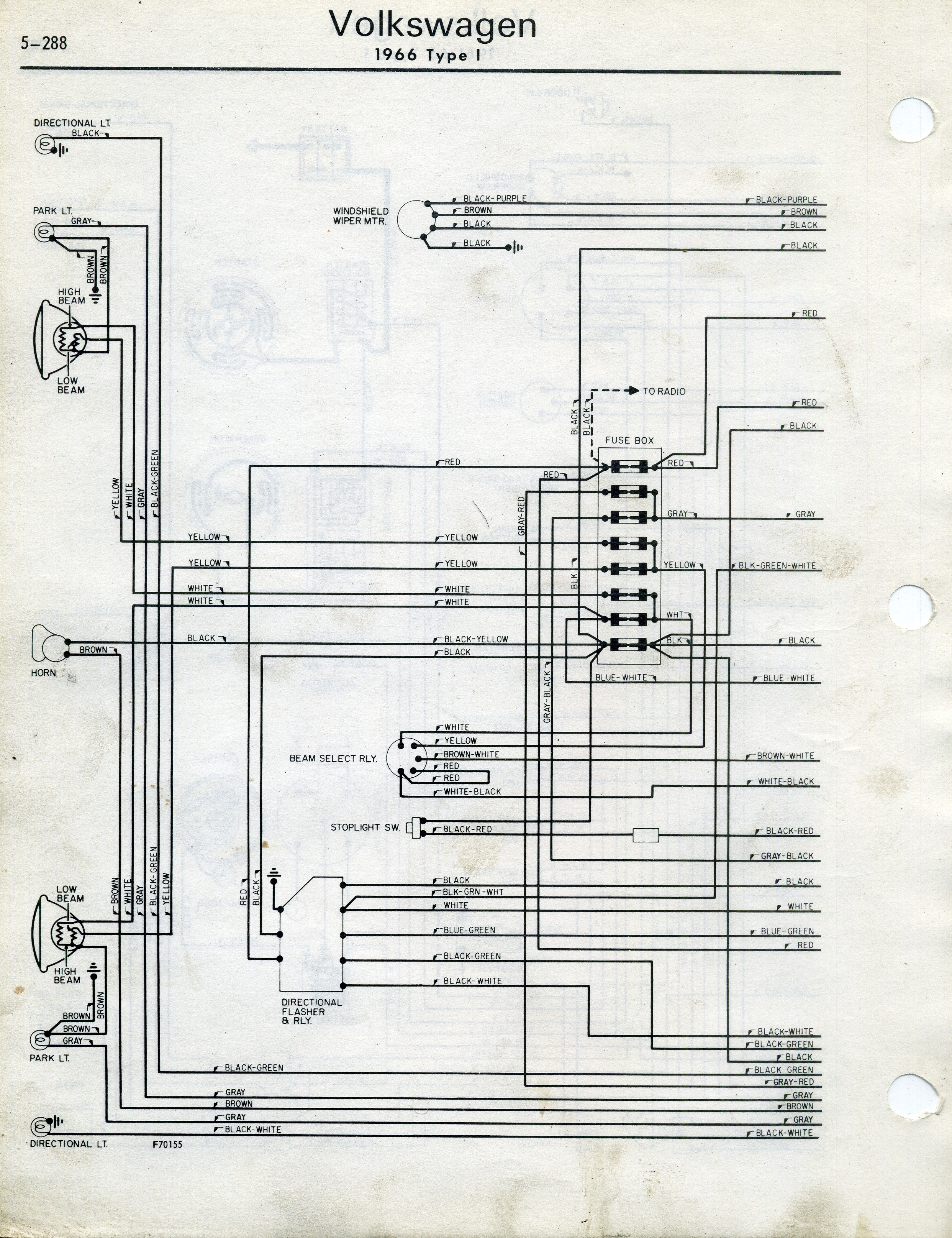

| 1966 |
 |
From National Automotive Service | |||
| 1967 |
 |
 |
Non-USA | ||

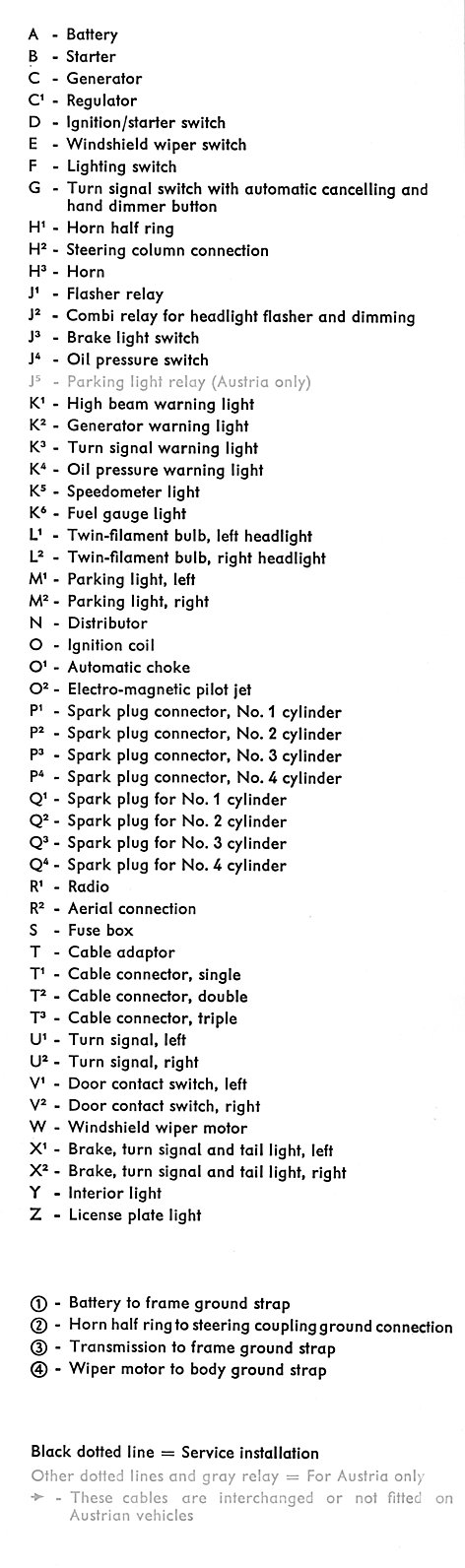

| 1967 |
 |
 |
 |
USA |

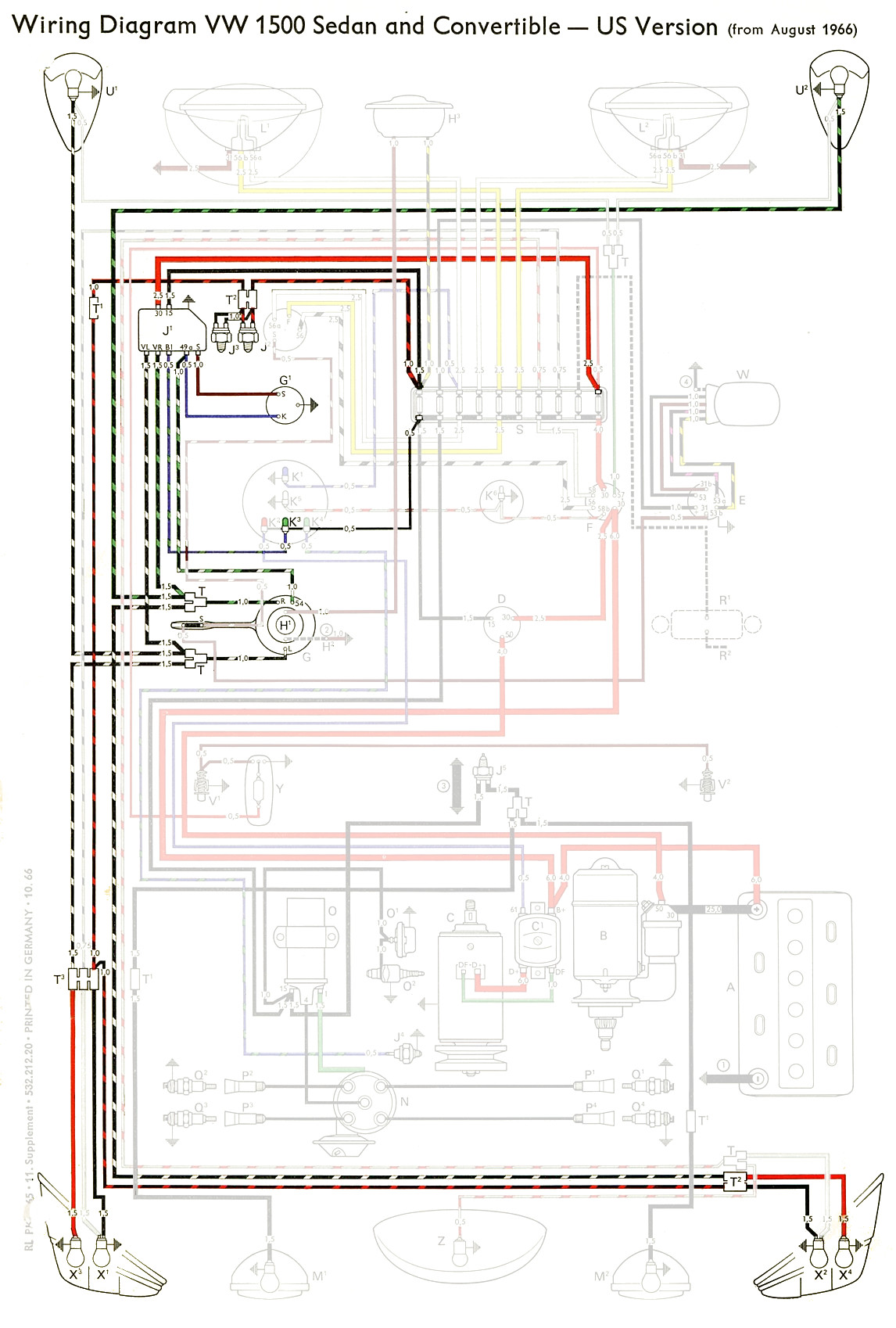

67 Turn signal/brake highlight |
| 1967 |
 |
USA, VW 1500 | |||
| 1967 |
 |
From Motor's wiring | |||
| 1967 |
 |

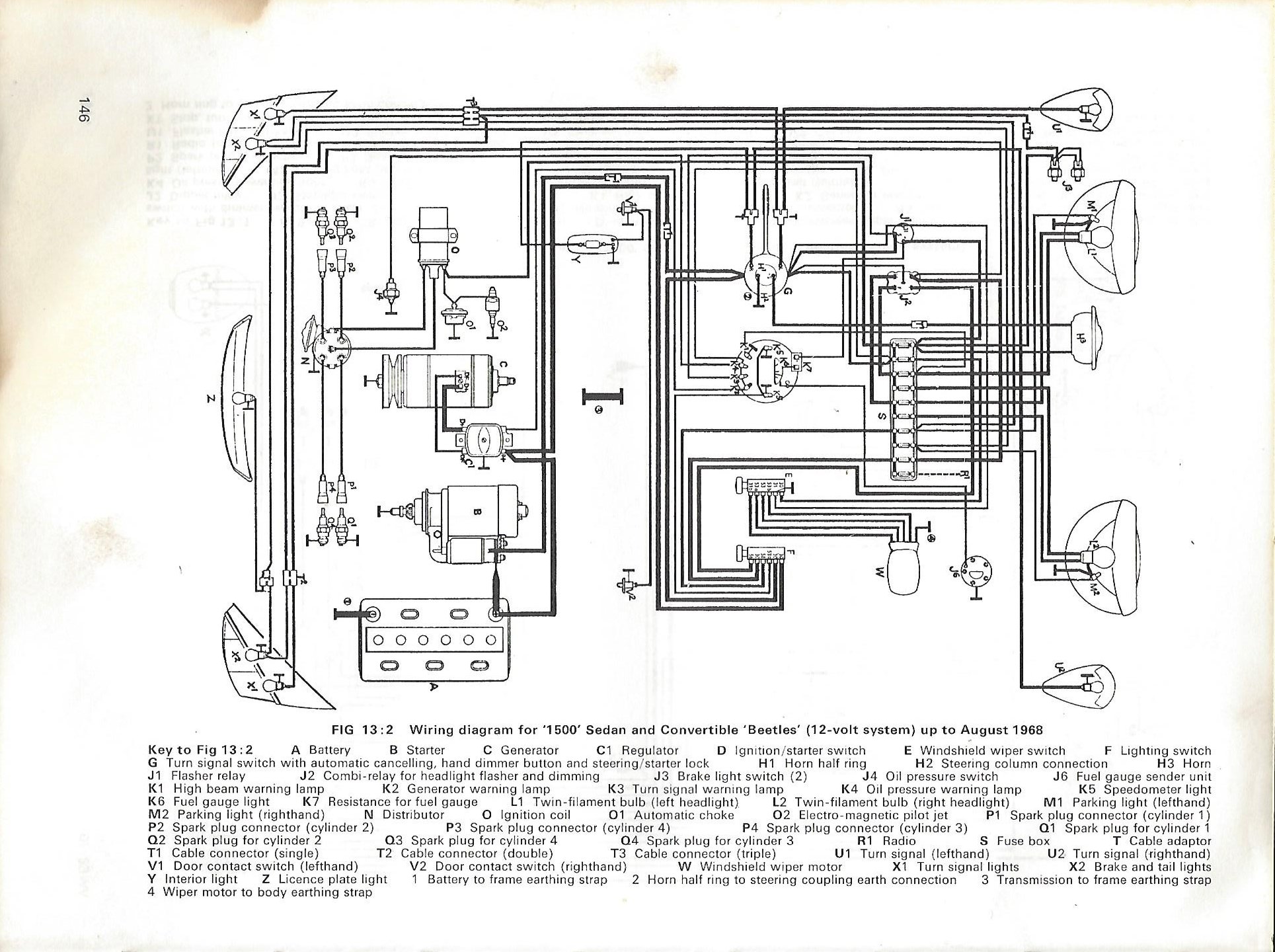

From Clymer's | |||
| 1967-68 |
 |
Non-USA |
|||
| 1967-70 |
 |

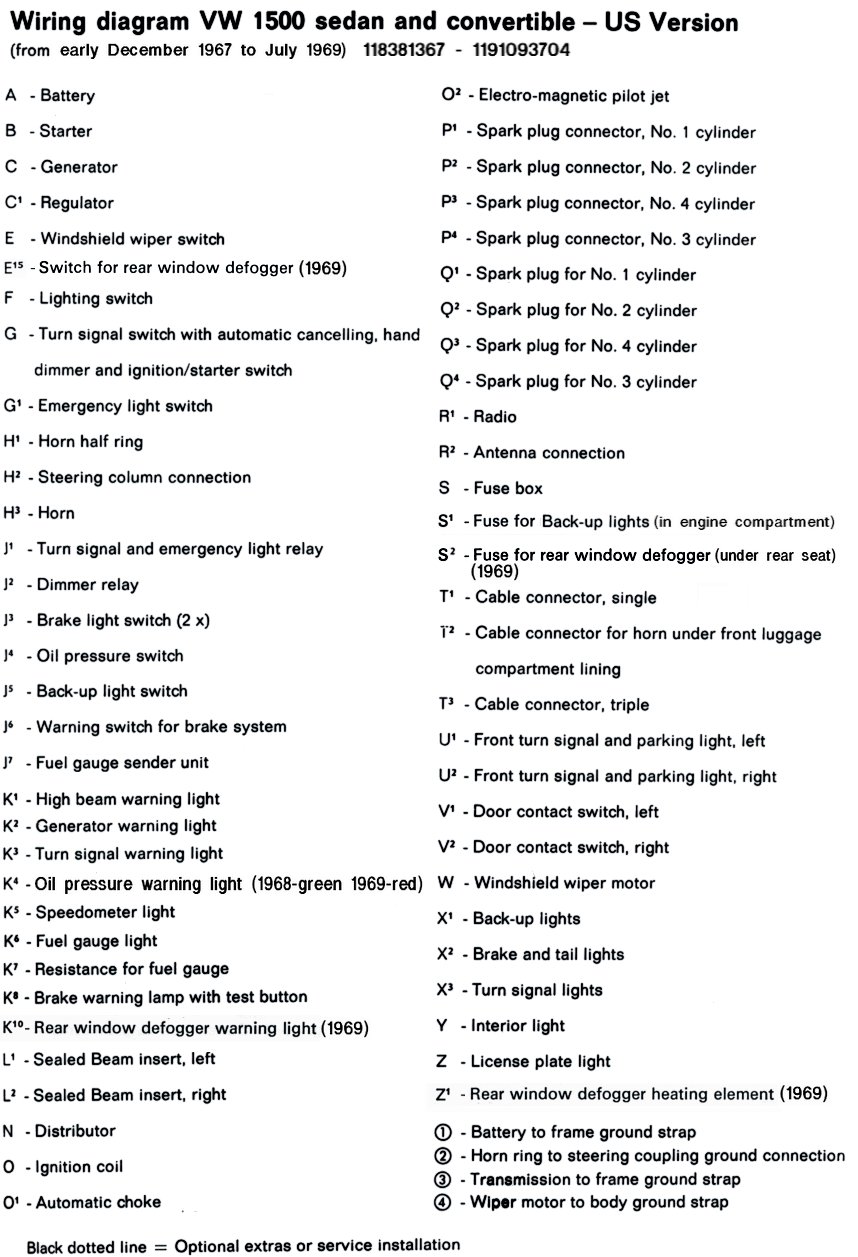

From National Automotive Service | |||
| 1968-9 |
 |
 |
USA Bentley version |

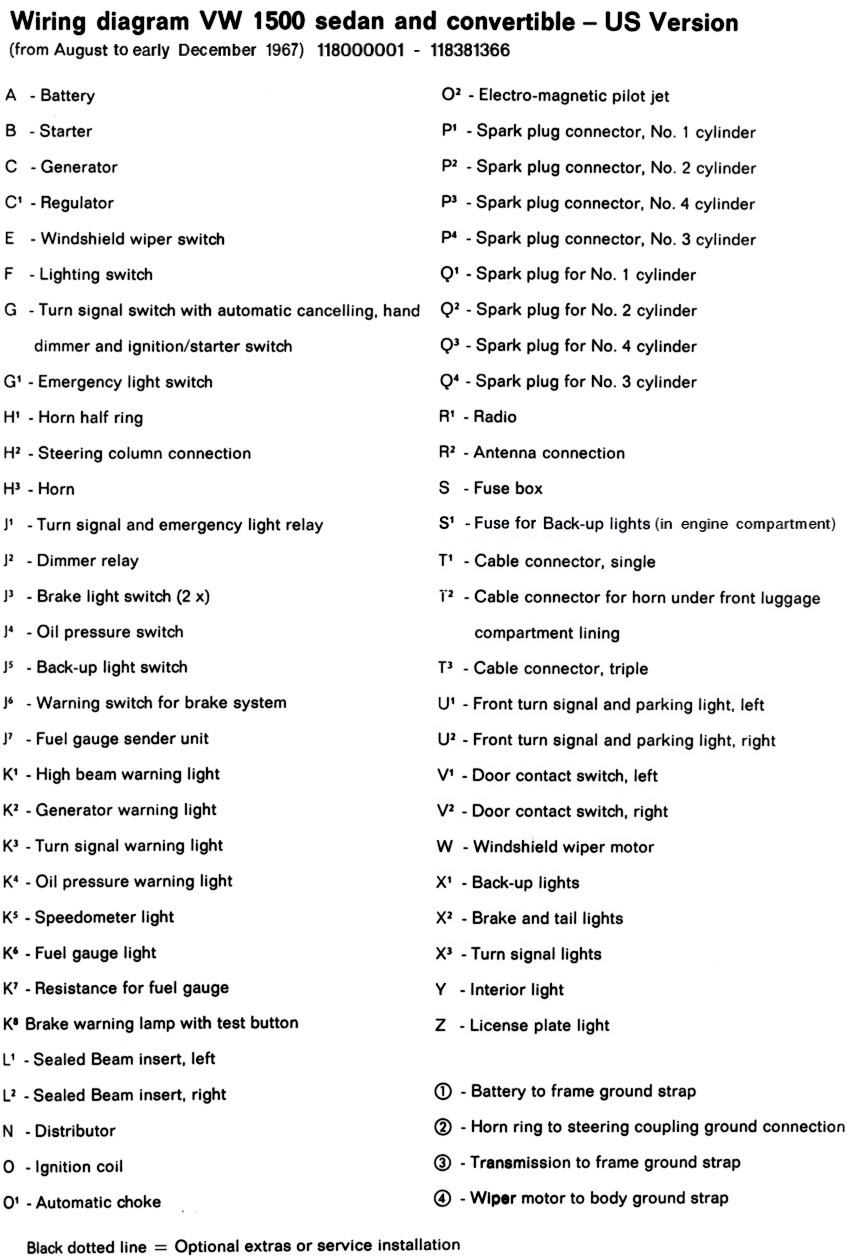

||
| Early 1968 |
 |
 |
USA Visitor-created, easier to use |
||
| Mid 1968-69 |
 |
 |
USA Visitor-created, easier to use |
||
| 1968-70 |
 |
 |
Non-USA (Large!) |
||
| 1968 |
 |
From Motor's wiring | |||
| 1968 |
 |
From Clymer's | |||
| 1969-71 |
 |
 1970-1
Supplement |
|||
| 1969-71 |
 |
From Clymer's | |||
| 1970 |
 Additional
wiring |
||||
| 1970 |
 Poster-style image, suitable for printing |
||||
| 1970-71 |
 |
 |
 |
USA, factory diagram | |
| 1970-71 |

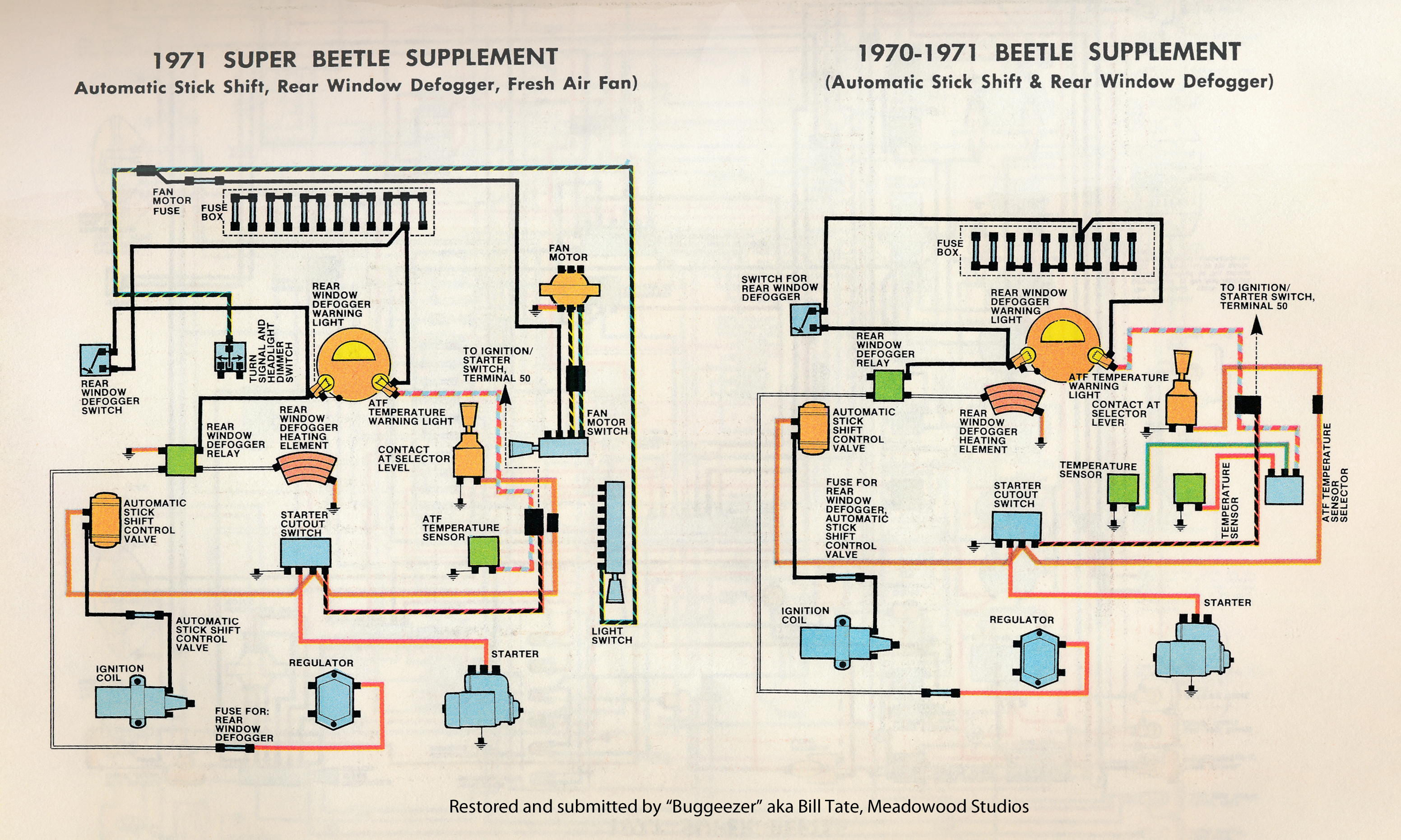

 1970-71
SupplementsFrom Clymer's |
||||
| 1971 |
 |
 |
USA
Corrected fuse box |
||
| 1971 |
 |
 |

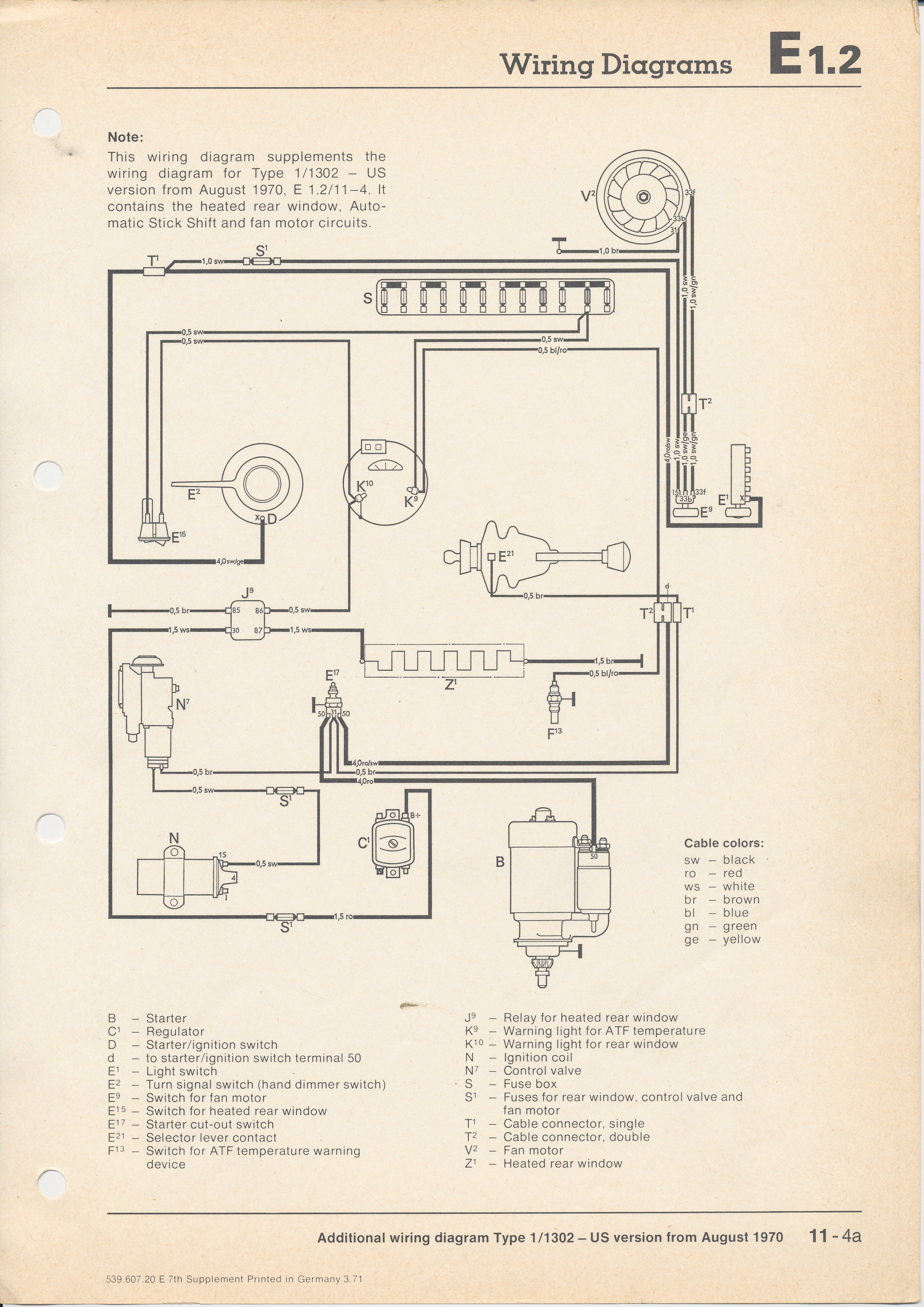

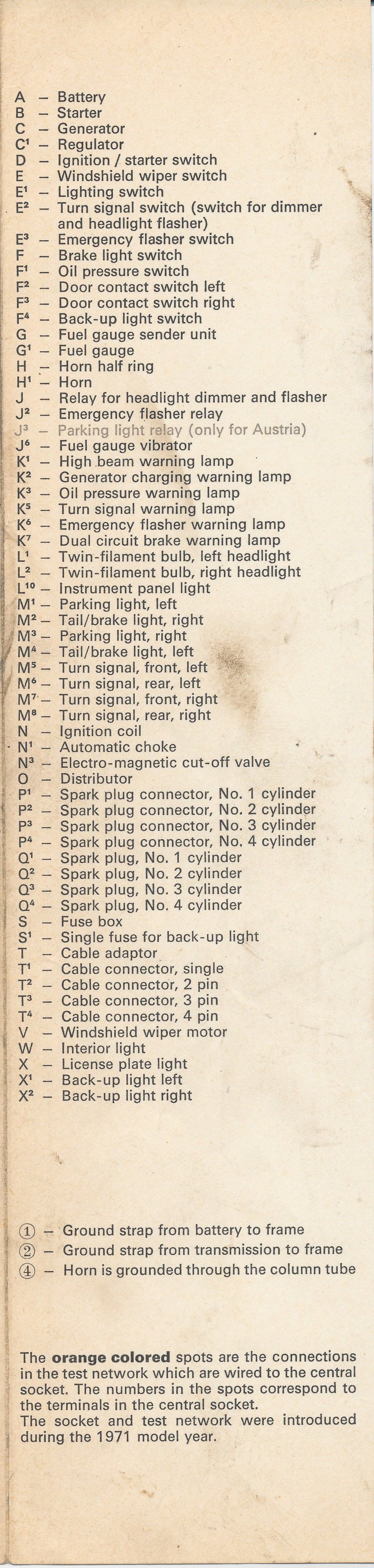

Super Beetle
Additional wiring
Additional wiring, USA |
||
| 1971 |
 |
 |
Super Beetle only | ||
| 1971 |
 |
Super Beetle1970-71
Supplements From Clymer's |
|||
| 1972 |
 |
|
Corrected fuse box 1972
Supplement |
||
| 1972 |
 |

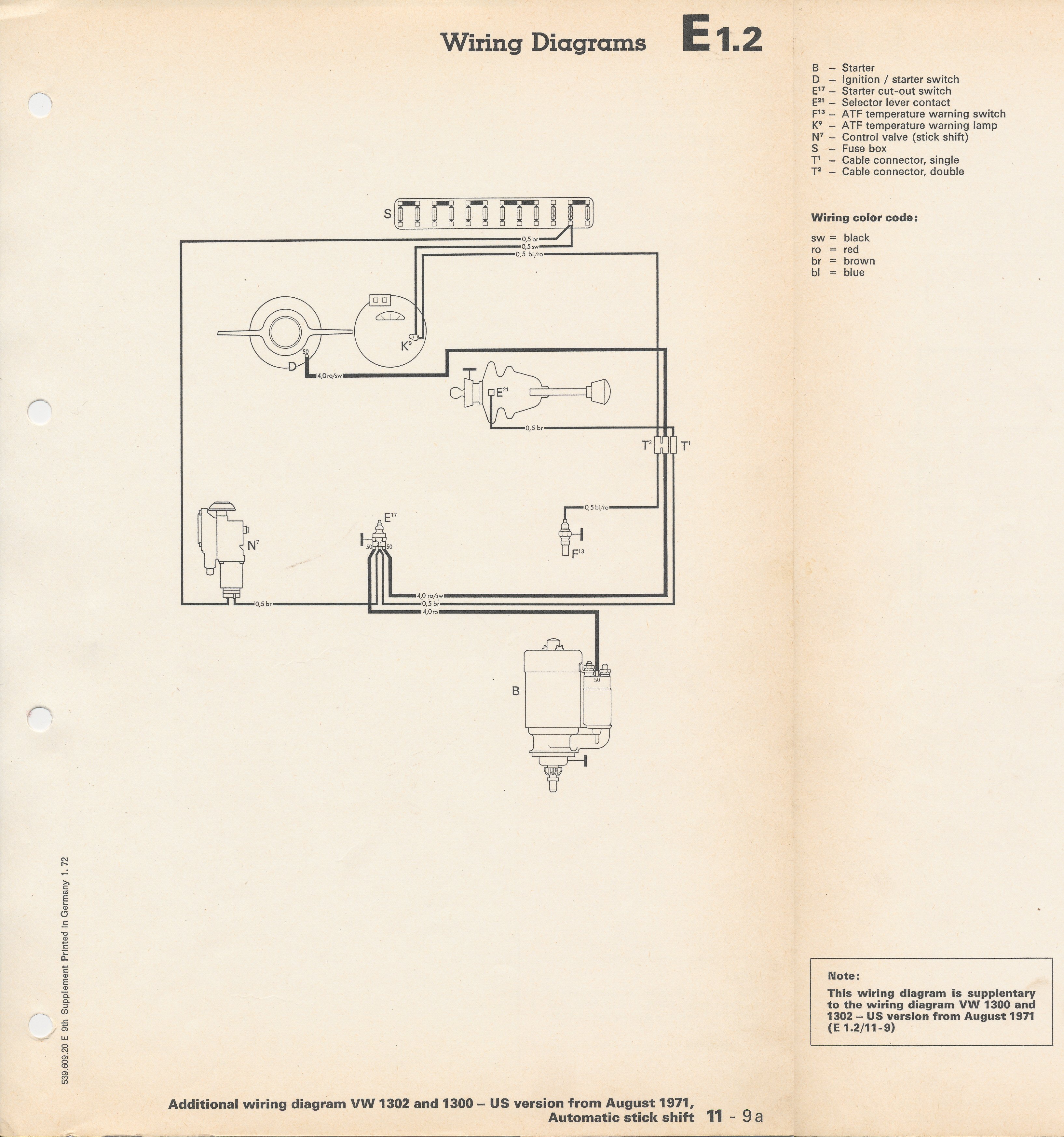

Standard and Super
Additional wiring

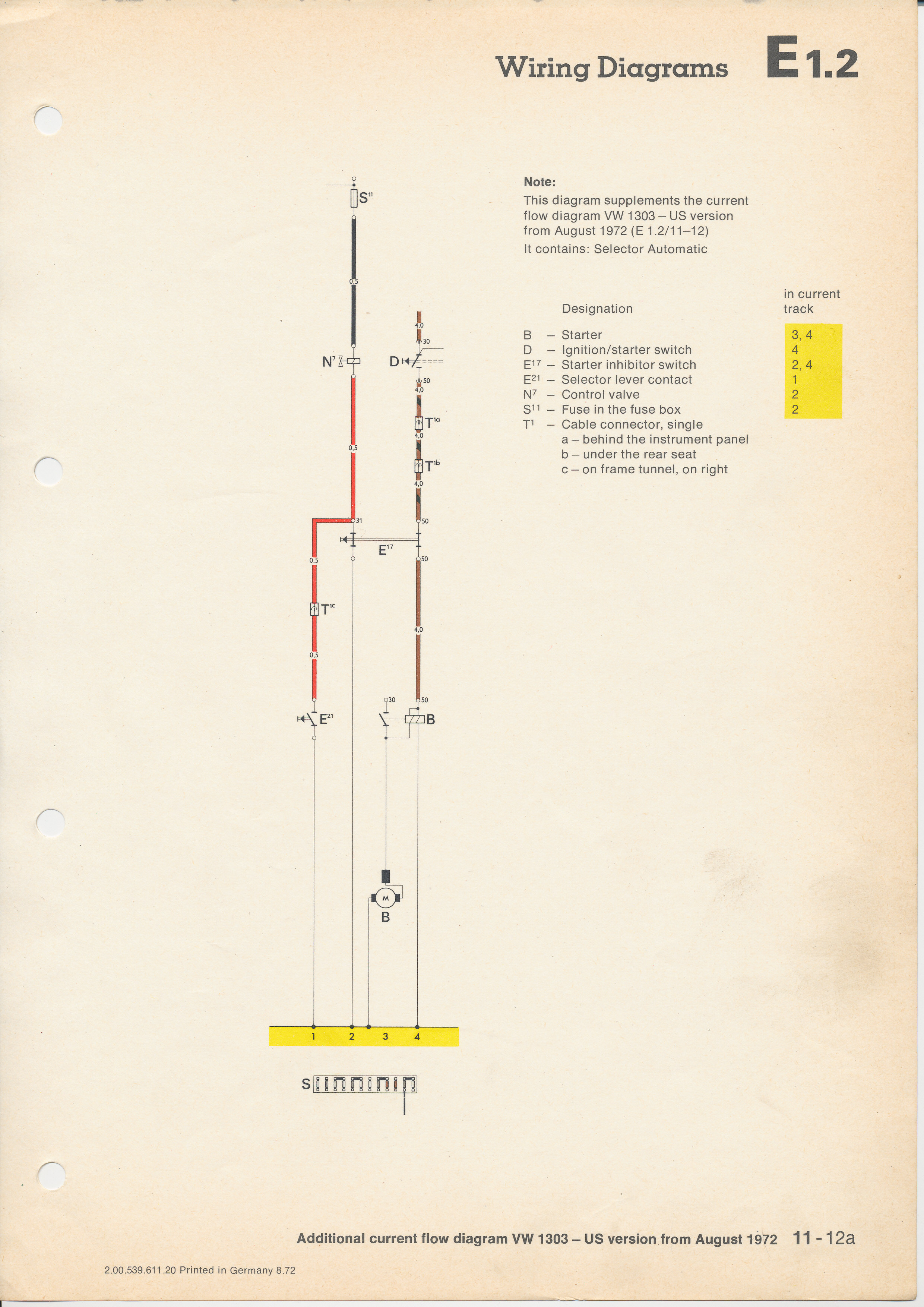

Additional wiring, USA |
|||
| 1972 |
 |
German Super Beetle | |||

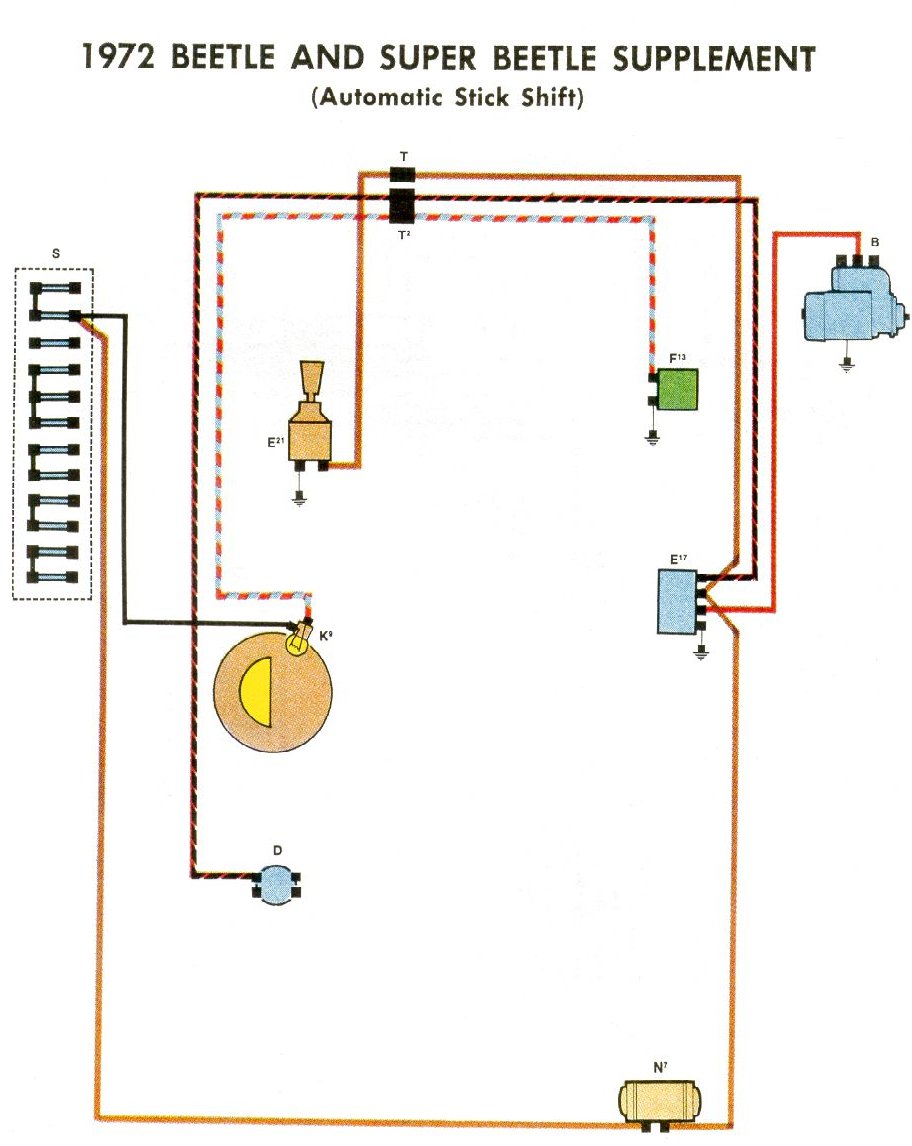

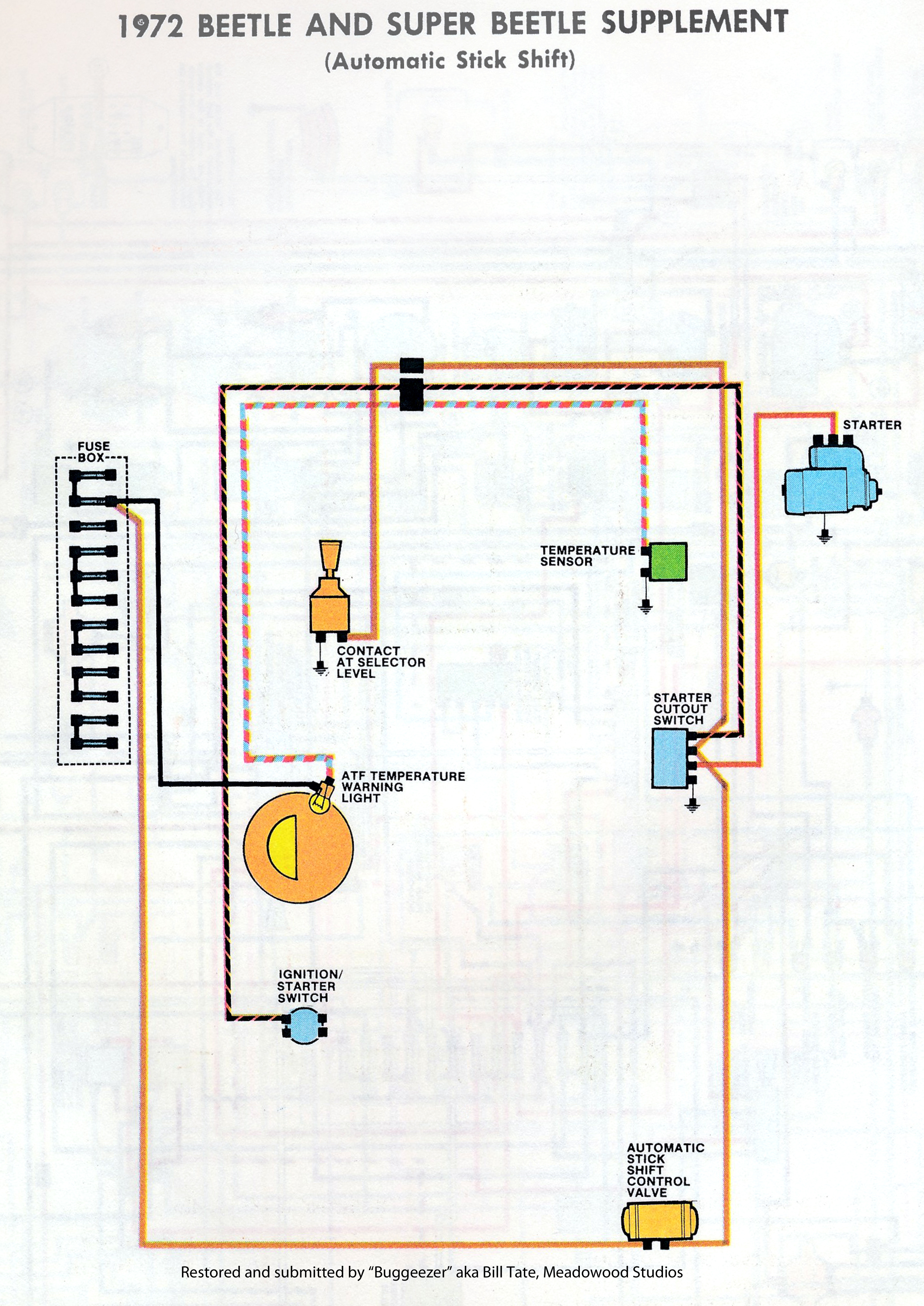

| 1972 |
 |
Beetle and Super Beetle
Automatic Stick ShiftFrom Clymer's |
|||
| 1973 |
   |
 |
 |
How to read 73-up diagrams |
|
| 1973-up |  |
 |
Standard
Additional wiring |
||

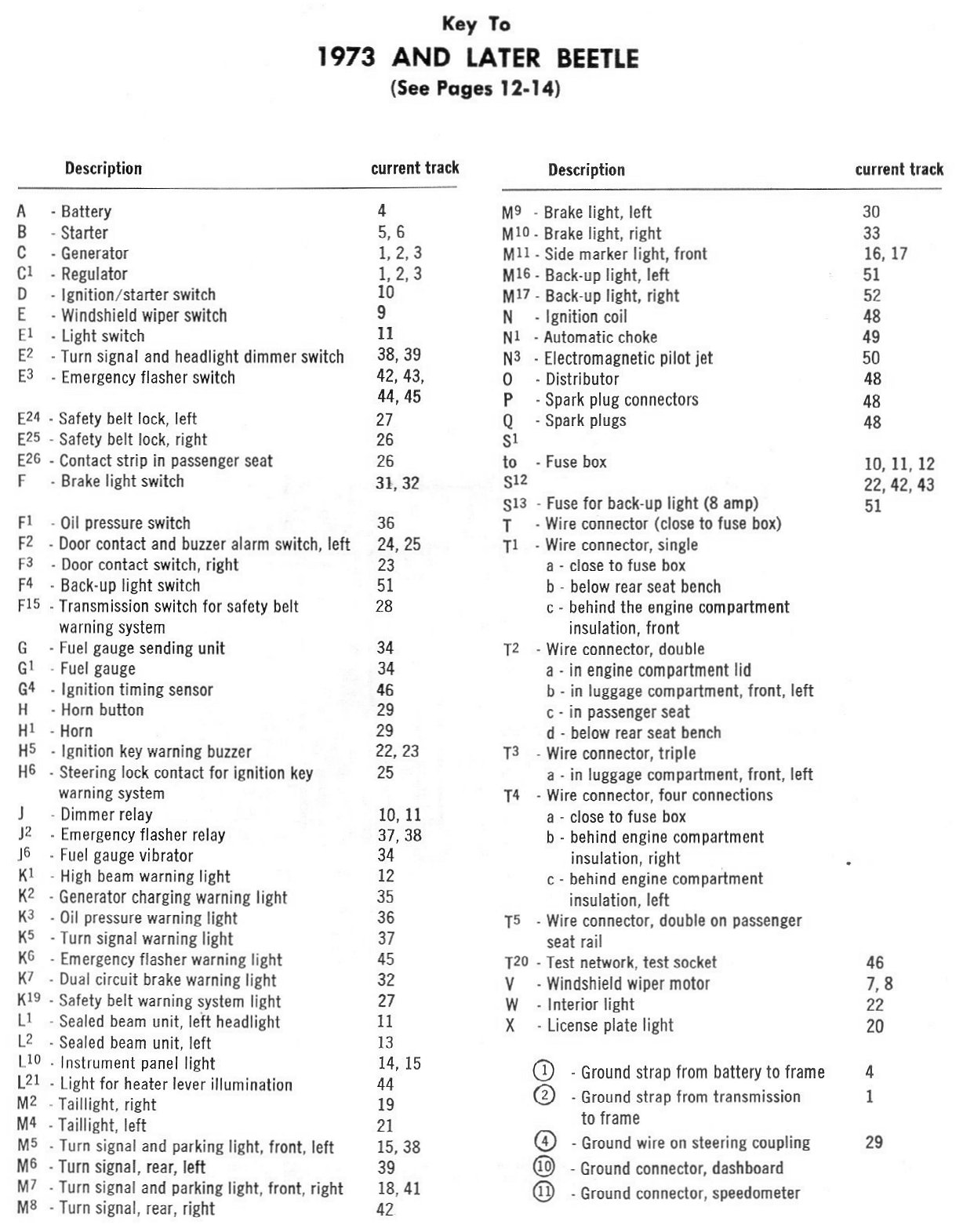

| 1973 |
 |
 |
Super Beetle only
Additional wiring
Additional wiring, USA
Key, from Clymer's |
||

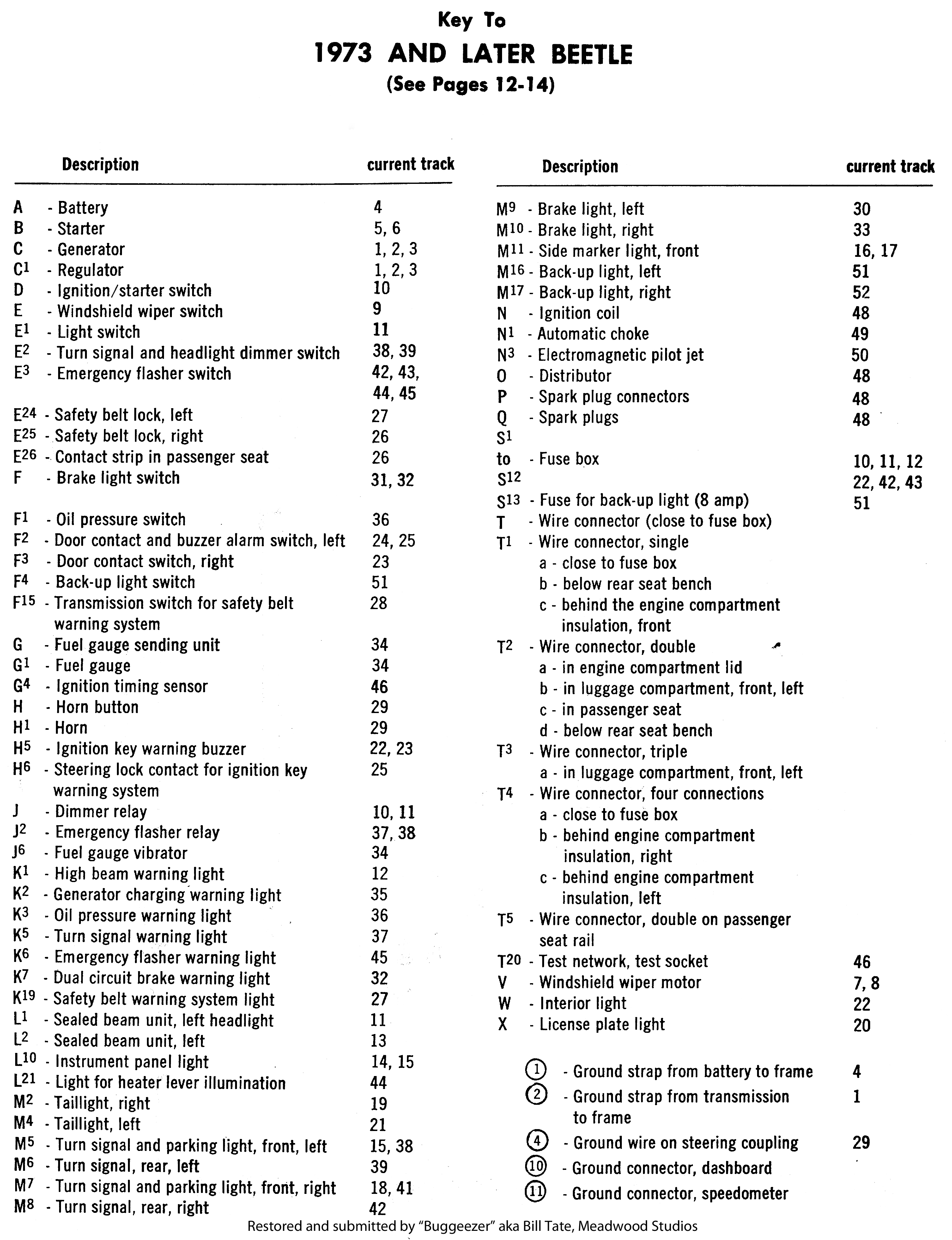

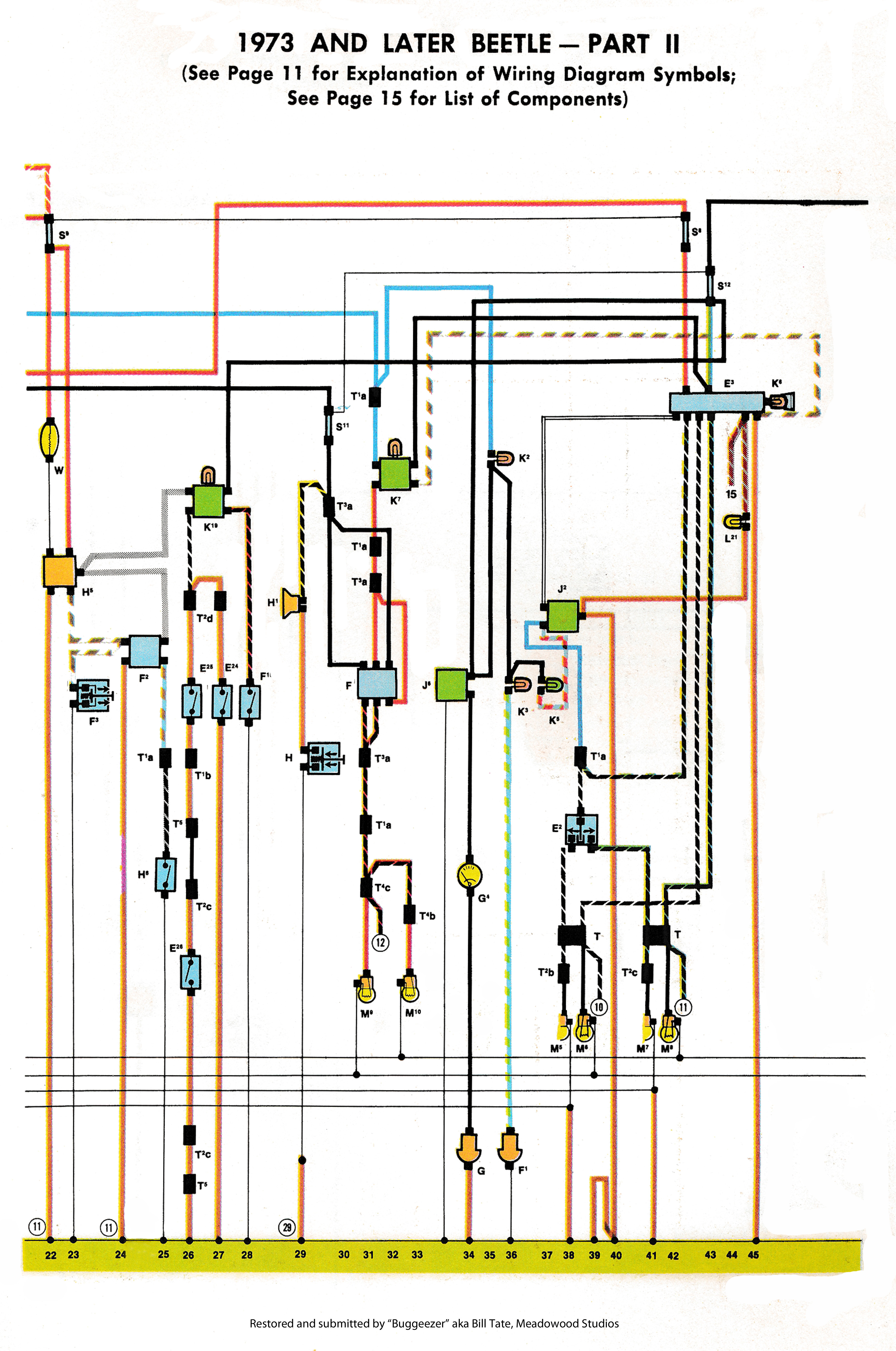

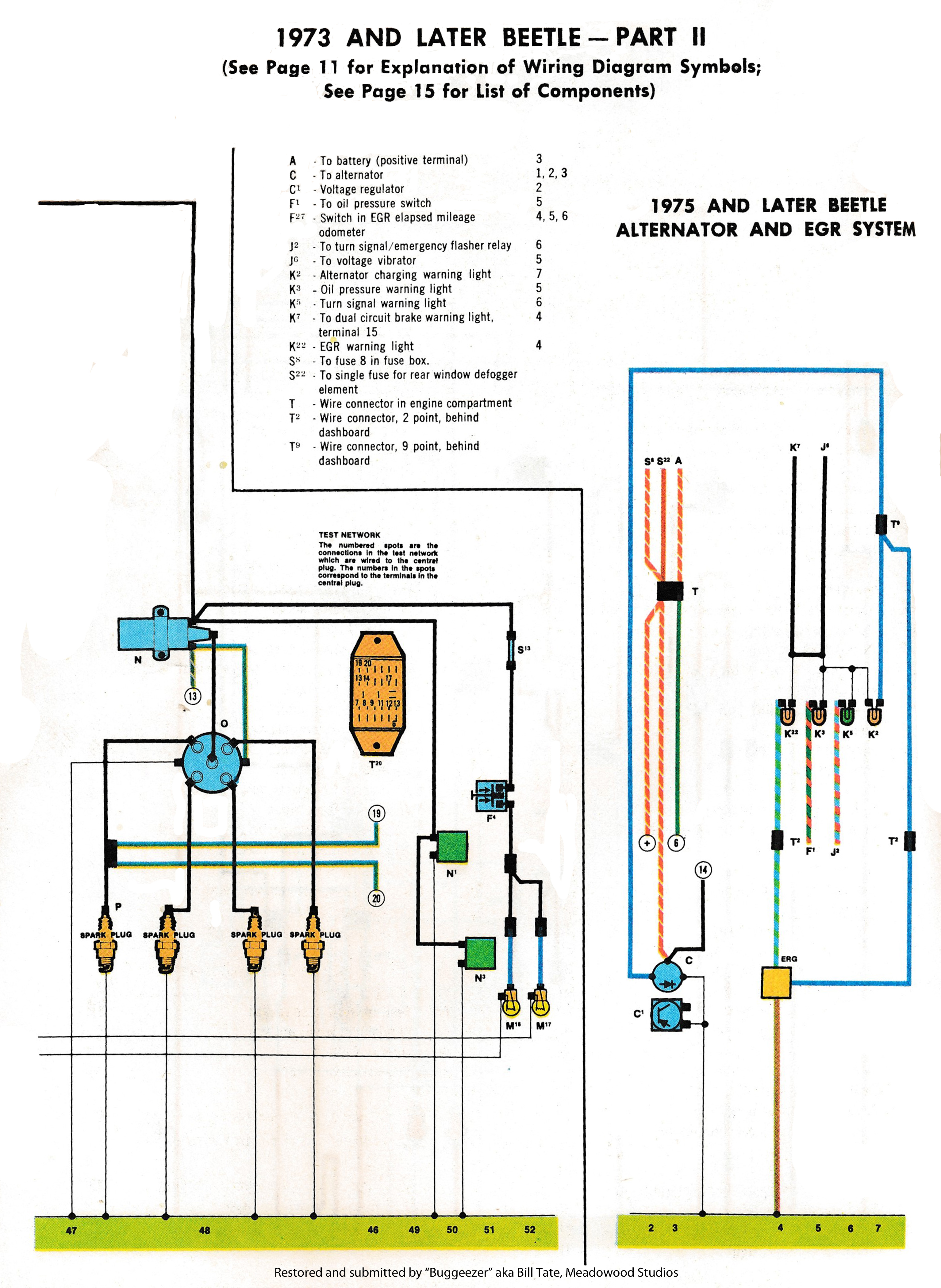

| 1973-up |
   |
 |
From Clymer's | ||

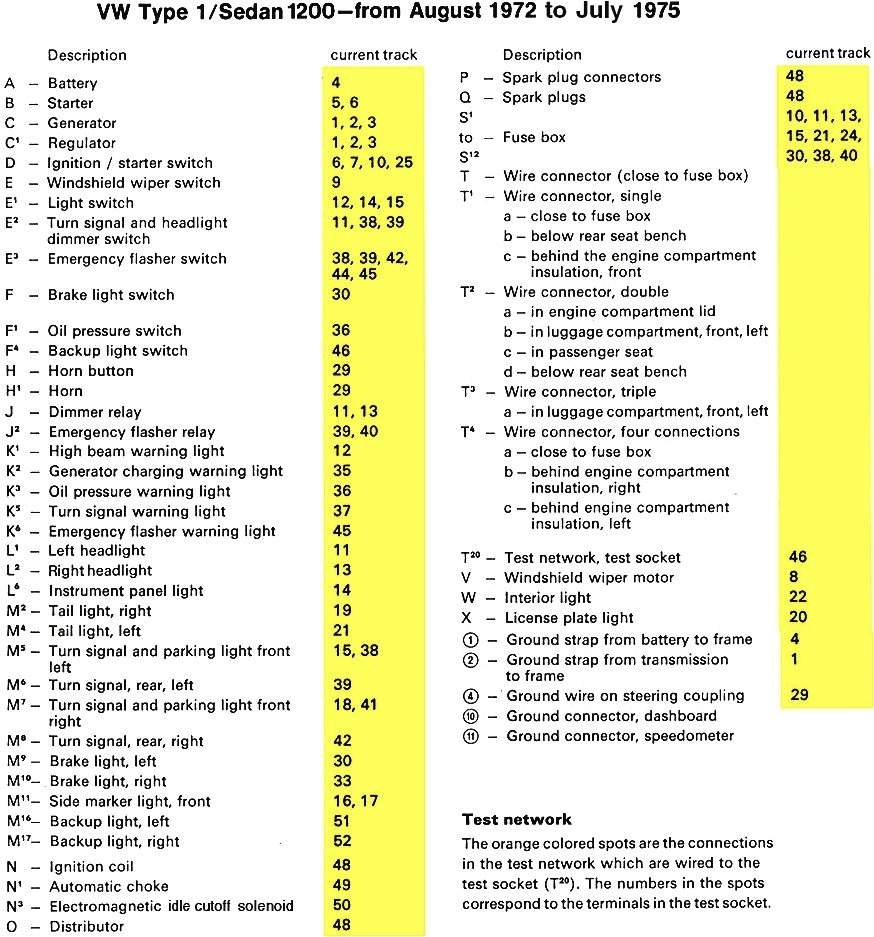

| 1973-75 |
 |
 |
1200 | ||

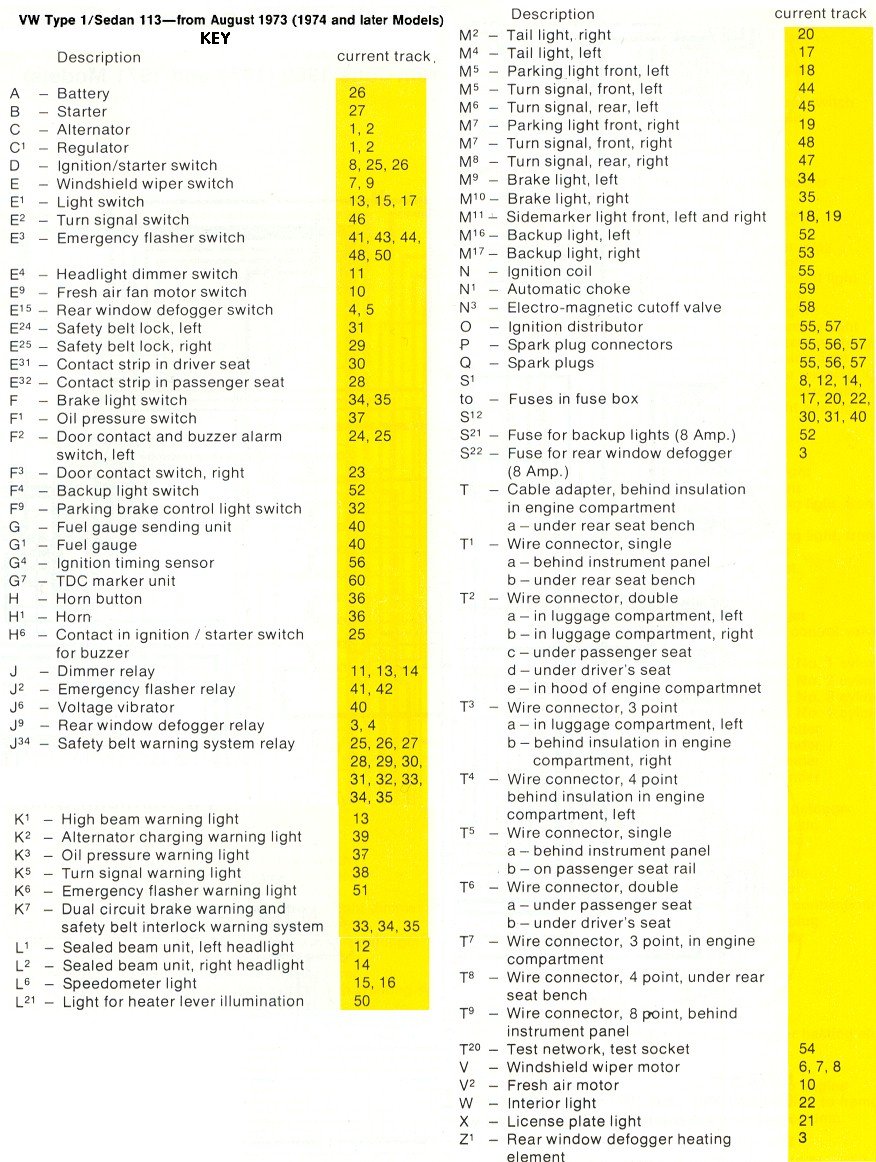

| 1974-up |  |
 |
Super Beetle only | ||
| 1974 |
 |
1303 - European w/alternator (PDF) | |||
| 1974-75 |
   |

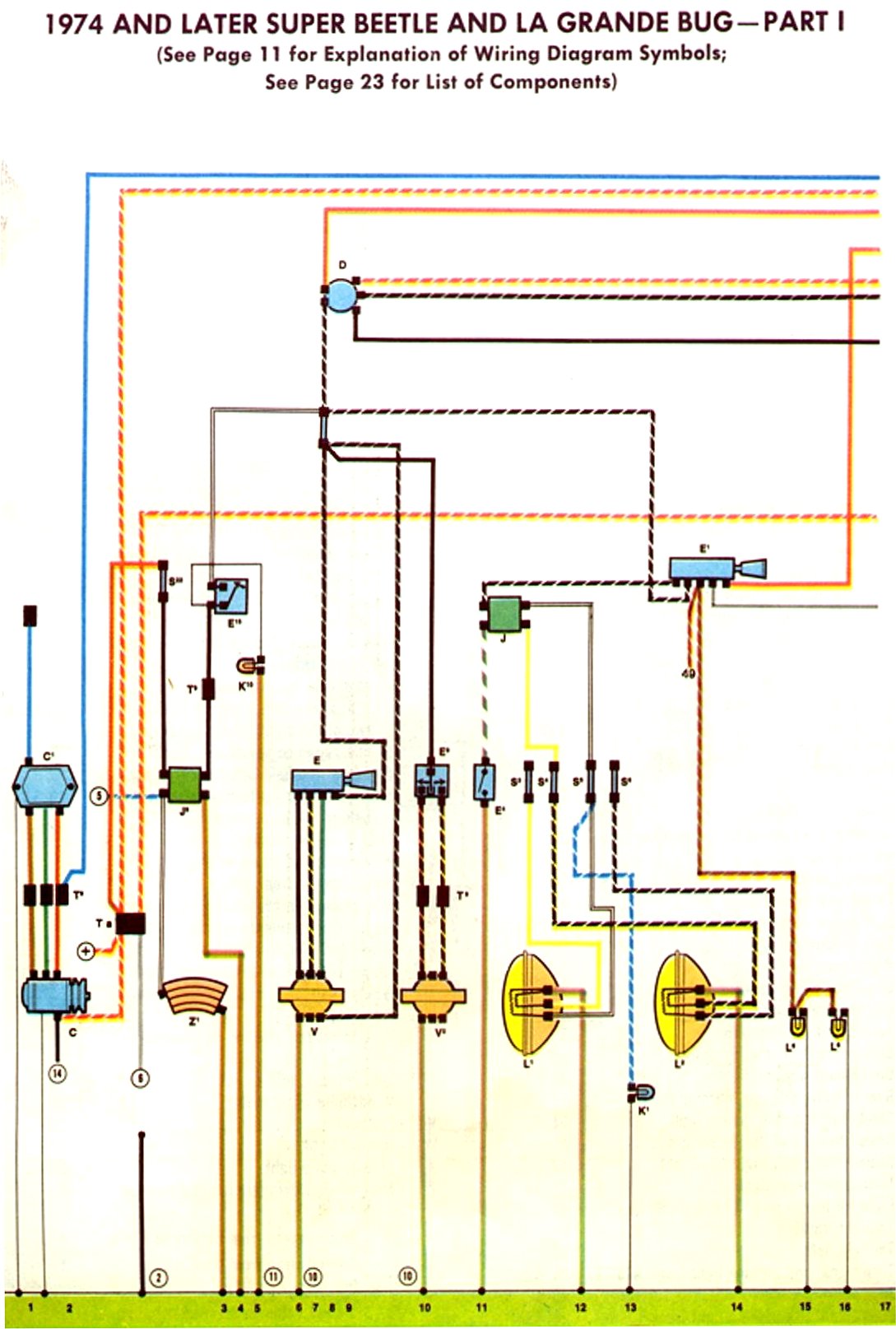

Super Beetle and La Grande Bug From Clymer's |
|||
| 1974-5 |
   |
 |
|
How to read 73-up diagrams |
|

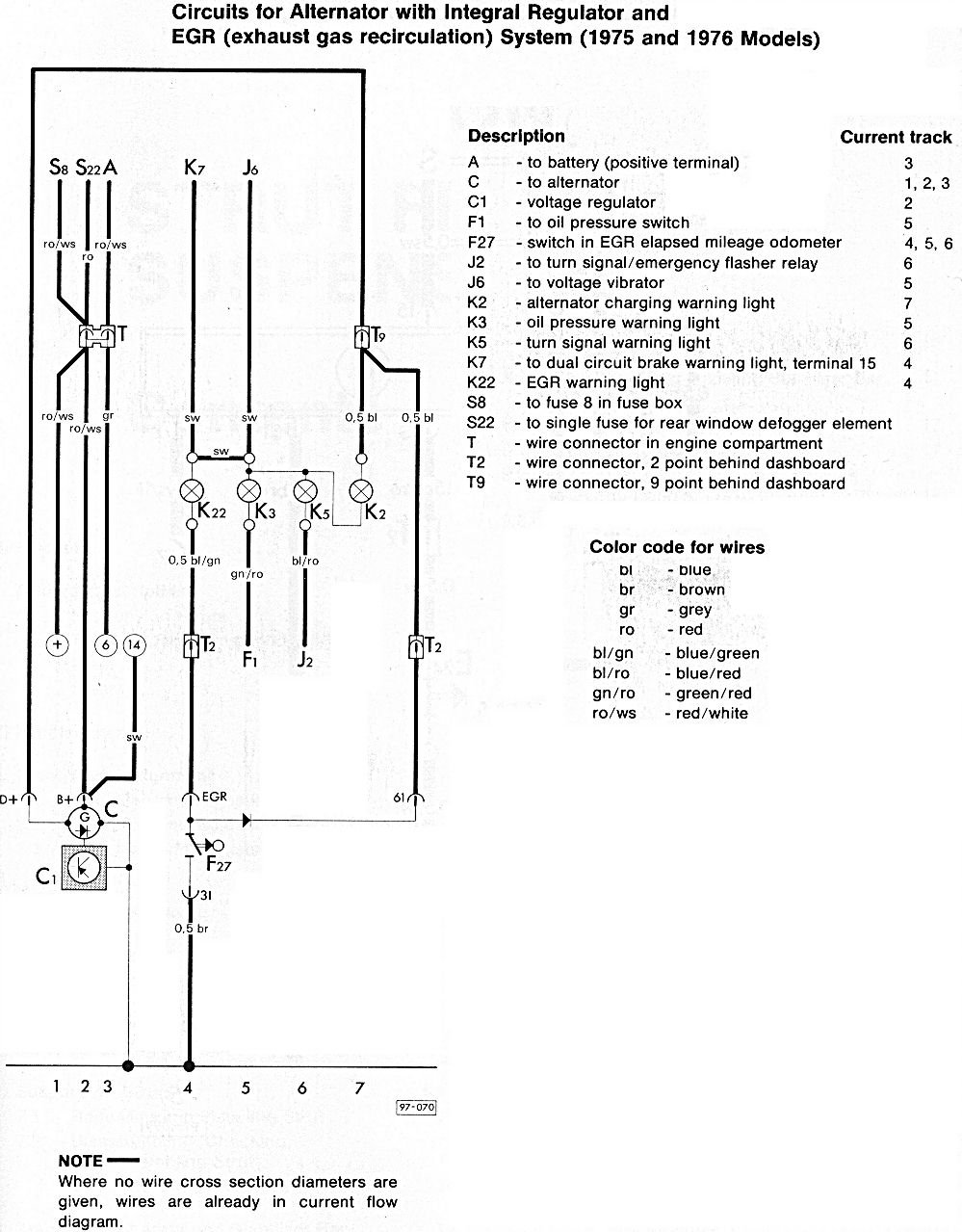

| 1975-6 |
Supplement for internally regulatedAlternator and EGR system |
||||
| 1976-79 |  |
 |
Fuel Injected | ||
| 1976-79 |  |
 |
Super Beetle only Fuel Injected |
| Other wiring diagrams | |
| . |
Fuel Injection Wiring diagram (PDF) |
| 1963 |

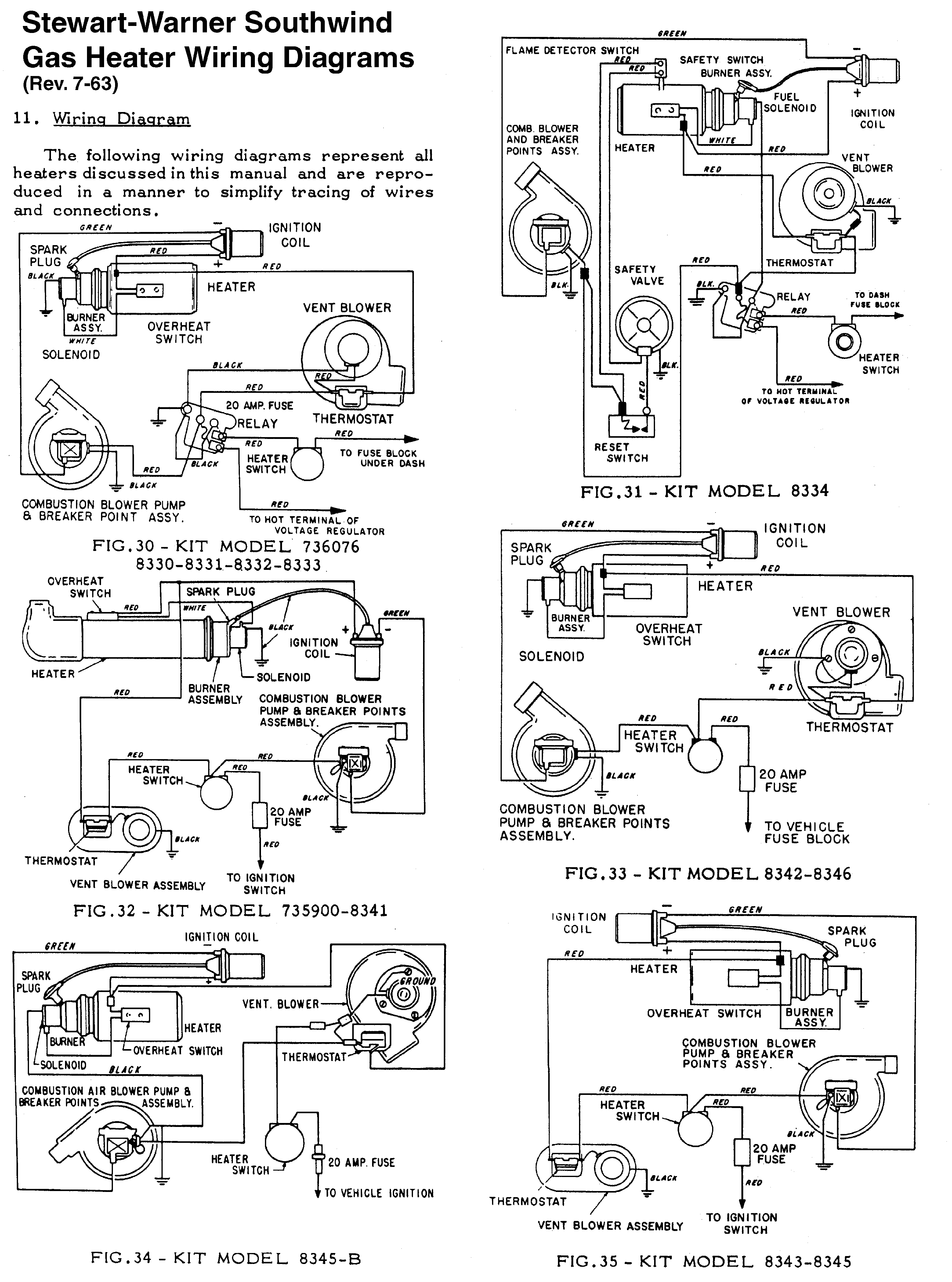

Stewart-Warner Southwind Gasoline Heaters |

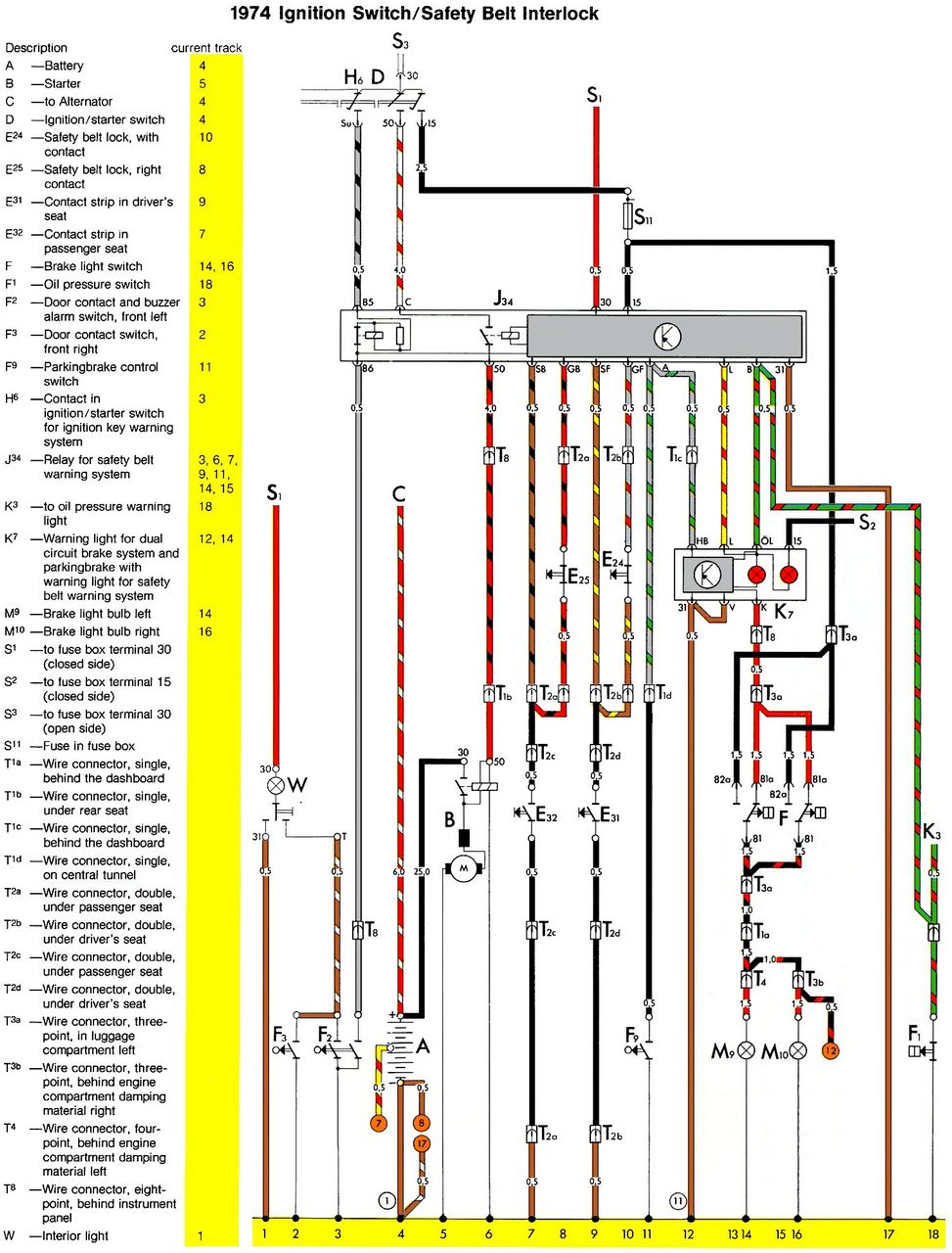

| 1974 |
Seat Belt Interlock |
| All |

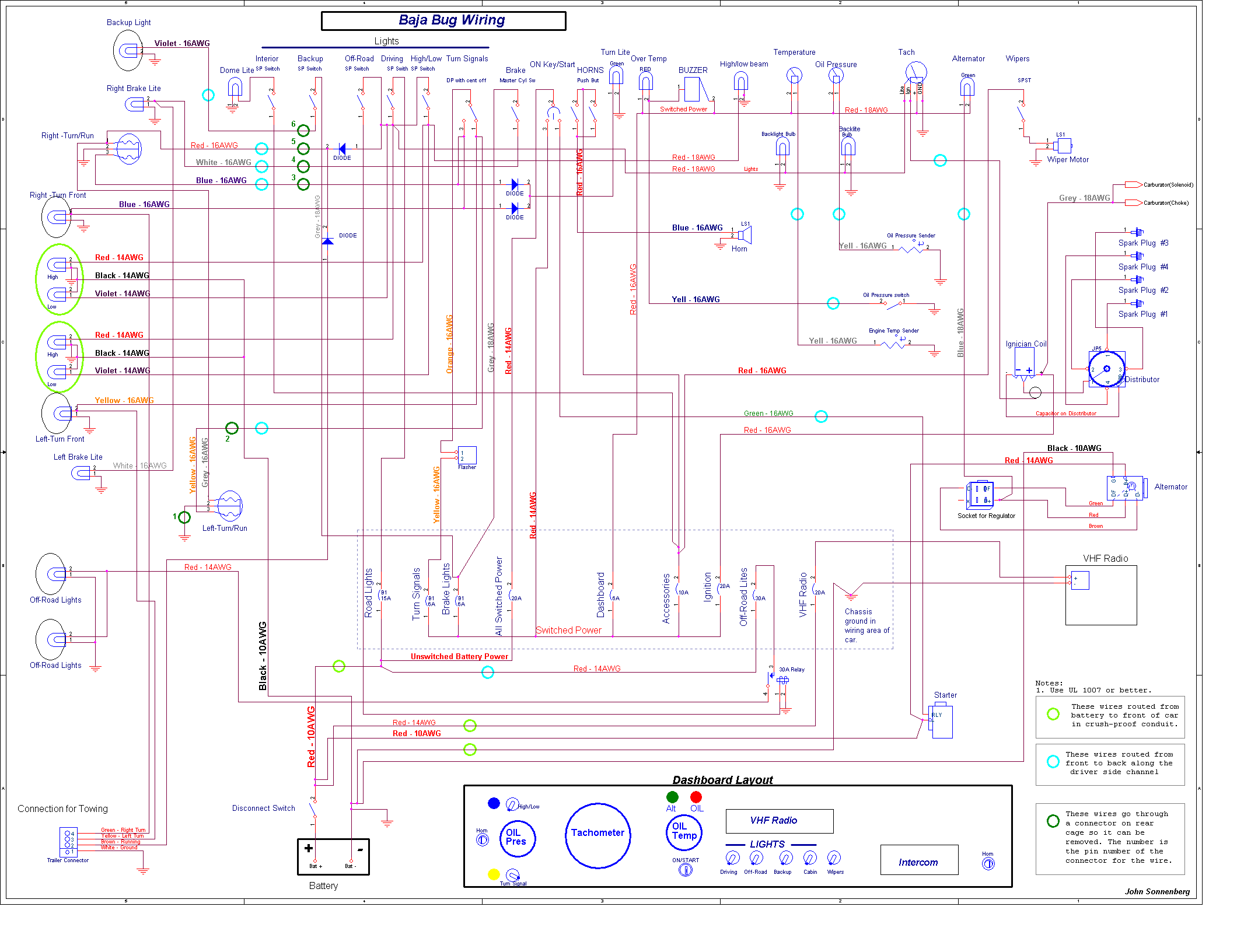

General Baja Bug/Off-Road vehicle wiring diagram |
 |
Dual Circuit Brake Switches and Warning Light Diagram |
Contributors to this page include Bryan M, Gerk vd Wal, David Del Vecchio, Andy Thompson,
Kurt, John Sonnenberg,
Darryl Moore, Bruce A. Jones, Bob Cropsey, Raymond Scott, Boble, Stan Wohlfarth,
Misterbill, Tom P., and Francesco S.
