Hot-Spark 009 Distributor with electronic ignition installed - $109.99 - FREE SHIPPING to USA |
Full size
Simple Wiring (only 2 wires) |
Full size
www.Hot-Spark.com |
Full size
HS15HEC High-Energy Coil: epoxy-filled stainless steel canister $49.99 - Free Shipping to USA |
Full size
3BOS4U1 electronic ignition - replaces points & condenser in Bosch 009 or vacuum distributor $49.99 |
Full size
Electronic ignition conversion kit for 6-cylinder Porsche, Mercedes, Volvo-Penta, etc. $59.99 |
Full size
Genuine OEM Bosch 0231 170 034 Distributor with 3BOS4U1 electronic ignition $169.99 |
Full size
OEM Vacuum-advance distributor manufactured by Bosch |
|
|

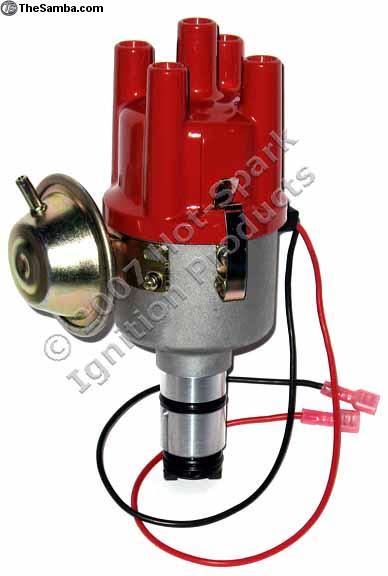

New Bosch SVDA Electronic Distributor Price: $169.99
|
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
www.Hot-Spark.com
Brand new, genuine OEM Bosch vacuum-advance 0 231 170 034 Distributor for air-cooled, 4-cylinder Volkswagen & Porsche, with electronic ignition instead of points/condenser. Advance curve set for optimal performance with most 4-cylinder, air-cooled VW and Porsche engines. US $169.99 - FREE SHIPPING to anywhere in the USA, insured.
Includes 3BOS4U1 electronic ignition conversion kit already installed, ready to run in your air-cooled VW or Porsche - Just install distributor, connect the red wire to the coil's positive (+ or 15) terminal and the black wire to the coil's negative terminal (- or 1) and set the timing with a strobe light - Simple!
Zero-maintenance 3BOS4U1 electronic ignition means you won't have to fool with points and timing again - always stays in perfect tune!
The genuine Bosch SVDA 034 distributor is an OEM version of the vacuum-advance Bosch 0 231 170 034 / VW 043-905-205, federal model distributor that came stock from the factory on the 1974 VW Beetle with 1600 engine and manual transmission. Perfect for use with the 34PICT carburetor. This distributor requires a vacuum source from the carburetor or throttle body (when used with fuel injection). Uses standard Bosch distributor cap, rotor, etc.
These distributors fit 12-volt, air-cooled Volkswagens, except later models with factory electronic ignition and 1974 and earlier Bosch fuel injection systems triggered by contacts in the bottom of the distributor.
The Bosch SVDA 034 vacuum-advance distributor helps to eliminate the acceleration "flat spot" common with the Bosch 009 distributor.
Includes cap, rotor, O-Ring and everything you need - no external ignition box required.
Coil Required: Coil should have 1.5 Ohms or more primary resistance. Stock Bosch coil, Bosch blue coil or HS15HEC high-energy coil OK.
This distributor fits the following Volkswagen models (12 volt only):
Type I - Beetle, Bug 1946-1979
Karmann Ghia, 1956-1974
Thing, Type 181, 1973-1975
Type II: 1950-1979 Bus, Transporter, Station Wagon, Kombi, Westfalia Camper (not '79 California model)
Type III - 1962-1973
Type IV (412) 1974
Vanagon 1980-83, 2.0 liter (except California model)
Most four-cylinder, air-cooled Porsche
Uses these standard Bosch replacement parts:
Rotor: 04 033
Distributor Cap: 03 010
We install the electronic ignition and then set and test the advance curve on a Sun distributor tester.
This distributor requires a 12-volt, negative ground electrical system.
Includes everything you need - no external ignition box required.
Click here for installation instructions:
www.Hot-Spark.com/Installing-SVDA034.pdf
Type I VW crankshaft pulley template:
http://www.hot-spark.com/Hot-Spark-SVDA034-VW-Type-I-Pulley-Degree-Template.pdf
Item Number: BOSCH034/3BOS4U1
Price: US $169.99
Brand new, genuine OEM Bosch vacuum-advance 0 231 170 034 Distributor for air-cooled, 4-cylinder Volkswagen & Porsche, with 3BOS4U1 electronic ignition already installed and advance curve set for optimal performance with most 4-cylinder, air-cooled VW and Porsche engines. Requires vacuum source from carburetor or fuel injection throttle body.
FREE SHIPPING to anywhere in the USA, insured.
Shipping, via US Air Mail, to almost anywhere else in the world US $30.00; to Canada US $25.00
For 4-cylinder, air-cooled VW & Porsche only.
Includes Bosch cap, rotor, distributor shaft O-Ring and everything you need - no external ignition box required.
We set and test the advance curve of each distributor on a SUN distributor tester before shipping.
Item Number: HS15HEC
50,000-Volt High-Energy Coil
Perfect for use with Hot-Spark red ignition module
Primary resistance: 1.5 Ohms, minimum
Secondary resistance: 13K Ohms, minimum (twice that of many other coils)
More turns of copper wire than other standard-sized coils
Rugged, polished stainless steel case
3-way brass connectors on both terminals
Epoxy-filled, not oil-filled, for high-vibration environments
Price: US $49.99
In stock: Yes
Available: Now
FREE SHIPPING to anywhere in the USA, insured; shipping to almost anywhere else in the world $30.00; to Canada $25.00.
OVERSEAS CUSTOMERS: We will combine and reduce shipping charges for multiple item purchases - email us: Sales@Hot-Spark.com
Click here for more information:
www.Hot-Spark.com/1-Hot-Spark-Bosch-SVDA034.htm
We accept payment via www.PayPal.com - PayPal ID: Sales@Hot-Spark.com
We also have electronic ignition conversion kits for Bosch 4-cylinder and 6-cylinder distributors:
www.Hot-Spark.com
Email us: info@Hot-Spark.com
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Copyright 2007 Hot-Spark Ignition Products
|
|
|
|
|
