 Posted: Fri May 26, 2006 11:43 am Post subject: BerT3's dropped spindles |
 |
|
Hello,
Finally after 4 years I have a suitable test car for my own fabricated dropped spindles.
Bought a '66 T34 some time ago and decided to test run a pair of my spindles on the car.
Took me some hours to put them on.
Took advantage of the car being on axle stands to renew the entire front brake system and upgrading to a dual circuit master cylinder with new calipers, hoses etc...
Removed the bottom bumpstop in case I want to go lower.
For the moment it's just sock height with the spindles on.
I like the stance with the stock size rims and new oem spec. tires.
Next week I gonna have the front train aligned.
I have enough cores to make some other sets. I will have 2 sets available to overseas customers.
For details check www.BerT3.be - accept downloading the .doc to read the pages.
https://www.thesamba.com/vw/gallery/pix/156982.jpg
https://www.thesamba.com/vw/gallery/pix/156983.jpg
https://www.thesamba.com/vw/gallery/pix/278328.jpg
BerT3 |
|
| Back to top |
|
 |
localboy
Samba Longboarder
Joined: December 06, 2003
Posts: 5153
Location: "Mainland", PNW
|
| Posted: Fri May 26, 2006 1:21 pm Post subject: Re: BerT3's dropped spindles |
|
|
| BerT3 wrote: |
For the moment it's just sock height with the spindles on.
I like the stance with the stock size rims and new oem spec. tires.
|
Pix of the car with them installed? Would like to see the "stance".
_________________
One man's "patina" is another man's cancer...
Black '65 Resto-Custom S Notch 2110 cc powered
original paint Pearl White '66 Westy SO-42
Allstate single-wheel trailer project |
|
| Back to top |
|
|
Notched
Samba Member
Joined: January 19, 2003
Posts: 2365
Location: Pacific Northwest
|
| Posted: Fri May 26, 2006 1:30 pm Post subject: |
|
|
Uhhhhhh,
Is this a problem??
_________________
Phillip Bradfield
Current stock: '57 Panel Bus, '63 Rat Notch, '64 Baja, '66 Variant, '67 Convertible Ghia, '68 Squareback, '69 Squareback, '69 Fastback
Southern Oregon VW Club -- http://www.sovw.org
Oregon VW Forum -- http://www.oregonvw.org |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Sat May 27, 2006 7:23 pm Post subject: |
|
|
| Notched wrote: |
Uhhhhhh,
Is this a problem?? |
UHH, I think it's missing a tire. The rim only really lowers the front end.  I'd still like a set of those. I know they work.  If I sent you a set of core spindles, would it save me a core charge?
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
BerT3
Samba Member
Joined: August 18, 2002
Posts: 1569
Location: Antwerp
|
| Posted: Sun May 28, 2006 1:32 am Post subject: |
|
|
| Quote: |
| If I sent you a set of core spindles, would it save me a core charge? |
That's the main idea yes.
I have 4 pair of cores myself. which I am planning to have made in the next month.
Photos next week. Otherwise check old threads and photos under my nickname at this very forum !
BerT3 |
|
| Back to top |
|
|
Air_Cooled_Nut
Samba Member
Joined: March 27, 2004
Posts: 3068
Location: Portland, Oregon
|
| Posted: Sun May 28, 2006 8:43 am Post subject: |
|
|
| Bobnotch wrote: |
| Notched wrote: |
Uhhhhhh,
Is this a problem?? |
UHH, I think it's missing a tire. |
Bob, it looks like it's scraping the inside of the rim...thus the problem
_________________
Toby http://www.aircoolednut.com/
Did I mention that I'm an original Darksider?
'72 VW Squareback, 2007cc, GB 5-speed, rag top; '76 VW Riviera Penthouse Sundowner 2.0L; 2015 Audi S5 Cabby w/Stage II APR; '06 Ducati Sport Classic 1000; '14 Ducati Diavel Strada
The First Invasion |
|
| Back to top |
|
|
BerT3
Samba Member
Joined: August 18, 2002
Posts: 1569
Location: Antwerp
|
| Posted: Sun May 28, 2006 12:41 pm Post subject: |
|
|
| Quote: |
| Bob, it looks like it's scraping the inside of the rim...thus the problem |
It isn't though.
At least 1 inch space.
It's because of the top vieuw photo !
I can take some photos of it installed next week.
BerT3 |
|
| Back to top |
|
|
canabus
Samba Member
Joined: April 15, 2003
Posts: 259
Location: Kelowna.B.C
|
| Posted: Sun May 28, 2006 6:59 pm Post subject: parts |
|
|
did you have a certified welder weld that,looks like a fair bit of undercut and lack of weld material,by the cad plated piece
I know in canada that if there is not a red seal interprovincial ticket you can't use any modified parts,or you are personally liable as a driver
I personally would hate to loose everything ,I worked hard for ,for lack of a certified tradesman
my 2c |
|
| Back to top |
|
|
BerT3
Samba Member
Joined: August 18, 2002
Posts: 1569
Location: Antwerp
|
| Posted: Mon May 29, 2006 10:00 am Post subject: |
|
|
| Quote: |
| did you have a certified welder weld that,looks like a fair bit of undercut and lack of weld material,by the cad plated piece |
It indeed looks like it; It's because there is a kind of a logoon in the bottom piece. Hence why it looks underwelded.
Both halves where heated in a smiss oven before welding though.
They are bolted through with one M10 and one M12 bolt for safety
| Quote: |
| I know in canada that if there is not a red seal interprovincial ticket you can't use any modified parts,or you are personally liable as a driver |
Same over here as with any non stock parts !
We just have new laws regarding tuning over here.
We even have to have a certificate for a non stock steering wheel !
BerT3 |
|
| Back to top |
|
|
BerT3
Samba Member
Joined: August 18, 2002
Posts: 1569
Location: Antwerp
|
| Posted: Tue Jun 20, 2006 11:09 am Post subject: |
|
|

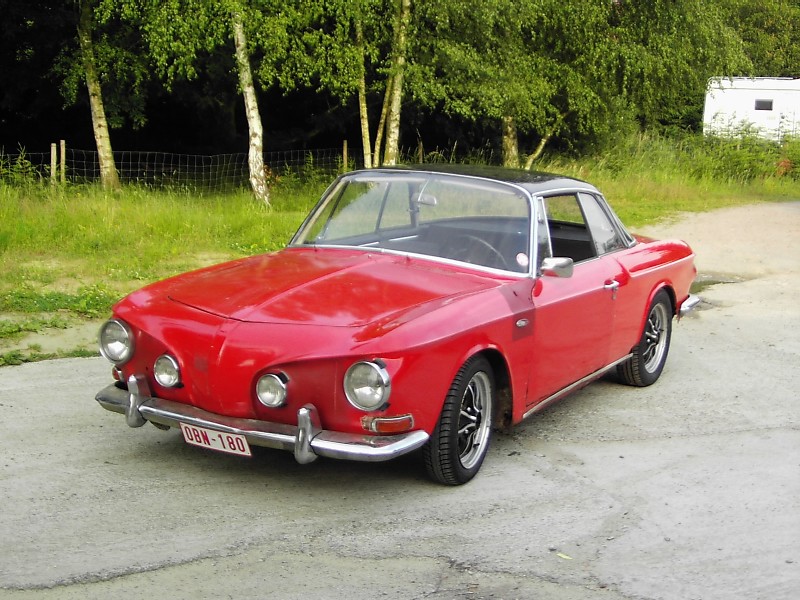

https://www.thesamba.com/vw/gallery/pix/284032.jpg
Finally a photo
Front:
145/65 tires on a 4.5" lemmertz rim with ET 25 and an extra 10mm added wide of the 42mm dropped spindles.
Added an extra 1 outer spline drop at the front trailing arms.
Makes it possible to use new standard height shocks due to almost it's entire stock travel.
Rear:
165/65 tires on a 4.5" lemmertz rim with ET 25
I found this the perfect stance with lots of room and comfort
Note these are both expensive tires !
BerT3 |
|
| Back to top |
|
|
Mr. Bubblehead
El Chupa Nibre
Joined: October 25, 2002
Posts: 2756
Location: 612 Wharf Avenue
|
| Posted: Tue Jun 20, 2006 11:40 am Post subject: |
|
|
| BerT3 wrote: |
https://www.thesamba.com/vw/gallery/pix/284032.jpg
Finally a photo
Front:
145/65 tires on a 4.5" lemmertz rim with ET 25 and an extra 10mm added wide of the 42mm dropped spindles.
Added an extra 1 outer spline drop at the front trailing arms.
Makes it possible to use new standard height shocks due to almost it's entire stock travel.
Rear:
165/65 tires on a 4.5" lemmertz rim with ET 25
I found this the perfect stance with lots of room and comfort
Note these are both expensive tires !
BerT3 |
Got any more of those 4.5" Sprints you care to part with?
_________________
OGST
Samba Member #4862 |
|
| Back to top |
|
|
BerT3
Samba Member
Joined: August 18, 2002
Posts: 1569
Location: Antwerp
|
| Posted: Tue Jun 20, 2006 1:06 pm Post subject: |
|
|
| Quote: |
| Got any more of those 4.5" Sprints you care to part with? |
Aren't those common in the USA ?
Not much choice for 4 lug cars in a decent offset.
Tried rivieras etc ... All a bad offset.
Stock ET value of 46 is the best. Not much space underneath a lowered T34.
BerT3 |
|
| Back to top |
|
|
blankmange
Type 3 Darksider
Joined: July 17, 2004
Posts: 11498
Location: Bloßer Stahl-preapocalyptic MidCoast
|
| Posted: Tue Jun 20, 2006 1:22 pm Post subject: |
|
|
| BerT3 wrote: |
| Quote: |
| Got any more of those 4.5" Sprints you care to part with? |
Aren't those common in the USA ?
Not much choice for 4 lug cars in a decent offset.
Tried rivieras etc ... All a bad offset.
Stock ET value of 46 is the best. Not much space underneath a lowered T34.
BerT3 |
nope -- the 5.5" are more common, but the 4.5"s are not...
_________________
póg mo thóin
Certified DHS Technician
Samba Member # 24517 |
|
| Back to top |
|
|
notchback
Insensitive Jerk
Joined: December 16, 2003
Posts: 7024
Location: Behind the Zion Curtain
|
| Posted: Tue Jun 20, 2006 3:14 pm Post subject: |
|
|
| blankmange wrote: |
| BerT3 wrote: |
| Quote: |
| Got any more of those 4.5" Sprints you care to part with? |
Aren't those common in the USA ?
Not much choice for 4 lug cars in a decent offset.
Tried rivieras etc ... All a bad offset.
Stock ET value of 46 is the best. Not much space underneath a lowered T34.
BerT3 |
nope -- the 5.5" are more common, but the 4.5"s are not... |
I've got 4 4.5" and 9 5.5" sitting in my barn
_________________
| zeen wrote: |
| Arguing with johnnypan is like mud-wrestling a pig. After a while you realize he just enjoys playing in the mud, winning the contest is not the point. |
FU#3 |
|
| Back to top |
|
|
blankmange
Type 3 Darksider
Joined: July 17, 2004
Posts: 11498
Location: Bloßer Stahl-preapocalyptic MidCoast
|
| Posted: Tue Jun 20, 2006 3:44 pm Post subject: |
|
|
| notchback wrote: |
| blankmange wrote: |
| BerT3 wrote: |
| Quote: |
| Got any more of those 4.5" Sprints you care to part with? |
Aren't those common in the USA ?
Not much choice for 4 lug cars in a decent offset.
Tried rivieras etc ... All a bad offset.
Stock ET value of 46 is the best. Not much space underneath a lowered T34.
BerT3 |
nope -- the 5.5" are more common, but the 4.5"s are not... |
I've got 4 4.5" and 9 5.5" sitting in my barn |
and you are doing what with them -- hoarding them? I'll take 2 and 2, thank you...
_________________
póg mo thóin
Certified DHS Technician
Samba Member # 24517 |
|
| Back to top |
|
|
notchback
Insensitive Jerk
Joined: December 16, 2003
Posts: 7024
Location: Behind the Zion Curtain
|
| Posted: Tue Jun 20, 2006 3:58 pm Post subject: |
|
|
| blankmange wrote: |
| notchback wrote: |
| blankmange wrote: |
| BerT3 wrote: |
| Quote: |
| Got any more of those 4.5" Sprints you care to part with? |
Aren't those common in the USA ?
Not much choice for 4 lug cars in a decent offset.
Tried rivieras etc ... All a bad offset.
Stock ET value of 46 is the best. Not much space underneath a lowered T34.
BerT3 |
nope -- the 5.5" are more common, but the 4.5"s are not... |
I've got 4 4.5" and 9 5.5" sitting in my barn |
and you are doing what with them -- hoarding them? I'll take 2 and 2, thank you... |
Three sets. One set of 5 painted 5.5"s with OG center caps. One set of nice original chrome 2 - 4.5" and 2 - 5.5" with OG center caps. One set of ratty/rusty chrome 2 -4.5" and 2 - 5.5" with no caps. Just trying to decided what to do with them all. Also have two sets of polished 8 spokes and a set of 5 Baja Marathon rims all with center caps. I've got more money tied up in accessories than I have in any car.
