| Author |
Message |
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11016
Location: Black Forest, CO
|
|
| Back to top |
|
 |
blankmange
Type 3 Darksider
Joined: July 17, 2004
Posts: 11498
Location: Bloßer Stahl-preapocalyptic MidCoast
|
 Posted: Wed Apr 11, 2007 2:58 am Post subject: |
 |
|
as long as you aren't losing any cooling air from gap, shouldn't be a problem...
_________________
póg mo thóin
Certified DHS Technician
Samba Member # 24517 |
|
| Back to top |
|
|
localboy
Samba Longboarder
Joined: December 06, 2003
Posts: 5153
Location: "Mainland", PNW
|
| Posted: Wed Apr 11, 2007 10:30 am Post subject: |
|
|
When you install the large inner fan just make sure you have no clearance issues against the housing.
_________________
One man's "patina" is another man's cancer...
Black '65 Resto-Custom S Notch 2110 cc powered
original paint Pearl White '66 Westy SO-42
Allstate single-wheel trailer project |
|
| Back to top |
|
|
Russ Wolfe
Samba Member
Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
|
| Posted: Wed Apr 11, 2007 3:14 pm Post subject: |
|
|

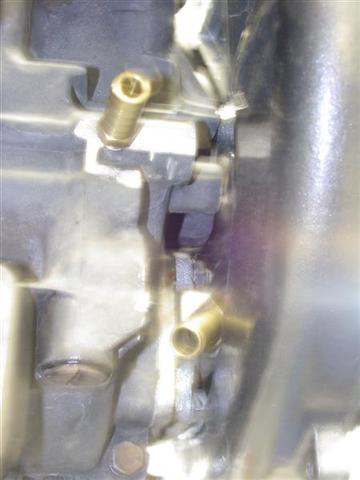

It can be done without grinding the case, or spacing it out. Those pictures are of Jim Adney's installation.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey
Gary: OK. Ima poop. |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11016
Location: Black Forest, CO
|
|
| Back to top |
|
|
FASTBACKDON
The other insensitive jerk like Neil
Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
|
| Posted: Wed Apr 11, 2007 4:13 pm Post subject: |
|
|
the secret is the Gene Berg type 3 full flow pump cover
_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.
Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO
(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult. |
|
| Back to top |
|
|
localboy
Samba Longboarder
Joined: December 06, 2003
Posts: 5153
Location: "Mainland", PNW
|
| Posted: Wed Apr 11, 2007 5:16 pm Post subject: |
|
|
The Gene Berg kit does a good job but it's still a very tight fit back there. My fan housing still required very minor clearancing.
_________________
One man's "patina" is another man's cancer...
Black '65 Resto-Custom S Notch 2110 cc powered
original paint Pearl White '66 Westy SO-42
Allstate single-wheel trailer project |
|
| Back to top |
|
|
FASTBACKDON
The other insensitive jerk like Neil
Joined: October 08, 2004
Posts: 3592
Location: TORRANCE CALIF
|
| Posted: Wed Apr 11, 2007 5:22 pm Post subject: |
|
|
| localboymark wrote: |
| The Gene Berg kit does a good job but it's still a very tight fit back there. My fan housing still required very minor clearancing. |
Really? Ok thanks for the warning I need a berg fullflow for my 2 liter. what clearancing is involved send or post pictures.
Thanks Mark
Don
_________________
FUCK CANCER FUCK CANCER FUCK CANCER!!
Mom 25 months of standing up to Cancer R.I.P I miss you so much.
Buy my best friends stuff
http://www.thesamba.com/vw/classifieds/search.php?username=56TIMOTEO
(21:10:42) Jennepher: Russell is our proudest achievment. I feel like Samba created him from a little nugget of crap into a full blown adult. |
|
| Back to top |
|
|
localboy
Samba Longboarder
Joined: December 06, 2003
Posts: 5153
Location: "Mainland", PNW
|
| Posted: Wed Apr 11, 2007 5:32 pm Post subject: |
|
|
| FASTBACKDON wrote: |
| localboymark wrote: |
| The Gene Berg kit does a good job but it's still a very tight fit back there. My fan housing still required very minor clearancing. |
Really? Ok thanks for the warning I need a berg fullflow for my 2 liter. what clearancing is involved send or post pictures.
Thanks Mark
Don |
Really minor though, Don. Mainly one of the raised "fins" on the rear molded into the housing for strengthening. I'll see if I can find a pic of it. If not I have to raise it up and crawl under there for some pics for Brian so I'll try to get some as best as possible.
Like I said; it's a tight fit. God forbid it leaks from one of the fittings.  I'd have to take apart the entire fan housing etc. just to get to it.
_________________
One man's "patina" is another man's cancer...
Black '65 Resto-Custom S Notch 2110 cc powered
original paint Pearl White '66 Westy SO-42
Allstate single-wheel trailer project |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11016
Location: Black Forest, CO
|
|
| Back to top |
|
|
Notched
Samba Member
Joined: January 19, 2003
Posts: 2365
Location: Pacific Northwest
|
| Posted: Wed Apr 11, 2007 6:57 pm Post subject: |
|
|

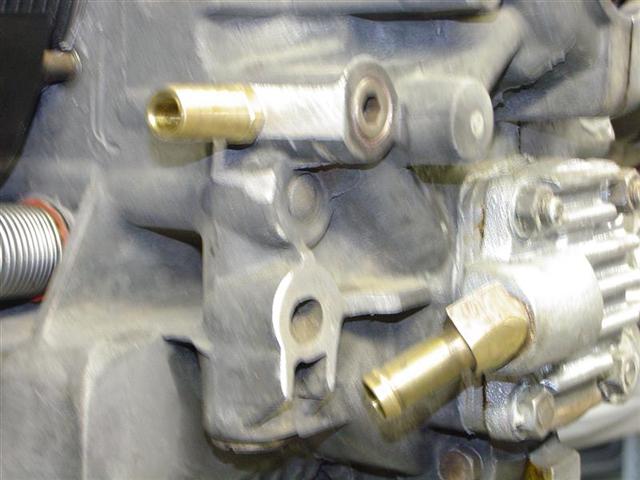

I really like my engine builders plan. No angles... No adjusting anything...
If you look closely, there is a brass block off between the holes.
_________________
Phillip Bradfield
Current stock: '57 Panel Bus, '63 Rat Notch, '64 Baja, '66 Variant, '67 Convertible Ghia, '68 Squareback, '69 Squareback, '69 Fastback
Southern Oregon VW Club -- http://www.sovw.org
Oregon VW Forum -- http://www.oregonvw.org |
|
| Back to top |
|
|
localboy
Samba Longboarder
Joined: December 06, 2003
Posts: 5153
Location: "Mainland", PNW
|
| Posted: Wed Apr 11, 2007 7:01 pm Post subject: |
|
|
| Max Welton wrote: |
Unless I am mistaken, the only difference between the Berg type-1 and type-3 kits are the fittings. I just changed the fittings on mine.
Max |

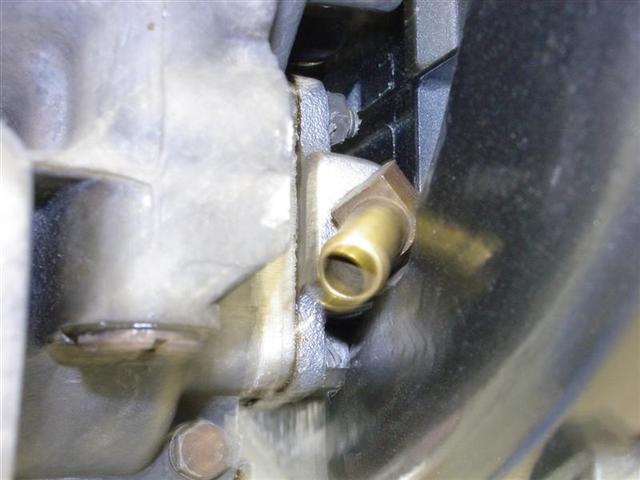

Yeah it's got a different brass fitting that's slightly clearanced on one side to clear the fan housing.
_________________
One man's "patina" is another man's cancer...
Black '65 Resto-Custom S Notch 2110 cc powered
original paint Pearl White '66 Westy SO-42
Allstate single-wheel trailer project
Last edited by localboy on Fri Apr 13, 2007 6:56 am; edited 1 time in total |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11016
Location: Black Forest, CO
|
|
| Back to top |
|
|
Air_Cooled_Nut
Samba Member
Joined: March 27, 2004
Posts: 3068
Location: Portland, Oregon
|
| Posted: Thu Apr 12, 2007 11:37 pm Post subject: |
|
|
| FASTBACKDON wrote: |
| the secret is the Gene Berg type 3 full flow pump cover |
True...but the Berg pressure regulating unit is the better choice. Keeps your oil filter from exploding
P.S. I like Phillip's solution the best!
_________________
Toby http://www.aircoolednut.com/
Did I mention that I'm an original Darksider?
'72 VW Squareback, 2007cc, GB 5-speed, rag top; '76 VW Riviera Penthouse Sundowner 2.0L; 2015 Audi S5 Cabby w/Stage II APR; '06 Ducati Sport Classic 1000; '14 Ducati Diavel Strada
The First Invasion |
|
| Back to top |
|
|
dcdubs
Samba Member
Joined: January 29, 2003
Posts: 860
Location: the Great Northwest
|
| Posted: Fri Apr 13, 2007 11:53 am Post subject: |
|
|
notched has the right idea...no reason for messing with anything else....then you can stil run the cool 1500 super oil pump cover
_________________
dcdubs/glcustoms
AllRightGarageDoorsNW.com |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 11016
Location: Black Forest, CO
|
|
| Back to top |
|
|
Critter1
Samba Member
Joined: August 04, 2004
Posts: 1579
Location: Sacramento
|
| Posted: Wed May 02, 2007 6:00 pm Post subject: |
|
|

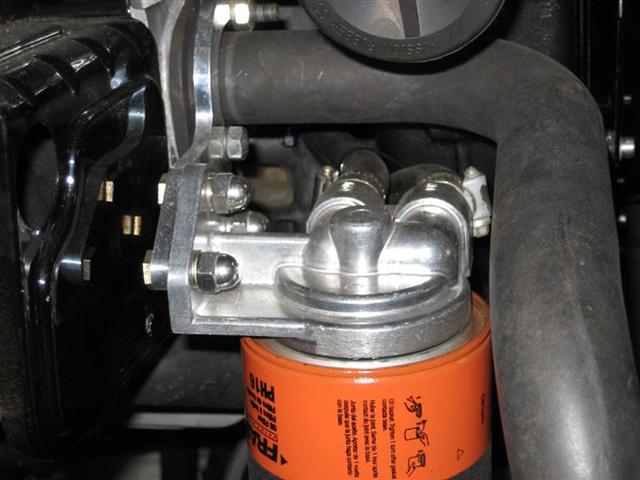

Here are some pics of how mine was done. Had to shave some material off the back of the shroud as well as shave some meat off the brass fitting.
This filter mount worked for me since I have merged headers and no heater boxes.
_________________
Justin |
|
| Back to top |
|
|
Russ Wolfe
Samba Member
Joined: October 08, 2004
Posts: 25187
Location: Central Iowa
|
| Posted: Wed May 02, 2007 8:00 pm Post subject: |
|
|
Don't know if I like the filter that close to the headers. It will add heat to the oil.
And, it looks like you are not an IRS engine with the cross member.
_________________
Society is like stew. If you don't keep it stirred up, you end up with a lot of scum on the top!--Edward Abbey
Gary: OK. Ima poop. |
|
| Back to top |
|
|
localboy
Samba Longboarder
Joined: December 06, 2003
Posts: 5153
Location: "Mainland", PNW
|
| Posted: Wed May 02, 2007 8:19 pm Post subject: |
|
|
Agree, Russ. I fab'd a simple bracket to use the bumper mounting location with just longer bolts. My oil filter sits above the driver's side bumper bracket and the steel braided hoses clear the headers by a few inches. Now if I could only get the breather box hoses to run so cleanly.
_________________
One man's "patina" is another man's cancer...
Black '65 Resto-Custom S Notch 2110 cc powered
original paint Pearl White '66 Westy SO-42
Allstate single-wheel trailer project |
|
| Back to top |
|
|
redbug74
Samba Member
Joined: June 15, 2004
Posts: 292
Location: Far West Texas
|
| Posted: Wed May 02, 2007 8:23 pm Post subject: |
|
|
Killer installation. Gives me ideas when I get ready freshen up the motor in my square.
_________________
Different Strokes for Different Volks
74 Standard Type 1
69 Squareback Type 3
55 Oval Type 1 |
|
| Back to top |
|
|
|
