Big bore 40 horse clearance issues.

[bonecollector]

A couple weeks a ago I started putting together what was going to be a temp motor for my 61 single cab. Now $700.00 later the entire top end is new including some big bore pistons and cylinders. I was under the impression these mahle 82.95 mm piston and cylinders were a bolt on item but I am running into clearance problems on the #3 hole. It appears that the cradle of the piston needs to have about 1/8 inch of material removed to be able to clear the case. Machining the piston seems to be the easiest answer but it also sounds like a bad idea to me. I will post some links to pics of my project here. Any ideas or help would be greatly appreciated. Jer.

Here is a picture of the area of the case the piston is hitting: http://www.thesamba.com/vw/forum/album_page.php?pic_id=233022

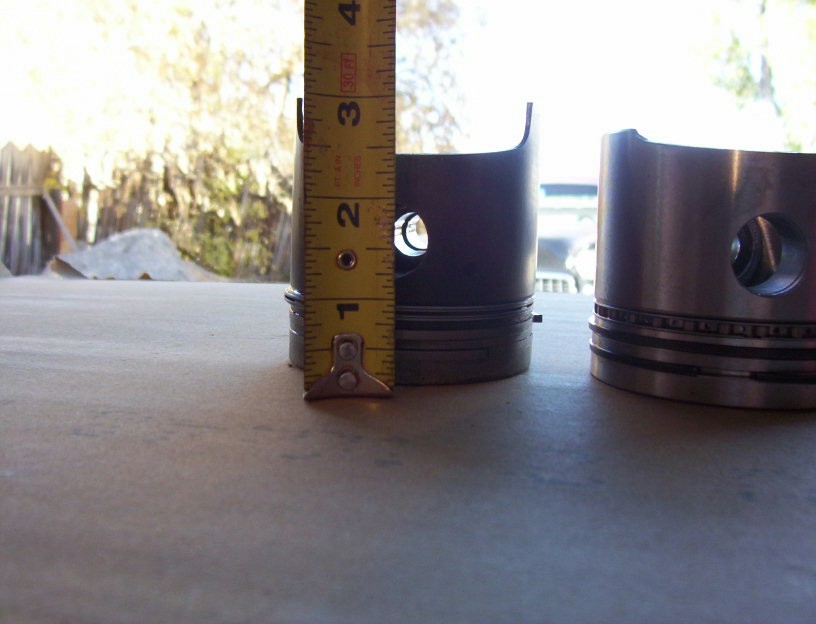

Here is a pic of the stock piston height to the bottom of the cradle:
https://www.thesamba.com/vw/gallery/pix/233025.jpg

Here is a pic of the big bore piston height to the bottom of the cradle:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=233021

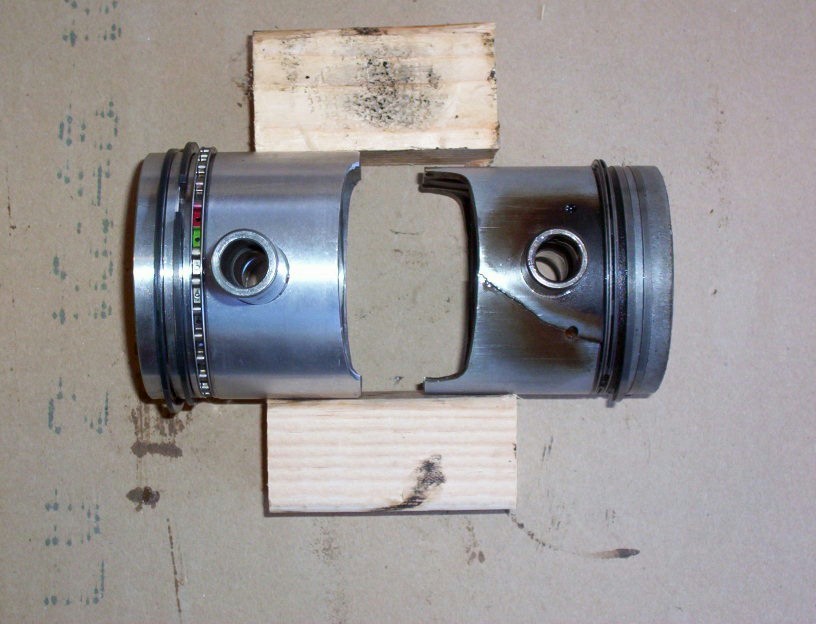

Here is a pic of the pistons side by side you can see the obvious difference in the cut out of the cradle:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=233023

Here is a pic of the two pistons next to each other. There is a considerable difference in width which also could be a factor in the clearance issues:
http://www.thesamba.com/vw/forum/album_page.php?pic_id=233024

Any info is greatly appreciated. Jer.
