| Author |
Message |
jim rich
Samba Member
Joined: May 06, 2015
Posts: 24
Location: new york
|
 Posted: Wed May 27, 2015 10:24 am Post subject: 68 bug pass side mirror |
 |
|
| Hey... I always get a great helpful answer here so I'm going to continue to ask, I def need the helpful ideas.... The hole where my pass side mirror will mount has lost its grooves for mirror to screw into. Just seems to have worn out due to weather and time, I can figure a way to get a nut on other side that will work, but curious about other solutions and/or the best way. I'm sure common problem... Thanks in advance. Cheers. Jimmy |
|
| Back to top |
|
 |
Air-Cooled Head
Samba Member
Joined: October 15, 2002
Posts: 4070
Location: Chicago Suburbs
|
| Posted: Wed May 27, 2015 10:53 am Post subject: |
|
|
Jimmy, the hole is just a hole. Never had threads. There's ALWAYS a nut on the inside. Both doors.
_________________
Everything known to man has been written.
Readers are Leaders! |
|
| Back to top |
|
|
60ragtop
Bonneville Belt Bitch
Joined: March 13, 2006
Posts: 7801
Location: Big Wonderful WYO 82401
|
| Posted: Wed May 27, 2015 10:57 am Post subject: |
|
|
this is what you need.
http://www.jbugs.com/product/133-000.html
contrary to opinions, they all didn't come with this from the factory
_________________
Rick
Certified Mechanic by the State of Michigan in 1977
ASA certified in 1987
Certified Hunter Wheel Alignment Master Technician 1986
| tasb wrote: |
I've restored a large number too, but I don't toot my horn quite as loud.
|
| sb001 wrote: |
| maybe he just snapped cause his car sucked |
|
|
| Back to top |
|
|
jim rich
Samba Member
Joined: May 06, 2015
Posts: 24
Location: new york
|
| Posted: Wed May 27, 2015 10:58 am Post subject: |
|
|
| Gotcha...OK, silly me, thanks....the edges are worn and a little rusted, just figured it had grooves...thank you for quick response... Appreciate it. Ill be back . jimmy |
|
| Back to top |
|
|
jim rich
Samba Member
Joined: May 06, 2015
Posts: 24
Location: new york
|
| Posted: Wed May 27, 2015 12:30 pm Post subject: 60 ragtop |
|
|
Hey. Many thanks. I love jbugs....bought many things from them...I didn't want to
weld anything if I didn't have to. Appreciate your time and help. |
|
| Back to top |
|
|
houseofboyd
Samba Member
Joined: September 28, 2014
Posts: 613
Location: Flatwoods, Ky
|
|
| Back to top |
|
|
houseofboyd
Samba Member
Joined: September 28, 2014
Posts: 613
Location: Flatwoods, Ky
|
|
| Back to top |
|
|
renotay
Samba Member
Joined: February 07, 2006
Posts: 11
|
| Posted: Wed May 27, 2015 9:17 pm Post subject: |
|
|

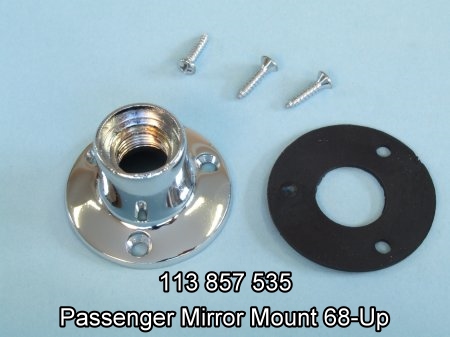

| I was wondering the same thing but instead of having the possibility of having a huge hole in my door and welding on the paint found out that you can use a karman ghia mirror mount that just mounts up with 2 sheet metal screws |
|
| Back to top |
|
|
houseofboyd
Samba Member
Joined: September 28, 2014
Posts: 613
Location: Flatwoods, Ky
|
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17636
Location: Left coast, Canada
|
| Posted: Wed May 27, 2015 9:30 pm Post subject: |
|
|
| houseofboyd wrote: |
Is there any way to tell if the mounting nut is there before drilling the hole for the new mirror? |
remove the door panel and look.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
houseofboyd
Samba Member
Joined: September 28, 2014
Posts: 613
Location: Flatwoods, Ky
|
|
| Back to top |
|
|
vernonc
Samba Member
Joined: April 23, 2012
Posts: 681
Location: Parkersburg, WV..yes, I sold the boat
|
| Posted: Thu May 28, 2015 4:17 am Post subject: |
|
|
| houseofboyd wrote: |
Is there any way to tell if the mounting nut is there before drilling the hole for the new mirror? |
I installed a mirror on Elwood's passenger side using the nut shown above except I got mine, along with the mirror, from WW. However, I did not weld it in place and it works fine. Of course, if I ever have to remove the 'mirror socket', I'll need to remove the door panel to 're-install'. Nevertheless, there will, probably, be no need to ever remove the socket; if the mirror ever needs replaced, that can be done without changing the mounting socket. Perhaps, maybe, a little JB weld on the nut, after it's installed, would hold it long enough for a 'complete change out'.
The install was no big deal either; just some careful measuring, then, a small hole and enlarged to the proper size using a 'stepped bit'.
Well, good luck and I hope this helps.
mort
_________________
"Those who don't read newspapers are un-informed. Those who do read newspapers are mis-informed." Will Rogers
'69 sedan, low mileage, all original.....currently being 'freshened-up' for road trips and daily driving...just not every day
Freshening-up link http://www.thesamba.com/vw/forum/viewtopic.php?t=617386 |
|
| Back to top |
|
|
jim rich
Samba Member
Joined: May 06, 2015
Posts: 24
Location: new york
|
| Posted: Thu May 28, 2015 5:43 am Post subject: |
|
|
| Hey...thanks again for all responses....I do have hole and nut for drivers side, all installed and good to go. The welding done on inside so no markings on paint, someone had asked about that..in regards to using another vw mounting, I like idea, but want both sides to match...driver side done with interior mounting .... pass side I want to look the same. I will get some pictures of my 68 and some various projects. I'm not the best at this stuff by any means but enjoy getting a little better all the time. I ordered a mounting nut for pass side from jbug and will keep you all posted. In the mean time I'm sure I'll have more questions. Thanks. Again for all the help. Jimmy |
|
| Back to top |
|
|
houseofboyd
Samba Member
Joined: September 28, 2014
Posts: 613
Location: Flatwoods, Ky
|
| Posted: Thu May 28, 2015 7:05 am Post subject: |
|
|
| vernonc wrote: |
| houseofboyd wrote: |
Is there any way to tell if the mounting nut is there before drilling the hole for the new mirror? |
I installed a mirror on Elwood's passenger side using the nut shown above except I got mine, along with the mirror, from WW. However, I did not weld it in place and it works fine. Of course, if I ever have to remove the 'mirror socket', I'll need to remove the door panel to 're-install'. Nevertheless, there will, probably, be no need to ever remove the socket; if the mirror ever needs replaced, that can be done without changing the mounting socket. Perhaps, maybe, a little JB weld on the nut, after it's installed, would hold it long enough for a 'complete change out'.
The install was no big deal either; just some careful measuring, then, a small hole and enlarged to the proper size using a 'stepped bit'.
Well, good luck and I hope this helps.
mort |
_________________
Our 1968 Zenith Blue Beetle: http://www.thesamba.com/vw/forum/viewtopic.php?t=619501
My '74 SB Build On The Samba: http://www.thesamba.com/vw/forum/viewtopic.php?t=609943
Our Web Site: http://www.kentuckyhotwheels.com
1968 VW Beetle
2012 Turbo VW Beetle
Last edited by houseofboyd on Thu May 28, 2015 7:06 am; edited 1 time in total |
|
| Back to top |
|
|
houseofboyd
Samba Member
Joined: September 28, 2014
Posts: 613
Location: Flatwoods, Ky
|
| Posted: Thu May 28, 2015 7:05 am Post subject: |
|
|
| vernonc wrote: |
| houseofboyd wrote: |
Is there any way to tell if the mounting nut is there before drilling the hole for the new mirror? |
I installed a mirror on Elwood's passenger side using the nut shown above except I got mine, along with the mirror, from WW. However, I did not weld it in place and it works fine. Of course, if I ever have to remove the 'mirror socket', I'll need to remove the door panel to 're-install'. Nevertheless, there will, probably, be no need to ever remove the socket; if the mirror ever needs replaced, that can be done without changing the mounting socket. Perhaps, maybe, a little JB weld on the nut, after it's installed, would hold it long enough for a 'complete change out'.
The install was no big deal either; just some careful measuring, then, a small hole and enlarged to the proper size using a 'stepped bit'.
Well, good luck and I hope this helps.
mort |
I think this is the route I'll go...thanks for the input Mort..
_________________
Our 1968 Zenith Blue Beetle: http://www.thesamba.com/vw/forum/viewtopic.php?t=619501
My '74 SB Build On The Samba: http://www.thesamba.com/vw/forum/viewtopic.php?t=609943
Our Web Site: http://www.kentuckyhotwheels.com
1968 VW Beetle
2012 Turbo VW Beetle |
|
| Back to top |
|
|
jim rich
Samba Member
Joined: May 06, 2015
Posts: 24
Location: new york
|
| Posted: Thu May 28, 2015 7:56 am Post subject: reponse to VERONC |
|
|
Hey veronc....thanks for your response and help!! You mentioned that you didn't weld mounting nut to door. What did you adhere with?? How has it held up?? You put nut on insude of door right??
Let me know... Thanks again. Jimmy |
|
| Back to top |
|
|
houseofboyd
Samba Member
Joined: September 28, 2014
Posts: 613
Location: Flatwoods, Ky
|
|
| Back to top |
|
|
dogmad7
Samba Member
Joined: September 30, 2009
Posts: 12
|
| Posted: Thu May 28, 2015 2:11 pm Post subject: |
|
|
| Hey ZBB will you look inside the door for the nut before you drill? Love the tutorials by the way. |
|
| Back to top |
|
|
vernonc
Samba Member
Joined: April 23, 2012
Posts: 681
Location: Parkersburg, WV..yes, I sold the boat
|
| Posted: Thu May 28, 2015 4:46 pm Post subject: Re: reponse to VERONC |
|
|
| jim rich wrote: |
Hey veronc....thanks for your response and help!! You mentioned that you didn't weld mounting nut to door. What did you adhere with?? How has it held up?? You put nut on insude of door right??
Let me know... Thanks again. Jimmy |
Jimmy, I just held it in place while I screwed in, what I call, 'the socket'. If I remember correctly, there was some kind of 'rubber sealing washer' and I just tightened the socket 'sufficiently'; then, I installed the mirror and tightened the spring which controls the 'rotational movement' of the mirror. After that, you tighten the nut on the bottom which controls the 'front to back' movement. Job done.
Hope this helps.
mort
_________________
"Those who don't read newspapers are un-informed. Those who do read newspapers are mis-informed." Will Rogers
'69 sedan, low mileage, all original.....currently being 'freshened-up' for road trips and daily driving...just not every day
Freshening-up link http://www.thesamba.com/vw/forum/viewtopic.php?t=617386 |
|
| Back to top |
|
|
neil68
Samba Member
Joined: March 17, 2007
Posts: 3449
Location: Calgary, Canada
|
| Posted: Thu May 28, 2015 6:46 pm Post subject: passenger mirror |
|
|
My method was similar to Mort. I made a template from the driver's side, drilled a small pilot hole and double-checked my measurements. Then I drilled the final sized hole and filed it smooth.
Next, I clamped the correct metric nut to a stick, and held it up inside the door until I could spin the mirror mount tight. I used some Loctite, and it's held up for several years so far.
I elected to buy an OEM VW mirror (can't remember if it was Mexico or Brazil), as it matched the German original:
_________________
Neil.
Der Kleiner Rennwagens
‘68 Beetle 2332 cc, 204 WHP
12.5 seconds @ 108 mph
Dynojet Test: https://www.youtube.com/watch?v=M9B_H3eklAo |
|
