1970 Floor Pan

chrisradioman · Posted: Fri Sep 21, 2007 3:23 pm Post subject: 1970 Floor Pan

Bought this on eBay for £25.00 its a 1970 Beetle Cabriolette Floor pan on an A-Plate originally LHD but you would never tell as it is now a RHD.
Brought it home stripped it shot blasted it, welded all the holes up & had it Hot galvanised. Now I have a 25 year guarantee on it even if I don't paint it. I have painted it so it will last forever. I haven't decided if it is going on my 1971 Baja or my 1965 Herbie project.

Image may have been reduced in size. Click image to view fullscreen.

As it was when I bought it

Back from the Benetts after shot blasting. Peugeots have their uses!

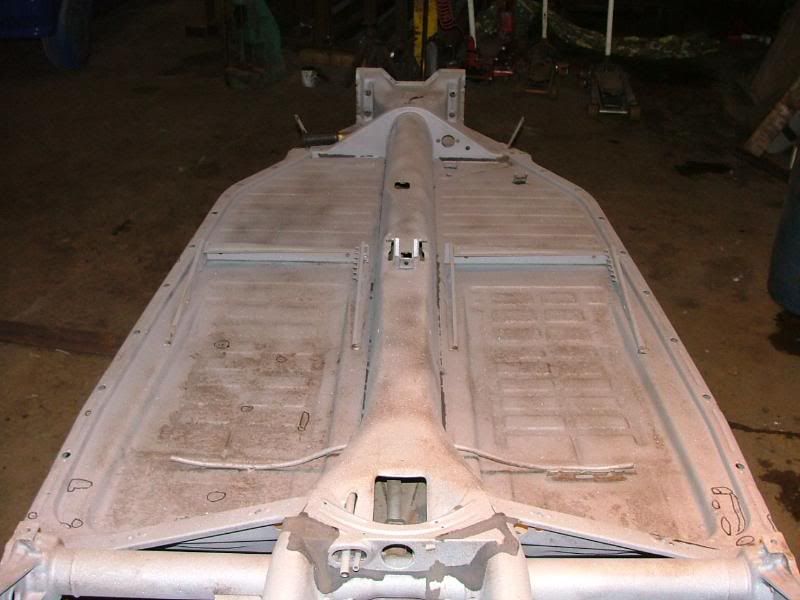

Almost ready for Galvanizing. Black circles are where welding is needed

Nice & shiny from Cardiff Galv

Etch priming

Almost ready

Just needs putting back together now
_________________
http://www.vintagevwweddings.co.uk/contact.html

coW · Posted: Fri Sep 21, 2007 4:10 pm Post subject:

Looks great!

chrisradioman · Posted: Fri Sep 21, 2007 4:12 pm Post subject:

Thanks M8, still a long way to go.
_________________
http://www.vintagevwweddings.co.uk/contact.html

Daddylolo · Posted: Fri Sep 21, 2007 5:03 pm Post subject:

Perfect job! Congratulations! I will link it to Portuguese VW forum.
_________________
'70 hot rod bug
'77 hawaiian bay van
'46 Buick Eight
'67 Ghia

NOVA Airhead · Posted: Sat Sep 22, 2007 6:16 am Post subject:

That is cool! Just think how much work would have been saved if VW had galvanized tha chassis!
_________________
Ghia Owner Emeritus

The Pirate · Posted: Sat Sep 22, 2007 8:56 am Post subject:

A few questions about the galvanization.

Did you plug the fuel lines or plug the threaded areas like for the tranny mount and excet ?

If you did not have you had to run a tap through the threaded areas?

If I remember correctly some of the later VW hard fuel lines were an aluminum steel or stainless steel alloy. I was under the impression that galvanizing these metal alloys reacted badly and would cause them to corrode. Or perhaps I have had a stroke….
_________________
74 super beetle AKA The Pirate.

We are currently offering a rebuild service for Beetle rack and pinion steering units. PM for details.

Service with a Yahhrrr.

chrisradioman · Posted: Sun Sep 23, 2007 12:15 pm Post subject:

Hi all, when galvanizing, you must make sure that all of the rubber, underseal, paint & rust is removed otherwise the Zinc won't stick, all of the threads had to be re-tapped, this is easy because the metal is soft. some of the pipes in the chasis were blocked at the end so I just put a blow lamp on them & rodded them with some stiff wire. you cann't galvanize any part that has a sealed end otherwise the galv will explode inside the void & spit the part, luckily the VW floorpan has no sealed areas.
_________________
http://www.vintagevwweddings.co.uk/contact.html

Goranothos · Posted: Mon Sep 24, 2007 4:18 am Post subject:

For some reason I was thinking that paint would not stick to galvanized metal.

chrisradioman · Posted: Mon Sep 24, 2007 5:11 am Post subject:

If you put paint straight on it wont, if you wipe it over with thinners to get the salt off & then etch primer it it will take any paint after that. Very Happy

_________________
http://www.vintagevwweddings.co.uk/contact.html

tundrawolf · Posted: Sun Jan 08, 2012 9:57 am Post subject:

That's beautiful... I am using an angle grinder to get all of my rust off. It's very time consuming, and I am having to rewind the field coil in my angle grinder today because it is almost burned up! It's a lot of work. How much did the shot peening cost, and how much was the galvanizing?

chrisradioman · Posted: Sun Jan 08, 2012 3:09 pm Post subject:

Bruce · Posted: Sun Jan 08, 2012 4:35 pm Post subject:

Chris, I was reading up on galvanizing last night, and it seems that the method they use to hang it is important to venting and draining. Do you know how they hung yours? Did they hang it from one side of the floor pan, or did they hang it from the frame horns?
Did they have to drill extra venting/drain holes?
_________________

chrisradioman · Posted: Sun Jan 08, 2012 6:13 pm Post subject:

vw_hank · Posted: Mon Jan 09, 2012 12:42 am Post subject:

I didn't want to bump the old thread just to say THATS BAD ASS!!!!!!!! Very Happy

but now that some one else has dun it there you go!! I would love to do the same thing! but I dont see it happening any time soun cents I dont have A garage to do the work in,, I dont even have A drive way so most of the stuff I do needs to be fast! cents my cars parked on the street..

I had started A thread about galvanizing some parts, and the link to your thread was posted(I started drooling Laughing

) From what I have found there are no tanks loco that would be able to lay A full pan down like you say thy did yours, It would need to stand on its side.. but I was only looking at doing miscellanies parts any way Wink

_________________
1302s sunroof..
1600cc motor. Glenn ring 010. full toplineparts.com suspension. factory front disk brakes. Tram type-3 rear brakes. Hurst shifter. empi-8's. low-back's. tons of mods!

Bruce · Posted: Mon Jan 09, 2012 1:42 am Post subject:

From the other topic:

Galvanizing...

chrisradioman · Posted: Mon Jan 09, 2012 3:35 am Post subject:

chrisradioman · Posted: Mon Jan 09, 2012 3:36 am Post subject:

vw_hank · Posted: Mon Jan 09, 2012 4:15 am Post subject:

69 Jim · Posted: Mon Jan 09, 2012 5:31 am Post subject:

'69Custom · Posted: Tue Jan 10, 2012 1:25 pm Post subject:
