 Posted: Tue Dec 30, 2008 11:55 am Post subject: Lowered on 165 15's all around. How much is too much? |
 |
|
Oh so the front of my '72 Square has already been taken down 2 inner and it's time to go down a bit further. I'd like to lower the car (same amount front and back if possible) a bit more (~ 2-3 inches) but I'm a bit woprried about actually being able to turn the car
ANyone have any experience being any lower than 2 inner up front with stock 165/80/15's?
_________________
'72 OG Square
'87 Montana Green GTI- EX 3.0L
'92 GTI- 16vABAt 450+WHP
'96 Celebration Jetta- 16vABA |
|
| Back to top |
|
 |
atrujillo1991
Samba Member
Joined: May 16, 2007
Posts: 155
|
| Posted: Wed Dec 31, 2008 1:49 pm Post subject: |
|
|
And, out of curiosity, what's the deal with trim rings? I'd like to add a chrome lip of sorts to the wheels but only to the lip of the wheel.
Like this:
(found here: http://www.thesamba.com/vw/classifieds/detail.php?id=433533)
Not like this:
(found here: http://www.thesamba.com/vw/classifieds/detail.php?id=622372)
Are trim rings (say, for a set of 15 inch wheels) universal? Could I get lucky and snag a set from another car at the junkyard?
_________________
'72 OG Square
'87 Montana Green GTI- EX 3.0L
'92 GTI- 16vABAt 450+WHP
'96 Celebration Jetta- 16vABA |
|
| Back to top |
|
|
Buttafuoco
Samba Member
Joined: June 23, 2008
Posts: 263
Location: Nor*Cal
|
| Posted: Wed Dec 31, 2008 3:57 pm Post subject: |
|
|
If you go any lower you might wanna consider maybe a 135 in the front. Im dwn 3 outter front-2 outter rear, with 135's up front and 205's rear and I can turn lock to lock and no rub in the rear.  |
|
| Back to top |
|
|
68notch
Samba Member
Joined: August 16, 2007
Posts: 545
Location: Perth, Western Australia.
|
| Posted: Wed Dec 31, 2008 4:41 pm Post subject: |
|
|
I would like to get those trim rings too. There are plenty of them around on the internet made from stainless steel. I have just been concerned if they will fit properly given that the type 3 rims have a smaller lip since we have a different offset to beetles. Are these trim rings going to fit our rims?
_________________
John
68 Aussie notch
2011 Citroen Berlingo
https://www.facebook.com/Fastacraft
RHD dash pad project http://www.thesamba.com/vw/forum/viewtopic.php?t=475227 |
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: April 30, 2007
Posts: 857
Location: lincoln
|
| Posted: Wed Dec 31, 2008 6:00 pm Post subject: |
|
|
| now what pissed me off is in the rear of my 66 i was two inner or a bit more and the tire rubed the top of the inner fender well. the tire were 165. |
|
| Back to top |
|
|
RennyRB
Samba Textbook Gangsta
Joined: August 10, 2006
Posts: 979
Location: Torrance
|
| Posted: Wed Dec 31, 2008 6:31 pm Post subject: |
|
|
| 68notch wrote: |
I would like to get those trim rings too. There are plenty of them around on the internet made from stainless steel. I have just been concerned if they will fit properly given that the type 3 rims have a smaller lip since we have a different offset to beetles. Are these trim rings going to fit our rims? |
Yeah, I've got some on my Square. They look similar enough to the trim rings on my '70 Bug, so I believe they are indeed universal. Really clean up the look of 4 lug wheels.
_________________
1967 Squareback |
|
| Back to top |
|
|
vwfye
Samba Member
Joined: April 15, 2000
Posts: 7750
|
| Posted: Wed Dec 31, 2008 6:35 pm Post subject: |
|
|

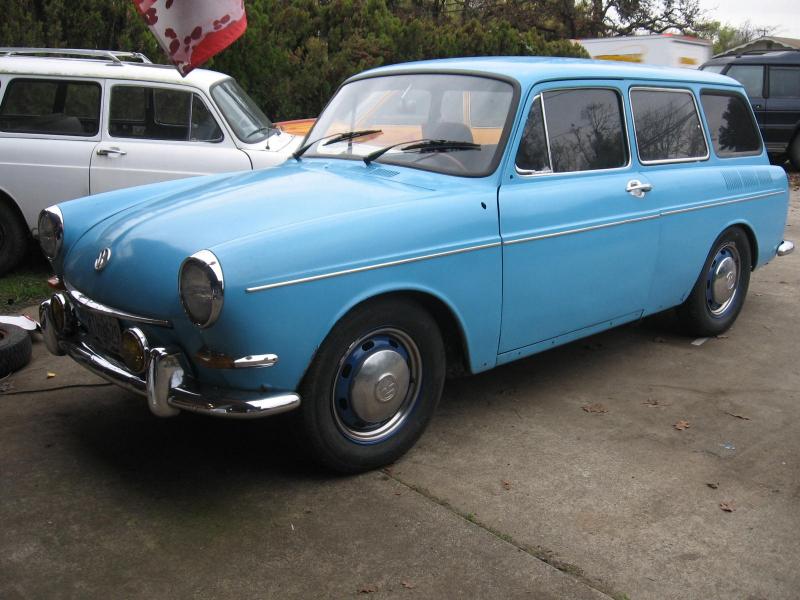

like this?
you cant' really see in this pic, but the blue shows again at the outside of the wheel...
_________________
64 No'back Speedster "Pearl"
LME "Little Giant Killer 3"
1974 Ghia "PUK" |
|
| Back to top |
|
|
Buttafuoco
Samba Member
Joined: June 23, 2008
Posts: 263
Location: Nor*Cal
|
| Posted: Wed Dec 31, 2008 7:09 pm Post subject: |
|
|
| [email protected] wrote: |
| now what pissed me off is in the rear of my 66 i was two inner or a bit more and the tire rubed the top of the inner fender well. the tire were 165. |
If i remember correctly, each inner spline gives you 9 degrees of adjustment as i think the outter gives only 8. Dont quote me on this though. I also wonder if there is a difference in wheel well clearances with early and late models. Anybody know the answer? |
|
| Back to top |
|
|
Nid
Samba Drama Queen
Joined: August 25, 2003
Posts: 1533
Location: Mount Shasta, CA
|
| Posted: Wed Dec 31, 2008 7:44 pm Post subject: |
|
|
I'm running 135s and I rub, had to pound out the inner part of the fender a bit. Still rubs but not as bad. PO lowered an unknown number of notches.
_________________
My, you've been naughty. How.....Delicious.
You're such an inspiration for the ways that I'll never ever choose to be
Oh so many ways for me to show you how your savior has abandoned you
Fuck your God, Your Lord and your Christ, he did this
Took all you had and left you this way
A Perfect Circle - Judith |
|
| Back to top |
|
|
atrujillo1991
Samba Member
Joined: May 16, 2007
Posts: 155
|
| Posted: Fri Jan 02, 2009 1:07 pm Post subject: |
|
|
Looks like I'm just gonna GO FOR IT.
Thinkin' one outer in the front and maybe... 2 in the rear? Not really sure yet, though  Guess we'll see!
Suggestions on lowering shocks? I saw Empi's a while ago that were something like $34 each but I can't find 'em any more
_________________
'72 OG Square
'87 Montana Green GTI- EX 3.0L
'92 GTI- 16vABAt 450+WHP
'96 Celebration Jetta- 16vABA |
|
| Back to top |
|
|
Buttafuoco
Samba Member
Joined: June 23, 2008
Posts: 263
Location: Nor*Cal
|
| Posted: Fri Jan 02, 2009 1:29 pm Post subject: |
|
|
| Nid wrote: |
I'm running 135s and I rub, had to pound out the inner part of the fender a bit. Still rubs but not as bad. PO lowered an unknown number of notches.
|
I think he lowered it 3 inner front and 3 inner rear. he said he didnt count the splines, he just measured. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23366
Location: Kimball, Mi
|
| Posted: Fri Jan 02, 2009 4:18 pm Post subject: |
|
|
| atrujillo1991 wrote: |
Looks like I'm just gonna GO FOR IT.
Thinkin' one outer in the front and maybe... 2 in the rear? Not really sure yet, though Guess we'll see!
Suggestions on lowering shocks? I saw Empi's a while ago that were something like $34 each but I can't find 'em any more
|
Two splines down (from stock) is about the limit you can run with 165's and a small amount of rubbing while turning. If you do decide to drop it some more, get some practice doing 3 point turns first, and wear ear plugs so you don't hear how loud the tires are rubbing the fenders. When my son had his down 4 splines and 165's on it, it would barely turn, and it liked to rub going straight on the freeway.  He's since gone to 195-50's, and it doesn't rub. He's also on oil link pin lowered shocks for that "smooth" ride. Those who attended the '08 Invasion can tell you how low the car is. I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
atrujillo1991
Samba Member
Joined: May 16, 2007
Posts: 155
|
| Posted: Sat Jan 03, 2009 1:39 pm Post subject: |
|
|
Thank you! GOod to hear the voice of experience. LIke I said- I'm two inner down now and I literally have zero rubbing. I'm considering returning the inners to their original position and taking the car three OUTER down instead. Then I'll drop the rear one.
_________________
'72 OG Square
'87 Montana Green GTI- EX 3.0L
'92 GTI- 16vABAt 450+WHP
'96 Celebration Jetta- 16vABA |
|
| Back to top |
|
|
izac
Samba Member
Joined: October 20, 2008
Posts: 93
Location: Brisbane, Australia
|
| Posted: Wed Jan 07, 2009 3:21 am Post subject: |
|
|
| Bobnotch wrote: |
| atrujillo1991 wrote: |
Looks like I'm just gonna GO FOR IT.
Thinkin' one outer in the front and maybe... 2 in the rear? Not really sure yet, though Guess we'll see!
Suggestions on lowering shocks? I saw Empi's a while ago that were something like $34 each but I can't find 'em any more
|
Two splines down (from stock) is about the limit you can run with 165's and a small amount of rubbing while turning. If you do decide to drop it some more, get some practice doing 3 point turns first, and wear ear plugs so you don't hear how loud the tires are rubbing the fenders. When my son had his down 4 splines and 165's on it, it would barely turn, and it liked to rub going straight on the freeway. He's since gone to 195-50's, and it doesn't rub. He's also on oil link pin lowered shocks for that "smooth" ride. Those who attended the '08 Invasion can tell you how low the car is. I hope this helps. |
Bobnotch, I have my car down 2 inner splines at the front and want to get wider tyres (currently running 135 nankangs) - are you saying i could run 195- 50s up front with standard beam???
sorry just making sure before i go out and buy some and might regret it... i do find it hard to believe...  |
|
| Back to top |
|
|
atrujillo1991
Samba Member
Joined: May 16, 2007
Posts: 155
|
| Posted: Wed Jan 07, 2009 5:47 am Post subject: |
|
|
Up front (I'm two inner notches down), with a driver, passanger, and someone sitting on the front left fender, the car rubs (as is) at full lock on the fender.
My plan is to index the front to bring it down 1/3 of an inch more and put the rear down one outer. I'm starting to need struts, though
They're not the OG shocks but they look like they're from... 1995? lol Time for some fresh shocks. Anyone have any suggestions for lowering shocks?
_________________
'72 OG Square
'87 Montana Green GTI- EX 3.0L
'92 GTI- 16vABAt 450+WHP
'96 Celebration Jetta- 16vABA |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23366
Location: Kimball, Mi
|
| Posted: Wed Jan 07, 2009 4:06 pm Post subject: |
|
|
| izac wrote: |
Bobnotch, I have my car down 2 inner splines at the front and want to get wider tyres (currently running 135 nankangs) - are you saying i could run 195- 50s up front with standard beam???
sorry just making sure before i go out and buy some and might regret it... i do find it hard to believe... |
Yeah, you can run those with the standard beam. My son is running those on his car, with polished 8 spokes. I'm running 195-60's on my 71 Notch, and I'm also down 2 splines in front. I'm also running 205 -65's in the rear, and it's down 1 1/2 splines in the rear. I used a combination of inner and outer splines to get that drop in the rear. They really fill the wheel wells up.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
izac
Samba Member
Joined: October 20, 2008
Posts: 93
Location: Brisbane, Australia
|
| Posted: Wed Jan 07, 2009 10:51 pm Post subject: |
|
|
awesome!
thanks Bobnotch
I will probably go 195/50 on the front and hopefully 195/65 or 70 (if i can get them) on the rear..
cheers |
|
| Back to top |
|
|
izac
Samba Member
Joined: October 20, 2008
Posts: 93
Location: Brisbane, Australia
|
| Posted: Wed Jan 07, 2009 10:57 pm Post subject: |
|
|
do you have any pictures of the 195/50s on the car?
forgot to mention im running MWS Brms (ET+25) but i think they have around the same offset as the 8 spokes so should be alright hopefully
cheers |
|
| Back to top |
|
|
gixxer 711
Samba Member
Joined: August 17, 2007
Posts: 589
Location: houston, tx
|
| Posted: Thu Jan 08, 2009 2:00 pm Post subject: |
|
|
i know this sounds funny, but often times a 195/50-15 will look wider than a 195/65, 195/70 and such. i would go 145/65-15 or 175/55-15 front if you want to go with the 195 rear.
with those wheels and offset, i bet you will only be able to get a 195/60-15 at best on the rear, def not the taller tires.if you had a swing car and do the short axle conversion, it would be no problem, but dropped on an irs, probably gonna rub.
_________________
Danny |
|
| Back to top |
|
|
spoon
Samba Penetrator
Joined: September 08, 2005
Posts: 1458
Location: Monterey, CA
|
| Posted: Thu Jan 08, 2009 4:36 pm Post subject: |
|
|
I'm running 195/55's rear and 50's front. I had to roll the rear a bit and the insides of the front fenders are nice and polished.
For the front, use these shocks...
"These shocks are Monroe part no. 5752. They are replacement shocks for a 1954 Volkswagen Transporter, according to my local auto parts store computer.
These shocks are 8.5" compressed and 12.7" at full length. These shocks do not come with the metal sleeves that are usually located within the shock bushing. You will need to press the metal sleeves out of your current shocks and then press them into the new shocks. Let me know if you have any questions."
_________________
