 Posted: Sat Apr 06, 2013 4:39 pm Post subject: 1974 Super Beetle Convertible - rear seat belts |
 |
|
I am the proud owner of my dad's 1974 Super Beetle Convertible in Ravenna Green. I sent it to get restored and to make a long story short, I did not get all of the parts back.
The seat belts for the car were all wrong. I am fixing that problem now. I have a special problem with the rear seat belts - they were never re-installed. So I am not certain where all of the anchor points are.

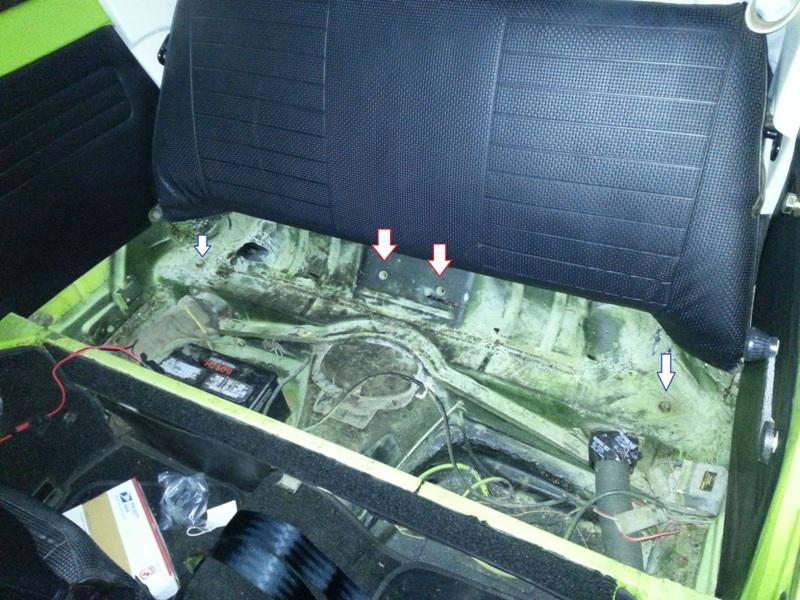

Here is a photo:
The red-outlined arrows show the two anchor points I have found. The two blue-outlined arrows point to two bolts underneath the rear seat. I wonder if those are the two other anchor points. I am not certain. When I tried to loosen the first, it felt as if there was something significant on the other side of that bolt.
I would love advice on what to do. I want to put in rear seat belts. After that, I can try and get the exterior mirrors fixed. |
|
| Back to top |
|
 |
mnussbau
Samba Member
Joined: August 26, 2006
Posts: 4589
Location: Central Maryland
|
| Posted: Sat Apr 06, 2013 5:21 pm Post subject: |
|
|
The inners are correct. The outers are actually the seatback pivots. You can see one in this pic.
_________________
Mike
Sold my sedan
Parts... |
|
| Back to top |
|
|
hugh59
Samba Member
Joined: April 06, 2013
Posts: 3
Location: United States
|
| Posted: Sat Apr 06, 2013 5:30 pm Post subject: Thanks |
|
|
I suspected as much. I did not follow that suspicion too far. I loosened one side and tried to fit the belt end on; it will fit over the threaded section but not over the smooth, roller section.
Now I just have to get my front belts back. The fool who installed them did it wrong. Plus he used a power wrench to bolt two clamps to the mechanism. I had a friend take it to a shop to try and free them.
Here is a picture of the bug on a really good day: my wedding day! Here I am with my lovely wife.
Notice how the cover for the roof has the wrong snaps. Argh!!!! |
|
| Back to top |
|
|
frydaddy96
Samba Member
Joined: March 07, 2012
Posts: 98
Location: Oklahoma
|
| Posted: Sat Apr 06, 2013 6:39 pm Post subject: |
|
|
| Some people should just be banned from working on classics. I'm going through the same thing with 2 bugs(sedan & vert) numerous bolts that cross threaded, but they kept trying to tighten them up any way plus wrong fasteners all over the car. Looks like they just grabbed what would fit the hole size. |
|
| Back to top |
|
|
hugh59
Samba Member
Joined: April 06, 2013
Posts: 3
Location: United States
|
| Posted: Sun Apr 07, 2013 10:07 am Post subject: |
|
|
The guy thoroughly screwed up my exterior mirrors. I will have to have them rethreaded. I tried to buy new ones, but they sent me Ghia mirrors instead of convertible mirrors; and the darn things broke immediately.
I love how the plastic trim panels inside my bug LACK the ash trays. Grrrrrr. |
|
| Back to top |
|
|
lytnbug
Samba Member
Joined: May 24, 2006
Posts: 101
Location: Memphis, TN
|
| Posted: Sat Dec 14, 2013 3:02 pm Post subject: Re: 1974 Super Beetle Convertible - rear seat belts |
|
|
| hugh59 wrote: |
I am the proud owner of my dad's 1974 Super Beetle Convertible in Ravenna Green. I sent it to get restored and to make a long story short, I did not get all of the parts back.
The seat belts for the car were all wrong. I am fixing that problem now. I have a special problem with the rear seat belts - they were never re-installed. So I am not certain where all of the anchor points are.
Here is a photo:
The red-outlined arrows show the two anchor points I have found. The two blue-outlined arrows point to two bolts underneath the rear seat. I wonder if those are the two other anchor points. I am not certain. When I tried to loosen the first, it felt as if there was something significant on the other side of that bolt.
I would love advice on what to do. I want to put in rear seat belts. After that, I can try and get the exterior mirrors fixed. |
Glad you shared this. I had the exact same problem. Plus I also had the shoulder vs. hole size problem. Wild. Dremmel and grinder wheel here we come. But I sure hated to take those bolts out, after all the fighting and wrestling the first time I put that seat in. Like it should be now though. Thanks again.
_________________
'73 Fat Super Beetle
'78 Super 'Vert
'62 Std. Beetle |
|
