Where is the cool diagram someone made for the WBX engine?

IdahoDoug

Someone made a cool diagram of the WBX, showing the firing order, engine rotation, timing info and a couple other things useful on the side of the road. Anyone have a link to it? If I recall correctly, it showed a line drawing view of the engine from above, identifying cylinder #1, etc.

I wanted to print and laminate a copy and attach it to the top of the engine cover in a clear slip cover. Under the stress of a roadside breakdown, that info can be important. I was going to add routine engine info like NAPA part numbers for belts, oil filter, spark plugs, fuel filter, air filter and a bunch of other stuff for a quick reference guide.

Thanks!
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2017 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential, 1990 burgundy parts Vanagon. 1984 Porsche 944, 1988 Toyota Supra 5 speed targa, 2002 BMW 325iX, 1982 Toyota Sunrader

msewalson · Posted: Fri Jun 12, 2015 9:37 pm Post subject:

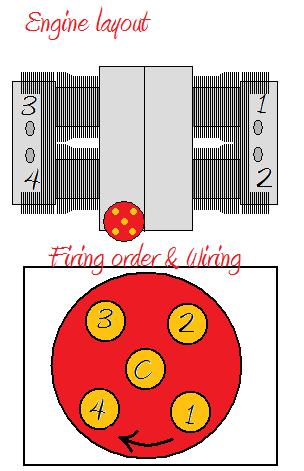

MODERATOR NOTE: The images below showing the Distributor rotation as counter clockwise is WRONG!!!!!

When the engine runs, the Distributor rotates Clockwise!
1432
*************

Image may have been reduced in size. Click image to view fullscreen.

Is this it? I think I pulled it off of Ben's site.

Matt
_________________
87 Syncro w/EJ22

syncrodoka · Posted: Fri Jun 12, 2015 10:09 pm Post subject:

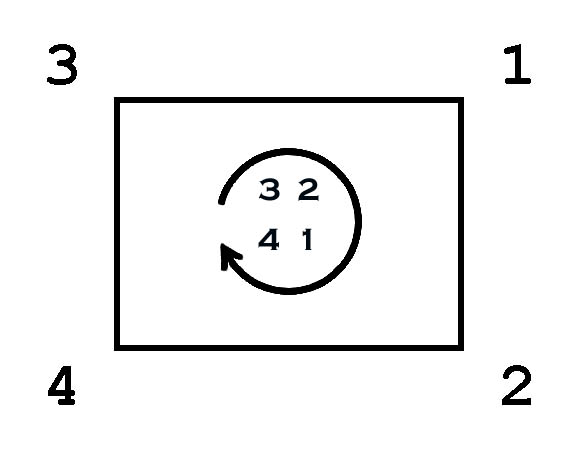

Timwhy's

Pete000's

Steve M. · Posted: Sat Jun 13, 2015 4:27 am Post subject:

That can't be right...who's got an engine that clean and shiney?😆

note that it is an air cooled, I forget if the notches on pulley are the same.

IdahoDoug · Posted: Sat Jun 13, 2015 8:31 am Post subject:

True! The block looks gold anodized!!

Those are good ones. Seems like there was another with some other useful WBX trivia on it..?
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2017 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential, 1990 burgundy parts Vanagon. 1984 Porsche 944, 1988 Toyota Supra 5 speed targa, 2002 BMW 325iX, 1982 Toyota Sunrader

riceye · Posted: Sat Jun 13, 2015 9:04 am Post subject:

Ben has lots of great pics and drawings on his awesome website.

www.benplace.com/vw2.htm
_________________
'87 Westy Weekender - daily driver on salt-free roads

There's gonna be some changes made.

“I find that things usually go well right up until the moment they don't.” - Ahwahnee

"Quality isn't method. It's the goal toward which the method is aimed." - Socrates, later quoted by R.M. Pirsig

kamzcab86 · Posted: Sat Jun 13, 2015 10:07 am Post subject:

_________________
~Kamz Anxious

1986 Cabriolet: www.Cabby-Info.com
Blue Vanagon

1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子

delta9007 · Posted: Sat Jun 13, 2015 11:13 am Post subject:

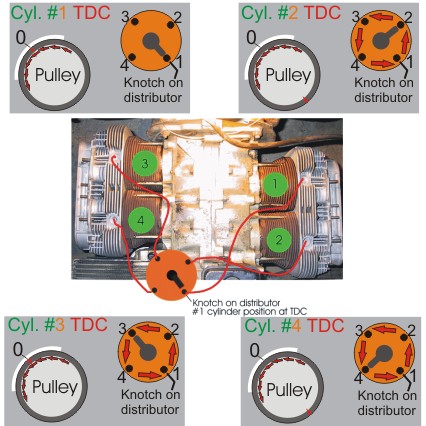

I'm confused. MS shows an aircooled with the distributor turning anti-clockwise and Kamz shows it going clockwise.
_________________
'89 2wd, 4spd, 2.1 Westfalia.

syncrodoka · Posted: Sat Jun 13, 2015 11:44 am Post subject:

Aircooled cars have the same firing order. That aircooled picture shows the crankshaft being turned backwards for some reason. The only time that makes sense to do is when you are adjusting the valves and you don't want to go from side to side but if you start on the 4/3 side rather than starting at the top of the firing order it isn't a issue.

Merian · Posted: Sat Jun 13, 2015 12:01 pm Post subject:

dwell, not dwel

syncrodoka · Posted: Sat Jun 13, 2015 12:10 pm Post subject:

buspor63 · Posted: Sat Jun 13, 2015 8:46 pm Post subject:

Any number of those would make great T shirt art hint hint
_________________
Imagine that, theres not an "h" in either Westfalia or Syncro?

dhaavers · Posted: Thu Jun 25, 2015 11:52 am Post subject:

atomatom · Posted: Thu Jun 25, 2015 4:11 pm Post subject:

yeah, but you have to print it upside down, so you can look down at it.
_________________
84 Vanagon Westy, 1.9L, California raised but defected to Canada.

dhaavers · Posted: Thu Jun 25, 2015 4:13 pm Post subject:

_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
