Heavy Rain = Leaky Windshield. What Do?

[epowell]

[dobryan]

Ed,

It depends on what you see when you lift the outside outer edge of the windshield seal (like a flap) and take a look at the paint under it. Any rust? If so then you need to remove the windshield, treat the rust, reinstall the windshield with a new seal and some sealant. The sealant goes under that rubber flap, not along the edge.

If the paint is good, unlikely, then you could try to just add the sealant under the flap and hope that takes care of it.... YMMV.
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794

[alnvilma]

epowell,
I had a problem just like yours: new German seal, new glass and good surface.
I may have wrongly used a bead of silicone as opposed to urathane but, the fix worked!
I ran a bead under the ( lifted up seal ) approximately 6" both directions from the UPPER corners. Not a drop of moisture for 4 years now.
Good luck.

[epowell]

Ahhh.... cool! Thanks guys.
Currently the seal looks so nice and clean and snug that I wouldn't normally think of lifting it - but I guess that is what has to be done - I will check it tomorrow in the light --- hopefully I won't have to pull the windshield... my guess is that I won't have to because I think this recent body work and paint job is just 18 months old or less...
_________________
www.edwardpowell.com

[MidwestDrifter]

Even with new glass and seal I had leaks on my 82. The fix was to completely dry the seal area and apply a fine bead of sealant under the perimeter of the body to seal surface. I lifted the seal edge as I went using a plastic tool. There is no need to use windshield adhesive (it won't hurt though) as this is not a structural application, just a water seal.
_________________
2004 Dodge/Mercedes Sprinter (Custom Camper)
2000 Jetta TDI
1982 Diesel Westy W/ ABA I4 hybrid (Sold)
Epic Road Tripping since 08/05/12 | http://VagariesAbound.blogspot.com/
My Current Build | http://sprinter-source.com/forum/showthread.php?t=41215

[epowell]

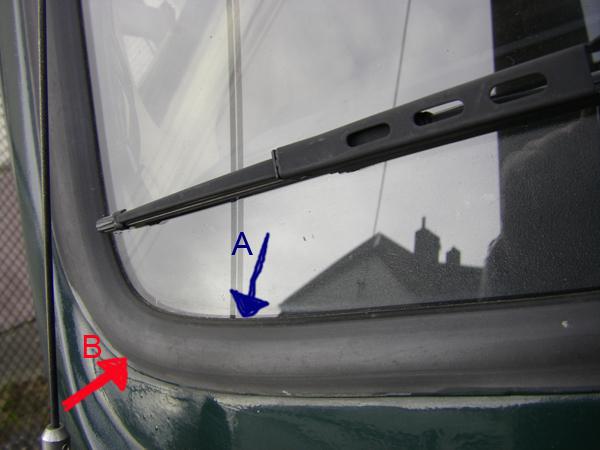

ONE QUESTION: (see foto)

First I lift back the seal and inspect the metal underneath for rust and moisture --- do I lift the seal back from SIDE A or SIDE B?

Second, if I find that there is no rust and/or anything to be too concerned about under the seal, then I should go ahead and apply a bead of urathane sealant under the seal from SIDE A or SIDE B?

_________________
www.edwardpowell.com

[MidwestDrifter]

[epowell]

I just checked out my windshield seal up-close... and SIDE "B" (the outer side of the seal) seems to be totally glued down tightly almost all the way around - so tightly that I really don't think I should mess with it (or should I rip it open??)

However there are a couple of spots in the upper corners that look slightly slightly opened (see fotos)... and slightly along the top seam might not be so sealed up --- perhaps this might be where the problem lies?

_________________
www.edwardpowell.com

[MidwestDrifter]

There are several places on the nose where water can enter, the windshield and the antenna being the most common.

If the the windshield seal is already bonded down I would not disturb it. I would suggest confirming a good bond all the way around, if you find any gaps a dab of sealant should be an easy fix.

I have never seen water moving in from side "A" around the window glass. But it might be possible with a loose fitting seal. Any water ingress here should be visible on the inside of the van above the dashboard.

As a test some non permanent rubber cement (used for bonding photos etc) could be used to cover any suspected leak locations. Then just apply water.

Edit: If the repaint was done with the windshield instsalled, it is possible that the paint is holding the seal edges down. This is not going to stop water ingress. I would recommend freeing the seal edge and applying sealant if this is the case.
_________________
2004 Dodge/Mercedes Sprinter (Custom Camper)
2000 Jetta TDI
1982 Diesel Westy W/ ABA I4 hybrid (Sold)
Epic Road Tripping since 08/05/12 | http://VagariesAbound.blogspot.com/
My Current Build | http://sprinter-source.com/forum/showthread.php?t=41215

[alnvilma]

Right where your gutter drains off....
Sure worth a shot, isn't it?

[epowell]

Probably the thing to do might be first to pour a bucket of water (or a garden hose) over the nose, and see where water might be coming in... ???
_________________
www.edwardpowell.com

[spacecadet]

If you've been leaking in the front drivers side corner, inspect the grounds there, only a matter of time before something acts up or your blow fuses for no reason.
_________________
Daily Drivers Only
--
1990 Volvo 740 Turbo(Sold)
1986 Mercedes 300 Coupe (Sold)
1954 Volvo PV544 (Sold)
1990 Dodge D250 Cummins (Totaled)
1990 Vanagon GL 2.1 Automatic (Sold)
1968 Ford F250(Current)

[epowell]
