'56-57 Rear Wing Rear Light holes
Forum Index -> Beetle - Oval-Window - 1953-57 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
cj1971
Samba Member


Joined: July 18, 2006
Posts: 121
Location: Hythe Kent UK
cj1971 is offline
PostPosted: Wed Dec 22, 2010 10:57 am    Post subject: '56-57 Rear Wing Rear Light holes Reply with quote
Can someone be good enough to show me photos of the snowflake light unit holes on a '55-57 rear wing please.thanks in advance
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
Chris Hollaway
Samba Member


Joined: November 01, 2003
Posts: 183
Location: Southeast Ga
Chris Hollaway is offline
PostPosted: Wed Dec 22, 2010 11:45 am    Post subject: Reply with quote

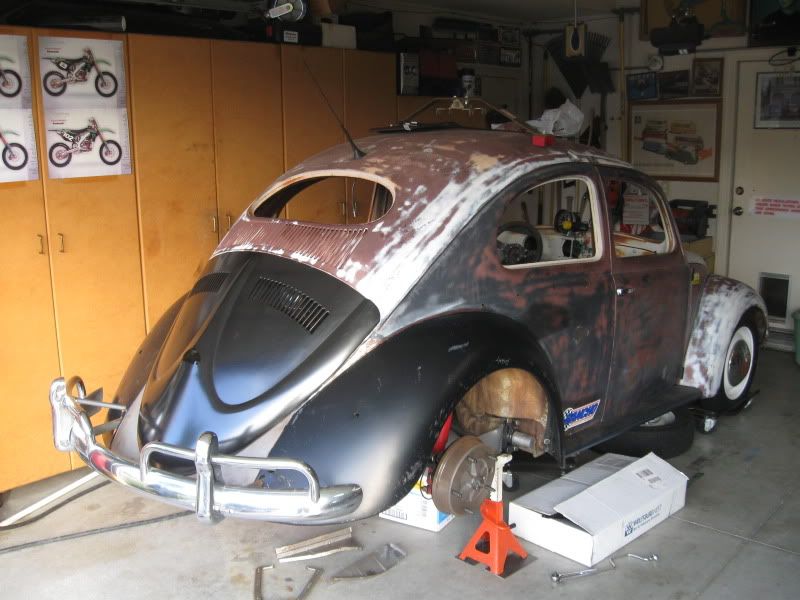

Maybe this one will help
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail MSN Messenger Facebook Gallery Classifieds Feedback
Kjell Roar
Samba Member


Joined: December 08, 2008
Posts: 1333
Location: Norway
Kjell Roar is offline
PostPosted: Wed Dec 22, 2010 1:32 pm    Post subject: Reply with quote
http://www.volkszone.com/VZi/showthread.php?t=336586

Smile
_________________
I got a historic car, every scratch got a history...

My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nick696
Samba Member


Joined: June 25, 2009
Posts: 198
Location: Belgium
nick696 is offline
PostPosted: Wed Dec 22, 2010 2:48 pm    Post subject: Reply with quote
They realy should make a sticky with a FAQ Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Schwing
Samba Member


Joined: May 10, 2009
Posts: 2514
Location: Centreville, MD
Schwing is offline
PostPosted: Wed Dec 22, 2010 6:36 pm    Post subject: Reply with quote
The first pic in the volkszone thread looks like a split window rear fender which means those tail-lights are too low and the holes are wrong.

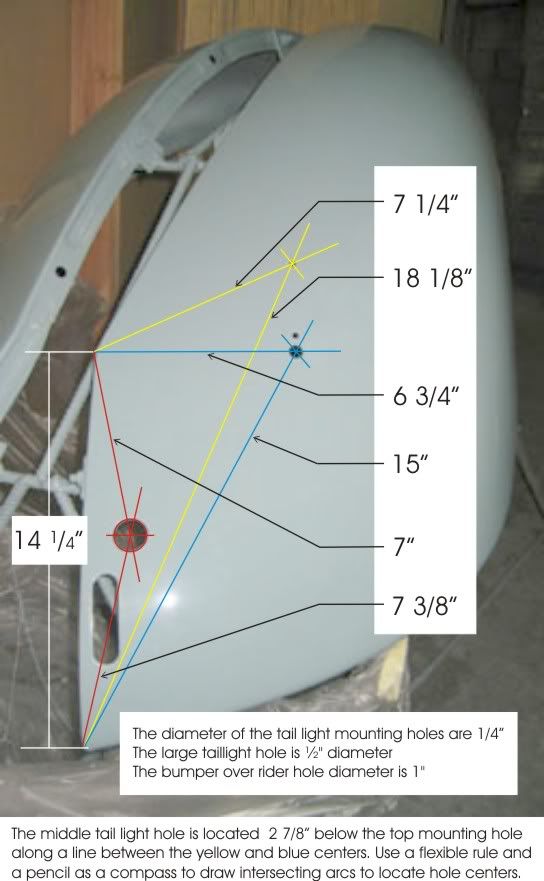

I found this a while ago on the samba and saved it as a jpg so I don't know who took the time to document this but I thought it was really great. I'm using a pair of 60s fenders so I have the same problem.

Hope this helps.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Shadetree Westy
http://www.thesamba.com/vw/forum/viewtopic.php?t=657279&highlight=

Single Cab - BBXXVII Long Distance Winner
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Herman the oval
https://www.thesamba.com/vw/forum/viewtopic.php?t=388895
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
Schwing
Samba Member


Joined: May 10, 2009
Posts: 2514
Location: Centreville, MD
Schwing is offline
PostPosted: Wed Dec 22, 2010 6:48 pm    Post subject: Reply with quote
nick696 - I looked at your gallery pics and by the way great build!
I noticed your fender holes appear to be slightly lower than the pic I posted.

What year is your Beetle? 1955?
_________________
Shadetree Westy
http://www.thesamba.com/vw/forum/viewtopic.php?t=657279&highlight=

Single Cab - BBXXVII Long Distance Winner
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Herman the oval
https://www.thesamba.com/vw/forum/viewtopic.php?t=388895
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
nick696
Samba Member


Joined: June 25, 2009
Posts: 198
Location: Belgium
nick696 is offline
PostPosted: Thu Dec 23, 2010 8:46 am    Post subject: Reply with quote
Schwing wrote:
nick696 - I looked at your gallery pics and by the way great build!
I noticed your fender holes appear to be slightly lower than the pic I posted.

What year is your Beetle? 1955?


It is accualy a '56, but the fenders are pre-56
I started of with the body only an started searching for parts, so kinda saved de body Laughing and gave it al the parts of his fellow brothers and sister.
But I didn't have any paperwork, so I found a '54 pan. So I'm trying to give it a '54 look. I know not really correct, but hey this body was going to a junkyard. So I think no harm done by doing this, and I'm really taking care of this care. Hope to get it done soon Wink
more pics can be found here
http://s675.photobucket.com/albums/vv119/nick696/Oval/

btw thx for the comment Wink
Back to top
View user's profile Send private message Gallery Classifieds Feedback
PedalWerks
Samba Member


Joined: January 16, 2005
Posts: 223
Location: San Bernardino SoCalif
PedalWerks is offline
PostPosted: Sun Dec 26, 2010 8:24 pm    Post subject: Reply with quote
Schwing wrote:
nick696 - I looked at your gallery pics and by the way great build!
I noticed your fender holes appear to be slightly lower than the pic I posted.

What year is your Beetle? 1955?


Image may have been reduced in size. Click image to view fullscreen.


Thanks for the post I have a June 3 55 with US bumpers and the volkszone thread is hard to read, this help's me out a lot,

the fenders are pre 59 nos repops with the wire hole only

Scott
