 Posted: Thu Feb 18, 2010 3:33 pm Post subject: |
 |
|
| crazyoval wrote: |
Ive got a copy of "Volkswagen Bug! The people's car" (second printing October 1986) here and it does state that for both '53 (page 120) & '55 (page 134) & '56 (page 144) that we are talking about single vizors only & that it is an optional extra in '55.
HOWEVER, by the time 1957 comes around the single vizor is standard and the DOUBLE is an optional extra (see below).
Maybe there is an update to this as this book is over 20 years old. And of course, a double isn't correct for either my '54 nor my '56 from any information so far.
|
Like I said earlier
| derluftwagen wrote: |
| One other thing, on an oval a passenger side visor was a separate piece that sandwiched between the body and the mirror base. Other than verts ovals only had a single visor from the factory. |
This means a dealer accessory. That means it could be installed by the dealer at an extra charge to the customer. This could have been done at time of purchase or later in the vehicles service.
| crazyoval wrote: |

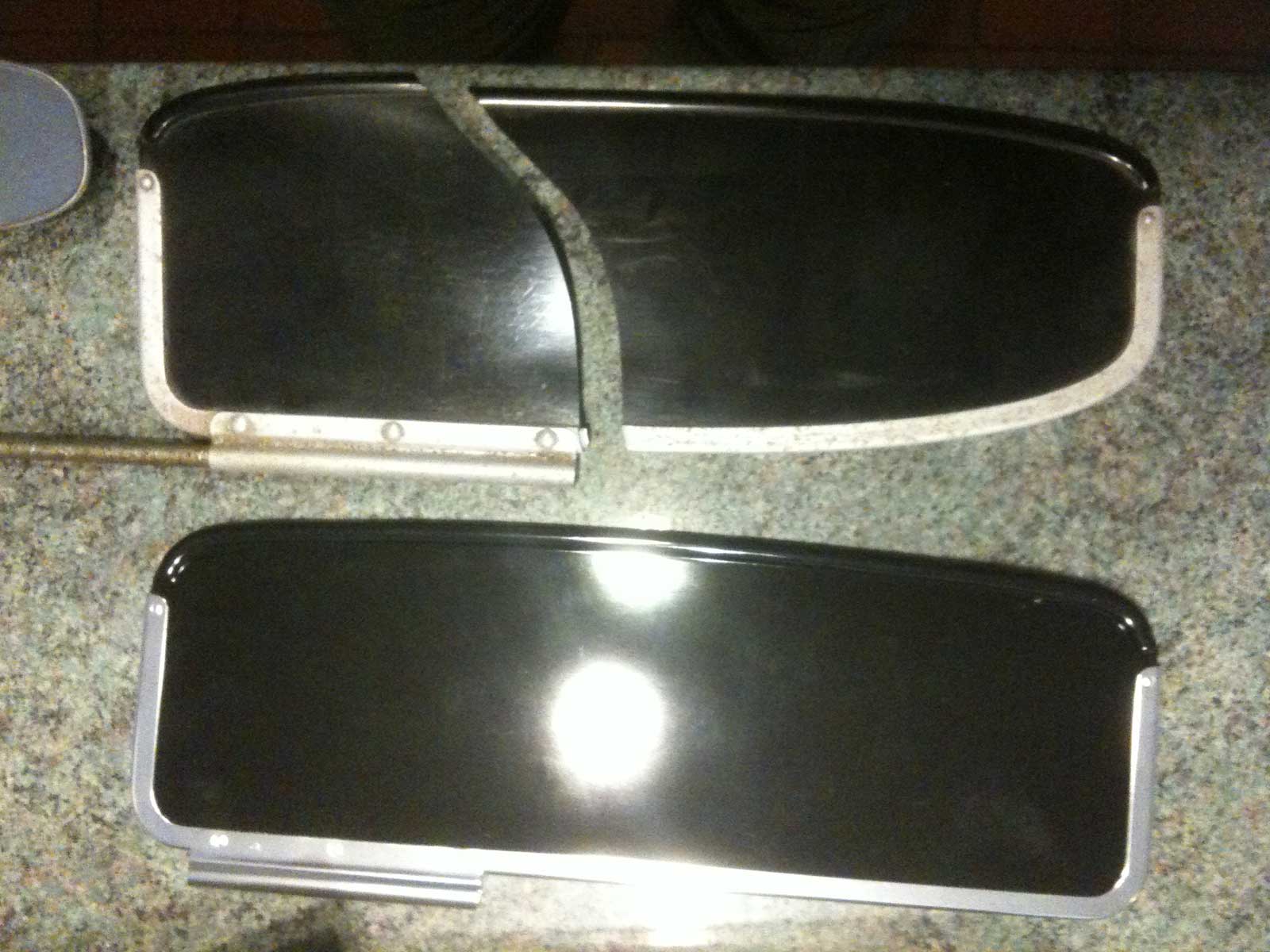

| The vizors look curved too, not rectangular like my repro ones, which are obviously correct for earlier Ovals. |
ALL ovals had visors with right angles for the aluminum frame, but depending on the year the plastic insert had subtle changes in shape. 55 and earlier had a flat bottom, mid 56 had flat bottom with rib, late 56 on (like your repro) had curved bottom with rib. Curved aluminum frames (like your original purchase with passenger side cracked) were factory install on 58 and 59 ONLY.
Here is a pic of an accessory passenger side mount and visor for a 55 and earlier oval. The only difference for a later oval would be the plastic insert, the 90 degree frame would be the same.
Time to sell the mirror with the broken visor to someone with a 58/59 and get the correct mirror for your oval.
You never said if your oval is LHD or RHD.
Edit: More pics of split and oval visors from the gallery
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet |
|
| Back to top |
|
 |
crazyoval
Samba Member
Joined: October 30, 2009
Posts: 231
Location: cornwall UK
|
| Posted: Thu Feb 18, 2010 4:43 pm Post subject: |
|
|
OK, from the collected information so far (RHD btw), I will have a 56 bug with a '57 optional rear view mirror with double late '55 sunvizors.
Since it is a double, its nicer to drive when youve got a passenger to consider.
Might keep an eye out for a single but there are other things that interest me more like getting hold of a batwing horn button for now & maybe some '56 front seats sometime.
Thanks for the detail. Fascinating detail on those old catalogue pages.
_________________
Cog: Completely free to drive till I breakdown.
'65 1 Owner RHD KGhia. Original fluff down back of seat
'99 Peugeot 106 with dent in roof & full of crisp bags
'56 RHD Oval (Montecarlo Rally x2): dodgy engine, anyone got a spare judson?
'64 LHD Cabrio Resto-Cal. Fun pose.
1 x rusty chopper, 4 kayaks and 3 kids, one dead hamster and one divorce. |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8713
Location: PNW
|
| Posted: Thu Feb 18, 2010 7:34 pm Post subject: |
|
|
This is the correct mirror for your oval
with this as the add on passenger visor
Both visors should be like the repro you already have depending on your vin #. If you really want to be correct the rivets are specific to right and left side of the car but the repros only come one way and only in the 57 style.
Also a batwing steering wheel is for 55 and earlier ovals (non dished, center spoke). Sometimes the later 56-59 wheel is also called batwing but are different, slight dish and offset spoke.
Are you restoring your oval to stock or trying to make it look older?
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet |
|
| Back to top |
|
|
crazyoval
Samba Member
Joined: October 30, 2009
Posts: 231
Location: cornwall UK
|
| Posted: Fri Feb 19, 2010 12:27 am Post subject: |
|
|
Cheers derfult, no dont let me get you confused too, check my signature, i have a '54 that needs a batwing button, not the '56. Multitasking with Ovals.....
As
for the 56, well for now the vizor/RVM is near enough.
Thanks
P.S. Rant: how the hell did the original rear view mirror go missing on the car in the first place !!!! Jeez!!
_________________
Cog: Completely free to drive till I breakdown.
'65 1 Owner RHD KGhia. Original fluff down back of seat
'99 Peugeot 106 with dent in roof & full of crisp bags
'56 RHD Oval (Montecarlo Rally x2): dodgy engine, anyone got a spare judson?
'64 LHD Cabrio Resto-Cal. Fun pose.
1 x rusty chopper, 4 kayaks and 3 kids, one dead hamster and one divorce. |
|
| Back to top |
|
|
F-22A
Samba Member
Joined: July 24, 2008
Posts: 556
Location: London
|
| Posted: Sat Feb 20, 2010 1:52 am Post subject: |
|
|
This is an interesting topic as I'm going through the same thing right now as I'm trying to find out what visor is correct for a May 55 Vert.
I had assumed the square trailing edged visor was Vert only and the slightly rounded trailing edge visor is Saloon only but now I don't think that's the case. In addition I think it's not as clear cut as people make out as I've reached the conclusion it depends on which supplier VW was using at the time.
Question I've got it when were visors started to be fitted with the "lip" in the trailing edge as I thought all Oval's had this and it was Split's with a "flat" trailing edge?  |
|
| Back to top |
|
|
IN2VWS
Samba Member
Joined: January 29, 2006
Posts: 2550
Location: Australia
|
| Posted: Sat Feb 20, 2010 2:28 am Post subject: |
|
|
Hey crazyoval,

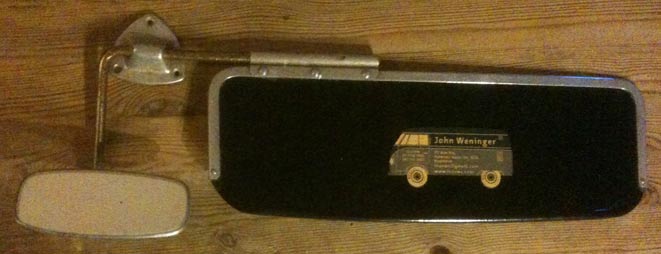

Here is a mirror and visor I removed from a 56 oval. Its yours if you want it. PM me your postal address, and I'll send it on Monday.
Cheers
John
_________________
( ⫏ ⫐ )
(ọ\ ¡ /ọ)¹⁹⁵⁴ ¹⁹⁵¹ ¹⁹⁵⁸
(⦷ ⥢ Ĭ ⥤ ⦷) 𝗞_𝗔_𝗥_𝗠_𝗔_𝗡_𝗡 𝓖𝓱𝓲𝓪¹⁹⁵⁶
⨴⨵--⊗--⨴⨵ 𝕊ℙ𝟚¹⁹⁷³ |
|
| Back to top |
|
|
crazyoval
Samba Member
Joined: October 30, 2009
Posts: 231
Location: cornwall UK
|
| Posted: Sat Feb 20, 2010 3:58 am Post subject: |
|
|
| F-22A wrote: |
This is an interesting topic as I'm going through the same thing right now as I'm trying to find out what visor is correct for a May 55 Vert.
|
F22a: what Derluftwagan has posted up with those catalogue pages just shows how many options there were so I agree, I am not sure how well you can be sure (although I am clear the one I purchased is a '57 and up now thanks to the guys here).
The information I have here is that from May '54 to "late '58" the vizor and r'v' mirror were all the same, double vizors with a flip up mirror when the hood was down. The book is "The 1949 - 1959 VW Beetle. Authenticity Series" by Bob Wilson however it does not show detail on the vizors themselves for each year so I cant help you there.
I'll take a look in another book for you later to see what I can gather.
I still don't get why a rear view mirror would normally go missing from a car (apart from if someone takes a car apart to rebuild and then looses a bit).
Its not like say, steering wheels where some kid might have thrown away the 'boring' big wheel and replaced it with small sporty thing in the 70's
Maybe one guy somewhere lost his, took one from another car that wasn't the correct year, and then like dominos everyone else was getting a replacement for their missing one but cocking up on the correct year.
I've had two '56 Ovals in my time so far and both the sods have incorrect rear view mirrors! If they fitted it wouldn't be so bad but JEEEEZZZ!!! the wrong mirrors are screwed on with new drilled holes!! both of the cars were done this way!! Name and shame I say!!!
_________________
Cog: Completely free to drive till I breakdown.
'65 1 Owner RHD KGhia. Original fluff down back of seat
'99 Peugeot 106 with dent in roof & full of crisp bags
'56 RHD Oval (Montecarlo Rally x2): dodgy engine, anyone got a spare judson?
'64 LHD Cabrio Resto-Cal. Fun pose.
1 x rusty chopper, 4 kayaks and 3 kids, one dead hamster and one divorce. |
|
| Back to top |
|
|
crazyoval
Samba Member
Joined: October 30, 2009
Posts: 231
Location: cornwall UK
|
| Posted: Sat Feb 20, 2010 7:58 am Post subject: |
|
|
Right, back from the barn. This is the same as what is in my '54. I feel a lucky boy.
Secondly, I took off the old rv mirror from my '56 to see if the '57 & up would fit. The holes match up but it doesnt lay flat against the screw holes so if this is, from the information i have so far, a '57 & up, '57 ovals must be a different shape slightly behind the rear view mirror. Either that or my info is incorrect and it is simply not an oval rvm.
So like derluft said. Time to sell for sure.
The '54's was in lovely condition though
_________________
Cog: Completely free to drive till I breakdown.
'65 1 Owner RHD KGhia. Original fluff down back of seat
'99 Peugeot 106 with dent in roof & full of crisp bags
'56 RHD Oval (Montecarlo Rally x2): dodgy engine, anyone got a spare judson?
'64 LHD Cabrio Resto-Cal. Fun pose.
1 x rusty chopper, 4 kayaks and 3 kids, one dead hamster and one divorce. |
|
| Back to top |
|
|
crazyoval
Samba Member
Joined: October 30, 2009
Posts: 231
Location: cornwall UK
|
| Posted: Tue Mar 02, 2010 3:00 pm Post subject: |
|
|
Just to complete this thread, here is what I got in the post today. Happy bunnies!!
SO! since this was a showing of pure Bug love I will continue the flow and offer my '57..ish and up double sun vizor / rear view mirror to the first guy who asks for it, for the cost of P&P. One of the vizors is snapped: ------>
_________________
Cog: Completely free to drive till I breakdown.
'65 1 Owner RHD KGhia. Original fluff down back of seat
'99 Peugeot 106 with dent in roof & full of crisp bags
'56 RHD Oval (Montecarlo Rally x2): dodgy engine, anyone got a spare judson?
'64 LHD Cabrio Resto-Cal. Fun pose.
1 x rusty chopper, 4 kayaks and 3 kids, one dead hamster and one divorce. |
|
| Back to top |
|
|
Boom
Samba Member
Joined: September 29, 2007
Posts: 1119
Location: Houston by God Texas
|
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8713
Location: PNW
|
|
| Back to top |
|
|
Boom
Samba Member
Joined: September 29, 2007
Posts: 1119
Location: Houston by God Texas
|
|
| Back to top |
|
|
Gene C
Samba Member
Joined: March 31, 2007
Posts: 153
|
| Posted: Mon Sep 27, 2010 8:01 pm Post subject: |
|
|
Hey Everyone
while we are on the visor subject
what size screws are used to attach it?
Gene C
Burlingame ca
_________________
Gene C
Burlingame Ca |
|
| Back to top |
|
|
D. Haviland
Samba Member
Joined: October 30, 2009
Posts: 536
Location: Burlington, Vermont
|
| Posted: Mon Sep 27, 2010 8:01 pm Post subject: |
|
|
Now one of those would be worth finding.
Dave |
|
| Back to top |
|
|
GLHTurbo
Samba Member
Joined: March 30, 2009
Posts: 1376
Location: New Jersey
|
| Posted: Tue Feb 28, 2012 7:52 am Post subject: |
|
|
I have a really nice '58 Visor. Can I run it on the Oval-era mirror/arm assembly?
Also - the plastic portion is slightly warped, does anyone have any reccomendations to help flatten it? Let it sit under a stack of phone books for awhile?
_________________
1957 Beetle
1966 Bus |
|
| Back to top |
|
|
Agg90
Samba Member
Joined: March 04, 2004
Posts: 33
|
| Posted: Thu Mar 01, 2012 5:13 am Post subject: |
|
|
This is out of my 57. I need to clean it up. Any suggestions on how to clean up the chrome??
|
|
| Back to top |
|
|
potys1
Samba Member
Joined: May 17, 2012
Posts: 1
Location: CYPRUS
|
| Posted: Thu Mar 06, 2014 5:58 am Post subject: rhd rear view mirror |
|
|
hi,
I am looking for a rear view mirror for my vw beetle oval rhd
any chance you know where i can find one?
thnxs |
|
| Back to top |
|
|
Suboval
Samba Member
Joined: September 15, 2003
Posts: 823
|
| Posted: Thu Mar 06, 2014 7:42 am Post subject: |
|
|
| Agg90 wrote: |
This is out of my 57. I need to clean it up. Any suggestions on how to clean up the chrome??
|
Try some 0000 steel wool.
_________________
It all works on paper.
There's two things we learn from history:
1.) History repeats itself.
2.) We don't learn from history. |
|
