| Author |
Message |
rizzag
Now Wut?
Joined: April 19, 2001
Posts: 3135
Location: Keizer, OR
|
 Posted: Wed Jan 18, 2012 4:35 pm Post subject: |
 |
|
What date did inner window pressings start?
_________________
flossin, tossin, dippin, and trippin |
|
| Back to top |
|
 |
Concept1
Samba Member
Joined: September 07, 2004
Posts: 334
Location: Calgary, Canada
|
| Posted: Wed Jan 18, 2012 4:48 pm Post subject: |
|
|
I'm guessing this has to do with the deep skylight changeover on the deluxe buses.
From Barndoor.dk... "I have found that the change is between chassis number 20-044995 and 20-049493."
Seems to be Feb '53.
On the deep skylight deluxes, the inner panel has no pressing for the skylights. It's just flat. (Which reminds me I think I mentioned I would take pictures of this for another thread...) so, I figure if that inner panel didn't exist yet, they would have just used shorter sections of roof support rails.
This bus is Nov 14th, 1952.
_________________
C-1 |
|
| Back to top |
|
|
Schwing
Samba Member
Joined: May 10, 2009
Posts: 2514
Location: Centreville, MD
|
|
| Back to top |
|
|
PeteSC
Samba Member
Joined: January 26, 2011
Posts: 934
|
| Posted: Wed Jan 18, 2012 8:02 pm Post subject: |
|
|
delete
Last edited by PeteSC on Mon Mar 05, 2012 7:12 pm; edited 1 time in total |
|
| Back to top |
|
|
Scotty
Samba Member
Joined: July 02, 2003
Posts: 1553
Location: Northampton - Uk
|
| Posted: Thu Jan 19, 2012 1:51 am Post subject: |
|
|
Really looking forward to seeing this painted. You should maybe think about doing this for a living ken, you're quite good at it!
_________________
| EverettB wrote: |
I'd be curious to know the length of his tip.
|
http://scottys-stuff.blogspot.com/ |
|
| Back to top |
|
|
Gerson
Samba Member
Joined: January 23, 2004
Posts: 1828
Location: Jupiter Fl
|
| Posted: Fri Jan 20, 2012 10:12 am Post subject: |
|
|
Yeah Ken, I have a 53 sunroof in a crate that needs your attention...
_________________
that's not patina, that's fucking rust man!!!!
we (klassicfab) make the funky green panels........... |
|
| Back to top |
|
|
Barndoor Mafia
Il Capo
Joined: August 23, 2001
Posts: 6195
Location: EUSKAL HERRIA
|
| Posted: Fri Jan 20, 2012 12:53 pm Post subject: |
|
|
| Awesome work and great thread. Very informative. I too cannot wait to see the finished product .................. in person. |
|
| Back to top |
|
|
limeybish
Samba Member
Joined: May 01, 2007
Posts: 140
Location: U.k.
|
| Posted: Sat Jan 21, 2012 3:49 pm Post subject: |
|
|
| Great work again ken ,can't wait to see it in june there's a few of us from down under coming up for the show ,we will have too catch up over a few beers ?I might have to give you a call ,got some questions for you ,vw related. |
|
| Back to top |
|
|
OvalTeenAZ
Samba Member
Joined: May 12, 2007
Posts: 661
Location: Arizona
|
| Posted: Sun Jan 22, 2012 1:04 am Post subject: |
|
|
 Bravo. |
|
| Back to top |
|
|
Concept1
Samba Member
Joined: September 07, 2004
Posts: 334
Location: Calgary, Canada
|
| Posted: Sun Jan 22, 2012 10:32 pm Post subject: |
|
|
| Scotty wrote: |
| Really looking forward to seeing this painted. You should maybe think about doing this for a living ken, you're quite good at it! |
Thanks Alan. I think I'd be flat out broke if I did this for a living. The reality is, it's a hobby for me that is closely related to my work.
| Gerson wrote: |
| Yeah Ken, I have a 53 sunroof in a crate that needs your attention... |
Believe it or not.... Since our last conversation about this, I'm actually thinking about taking that one on for you. Not for the money so much, but as a thank you for making the panels, and helping guys like me to save these old buses. At least that bus will be cheap to ship....
| Barndoor Mafia wrote: |
| Awesome work and great thread. Very informative. I too cannot wait to see the finished product .................. in person. |
| limeybish wrote: |
| Great work again ken ,can't wait to see it in june there's a few of us from down under coming up for the show ,we will have too catch up over a few beers ?I might have to give you a call ,got some questions for you ,vw related. |
Thanks again guys. Simon, call me anytime. And yes, we should hook up for a few beers or dinner while were in LA. It's always fun to cruise down to Newport beach in an old bus.

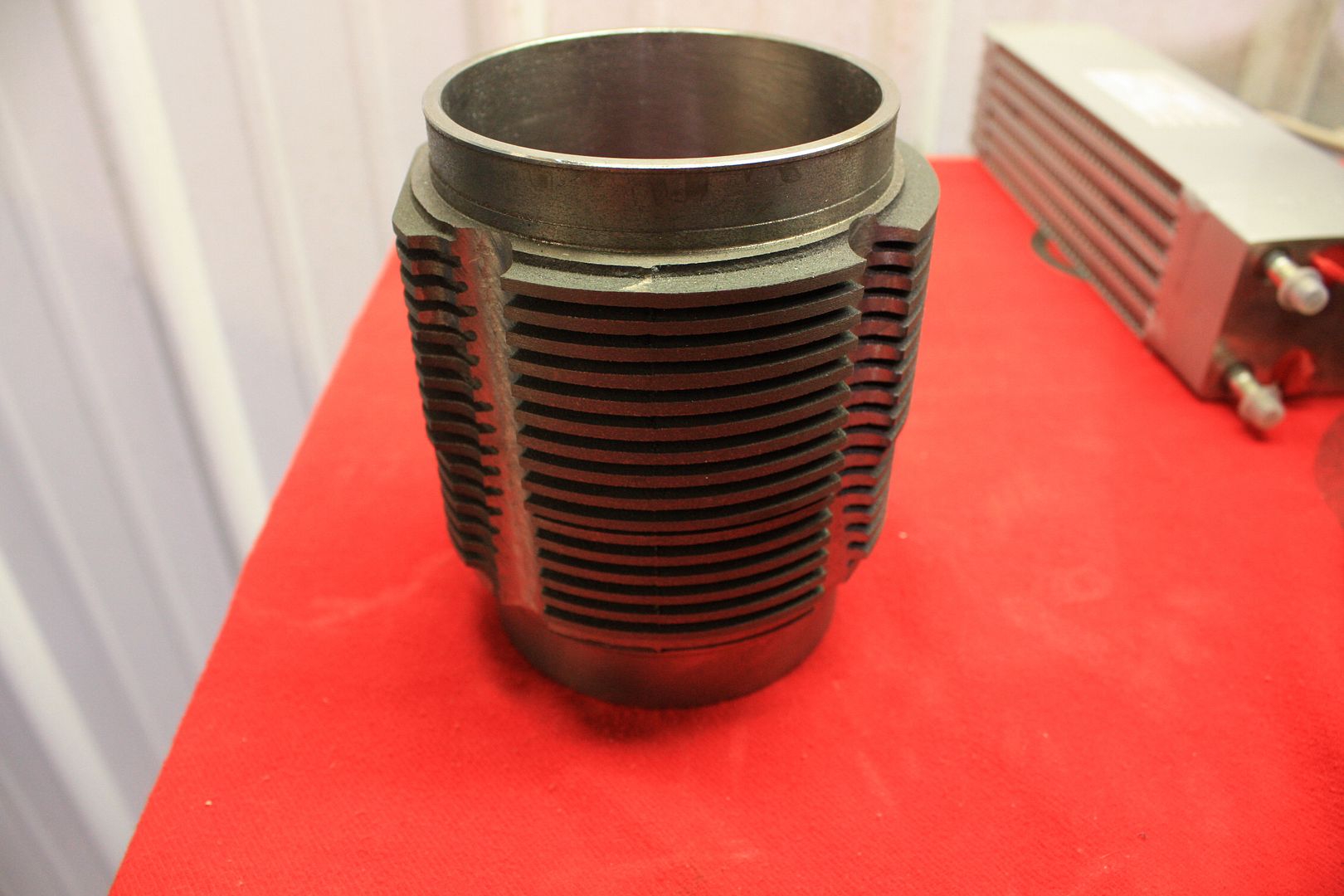

Started on the motor this week. I've decided on a vintage speed 36hp, based of a 20- case, 69mm crank and 83mm pistons. I'm a little worried about the power, if it will be enough for the bus, especially on those long road trips. I had Rimco machine down the fins of a 40hp big bore kit to fit under the 36hp tin, and there is not much left for fins. Which is making me worry if there will be any issues with it running hot. I guess I'll know in the spring...

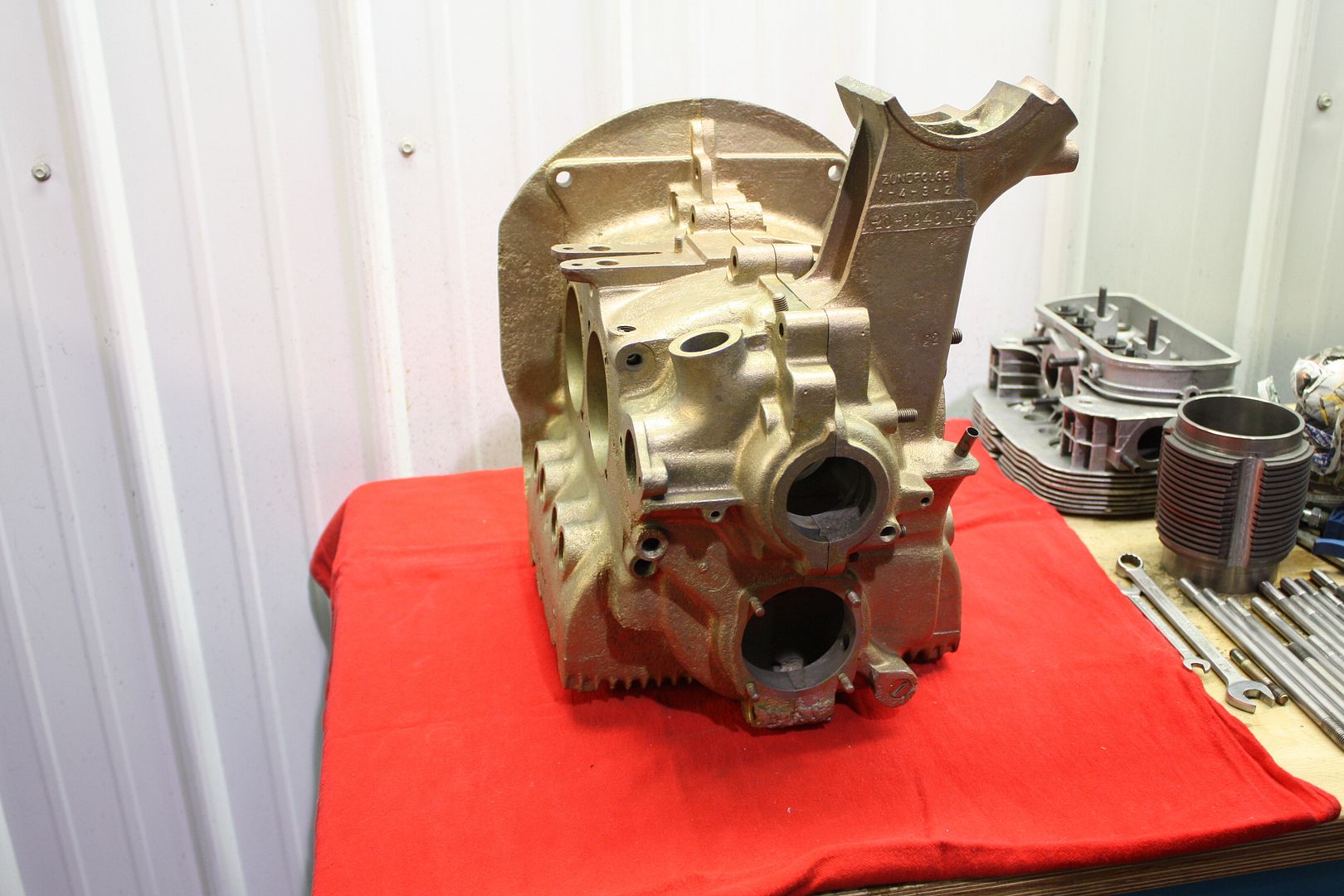

The case, machined by Rimco. Claranced for a stroker crank, opened up for the 83mm cylinders, oil galleries tapped, and spot faced. I alodine coated it. Don't ask me where I got the alodine from...

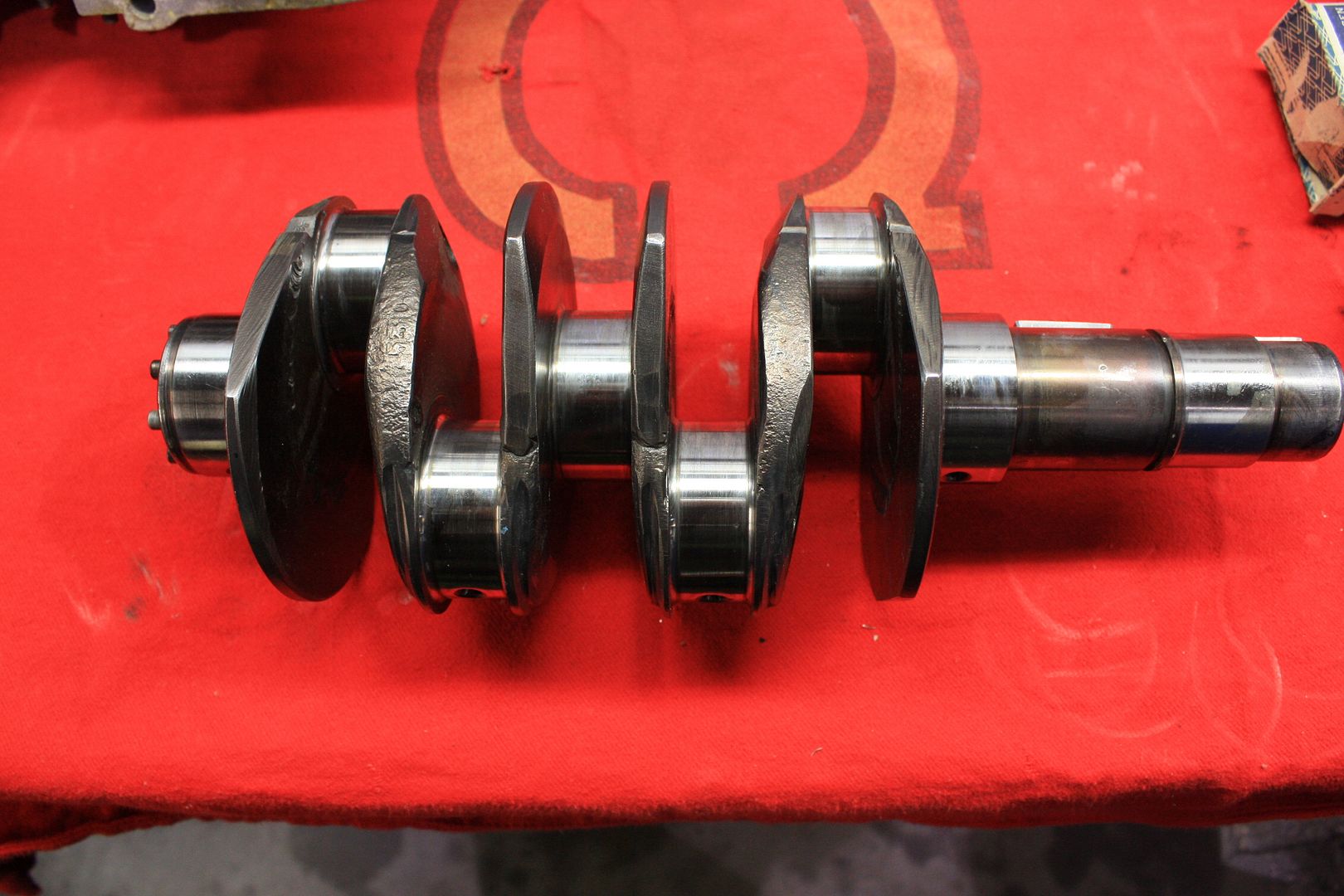

DPR 69.5 mm crank

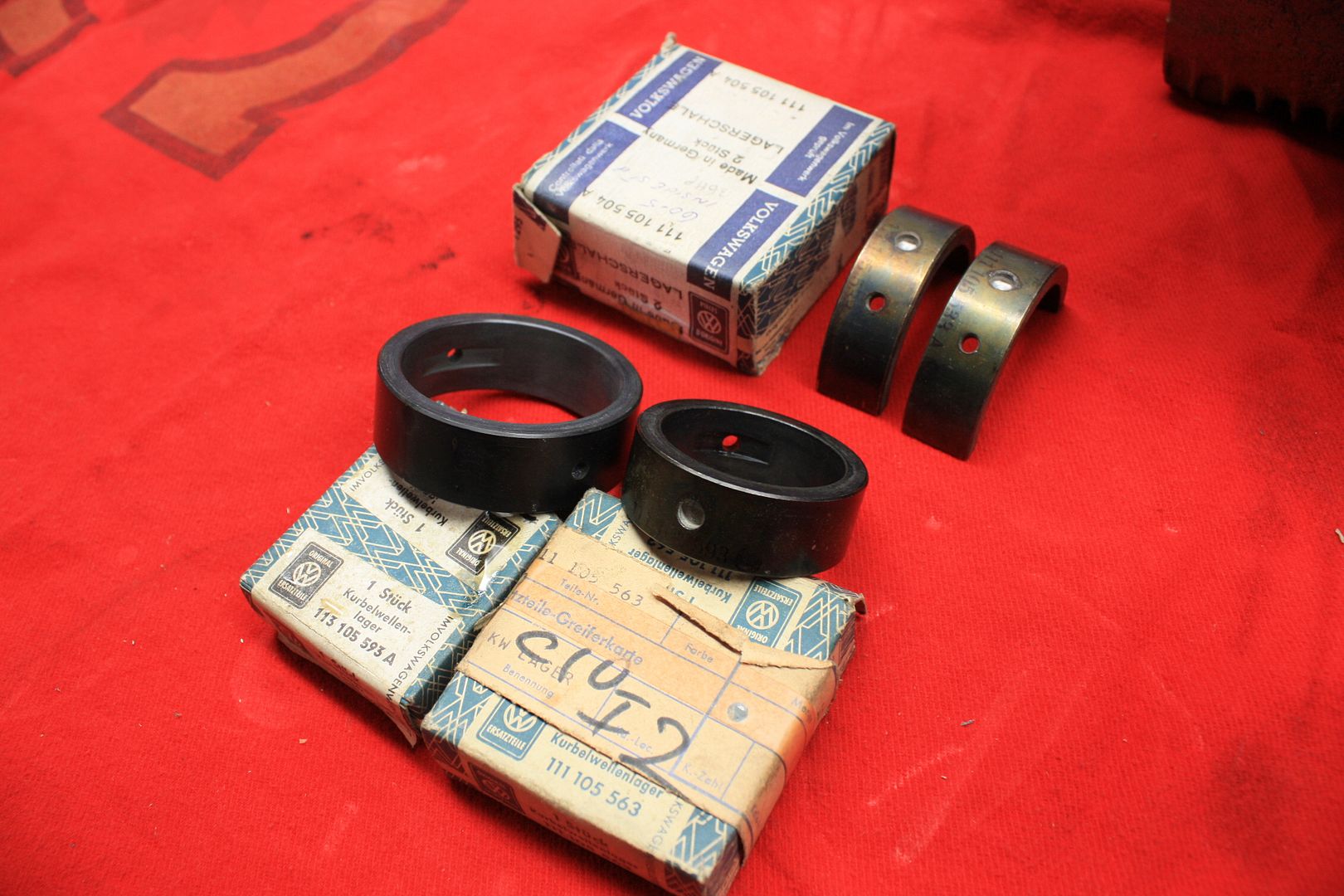

NOS main bearings.

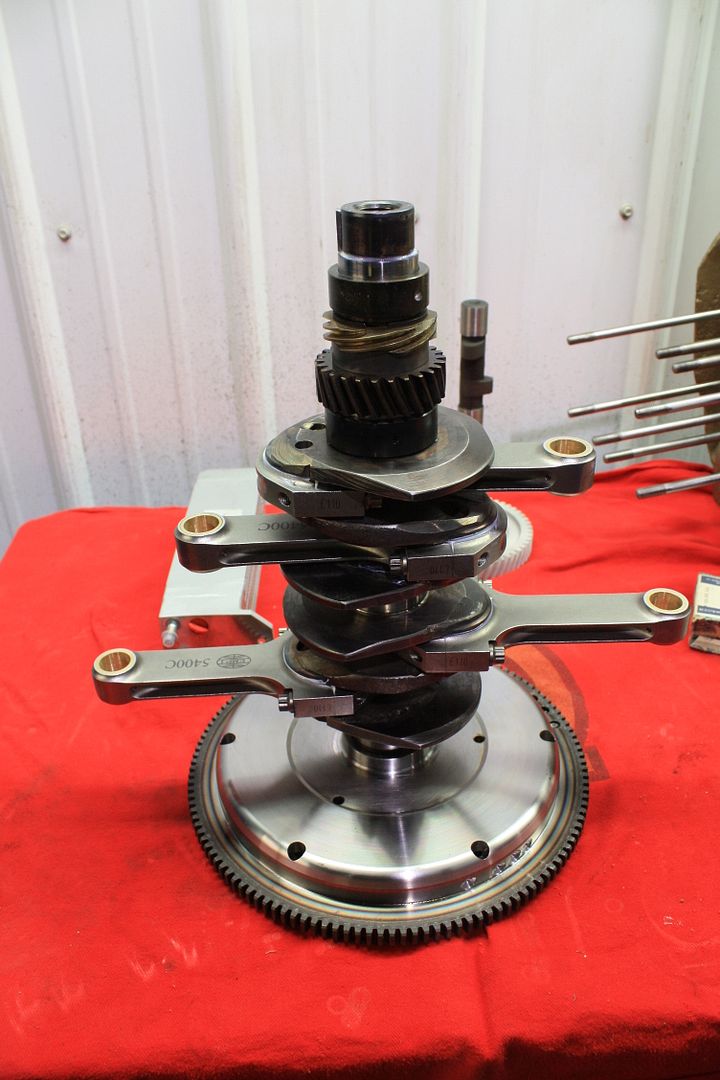

And the crank assembled. Empi 5.4 rods, Narrowed to fit the crank and re-bushed pin ends for the big-bore 83mm pistons.
_________________
C-1 |
|
| Back to top |
|
|
Outkast
Samba Member
Joined: November 13, 2004
Posts: 255
Location: frozen Canadian wasteland
|
| Posted: Sun Jan 22, 2012 11:43 pm Post subject: |
|
|
Some how I gotta make a weeknd trip out there during the assembly .Your work is amazing ,you and Trevors projects are inspiring . Keep the updates comming
_________________
Sometimes your better off being a lurker
57 kombi
" f!@#k"Cancer |
|
| Back to top |
|
|
dpeters60ghia
Samba Member
Joined: December 13, 2004
Posts: 162
Location: Western Canada
|
| Posted: Mon Jan 23, 2012 5:24 pm Post subject: |
|
|
Thanks for the update Ken. I always watch your build threads with interest.
I'm curious about how much horsepower the "36" is going to make with the "upgrades".
I might be able to stop in for a quick visit in a couple of weeks. Time will tell.
- DP |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 2079
Location: Winnipeg
|
| Posted: Wed Jan 25, 2012 11:39 am Post subject: |
|
|
Ha! I'm thinking of driving out to the west coast this summer in my TR6. It would be fun to go on Volkswagen Safari and stop in and see all you guys. Unfortunately I won't have room for John's decklid in my trunk...
Don |
|
| Back to top |
|
|
Bendango
Samba Member
Joined: September 04, 2005
Posts: 603
|
| Posted: Thu Jan 26, 2012 3:37 am Post subject: |
|
|
Where did you get the Alodine from?
_________________
I want a real garage.
WANTED - [WTB] 55-62 Bus Thin Lip Package Tray SWR
Getting Used - SWR 60 westy copy built by vw ( apparently  )
http://www.thesamba.com/vw/forum/viewtopic.php?t=320866
| Braukuche wrote: |
| Where did you find the elephant dick? |
|
|
| Back to top |
|
|
Trevor P
Samba Member
Joined: January 21, 2004
Posts: 899
Location: Saskatoon, SK, Canada
|
| Posted: Thu Jan 26, 2012 9:04 am Post subject: |
|
|
| dpeters60ghia wrote: |
I'm curious about how much horsepower the "36" is going to make with the "upgrades".
- DP |
The man owns a chassis dyno so I'm expecting results.
_________________
53 SG Barndoor SC
53 Canadian standard oval
56 Wolfsburg PG/SG
57 Oval, 2332 & Berg 5
70 911T
91 Westy |
|
| Back to top |
|
|
Dasdubber
Samba Member
Joined: July 05, 2004
Posts: 274
Location: Australia
|
| Posted: Fri Jan 27, 2012 4:29 am Post subject: |
|
|
Lovely work Ken. Sorry you couldn't make the trip down to Australia late last year when we brought Gerson over....hopefully next time!
I'll be over in the US in May/June again so would love to meet up.
Cheers
Al |
|
| Back to top |
|
|
El Guero
Samba Member
Joined: January 03, 2004
Posts: 1199
Location: I.E. Y-QUE
|
| Posted: Mon Feb 06, 2012 2:05 pm Post subject: |
|
|
Cant wait to see it in person
_________________
Praise the Lowered... |
|
| Back to top |
|
|
RPGreg2600
Samba Member
Joined: November 07, 2010
Posts: 1657
Location: Vallejo, CA
|
| Posted: Tue Feb 07, 2012 5:50 pm Post subject: |
|
|
| Those cylinders don't have much fin left. Not too worried about overheating? |
|
| Back to top |
|
|
Concept1
Samba Member
Joined: September 07, 2004
Posts: 334
Location: Calgary, Canada
|
| Posted: Mon Feb 13, 2012 8:15 pm Post subject: |
|
|
| RPGreg2600 wrote: |
| Those cylinders don't have much fin left. Not too worried about overheating? |
I am worried.
Rimco turned the barrels down for me, as I had heard they have clearance issues not only between them, but also for the cylinder tins to fit. It seems to me like they took a fair amount off.
In the meantime... Motor building has come to a complete halt while I'm waiting for JE to make a set of custom poisons for me. I had a little bit of poke, out the top of the Cylinder...
_________________
C-1 |
|
| Back to top |
|
|
RPGreg2600
Samba Member
Joined: November 07, 2010
Posts: 1657
Location: Vallejo, CA
|
| Posted: Wed Feb 15, 2012 7:57 am Post subject: |
|
|
| Seems like they took off more than they needed to. Don't the stock barrel's fins surround the head studs? I hope they work ok. Very much looking forward to seeing this thing all finished up. Also looking forward to seeing you start on the 23 window which I just found the thread for this morning. |
|
| Back to top |
|
|
|
