3-Point Rear Seat Belt Install
Page: 1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
DeMinimis
I Eat Glue


Joined: November 16, 2004
Posts: 1846
Location: Down in the pig mine
DeMinimis is offline

PostPosted: Tue Aug 15, 2006 1:49 pm    Post subject: 3-Point Rear Seat Belt Install Reply with quote

So, got some rear three-points belts on their way. Does anyone have a pic of where the mounts behind the panels are located? Also, does anyone have a pic of the through-cabinet mounting for the left one (Westy Weekender, so maybe that's only an issue with full campers)? There was mention of such a pic on the Go Westy site in a different thread, but damn if I could locate it on the Go Westy site. Thanks all.
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: March 07, 2004
Posts: 242
Location: Sunny AZ
vwman17@yahoo.com is offline

PostPosted: Tue Aug 15, 2006 3:26 pm    Post subject: right side pic Reply with quote

Hi, I will take and post a pic when I get home tonight. I only did the right side on my 85 westy.

Does your weekender have a closet on the driver side near the back window?

tom
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DeMinimis
I Eat Glue


Joined: November 16, 2004
Posts: 1846
Location: Down in the pig mine
DeMinimis is offline

PostPosted: Tue Aug 15, 2006 3:45 pm    Post subject: Reply with quote

Thanks! Yes, it has the rear closet on the driver's side.
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bunker108
Samba Member


Joined: May 08, 2006
Posts: 333

bunker108 is offline

PostPosted: Tue Aug 15, 2006 5:20 pm    Post subject: Reply with quote

I too am intersted in seeing a pic. I need to order a 3 point for the right rear on my 85 Westie. I need to put a car seat back there...baby due in December Very Happy
Back to top
View user's profile Send private message Classifieds Feedback
Yellow Rabbit
Samba Member


Joined: August 31, 2005
Posts: 1145

Yellow Rabbit is offline

PostPosted: Wed Aug 16, 2006 5:10 am    Post subject: Reply with quote

Do you have the GoWesty belts? They have a suplimental instruction set for the weekender installation. The belt exits behind the cabinet so you do not need to cut a hole in the front like a full camper. You do have to cut the back panel though. You might call them for the instructions sheet. It was not included when I got mine. I will look for it tonight.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeMinimis
I Eat Glue


Joined: November 16, 2004
Posts: 1846
Location: Down in the pig mine
DeMinimis is offline

PostPosted: Wed Aug 16, 2006 8:01 am    Post subject: Reply with quote

Great, thanks! Its actually late VW belts.
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buspor63
Samba Member


Joined: February 17, 2005
Posts: 1179
Location: Knoxville,TN Where America stops for gas
buspor63 is offline

PostPosted: Wed Aug 16, 2006 8:23 am    Post subject: Reply with quote

bunker108,
You wont need the 3 point for a couple years. The baby seats as well as the upright seats get by with just a lap belt. I like them better than trying to use the crazy belt clamp provided to cancel out the 3 point inertia reel.
_________________
Imagine that, theres not an "h" in either Westfalia or Syncro?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: March 07, 2004
Posts: 242
Location: Sunny AZ
vwman17@yahoo.com is offline

PostPosted: Wed Aug 16, 2006 9:07 am    Post subject: forgot to take pic Reply with quote

OOPS. Forgot to take pic. Will do tonight.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1819
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Wed Aug 16, 2006 1:19 pm    Post subject: Reply with quote

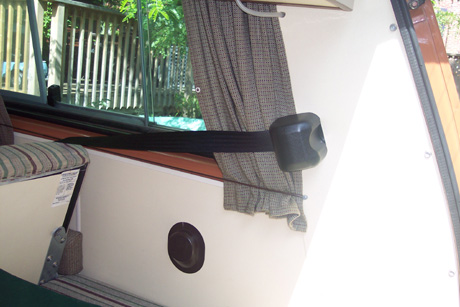

Here you go. Took about 20 minutes to install and clean up last night. Perfect fit and works great. I only installed the passenger side into my 84 Westfalia.

I removed the two small screws that hold the panel along with the screws for the curtain wire and tie back. When I pulled the panel back a little, I could easily see the factory plastic plug in the mounting hole. After a coule of measurements, I drilled a hole big enough to get my phillips screw driver through the panel to remove the plug then I made a clean 3/4" hole with a hole saw to finish the job.
Image may have been reduced in size. Click image to view fullscreen.

_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeMinimis
I Eat Glue


Joined: November 16, 2004
Posts: 1846
Location: Down in the pig mine
DeMinimis is offline

PostPosted: Wed Aug 16, 2006 1:50 pm    Post subject: Reply with quote

Envious? Envious of what? I'm the envious one: a Touareg, a BSA and standard verts. You must have a heck of a garage. Love the Vespa/Lamberetta. Also, thanks for the pics and info. I had no idea the mount was so far back. Looking forward to making the linolium lizards (kids) a little more safe.

Thanks again.
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: March 07, 2004
Posts: 242
Location: Sunny AZ
vwman17@yahoo.com is offline

PostPosted: Wed Aug 16, 2006 1:59 pm    Post subject: thanks for posting the pic Reply with quote

nice pic.

I eyeballed the location, then used a razor blade to cut the opening.

wasn't bad at all.


the driver's side looks like more fun!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
airkooledchris
Samba Member


Joined: January 25, 2005
Posts: 2698

airkooledchris is offline

PostPosted: Wed Aug 16, 2006 2:04 pm    Post subject: Reply with quote

Envious wrote:
Image may have been reduced in size. Click image to view fullscreen.



looks like a baywindow bus washer fluid cap mounted on the wall there?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Envious
Samba Member


Joined: January 08, 2003
Posts: 1819
Location: Toronto, Ontario, Canada
Envious is offline

PostPosted: Wed Aug 16, 2006 2:58 pm    Post subject: Reply with quote

airkooledchris wrote:
looks like a baywindow bus washer fluid cap mounted on the wall there?


Dunno Confused I wouldn't know what one looked like if I woke up with it glued to my forehead. This is pretty new to me. My safety zone is early 60's aircooled.
_________________
71 Type 1302 Custom
64 Type 151
63 Type 117 L469 Anthracite
64 Type 361 L575 Nutria
64 Porsche 356c
56 Type 113 L227 Strato Silver
52 BSA C11G
59 Heilite Single Wheel Camping Trailer
56 Allstate Single Wheel
84 Vanagon Westfalia
http://www.thesamba.com/vw/forum/viewtopic.php?t=388225
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1621
Samba Member


Joined: May 15, 2006
Posts: 2174

1621 is offline

PostPosted: Sat Aug 19, 2006 10:44 pm    Post subject: Reply with quote

Okay, I just finished installing the driver's side rear seat belt today, and it really is not that bad. I used the Go Westy kit. After installing the passenger side rear 3-pointer, I had a good idea of where to find the mount through the cabinet on the opposite side. I took a couple measurements from the rear mesh screen snap locations, and figured out the rough location of the mounting bolt inside the rear cabinet. After cutting a small hole and then drilling through the panel behind the cabinet, I ended up hitting the plastic bolt that plugs the rear seat belt mount hole. It was perfect, and easy to find.

The retractor ends up sitting in the forward section of the rear cabinet, just below the top shelf. Then it's a simple matter of drilling and cutting the two pass through holes and dressing them up with the rosettes provided. It is a lot simpler than I previously thought. In fact, the hardest part was vacuuming the dust out of the hanging closet from cutting the holes.

The one thing I did not care for was that the belt initially rubbed across a sharp edge of one of the new holes on the inside of the hanging closet. I took a small piece of plastic wire loom, sliced some of it off, and screwed the piece around the inside edge. This ultimately keeps the belt from sliding on this point, and doesn't cheapen the professional look at all.

As for the belt passing through the cabinet, it really doesn't seem too intrusive. It is still possible to hang clothes (if you do such a thing), though the space is reduced some. I end up stuffing my laundry bags and random crap in there anyway, so it doesn't make any difference at all to me.

The best part is now I have the peace of mind that when my 2 and 4 year olds transition to a booster seat, and then no child seat, they will have better protection. Now I'm thinking about retrofitting some head protection on the rear bench that is easily removable for when we camp. Any thoughts or ideas?

Lundy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Sun Aug 20, 2006 6:06 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 9752
Location: Where?
?Waldo? is offline

PostPosted: Sun Aug 20, 2006 8:43 am    Post subject: Reply with quote

I am wondering if a front belt from a parts van can be used in this application. I thin k probably not due to the necessity for the belts to be oriented in their proper direction (up must be up) in order to release.
If the front belt cannot be used, where can I order whatever I need to install what is pictured.

Andrew
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1621
Samba Member


Joined: May 15, 2006
Posts: 2174

1621 is offline

PostPosted: Sun Aug 20, 2006 9:14 am    Post subject: Reply with quote

Go Westy does not have their seat belts listed on the website right now because I was told they are switching the design slightly. If you call, however, they may still have a few sets left.

Lundy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeMinimis
I Eat Glue


Joined: November 16, 2004
Posts: 1846
Location: Down in the pig mine
DeMinimis is offline

PostPosted: Sun Aug 20, 2006 9:21 am    Post subject: Reply with quote

Andrew, I was about to ask a similar question. The belts I have are from a 91 vanagon with rear sholder belts (the belts have a mfr date of 1988). They will not work unless installed (the retractor) vertically. These also have a panel pass-through trim piece on the belt that indicates to me that the retractor installs behind an interior panel. I think I would end up using the mounting point for the aftermarket belts as actually the mounting point for the belt pivot. Howver, I wonder if there is a mounting place below that area for the retractor? Came with a substantial mounting bracket (sort of a "T" shape with welded nuts on the backside). Guess the only way to find out is to remove everything today and just see. Should be working on the house, though.
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Sun Aug 20, 2006 9:36 am    Post subject: Reply with quote

This is how I thought it should go, I didn't bother putting it in.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

here's a how to, but it might be outdated:
http://volksweb.relitech.com/helmut/RearSeatBelt/RSFB_001.HTM
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DeMinimis
I Eat Glue


Joined: November 16, 2004
Posts: 1846
Location: Down in the pig mine
DeMinimis is offline

PostPosted: Sun Aug 20, 2006 11:16 am    Post subject: Reply with quote

If we have any more kids, I'll name him/her/it "Mightyart." That is exactly the pic I need. Thank you very much (and for the link too).
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
