PostPosted: Sun Feb 17, 2008 12:27 pm    Post subject: Dual relief oiling system. How it works. Reply with quote

A lot of people don't seem to understand how the Oiling system works So I will try to explain it with drawings and tests that I did years ago. We tested 100 VW stock dual relief motors.

All motors were disassembled, cleaned and had cranks reground and new bearings installed to spec.

The same oil pump was used in each motor.

The same oil cooler was used on each motor.

All the cases were line bored, full flowed and a flow meter was installed in the loop from the pump to the case.

This first drawing is the oil flow and pressures when cold with a oil temperature at 80 F.

There was a wide variety of pressures and flows recorded and I will explain the findings when I come to them.

I will add new drawings as I transfer the data to the drawings.

Image may have been reduced in size. Click image to view fullscreen.


Next drawing.
This is the flows and pressures at 120 F oil trmperature. At this point oil is just starting to flow thru the oil cooler.

Image may have been reduced in size. Click image to view fullscreen.



Next drawing.
Here you see the motors are at operating temps, 180F Everything should be fine but the relief valve is still open. We kept running the motors and most of them reached 225 before we shut them off and most of the relief valves never closed.the relief valves never closed. The motors never went over 225 either. All the excess oil is still running out the control valve. It is open 100%. I will explain this in another drawing.



Image may have been reduced in size. Click image to view fullscreen.



Next drawing.
Here are the motors at Idle. Notice that the relief valve has closed and the control valve is closed. All the oil is now flowing thru the oil cooler.

Image may have been reduced in size. Click image to view fullscreen.


Next Drawing.

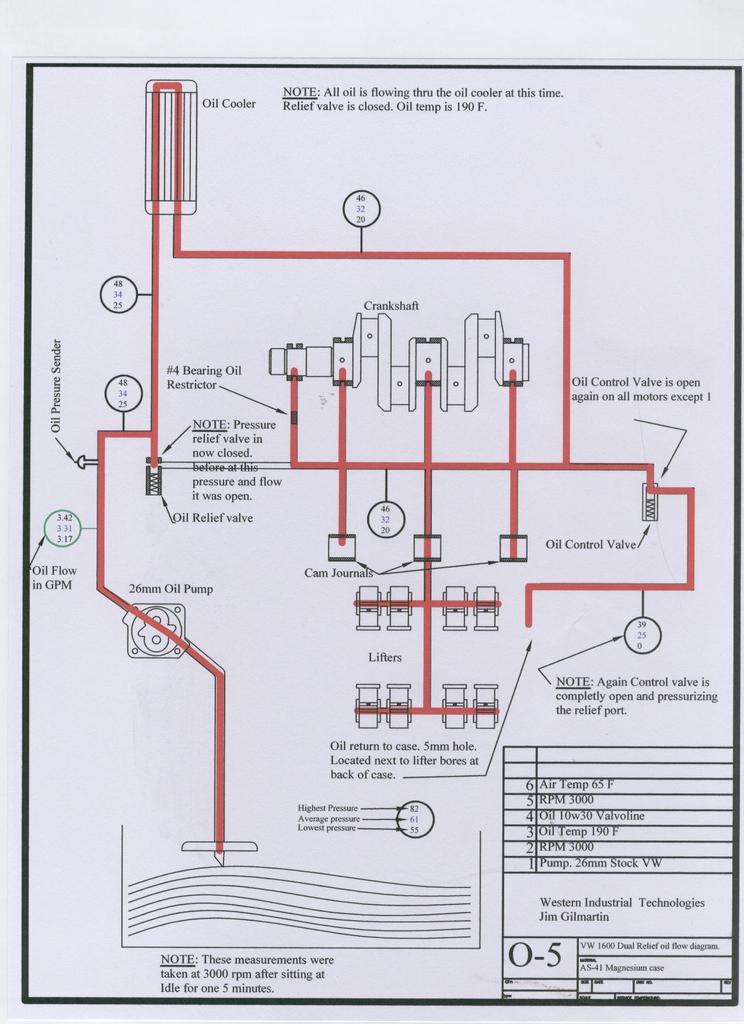

This is again up to 3000 RPM after Idle at 190F
Notice now the relief valve is closed and the control valve is open.
All the oil is flowing thru the cooler and a lot of oil is flowing out the control valve. Interesting aspect of the relief valve and is that it opens at a much higher pressure than it closes at. Ill explain that in another drawing.

Image may have been reduced in size. Click image to view fullscreen.

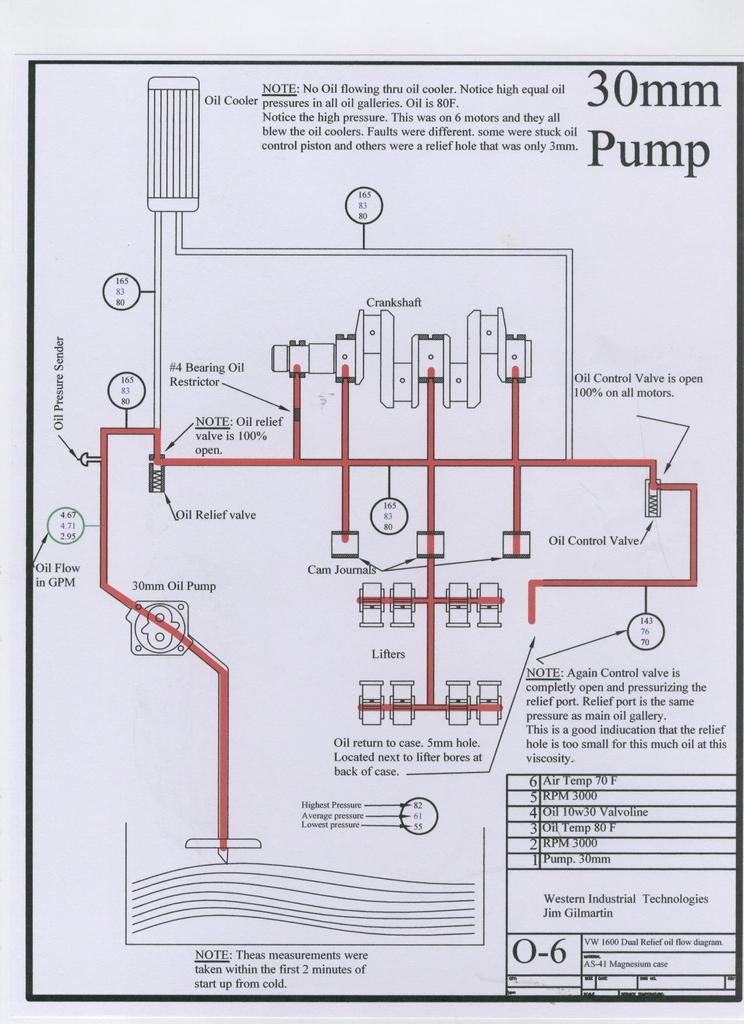

Next drawing. Here is where we started having problems.
30mm pumps.

Notice the high pressures. There were 6 motors that reached that pressure due to different reasons. We lost 6 oil coolers at this point. Had to find the problems and retest all 6. Today this would show up as blown oil filters too.

Notice the increase in oil volumn. . This extra oil has nowhere to go because the oil relief hole is too small. that is why the pressure increases so much.

Image may have been reduced in size. Click image to view fullscreen.

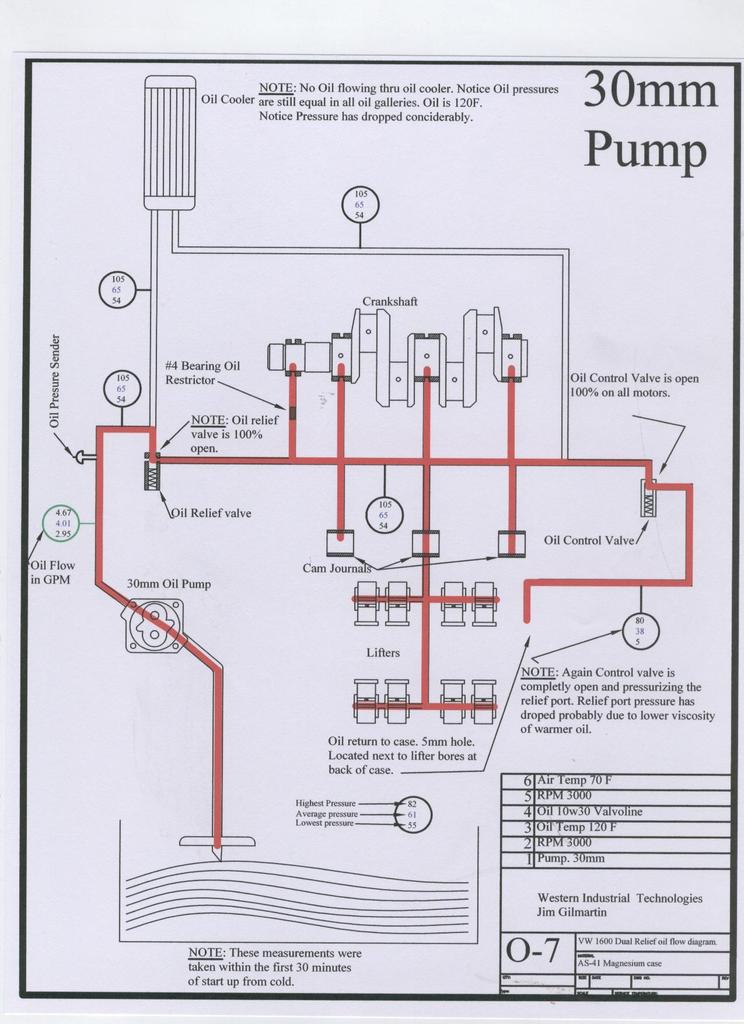

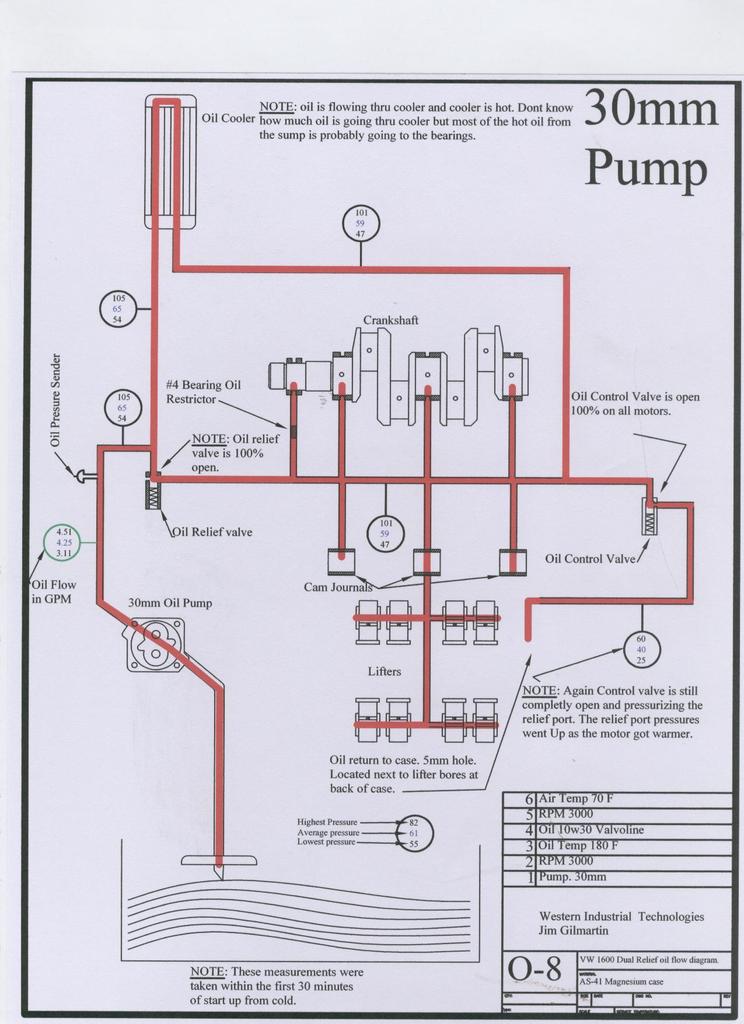

Here is 120F notice how no oil flow thru the cooler. Pressures are equal everywhere.

Image may have been reduced in size. Click image to view fullscreen.


Here is 190F The oil is flowing thru the cooler but the relief valve does not close due to the high pressure.

Image may have been reduced in size. Click image to view fullscreen.


Here the motor goes back to Idle and still the pressure is too high to close the valve.

Image may have been reduced in size. Click image to view fullscreen.


Here is a section of the oil control valve Notice the opening and closing pressures of the piston.

Image may have been reduced in size. Click image to view fullscreen.


This is the plug that needs to be removed and drilled.

Image may have been reduced in size. Click image to view fullscreen.

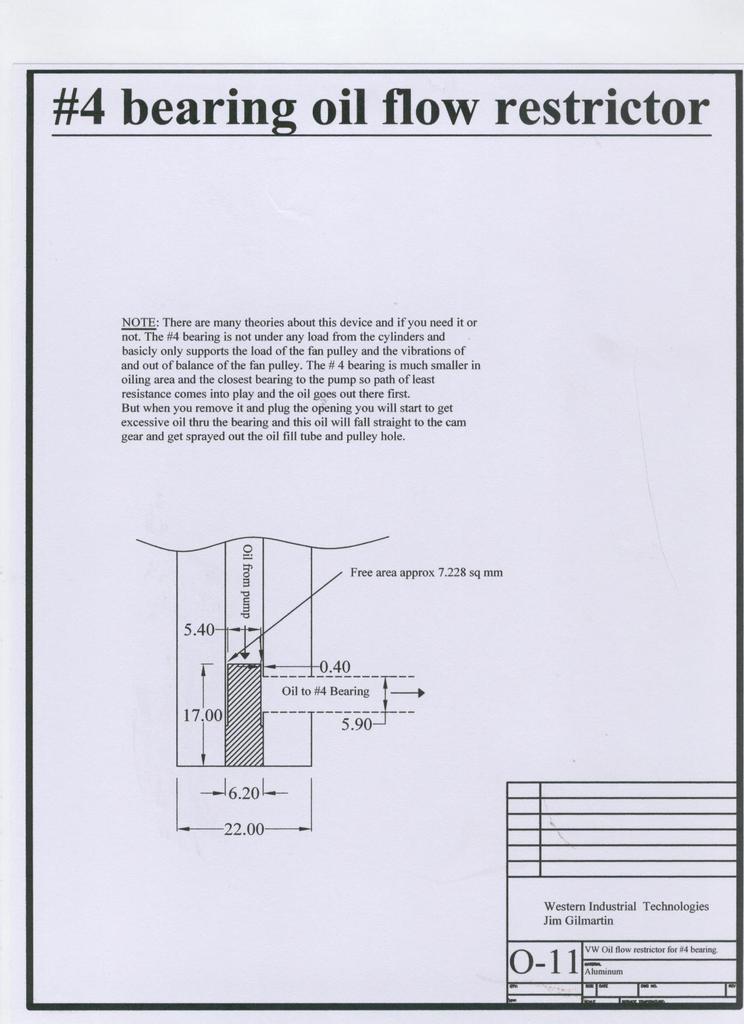

Oil Flow restrictor. I will update this later.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by Jimmy111 on Wed Feb 20, 2008 3:19 pm; edited 6 times in total

Back to top
View user's profile Send private message Classifieds Feedback
Eaallred
Samba Member


Joined: May 18, 2003
Posts: 5756
Location: West Valley City, Utah
Eaallred is offline

PostPosted: Sun Feb 17, 2008 1:59 pm    Post subject: Reply with quote

Those are very nice schematics of the system!

Best i've seen so far.
_________________
Eric Allred

You have to remember something: Everybody pities the weak; Jealousy you have to earn.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Jimmy111
Samba Member


Joined: October 05, 2006
Posts: 2643
Location: Wyoming
Jimmy111 is offline

PostPosted: Sun Feb 17, 2008 2:30 pm    Post subject: Reply with quote

Thanks. I have about 40 drawings and some photos Ill post.
Back to top
View user's profile Send private message Classifieds Feedback
jamestwo
Samba Member


Joined: November 01, 2004
Posts: 2203

jamestwo is offline

PostPosted: Sun Feb 17, 2008 3:02 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

_________________
hEY, lOOK, i'M WRONG HALF THE TIME, AND THE OTHER HALF i'M NOT SURE WHAT THE HECK i'M TALKING ABOUT. MY POST ARE FOR MY OWN ENTERTAINMENT VALUE ONLY.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
neil68
Samba Member


Joined: March 17, 2007
Posts: 3440
Location: Calgary, Canada
neil68 is offline

PostPosted: Sun Feb 17, 2008 6:05 pm    Post subject: sticky!! Reply with quote

This should be a new "sticky" Very Happy
_________________
Neil.

Der Kleiner Rennwagens
68 Beetle 2332 cc, 204 WHP
12.5 seconds @ 107 mph
Dynojet Test: https://www.youtube.com/watch?v=M9B_H3eklAo
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Max Welton
Samba Member


Joined: May 19, 2003
Posts: 10697
Location: Black Forest, CO
Max Welton is offline

PostPosted: Sun Feb 17, 2008 6:06 pm    Post subject: Reply with quote

I just placed a link to this thread on the "Index to tech articles" sticky.

Max
_________________
1967 Type-3 Fastback
Under the Knife https://shoptalkforums.com/viewtopic.php?f=24&t=151582
Home Stretch https://www.thesamba.com/vw/forum/viewtopic.php?t=767836
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jbbugs
Samba Member


Joined: September 16, 2002
Posts: 2150
Location: Behind the wheel
jbbugs is offline

PostPosted: Sun Feb 17, 2008 6:22 pm    Post subject: Reply with quote

So what's the story behind the #4 bearing restricter?
Paul
_________________
Drag bus! http://www.youtube.com/watch?v=s2MOVmKdhX4

69 OG paint Transporter
73' Super Beetle Champcar Endurance Roadracer
Patina my ass, that's a Rust Bucket!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
neil68
Samba Member


Joined: March 17, 2007
Posts: 3440
Location: Calgary, Canada
neil68 is offline

PostPosted: Sun Feb 17, 2008 6:29 pm    Post subject: #4 bearing stock plug Reply with quote

jbbugs wrote:
So what's the story behind the #4 bearing restricter?
Paul


http://www.thesamba.com/vw/forum/viewtopic.php?t=277850&highlight=oil+galleys
_________________
Neil.

Der Kleiner Rennwagens
68 Beetle 2332 cc, 204 WHP
12.5 seconds @ 107 mph
Dynojet Test: https://www.youtube.com/watch?v=M9B_H3eklAo
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pupjoint
Samba Member


Joined: May 23, 2007
Posts: 1140

pupjoint is offline

PostPosted: Mon Feb 18, 2008 4:34 am    Post subject: Reply with quote

when oil filter was used? how long were the oil lines? what engine oil grade?

great job by the way.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 76706
Location: Sneaking up behind you
Glenn is offline

PostPosted: Mon Feb 18, 2008 5:27 am    Post subject: Reply with quote

Thanks Jimmy for posting this. It will be extremely helpful to people.

Thanks Max for putting it in the LINKS topic.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
pupjoint
Samba Member


Joined: May 23, 2007
Posts: 1140

pupjoint is offline

PostPosted: Mon Feb 18, 2008 7:32 am    Post subject: Reply with quote

i still dont understand about the4th bearing restrictor although having had read the other article...

so when i tap my case for full flow, how exactly do i avoid this prob? pics?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pupjoint
Samba Member


Joined: May 23, 2007
Posts: 1140

pupjoint is offline

PostPosted: Mon Feb 18, 2008 7:34 am    Post subject: Reply with quote

jimmy, any tests done on those mexican beetle setup with 30mm filter pumps?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jbbugs
Samba Member


Joined: September 16, 2002
Posts: 2150
Location: Behind the wheel
jbbugs is offline

PostPosted: Mon Feb 18, 2008 7:40 am    Post subject: Reply with quote

Has anyone tried John C.'s suggestion of tapping the port at the bearing and drilling a small hole in the plug? The longer stepped plug I would think is impossible to find, and would be difficult to install at the correct depth. Why isn't the small hole in the bearing enough restriction? I appreciate the info.
Paul
_________________
Drag bus! http://www.youtube.com/watch?v=s2MOVmKdhX4

69 OG paint Transporter
73' Super Beetle Champcar Endurance Roadracer
Patina my ass, that's a Rust Bucket!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Jimmy111
Samba Member


Joined: October 05, 2006
Posts: 2643
Location: Wyoming
Jimmy111 is offline

PostPosted: Mon Feb 18, 2008 9:34 am    Post subject: Reply with quote

Thanks Glen.
Ill get to the restrictor soon guys.
I did this in 1979 and there was no 30mm mexican pump at that time. Sorry.
Back to top
View user's profile Send private message Classifieds Feedback
Sigurd
Samba Member


Joined: April 18, 2006
Posts: 2639
Location: Rockford, IL
Sigurd is offline

PostPosted: Mon Feb 18, 2008 6:35 pm    Post subject: Reply with quote

Bump for more info about the #4 restriction. I have the galley already tapped, but my plug is half the length of the stock plug. Is there a such thing as a longer pipe plug?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jimmy111
Samba Member


Joined: October 05, 2006
Posts: 2643
Location: Wyoming
Jimmy111 is offline

PostPosted: Mon Feb 18, 2008 8:30 pm    Post subject: Reply with quote

What size did you tap the hole and how deep does it go?
Do you have access to a lathe?
The problem is that there is not much room in front of that plug before you hit the sheetmetal. But if you dont mind drilling a hole in the sheetmetal, you could possibly just use a pipe to compression fitting with a 3/16" compression fitting and use either a 3/16 dowel or a 3/16" temperature sensor for a oil temp guage. Not exactly the correct size but it is better than nothing. If you do have access to a lathe you can make a part with out any problem.
Back to top
View user's profile Send private message Classifieds Feedback
Sigurd
Samba Member


Joined: April 18, 2006
Posts: 2639
Location: Rockford, IL
Sigurd is offline

PostPosted: Mon Feb 18, 2008 9:15 pm    Post subject: Reply with quote

I tapped it 1/16" NPT. It is about an inch deep. I do not have access to a lathe.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sigurd
Samba Member


Joined: April 18, 2006
Posts: 2639
Location: Rockford, IL
Sigurd is offline

PostPosted: Tue Feb 19, 2008 12:39 pm    Post subject: Reply with quote

Maybe a better question is, can I just plug it with what I have, and then when I get my new case for my 1915, drill and tap all the holes except the #4 galley?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mailman
Samba Member


Joined: March 24, 2005
Posts: 1663

mailman is offline

PostPosted: Tue Feb 19, 2008 1:11 pm    Post subject: Reply with quote

Jimmy....

Thanks for the lesson!! I can't claim to fully understand it yet, but it sure is a step in the right direction. I'm an A/C engine novice, so I'll have to study your drawings some more. (I've driven them for years, and done some of my own work, but never opened an A/C case.)

I don't get how the oil gets back to the sump when the oil control valve is closed.... Embarassed
_________________
'64 Bahama Blue Beetle / steel sunroof
'64 Bahama Blue Beetle Sedan (future ragtop)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
miniman82
Samba Swamp Donkey


Joined: March 22, 2005
Posts: 9515
Location: Southern Maryland
miniman82 is offline

PostPosted: Tue Feb 19, 2008 1:29 pm    Post subject: Reply with quote

When the valve is closed, 100 percent of the oil goes to the bearings. Once it's lubricated the bearings, it returns to the sump.
_________________
Build thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=212747

Glenn wrote:
satterley_sr wrote:

I just wanted to bitch but I'm getting no sympathy.


Welcome to the Samba.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
