 Posted: Thu May 08, 2008 6:37 am Post subject: Steve Tims Stage 1 |
 |
|
These arrived yesterday - they couldn't look any better!
|
|
| Back to top |
|
 |
purity
Samba Member
Joined: August 11, 2007
Posts: 174
Location: Norway
|
| Posted: Thu May 08, 2008 6:41 am Post subject: |
|
|
How much, and where can i get heads ported by Steve Tims?
_________________
- '67 1300 (Original)
- '71 1302 (Daily driver, TIV-engine going in) |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
|
| Back to top |
|
|
veedubcrazy
Samba Member
Joined: February 14, 2005
Posts: 2175
Location: La Porte, Tx.
|
| Posted: Thu May 08, 2008 7:09 am Post subject: |
|
|
Good folks to deal with. Those heads look great and should work very well for your application.
_________________
1967 Deluxe Sedan
1971 Squareback - "The Silver Surfer" |
|
| Back to top |
|
|
rustfree1967bug
Samba Member
Joined: November 16, 2006
Posts: 3446
Location: minnesota
|
| Posted: Thu May 08, 2008 7:36 am Post subject: |
|
|
Iv'e always been wondering this, why do most of the performance heads i see have the blue paint around the ports?
_________________
'70 ghia
'69 ghia
'65 singlecab
'66 sunroof beetle
'74 bus
'67 so-42
IDA's...well... they talk dirty -MURZI |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79855
Location: Sneaking up behind you
|
| Posted: Thu May 08, 2008 7:39 am Post subject: |
|
|
I have a pair of Stage 2s and that are awesome.
Mine did have to be taken apart to add shims to correctly set the spring pressure.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Jimmy111
Samba Member
Joined: October 05, 2006
Posts: 2643
Location: Wyoming
|
| Posted: Thu May 08, 2008 8:38 am Post subject: |
|
|
| rustfree1967bug wrote: |
| Iv'e always been wondering this, why do most of the performance heads i see have the blue paint around the ports? |
It is not paint. It is layout dye. It is used to mark where they are going to cut without scratching the surface of the material. It washes off eaisly with alcohol so it you make mistakes, you just wash it off and scribe again. If you scribe the part, it is difficult to remove the scribe mark. |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Thu May 08, 2008 8:54 am Post subject: |
|
|
| Glenn wrote: |
| Mine did have to be taken apart to add shims to correctly set the spring pressure. |
Glen - with new springs I didn't know spring pressure could be an issue. How do I check this?? |
|
| Back to top |
|
|
stoneloco808
Samba Member
Joined: June 15, 2007
Posts: 658
Location: Pakalolo Country, HI
|
| Posted: Thu May 08, 2008 9:16 am Post subject: |
|
|
| Are all of the valve stem hieghts the same? The best way to check is with a straight edge/ruler laid on all of the valve stems. |
|
| Back to top |
|
|
vince1
Samba Member
Joined: December 14, 2003
Posts: 841
Location: Burgundy, France
|
|
| Back to top |
|
|
Bashr52
Samba Member
Joined: July 16, 2006
Posts: 5669
Location: On an island in VA
|
| Posted: Thu May 08, 2008 10:34 am Post subject: |
|
|

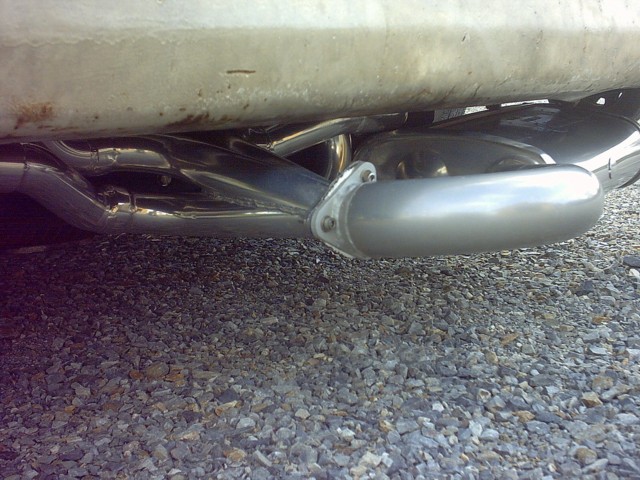

| OK I gotta ask, what exhaust do you have on that thing? It sounds like an 8 cylinder from the inside of the bus. |
|
| Back to top |
|
|
vince1
Samba Member
Joined: December 14, 2003
Posts: 841
Location: Burgundy, France
|
|
| Back to top |
|
|
71sbeetle
Samba Member
Joined: August 15, 2002
Posts: 1334
Location: Las Vegas, NV
|
| Posted: Thu May 08, 2008 10:48 am Post subject: |
|
|
| woah pas mal !!!! je trouve que les bay windows sont tres populaires en France ! |
|
| Back to top |
|
|
vince1
Samba Member
Joined: December 14, 2003
Posts: 841
Location: Burgundy, France
|
|
| Back to top |
|
|
71sbeetle
Samba Member
Joined: August 15, 2002
Posts: 1334
Location: Las Vegas, NV
|
| Posted: Thu May 08, 2008 3:31 pm Post subject: |
|
|
yes I was looking at the pics, I am (was !) not a big fan of bay windows (they're ok but that's it) but now that I have seen yours, I know they have potential if they are done right. I love the way yours looks !
oh and I was raised in Tahiti, lived there for 20 years  |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Thu May 08, 2008 6:58 pm Post subject: |
|
|
The heads are for my 2110 I'm building for my 61 DD bus. Here's the specs:
New AS41 Magnesium Case
*full flowed
*stroker clearanced
*cut for 90.5's
*8mm case savers
*dual relief oil plungers
New 4340 82mm Crank
*Magna Fluxed
*Shot Peened
*Precision Ground
*Micro-Polished
*Nitrided Journals
*RC60 hardened journals
*Spg 8 dowelled
*Dynamic Balanced by DRD
*Dyno tested to over 200hp, and race proven
CB Performance I Beam Connecting Rods
*forged 4340 I beam rods
*5.4 length
*Real 3/8 8740 ARP bolt
*Big end is honned to spec by DRD
*balanced end to end
Mahle 90.5 Pistons and Cylinders
*balanced at Edwards Engines ABQ
DRD 1.4 Solid Rocker Shafts
*Bronze bushed rocker arms
*hd stud set
*shim kit and lash cap set
*Rocker arms are drilled for proper oiling to the shafts
*Dyno test to over 200hp
Engle FK7 Cam
*Stroker Clearanced
*0.500" lift with 1.4's
*244º Duration at .050"
Steve Tims Stage 1 Oval Port Heads
*043 Mexican Castings with 3/4 reach plug holes
*Stainless Steel 40 x 35.5 Valves
*Dual Valve Springs
*Chromoly Retainers
*Professional Multi angle Valve job.
*Hand ported intakes, exhaust and a true ported combustion chamber area
Entire rotating assembly balanced at Edwards Engines in ABQ
Mallory Unilite Dizzy
*Grey/Grey Springs
*12 initial/32 full
DTM Shroud
*Type 4 Oil Cooler
*Porsche Gen Pulley
Dual Dell 40's
*34 Venturis
*CB Update Kits
Exhaust
*1.5" merged header
*Magnaflow Muffler
Assembly begins next week.
|
|
| Back to top |
|
|
vince1
Samba Member
Joined: December 14, 2003
Posts: 841
Location: Burgundy, France
|
|
| Back to top |
|
|
71sbeetle
Samba Member
Joined: August 15, 2002
Posts: 1334
Location: Las Vegas, NV
|
| Posted: Fri May 09, 2008 8:39 am Post subject: |
|
|
| looks like a good combo. One thing though I would do personally next time I build or have an engine built is have Jake Raby balance it. It's not that much when you think about it ! |
|
| Back to top |
|
|
Stanw3
Samba Member
Joined: September 26, 2003
Posts: 1077
Location: Albuquerque, NM
|
| Posted: Fri May 16, 2008 2:45 pm Post subject: |
|
|
Just a little update:
Yesterday I realized that my valve stems are not all the same height. On one head - one exhaust valve is shorter than the other 3 stems. n the other head, one exhaust and one intake (in different cylinders) are shorter. I called Greg - he said that they don't pay attention to that - I could have them milled down to match if I wanted but it really doesn't matter.  Aditionally, I cc's the heads last night to find this:
Head #1
57.5 cc
58 cc
Head #2
59 cc
60 cc
Am I asking too much for the cc's to be the same? I realize I could open them up more - but I'm not a head porter - that's why I paid to have them done - I'll screw them up. They look beautiful and the porting looks great - but the details here are killing me.
What do you guys think - Am I asking too much for $600? |
|
| Back to top |
|
|
thetravman
Samba Member
Joined: February 16, 2006
Posts: 509
Location: Pounding out center main . . .
|
| Posted: Fri May 16, 2008 4:06 pm Post subject: |
|
|
Those numbers boil down to plus or minus 2cc's. Someone correct me if I'm wrong but on the engines that these heads are made for, it probably will make little to no noticeable difference. I have no experience although I have held those heads in my hands. On a 1915 or 1776, it may be too small a difference to tell.
_________________
Have your car serviced at your local aircooled repair shop today.
/=O=\ good ole swing axles |
|
