2.1 rod bolt faliure autopsy photos
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 3327
Location: Talos IV, Piedmont Arizona
Captain Pike is offline

PostPosted: Sun Nov 16, 2008 4:39 pm    Post subject: 2.1 rod bolt faliure autopsy photos Reply with quote

Recently aquired 90 automatic.
Image may have been reduced in size. Click image to view fullscreen.

Blown engine
Image may have been reduced in size. Click image to view fullscreen.

Suspect rod bolt fatigue faliure. Went to drain the oil and found ___none. At all. The PO complained about some "whine/buzzing noise" from behind the dash. So after consulting his Bentley he bypassed the oil warning circuit to make it go away. Shocked While draining the coolant I find it is blue. Now I'm thinking no pitts to the heads (AMC). Wrong, the entire coolant system has evidence of corosion apperently caused by this blue "coolant"
Image may have been reduced in size. Click image to view fullscreen.

The exhaust system was some cat bypassed franken-pipe.
Image may have been reduced in size. Click image to view fullscreen.

So no O2 sensor ___at all___nada__just a plug with a green wire next to it hanging in space.
Engine was "rebuilt" by someone. Heads replaced with AMC heads but not the valves.
Installer tanked the Green ring
Image may have been reduced in size. Click image to view fullscreen.

Left crap in the engine
Image may have been reduced in size. Click image to view fullscreen.

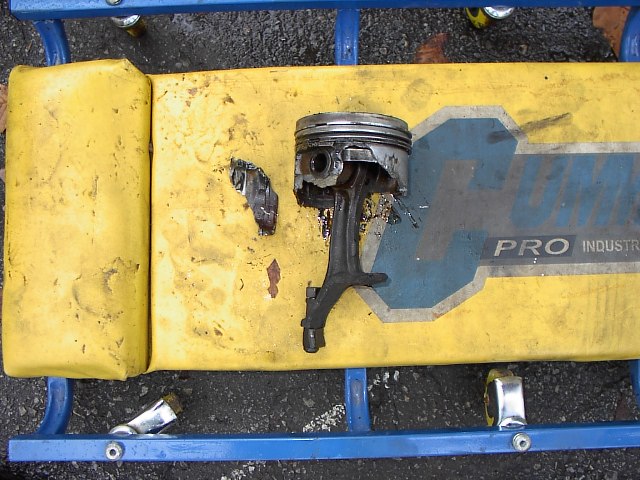

What is left of #2
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

More when I get inside.


Who has a 2.1 short block?
_________________
If You Build It______It Will Run
1959 Panel bus, 1966 Single cab. 73' 181. 73 Westy. 91' H6 Vanagon 3.3L.
.....................All Current.......................
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ebennett
Samba Member


Joined: December 18, 2003
Posts: 280
Location: West Chester PA
ebennett is offline

PostPosted: Sun Nov 16, 2008 7:32 pm    Post subject: Re: 2.1 rod bolt faliure autopsy photos Reply with quote

Bill W wrote:
Recently aquired 90 automatic.
Image may have been reduced in size. Click image to view fullscreen.



I guess you picked up Art's bus, at least whats left of it
_________________
GDTRFB
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OilNBolts
Samba Member


Joined: May 12, 2007
Posts: 438
Location: Kentucky
OilNBolts is offline

PostPosted: Sun Nov 16, 2008 7:34 pm    Post subject: Re: 2.1 rod bolt faliure autopsy photos Reply with quote

Bill W wrote:

Engine was "rebuilt" by someone.


"We don't get excited when it crumbles and breaks, we just get on the phone, and call up some flakes"..

FZ
_________________
Current fleet: Vanagons, two '88 GLs and an 89 Bluestar. Beetles, '63, '64, '72 convertible. Plus, four Subarus and three Prius. Too many cars.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 3327
Location: Talos IV, Piedmont Arizona
Captain Pike is offline

PostPosted: Sun Nov 16, 2008 8:07 pm    Post subject: Re: 2.1 rod bolt faliure autopsy photos Reply with quote

OilNBolts wrote:
Bill W wrote:

Engine was "rebuilt" by someone.


"We don't get excited when it crumbles and breaks, we just get on the phone, and call up some flakes"..

FZ

Who rush on over and break it some more and we're so dumb there lining up at our door____________well the water pump started leaking yesterday afternoon_____but the mechanic ate a bunch of mushrooms_______________ Wink
_________________
If You Build It______It Will Run
1959 Panel bus, 1966 Single cab. 73' 181. 73 Westy. 91' H6 Vanagon 3.3L.
.....................All Current.......................
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OilNBolts
Samba Member


Joined: May 12, 2007
Posts: 438
Location: Kentucky
OilNBolts is offline

PostPosted: Sun Nov 16, 2008 9:00 pm    Post subject: Re: 2.1 rod bolt faliure autopsy photos Reply with quote

Please ignore this post... Embarassed
_________________
Current fleet: Vanagons, two '88 GLs and an 89 Bluestar. Beetles, '63, '64, '72 convertible. Plus, four Subarus and three Prius. Too many cars.


Last edited by OilNBolts on Thu Dec 11, 2008 9:38 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ftp2leta
Samba Member


Joined: October 11, 2004
Posts: 3271
Location: Montreal
ftp2leta is offline

PostPosted: Sun Nov 16, 2008 9:50 pm    Post subject: Re: 2.1 rod bolt faliure autopsy photos Reply with quote

Bill W wrote:
Recently aquired 90 automatic.

Blown engine

Suspect rod bolt fatigue faliure. Went to drain the oil and found ___none. At all. The PO complained about some "whine/buzzing noise" from behind the dash. So after consulting his Bentley he bypassed the oil warning circuit to make it go away. Shocked While draining the coolant I find it is blue. Now I'm thinking no pitts to the heads (AMC). Wrong, the entire coolant system has evidence of corosion apperently caused by this blue "coolant"


Who has a 2.1 short block?


I got block, i need a van! a nice Carat like yours Smile
I have an STI project that should be ready in a month or so...
so 2 block for your van.. he he he.

If it had no more oil don't blame the rod...

I have 4 block with hole in it... i found a reason for all of them, all oil related (bore hole plug gone, oil pressure sender failure, oil cooler failure, oil filter failure.)

Blue coolant as nothing to do with that, coolant come in all colors from many company, believe me!

AMC head are not that better... they corrode like the VW one if not well sealed. I have seen my share of corroded AMC head. You know what, the more i think about it they are probably worse than the german one that lasted for more than 20 years. I still use them with German valve because i won't pay 700$ at the dealer for POORLY reman VW.

Well sealed with good valves they should be ok for 50-80k miles, no more. Sorry. At least i have better hope as to crack!

The Victor REINZ gasket or ELRING won't last forever.

If it's not the gasket, it will be a bore hole plug that will just get the hell out of your block and your engine will bleed to death.

Sorry but i have been there to many time.

I agree that a well maintain, well built Wasser boxer engine could last a long long time... but sadly, who will maintain and built them!

Van are sold over and over, one guy does a trip, as problem, sell the van... new owner fix minimum problems, a few trip, sell the van.... over and over.

It's a sad truth.

Ben
_________________
Working with rust, grease, dirt and dust is a sad truth.
------------------------------------------------------
FI part for sale: http://www.benplace.com/parts_sale1.htm
My site: http://www.benplace.com/vw2.htm
Subi conversion: http://www.benplace.com/vanaru_eng.htm
Youtube http://www.youtube.com/user/ftp2leta
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
16CVs Premium Member
Samba Member


Joined: February 22, 2004
Posts: 4015
Location: Redwood City, California
16CVs is offline

PostPosted: Mon Nov 17, 2008 12:37 am    Post subject: 2.1 failure Reply with quote

God awful ugly engine. looks like one I had before,given to me with a bunch of other Vanagon parts,when the engine was torn down there was nothing savable. All garbage.
It is my thought that rod bolt failures are generally from engines that have been rebuilt and not had the rod bolts changed. I have seen a ot of high mile 2.1's that have well over 200 K and they are very nice inside just bearing to the copper.
I bet if you chased the history on most of these engines with chucked rods,you'll find a rebuild somewhere down the line.


Stacy
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
Alan Brase
Samba Member


Joined: March 28, 2004
Posts: 4532
Location: Cedar Falls, Iowa
Alan Brase is offline

PostPosted: Mon Nov 17, 2008 6:05 am    Post subject: Reply with quote

I always thought the "blue coolant" story was a red herring. The factory put the wrong coolant in my silver 87 then, cause the heads were both shot at 25k miles. Way before anybody replaced the coolant.
I can see from 1200 miles away that those are NOT the shit valves that come with the AMC heads. They have sodium filled stems. See the divot?
They might have come with the car new, but there is nothing wrong with using them over if the stem wear is okay.
I do not see a rod bolt failure in your pictures. Not to say the unshown one did not fail. Not enough info to say. If the crank journal shows signs of overheating, it was likely oil starvation, not a bolt failure. If the rod nut is OFF the bolt, that is pretty telling.
SillyCone is blessing and scourge.
Certainly not a pretty engine. I have one just like it.
I can't help but think that thing must have made enough bad noise to hear over the radio.
Wouldn't most people stop? Perhaps they thought it would heal up if they kept driving?
Al
_________________
Al Brase
Projects: 67 sunroof bug, 67 Porsche 912 Targa, 70 Westy
Dec 1955 Single Cab pickup WANT 15" BUS RIMS dated 8/55, thru 12/55
To New owners: 1969 doublecab, 1971 Dormobile
Vanagons:
80 P27 Westy JUL 1979, 3rd oldest known US
83 1.6TD Vanagon, 87 Wolfie Westy daily driver, swap meet home
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 3327
Location: Talos IV, Piedmont Arizona
Captain Pike is offline

PostPosted: Mon Nov 17, 2008 7:03 am    Post subject: Reply with quote

I still need to crack the block but the rod bearings were NOT wiped out. Still need to find the rest of the rod to see if the bolt failed.
_________________
If You Build It______It Will Run
1959 Panel bus, 1966 Single cab. 73' 181. 73 Westy. 91' H6 Vanagon 3.3L.
.....................All Current.......................
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clark_88Westy
Samba Member


Joined: September 09, 2008
Posts: 12
Location: New Jersey
Clark_88Westy is offline

PostPosted: Mon Nov 17, 2008 8:00 am    Post subject: Reply with quote

Bill, I have a short block you can have. High miles, but no damage.
I'm in Milford, NJ. Send me an email,
clark (at) clarksplace.com
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 3327
Location: Talos IV, Piedmont Arizona
Captain Pike is offline

PostPosted: Mon Nov 17, 2008 9:59 am    Post subject: Reply with quote

Block split
Image may have been reduced in size. Click image to view fullscreen.

what a mess. Note the cam thrust bearing is wiped to the copper yet the rest are OK.
The other side
Image may have been reduced in size. Click image to view fullscreen.

Cam shaft shattered. No purple color on the crank. It seems oil starvation was not the cause of death.
Bearings look OK
Image may have been reduced in size. Click image to view fullscreen.

See where this is going?

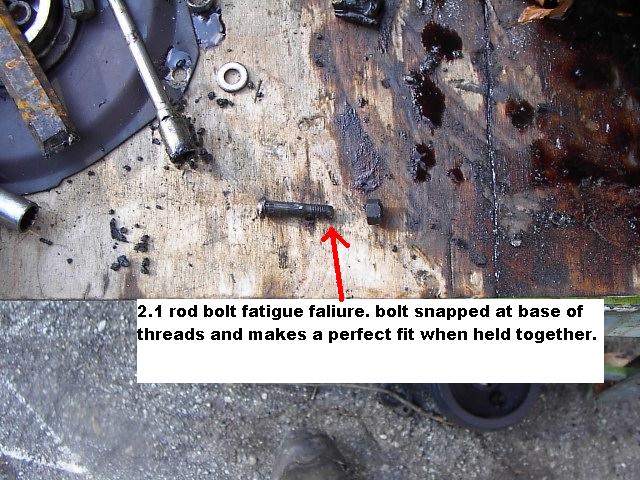

Sorted thru the chunks and found the rod bolt
Image may have been reduced in size. Click image to view fullscreen.

Clean snap at the base of the nut. Threads still line up.

Engine was rebuilt with standard bearings and USED cam,crank and non reconditioned rods.
Bolt streached____rod failed___engine go boom.
_________________
If You Build It______It Will Run
1959 Panel bus, 1966 Single cab. 73' 181. 73 Westy. 91' H6 Vanagon 3.3L.
.....................All Current.......................
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 3327
Location: Talos IV, Piedmont Arizona
Captain Pike is offline

PostPosted: Mon Nov 17, 2008 10:03 am    Post subject: Reply with quote

69doublecab wrote:
I always thought the "blue coolant" story was a red herring. The factory put the wrong coolant in my silver 87 then, cause the heads were both shot at 25k miles. Way before anybody replaced the coolant.
I can see from 1200 miles away that those are NOT the shit valves that come with the AMC heads. They have sodium filled stems. See the divot?
They might have come with the car new, but there is nothing wrong with using them over if the stem wear is okay.
I do not see a rod bolt failure in your pictures. Not to say the unshown one did not fail. Not enough info to say. If the crank journal shows signs of overheating, it was likely oil starvation, not a bolt failure. If the rod nut is OFF the bolt, that is pretty telling.
SillyCone is blessing and scourge.
Certainly not a pretty engine. I have one just like it.
I can't help but think that thing must have made enough bad noise to hear over the radio.
Wouldn't most people stop? Perhaps they thought it would heal up if they kept driving?
Al

Check Gowesty's write up of the exhaust valve. Shows the same dimple but with a melted side.
_________________
If You Build It______It Will Run
1959 Panel bus, 1966 Single cab. 73' 181. 73 Westy. 91' H6 Vanagon 3.3L.
.....................All Current.......................
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OilNBolts
Samba Member


Joined: May 12, 2007
Posts: 438
Location: Kentucky
OilNBolts is offline

PostPosted: Mon Nov 17, 2008 1:16 pm    Post subject: Reply with quote

This thread is Sticky worthy. Moderator?
_________________
Current fleet: Vanagons, two '88 GLs and an 89 Bluestar. Beetles, '63, '64, '72 convertible. Plus, four Subarus and three Prius. Too many cars.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 3327
Location: Talos IV, Piedmont Arizona
Captain Pike is offline

PostPosted: Mon Nov 17, 2008 5:14 pm    Post subject: Reply with quote

Update : engine was rebuilt 30k ago. PO stated he had drained the oil so thats why there was no oil in the case.
I'm going to build a 2.4 replacement Shocked oh my___I'm going wasser Shhh Applause
_________________
If You Build It______It Will Run
1959 Panel bus, 1966 Single cab. 73' 181. 73 Westy. 91' H6 Vanagon 3.3L.
.....................All Current.......................
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 10067
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Mon Aug 17, 2009 7:33 am    Post subject: Reply with quote

By the way, the copper showing on the cam thrust bearing is normal. VW used a new bearing set with no tin plating on the thrust because it was flaking off on the older style. They look like that new in the box.
_________________
Shop for unique Vanagon accessories at the Vanistan shop:
https://intrepidoverland.com/vanistan/

Please don't PM here, I will not reply.

Experience is kryptonite to doctrine.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
kbatson
Samba Member


Joined: August 24, 2009
Posts: 42
Location: ozarks
kbatson is offline

PostPosted: Wed Aug 26, 2009 12:20 pm    Post subject: Block Reply with quote

Hey i have one! But it looks a hell of allot like that one!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
240Gordy
Samba Member


Joined: May 15, 2008
Posts: 2354
Location: Vancouver, BC
240Gordy is offline

PostPosted: Thu Aug 27, 2009 12:30 am    Post subject: Reply with quote

love this kind of info.
_________________
Tencentlife said,
"So, now that you know what you're doing, go to town."
2010 GOLF TRENDLINE 2.5
1985 GL now with more! a 2.1L
H&R SPORT(RED) Springs FRONT , SLAM SPECIALTIES RE6 AIRBAGS REAR
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kbatson
Samba Member


Joined: August 24, 2009
Posts: 42
Location: ozarks
kbatson is offline

PostPosted: Thu Aug 27, 2009 8:46 am    Post subject: the hole Reply with quote

mine just went aug 1st. running wonderfully and bang...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Sep 28, 2013 5:20 am    Post subject: Reply with quote

This thread illustrates why my engine is currently torn apart!

I was recently talking with a member who knows the WBX engines very well. I told him I had pulled the rods, he asked "why? Almost no one does that". I'm not sure his statement is true but.........

Well I've got two reasons..........

One: to gauge the health of the lower end based upon rod bearing wear......
And

Two: to get those 2.1 rods with the torque/angle stretch bolts that are proven weak points OUT OF THE ENGINE.

I'm ordering a set of Rods and bearings from Van Cafe. My original rod bearings with 116,000 original miles show minimal wear.

I'm not cracking the case and I'm tossing the dice that all is well down below. A gamble I'm willing to take on this one. I know the PO who purchased it as the 2nd owner in 1990, I know he maintained the car....... No worries!

The rod bearings are in such good shape I'm almost tempted to run them again! But....... For $16 ........ I won't.
Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 50216

Wildthings is offline

PostPosted: Sat Sep 28, 2013 9:41 am    Post subject: Reply with quote

Yep, your engine would have probably died a violent death within 30-60K miles, now it may be good for 200K more.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
