Sebring exhausts for 356?

Hebster52 · Posted: Mon Feb 16, 2009 4:07 am Post subject: Sebring exhausts for 356?

Wondering how the "collector" (exhaust tip) is designed inside?

Image may have been reduced in size. Click image to view fullscreen.

Maybe like this?

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

Hebster52 · Posted: Fri Feb 27, 2009 12:14 am Post subject:

No one seems to know?

I guess I have to see what's the outcome myself then. Wink

This is how I've built it so far.

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

TC/TeamEvil · Samba Member Joined: February 16, 2004 Posts: 1768

That's probably gonna be pretty loud as it's configured right now. The inside of mine has two baffle plates rather than a straight through mesh option. Maybe a small disk inserted within the mesh "tube" sections would work. Something to chop up the exhaust flow and divert it to the other exit in some fashion. In on the left, hit the disk, chopped up a bit as it flows around the disk and exits through both of the holes, same for the right side. Just stagger the positioning of the plates, or bend them "V" shaped or ?.

Maybe that kinda thing? Maybe not. Either way, I LOVE your craftsmanship ! ! ! ! ! !

Although, if you're building resonators as opposed to mufflers, those are comin' out GREAT and tuned resonators might be just what's needed.

TC

Hebster52 · Posted: Fri Feb 27, 2009 11:25 am Post subject:

Not sure what the difference between muffler and resonator is? Mine will be filled with fiber around the perforated pipes and flow straight through as in this example:

I have talked to some 356 owners that have this type of exhausts and their have been like this.
_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

TC/TeamEvil · Samba Member Joined: February 16, 2004 Posts: 1768

Home made glass packs!

Cool.

Hebster52 · Posted: Mon Mar 02, 2009 3:24 am Post subject:

Yes, maybe that's what they should be called. Very Happy

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

swanlakers · Posted: Mon Mar 02, 2009 5:28 pm Post subject:

Does anyone have pictures of the inside of a sebring exhaust? I have searched the net with no luck

But here is a pic of the outside from Mr Okrassa

_________________
https://www.thesamba.com/vw/archives/lit/56ghia/cover.jpg

Hebster52 · Posted: Fri Mar 06, 2009 12:07 am Post subject:

Cool vintage exhaust! That one is for the 550 spyder isn't it?
_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

swanlakers · Posted: Sat Mar 07, 2009 3:51 pm Post subject:

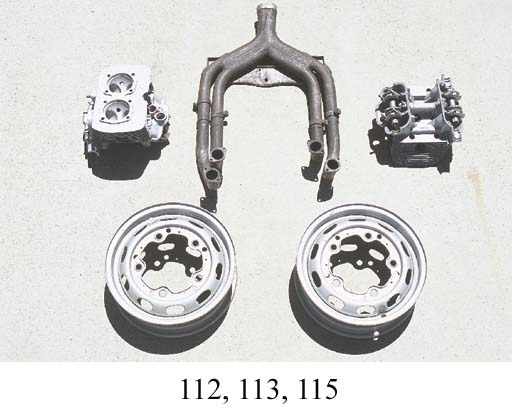

well, it might be for the 550, but here are some more pics to consider:

_________________
https://www.thesamba.com/vw/archives/lit/56ghia/cover.jpg

Hebster52 · Posted: Tue Mar 17, 2009 2:48 am Post subject:

Some inspiration. Cool

Link

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

Hebster52 · Posted: Fri Mar 20, 2009 12:09 am Post subject:

Finally got myself out to the garage again with new welding gas. Cool

As I was out pretty late I didn't take the time to finish off all welds but had to leave them as in the pictures. You start to see the finished product though. Wink

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

Hebster52 · Posted: Mon Mar 30, 2009 3:23 pm Post subject:

Going real slow right now..

Got myself to the garage tonight though and got some work done.

Started fitting the upper halves of the mufflers and also made the final exhaust tip. Not yet welded them though

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

Niklas the Swede · Posted: Thu Apr 02, 2009 12:24 pm Post subject:

Looking perfect Hebster! Keep up the good work.

VWXTC4FREE · Samba Member Joined: November 08, 2004 Posts: 277

LOOKIN GOOD Cool

A freind of mine did a custom one for his '57 356 outlaw.He used something like steel wool for the packing in the mufflers.

_________________
" I'm a motovational speaker ....and I LIVE IN A VAN DOWN BY THE RIVER!!"

Simple Transport III AUG 21 2010 :
http://www.thesamba.com/vw/forum/viewtopic.php?t=391461

http://www.myspace.com/warwagens

Hebster52 · Posted: Thu Apr 02, 2009 11:37 pm Post subject:

Thanks.

I bought glassfiber wool for Bike mufflers. Tested to expose some of it directly to a seam I welded and it didn't burn or anything so it will be good for these mufflers too. Wink

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

atomman1 · Posted: Fri Apr 03, 2009 12:29 am Post subject:

looking goood dude Cool

Just about to get some flanges water cut so i can make one for my 912,
will get some pic's up when i get started

bt · Posted: Fri Apr 03, 2009 8:37 am Post subject:

Thats Badass!!!

Is weight going to be a problem? It looks very light but is that going to cause a fulcrum point?

Hebster52 · Posted: Fri Apr 03, 2009 11:09 am Post subject:

It is pretty lightweight.

What's a fulcrum point..?? Laughing

_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD

bt · Posted: Fri Apr 03, 2009 7:10 pm Post subject:

Will it need another mounting point to keep the weight off the heads?

Hebster52 · Posted: Fri Apr 03, 2009 11:54 pm Post subject:

Not sure if it does need any mountingpoint..

The ones posted above dont seem to have any either and those look even longer/heavier?

I've thought about making one support that bolts to the rear enginemount when that is bolted to the case.
_________________
~Kris~
"The Hebster52" my Hebmuller replica build
The 912ST
The KidVRod project
The 356 Pre-A replica,SOLD
The 1966 Kommanderwagen, SOLD
