 Posted: Fri Aug 14, 2009 8:11 am Post subject: How to tell the hole is a 3 fold? |
 |
|
I did a search, Didnt really see any infos.
I have a ribbed door semaphore car, unknown year, how can i tell if its a 2 fold or 3? |
|
| Back to top |
|
 |
52brezelfenster
Samba Member
Joined: August 02, 2005
Posts: 761
Location: OR
|
| Posted: Fri Aug 14, 2009 9:05 am Post subject: |
|
|
Jim, would it be helpful to measure the size of the opening front to back? I have a 3 fold car here and could put a tape measurer on it.
Dustin |
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9364
Location: Northwood, NH USA
|
| Posted: Fri Aug 14, 2009 9:37 am Post subject: |
|
|
| 52brezelfenster wrote: |
Jim, would it be helpful to measure the size of the opening front to back? I have a 3 fold car here and could put a tape measurer on it.
Dustin |
Is it known that the front to back opening changed in dimension?
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32625
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
john7
Samba Member
Joined: August 06, 2003
Posts: 1542
Location: Garden grove ca
|
| Posted: Fri Aug 14, 2009 10:00 am Post subject: |
|
|
just happen to have one in front of me
the 3 fold hole measure 45 3/4 x 33"
straight accross the middle both directions
_________________
Jesus Saves
Slot Mag King!
I accept Paypal, CASH, GOLD, SILVER, COINS, GUNS & money orders. |
|
| Back to top |
|
|
vdubjim
Samba Member
Joined: March 12, 2004
Posts: 684
Location: okc
|
| Posted: Fri Aug 14, 2009 12:09 pm Post subject: |
|
|
| john7 wrote: |
just happen to have one in front of me
the 3 fold hole measure 45 3/4 x 33"
straight accross the middle both directions |
so its perfectly square?? |
|
| Back to top |
|
|
Yustrn
JHC Controla
Joined: August 01, 2000
Posts: 5478
Location: Ovaland, CA
|
| Posted: Fri Aug 14, 2009 12:11 pm Post subject: |
|
|
Fastest way is to see if there is a straight little metal lip at the front of it all the way across if it's more of a rounded hump then it's 2 fold.
Jim send me a pic and I can help you out.
_________________
I own a copy of "The Car of the Century" by Garwood. This means I am authorized to act like a twat in thesamba forums. |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32625
Location: Reading Pennsylvania
|
| Posted: Fri Aug 14, 2009 1:06 pm Post subject: |
|
|
| john7 wrote: |
just happen to have one in front of me
the 3 fold hole measure 45 3/4 x 33"
straight accross the middle both directions |
I have a 1959 2 fold here in the garage, no trim, no mechanism and it measures......
29 3/16" wide on the inside lip where the headliner would connect
36 " long at the center, also where the headliner would connect
Both of these dimensions can vary a little depending upon how bent in or how far out the metal teeth that grip the headliner are. By vary I mean maybe an 1/8" max either way.
The 59 2 fold hole is for sure the same hole as the LATE (3rd version) 56 2 fold roof. I am not sure about the 2 earlier 56 versions and what their exact dimensions are. I suspect the 2nd version has the same size as the 3rd but am not 100% sure.
Dave
_________________
Stop Dead Photo Links how to post photos
Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473
Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537
Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert |
|
| Back to top |
|
|
Russ
Samba Member
Joined: January 12, 2003
Posts: 1560
Location: Langley B.C.
|
| Posted: Fri Aug 14, 2009 2:27 pm Post subject: |
|
|
| vdubjim wrote: |
| john7 wrote: |
just happen to have one in front of me
the 3 fold hole measure 45 3/4 x 33"
straight accross the middle both directions |
so its perfectly square?? |
???? no
_________________
Cruiser pedals for sale (see my ad's)
55 hardtop finally finished
65 beetle done:) |
|
| Back to top |
|
|
john7
Samba Member
Joined: August 06, 2003
Posts: 1542
Location: Garden grove ca
|
| Posted: Fri Aug 14, 2009 2:28 pm Post subject: |
|
|
| vdubjim wrote: |
| john7 wrote: |
just happen to have one in front of me
the 3 fold hole measure 45 3/4 x 33"
straight accross the middle both directions |
so its perfectly square?? |
no look at the measurements i posted again, maybe you mis read them. it is 12 3/4" longer than it is wide
_________________
Jesus Saves
Slot Mag King!
I accept Paypal, CASH, GOLD, SILVER, COINS, GUNS & money orders. |
|
| Back to top |
|
|
john7
Samba Member
Joined: August 06, 2003
Posts: 1542
Location: Garden grove ca
|
| Posted: Fri Aug 14, 2009 2:35 pm Post subject: |
|
|
| djkeev wrote: |
| john7 wrote: |
just happen to have one in front of me
the 3 fold hole measure 45 3/4 x 33"
straight accross the middle both directions |
I have a 1959 2 fold here in the garage, no trim, no mechanism and it measures......
29 3/16" wide on the inside lip where the headliner would connect
36 " long at the center, also where the headliner would connect
Both of these dimensions can vary a little depending upon how bent in or how far out the metal teeth that grip the headliner are. By vary I mean maybe an 1/8" max either way.
The 59 2 fold hole is for sure the same hole as the LATE (3rd version) 56 2 fold roof. I am not sure about the 2 earlier 56 versions and what their exact dimensions are. I suspect the 2nd version has the same size as the 3rd but am not 100% sure.
Dave |
i measured on the outside of the car with no mechanism installed on a 55 bug. edge to edge right in the center of the hole each direction.(front to back and side to side)
from inside the car the hole measures 43 1/2 x 29
i dont have a 2 fold car around to measure
_________________
Jesus Saves
Slot Mag King!
I accept Paypal, CASH, GOLD, SILVER, COINS, GUNS & money orders. |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32625
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
vwclap
Samba Member
Joined: April 21, 2004
Posts: 519
Location: Qc, Canada
|
| Posted: Fri Aug 14, 2009 7:18 pm Post subject: |
|
|

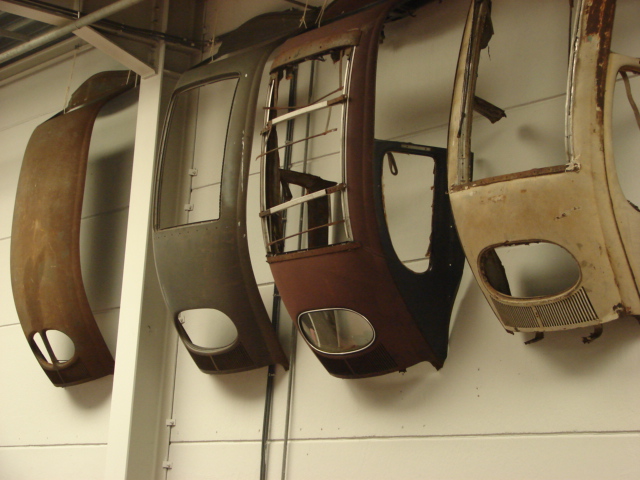

A pic taken at BBT. We see the difference in size.
Claude
_________________
Claude
cox 1956, 1962 et 1975
Split panel 1963
Samba 21 fenetres 1966
Ghia 1968
Sport Ghia 73
West 1970
Jetta 1992
Jetta TDI 2015
West Multivan 2002 |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17290
Location: Left coast, Canada
|
| Posted: Fri Aug 14, 2009 11:27 pm Post subject: |
|
|
| johnshenry wrote: |
| 52brezelfenster wrote: |
Jim, would it be helpful to measure the size of the opening front to back? I have a 3 fold car here and could put a tape measurer on it.
Dustin |
Is it known that the front to back opening changed in dimension? |
I think you should have to go back and repeat a semester of "Oval Window 101".
