HOW TO: Revive your fuel gauge sender for $1 FAQ

[Daverham]

I'm assuming that if you are reading this, you already have your fuel sender out or know how to get it out. There are plenty of threads about that. It's easy to do the cut-the-hole option with a sawzall (break the blade off short so you don't hammer the fuel tank below). Once you get the bugger out, you can get a new one at The Bus Depot for $50 (http://www.busdepot.com/details.jsp?partnumber=211919051A). Not a bad price. But it's more fun to fix your own... for $1!

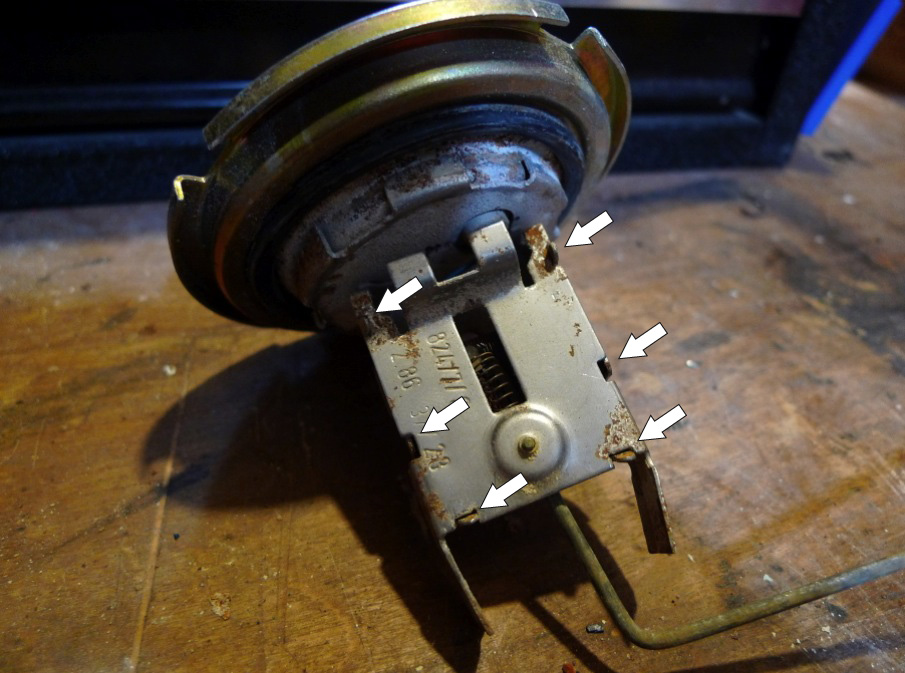

1 - Here's the dead sender. Pry up these six tabs and the whole thing comes apart easily.

2 - Like this.

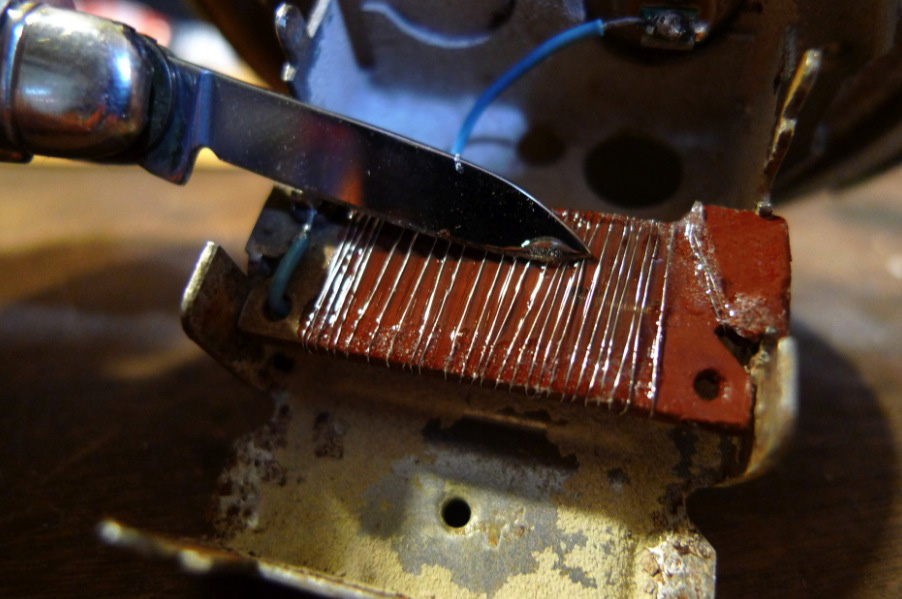

3 - There's yer trouble! Worn-out and broken resistive wires from 30 years of filling and emptying the tank.

4 - It took me a couple tries to figure out the best way to do this. Position your pliers as such and bend up the 4 tabs to free the resistor board from the housing. Be gentle, they can easily go too far, and you'll need room on the other side to get a screwdriver in there and pry them back when you're done, so don't push them all the way to the housing.

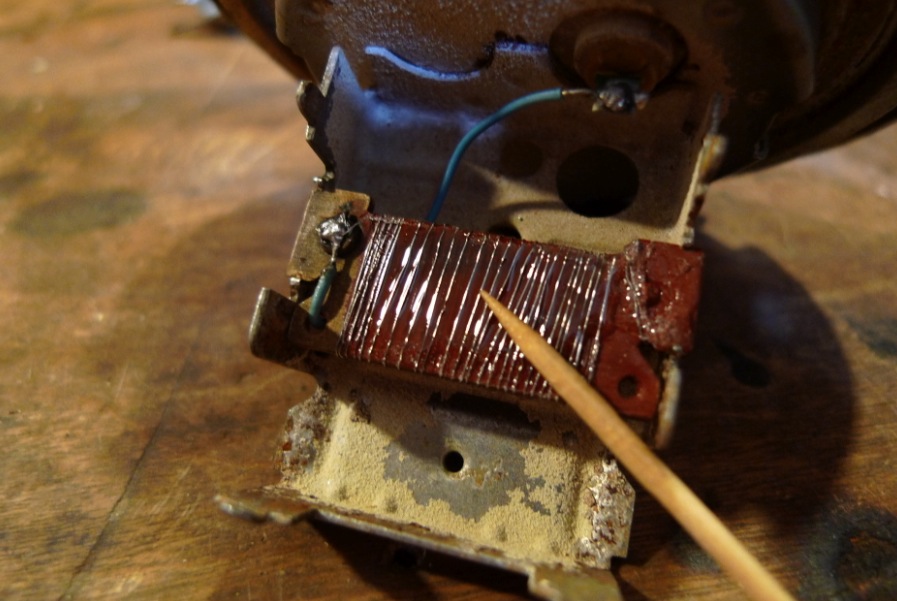

5 - Unwind the old wire.

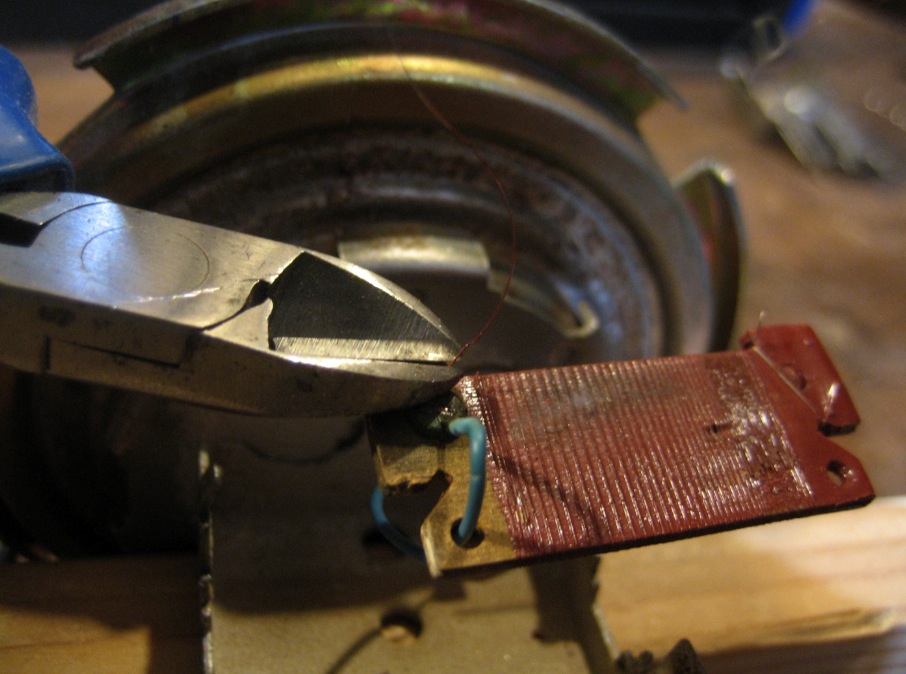

6 - Cut off the old wire at the terminal post.

7- New 36 AWG Nickel Chromium (NiChrome) wire purchased from Jacobs Online (http://jacobs-online.biz/nichrome_wire.htm). I got 10 feet for $2 and used less than half of it (thus the $1 per-sender price tag). Easy payment with PayPal, and they shipped it very fast. This isn't just any 36 gauge wire. It is resistive. If you try this with copper wire you get a big FAIL for the day.

8 - Measure off 70 Ohms worth of new wire with your meter, then add an extra inch-and-half or so, so you can wrap off the "dead" end of the wire securely. Mine came to about 3 feet - that's just a ball park. I didn't measure the length.

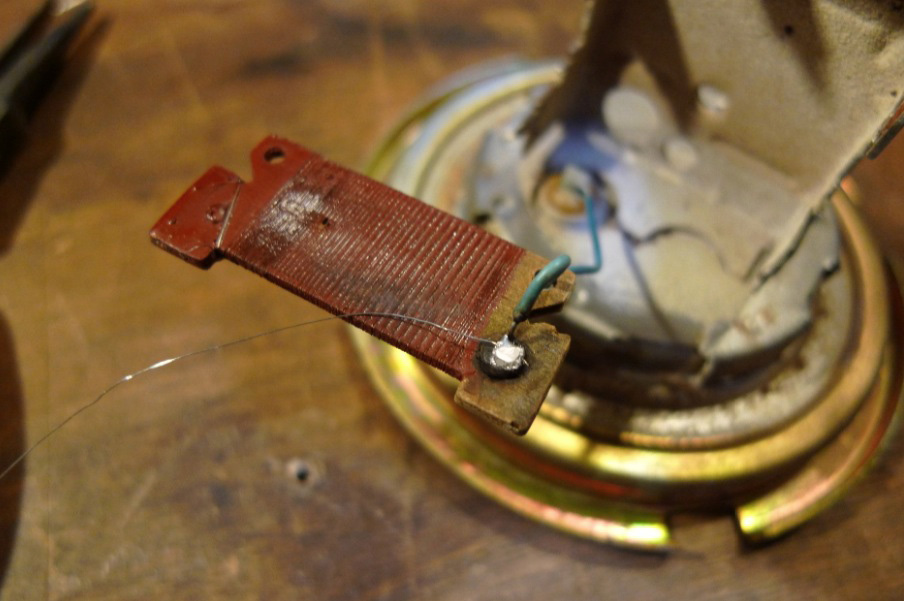

9 - The terminal post is brass. Clean it off so your solder will stick, and then solder the end of your new wire right on there. At this point I also de-soldered the other end of the blue wire because it's easier to do the next step (wrapping) when it's not connected to the whole unit. Update: They say this wire doesn't stick to solder, so maybe loop it around that blue wire or the terminal post a couple times before soldering, so it can't pull out (not that there will be any pulling).

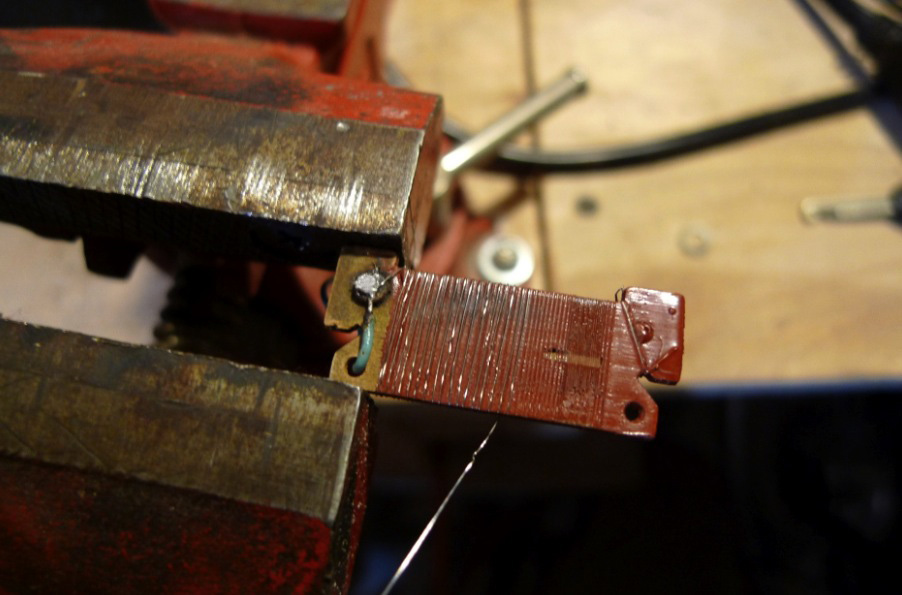

10 - Wrap the new wire around the board. This is much easier using a bench vise. I Tried to stay in the grooves left by the old wire, but my 70 Ohm wire was a little shorter then theirs (maybe I'll try 32AWG next time). You can see how the windings get progressively tighter toward the "dead" end of the wire. This is probably to compensate for the change in movement as the float moves along it's arc, so try your best to duplicate that. Don't let the windings touch, or you're wasting your time. Give a little space in between them. It might be a good idea to paint your wire before you do this, then you could get them tighter without any short circuits... as long as you use fuel-proof paint. I opted for leaving a space in between. When you get to the end, use that extra inch of wire to wrap the end off around that little tab. One thought: You can see little kinks in the wire from where it was wrapped around that little plastic card. Next time, I'd rather get wire from a roll so there won't be any kinks.

11 - Re-install the resistor board by bending the metal tabs back in place with a small screw driver. Don't forget to re-solder the other end of the wire.

12 - Apply 2-part epoxy to the resistor wire. 2-part epoxy is fuel-resistant. Spread it as thinly as possibly. You want the wires to stay in place, but you don't want to cover the tops of them, or they will be insulated from the sliding contact point. I tried this without the epoxy and the wires moved around - no good. They need to be glued down.

13 - Gently scrape the epoxy off the contact surface of the wires. I scraped it once when the epoxy was wet, and again after it had dried. Then hit it very gently with some 600 grit sandpaper or steel wool, just to ensure there is no epoxy on top and the windings are smooth.

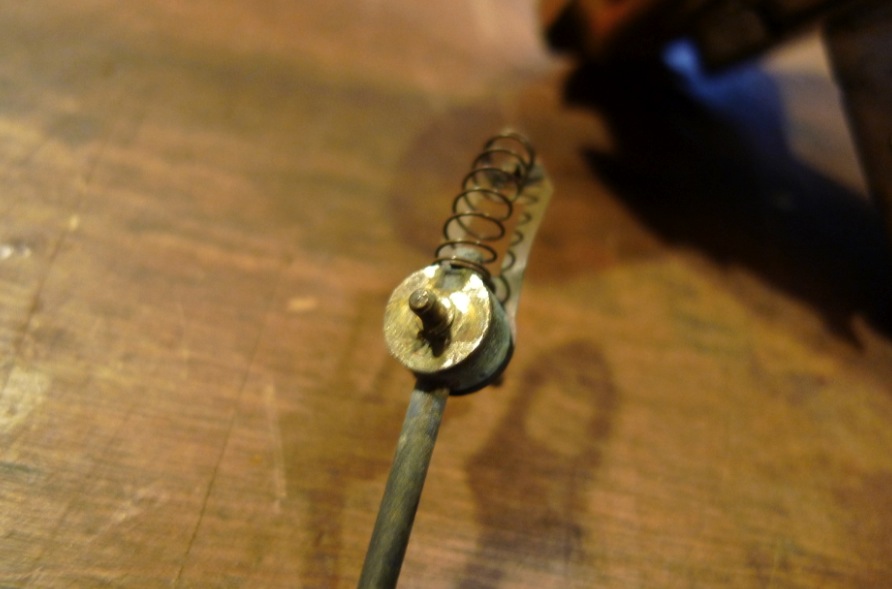

14 - Before putting it all back together, make sure this little brass pivot is clean. That's how the sliding contact point connects to ground. Mine was covered in crusty corrosion. At this stage you might want to give that spring a little stretch too, just to revive it. Mine was weak and compressed.

15 - After you put it all back together... test it with a meter. 0-5 Ohms when the tank is full. Perfect (meter reads higher because the float arm moved just as I took the photo). This whole project would have been easier with a meter that has alligator clip leads, by the way. Especially when taking photos.

16 - Half-full... Meter reading about 30 Ohms. Looks good.

17 - Empty tank. Meter reads about 70 Ohms. Rock and roll. Now you can adjust where the float stops by bending the metal tabs that are hanging off the bottom.

Results: You can see by the meter test, it works! The movement is smooth and there are no dead spots. I get progressive readings all the way across the movement in increments of about 2-3 Ohms. This whole process took about 40 minutes, including making it up as I go and stopping to take a lot of photos. I bet you could do it in 20.

I'll update you again once I get it in the bus and do a "real world" test, but I'm pretty sure this covers it.

Here's a link to my FIX YOUR FUEL TANK thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=378770

All these edits you see are just because I keep finding typos or feel the need to clarify something.
