Split Bus Dolly Jacks
Page: 1, 2  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Mon Jan 09, 2012 8:28 pm    Post subject: Split Bus Dolly Jacks Reply with quote

I'm building a set of dolly jacks to roll my buses around without a front beam.

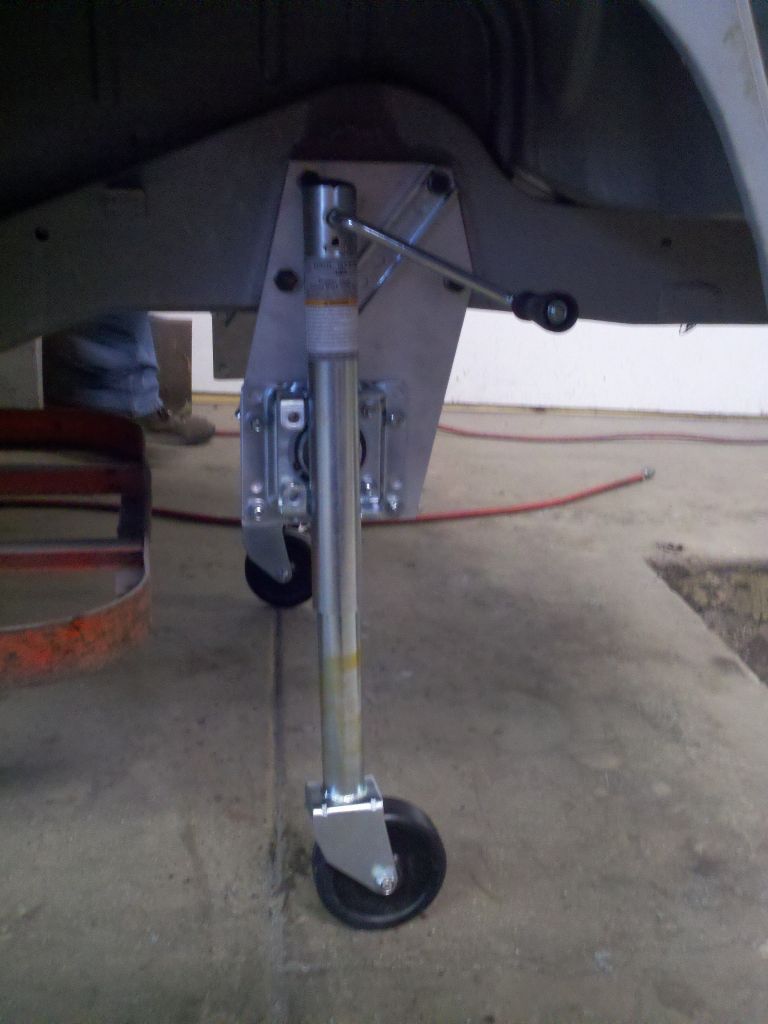

I really liked Swervyjoe's setup shown here:
Image may have been reduced in size. Click image to view fullscreen.

So, I looked to get a similar trailer jack pair to fab my own.
Picked up a pair from our favorite Chinese supplier:
Image may have been reduced in size. Click image to view fullscreen.

They were $27 each, relatively cheap.
So, I figured I could just make up a mounting plate rather than welding like Swervyjoe did.

Logged onto emachineshop.com and with a little help from jeremyrockjock's front beam measurements, drew up a design. Then printed it out full size and checked if it was lined up OK, and if the crank handle would clear the wheel well.

Emachineshop.com is really cool, I submitted my plan, and it instantly gives a firm price quote, takes your credit card, and viola', four days later I pick up a box:
Image may have been reduced in size. Click image to view fullscreen.

and inside:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

1/4" aluminium, which I figured would be strong enough when combined with the mounting bars which come with the trailer jack. I'm running the mounting bars on one side from the top beam bolt, added a hole in the middle of the plate, and joined the other mounting bar on the other side from the top jack plate bolt.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

The lowered height of the jacks is 19" off the floor for the lower beam bolt, which is about 1" higher than a stock height bus. I should be able to raise the bus up to 30" off the floor, high enough to get some real work done under there.

I'll be mounting them up later this week, I'll let you know how she works.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
turkis-deluxe
Samba Security


Joined: January 06, 2001
Posts: 1551
Location: 94518
turkis-deluxe is offline

PostPosted: Mon Jan 09, 2012 8:43 pm    Post subject: Reply with quote

Word up J.dot. Looks good but remember those jackstands!!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Mon Jan 09, 2012 8:51 pm    Post subject: Reply with quote

I plan to use these instead of jackstands.
Should I be concerned?
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
gatorwyatt
Samba Member


Joined: April 24, 2002
Posts: 1885
Location: Clearwater Fl.
gatorwyatt is offline

PostPosted: Mon Jan 09, 2012 8:58 pm    Post subject: Reply with quote

Neat!...I own swervyjoes and they are on my truck...work good!

Thanks Joe!!
_________________
www.blastserv.com

wanted:
Nothing!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
dreadnotmusic
Samba Member


Joined: March 04, 2003
Posts: 880
Location: Guam, USA
dreadnotmusic is offline

PostPosted: Mon Jan 09, 2012 9:01 pm    Post subject: Reply with quote

j.pickens wrote:
I plan to use these instead of jackstands.
Should I be concerned?


Personally, that set up gives me a bit of concern. I work in the marine industry and have lots of experience with those things. When they decide to buckle, they do so quickly. Plus, yours don't look nearly as beefy as the ones used by the other member. I would use them to CAREFULLY move my bus around in the shop, but never without adequate jack stands would I get under it.

Be safe! Cool ass idea though.
_________________
66 Riviera
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Mon Jan 09, 2012 9:11 pm    Post subject: Reply with quote

dreadnotmusic wrote:
j.pickens wrote:
I plan to use these instead of jackstands.
Should I be concerned?


Personally, that set up gives me a bit of concern. I work in the marine industry and have lots of experience with those things. When they decide to buckle, they do so quickly. Plus, yours don't look nearly as beefy as the ones used by the other member. I would use them to CAREFULLY move my bus around in the shop, but never without adequate jack stands would I get under it.

Be safe! Cool ass idea though.


Since the bus will be without front and rear suspension, I'm guessing it will weigh about 2000 pounds. That's about 500 pounds for each of the four dolly wheels. The trailer jacks are rated for 1000 pounds.

But I hear you. I'll be careful.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
campingbox Premium Member
Samba Member


Joined: November 14, 2000
Posts: 10247
Location: Petaluma, CA
campingbox is offline

PostPosted: Mon Jan 09, 2012 10:04 pm    Post subject: Reply with quote

If it's just the shell, it will weigh less than 2000 pounds.
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Mon Jan 09, 2012 10:42 pm    Post subject: Reply with quote

campingbox wrote:
If it's just the shell, it will weigh less than 2000 pounds.

I was just estimating.
The tech specs are for a Kombi to weigh 2400 lbs.
I was being conservative and estimating 400 lbs. for front beam, rear tranny, engine, etc.

Its good to estimate high for stuff like this.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
cdennisg
Samba Member


Joined: November 02, 2004
Posts: 20795
Location: Sandpoint, ID
cdennisg is offline

PostPosted: Tue Jan 10, 2012 12:52 am    Post subject: Reply with quote

j.pickens wrote:
campingbox wrote:
If it's just the shell, it will weigh less than 2000 pounds.

I was just estimating.
The tech specs are for a Kombi to weigh 2400 lbs.
I was being conservative and estimating 400 lbs. for front beam, rear tranny, engine, etc.

Its good to estimate high for stuff like this.


I just scrapped a front beam minus brakes and spindles, and it was 94 pounds. A complete engine is around 240 pounds, give or take a few. Tranny is around 200 pounds with RGB's. Just FYI.

I too, have worked in the marine industry and have seen those tongue jacks buckle, but usually after some heavy use and abuse by undiscerning owners and mechanics. I think you'll be fine using them to roll around and adjust height for working on the bus, but I would use jack stands before I spent much time under them.
_________________
You can't spell sausage without "USA"!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
zuggbug
Samba Member


Joined: June 17, 2008
Posts: 3498
Location: Anderson SC
zuggbug is offline

PostPosted: Tue Jan 10, 2012 6:20 am    Post subject: Reply with quote

Applause
very nice.
_________________
SOUTHERN INTEGRITY AIRCOOLERS
58 15 window
56 westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pyrOman
Fire Master


Joined: July 21, 2003
Posts: 12532
Location: Over 2002 posts deleted!
pyrOman is offline

PostPosted: Tue Jan 10, 2012 7:30 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Like your idea but I would rather weld up the "tube" to the plate WITHOUT the rotary part!!! That's the "weak" point of it and you really don't need it for the intended use! Think
_________________
Some people are so busy being clever they don't have time enough to be wise.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Tue Jan 10, 2012 7:42 am    Post subject: Reply with quote

pyrOman wrote:

Like your idea but I would rather weld up the "tube" to the plate WITHOUT the rotary part!!! That's the "weak" point of it and you really don't need it for the intended use! Think


There are two available holes which can bolt the swivel part to the mounting plate. Already planned to do this. You can see the four inner holes here, two which engage the quick release, and two available for more permanent bolting togetherness. If I get the time, I may remove the quick release pins and put four bolts in.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Tue Jan 10, 2012 7:50 am    Post subject: Reply with quote

cdennisg wrote:

I too, have worked in the marine industry and have seen those tongue jacks buckle, but usually after some heavy use and abuse by undiscerning owners and mechanics. I think you'll be fine using them to roll around and adjust height for working on the bus, but I would use jack stands before I spent much time under them.

Sounds right, that's the approach I'll take.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
cru62
Samba Member


Joined: December 31, 2002
Posts: 4121
Location: Margaritaville.....24/7
cru62 is offline

PostPosted: Tue Jan 10, 2012 10:04 am    Post subject: Reply with quote

Thanks for the heads up about http://www.emachineshop.com/ . That is a pretty awesome site. Check out the videos. It looks easy for simple parts.
_________________
"My biggest worry is that when I die, my wife will sell all my parts for what I told her I paid for them"-Jon

Jokes about German sausage are the wurst.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Tue Jan 10, 2012 3:03 pm    Post subject: Reply with quote

cru62 wrote:
Thanks for the heads up about http://www.emachineshop.com/ . That is a pretty awesome site. Check out the videos. It looks easy for simple parts.


I too played with it last night and made some wheel adapters I need and they were 276.00 each! I passed. what did you pay for those plates? cool site and idea
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Tue Jan 10, 2012 3:15 pm    Post subject: Reply with quote

They were $42 each plus shipping.
Their price for machining steel is much higher than aluminum.
Probably because aluminum uses a computerized router instead of a true cnc milling machine.
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
my65vert
Samba Member


Joined: November 09, 2003
Posts: 6186
Location: Middleburg, Florida
my65vert is offline

PostPosted: Tue Jan 10, 2012 4:18 pm    Post subject: Reply with quote

I have also buckled a couple of those while attached to car trailers. The higher you go the easier they buckle, fully lowered or just up a bit shouldnt be an issue but I wouldnt use them at full lift.
_________________
OGJHC
Kombisutra;
I'm starting to get little wafts of bus stink coming from the north. Something about the unique scent of drivers seat padding when it's glued together with mouse piss and shit that really gets me going... and I'm smelling it! Oh yeah! Time to start loading up the equipment.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
j.pickens
Samba Member


Joined: December 03, 2002
Posts: 9830
Location: Exit 7, New Jersey
j.pickens is offline

PostPosted: Thu Jan 12, 2012 6:03 pm    Post subject: Reply with quote

OK,
Went up to Rusthaven to mount the new dolly jacks on the sunroof swivelseat. They fit up very nicely, only had to file two holes to get the bolts into the mount points. I removed the spring folding assembly and put four bolts around the swivel assembly to firm it up.

Here's the results, and yes, the crank handle clears the wheel wells:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
BeaterBarndoor wrote:

i wish more people would actually drive their vws rather than just talking about what they have in the garage.

Red Fau Veh wrote:
If you've seen one sunroof swivel seat kombi, you've seen them all! Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
cdennisg
Samba Member


Joined: November 02, 2004
Posts: 20795
Location: Sandpoint, ID
cdennisg is offline

PostPosted: Thu Jan 12, 2012 6:14 pm    Post subject: Reply with quote

Cool. Looks like they will do the trick.
_________________
You can't spell sausage without "USA"!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
UZI
Platinum FUBU


Joined: February 08, 2002
Posts: 13335
Location: phila-DELFT-ia
UZI is offline

PostPosted: Thu Jan 12, 2012 7:03 pm    Post subject: Reply with quote

do the wheels lock?
_________________
Extravagant Lifestyle

Quote:
mannys66: South Philly Van Club, only the most influential and freshest van club in the vw scene
Quote:
Cuñado: Chrome will get you home!!!!!!!!!!
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
