 Posted: Sat Mar 02, 2013 6:41 pm Post subject: Question regarding portable AC for my camper |
 |
|
| does anyone know if there is a portabe air conditioner that can be used with a 2000 VW Eurovan camper? |
|
| Back to top |
|
 |
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8369
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Sat Mar 02, 2013 6:54 pm Post subject: |
|
|

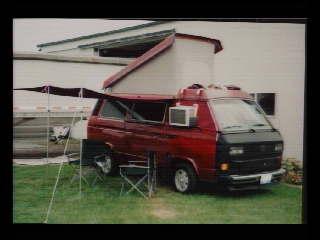

For use with shore power, quite a few vanagonners use a small window unit hung from the luggage rack:
All this fits in a single tub - easy to grab & go or leave outside the van if not needed:
Some have intalled it into the driver's side slider window, also.
There is also a thread here about a member (southolive) installed a portable console unit inside the rear cabinet:
http://www.thesamba.com/vw/forum/viewtopic.php?p=4662796&highlight=#4662796
Could work for your EV...what do you like?
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS>
Last edited by dhaavers on Sat Mar 02, 2013 8:08 pm; edited 1 time in total |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17123
Location: Brookeville, MD
|
|
| Back to top |
|
|
kgold708
Samba Member
Joined: April 16, 2011
Posts: 186
Location: Genoa IL
|
| Posted: Sat Mar 02, 2013 8:40 pm Post subject: |
|
|
There are 12v air conditioning systems designed for use in construction equipment useing Danfoss compressors, same compressors used in truckfridge and marine refiridgeration applications, if your looking for a non-grid tied option. Sorry I don't have links but its a developing field so google 12v air conditioning perhaps?
_________________
ASE Master Tech.
ASE L1 Advanced engine performance specialist.
ASE L2 Advanced electronic diesel engine specialist. |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 18682
Location: Retired South Florida
|
| Posted: Mon Mar 04, 2013 12:54 pm Post subject: |
|
|
I copied the ideas of a few members here. This is a 5000 btu unit with remote control. Sets up in a minute or so. Comes down just as quickly. I made a peice from aluminum plate bolted to the underside, that fits on the top of the window sill. It has foam to protect the paint. The gutter attachments are also padded with some rubber. The hardest part was making the skirt. It uses magnets around the perimeter to the door and velcro to the AC unit. Sewn into it, is some reflectix insulation. To protect the condensor fins, I made the cover from a modified screen door dog protector from Lowes.
|
|
| Back to top |
|
|
morymob
Samba Member
Joined: November 09, 2007
Posts: 4683
Location: east-tn
|
| Posted: Mon Mar 04, 2013 4:26 pm Post subject: |
|
|
| Only 12V one i could find today was $1995.00/4K btu, may be more out there. |
|
| Back to top |
|
|
dhaavers
Samba Member
Joined: March 19, 2010
Posts: 8369
Location: NE MN (tinyurl.com/dhaaverslocation)
|
| Posted: Mon Mar 04, 2013 4:29 pm Post subject: |
|
|
^^^ Wow - prices have come down...(a year ago they were going for about $2500)

_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"
<EDITED TO PROTECT INNOCENT PIXELS> |
|
| Back to top |
|
|
morymob
Samba Member
Joined: November 09, 2007
Posts: 4683
Location: east-tn
|
| Posted: Mon Mar 04, 2013 4:32 pm Post subject: |
|
|
| Their 6K btu one was $2500.00. |
|
| Back to top |
|
|
JeffRobenolt
Samba Member
Joined: February 25, 2007
Posts: 1531
Location: Wisconsin
|
| Posted: Mon Mar 04, 2013 5:26 pm Post subject: |
|
|
Here is mine. I still need shade for it to work good.
_________________
For OEM Subaru and SixStar parts and harness modications
AVsubaruconversions.com |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 18682
Location: Retired South Florida
|
| Posted: Tue Mar 05, 2013 7:51 am Post subject: |
|
|
| morymob wrote: |
| Only 12V one i could find today was $1995.00/4K btu, may be more out there. |
There is no free ride though. I would expect a 4 btu or 6 btu to draw quite a bit of power on a 12 volt system even with a modern compressor. Not saying it won't work, but I bet you'd need a pretty good battery bank and a way to recharge it underway.
The 5 btu unit does like shade. For Christmas we purchased Francher's pop top R8 insulation panels for both the Espar when cold and the AC when hot. Have not tried them with the AC yet. The canvas alone is not much of a barrier against hot or cold. I expect a decent improvement of cooling with the panels though. |
|
| Back to top |
|
|
joseph928
Samba Member
Joined: September 22, 2011
Posts: 2114
Location: flagstaff az.
|
| Posted: Tue Mar 05, 2013 8:18 am Post subject: free air |
|
|

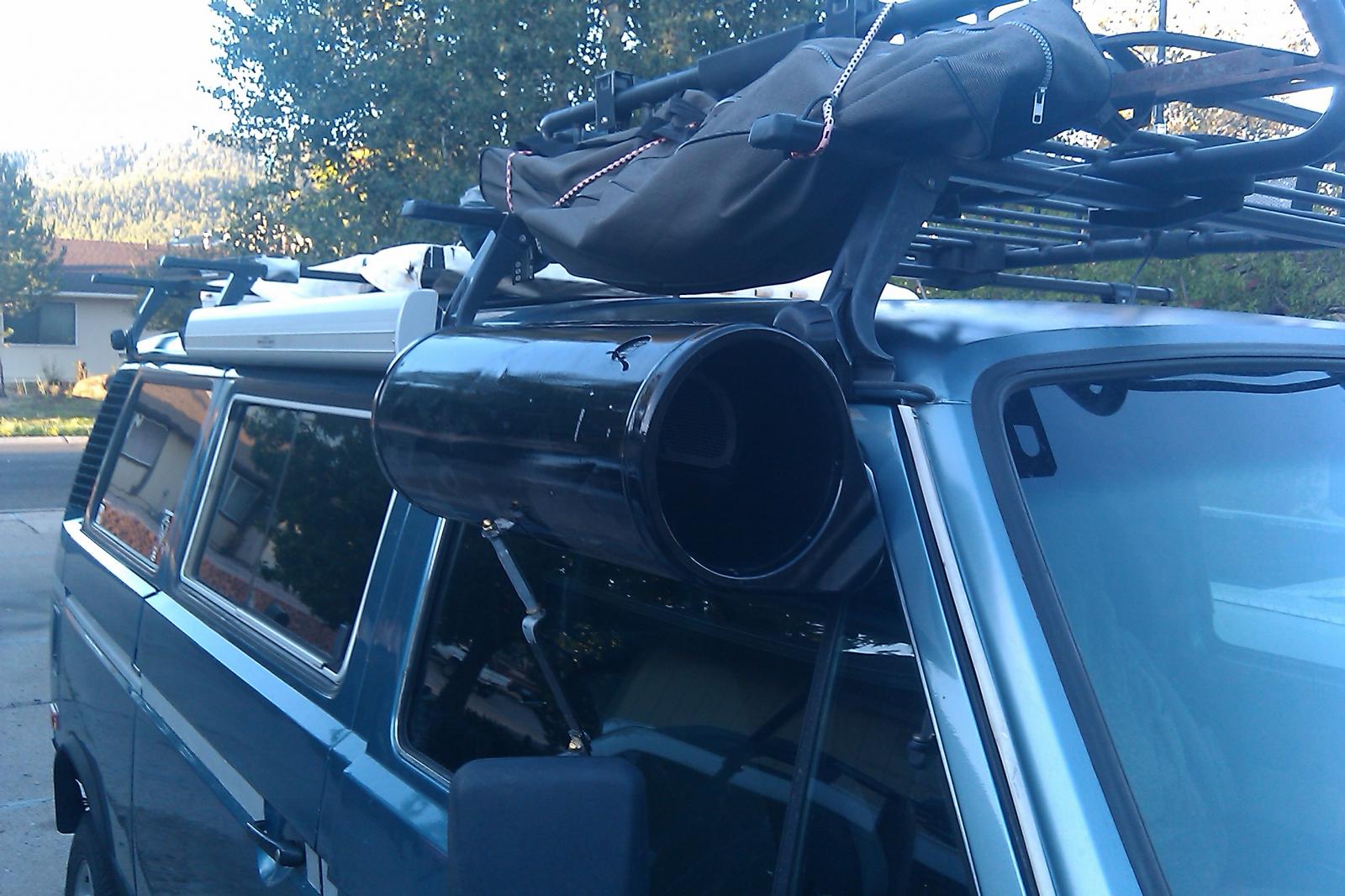

 I love my free air, just add water! Don't you love 60 year old tec.  Works good when parked to, just add a small 12 volt fan!
_________________
1987 syncro westy tin top sun roof , GW2.3, rear locker, decoupler, Gary Lee tire rack & winch mount, lift, south african grill, big brakes , rhein alloy ,15 BFG AT, Fiamma 10 foot awning ,140 watt rear 85 watt front solar , mppt, truckfridge, automatic fire extinguishing system, tencent oil cooler, And a RMW SS exhaust! - 1971 bug convertible 1776 engine- 2010 Subaru turbo - 1993 Toyota 4x4 truck - 1999 Harley 95 CI, big bore, Andrews cams . Also 80-84- vans. Stock 65 sunroof bug. |
|
| Back to top |
|
|
MarkWard
Samba Member
Joined: February 09, 2005
Posts: 18682
Location: Retired South Florida
|
| Posted: Tue Mar 05, 2013 9:08 am Post subject: Re: free air |
|
|
| joseph928 wrote: |
| I love my free air, just add water! Don't you love 60 year old tec. Works good when parked to, just add a small 12 volt fan! |
Out west sure. Try that in Louisianna in August. |
|
| Back to top |
|
|
JeffRobenolt
Samba Member
Joined: February 25, 2007
Posts: 1531
Location: Wisconsin
|
| Posted: Tue Mar 05, 2013 9:47 am Post subject: |
|
|
| rsxsr wrote: |
| For Christmas we purchased Francher's pop top R8 insulation panels for both the Espar when cold and the AC when hot. Have not tried them with the AC yet. The canvas alone is not much of a barrier against hot or cold. I expect a decent improvement of cooling with the panels though. |
I too bought the R8 from Jonce. I also bought the window covers that go on the OUTSIDE from him.
I had coverings on the inside but the heat still came through the glass, you need to try to stop it on the outside.
Jeff
_________________
For OEM Subaru and SixStar parts and harness modications
AVsubaruconversions.com |
|
| Back to top |
|
|
isaac rosa
Samba Member
Joined: January 07, 2013
Posts: 10
Location: Pembroke Pines, FL
|
| Posted: Sat Mar 09, 2013 4:26 pm Post subject: |
|
|
| rsxsr wrote: |
I copied the ideas of a few members here. This is a 5000 btu unit with remote control. Sets up in a minute or so. Comes down just as quickly. I made a peice from aluminum plate bolted to the underside, that fits on the top of the window sill. It has foam to protect the paint. The gutter attachments are also padded with some rubber. The hardest part was making the skirt. It uses magnets around the perimeter to the door and velcro to the AC unit. Sewn into it, is some reflectix insulation. To protect the condensor fins, I made the cover from a modified screen door dog protector from Lowes.
|
great idea thanks. I am not very handy and was wondering if you could give more details - more of a step by step so I can try to do it myself. Thanks much! |
|
| Back to top |
|
|
Terry Kay
Banned
Joined: June 22, 2003
Posts: 13331
|
| Posted: Sat Mar 09, 2013 7:34 pm Post subject: |
|
|

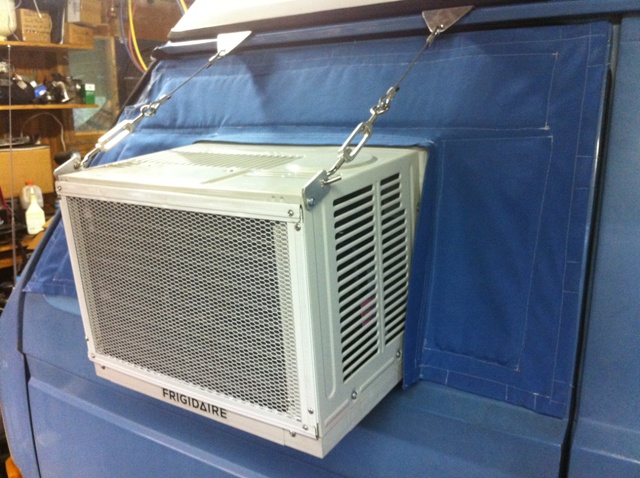

Here's the set up I manufactured first for myself & now for other Vanagon folks.
Problem is with the Eurovan--it has no drip moldings to hang the unit from, or not much of a luggage rack to bracket the AC unit down to the door window.
_________________
T.K. |
|
| Back to top |
|
|
scottf3334
Samba Member
Joined: May 26, 2006
Posts: 205
Location: Davenport, FL
|
| Posted: Sat Mar 09, 2013 7:44 pm Post subject: |
|
|
I saw this one on another forum. Don't know if they are available in the US though.
http://www.coolmycamper.com/Specification.htm
Looks a little expensive. Anyone in the UK try out one of these?
_________________
84 Westy
78 Super vert
87 Westy Zetec |
|
| Back to top |
|
|
Terry Kay
Banned
Joined: June 22, 2003
Posts: 13331
|
| Posted: Sat Mar 09, 2013 7:54 pm Post subject: |
|
|
220 volts, plus about a grand plus by the time you got it here.
How would the power cord slip under a sliding window?
Good idea--more modifications and pretty expensive.
And considering the Vanagon Westfalia has neither a swing out window, nor the sill to support it--I think this may be bit of a problem.
Nice concept-- at a $1000.00 plus, plus , plus.
The high price of being "Cool"
_________________
T.K. |
|
| Back to top |
|
|
isaac rosa
Samba Member
Joined: January 07, 2013
Posts: 10
Location: Pembroke Pines, FL
|
| Posted: Sun Mar 10, 2013 3:19 pm Post subject: Potable window AC for my 200 eurovan camper |
|
|
| I just purchased a VW Camper van and I am not handy at all...I am looking for a step by step illustration for installing a portable air conditioner in the driver's window. I had some folks offer suggestions but I need more detailed step by step directions. Much appreciated! |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17123
Location: Brookeville, MD
|
| Posted: Sun Mar 10, 2013 3:32 pm Post subject: Re: Potable window AC for my 200 eurovan camper |
|
|
| isaac rosa wrote: |
| I just purchased a VW Camper van and I am not handy at all...I am looking for a step by step illustration for installing a portable air conditioner in the driver's window. I had some folks offer suggestions but I need more detailed step by step directions. Much appreciated! |
Based on that description I would look seriously at buying one of the 'kits' offered since you will not need to make anything. Just follow their instructions to setup the unit with all the supplied gear. YMMV.
TK, Will your setup work on the OP's 2000 Eurovan?
_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD
"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson
MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646
Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794 |
|
| Back to top |
|
|
Terry Kay
Banned
Joined: June 22, 2003
Posts: 13331
|
| Posted: Sun Mar 10, 2013 4:59 pm Post subject: |
|
|
Might.
Problem is I don't have, or know of anyone around here that has a EuroVan Westfalia to use as a template for the luggage rack brackets to get it to hang in the window square.
It sure doesn't have any drip moundings to use to hang it from, so the luggage rack would be the way to make it fit out of the window.
_________________
T.K. |
|
| Back to top |
|
|
|
