aerosurfer Samba Member
Joined: March 25, 2012 Posts: 1602 Location: Indianapolis, IN
|
Posted: Mon Nov 25, 2013 5:53 pm Post subject: 72+ Muffler Heat Shield Dimensions |
|
|
A few good discussions on the proper use and function of this somewhat rare and useful (but not critical...in relation to other cooling tins) part. They come up for sale from time to time, but no real replacement supply is available. They rust out or have been removed and lost.
These two threads have plenty of pictures and discuss the differences between the Bus and 412 heat shields, both in shape and part numbers.
http://www.thesamba.com/vw/forum/viewtopic.php?t=213481&highlight=heat+deflector
http://www.thesamba.com/vw/forum/viewtopic.php?t=516909&highlight=heat+deflector
It is discussed about making your own with the brackets but no one ever put up dimensions for future use. If you have the brackets from a rusty shield, you could weld or rivet up a homemade replacement. Before I replaced mine I traced it out with dimensions in the hope that one day I could join the ranks of those Samba greats who have made a Sticky!
Hope this helps.... Measurements from a Bus, Non '79 model

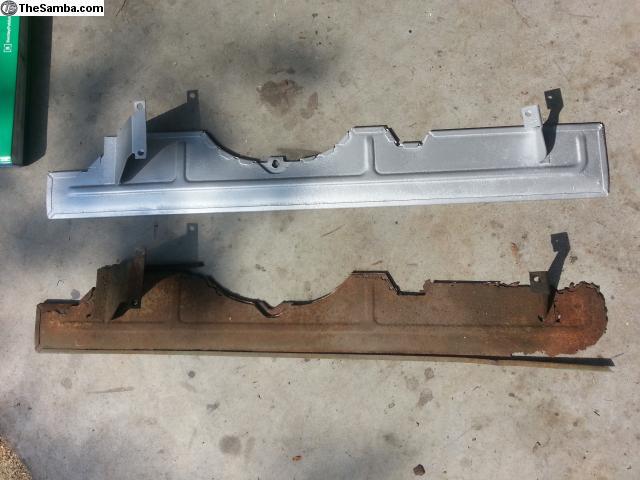

Easy to see the difference between good and bad.....

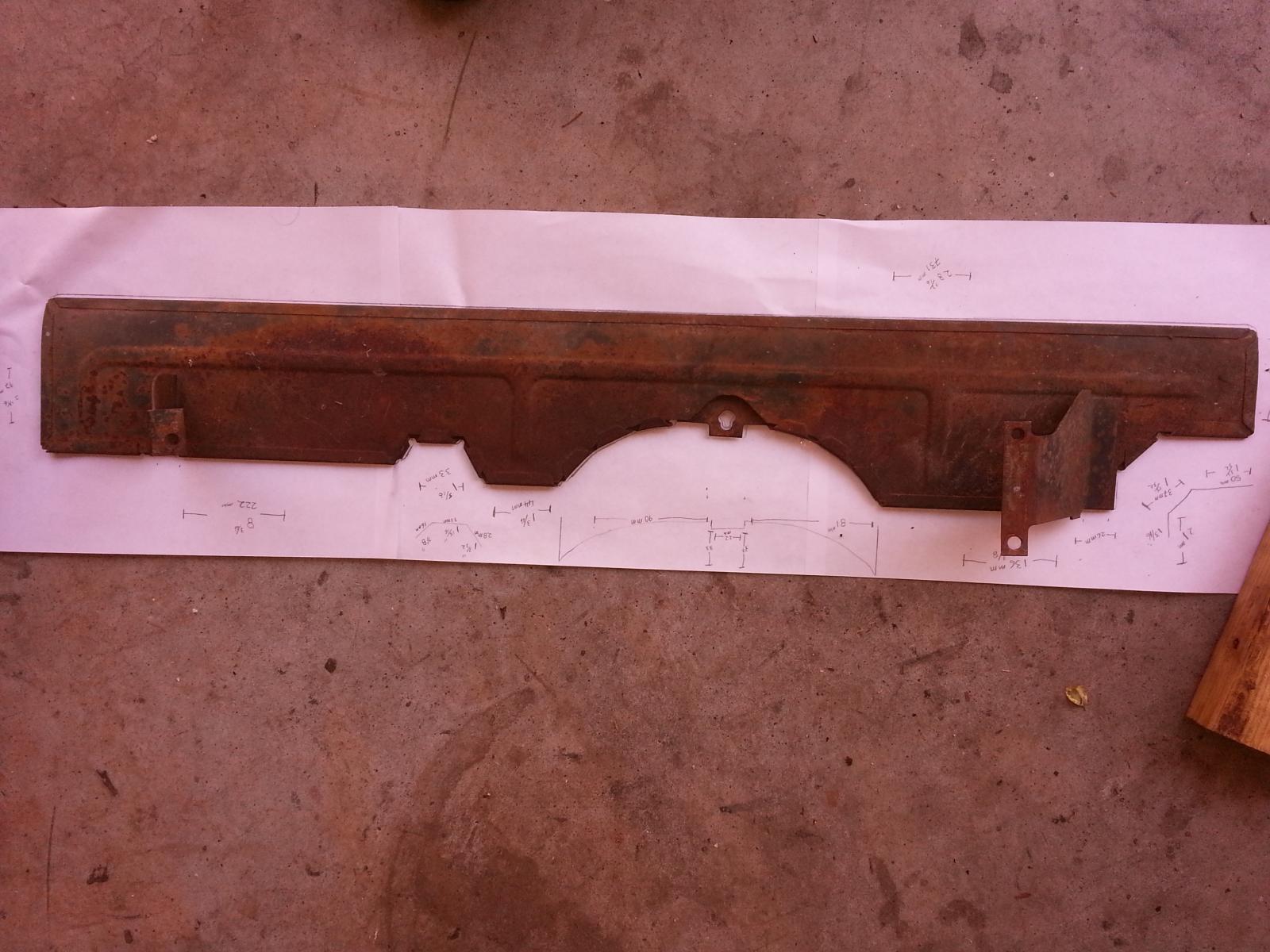

Tried to use the panorama function on my phone... pay no attention to the lines just dimensions

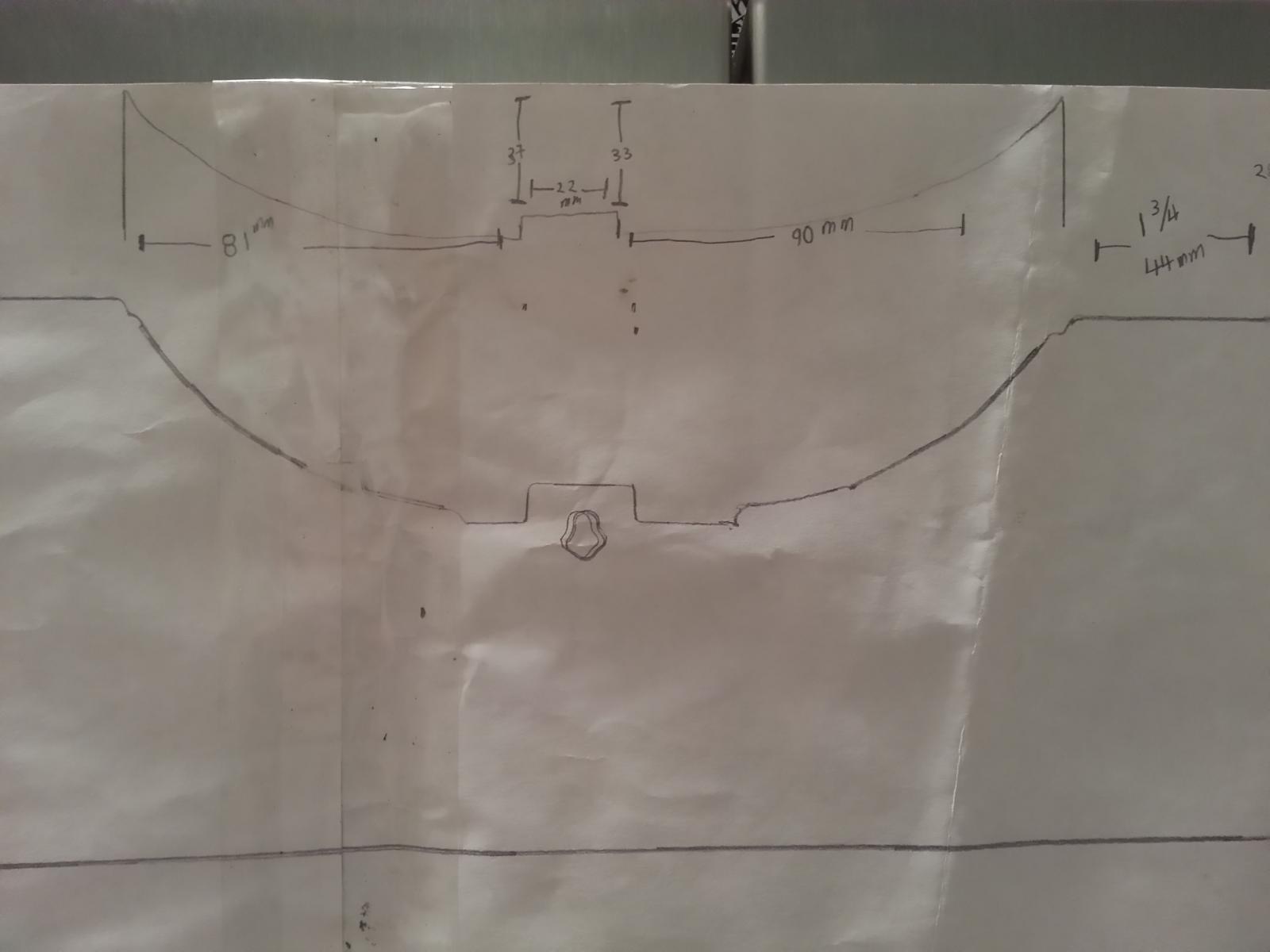

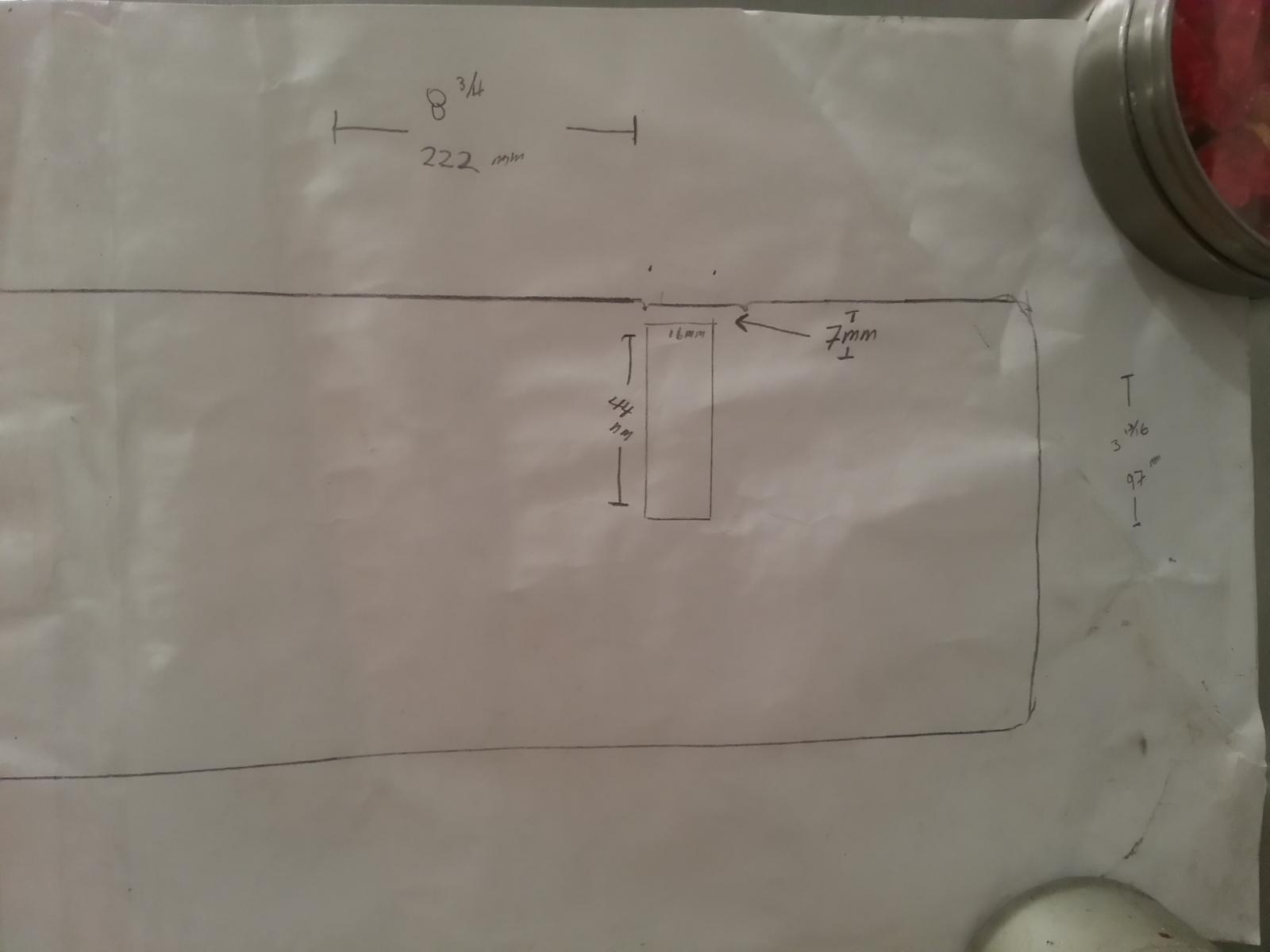

And the rough dimensions up close. Please let me know if any numbers arent clear enough

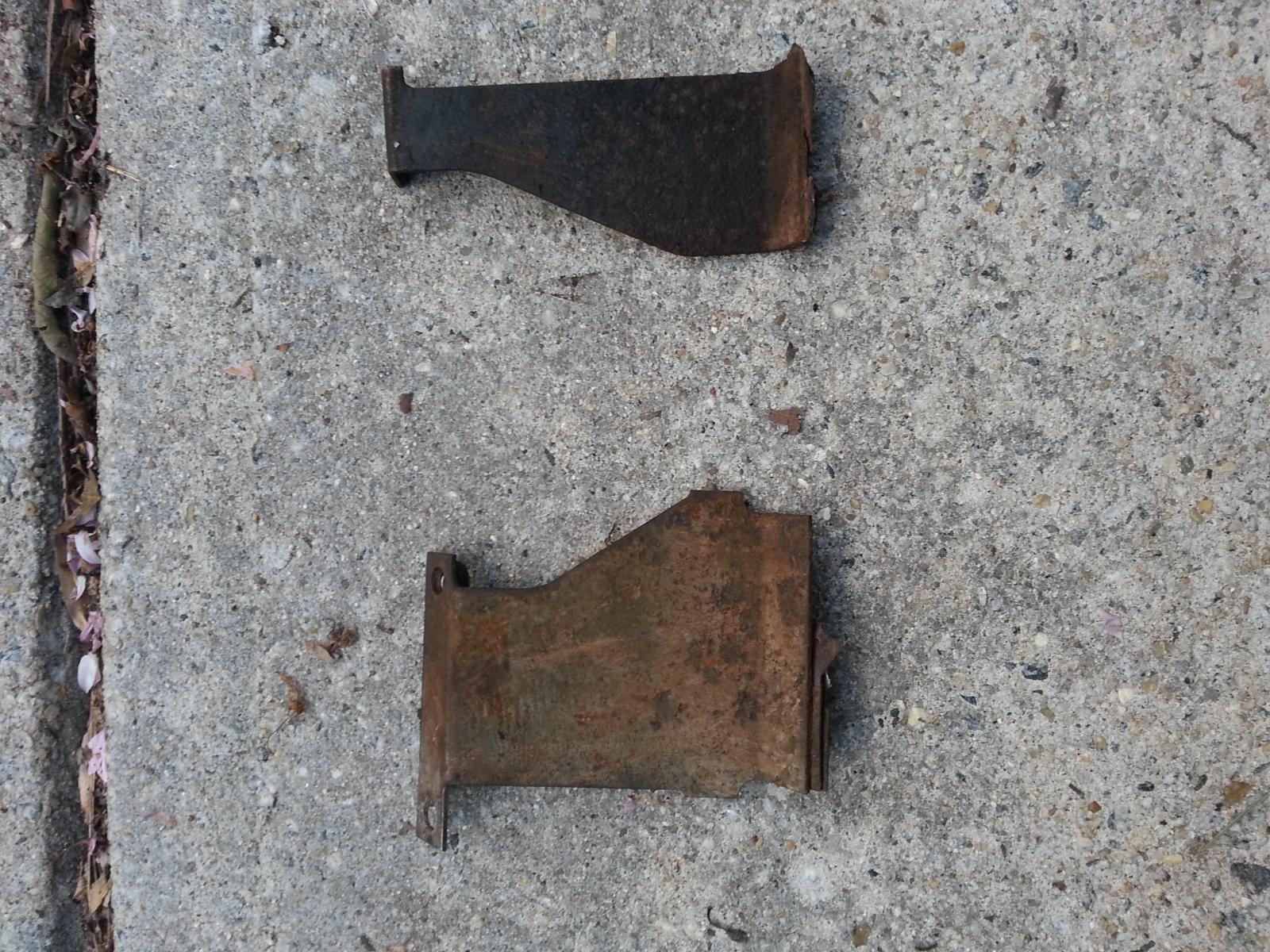

Up close shots of the brackets, but looking back on my dimensions I didn't measure how far they are from each ends or each other, but hope it helps someone fabricate them
_________________ Rebuild your own FI Harness..My Harness
77 Westy 2.0L Rockin and Rolling Resto!
72 Sportsmobile (sold)
79 Tran$porter... Parts car money machine (gone) |
|
Back to top |
|
|
jure-slo Samba Member
Joined: November 06, 2009 Posts: 245 Location: Slovenia (Europe)
|
Posted: Tue Feb 18, 2014 3:14 pm Post subject: |
|
|
Thank you for this...I have to make one. _________________ '79 Bay-window, 2.0, duals solexes, automatic
'76 Triumph spitfire 1500
'86 Polski Fiat
'72 Mercedes W115, 200D |
|
Back to top |
|
|
restocal63 Samba Member
Joined: November 05, 2006 Posts: 224 Location: Malta
|
Posted: Tue Apr 28, 2020 6:55 am Post subject: Re: 72+ Muffler Heat Shield Dimensions |
|
|
Sorry to revive an old thread.
I am manufacturing one made out of stainless steel, with the above dimensions as mine has long been removed, but cannot find the dimensions of the brackets.
Could you please possibly post me these? I only can find the length and width of the bottom parts which weld to the shield but no height. (65*16 mm and 44*16 mm)
Would be greatly appreciated as in Malta (Europe) I am the one of the few person swho run a type 4 engine in a bus and all the other buses are 1600.
Thanks in advance. Stay Safe. |
|
Back to top |
|
|
SLVRSRFR Samba Member
Joined: October 02, 2008 Posts: 154 Location: Guelph, On, CANADA
|
Posted: Tue Apr 28, 2020 12:31 pm Post subject: Re: 72+ Muffler Heat Shield Dimensions |
|
|

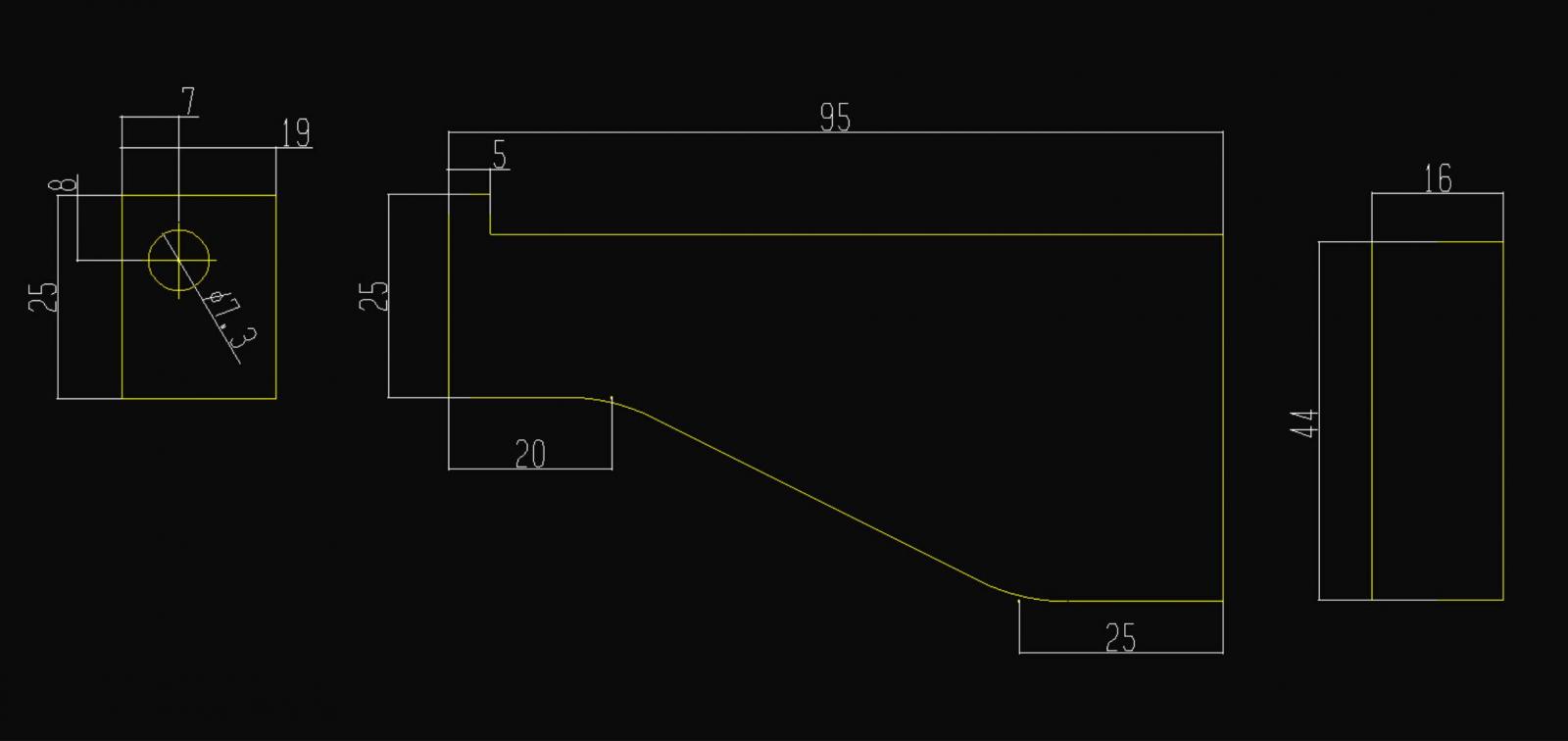

here is the first one
Sorry its so dark - hopefully you can see it.
_________________ Brian
'78 westy, '64 sedan |
|
Back to top |
|
|
SLVRSRFR Samba Member
Joined: October 02, 2008 Posts: 154 Location: Guelph, On, CANADA
|
Posted: Tue Apr 28, 2020 12:49 pm Post subject: Re: 72+ Muffler Heat Shield Dimensions |
|
|
Here is the second one
the bends on it are 45 deg.
the bends on the first bracket - top is 90 deg. and bottom is around 75 deg.
_________________ Brian
'78 westy, '64 sedan |
|
Back to top |
|
|
restocal63 Samba Member
Joined: November 05, 2006 Posts: 224 Location: Malta
|
Posted: Tue Apr 28, 2020 9:06 pm Post subject: Re: 72+ Muffler Heat Shield Dimensions |
|
|
Thank you very much for your time, it is highly appreciated, now I can complete this project |
|
