PostPosted: Sat Dec 14, 2013 1:39 am    Post subject: A Hot 2165 engine for my '71 panelvan (beehive valvetrain) Reply with quote

As you all seems to like engine building posts, and since I started to give some advices around here, in order to not to be considered as "keyboard dreamer" I decided to share with you my 2165 engine build for my bus.

So first of all the bus, '71 DD panelvan build for fun, and yes it's me in front of it.

Image may have been reduced in size. Click image to view fullscreen.


This is not my first engine, I started by the stock 1600SP and gone with a 1775SP, 1775DP, 2074 and now this 2165.

I've built several others engines for friends such as a 2007 hot street NA, 2007 turbo, 1835 TW camper cruiser...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


So now you know a little more about me, go for this 2165 engine, here are specs. No changes will be made as the engine is built and running and being tuned, I'll just share the build here.

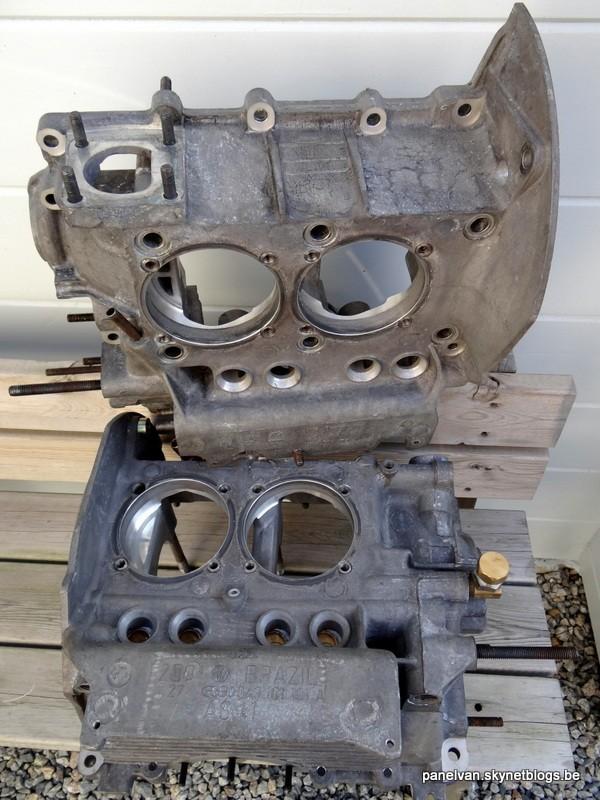

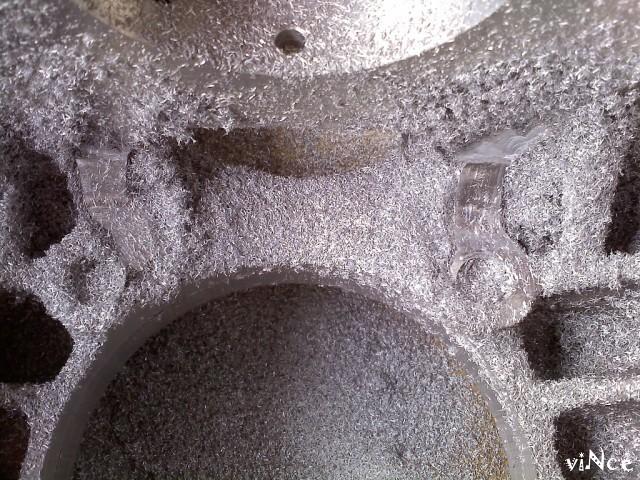

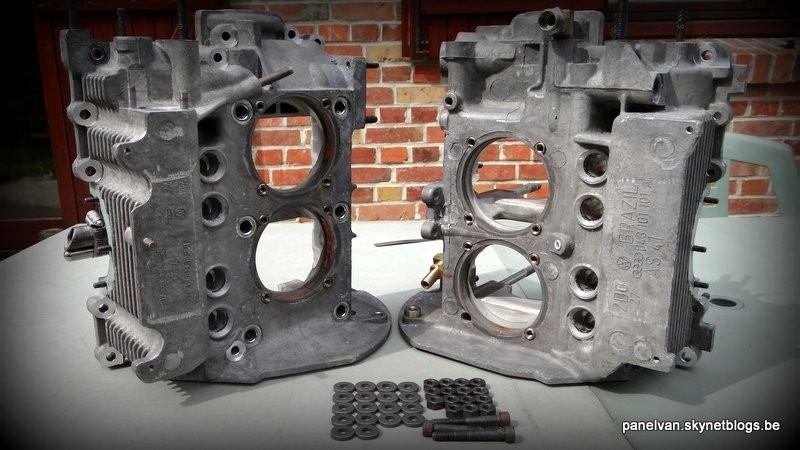

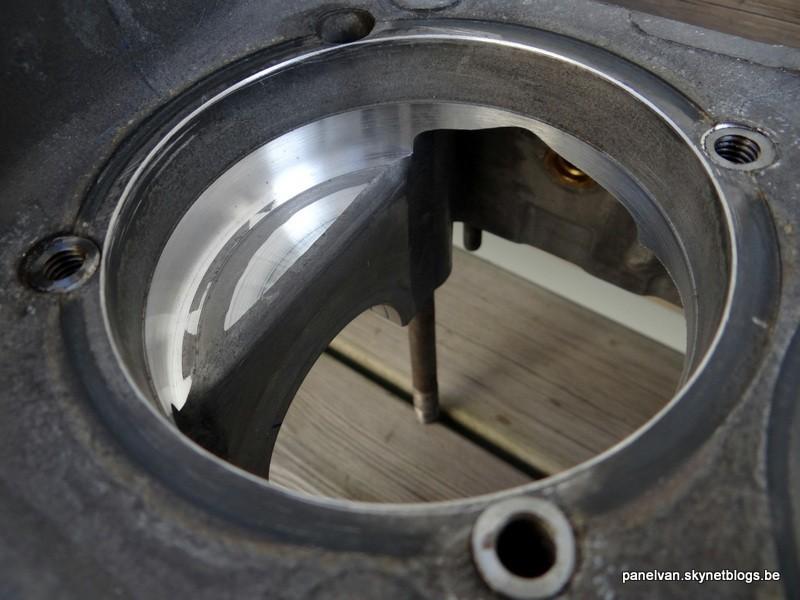

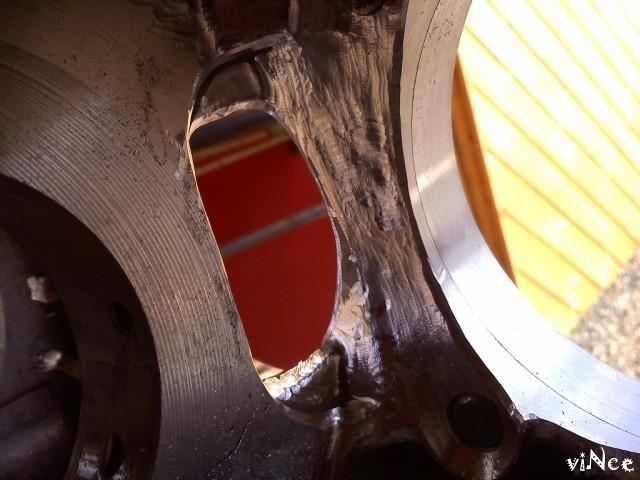

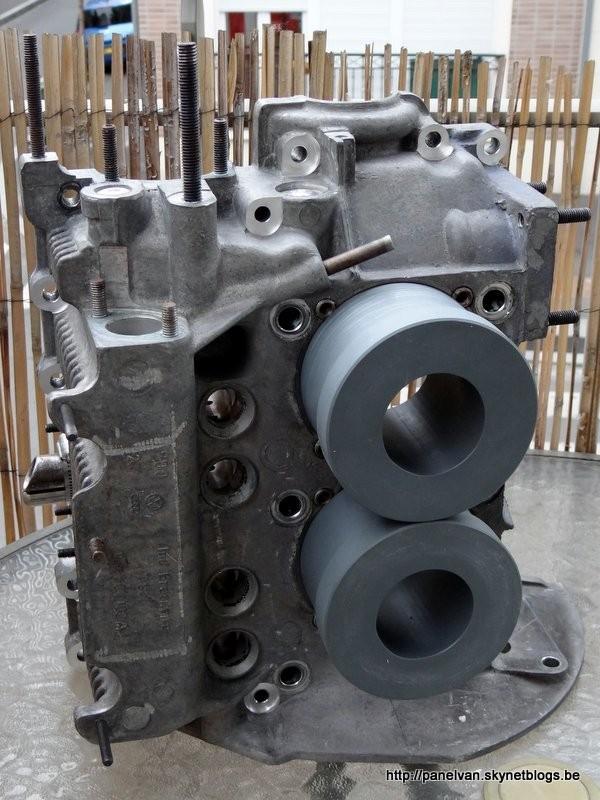

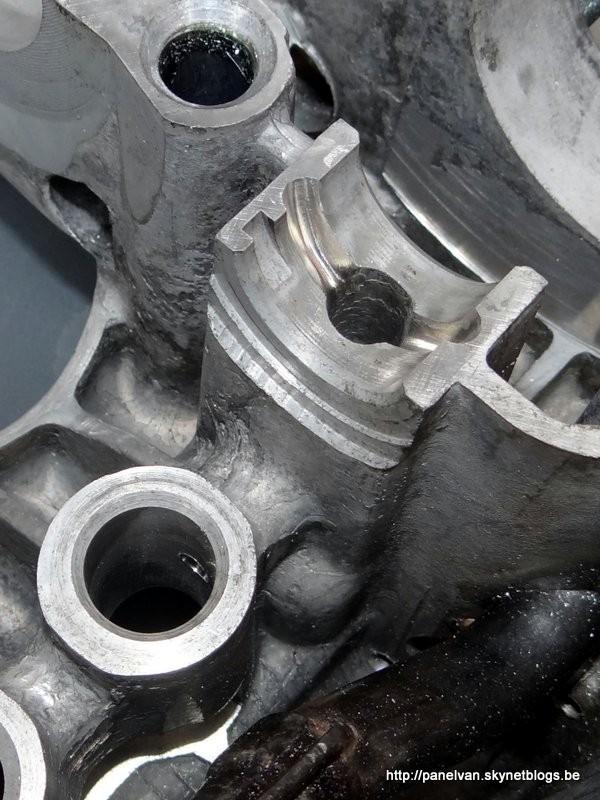

Case : Brazil AS41 mag case, 69*94, full flowed, hand cleared for stroker crank, Bob Hoover mod, 15mm heads nuts mod, sleeved lifter bores, #3 bearing saddle modified to put a second center bearing, all breathing passages massaged, breather vent on #3 cylinder.

Seals and sealing compounds : Victor Reinz seals, Elring silicon main seal, case closed with curil T paste, cylinders installed with RTV106 silicon, all fasteners torqued with ARP lube. All parts lubed with torco MPZ, Cam Shield paste on cam and lifters, Total seal rings sealing compound.

Crank : 78 mm Flat4 4340 forged chromoly, VW mains, VW rods, steelbacked NOS K&S bearings, 36 mm chromoly gland nut, machined for 11/32" dowels.

Flywheel :

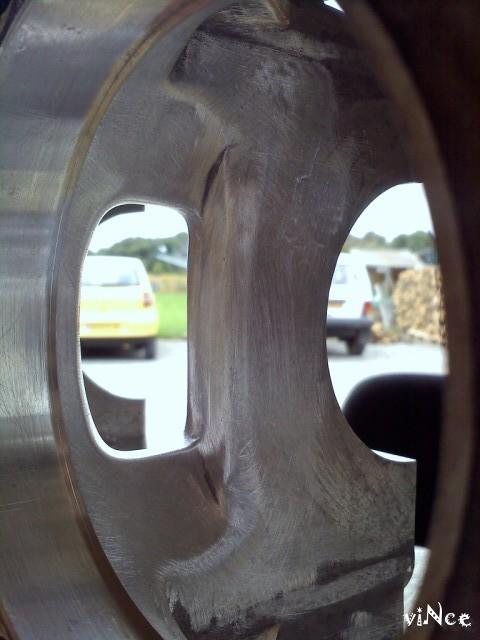

NOS stock 200 mm flywheel, stock weight, 8 doweled.

Clutch : Kennedy stage 1, ACE copperhead disc

All parts balanced with gears installed on crank

Rods : DRD 5.4" i-Beams, 3/8" ARP 8740 bolts, end to end blanced, "oil squirters" modified, Clevite77 bearings.

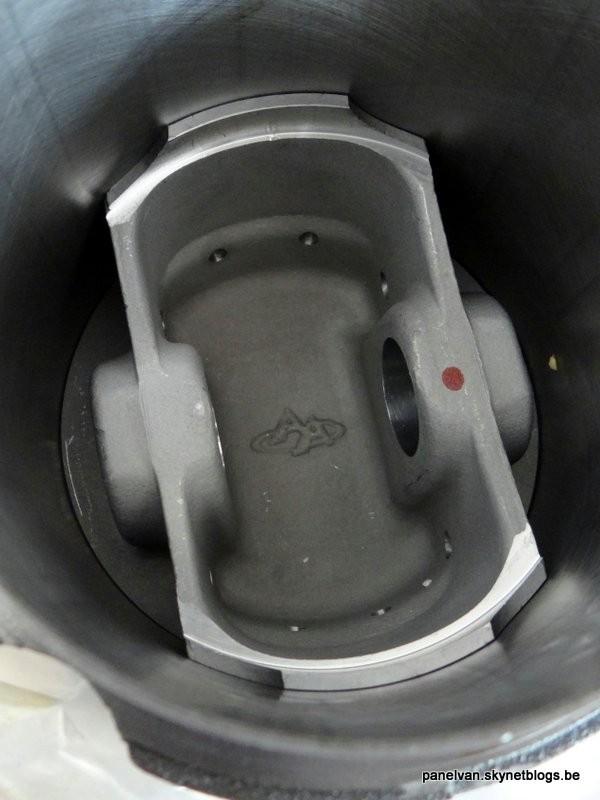

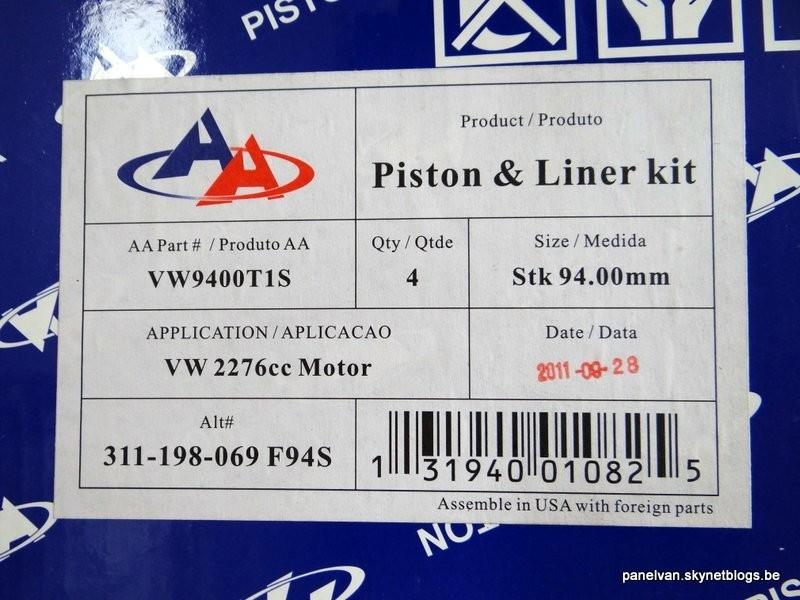

Pistons and liners : AA performance 94 mm , B stroke, balanced, Berg clips, #1213 CB performance tool steel light wrist pins shortened for slipper skirts pistons, Deves rings, CBC-1 coated tops.

Cam : Engle FK44, deburred, Magnum straight cut gears, Clemex dual trust bearings.

Lifters : 56g Torsten Pieper 28 mm tool steel lifters.

Pushrods : Smith brothers Aluminum, oil squirters modified ala Ray Vallero Jaycee pushrods tubes.

Rockers : 1.4:1 CB performance, matched weights

Heads : Die cast China casting Steve Tims Stage 2 heads, ordered bare, un-machined for dual springs, 3 angles valve job, CBC-1 coating in chambers and exhaust ports.

Valves : CB racemaster #1372 42 mm intake valve, #1370 38 mm exhaust valve, 2 angles job, CBC-1 coated.

Valve springs : Comp Cams #26125 Beehive springs

Retainers : Titanium Comp-Cams #762.

Valve locks : Forged Chromoly Comp-Cams #628.

Lash caps : Comp-Cams #619.

Manifolds : Bugpack #1038 match ported by Greg Tims

Valve covers : Scat stainless steel, oil drain from 3/4 cover to deep sump.

CR : 9.47:1, 0.04" Deck, 57 cc chambers

Oiling : 30 mm Brosol oil pump, fully massaged and blue printed, full flowed, GB239B bypass Berg cover, K&N HP3001 filter, Racimex Oil Thermostat, external oil cooler. Stock dog house oil cooler. 1.5 qt Scat sump, Bugpack oil succion kit, Jaycee billet magnet oil sump plate.

Cooling : Scat 36HP dog house shroud, welded and balanced OEM VW fan, Awesome powdercoat venturi ring.

Exhaust : 1"5/8 stainless steel A1 Sidewinder Header, 2"1/2 A1 magnalfow muffler, lambda bung option.

Ignition: Pertronix billet distributor with ignitor 2 ignition module, Pertronix flame thrower 2 coil, #2003 CB magnaspark II spark plugs wires, Pertronix second strike ignition box, NGK DCPR7E plugs.

Carburation : Dual dellorto 48 DRLA carbs 38 venturies, #7348 CB dellorto jets doctors, currently being tuned so no jets sizes for now. Facet gold flow #480532E fuel pump, 8mm lines, king fuel pressure regulator, home made cable linkage.

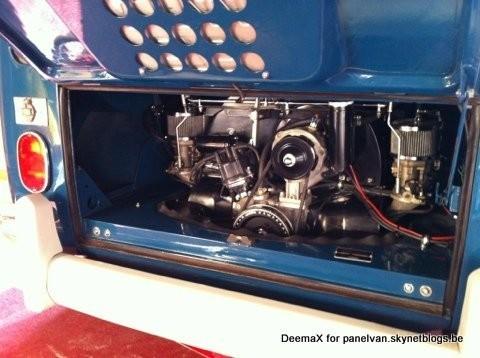

Here is the completed engine :

Image may have been reduced in size. Click image to view fullscreen.


I gonna detail you the entire engine build, part receptions, parts prep, engines moke ups, final assembling and cam breaking, so be warned, lots of pics coming Wink
_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink


Last edited by vince1 on Sun Aug 16, 2020 12:04 pm; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
fivelugshortaxle
Samba Member


Joined: May 13, 2011
Posts: 4254
Location: Aumsville, Oregon
fivelugshortaxle is offline

PostPosted: Sat Dec 14, 2013 6:12 am    Post subject: Reply with quote

Good looking motor....The bus has a nice, nose down stance. Killer

I'll be paying attention to the rest of this thread...very similar to my build...even if mine has changed to this and that and whatever.
_________________
Good things come to those who wait.
2332 with lots of goodies....
Rotating assembly balanced by Brothers VW
4340 84mm crank
AA 94mm p&c' s
Total seal 2nd ring, rest are Grants
5.5 h beams
Magnum straight cuts
Steve Long XR310 on a 106
CB 1.4 rockers
CB Magnaspark 2 distributor
NGK D7ea plugs
A1 lowdown 1 3/4 with single muffler
Dellorto 48's with 40 venturies
Kennedy Stage 2 with Daiken disc
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
jfats808
Samba Member


Joined: December 10, 2007
Posts: 5022
Location: oahu hawaii
jfats808 is offline

PostPosted: Sat Dec 14, 2013 7:01 am    Post subject: Reply with quote

Im happy to see you putting a 94mm piston based engine in a bus. Ive done it a few times already and no problems with overheating on customers builds. Hell, I have to call them to inquire on how it runs after they PCS-ed. Press on!
_________________
2276 IDA's 86C 11-1 DD !
2017 48 Trijet DRLA's W125

Rockstar Suzuki wrote:

You might as well put 10 year build in your bullshit sig, as it will NEVER run. Also your a dick

You can always learn something new, even from a fool.
Check your oil levels routinely!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 5911
Location: central rust belt
esde is offline

PostPosted: Sat Dec 14, 2013 7:30 am    Post subject: Reply with quote

I look forward to seeing more progress, I have used your skynet blogs for reference many times. The level of detail in your work and documentation is not often seen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vince1
Samba Member


Joined: December 14, 2003
Posts: 823
Location: Burgundy, France
vince1 is offline

PostPosted: Sat Dec 14, 2013 12:18 pm    Post subject: Reply with quote

Thanks for your replies, I'm glad to see some followers here!

So go for all new parts collected for this build. I started this engine from my old 2074c which served me well for over 18000 miles.

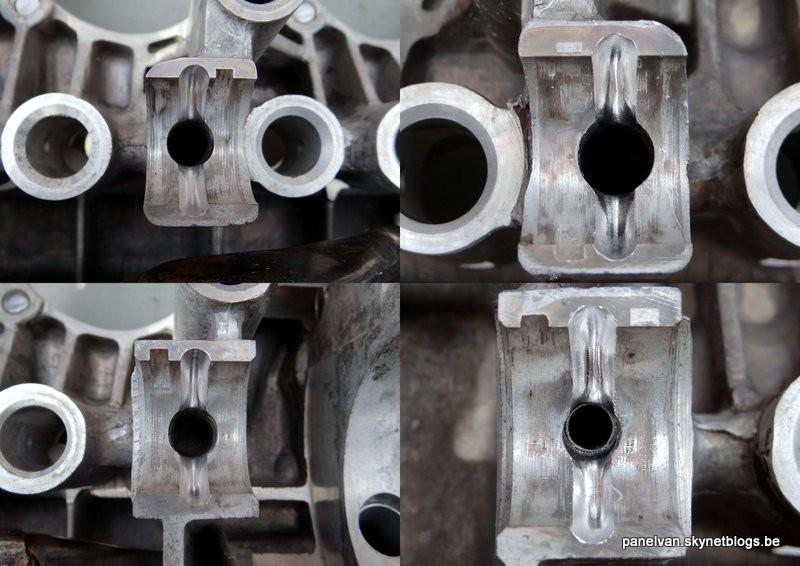

The only parts kept from my 2074 are the case, oil pump, crank, flywheel, clutch, damper pulley, rods Scat chromoly heads studs and CB breather box , exhaust and ignition, all other parts are new.

So let’s go to detail them in the order I received those.

First of all, magnum straight cut cam gears, best quality as CE are randomly available.

Image may have been reduced in size. Click image to view fullscreen.

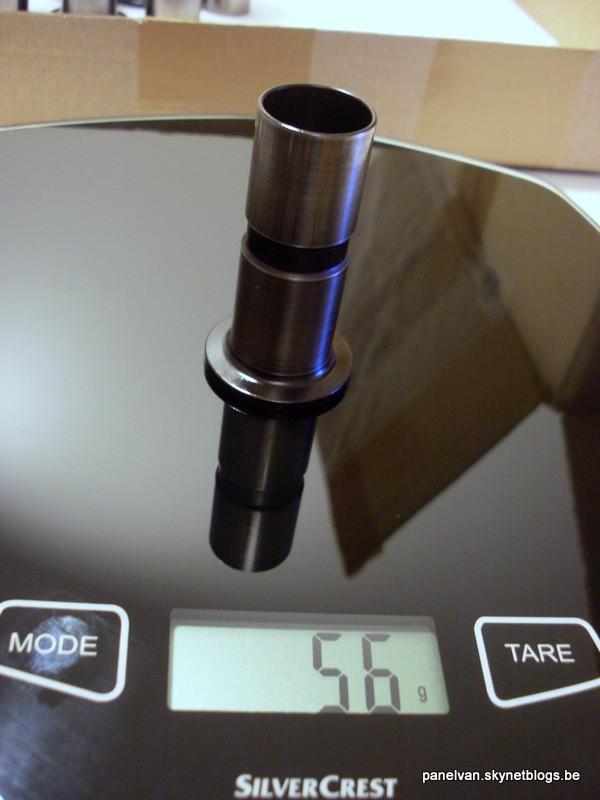

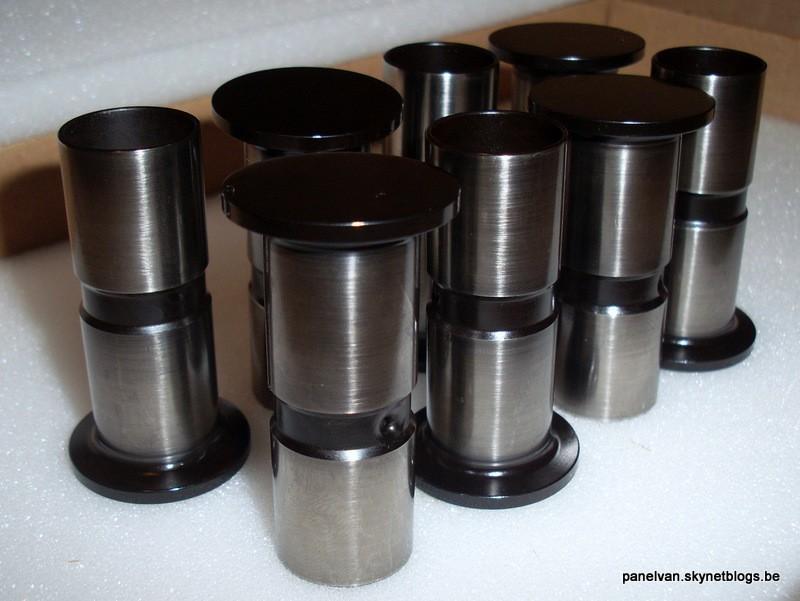

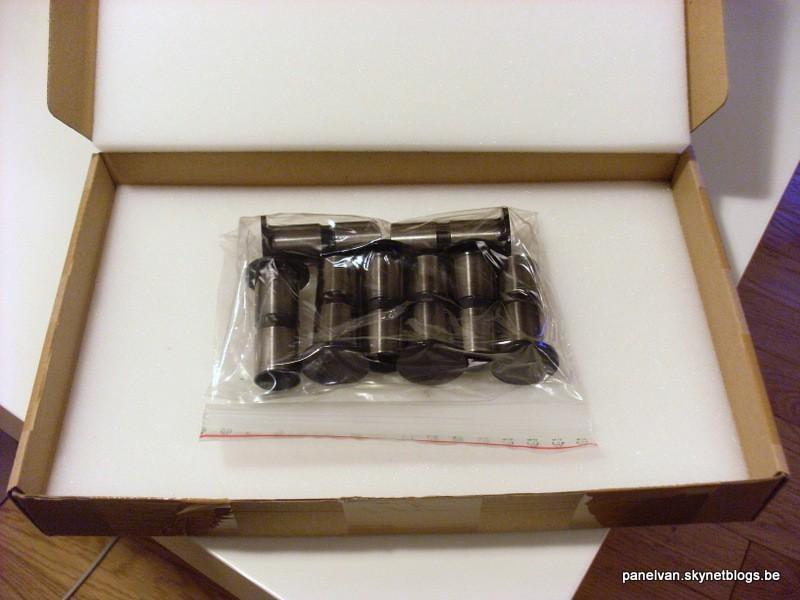

Torsten Pieper 56g tool steel lifters

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

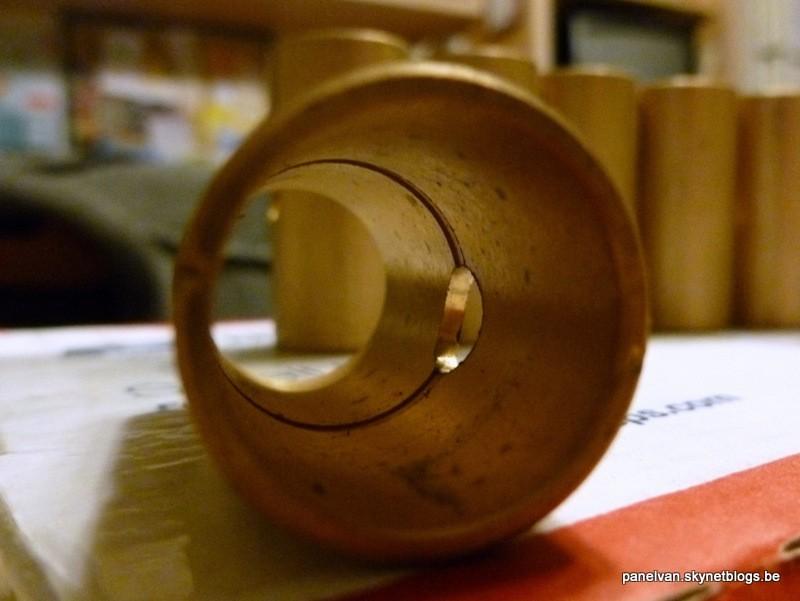

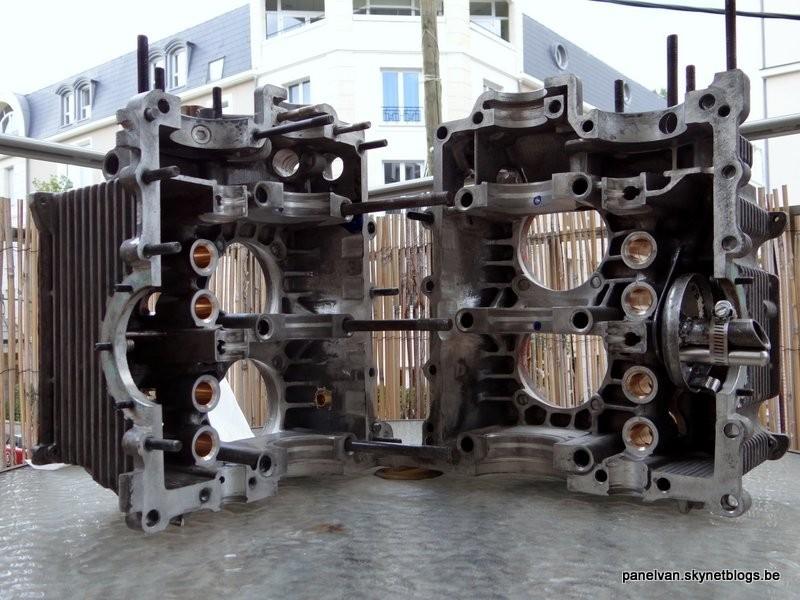

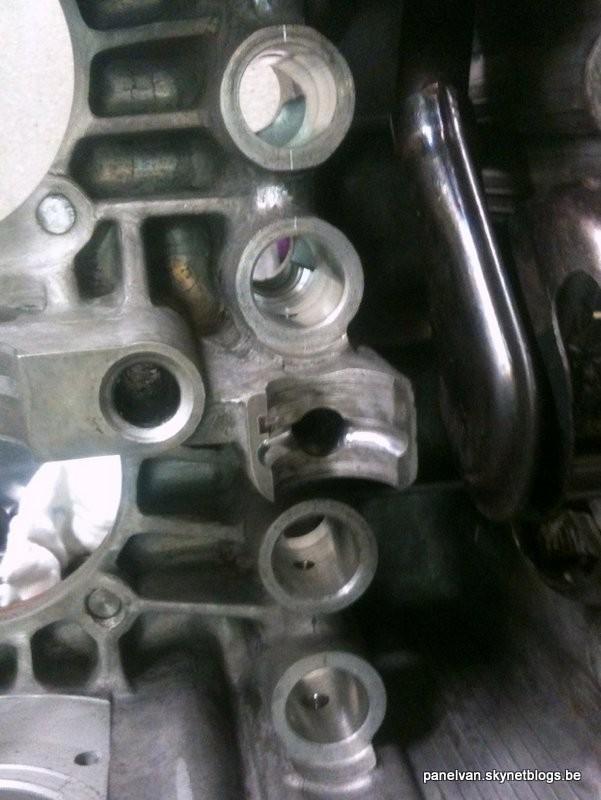

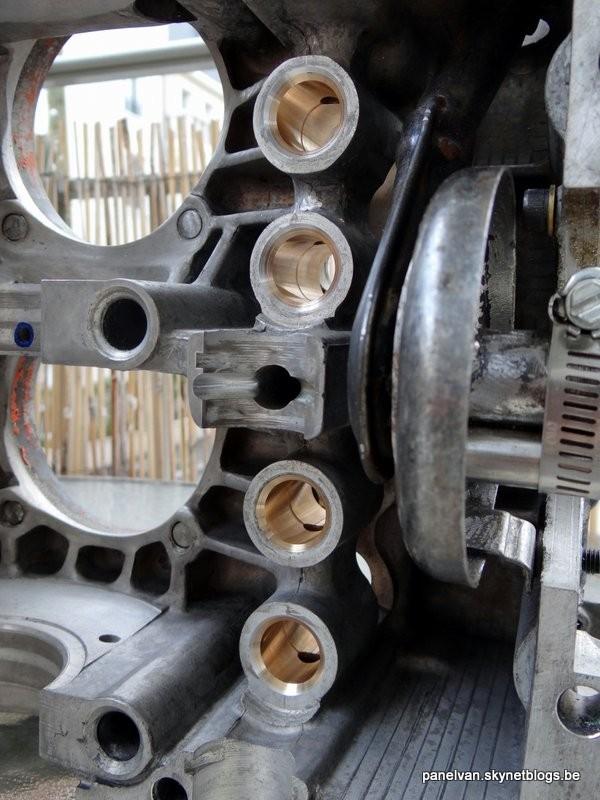

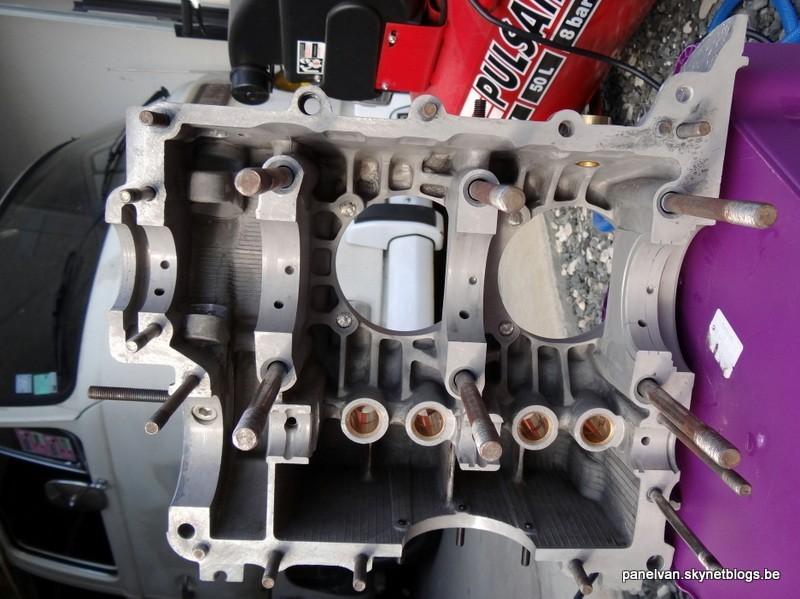

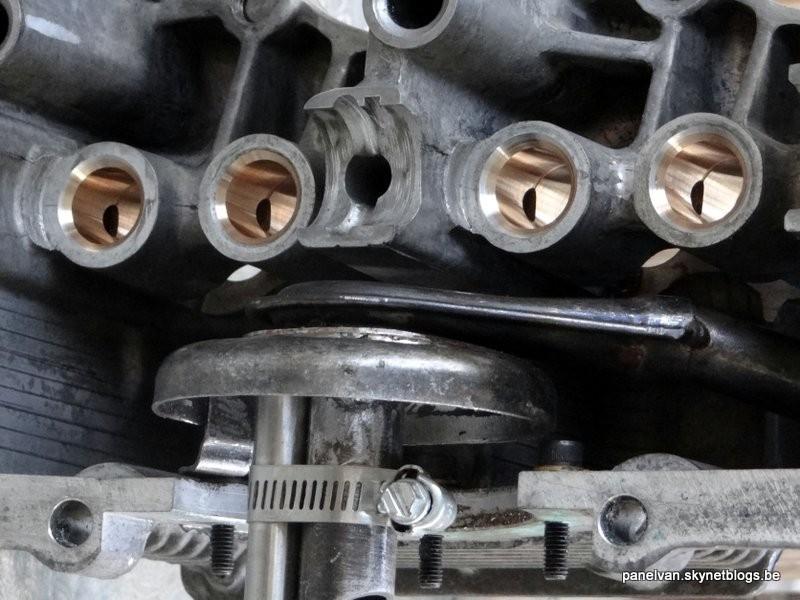

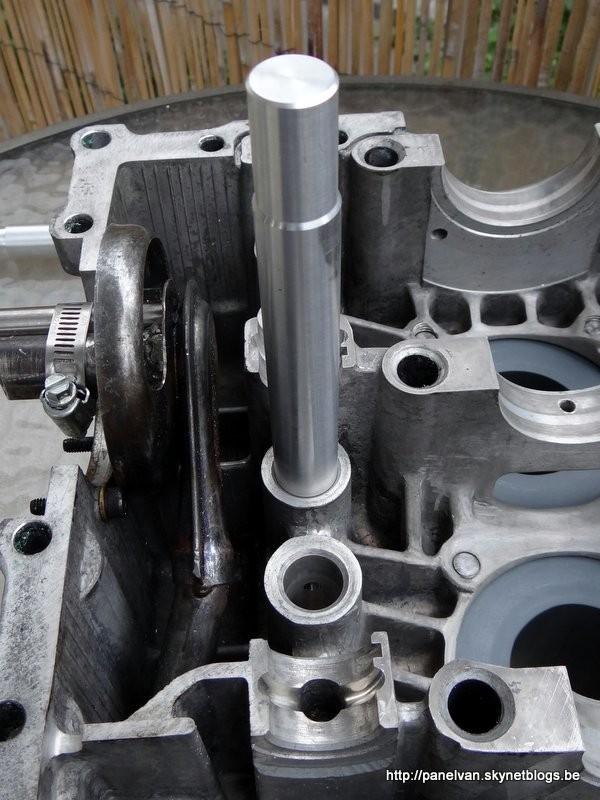

Followed by some nice Rocky Jenning lifter bores sleeves.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

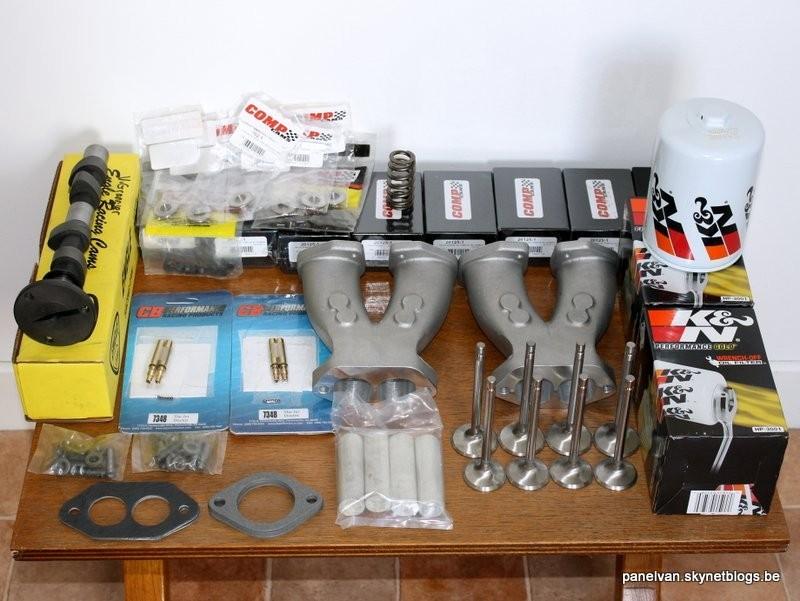

Most awaited box from States ! It contains all my new valve train parts except my pushrods as I’ll have to make my valve train geometry to order them custom cut.

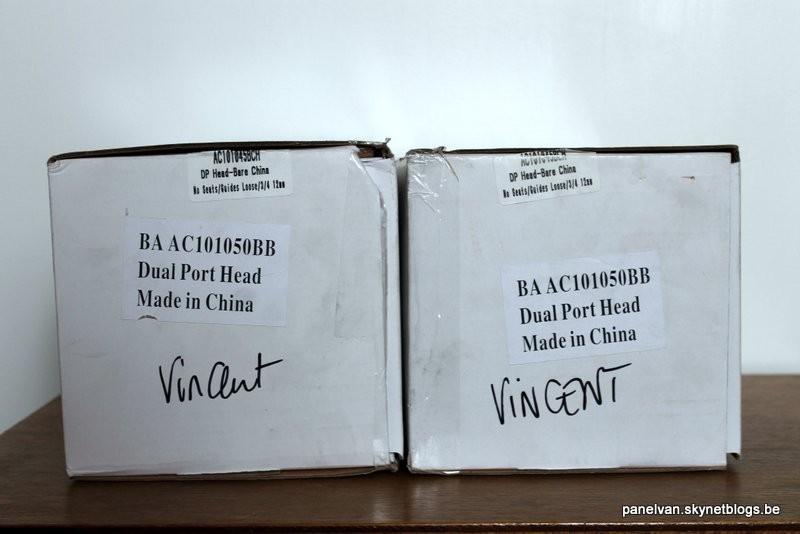

So here is my order from Steve and Greg Tims containing my heads, FK44 cam, CB Dellorto Jets doctors, CB racemaster valves, CB lightweight wrist pins, and a Summit order containing all my Comp Cam hardware and two oil filters.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

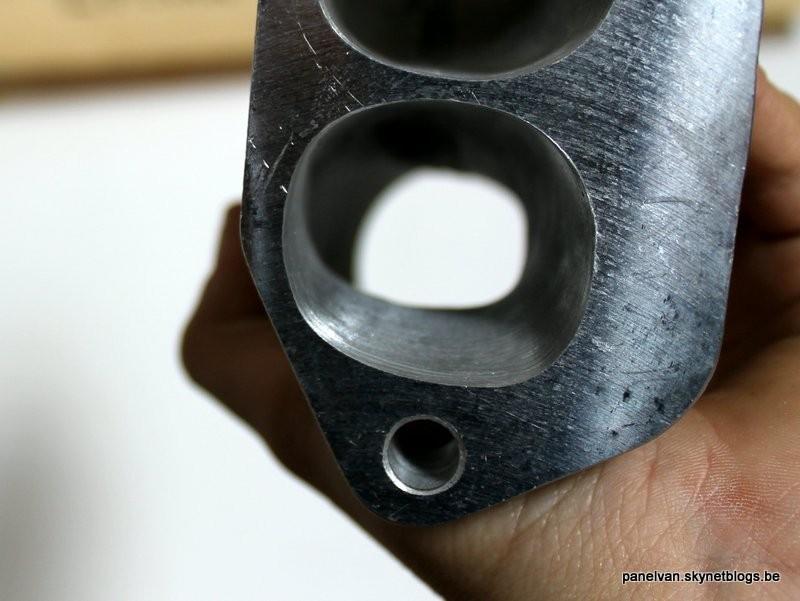

Bugpack #1038 manifolds match ported by Greg Tims.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Nice straight shot!

Image may have been reduced in size. Click image to view fullscreen.


CB racemaster valves which are interesting for my beehive springs setup. I needed longer valves with a single groove with an 8 mm stem to go with my heads. But as those have an 8 mm stem, they have a 5/16” tip which offered me more choice for valve locks and retainers in US cars catalogs.

Image may have been reduced in size. Click image to view fullscreen.


Comp Cams valve locks suited for my valves no need to trim them as with vw ones they don’t touch each other…

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Comp cams Ti retainers look how they are smaller than a std VW one :

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


[
Image may have been reduced in size. Click image to view fullscreen.


Comp Cams Caps, with tight fit on valves, better product than what we can find on VW market

Image may have been reduced in size. Click image to view fullscreen.


All fit together, it was a big stress for me as I don’t feel very good with US units !

Image may have been reduced in size. Click image to view fullscreen.


Comp cam beehive springs, they look nice with a very fine grain

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

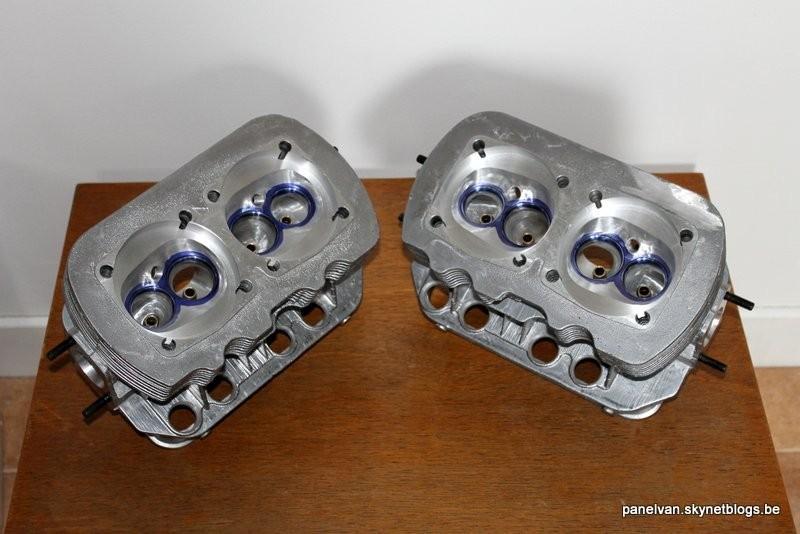

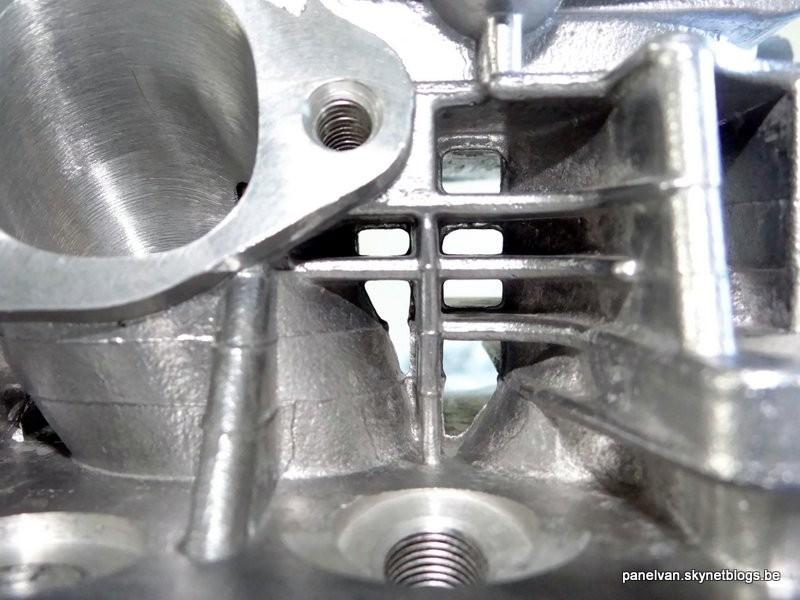

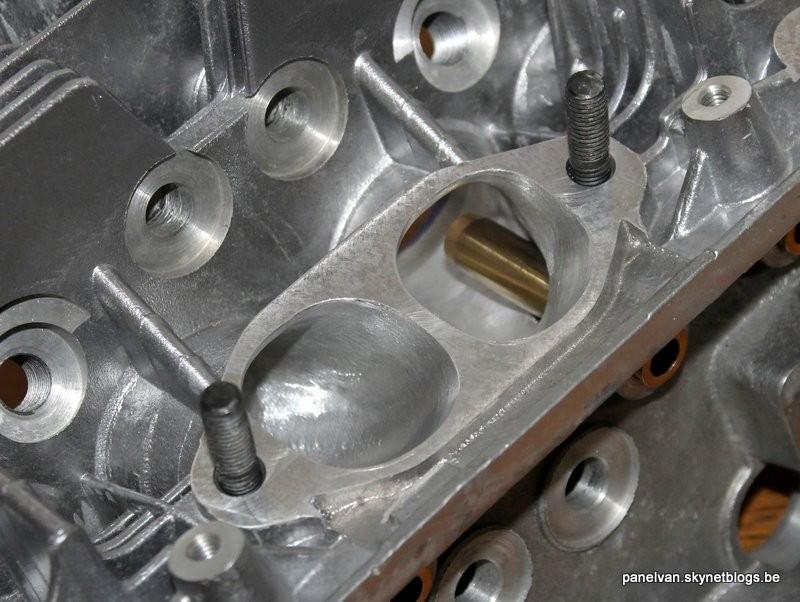

Now my heads, Steve tims stage 2 based on China Die cast castings, which benefit of 12 mm plugs and very clean and large air passages.

Image may have been reduced in size. Click image to view fullscreen.


Hum nice !

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

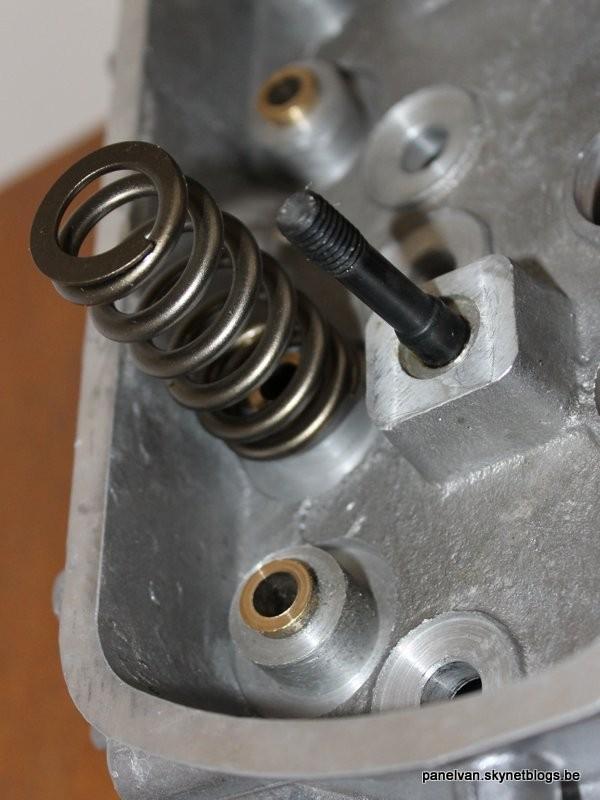

Came uncut for dual springs as I’ll cut them to my springs size.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Nice ports !

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And clean casting !

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

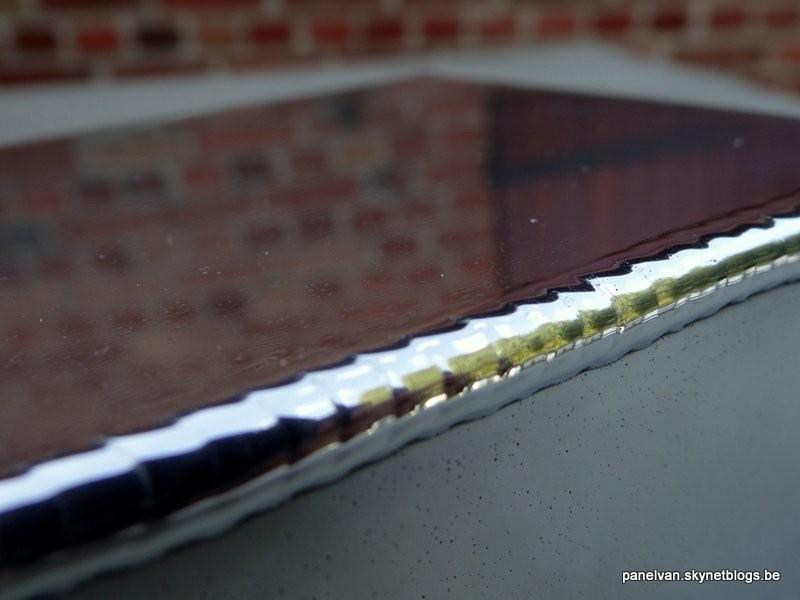

Scat valve covers

Image may have been reduced in size. Click image to view fullscreen.

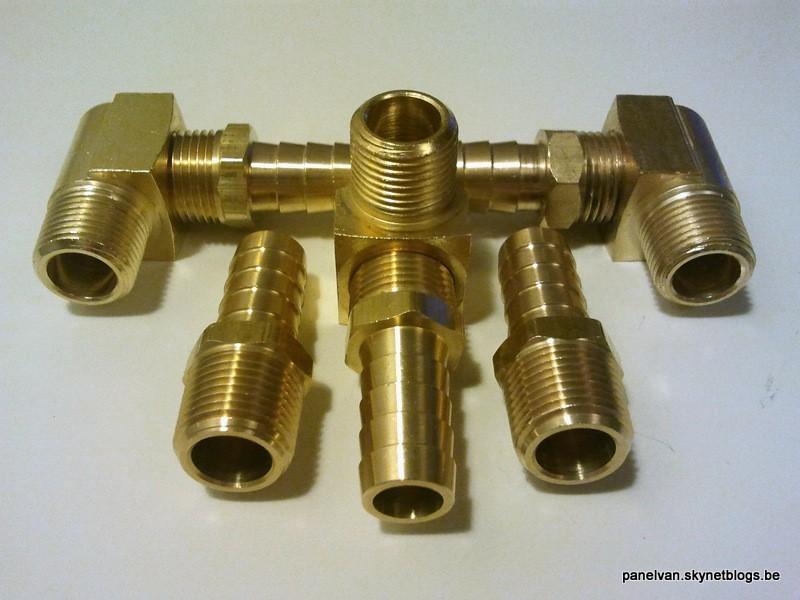

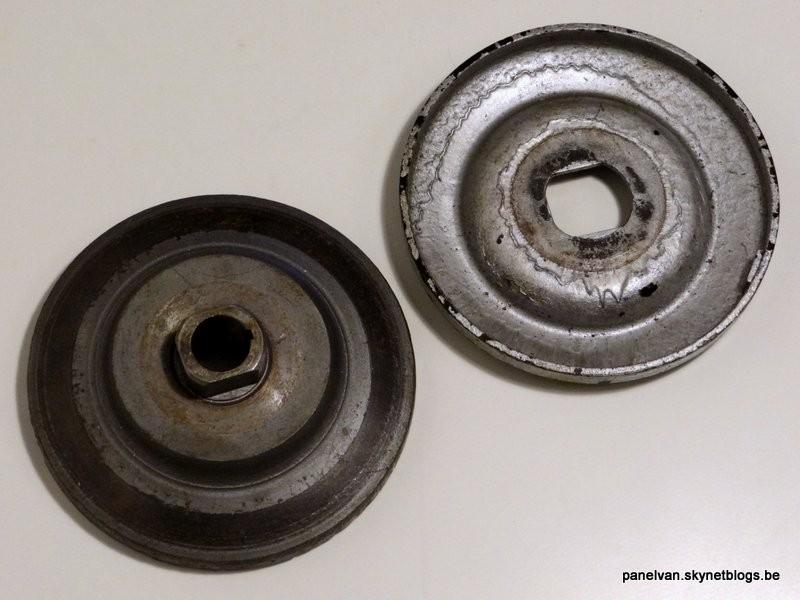

Some small accessories … 11/32” dowels, 15mm head nuts for my case, OEM balanced generator pulley, fittings…

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

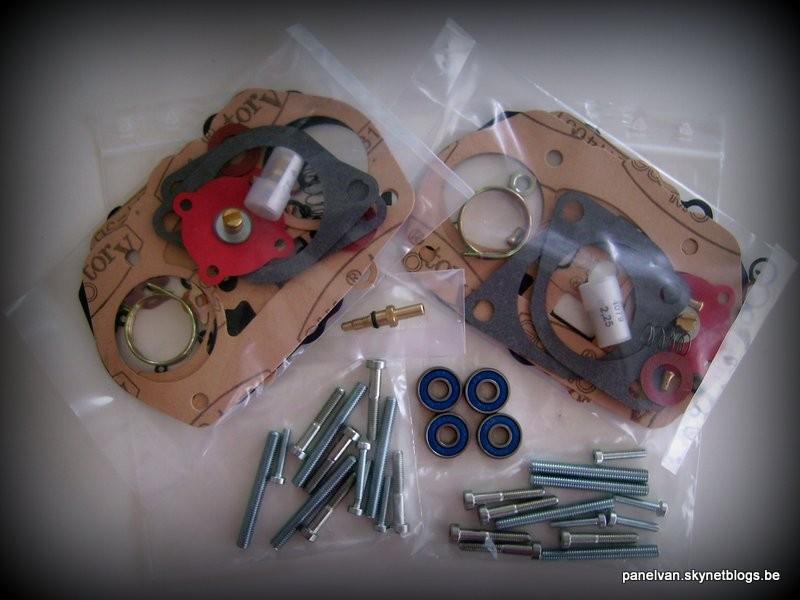

Dellorto carbs rebuild kits and new shaft bearings.

Image may have been reduced in size. Click image to view fullscreen.

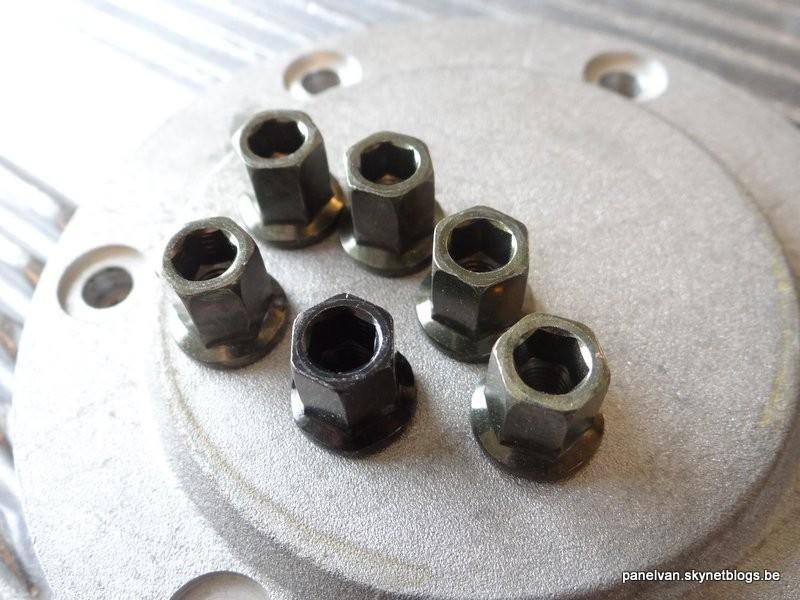

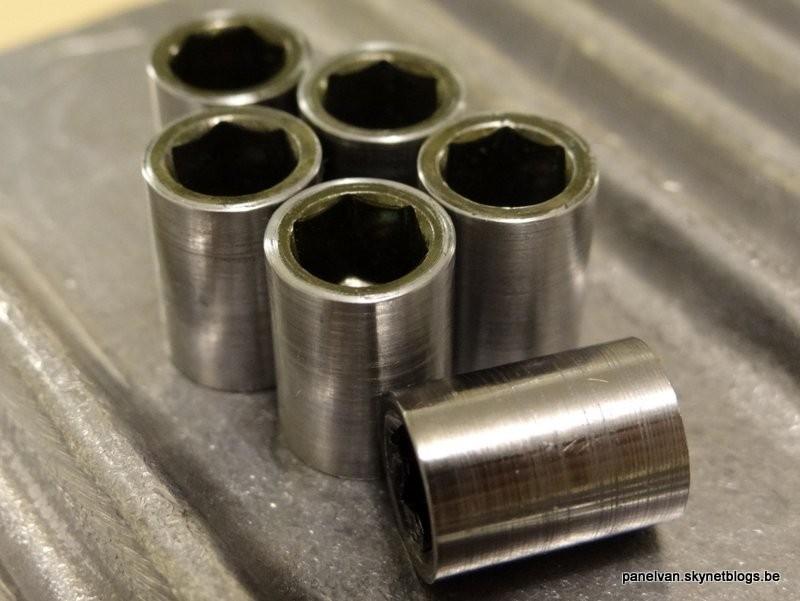

Some others bits like those 15 mm head nuts to tighten my rockers arms.

Image may have been reduced in size. Click image to view fullscreen.


2 Clemex cam bearing kits to make one dual thrust kit.

Image may have been reduced in size. Click image to view fullscreen.


Clevite 77 rods bearings.

Image may have been reduced in size. Click image to view fullscreen.

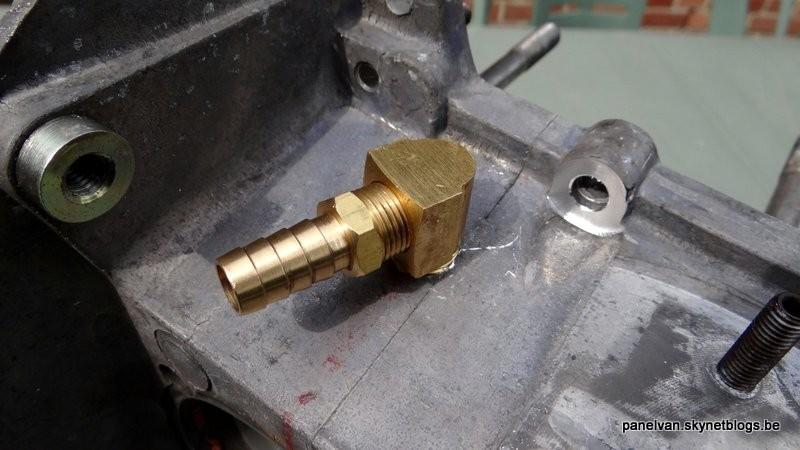

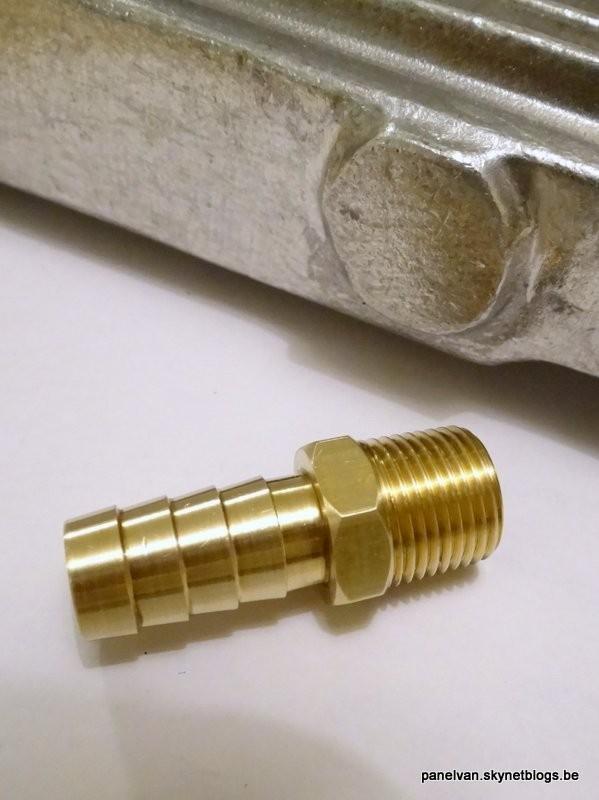

Oil drain to sump.

Image may have been reduced in size. Click image to view fullscreen.

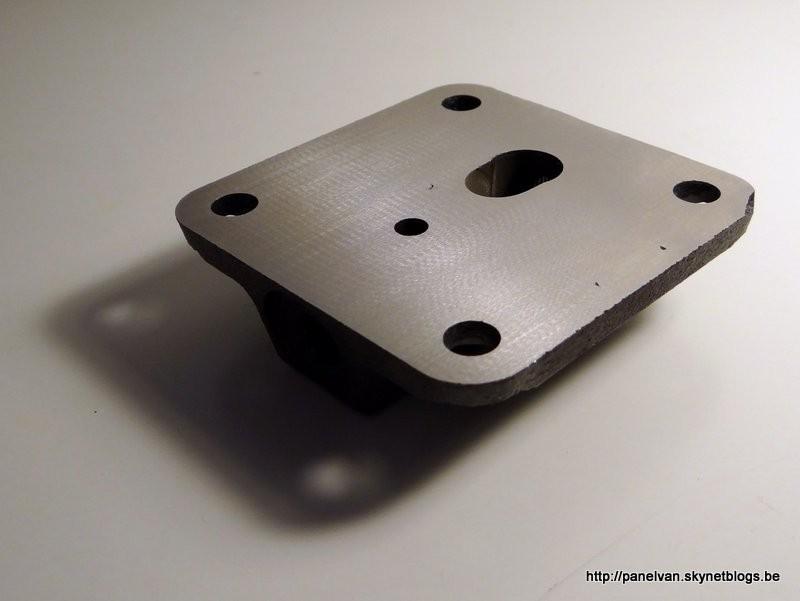

Berg oil pump cover, freshly reground.

Image may have been reduced in size. Click image to view fullscreen.


A pair of 48DRLA bought here on The Samba, they’ll be completely overhauled.

Image may have been reduced in size. Click image to view fullscreen.

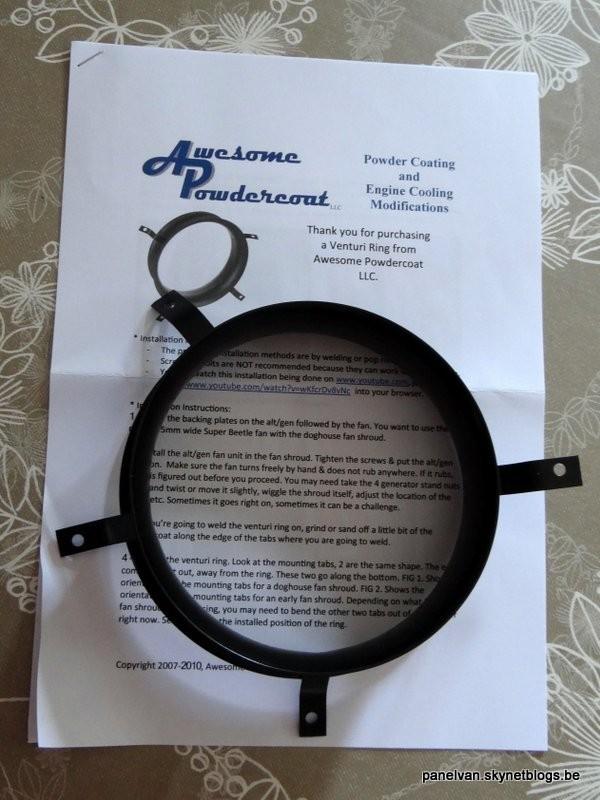

Awesome powdercoat venturi ring.

Image may have been reduced in size. Click image to view fullscreen.


Some tools, shims and fasteners…

Image may have been reduced in size. Click image to view fullscreen.


KS NOS steelbacked bearings with another NOS center bearing to put behind cam gear.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


A small box from aircooled.net containing Deves rings and Total Seal Quick seat compound.

Image may have been reduced in size. Click image to view fullscreen.


Some riffle cleaners to clean my oil galleys.

Image may have been reduced in size. Click image to view fullscreen.

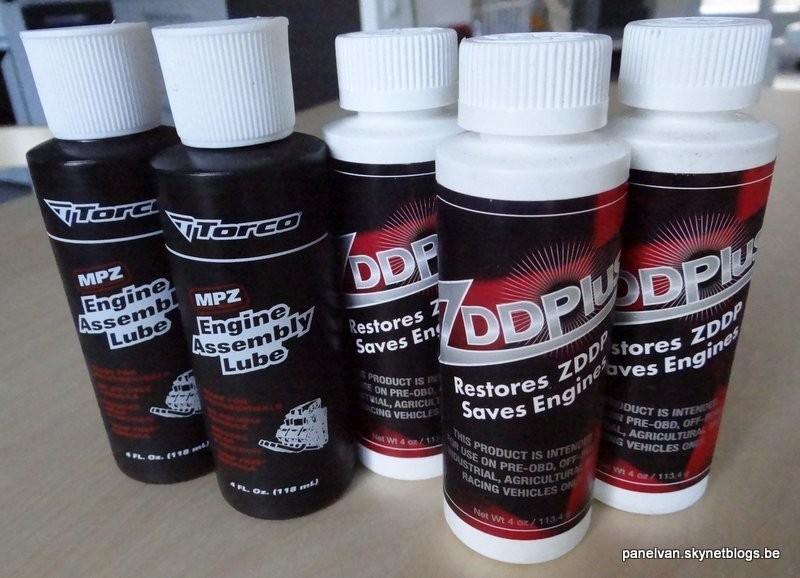

Some lube !

Image may have been reduced in size. Click image to view fullscreen.

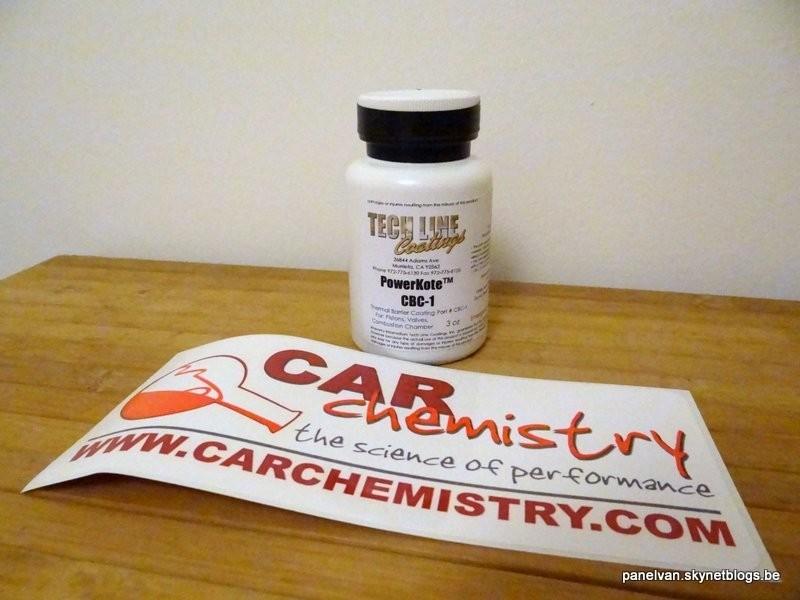

Some coating!

Image may have been reduced in size. Click image to view fullscreen.


New AA pistons and liners.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


with berg clips ...

Image may have been reduced in size. Click image to view fullscreen.

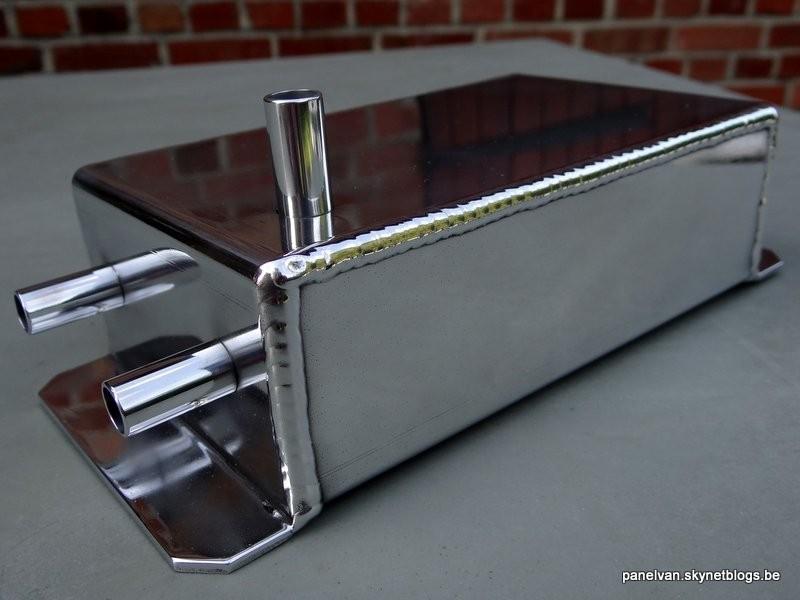

A nice custom breather box from Travis L bought here on The Samba.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Nice welds!

Image may have been reduced in size. Click image to view fullscreen.


Oil suction kit and other bits…

Image may have been reduced in size. Click image to view fullscreen.


Scat thin sump :

Image may have been reduced in size. Click image to view fullscreen.

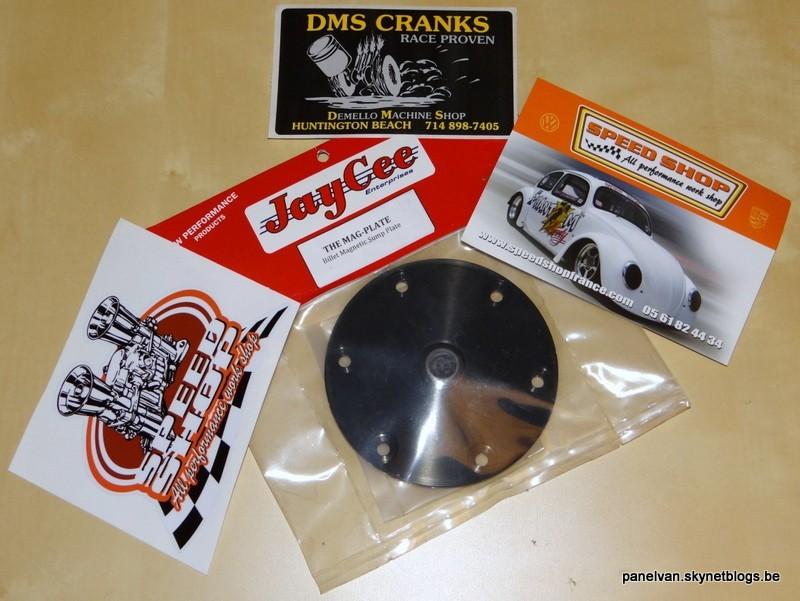

Jaycee Mag sump plate.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


A 600 grit Flex hone to finish my liners, with flex hone oil.

Image may have been reduced in size. Click image to view fullscreen.


CNC 38mm chokes for my carbs :

Image may have been reduced in size. Click image to view fullscreen.


Another small box of CB stuff.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


So now we have a good bunch of parts, let’s go to have a good prep on them!
_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink


Last edited by vince1 on Sun Aug 16, 2020 12:30 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 5911
Location: central rust belt
esde is offline

PostPosted: Sat Dec 14, 2013 12:50 pm    Post subject: Reply with quote

now you're just showing off! Wink
That will be a very nice build. When you pay for international shipping I guess it pays to order everything in one shot, eh? I'm eager to see the valves and springs assembled into the heads. How do those compare to Bugpack or CB duals?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vince1
Samba Member


Joined: December 14, 2003
Posts: 823
Location: Burgundy, France
vince1 is offline

PostPosted: Sat Dec 14, 2013 1:46 pm    Post subject: Reply with quote

For shipping, it depends on the size of the box, for small package, I pay about $15 by USPS, with the $/€ rate, it's very interesting.

For larger packages, I go with Vintage Autohaus in France, it's a cool company leaded by two good friends K-Rot and T-Fabs. Fabs is based in California (DKP member) and can collect parts for us then put them in containers to France. It take some time, but when you are not in a hurry, it's cheap.

http://www.vintageautohaus.com/
http://vintage-autohaus.skynetblogs.be/

For the springs, you'll see them installed later Wink

Spring rates are similar to some light duals, but with their beehive shape and the ultra light valve train, they can handle RPMs without the stress of a heavy valve train, resulting in less noise, less wear and more power !

Here are the specs (click on pic to see it bigger)

Image may have been reduced in size. Click image to view fullscreen.

_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
MURZI
Samba Member


Joined: August 25, 2005
Posts: 5063
Location: Madisonville, La
MURZI is offline

PostPosted: Sat Dec 14, 2013 3:31 pm    Post subject: Reply with quote

How do you like the cam?? Torquey huh??
_________________
62 vert
2276
Tim’s welded heads
45 Dells
A1 sidewinder
Fk44 cam
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vince1
Samba Member


Joined: December 14, 2003
Posts: 823
Location: Burgundy, France
vince1 is offline

PostPosted: Sun Dec 15, 2013 4:01 am    Post subject: Reply with quote

Yep Murzi this is a cool cam, I wonder how would it be on a light beetle through Wink

So first big part of the build, case prep!

I started by measuring it, why make all mods on a dead case? After checking main and cam bore, I starter unplugging all oil galleys and tapped them to 3/8” NPT, ¼” NPT and 1/8” NPT plugs, pretty basic but it take some time and I prefer having opened oil galleys before putting mag chips in.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


After that it was time to put my crank and rods in to make some room. I like to do this by hand so I can remove just what I have to remove. Why have a case stocker cleared for a 84 crank when you only put a 78 crank in it?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


After my crank was rotating freely it was time to work on breathing system. Here it is raw … and finally sanded with 80 grit paper.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And finally sanded with 80 grit paper, about 20 hours prep at this stage.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Next is the oil evacuation at cam gears housing that needed some massaging.

Image may have been reduced in size. Click image to view fullscreen.

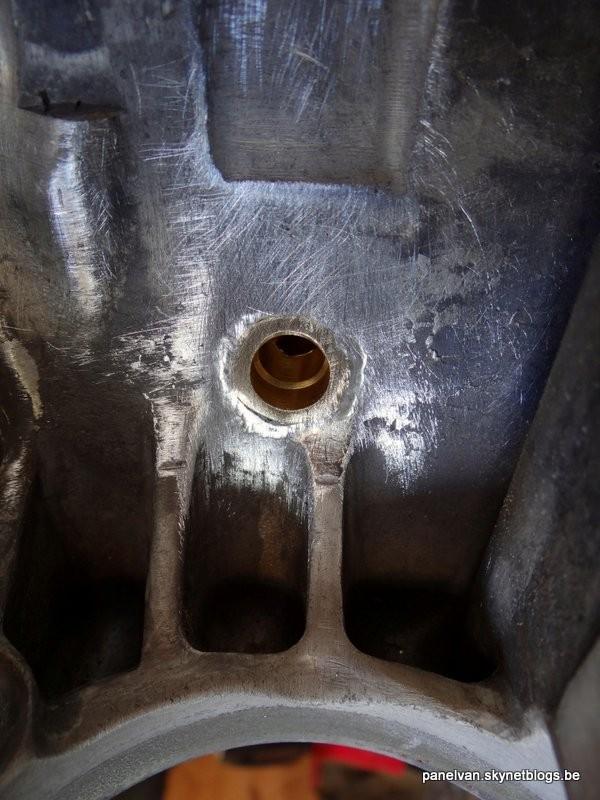

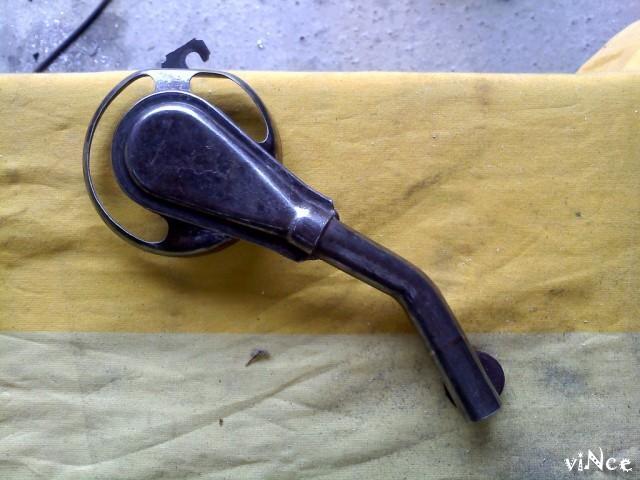

The Brazil crappy oil pick up tube is changed for a German one, oil sump extension is welded on, and I cut some holes to help oil drain.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

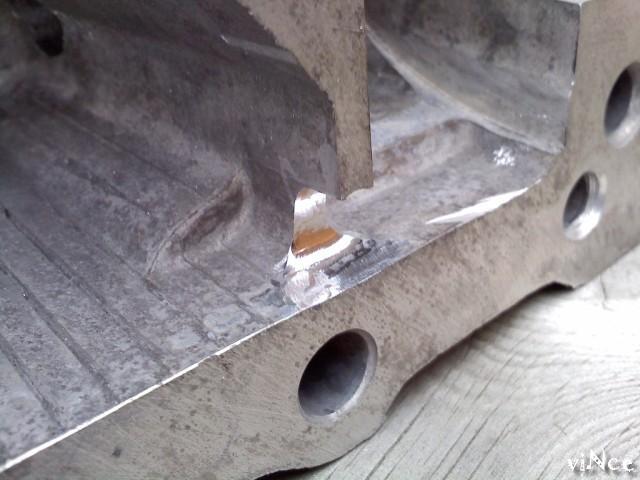

Next was some other mods to help a good breathing, , made some pockets around #2 and #3 bearing saddles, raw …

Image may have been reduced in size. Click image to view fullscreen.


Sanded

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

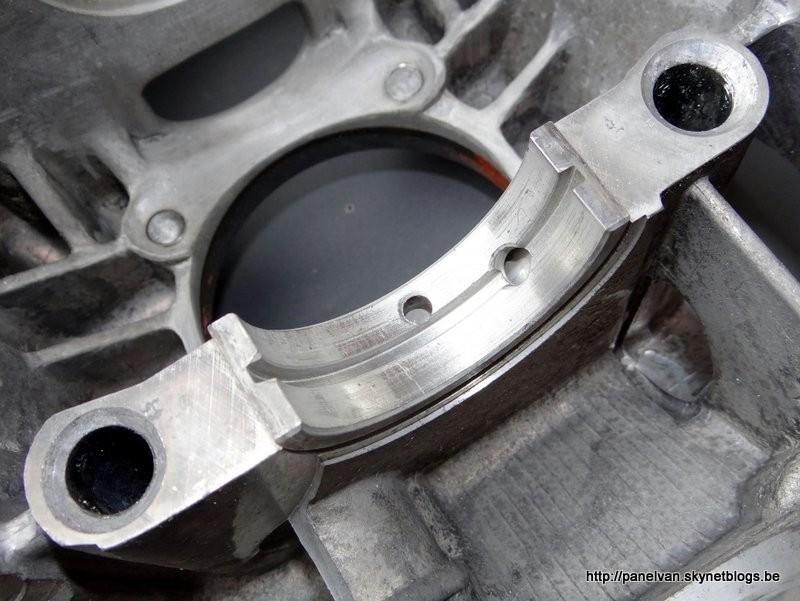

On this pic you can see it on #3 saddle.

Image may have been reduced in size. Click image to view fullscreen.

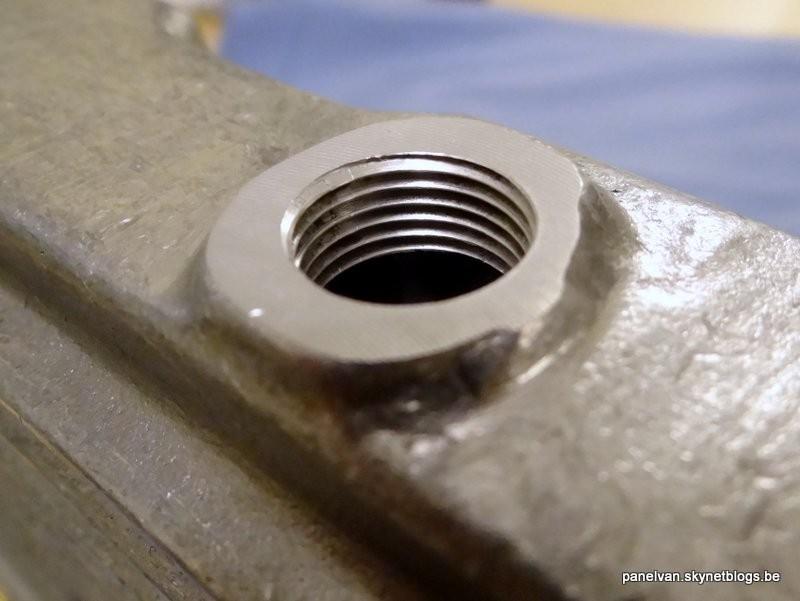

Then I added a 3/8” fitting at #3 cylinder.

Image may have been reduced in size. Click image to view fullscreen.


Cleared for #3 rod…

Image may have been reduced in size. Click image to view fullscreen.

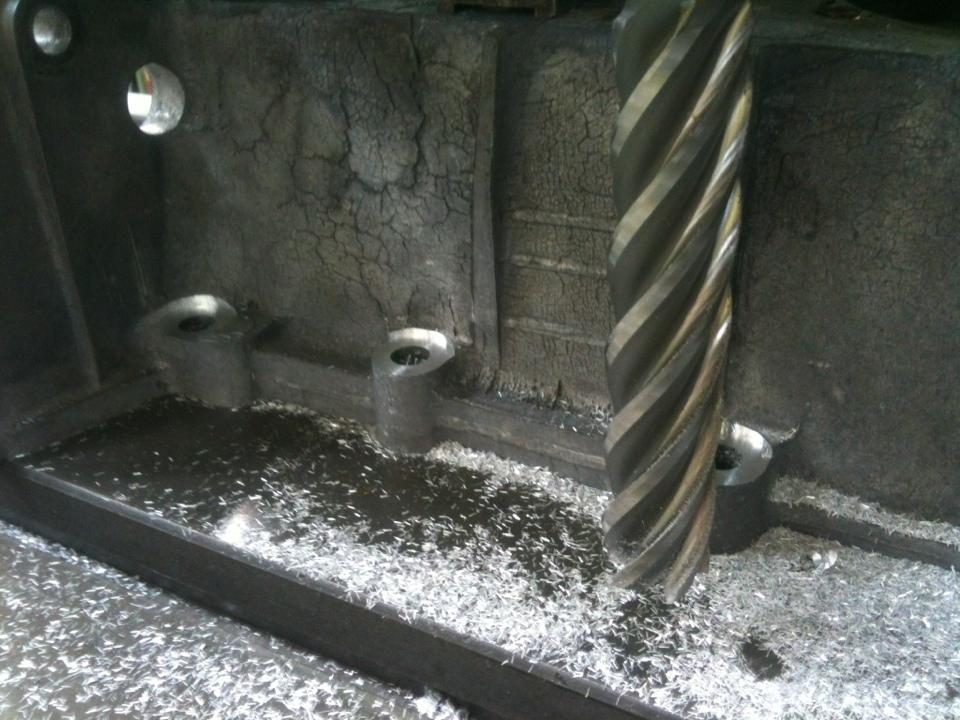

Next thing was to machine the case for 15 head nuts and washers …

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

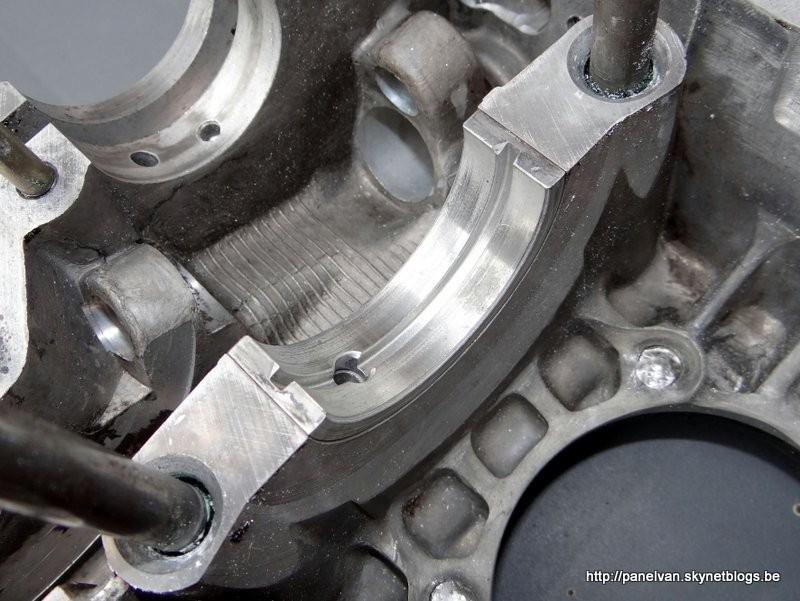

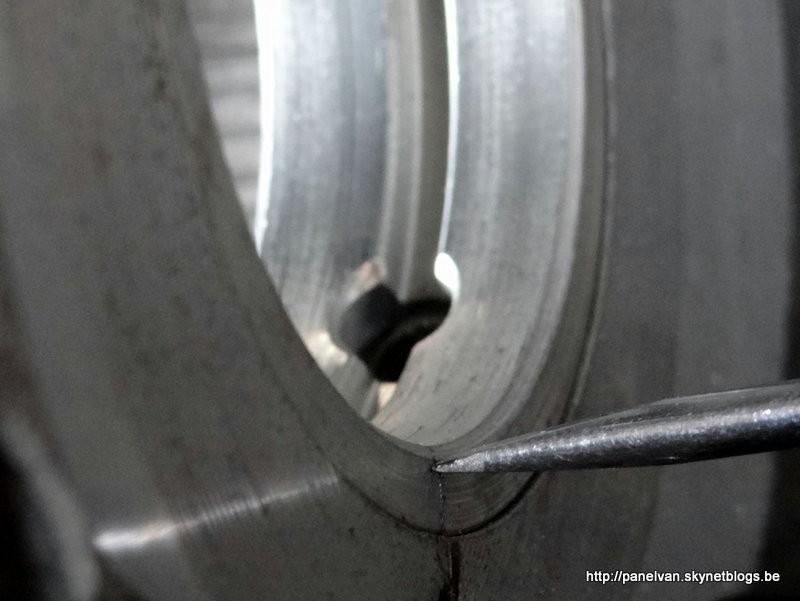

And let’s go for all bob hoover mods, cam bearing saddles groove are enlarged by hand…

Image may have been reduced in size. Click image to view fullscreen.

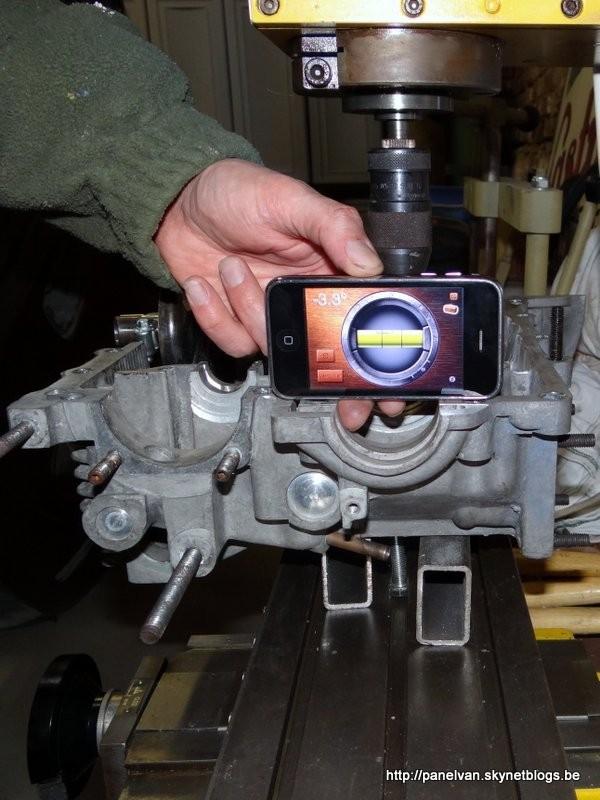

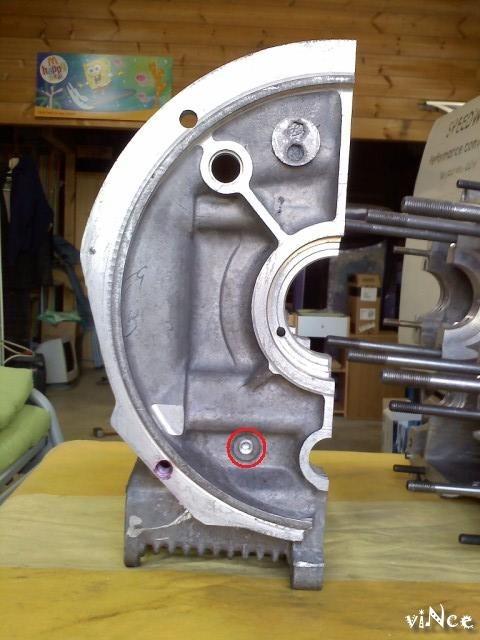

And another oil galley is drilled on the case following this HVX mod:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Had to measure were the oil galley is, because with some cases you can drill trough like that… yikesss

Image may have been reduced in size. Click image to view fullscreen.


So go for some careful measures…

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


it’s ok so let’s go…

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Nice!

Image may have been reduced in size. Click image to view fullscreen.

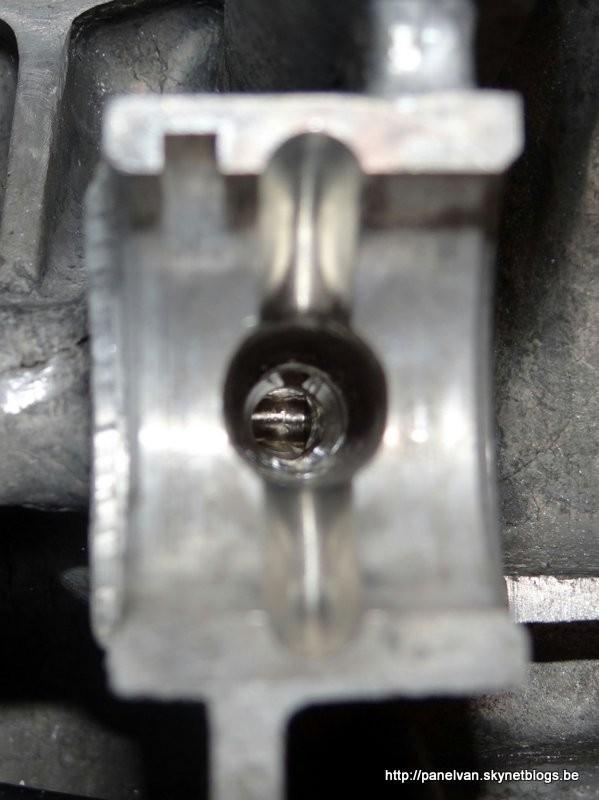

Next was to put another bearing pin on #3 saddle to put a second “center bearing” behind cam gear, has it is easier for maintenance…

Image may have been reduced in size. Click image to view fullscreen.


I use an old main bearing with dowel pin hole drilled.

Image may have been reduced in size. Click image to view fullscreen.


Case is closed and bearing are aligned…

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


and go for it!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Last thing was to press in Rocky sleeves, so I had to make some tooling to hold the case on the milling table, and made some lifter bore centering bars, mad this mod with my friend Eddy who owns a small milling machine as I was in vacations with no access to “my” machines at the time.

Image may have been reduced in size. Click image to view fullscreen.


two big plastic case supports…

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Centering bars

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Now at Eddy’s house!

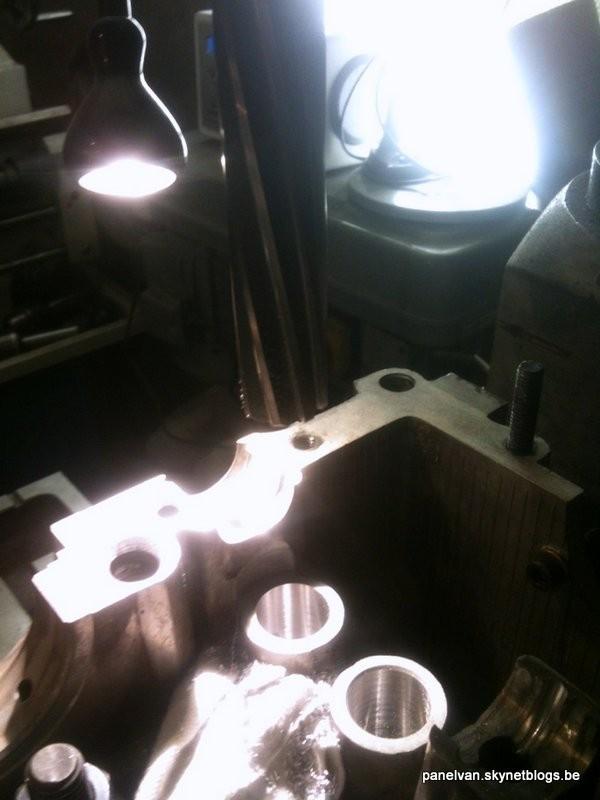

First we drilled lifters bores with a 22 mm drill bit, then reamed them with a 7/8” reamer.

Centering

Image may have been reduced in size. Click image to view fullscreen.


Reaming

Image may have been reduced in size. Click image to view fullscreen.


Dead case Smile

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


now time to put the case in the family oven Wink while sleeves are in the freezer.

Image may have been reduced in size. Click image to view fullscreen.


Sleeves installed, oil galley cleaned with a long drill bit,

Image may have been reduced in size. Click image to view fullscreen.


Now time to ream them to 19 mm.

Image may have been reduced in size. Click image to view fullscreen.


finished mod, looks nice !

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Rocky sleeves assure permanent oiling around lifters so permanent oiling to rockers like we want with Bob Hoover mod.

Las thing about the case is that after first mockup, pistons were bottoming the case as it was previously bored for 92 pistons. As I went from 92 TW to 94 pistons during the build, I gave it to a friend who has a berg cutter and we milled the case to clear 94 mm pistons.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

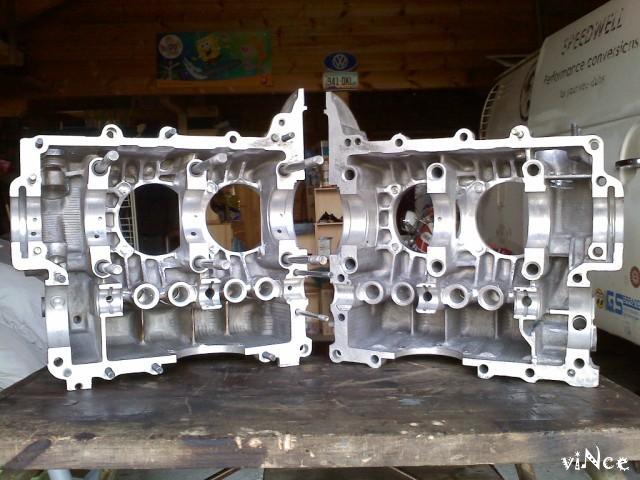

After this last machining, the case had to be cleaned another time, so go for the dishwasher and to a hot tanking, look at how surfaces came uniformly oxidized like they were cast as is!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

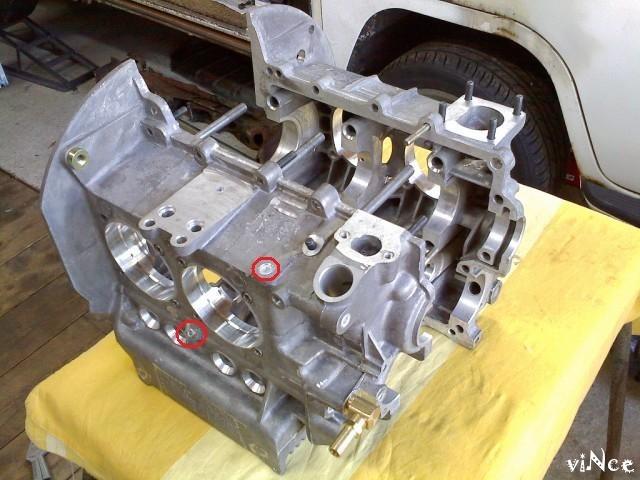

On that pic, you can clearly see air passages done on top of #2 and #3 bearing saddles. Black lines on #1 saddle are only some pencil marks, I'll explain you when I'll detail bearing prep.

Image may have been reduced in size. Click image to view fullscreen.


Case is now ready to abuse after about 50 hours work on it!

Please don’t hesitate to correct my spelling or technical terms, I’ll edit my post accordingly !
It would be easier to me to speak to you in French Laughing Laughing
_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink


Last edited by vince1 on Sun Aug 16, 2020 12:51 pm; edited 4 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 5911
Location: central rust belt
esde is offline

PostPosted: Sun Dec 15, 2013 7:28 am    Post subject: Reply with quote

vince1 wrote:

Had to measure were the oil galley is, because with some cases you can drill trough like that… yikesss

Image may have been reduced in size. Click image to view fullscreen.



Please tell me that's not a picture of your own mistake! First time I did that I was nervous as hell. Second time I was pretty confident, third time I almost went right through the case as it was cast a bit different than the first two! Lucky I caught myself at the last minute..
Are you going to weld the sump tube on, or are you confident enough with the clamp? I haven't done mine yet as I don't have the sump. I've been wondering if it matters enough to do it now and weld it, or maybe just the clamp as that's what I've always used successfully.
The extra pin you installed for the center bearing, can you elaborate on where/ why? My stock cases have always had a pin in both case halves, I must be missing something.. I'll get a coffee and think about this some more.
Very nice play by play on the lifter sleeves. The bars and reamers are on my christmas list so I can do this to my next case..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALB
Samba Member


Joined: August 05, 2008
Posts: 3480
Location: beautiful suburban Wet Coast of Canada
ALB is offline

PostPosted: Sun Dec 15, 2013 7:40 am    Post subject: Reply with quote

I was wondering about that as well.
_________________
On a lifelong mission to prove (much to my wife's dismay) that Immaturity is Forever!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vince1
Samba Member


Joined: December 14, 2003
Posts: 823
Location: Burgundy, France
vince1 is offline

PostPosted: Sun Dec 15, 2013 7:58 am    Post subject: Reply with quote

No that pic is from internet Wink

Sump tube is welded on my oil pick up tube, the clamp was for the berg cow magnet, I finally don't use it as I have the Jaycee Magnetic sump plate and oil suction kit, I think it's enough insurance.

For the dowel pin, it's not on the center bearing saddle, it's on the third one to put another split bearing behind cam gears an not the one piece regular bearing.

You can see it in this pic, now I have a dowel pin on #2 & #3 on 1/2 side case.

Image may have been reduced in size. Click image to view fullscreen.


With that mod, during future tear downs, I wont have to remove dist and cam gear to change bearings.

That's also why you see 2 center bearings on my main bearings picture posted above.
_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink


Last edited by vince1 on Sun Aug 16, 2020 12:52 pm; edited 4 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
fivelugshortaxle
Samba Member


Joined: May 13, 2011
Posts: 4254
Location: Aumsville, Oregon
fivelugshortaxle is offline

PostPosted: Sun Dec 15, 2013 11:03 am    Post subject: Reply with quote

Wow....just wow. I don't think I'll ever.have the.time to devote.to do anything near this.good.
_________________
Good things come to those who wait.
2332 with lots of goodies....
Rotating assembly balanced by Brothers VW
4340 84mm crank
AA 94mm p&c' s
Total seal 2nd ring, rest are Grants
5.5 h beams
Magnum straight cuts
Steve Long XR310 on a 106
CB 1.4 rockers
CB Magnaspark 2 distributor
NGK D7ea plugs
A1 lowdown 1 3/4 with single muffler
Dellorto 48's with 40 venturies
Kennedy Stage 2 with Daiken disc
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
SBD
Samba Member


Joined: October 24, 2012
Posts: 3269
Location: SOUTH DAKOTA
SBD is offline

PostPosted: Sun Dec 15, 2013 11:24 am    Post subject: Reply with quote

Can I send my case to you for some prep work? Very Happy JK
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vince1
Samba Member


Joined: December 14, 2003
Posts: 823
Location: Burgundy, France
vince1 is offline

PostPosted: Sun Dec 15, 2013 12:48 pm    Post subject: Reply with quote

To go along with the case, here is the Scat Sump,

Not much work needed as mounting surfaces are ground flat after checking with a dial indicator. However, I didn't like the way Scat wants you to install their deep sump by directly screwing it in the soft mag case.

I decided to use a "stock like" installation with studs & nuts, so I searched some nuts in M6 size with an allen socket in them. Found those Yamaha exhaust nuts.

Image may have been reduced in size. Click image to view fullscreen.


As their flared base was too large for my sump, they went on the lathe and now look like CB 8mm allen exhaust nuts.

Image may have been reduced in size. Click image to view fullscreen.


I then drilled the sump so I could pass trough with a 6mm allen wrench

Image may have been reduced in size. Click image to view fullscreen.


Scat should provide their sumps with similar nuts !

Image may have been reduced in size. Click image to view fullscreen.


Next the sump went on the mill to be surfaced then drilled for a 3/8" NPT fitting to receive the excessive oil flow from 3/4 valve cover.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


After that, it has been thoroughly cleaned and hot tanked, then studs were loctited.... Ready for use too !

Image may have been reduced in size. Click image to view fullscreen.


Now the "box" is completely ready, let's go for internal parts Wink
_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink


Last edited by vince1 on Sun Aug 16, 2020 12:54 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 5911
Location: central rust belt
esde is offline

PostPosted: Sun Dec 15, 2013 7:13 pm    Post subject: Reply with quote

Vince, nice work with the Scat sump, you've found a solution to the #1 complaint about them: the mounting. Out of curiosity, what is the total thickness of that sump, and is it the 1.5 or 2 quart model? I have a few E##I sumps and they hang down almost a full 3", too much for a lowered street car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GodJockey
Samba Member


Joined: April 03, 2007
Posts: 240
Location: Lehigh Valley, Pa
GodJockey is offline

PostPosted: Sun Dec 15, 2013 7:46 pm    Post subject: Reply with quote

Vince you do awesome work! Are you using a drill press or a mill for this work? I'd love to see some more on that turbo 2007.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwracerdave
Samba Member


Joined: November 11, 2004
Posts: 15273
Location: Deep in the 405
vwracerdave is online now

PostPosted: Sun Dec 15, 2013 9:33 pm    Post subject: Reply with quote

The Gene Berg oil sump comes with all the correct mounting hardware and is truly a bolt on item. It is well worth the extra cost they charge.

My biggest worry would be the vent fitting you put on top of the case. The case is very thin and not deep enough to support the fitting. I would put JB Weld around the case and fitting after you fit all the cooling tin and are sure it is located where it will stay.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK
Featured in Dec. 2001 HOT VW's Magazine page 63

Watch my racing video's http://www.youtube.com/user/okvwracer/videos
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lionhart94010
Samba Member


Joined: January 04, 2005
Posts: 1417
Location: SF Bay Area / Silicon Valley / So Cal
Lionhart94010 is offline

PostPosted: Sun Dec 15, 2013 11:39 pm    Post subject: Reply with quote

Bravo impressive work :0)

The only thing I may have done differently is to go with ACN Squishy pistons, if you where planning on hauling any heavy loads… it is the only solution I have come up with that may avoid the heads 45-50 HP limit for continuous use, due to the heads heat dissipation issues (such as would be needed when climbing steep hills or exceeding 80MPH on the freeway for long periods) most likely not problems you are concerned with. The ACN Squishy pistons have been reported to run the heads almost too cool even under heavy use

Look forwards to seeing more of your work!
_________________
Current VWs 71 T2 Westy SO-72/6(Miami), 71 Crew Cab, 2015 GSW TDI
Other owned VW’s 59, 68 1500s, 69 & 71 Bug’s; 72 & 73 S-Bug’s; 67 Westy, 67 Deluxe, Other 71 DC, 72 KG GT that now lives in Australia, 12 JSW TDI, 2015 GSW TDI, 2023 Tiguan
VW technical information sights
thesamba - www.ratwell.com - www.shoptalkforums.com/ - www.vw-resource.com - http://www.type2.com/
http://bobhooversblog.blogspot.com/ - www.aircooled.net/gnrlsite/resource/articles.htm
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vince1
Samba Member


Joined: December 14, 2003
Posts: 823
Location: Burgundy, France
vince1 is offline

PostPosted: Sun Dec 15, 2013 11:49 pm    Post subject: Reply with quote

esde wrote:
Out of curiosity, what is the total thickness of that sump, and is it the 1.5 or 2 quart model?


This is the 1.5qt model, I ran CB model too and I prefer the Scat one with it's stock drain plate. Scat is approximately .2" thicker that's nothing...

GodJockey wrote:

Vince you do awesome work! Are you using a drill press or a mill for this work? I'd love to see some more on that turbo 2007.


I use mills, lathes and also CNC mills & lathe. I'm a CNC turning and milling teacher so I have full access to them at school.
For the turbo 2007, you'll see it here, but in French sorry : http://panelvan.skynetblogs.be/archives/category/2007-turbo/index-1.html go bottom of the page then scroll up then go in page 1

vwracerdave wrote:
The Gene Berg oil sump comes with all the correct mounting hardware and is truly a bolt on item. It is well worth the extra cost they charge.

My biggest worry would be the vent fitting you put on top of the case. The case is very thin and not deep enough to support the fitting. I would put JB Weld around the case and fitting after you fit all the cooling tin and are sure it is located where it will stay.


Berg sump are too thick for my application as my bus is pretty lowered.

Image may have been reduced in size. Click image to view fullscreen.


No problem for the top fitting I've about .32" meat where it's screwed. I have to do the same thing with way less meat on my #3 manifold for my bus brake servo and never had a problem.
_________________
my French blog https://vwpanelvan.wordpress.com/

Click here for my full pix detailed 2165 engine build with beehive valvetrain.

Sorry for my poor English, I'm a French guy ... Wink


Last edited by vince1 on Sun Aug 16, 2020 12:58 pm; edited 3 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Facebook Twitter Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Page 1 of 9


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
