Posted: Sun Oct 19, 2014 2:19 pm Post subject: Front Bumper & Rear Bumper ID T2 |
|
|
To link to this thread
Code: |
[url=http://www.thesamba.com/vw/forum/viewtopic.php?t=609990]Front Bumper & Rear Bumper ID T2[/url] |
----------------Front Bumper & Rear Bumper ID-----------------
68-71 and 72 rear bumper hole measurements
72 only Bumper gravel guard/ Muffler cover plate
73-79 Bumper gravel guard/ Muffler cover plate
68-69 Bumper trim front
68-69 Bumper trim rear
70-72 Deco trim front and rear
70-72 Deco trim front and rear
70-72 Deco trim molding front
70-72 Rear Bumper Deco trim, molding

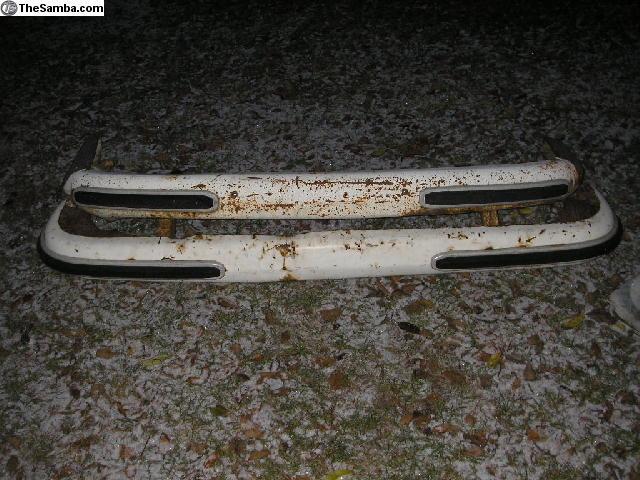

68-72 Front & 68-71 Rear Bumper
68-72 Front and 68-71 Rear Bumper
Rear bumper stabilizing bracket. With or without splash pan.
I could not find these in the parts manuals. Busdaddy said "They are the same from 1968-72".

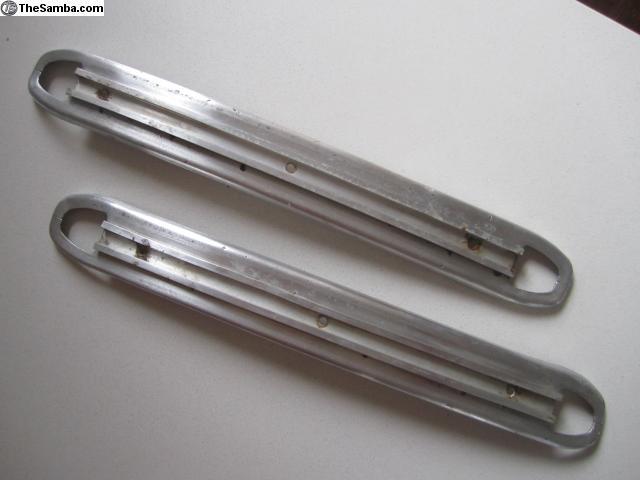

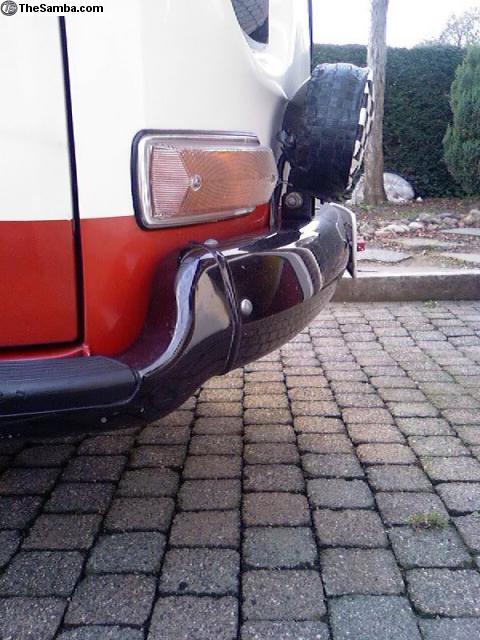

68-72 Front Bumper Step Pad and Seal Beading
68-72 Front Bumper Ambulance for fog lights RARE
68-72 Emergency vehicle front bumper. Note the bumper brackets are longer and bent at more of an angle, to raise the bumper. The side steps are different as well.
72 only rear bumper brackets
72 only rear bumper brackets
72 only Rear Bumper brackets

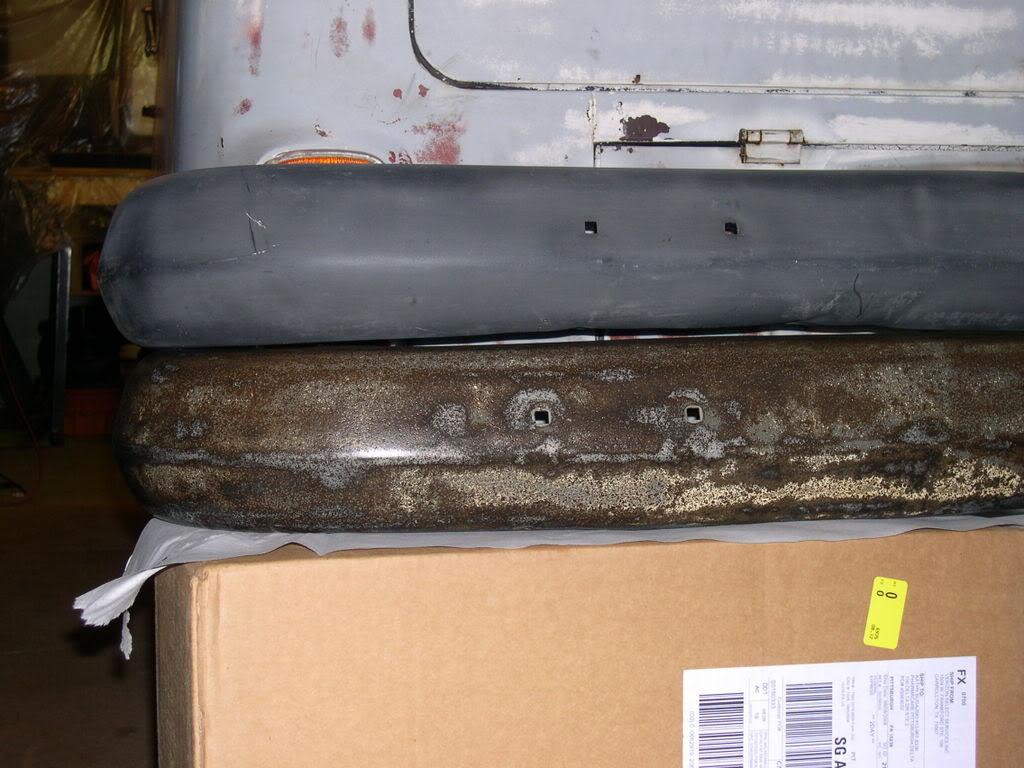

72 only Rear Bumper compared to 68-71, 68-71 Bumper on top, 72 on bottom

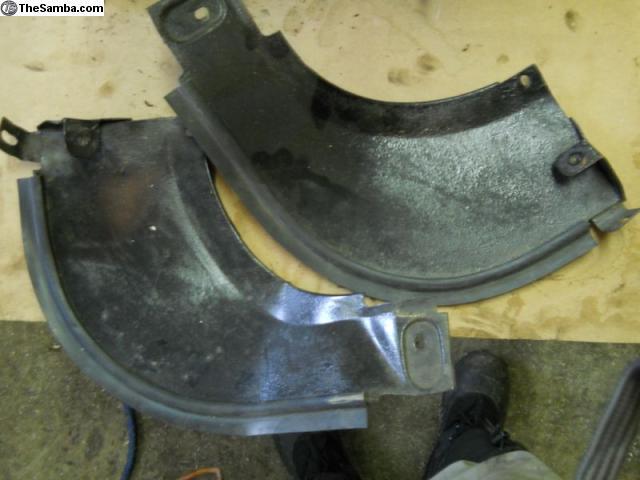

72 only Rear Bumper Splash Pans

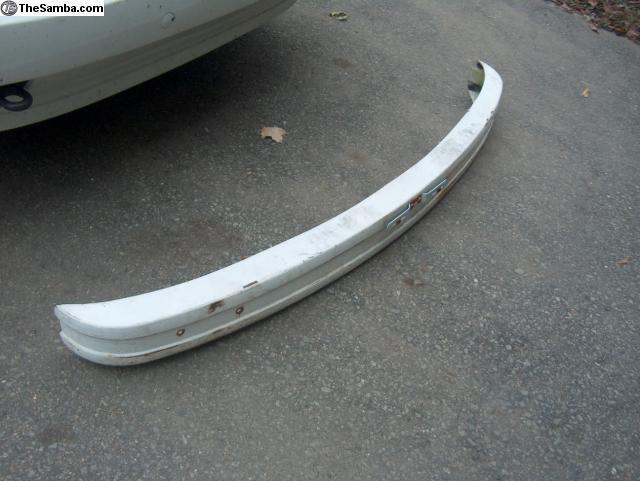

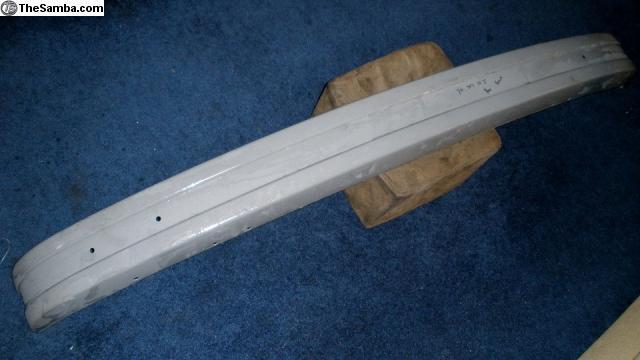

73-79 Front Bumper
73-79 Front Bumper
73-79 Front Bumper Mounting
73-79 Front bumper with fog light holes for Emergency vehicles.
73-74 Rear Bumper 4 hole
75-79 Rear Bumper 3 hole 211 707 311 K, 75-79
75-79 Rear Bumper 3 hole 211 707 311 K, 75-79
Late Bumper Strip
Thanks to ratwell.com
http://www.jerseylooker.com/FicheDump/EarlyBaywindow/7-013.jpg
http://www.jerseylooker.com/FicheDump/EarlyBaywindow/7-014.jpg
http://www.jerseylooker.com/FicheDump/EarlyBaywindow/7-015.jpg
http://www.jerseylooker.com/FicheDump/LateBaywindow/055-00-7-004.jpg
http://www.jerseylooker.com/FicheDump/LateBaywindow/056-00-7-005.jpg
http://www.jerseylooker.com/FicheDump/LateBaywindow/056-00-7-006.jpg
Last edited by Tcash on Thu May 17, 2018 6:03 pm; edited 13 times in total |
|
