deschutestrout
Samba Member
Joined: May 15, 2005
Posts: 864
Location: Maupin, Oregon
|
 Posted: Thu Oct 27, 2005 1:07 pm Post subject: Child cot installation |
 |
|
Hey all! I have a child cot I'm preparing to install in a '78. Where do I attach the brackets? Photos and measurements would help greatly. Thanks, winter is approaching and I'm already preparing for summer campouts
_________________
'71 bug, answers to "Clementine"
'75 7 passenger bus called "Kombi"
'78 7 passenger sunroof bus, goes by "Gus"
'78 Westy "'Ole Red...The Happy Camper"
'78 Westy "The Big Turd" |
|
| Back to top |
|
 |
ronan.b
Samba Member
Joined: June 24, 2004
Posts: 192
Location: ireland
|
| Posted: Thu Oct 27, 2005 2:30 pm Post subject: |
|
|
The photos are labeled RF, LF, RR, LR for Right Front, Left Front, Right Rear, Left Rear. I made drawings on the photos to show the approximate distance from the edges to place the brackets.
Right Front and Left Front - The bottom of each bracket needs to be 3 1/2 inches from the top of your dash board which is shown in the photo. The bottom of the bracket needs to tilt in 1/2 inch from the edge of your door pillar and the top needs to tilt in by 1/4 inch. As long as they tilt at the approximate angle shown in the photo then they should be fine. They do not have to be 100% correct.
Right Rear and Left Rear - The bottom of each bracket needs to be about 5 inches up from the top of the bar shown in the photo on the Left Rear and the top of the notch shown on the Right Rear. You can estimate how much to tilt them as long as they tilt or slant in the same direction as the photo shows.
DRILL BIT - You will need to use a 1/8 inch or 9/64 inch drill bit to drill the holes.
IMPORTANT - The brackets may be installed slightly higher than these 4 positions without problems, BUT if you install them lower than shown in the photos the hammock will fit much too tight.
After you install the brackets the easiest way to put the hammock in place is to install the front bar first. Then install the end of the back bar into the bracket behind the left front seat. Now that the hammock is in place on three corners you should be able to install into the bracket behind the right front seat. This method allows you to get the best clearance and leverage to pull and wrestle the hammock into the last bracket. You must remove your headrests to install the hammock.
PS
I highly encourage you to install the hammock with the telescoping poles first and use it a few times before you install the hammock with the solid poles. The brackets can be slightly off or placed differently with the telescoping poles, but the solid poles are not adjustable so the brackets must be place more uniformly. After installing and using the telescoping poles then installing the solid poles will make much more sense.
_________________
my bus came with the optional ferrous oxide performance pack (gets lighter as more rots away, and therefore faster)......
78 nine seater
Last edited by ronan.b on Thu Oct 27, 2005 2:35 pm; edited 1 time in total |
|
| Back to top |
|
|
EdW
Samba Member
Joined: January 13, 2005
Posts: 2385
Location: Unemployment Office
|
| Posted: Thu Oct 27, 2005 2:33 pm Post subject: |
|
|
Burp...
Last edited by EdW on Thu Oct 27, 2005 2:43 pm; edited 1 time in total |
|
| Back to top |
|
|
ronan.b
Samba Member
Joined: June 24, 2004
Posts: 192
Location: ireland
|
| Posted: Thu Oct 27, 2005 2:36 pm Post subject: |
|
|
thanks edw, i feckin went and edited it just after
_________________
my bus came with the optional ferrous oxide performance pack (gets lighter as more rots away, and therefore faster)......
78 nine seater |
|
| Back to top |
|
|
EdW
Samba Member
Joined: January 13, 2005
Posts: 2385
Location: Unemployment Office
|
| Posted: Thu Oct 27, 2005 2:44 pm Post subject: |
|
|
| ronan.b wrote: |
| thanks edw, i feckin went and edited it just after |
No problem, took my post down, no need to have it all listed twice. |
|
| Back to top |
|
|
hambone
Samba Member
Joined: July 09, 2004
Posts: 1625
Location: Portland, OR
|
| Posted: Thu Oct 27, 2005 4:27 pm Post subject: |
|
|
| Wow, talk about helpful! Well done Ronan! |
|
| Back to top |
|
|
EdW
Samba Member
Joined: January 13, 2005
Posts: 2385
Location: Unemployment Office
|
| Posted: Thu Oct 27, 2005 4:41 pm Post subject: |
|
|
| hambone wrote: |
| Wow, talk about helpful! Well done Ronan! |
That's what I love about this site.  |
|
| Back to top |
|
|
deschutestrout
Samba Member
Joined: May 15, 2005
Posts: 864
Location: Maupin, Oregon
|
| Posted: Thu Oct 27, 2005 4:58 pm Post subject: |
|
|
Thanks a bunch Ronan! Is that second photo on the right in front of a jump seat or something? The bar you show...where is it? Is mine possibly covered by casing around the front seat? Just confirming photo orientation. Thanks again, the pictures and measurements will help a lot!!!
_________________
'71 bug, answers to "Clementine"
'75 7 passenger bus called "Kombi"
'78 7 passenger sunroof bus, goes by "Gus"
'78 Westy "'Ole Red...The Happy Camper"
'78 Westy "The Big Turd" |
|
| Back to top |
|
|
EdW
Samba Member
Joined: January 13, 2005
Posts: 2385
Location: Unemployment Office
|
| Posted: Thu Oct 27, 2005 5:19 pm Post subject: |
|
|
| deschutestrout wrote: |
| Thanks a bunch Ronan! Is that second photo on the right in front of a jump seat or something? The bar you show...where is it? Is mine possibly covered by casing around the front seat? Just confirming photo orientation. Thanks again, the pictures and measurements will help a lot!!! |
I believe that pic is taken from behind the drivers seat, and that's where the sink/stove would be right behind the bulkhead. |
|
| Back to top |
|
|
ronan.b
Samba Member
Joined: June 24, 2004
Posts: 192
Location: ireland
|
| Posted: Fri Oct 28, 2005 1:29 pm Post subject: |
|
|
sorry about that photo orientation as follows

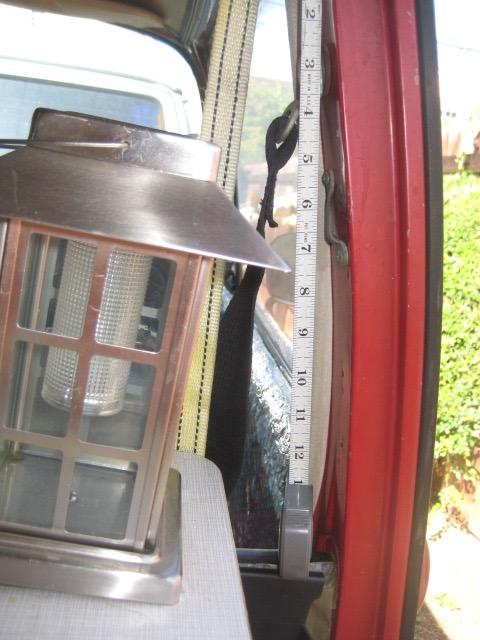

photo 1................. right front

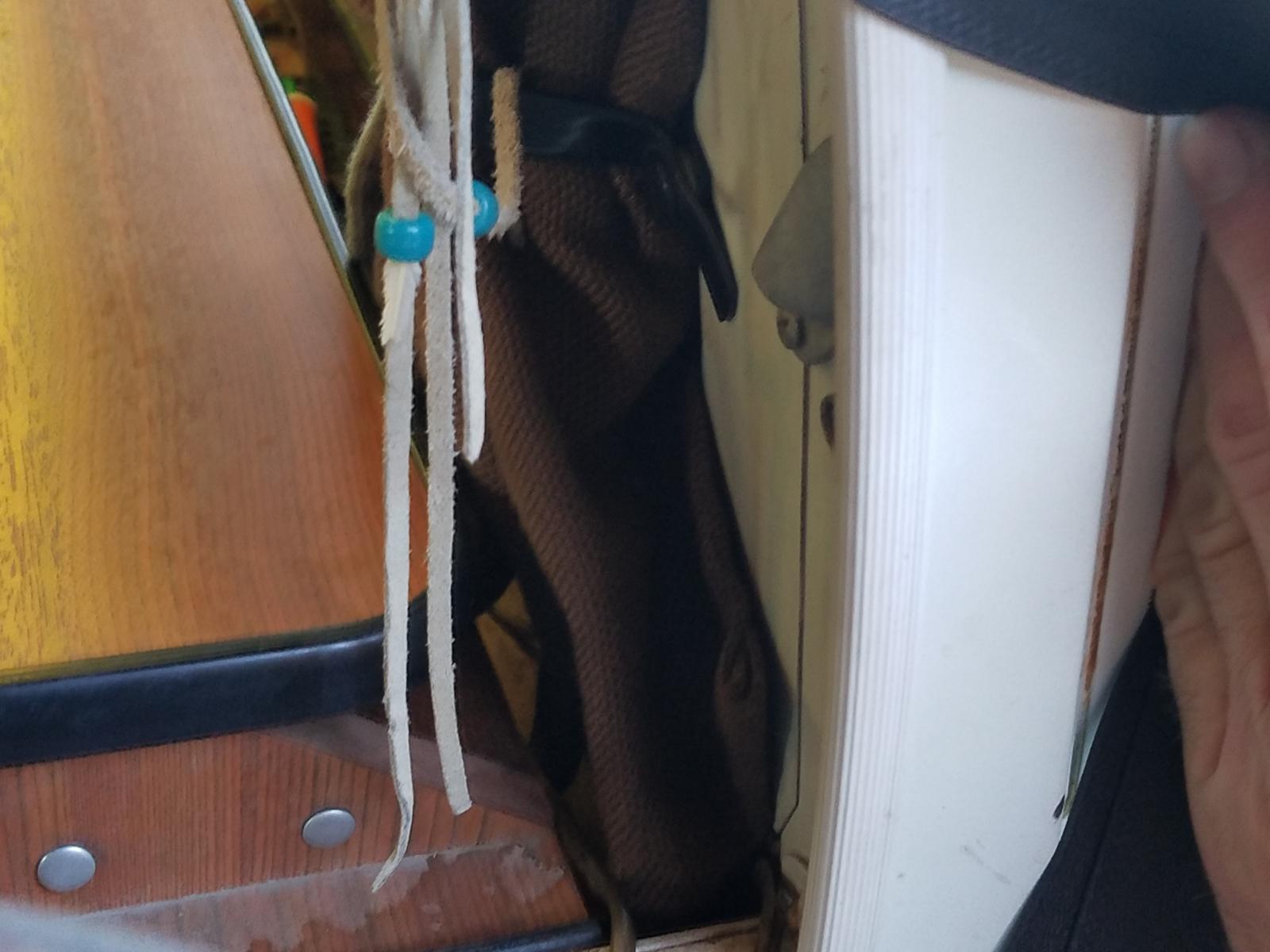

photo 2..................left rear

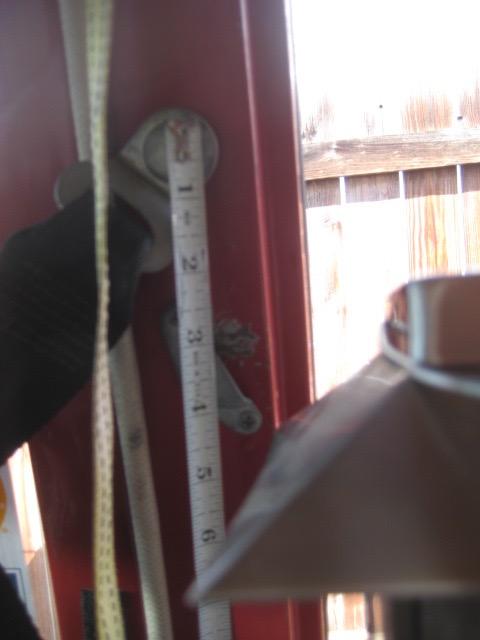

photo 3.................left front

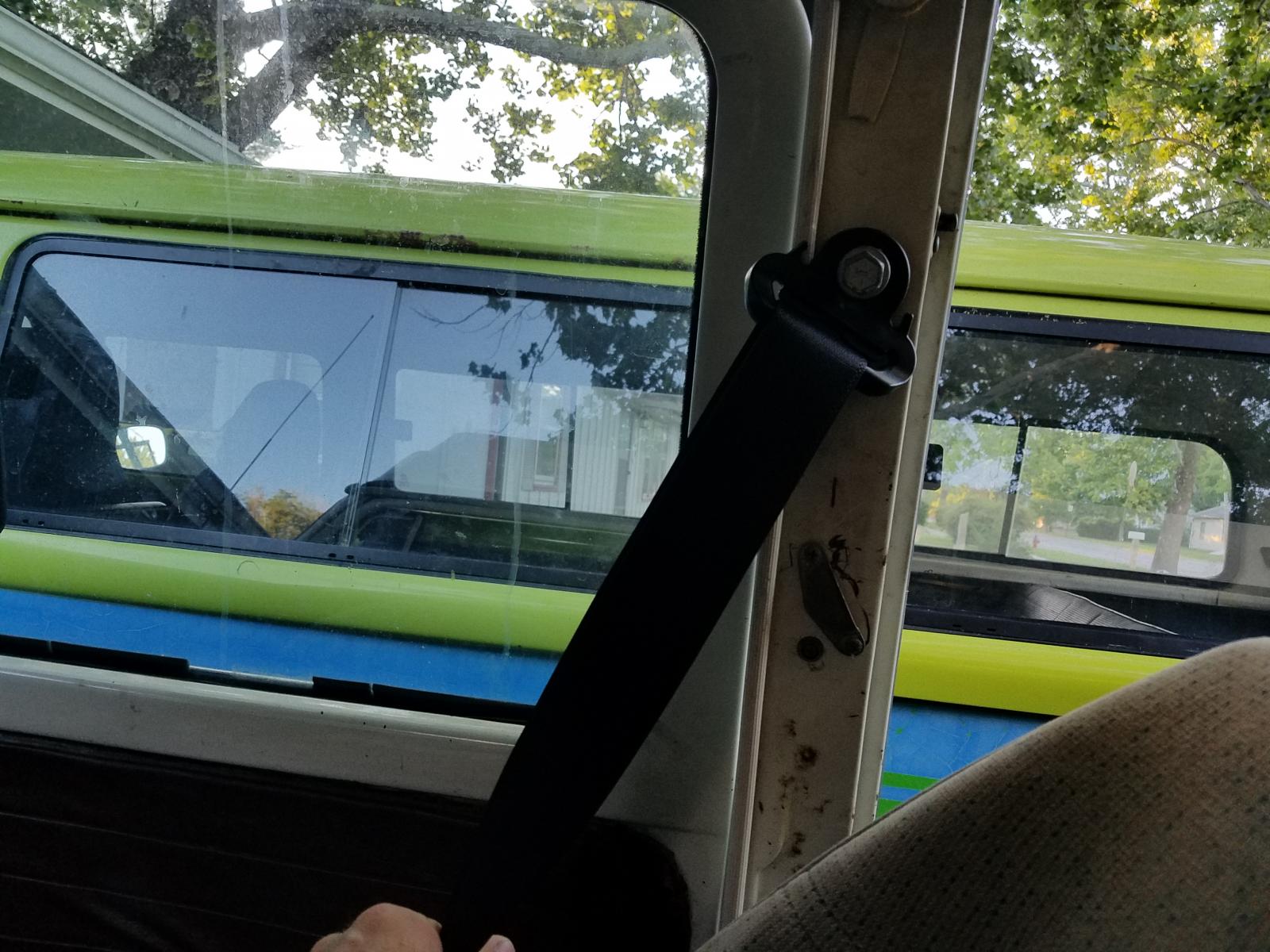

photo 4.................right rear
hth
_________________
my bus came with the optional ferrous oxide performance pack (gets lighter as more rots away, and therefore faster)......
78 nine seater |
|
| Back to top |
|
|
silverbone86
Samba Member
Joined: June 01, 2018
Posts: 1
Location: Tacoma, WA
|
| Posted: Fri Jun 01, 2018 12:18 am Post subject: Re: Child cot installation |
|
|
Amazing/helpful post. Any chance someone could post working photos of the bracket installation? I picked one up on CL and want to install in my Riviera.
_________________
Stock 1977 VW Riviera "Gidget" (Daily Driver) |
|
| Back to top |
|
|
vwwestyman
Samba Member
Joined: April 24, 2004
Posts: 5846
Location: Wamego, Kansas, USA
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Fri Jun 01, 2018 8:56 am Post subject: Re: Child cot installation |
|
|
|
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52963
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Jun 01, 2018 6:32 pm Post subject: Re: Child cot installation |
|
|
Is that an early or late bus?, the cleat positions changed when headrests were introduced.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Fri Jun 01, 2018 7:12 pm Post subject: Re: Child cot installation |
|
|
| busdaddy wrote: |
Is that an early or late bus?, the cleat positions changed when headrests were introduced. |
Tom (Rip) did not say. I,m guessing it was his 1969. |
|
| Back to top |
|
|
|
