 Posted: Tue Nov 09, 2010 3:24 am Post subject: Fitting a 57 oval body unto a 69 pan (a new dilemma...) |
 |
|
So I know it's sacrilege  , but it's my plan for now.
I discovered the spring plates aren’t shaped the same through the years, causing my oval body to ride on top of the newer spring plates on my 69 pan.
It really needs coming down a tiny bit further...
I really would prefer grinding off some of the upper tip of the spring plates than hacking my oval body (hopefully it will look a good deal better after sand blasting). I mean – you never know: Some day maybe I can get me a nice oval pan for my body, and it would have been a shame hacking it too much  On the other hand I don't want to weaken the spring plate either and maybe causing it to break eventually.
So the qestion for me really is:
Should I cut the spring plate or the body? Could you guys post your opinion on this matter?
Last edited by Mats W on Sun Dec 12, 2010 2:46 am; edited 1 time in total |
|
| Back to top |
|
 |
ConcreteAce
Samba Member
Joined: May 19, 2005
Posts: 862
Location: Spring, Texas
|
|
| Back to top |
|
|
drscope
Samba Member
Joined: February 19, 2007
Posts: 15273
Location: Baltimore, Maryland USA
|
| Posted: Tue Nov 09, 2010 10:00 am Post subject: |
|
|
Unless your tunnel is shot, the rest of your oval pan can be saved. Floor pans and frame head are an easy fix with the body off.
_________________
Mother Nature is a Mean Evil Bitch! |
|
| Back to top |
|
|
Mats W
Samba Member
Joined: October 05, 2009
Posts: 368
Location: South West Sweden
|
| Posted: Tue Nov 09, 2010 10:11 am Post subject: |
|
|
| ConcreteAce wrote: |
| looks like you are missing the thick square rubber spacer that goes between the body and the chassis in that spot. it is about a quarter of an inch thick rubber. |
My bad, I did forget the rubber  . Thanks to your tip ConcreteAce I went back to my garage:
I put on 10mm rubber...
...which made excellent clearance to the spring plate  ...
...but now the body also hoovers 10mm above the rear brace on the right.
No way the pan to body gasket could compensate for this kind of gap!
In fact the gap is almost twice (19mm) at the top of the left rear brace (which I cut in order to replace the left pan).
Is my pan twisted, or what? Is my task a mission "impossible"? |
|
| Back to top |
|
|
Mats W
Samba Member
Joined: October 05, 2009
Posts: 368
Location: South West Sweden
|
| Posted: Tue Nov 09, 2010 10:13 am Post subject: |
|
|
| drscope wrote: |
| Unless your tunnel is shot, the rest of your oval pan can be saved. Floor pans and frame head are an easy fix with the body off. |
Unfortunately the previous owner scrapped the entire oval pan  |
|
| Back to top |
|
|
56TIMOTEO
Samba Member
Joined: May 21, 2006
Posts: 441
|
| Posted: Tue Nov 09, 2010 11:05 am Post subject: |
|
|
| Did you move, or remove the body mounting brackets on the inner wheel archs? The ones that bolt the body to the shock towers? |
|
| Back to top |
|
|
Mats W
Samba Member
Joined: October 05, 2009
Posts: 368
Location: South West Sweden
|
| Posted: Tue Nov 09, 2010 11:20 am Post subject: |
|
|
| 56TIMOTEO wrote: |
| Did you move, or remove the body mounting brackets on the inner wheel archs? The ones that bolt the body to the shock towers? |
I removed those, since they by eye sight where way to low mounted. Otherwise they would have created an even bigger gap. |
|
| Back to top |
|
|
56TIMOTEO
Samba Member
Joined: May 21, 2006
Posts: 441
|
| Posted: Tue Nov 09, 2010 11:27 am Post subject: |
|
|
| Look for a bent lip somewhere (body or pan). |
|
| Back to top |
|
|
john7
Samba Member
Joined: August 06, 2003
Posts: 1549
Location: Garden grove ca
|
| Posted: Tue Nov 09, 2010 11:52 am Post subject: |
|
|
the 10mm rubber is too thick. it is for between the front axle and the body.
my 53 i ordered the rubber from wolfsburg west and they are 6mm thick
http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=111899119B
_________________
Jesus Saves
Slot Mag King!
I accept Paypal, CASH, GOLD, SILVER, COINS, GUNS & money orders. |
|
| Back to top |
|
|
Mats W
Samba Member
Joined: October 05, 2009
Posts: 368
Location: South West Sweden
|
| Posted: Tue Nov 09, 2010 12:05 pm Post subject: |
|
|
I bought my rubber yesterday from the local dealer who had only either 10mm or 17mm in stock.
I will look for any bent lips. Hopefully it would be an easy fix. |
|
| Back to top |
|
|
Snort
Samba Member
Joined: April 02, 2005
Posts: 1964
Location: Seattle, WA
|
| Posted: Tue Nov 09, 2010 12:40 pm Post subject: Re: Fitting a 57 oval body unto a 69 swing axle pan |
|
|
| Mats W wrote: |
So I know it's sacrilege , but it's my plan for now.
|
The only sacrilege here is when folks either trash the old pan (you are excused from responsibility on this one it seems), or they fail to properly title the new FrankenBug with the new serial numbers which causes the next owner grief with the Department of Motor Vehicles. |
|
| Back to top |
|
|
Russ
Samba Member
Joined: January 12, 2003
Posts: 1560
Location: Langley B.C.
|
| Posted: Tue Nov 09, 2010 1:05 pm Post subject: |
|
|
sand the rubber blocks down if needed,that may give you the space needed
_________________
Cruiser pedals for sale (see my ad's)
55 hardtop finally finished
65 beetle done:) |
|
| Back to top |
|
|
56TIMOTEO
Samba Member
Joined: May 21, 2006
Posts: 441
|
| Posted: Tue Nov 09, 2010 1:41 pm Post subject: |
|
|
| Those thick blocks are used for adjusting door gaps on convertibles, too. You can cut them thinner with a razor knife, if that turns out to be the problem. |
|
| Back to top |
|
|
Mats W
Samba Member
Joined: October 05, 2009
Posts: 368
Location: South West Sweden
|
| Posted: Tue Nov 09, 2010 2:20 pm Post subject: Re: Fitting a 57 oval body unto a 69 swing axle pan |
|
|
| Snort wrote: |
| Mats W wrote: |
So I know it's sacrilege , but it's my plan for now.
|
The only sacrilege here is when folks either trash the old pan (you are excused from responsibility on this one it seems), or they fail to properly title the new FrankenBug with the new serial numbers which causes the next owner grief with the Department of Motor Vehicles. |
Thanks for the sympathy Snort! This "oval" is meant for my son and is going to be titled as a 69 Bug. I don't have any oval title to create a 'false' oval for that matter.
Looks like a rubber less thick hopefully will take care of my problems then  |
|
| Back to top |
|
|
Mats W
Samba Member
Joined: October 05, 2009
Posts: 368
Location: South West Sweden
|
| Posted: Sat Nov 13, 2010 12:01 pm Post subject: |
|
|
I just took a sharp knife and split the 10 mm rubber in two halves
I worked out just fine ! |
|
| Back to top |
|
|
Stefan T
Samba Member
Joined: February 09, 2008
Posts: 102
Location: Ullared Sweden
|
| Posted: Sun Nov 14, 2010 7:57 am Post subject: |
|
|
I have some new pics of the fitting af the oval body to a 69 pan

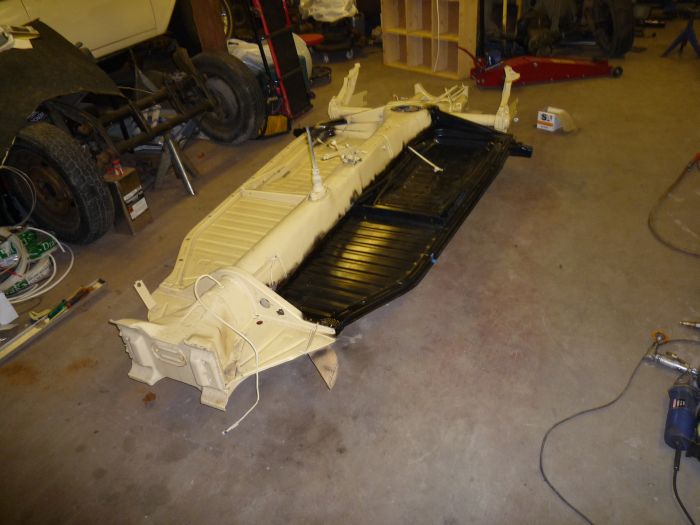

The 69 pan with on side of the floor pan changed
Her's look Mats the body and pan for see if that is necesary to do more to the inside of rear fendes

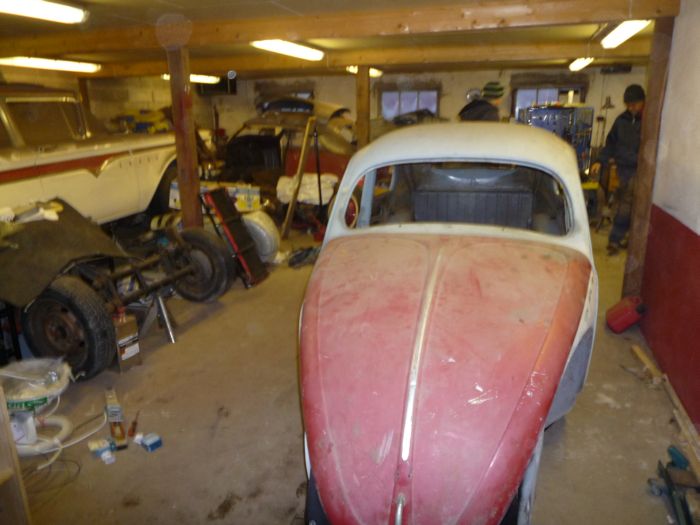

The body from the front
/Stefan |
|
| Back to top |
|
|
Mats W
Samba Member
Joined: October 05, 2009
Posts: 368
Location: South West Sweden
|
| Posted: Sun Dec 12, 2010 2:48 am Post subject: |
|
|
I’ve been working on the pan for a couple of weeks now, but yesterday it was finally time to fit the body again – but it wouldn’t quite fit.
Is there any chance you guys could give me a hint here?
My rubbers are 10mm (ca 3/8”)
They would fit perfectly since there are 3mm (ca 1/8”) left…
…which resembles good with the mounting holes…
…since the metal also is 3mm thick.
Anyhow – when the rubber is there…
…the pan still hovers way above the pan.

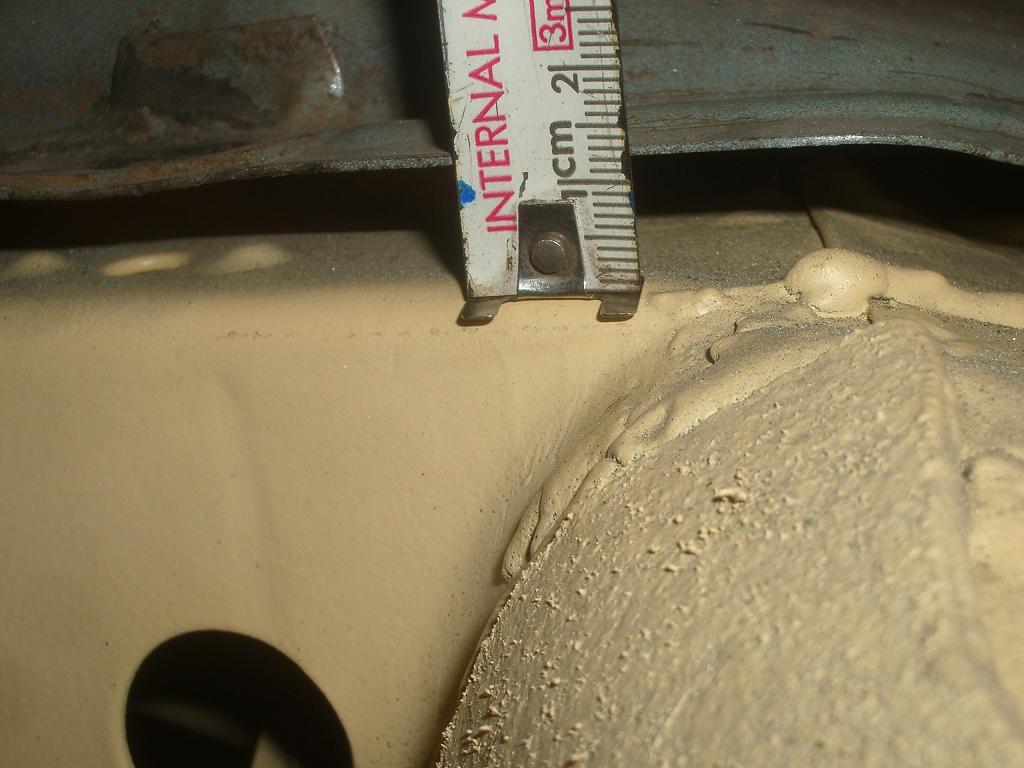

The gap is ca 13mm (½”)  .
