Courtney's 1964 Ghia Convertible
Page: 1, 2, 3  Next
Forum Index -> Ghia Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Mon May 11, 2015 8:38 am    Post subject: Courtney's 1964 Ghia Convertible Reply with quote

I picked this Ghia up back in January for my wife. I feel I dodged a bullet, she gave me the choice...find her a 65 Mustang or a Ghia Vert. Well the Ghia won out. All things considered it is a solid car, it has the typical nose damage, and a couple of crappy patches, but the channels and most problem areas are rust free.
Here are pictures the day we picked it up. It came with a ton of extra parts, including a complete extra convertible top and a set of early doors that are in awesome shape. They will be up for sale sometime during the build.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



And these are pictures the day we brought it home after a quick wipe down of the dust from storage.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



One of the cool things about this build is that the pan is ready to go. Of course I will check everything, but it already has new pans, beam, front disc brakes, rear drums ect. The pan was also powder coated.
In this picture you can see the pan head after I wiped some dust off.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Mon May 11, 2015 8:39 am    Post subject: Reply with quote

Here is a look at the channels and package tray, pretty solid absolutly no rust through, slight surface rust here and there but that's about it.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Mon May 11, 2015 8:44 am    Post subject: Reply with quote

When we first got the ghia, I thought that it was a good candidate to just throw some make up on a pig and make it look pretty on the outside and let her drive it. Since getting it I have read and read everything I could and the more knowledge I gained the more respect for the car I got. So I decided to fix things right. A few month back I happened to run across a thread on one of the forums. The guy was doing metal work on a ghia.
Here are some pictures from the ghia he was working on:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I was really impressed with his metal working abilities. And since I knew my metal working skills really suck, I contacted him to see if he would fix the nose and a couple of other issues. His shop is called W.A.R. Will's Auto Restoration.
Well we struck up a deal and Courtney and I towed the car to his shop yesterday.
Image may have been reduced in size. Click image to view fullscreen.


and this is where it sits waiting on a nose job :thumbs:
Image may have been reduced in size. Click image to view fullscreen.


He is working it in among several other builds, so progress will probably not be fast, but I still have my car to finish so there is no rush. I will post pictures as I get them from him though.
_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 6191
Location: Pearl River, NY
Rome is offline

PostPosted: Mon May 11, 2015 10:56 am    Post subject: Reply with quote

Fantastic that you chose the Ghia! What shape is the engine compartment in, as to the metal body panels to the sides of the engine?

Will your wife pick the Ghia's color combination (body, top, interior)?

Will you work on redoing the engine while the car is at the body shop? The shop's metalworking skills are highly impressive.

Looking forward to updates.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Mon May 11, 2015 11:21 am    Post subject: Reply with quote

Rome wrote:
Fantastic that you chose the Ghia! What shape is the engine compartment in, as to the metal body panels to the sides of the engine?

Will your wife pick the Ghia's color combination (body, top, interior)?

Will you work on redoing the engine while the car is at the body shop? The shop's metalworking skills are highly impressive.

Looking forward to updates.


The wife will have total control as to color combination, but her plans are to pick body color, top, and interior from what was offered for that specific year. Pretty much everything will be as stock as we can get it other than wheels and ride height. I would rather keep it at stock ride height but she prefers them slightly lowered.

Engine bay is in great shape, the battery tray has been replaced, but I have already sourced a replacement. I cant believe I do not have a pic of the entire engine bay but here is what I have.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


It has a poorly installed battery tray area
Image may have been reduced in size. Click image to view fullscreen.


They do not repop this section for a 64 so I searched and found a replacement here on the samba a couple of months back.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


It has a little surface rust and slight pitting, but it will have to do unless I can find a better one before it is time to install.

The passenger quarter also has a bad patch installed, a PO lap welded the new panel on. I am currently looking for a replacement panel for this section and have an ad on the samba. This area was probably replaced when they did the battery tray. More than likely it was battery acid that did a number on it. You can kinda see the lapped piece where I have the quarter in this picture.
I am pointing at the line where they cut the old piece out.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



and the last major issue is the nose. no telling what happened here, I know the picture is blurry but you can still make out all the hammer marks.
Image may have been reduced in size. Click image to view fullscreen.



A minor issue that will be dealt with is the radio hole has been hacked
Image may have been reduced in size. Click image to view fullscreen.

_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Mon May 11, 2015 11:25 am    Post subject: Reply with quote

to answer your question about the motor Rome:
The ghia came with a "rebuilt" 40H. I could tell that the case had definitely been split. I went ahead and split it again just to check things out. Glad I did someone really liked silicone...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



It did have new valves and what looks to be 2 new pistons. I think I will still have David's Machine shop go through the heads.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

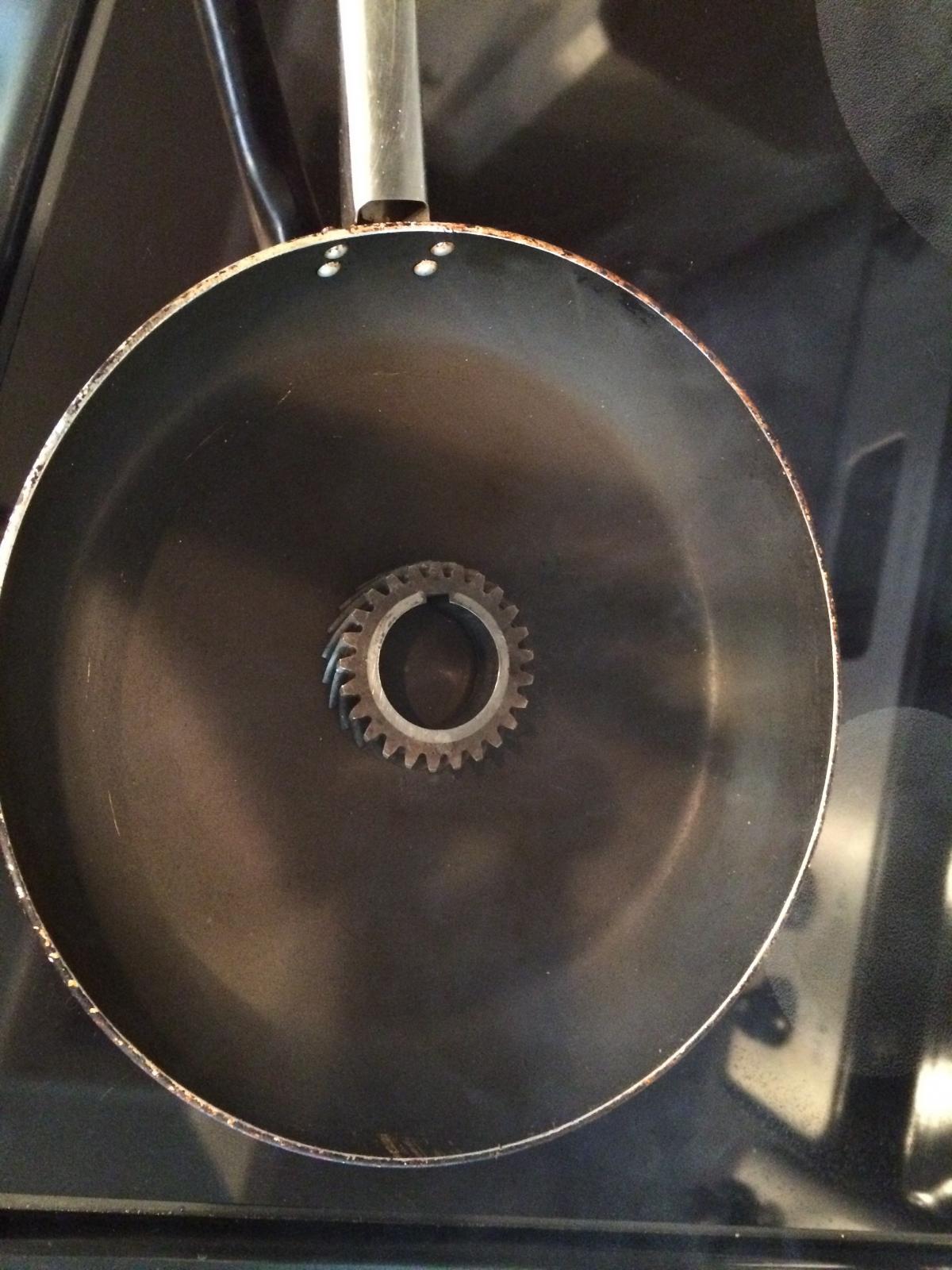

Distributor gear wasn't lined up correctly. It chewed a little at it

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


check out the ton of silicone used....

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


That squeeze through could have caused problems down the road.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


My buddy Miguel walnut blasted the case for me, so it is nice and clean and free of all the silicone.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

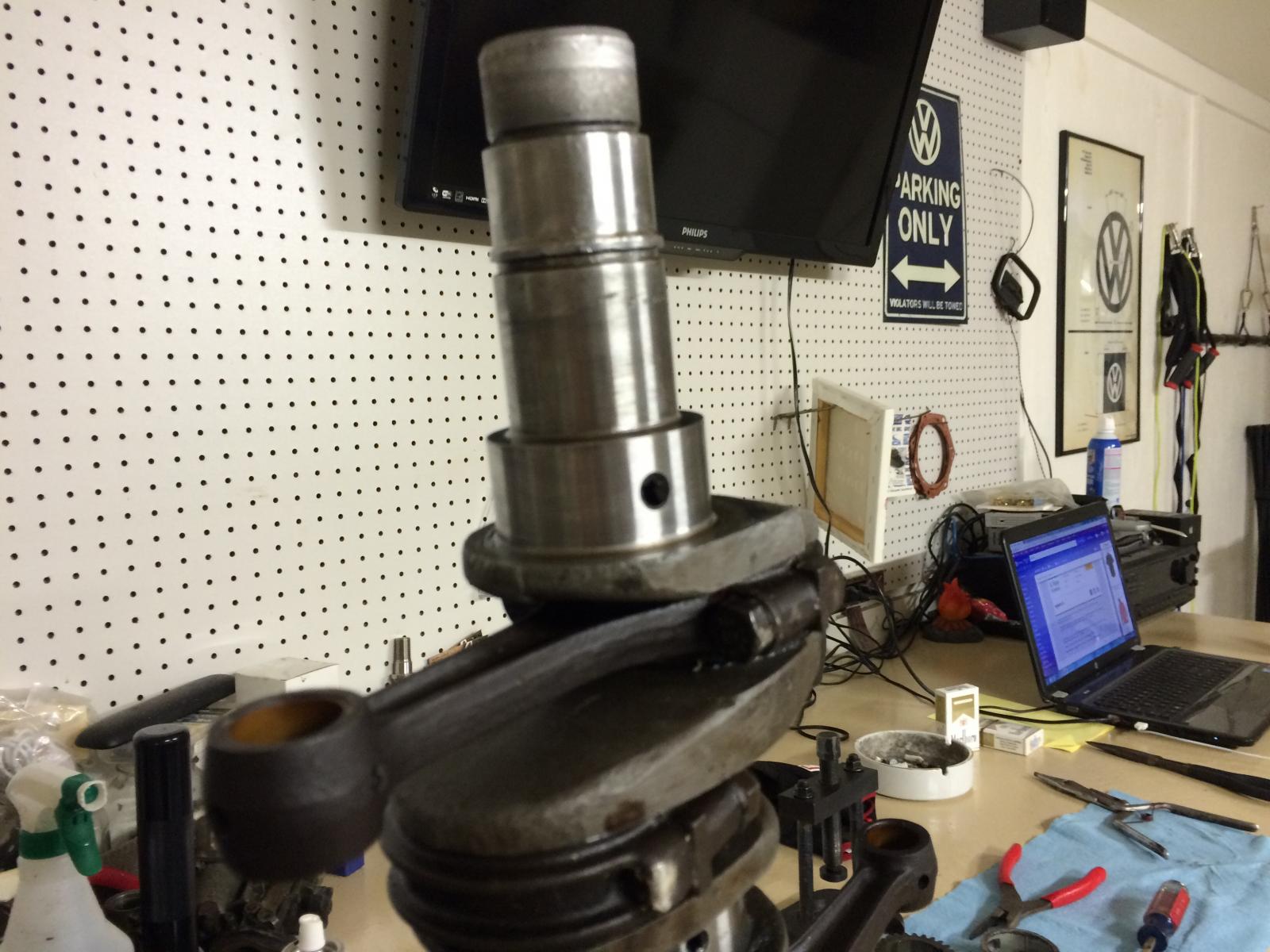

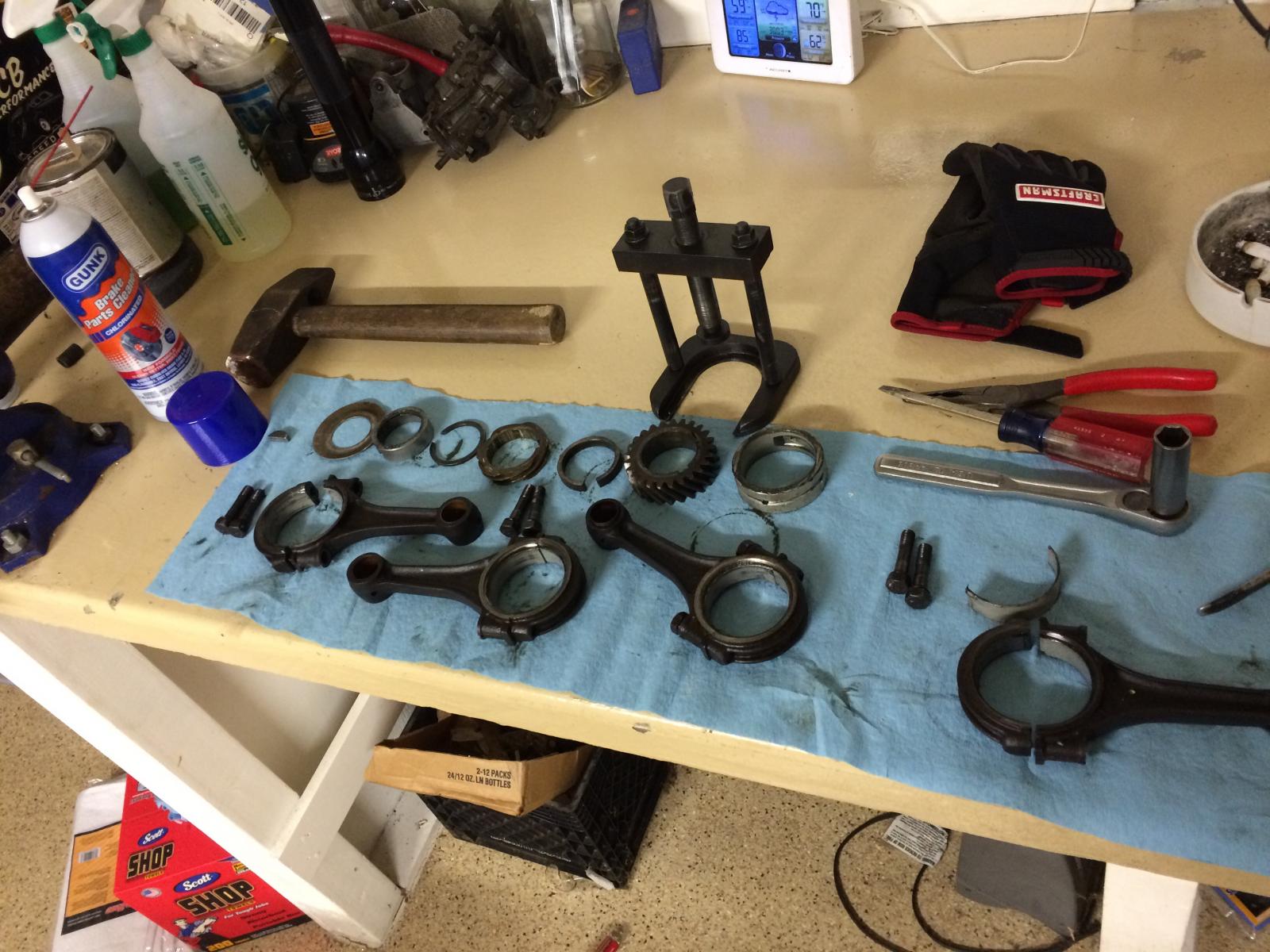

I also found an issue with two of the rod bearings, I'll get that sorted out as well.
click on the picture for video...
[img]http://i117.photobucket.com/albums/o70/ethandunlap/1964%20Ghia/th_IMG_2666.mp4[/img]

My plan is to build a complete stock motor for Courtney. I may put a big bore kit in it but other than that I will keep it simple. I want her to be able to get in and drive with as few issues as can be had. I am missing almost all of the tin and will have to source those parts.
I do have the factory air cleaner and fan shroud so that helps out a bit.
Image may have been reduced in size. Click image to view fullscreen.


I will post more pictures during the rebuild of the motor.
_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7326
Location: San Dimas
c21darrel is offline

PostPosted: Mon May 11, 2015 11:38 am    Post subject: Reply with quote

That was the ugliest use of grey silicone ive seen. I wouldnt worry too much about the rod bind until after the crank is sorted and rods resized, new bearings...thats when it needs to be right. Smile
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Thu May 14, 2015 5:54 pm    Post subject: Reply with quote

Yowzer Holy Buckets of Bondo Batman..... Not a very solid start. Things are just not as they seem at times. Gonna have to dig in deep this go around, this has got to be the most bondo I have ever seen on a car before. Will took a grinder to the car today and sent me a couple of photos for your enjoyment.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.




Might need an entire front clip. Of course we will not know the total extent of the damage until all the bondo has been removed. I have lucked out and Bob @ Big Bob's Bugs happens to have a front clip off of a 69 that he cut off years ago because it had never been hit.
_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
djway3474
Samba Member


Joined: August 19, 2011
Posts: 2261
Location: The Real NDK So Cal
djway3474 is offline

PostPosted: Thu May 14, 2015 7:47 pm    Post subject: Reply with quote

Holy Bondo Batman Evil or Very Mad
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sputnick60
Samba Moderator


Joined: July 22, 2007
Posts: 2912
Location: Auckland, New Zealand
sputnick60 is offline

PostPosted: Fri May 15, 2015 6:45 am    Post subject: Reply with quote

That bondo is everywhere! Shocking. Where was the magnet when you bought it? Yikes!
Nicholas
_________________
'66 Karmann Ghia Cabriolet...
'65 Porsche 356C Coupe...
2014 Passat B7 130TDI wagon (cheats in tests)
"Have no fear of perfection - you'll never reach it."(Salvador Dali)
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CiderGuy
Samba Member


Joined: December 23, 2013
Posts: 1318
Location: Bucks County, Pa
CiderGuy is offline

PostPosted: Fri May 15, 2015 7:25 am    Post subject: Reply with quote

sputnick60 wrote:
That bondo is everywhere! Shocking. Where was the magnet when you bought it? Yikes!
Nicholas


The bondo doesn't look all that thick that if sanded correctly and painted a magnet wouldn't have necessarily let you know that the bondo was there.
_________________
----------------------
Cars Currently Owned:

1970 Karmann Ghia Coupe
1973 Karmann Ghia Coupe - Project car for sale
1970 Karmann Ghia Convertible (Body off restoration)

Timing is everything
Back to top
View user's profile Send private message Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7326
Location: San Dimas
c21darrel is offline

PostPosted: Fri May 15, 2015 10:19 am    Post subject: Reply with quote

Quote:
The bondo doesn't look all that thick that if sanded correctly and painted a magnet wouldn't have necessarily let you know that the bondo was there.


Holy Cow Shocked
From my screen it looks 1/2 inch plus, everywhere.
Did you meet the artist? Cool

Propane torch and putty knife will take off big chunks at a time w/o the dust storm. Will burn so keep water bucket handy and eyes open.
_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rome
Samba Member


Joined: June 02, 2004
Posts: 6191
Location: Pearl River, NY
Rome is offline

PostPosted: Fri May 15, 2015 3:53 pm    Post subject: Reply with quote

Thanks for your action plan.

Your Ghia appears to be a "late" '64 (front blinker style, smaller shape of the battery area depression) like mine is. The ch# of mine is 6562XXX. Is yours close?

My car, being out of the NorthEast, had about 1/2" filler at the top of the fenders at the headlights, which were totally rusted out. The rest was not bad as to filler, but it had its share of rust in the rockers as well as behind the rear wheels. Hard to believe but the nose and the vertical center ridge are completely untouched.

Was there really all that silicone on top of the pistons when you removed the heads?!

Careful with this head- it appears as though both combustion chambers, especially the lower one, have significant cracks between the valves-
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jpjohns
Samba Member


Joined: May 03, 2014
Posts: 880
Location: Harrisonburg, VA
jpjohns is offline

PostPosted: Fri May 15, 2015 6:13 pm    Post subject: Reply with quote

Does Bondo even come in a 5 gallon bucket? Holy crap! I thought my Ghia had a lot of bondo on it Cool
_________________
-Jared

"Scrapyards are for quitters" - Beetlenut (a Samba member)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
543fold
Samba Member


Joined: November 30, 2007
Posts: 139
Location: Texas
543fold is offline

PostPosted: Sat May 16, 2015 10:15 pm    Post subject: Reply with quote

Rome wrote:
The shop's metalworking skills are highly impressive.
Thanks Rome Very Happy
_________________
https://www.instagram.com/w.a.r._wills.auto.restoration/
______________________
....even the rust has rust!
______________________
How "NICE" do you wanna spend?

W.A.R.
Will's Auto Restoration
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Tue May 19, 2015 2:45 pm    Post subject: Reply with quote

Rome wrote:
Thanks for your action plan.

Your Ghia appears to be a "late" '64 (front blinker style, smaller shape of the battery area depression) like mine is. The ch# of mine is 6562XXX. Is yours close?

My car, being out of the NorthEast, had about 1/2" filler at the top of the fenders at the headlights, which were totally rusted out. The rest was not bad as to filler, but it had its share of rust in the rockers as well as behind the rear wheels. Hard to believe but the nose and the vertical center ridge are completely untouched.

Was there really all that silicone on top of the pistons when you removed the heads?!

Careful with this head- it appears as though both combustion chambers, especially the lower one, have significant cracks between the valves-
Image may have been reduced in size. Click image to view fullscreen.


Sorry I missed everyone's reply I had this bookmarked but for some reason I never got the email, I just dropped the heads off at David's machine shop to have a once over, from my past experience cracks between the valves are not a good enough reason to trash a head, I've had this issue on several of my 2 liters and ran the heads for years with no issues, cracks from valve to spark plug hole is a different story all together. I'm not sure if what we are seeing is really a crack though it may be just grease, that's actually grease you see on the Pistons. My ch# is 6171xxx
_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Tue May 19, 2015 3:07 pm    Post subject: Reply with quote

Well I started on the rebuild on the rebuilt motor. I dropped the heads off at David's Machine shop.The heads do have new valves in them already but after finding everything wrong about this motor I figured it was worth the extra money to have them gone through.

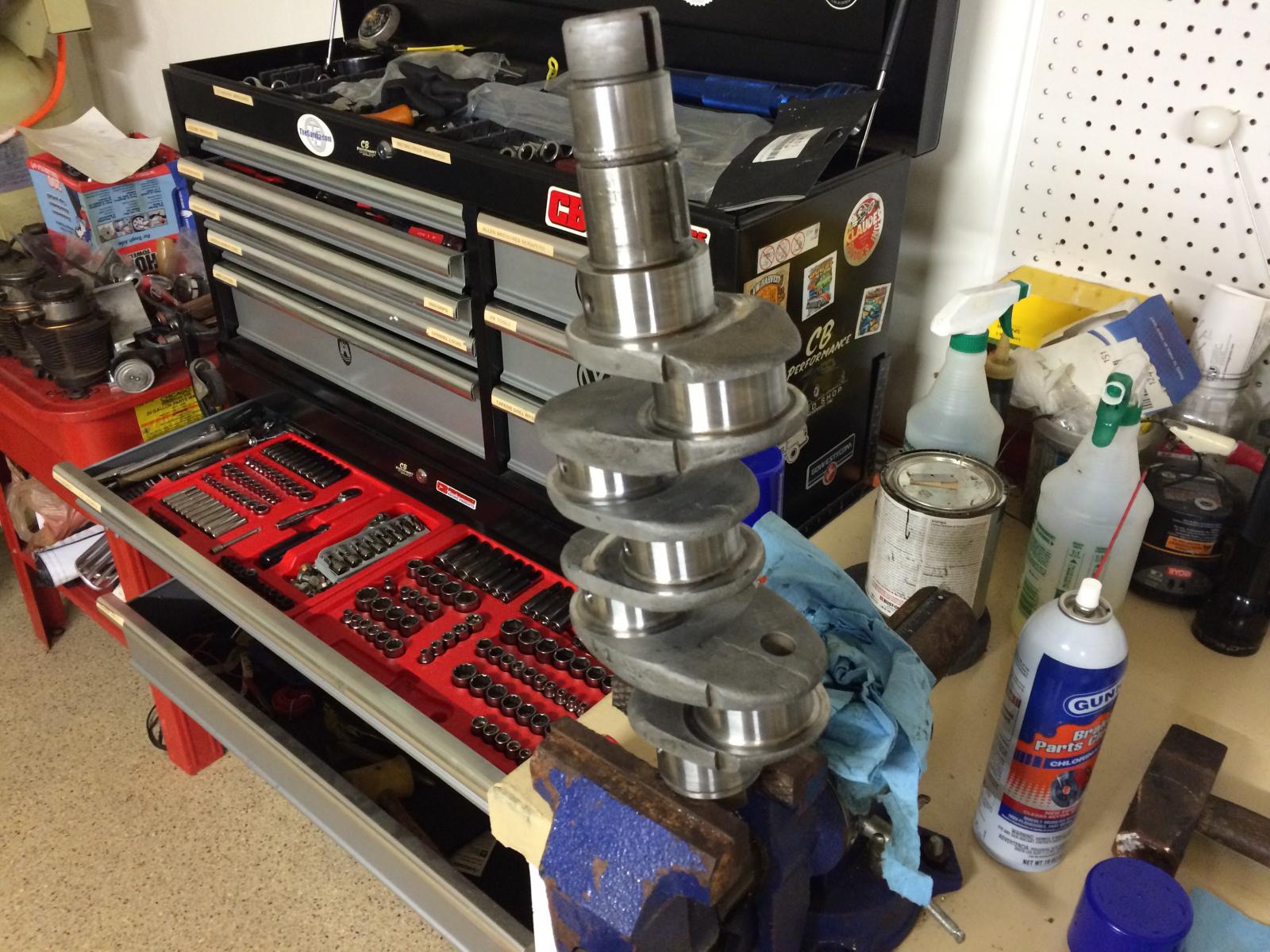

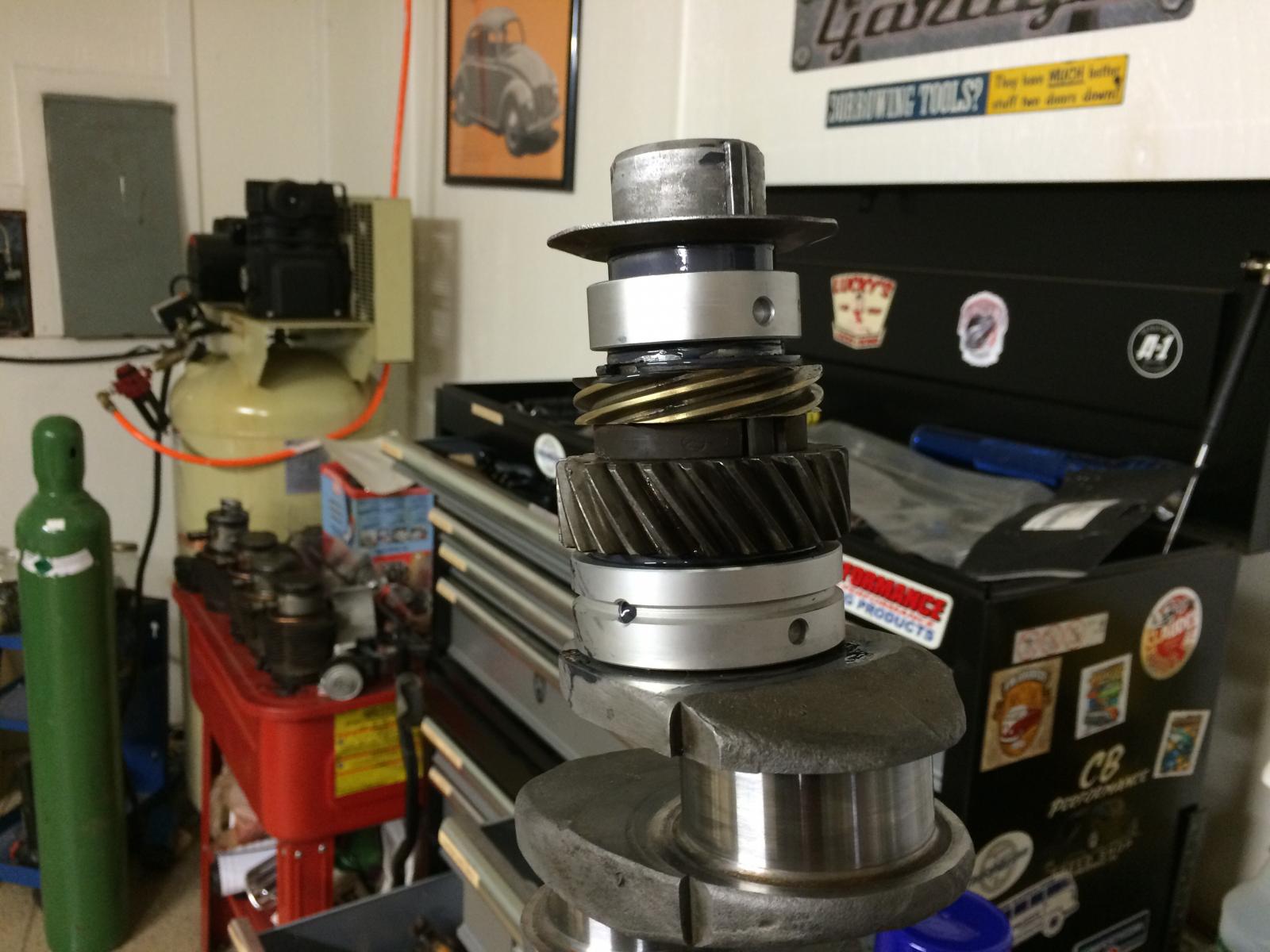

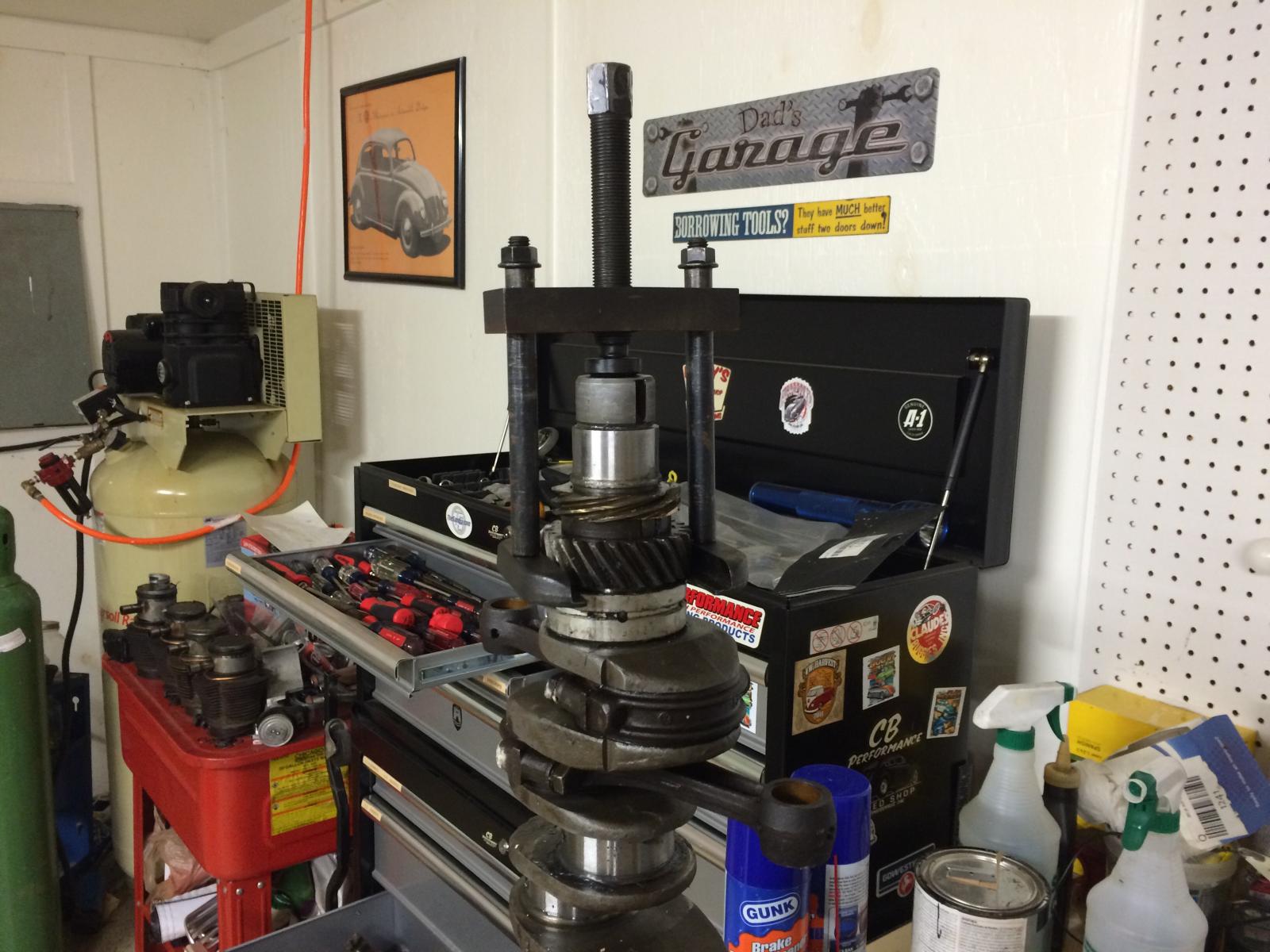

Moving on to the build, not much to say I ran into a big snag right out of the gate. It has a set of mismatched rods, three rods are 411 and one is 411A so I have ordered a set of rebuilt rods. One good thing the crank was turned when it was rebuilt so I do not have to worry about it. The case is in excellent condition and has no wear on the bearing saddles. I started on the the crank bearings and was ready to install the rods when I noticed that I had issues with the rods. so this is stalled until I get parts in the mail.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



good use of an old pan :thumbs:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I did buy new main and rod bearings, even though the ones on it where new. It looks like the issue that the rods had may have been due to improper installation. Guy who rebuilt it probably didn't tap them as he was installing them. I am thinking that it was either that or the ton of crap I got out of the oil holes in the crank could have had something to do with it, maybe from when the crank was turned
_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
NOVA Airhead
Samba Member


Joined: July 20, 2005
Posts: 5164
Location: The Blue Ridge Mountains of VA
NOVA Airhead is offline

PostPosted: Wed May 20, 2015 12:55 pm    Post subject: Reply with quote

When I bought my Ghia, which was for my wife she could not believe I was buying such a mess. While the car was complete and had not been hacked, it had the usual rust in the rockers. Mechanically it was sound.

This is my third Ghia and have been through dealing with someone else's attempt at a "restoration". Unless you can somehow verify that the work was done right I believe you are better off with a project/basket case up front. At least you know what you are getting into and you don't have to undo what was done before.

That is quite a bit of bondo.
_________________
Ghia Owner Emeritus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
varagon
Samba Member


Joined: November 03, 2013
Posts: 114
Location: SE Kansas
varagon is offline

PostPosted: Wed May 20, 2015 1:51 pm    Post subject: Reply with quote

I wish I had someone around SE Kansas to show me the ropes in rebuilding and restoring my Ghia.

Nice work and keep posting updates and pictures.
_________________
1973 Karmann Ghia Convertible
Back to top
View user's profile Send private message Twitter Gallery Classifieds Feedback
ConcreteAce
Samba Member


Joined: May 19, 2005
Posts: 828
Location: Spring, Texas
ConcreteAce is offline

PostPosted: Wed May 20, 2015 4:19 pm    Post subject: Reply with quote

NOVA Airhead wrote:
Unless you can somehow verify that the work was done right I believe you are better off with a project/basket case up front. At least you know what you are getting into and you don't have to undo what was done before.


I agree NOVA, I'd rather buy an original paint car that has rust than one that is pretty and shiney. So much can be hidden behind paint. And as far as motors go I never trust the " I just had it rebuilt" phrase


varagon wrote:
I wish I had someone around SE Kansas to show me the ropes in rebuilding and restoring my Ghia.


I am kinda in the same boat Vargon, although I have built several beetles and a bus this is my first ghia. The fun is in the research and hands on learning. So I am looking to have a great time with this build.
_________________
Ethan Dunlap
Spring, Texas

'51 Deluxe
'61 Build
'68 Turbo Diesel Baja
'64 Ghia Vert
'61 Baja Build
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Ghia All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
