Type 2 Wiring Diagrams
Contributions to this section are always welcome

  Instructions:

  • Right click on the diagram/key/fuse box you want to download
  • Select "Save Link As" or Save Target As" from the pop-up menu
  • Save the diagram to your hard drive, remember where you put it!
  • Open the diagram on your computer with an image program
Please Note: Some of the fuse boxes pictured in the diagrams are
rotated 180 degrees from how they actually mount in the car.
As a guideline, headlight fuses are usually on the left
For additional Wiring Diagrams info, see Electrical System (E) in the Technical Bulletins Index.
For wire sizes, also see Wiring size conversion chart - German mm to USA AWG
Also see Understanding European Wiring Diagrams from Motor Magazine

Year Diagram Key Fuse box Comments/Extras

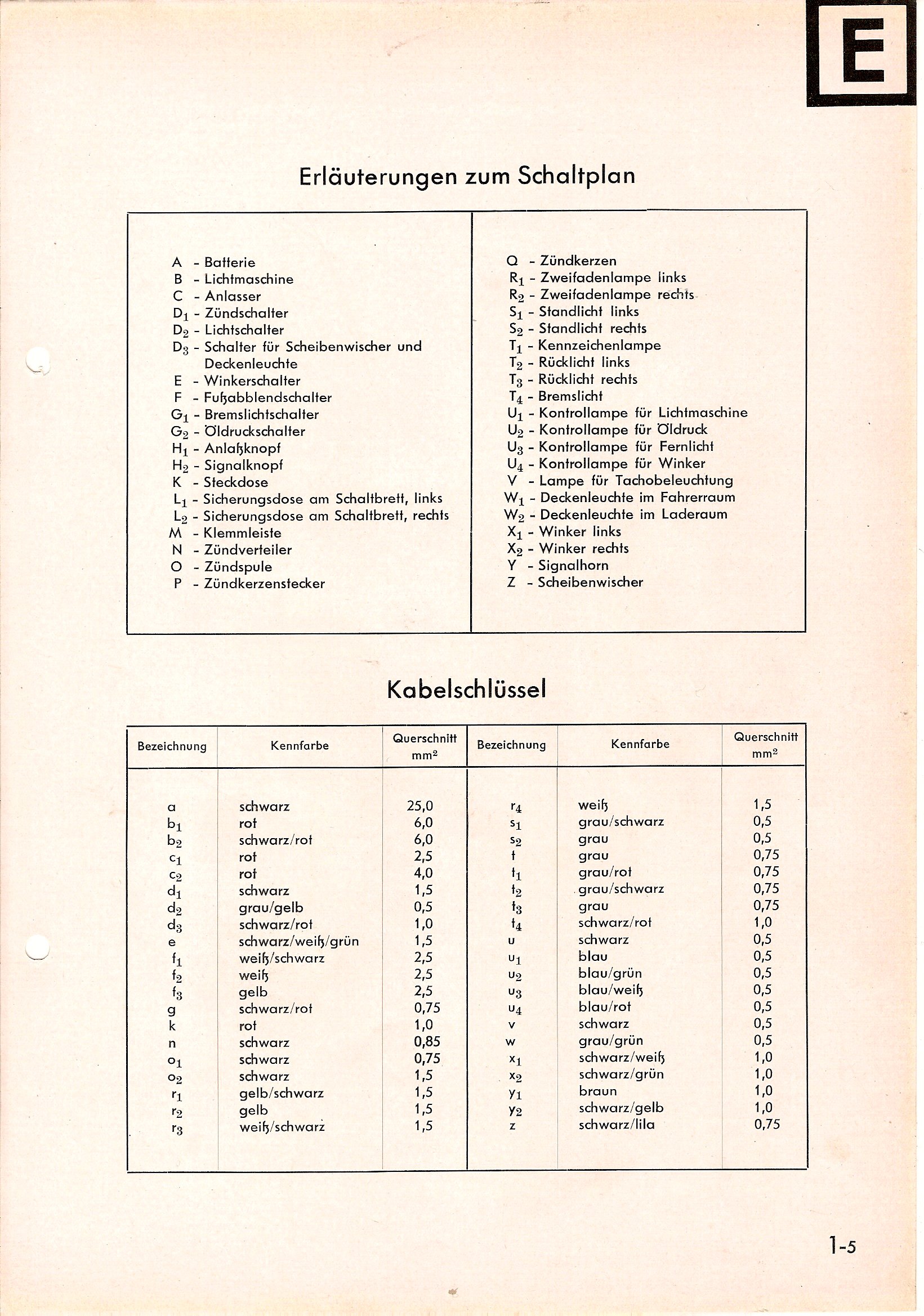

1951 October, 1951
1952   April, 1952

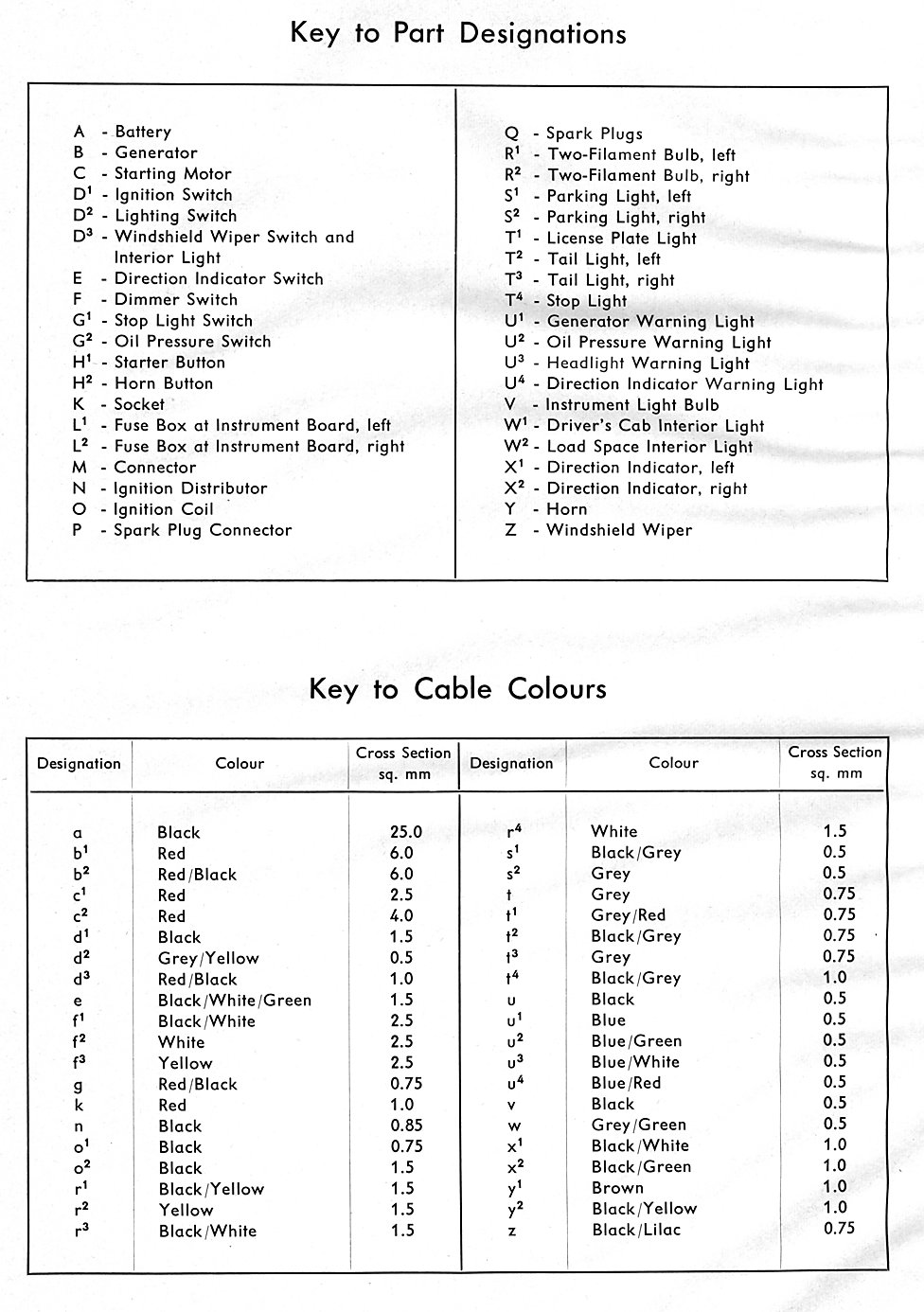

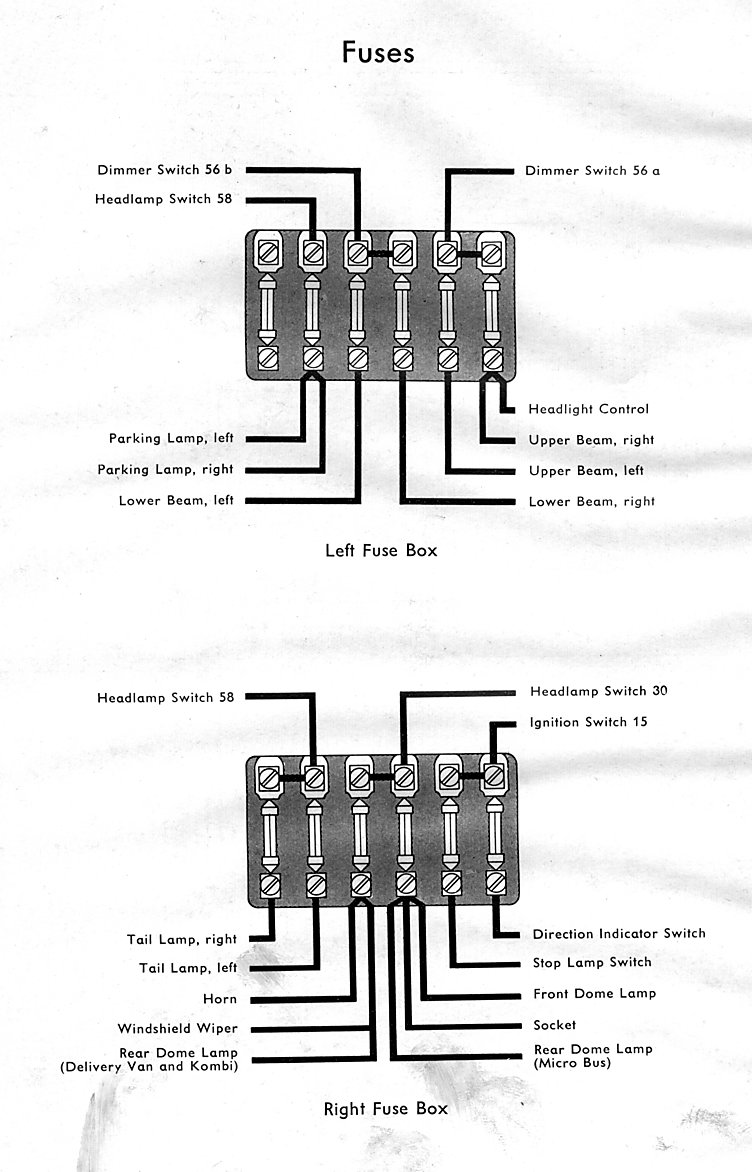

1953 February, 1953
1954 January, 1954

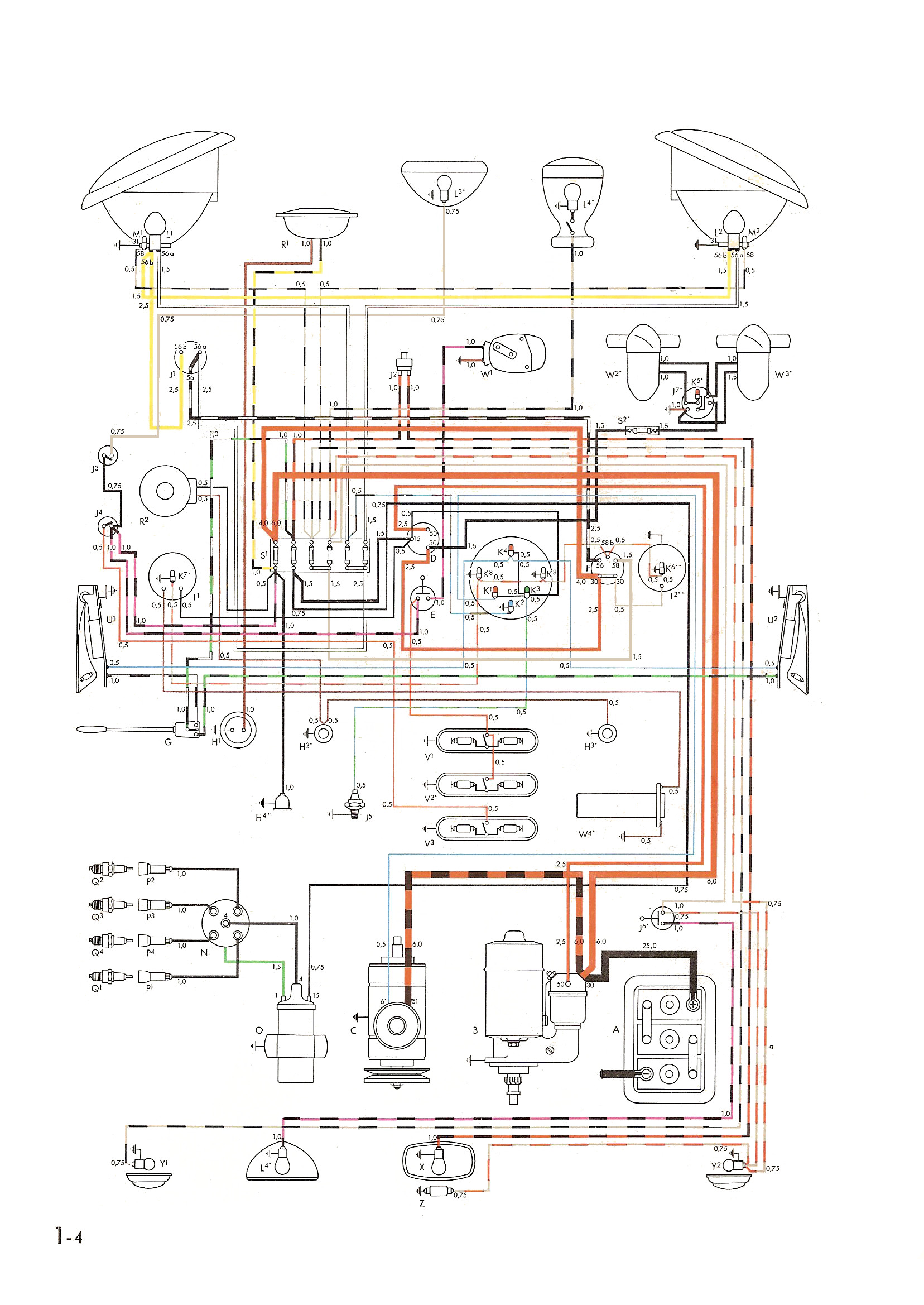

1955 March, 1955
Turn signal wiring

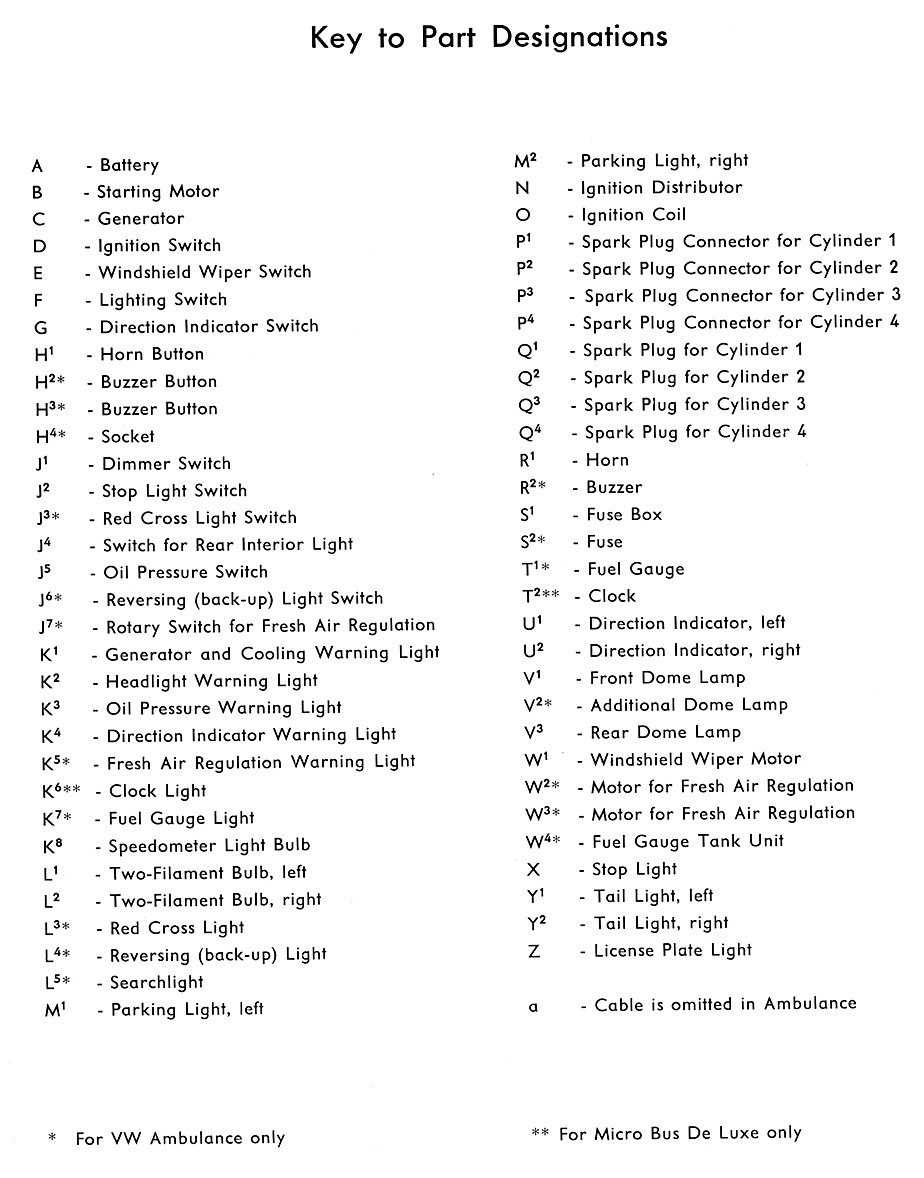

1957 Nov. 1957
Turn signal wiring
1959 Non-USA
1959 USA

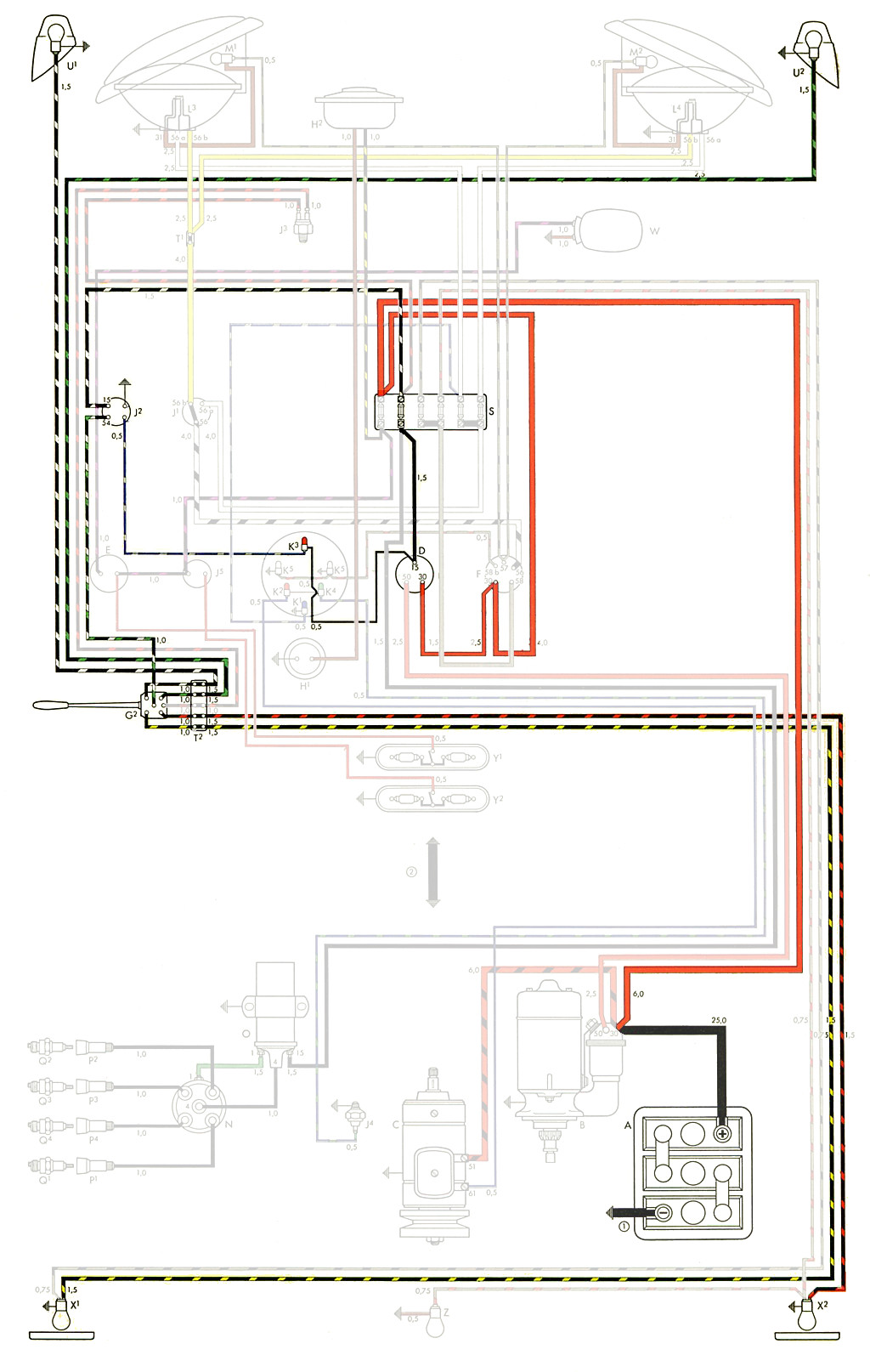

Turn signal wiring
Brake lights wiring
1960     Fuse box insert

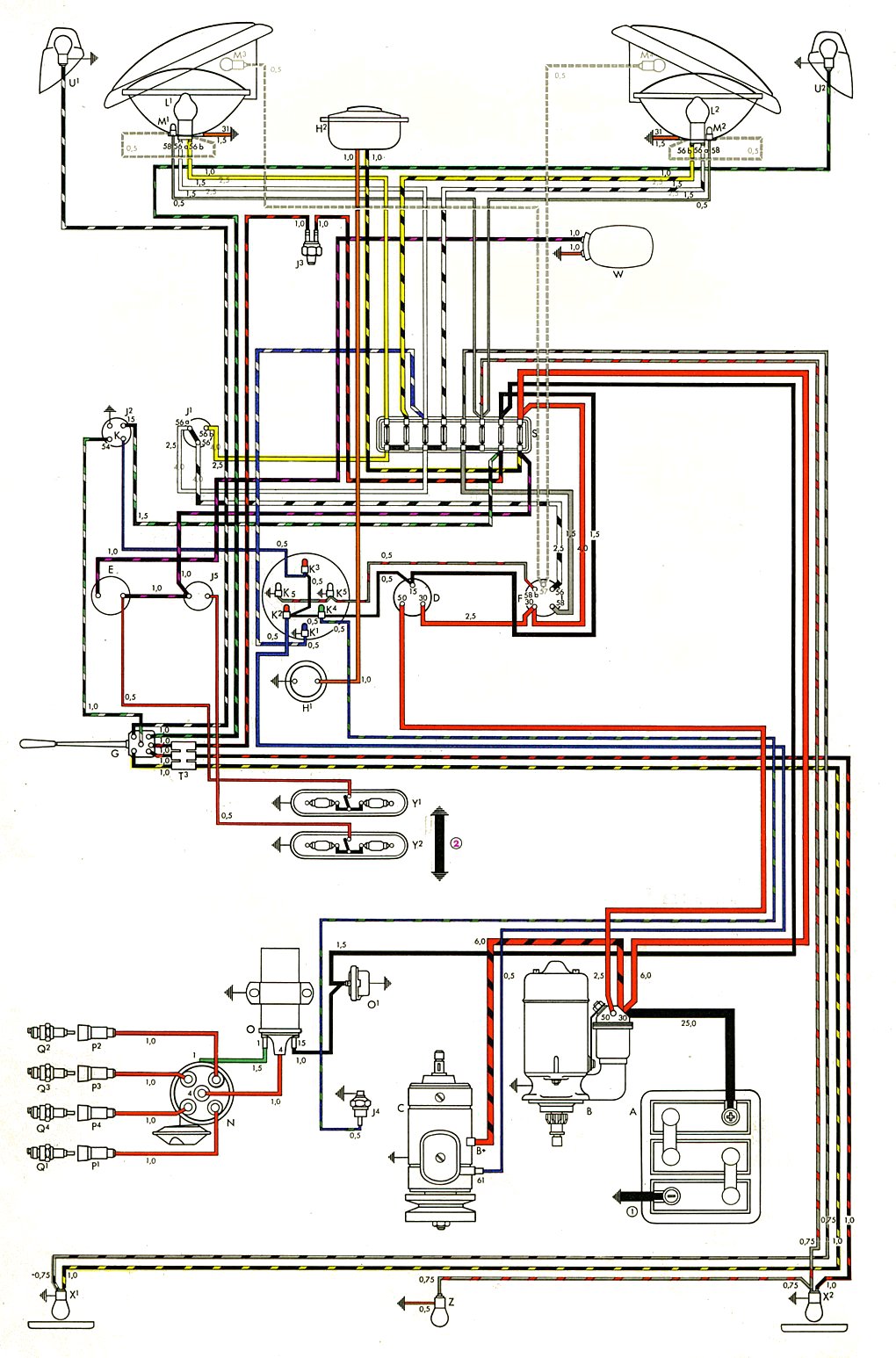

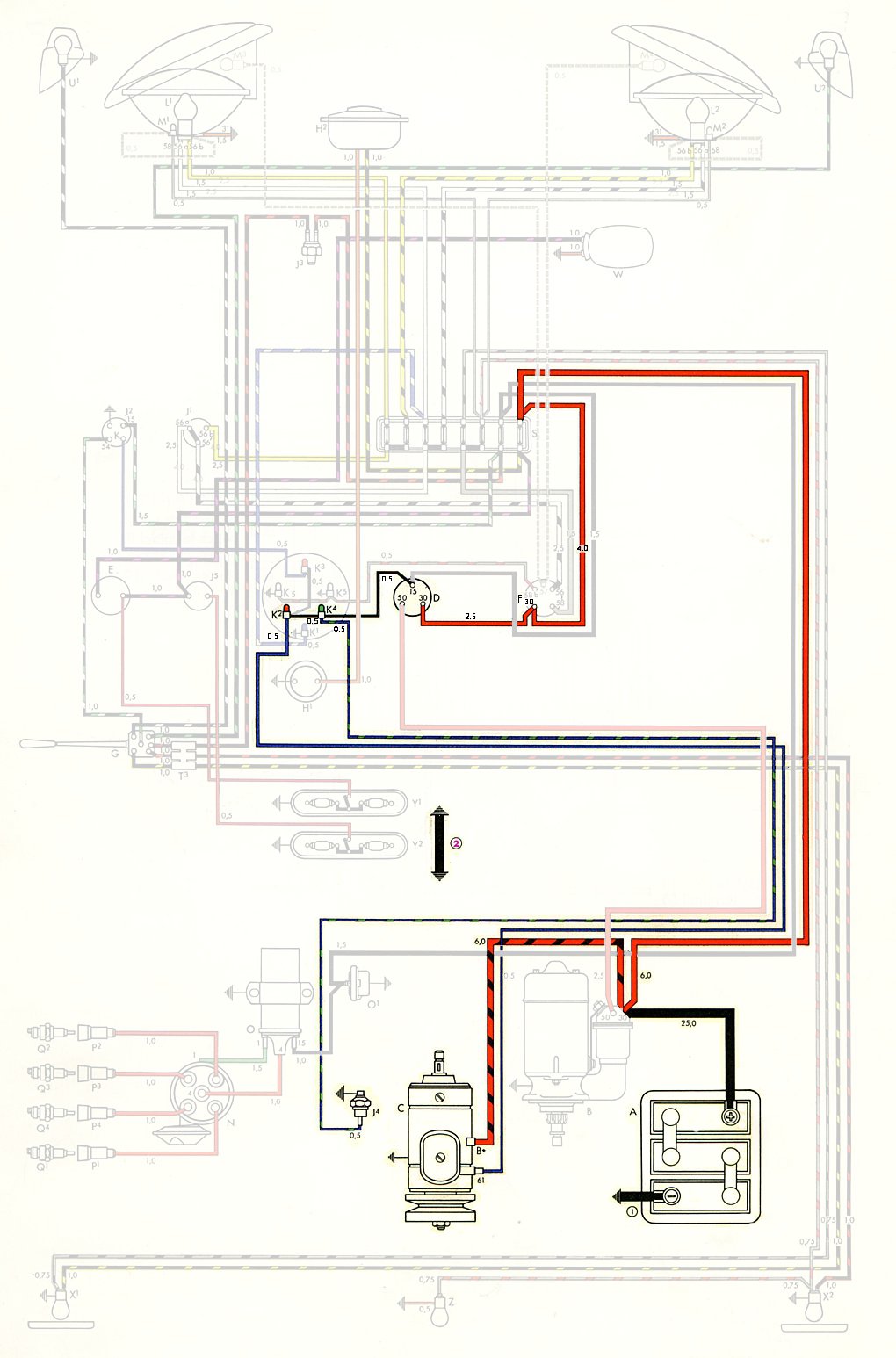

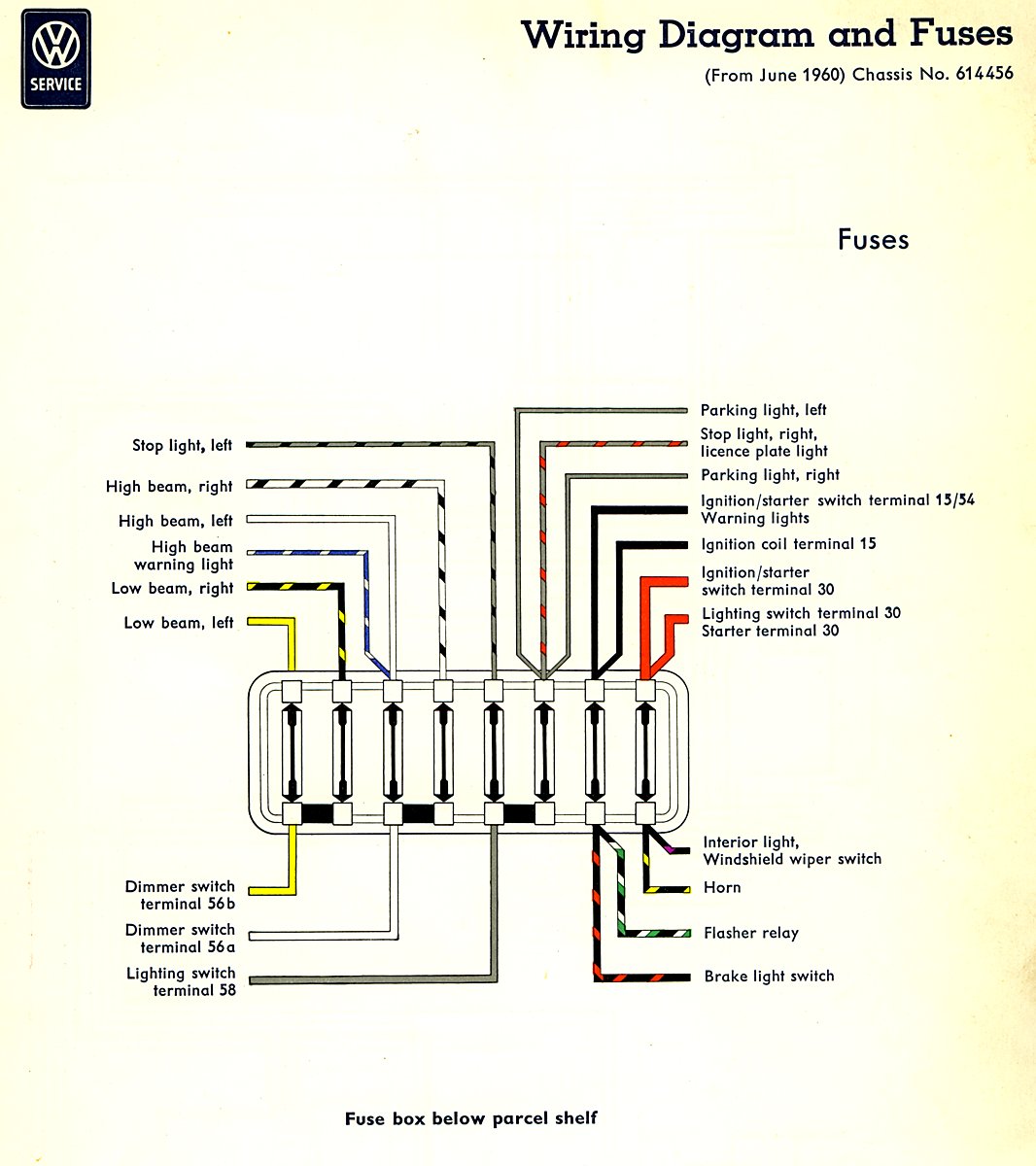

1961 Idiot lights highlight
1962-65     From National Automotive Service
1963 Non-USA
1963 USA

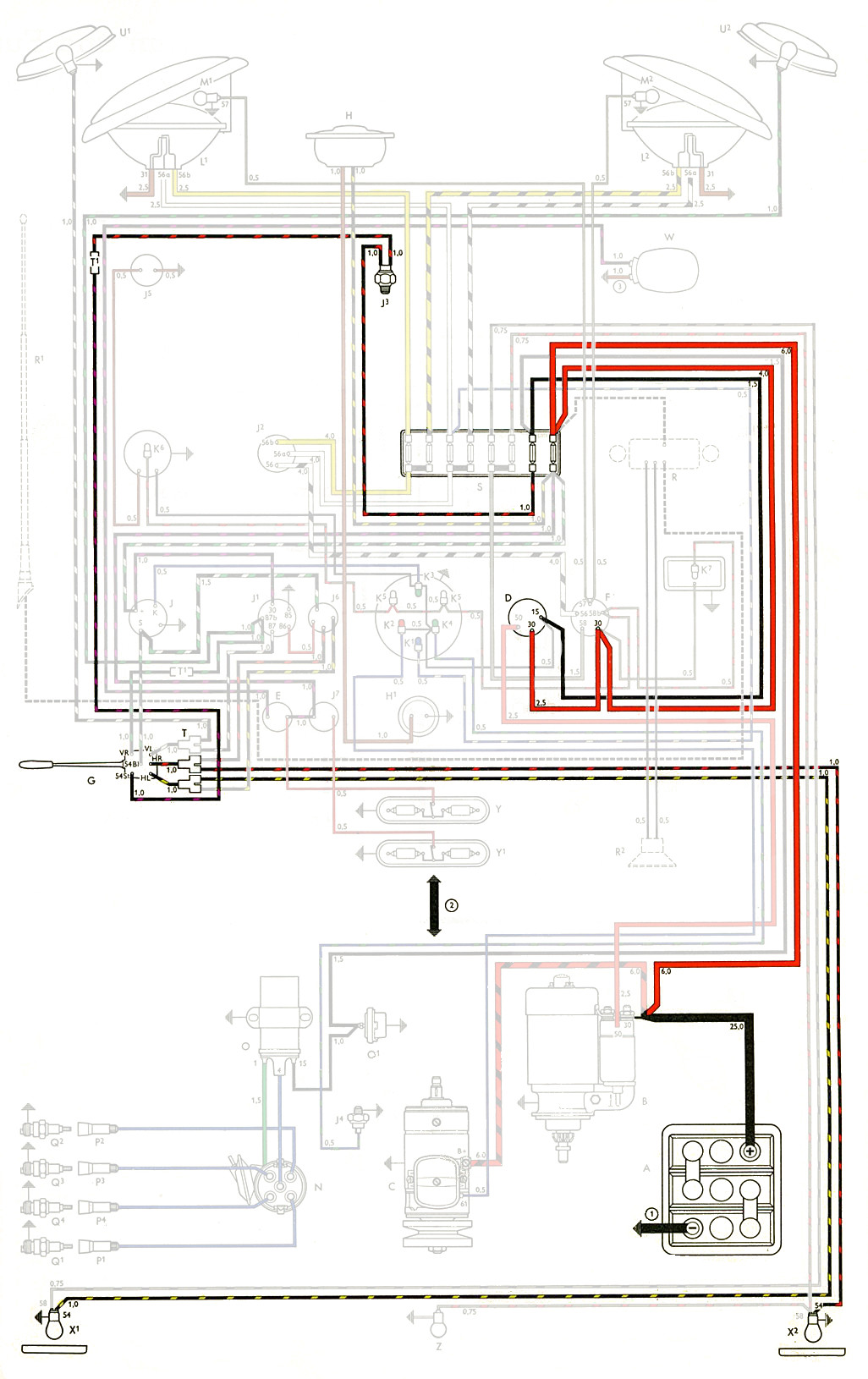

Brake lights highlight
Turn signals highlight
4-way flashers highlight
Headlight highlight
Starter wiring

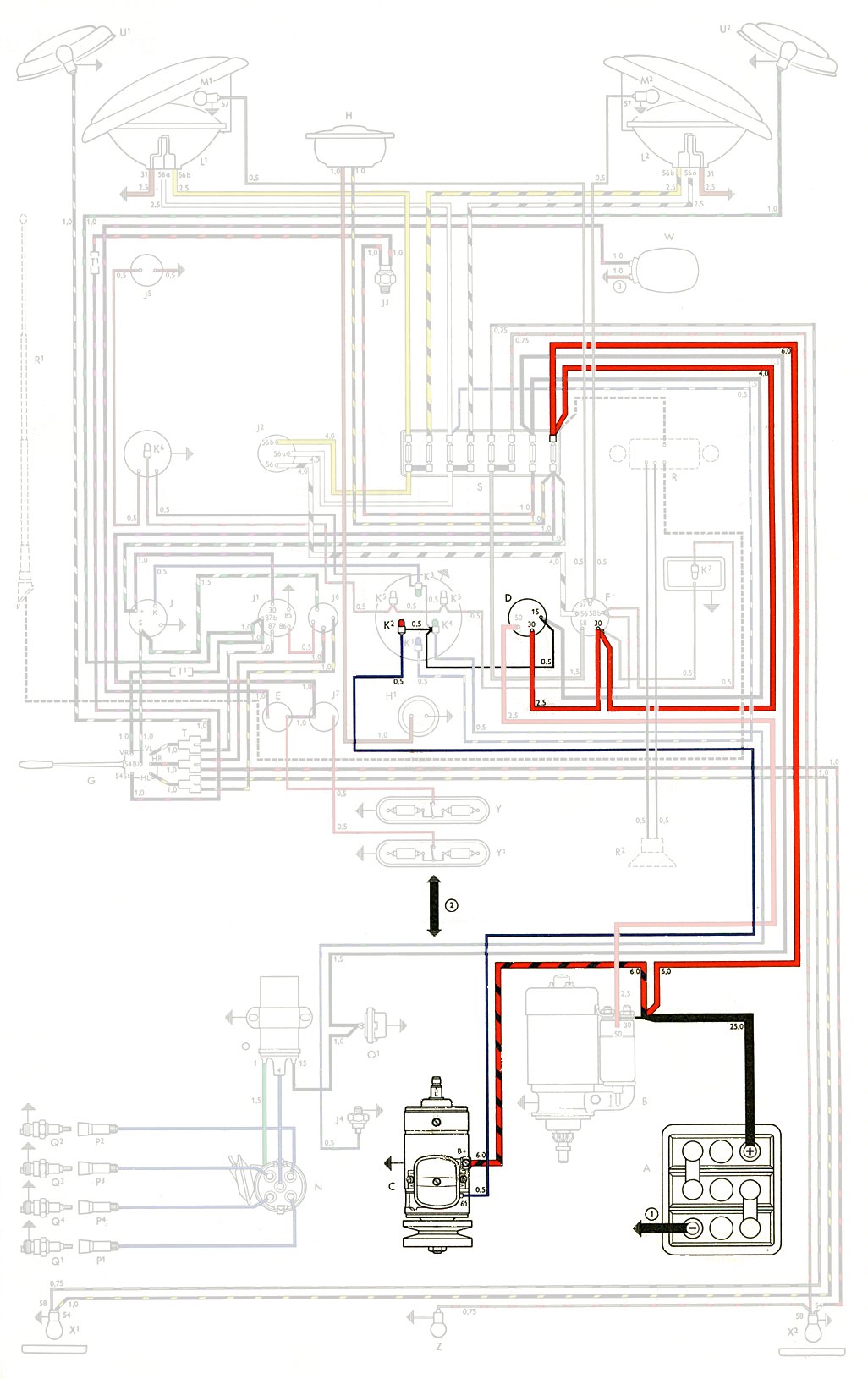

Generator wiring
1963   USA, includes emergency light system, created by Bus owner
1965     USA, created by Bus owner
1965       Headlights highlight
Turn signal path highlight

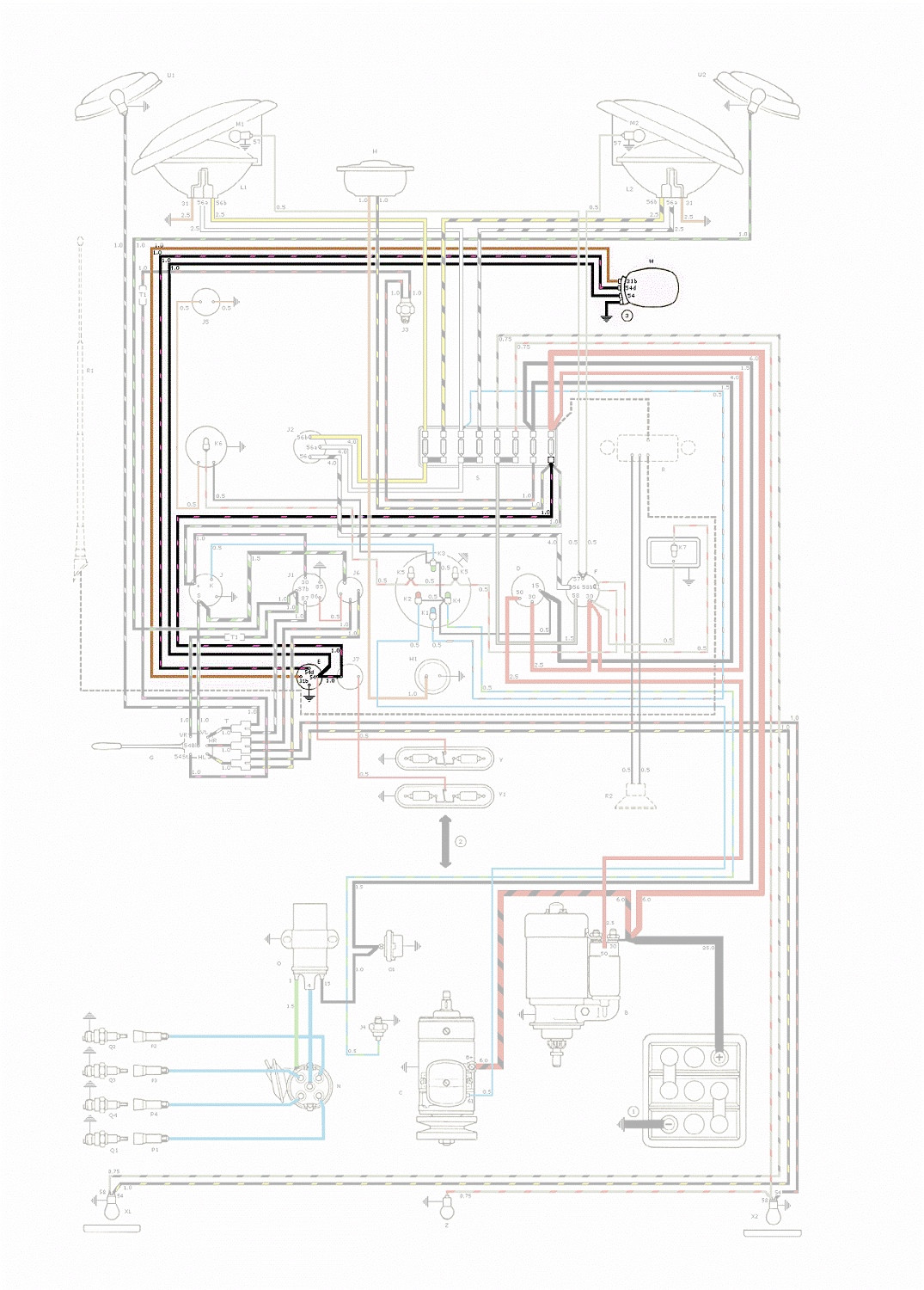

Wiper highlight
1966   Non-USA

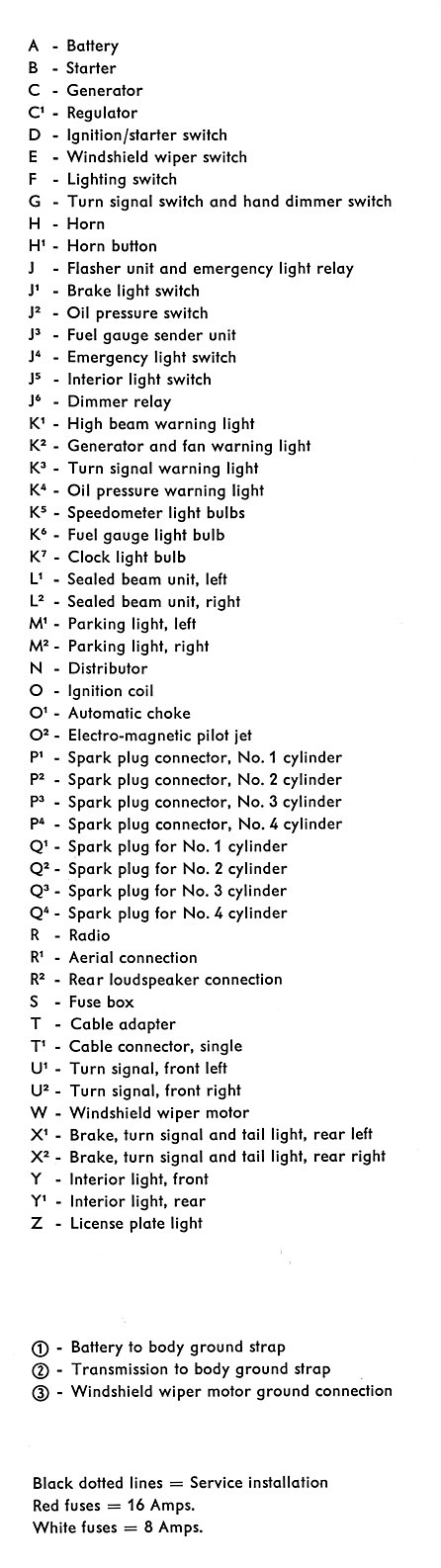

1966 USA
Headlights highlight

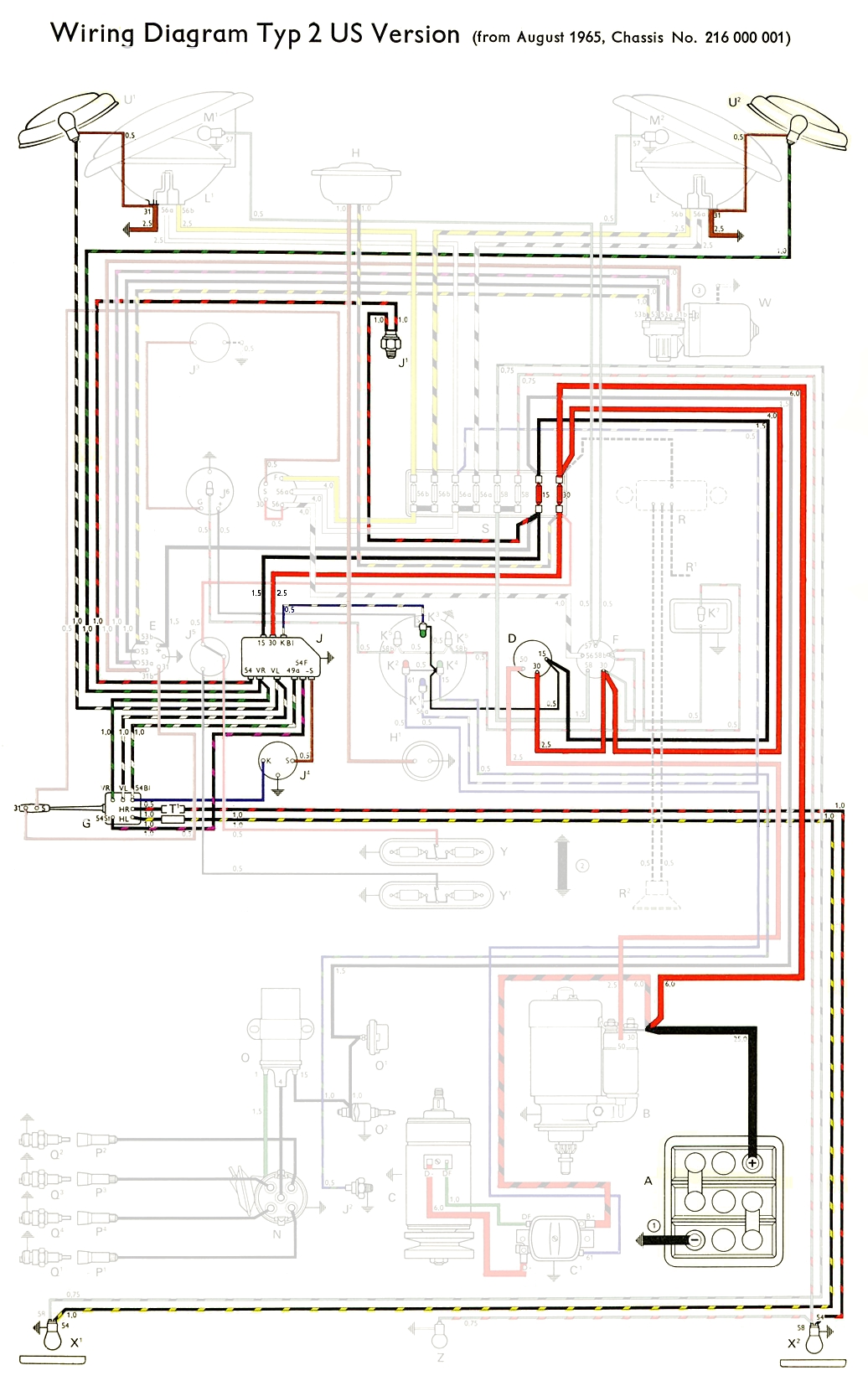

Turn signals highlight
Emergency light warning relay supplement

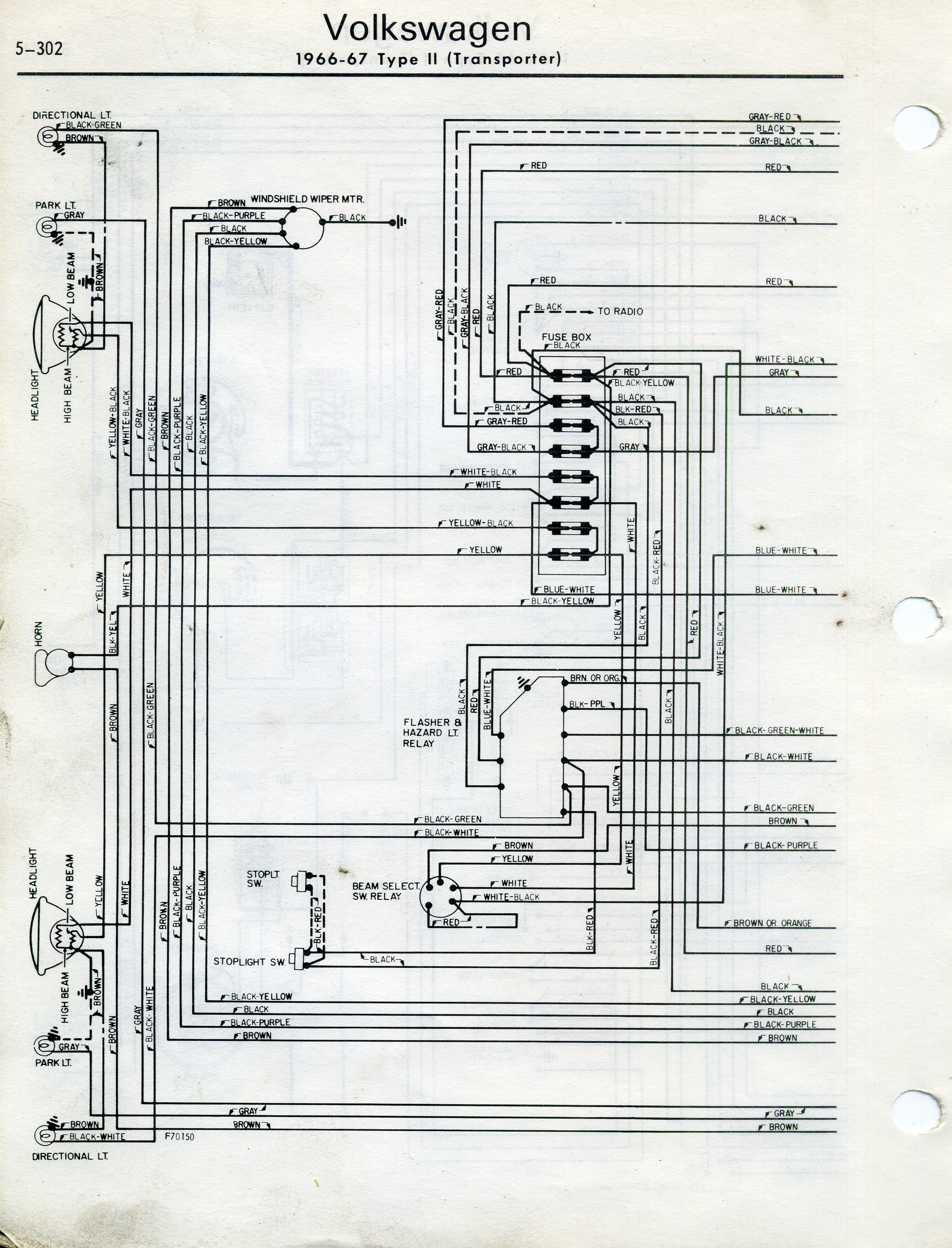

1966-67     From National Automotive Service
1967   Non-USA

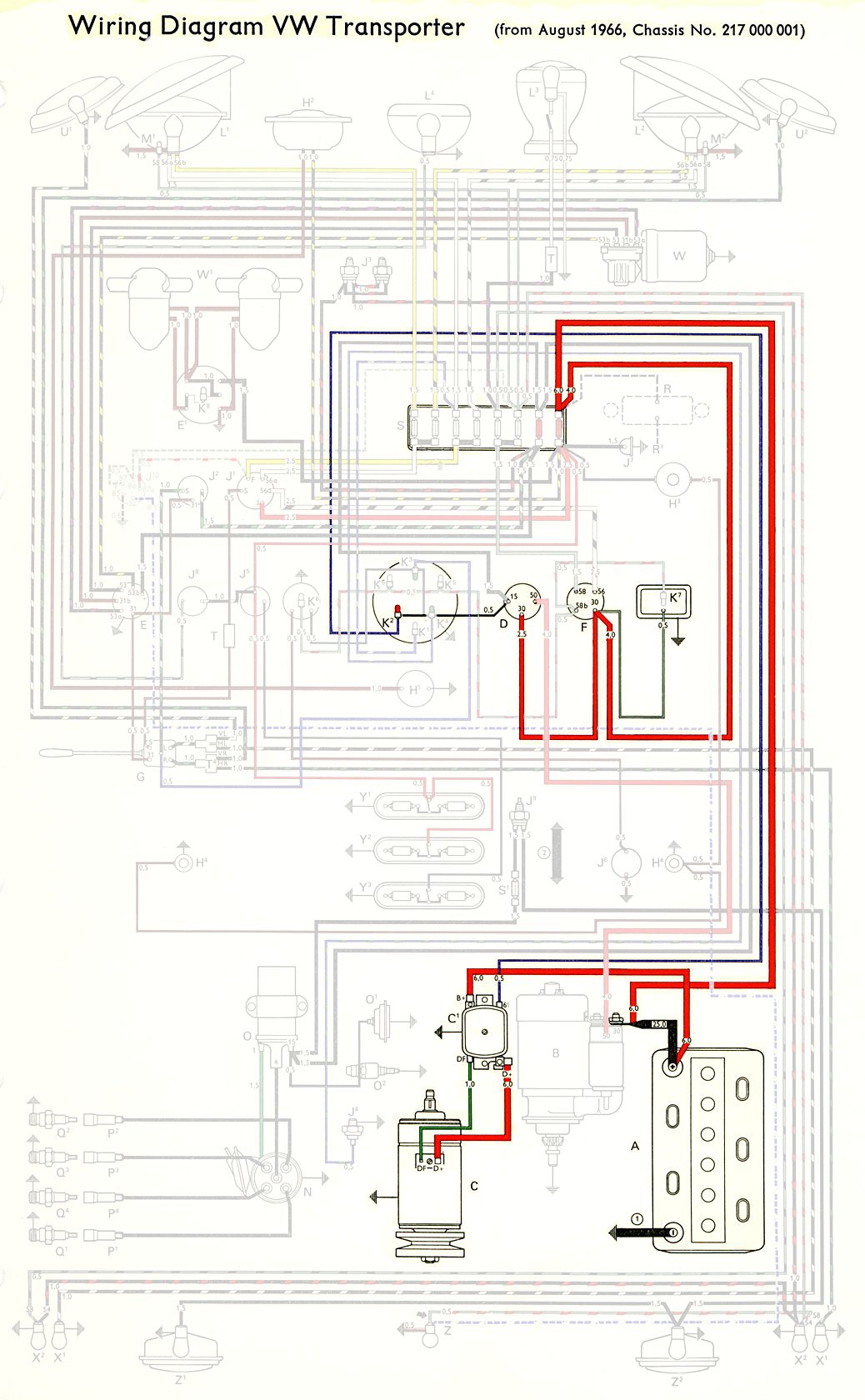

Unfused schematic highlight
Headlight schematic highlight

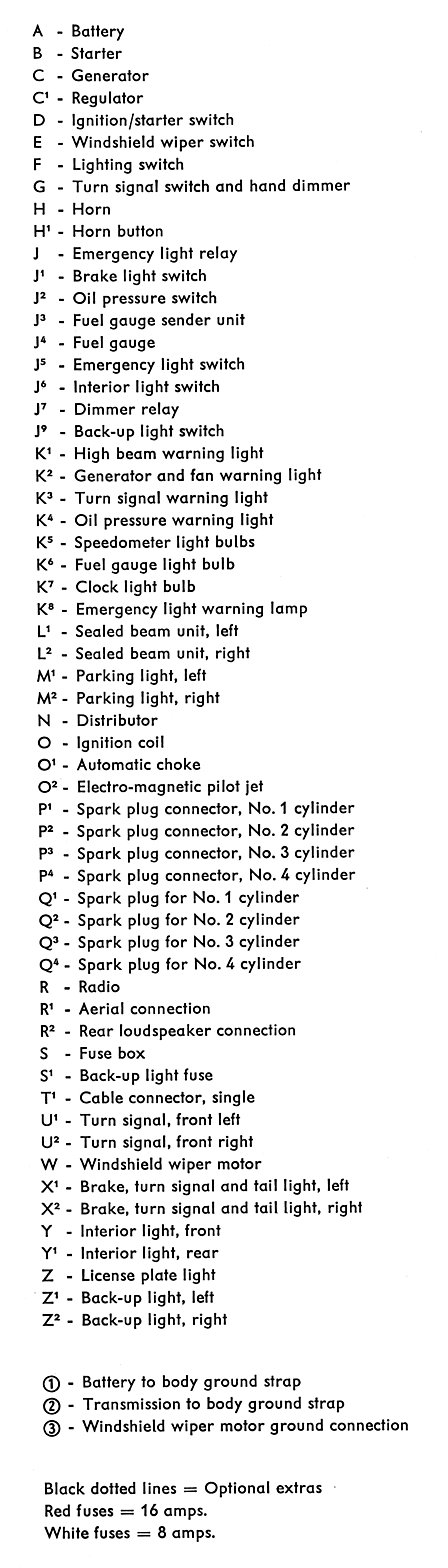

1967 USA
Headlight schematic highlight
Brake lights highlight

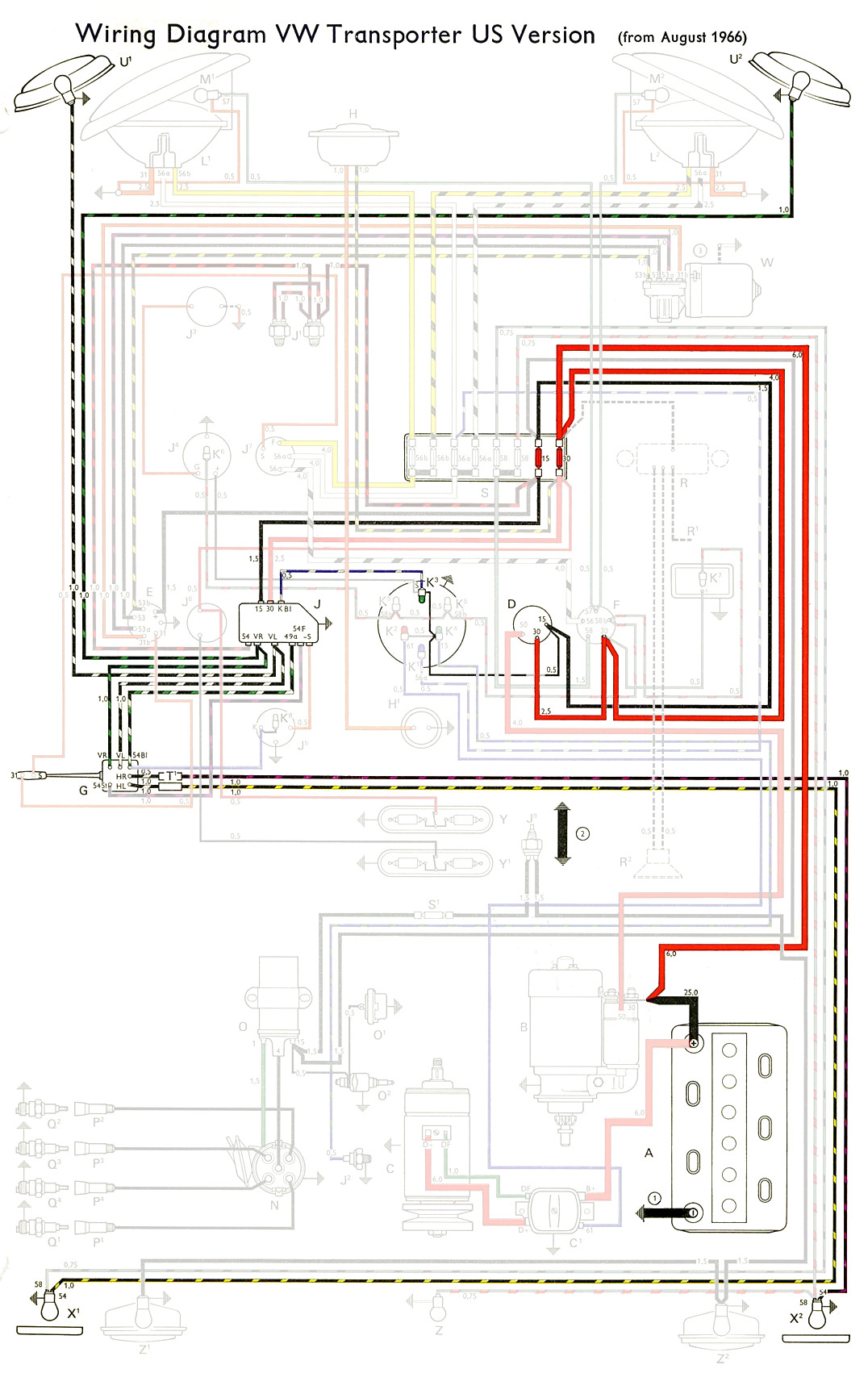

Turn signals highlight
4-way flashers highlight
1968 To VIN # 2x8098285
Unfused schematic highlight
68-69 headlights + taillights schematic
68-69 Brake lights highlight
68-69 Turn signals highlight
68-69 4-way flashers highlight
68-69 horn highlight
68-69 starter highlight
1968-70   Merged version
VIN # 2x8098286 through 1970
Fresh-air defogger
Headlight highlight
1969 Bay Window fuse box correction
Also see Forum posting

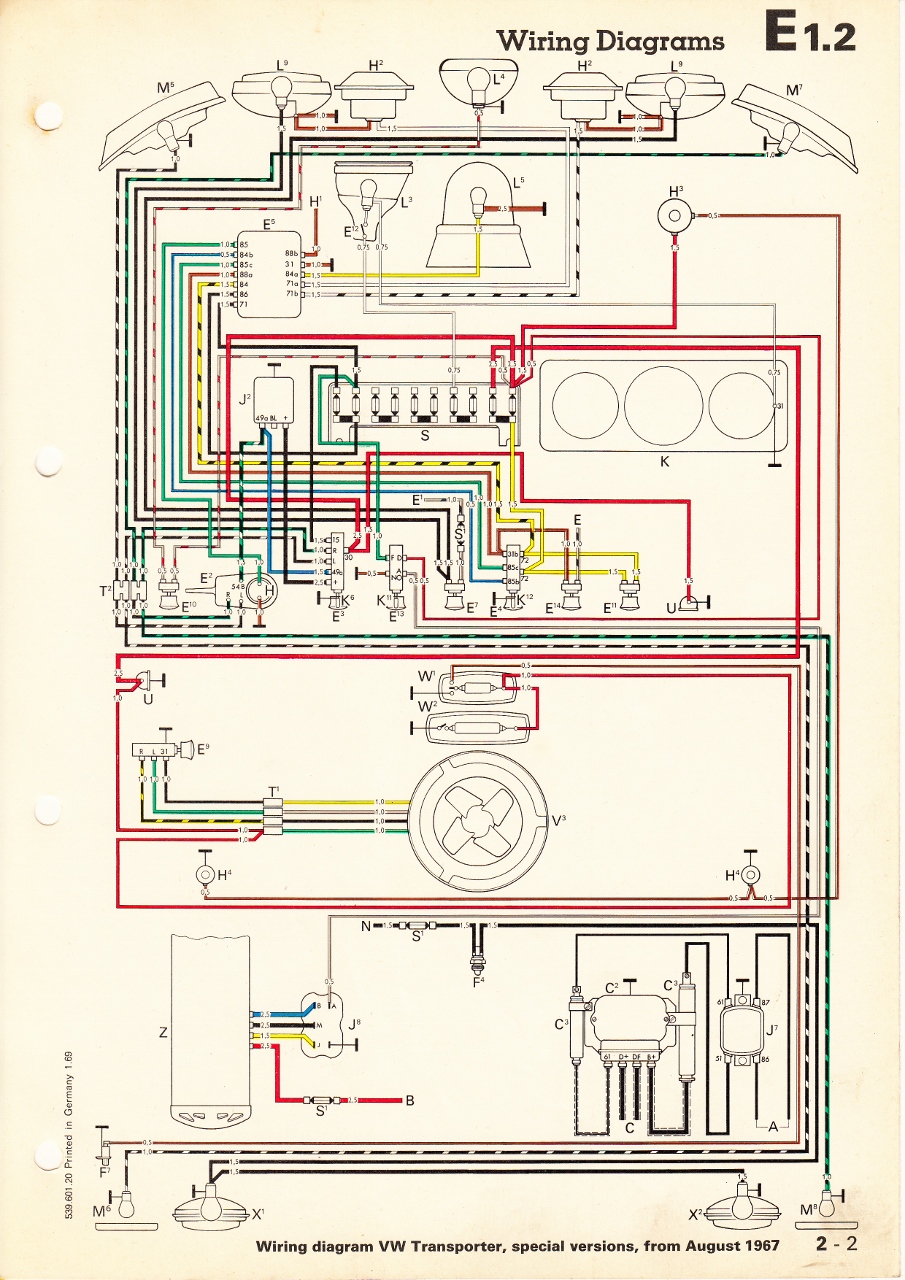

1968   8.67 Special Models
1968-70     From National Automotive Service

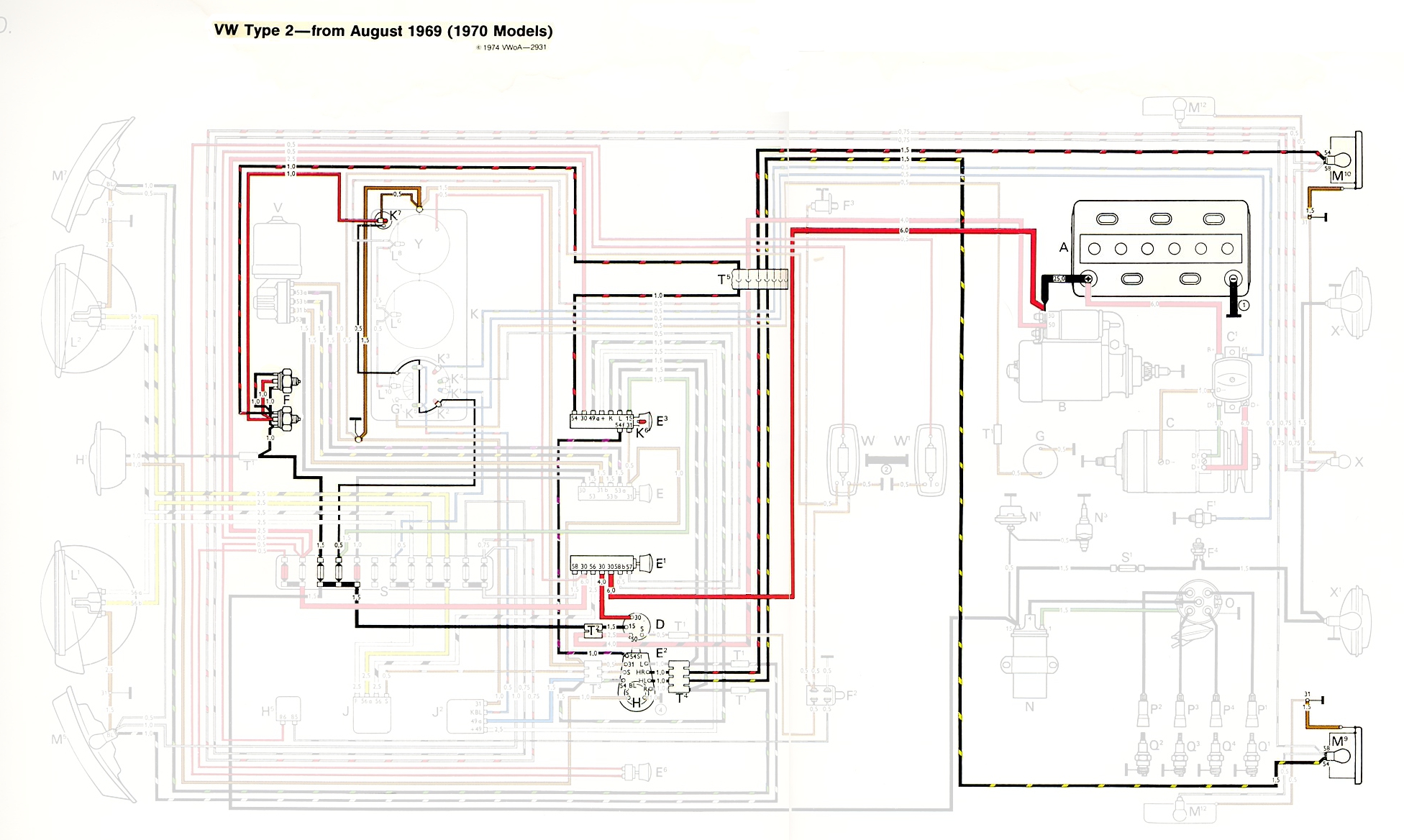

1970     Brake highlight
Turn signals highlight
4-Way Flasher highlight
Headlight highlight
  Ignition and starter wiring highlight

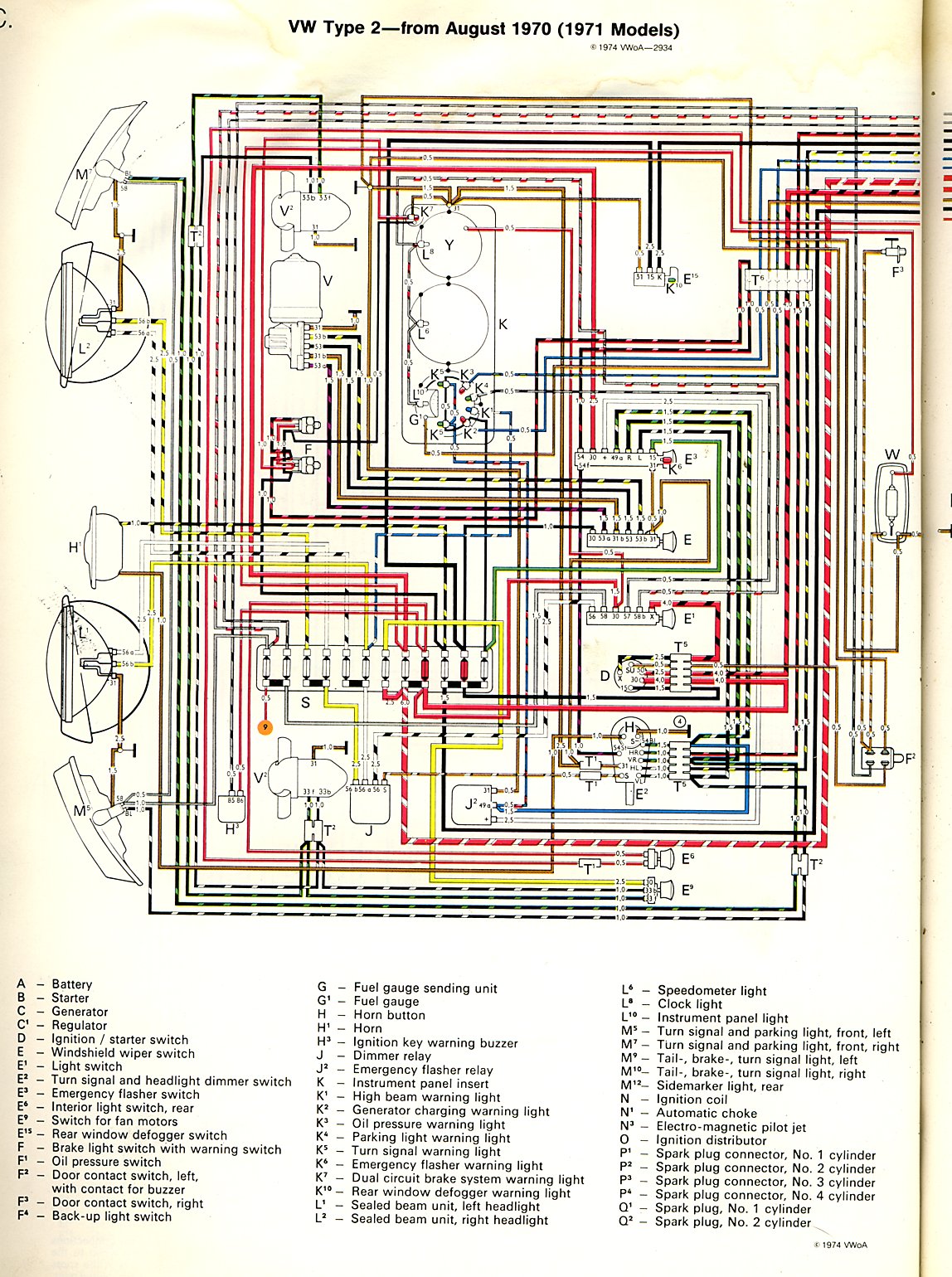

1971     Merged version
With rear window defroster and ambulance fans
Original factory diagrams: (fuse box is depicted wrong)

Merged version of the above

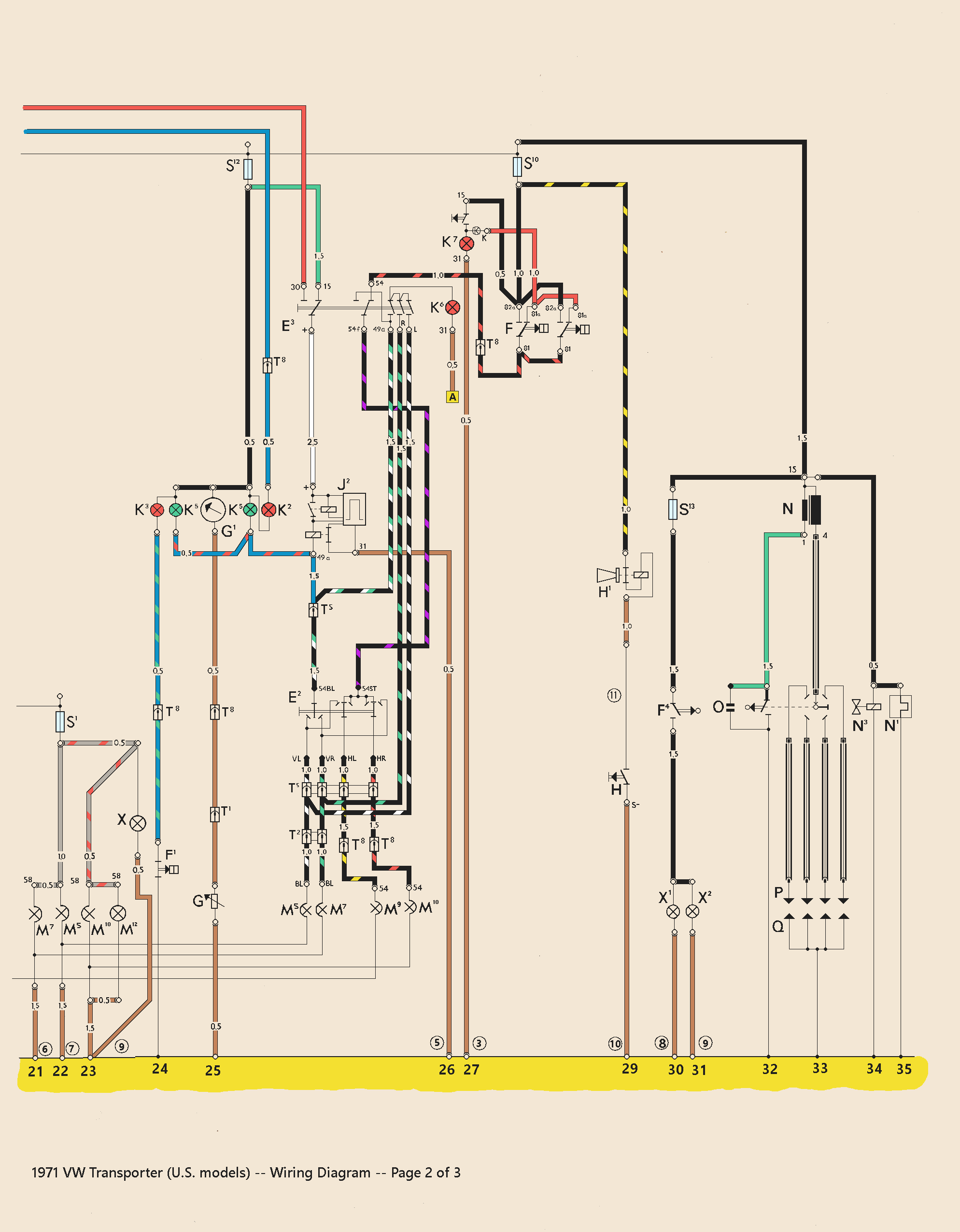

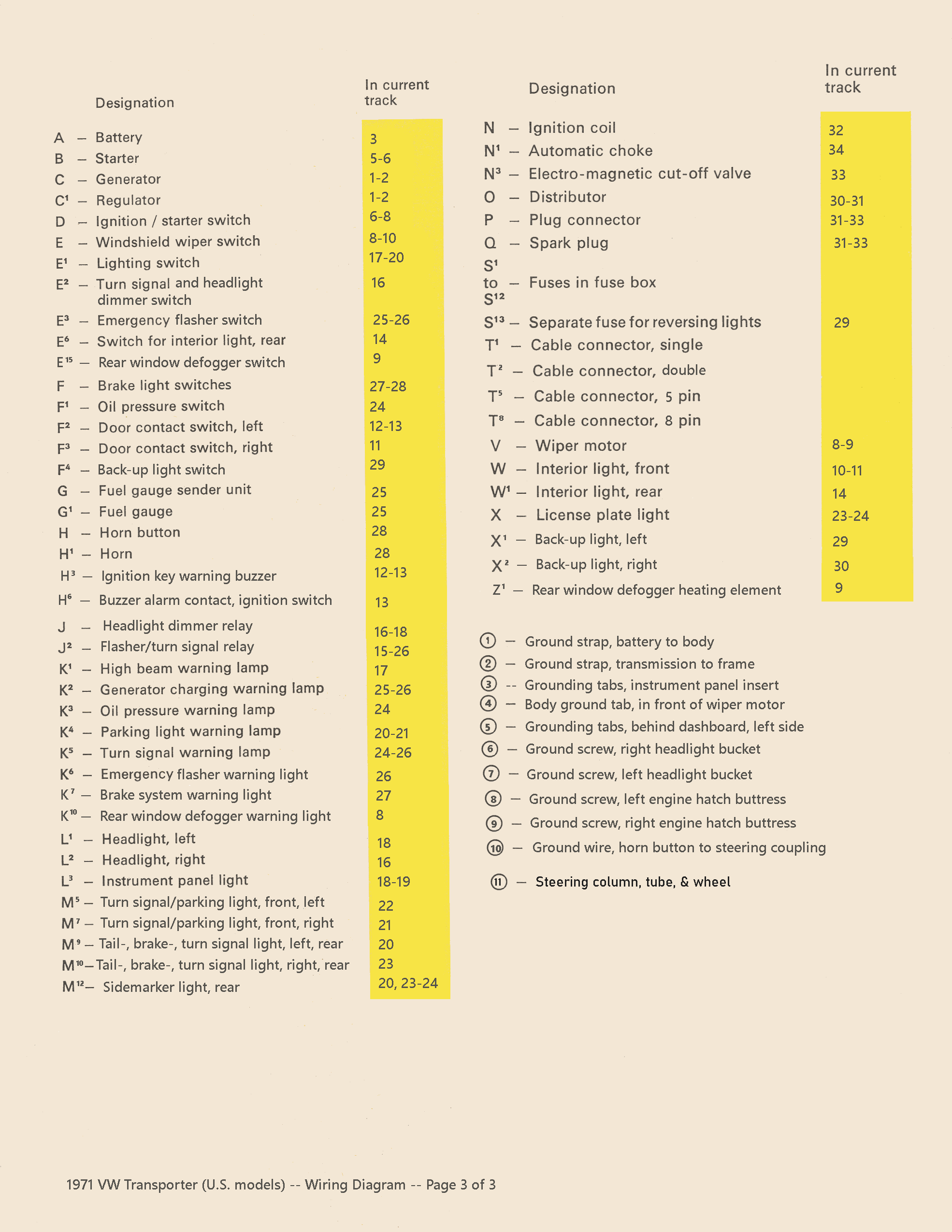

Current track version of wiring diagram
Current track version of wiring diagram - merged PDF

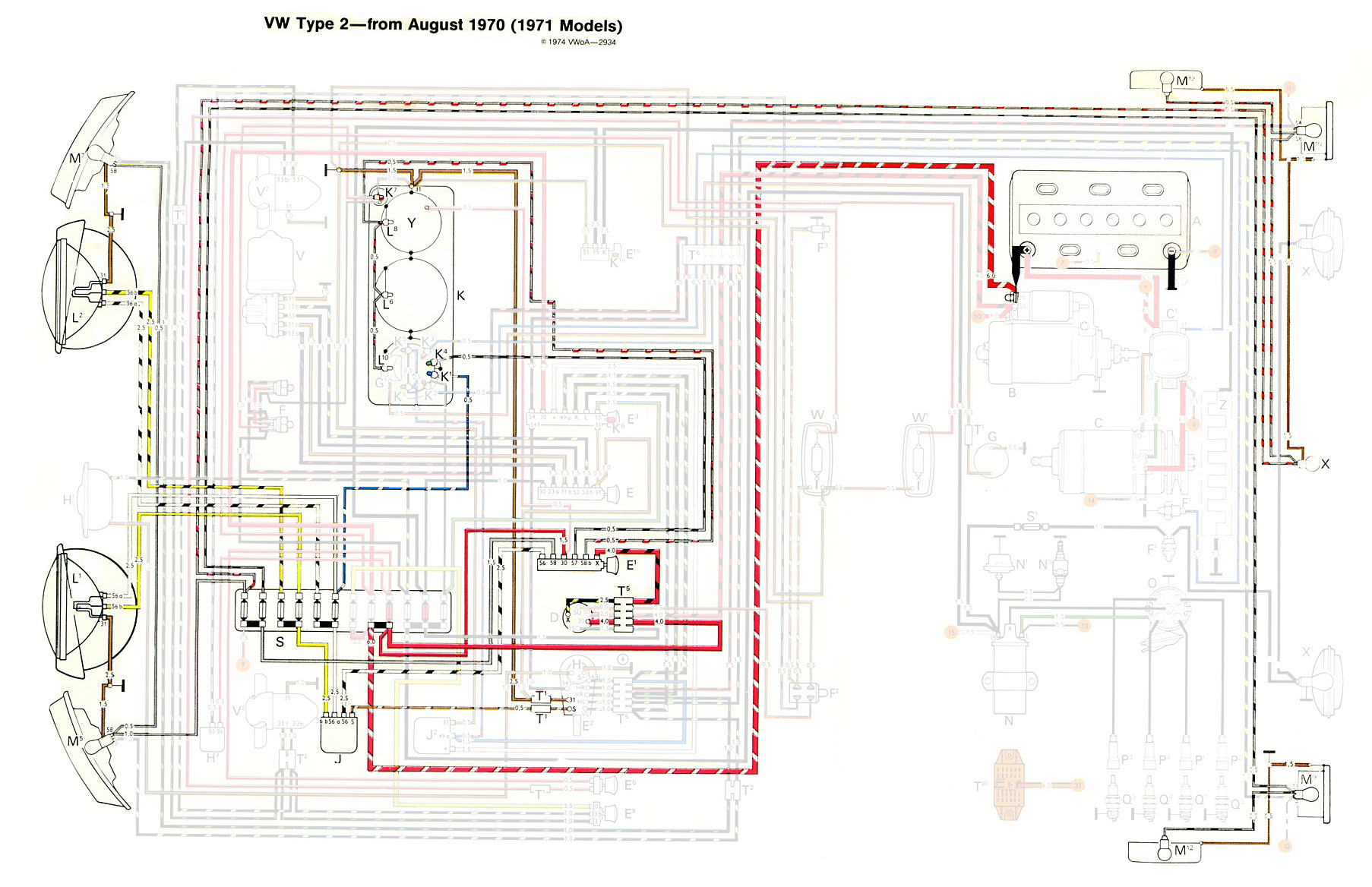

Headlights highlight
Brake lights highlight
Turn signals highlight
4-way flashers highlight
Ignition highlight
Charging system highlight
1971     USA
1972

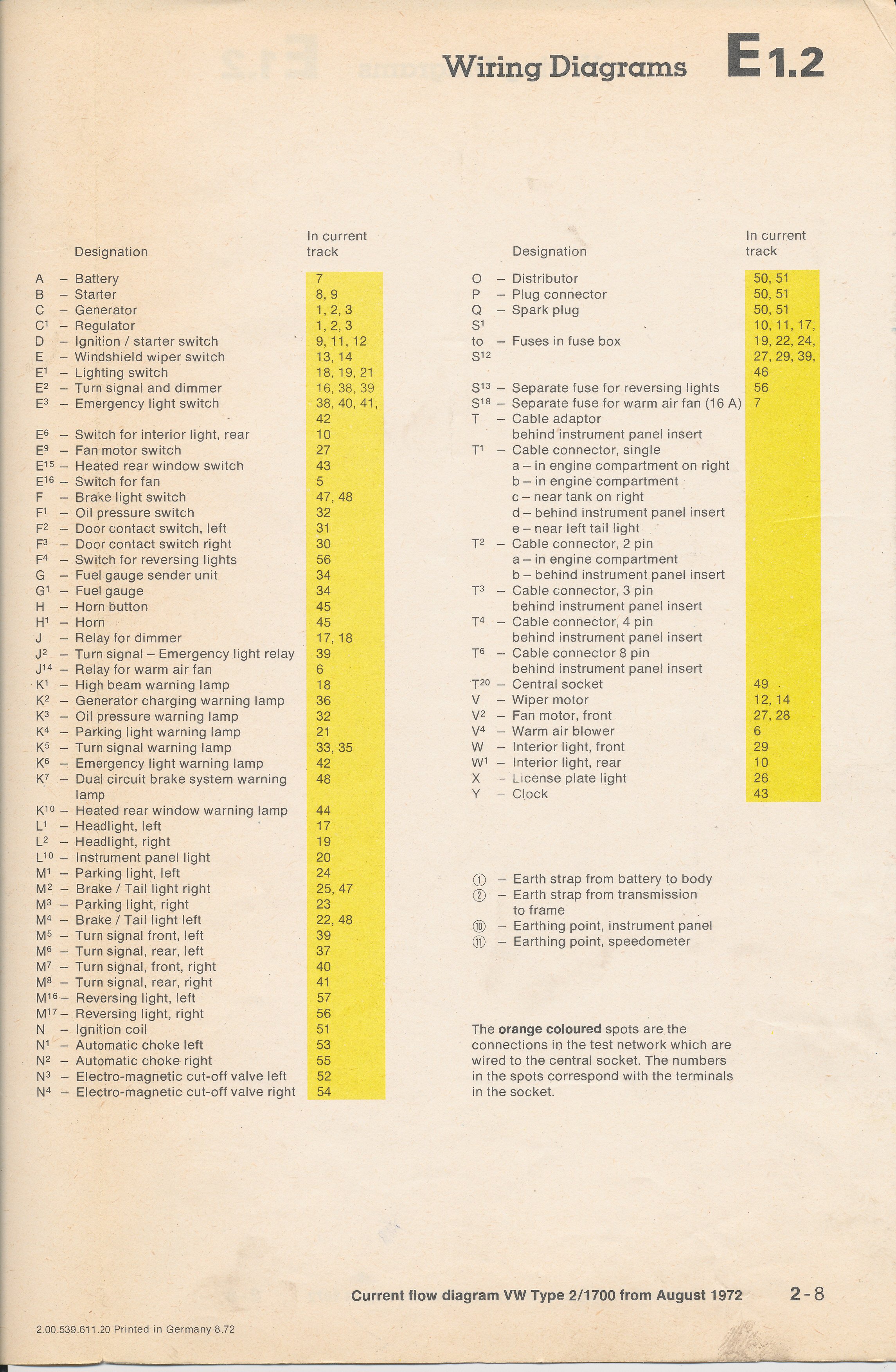

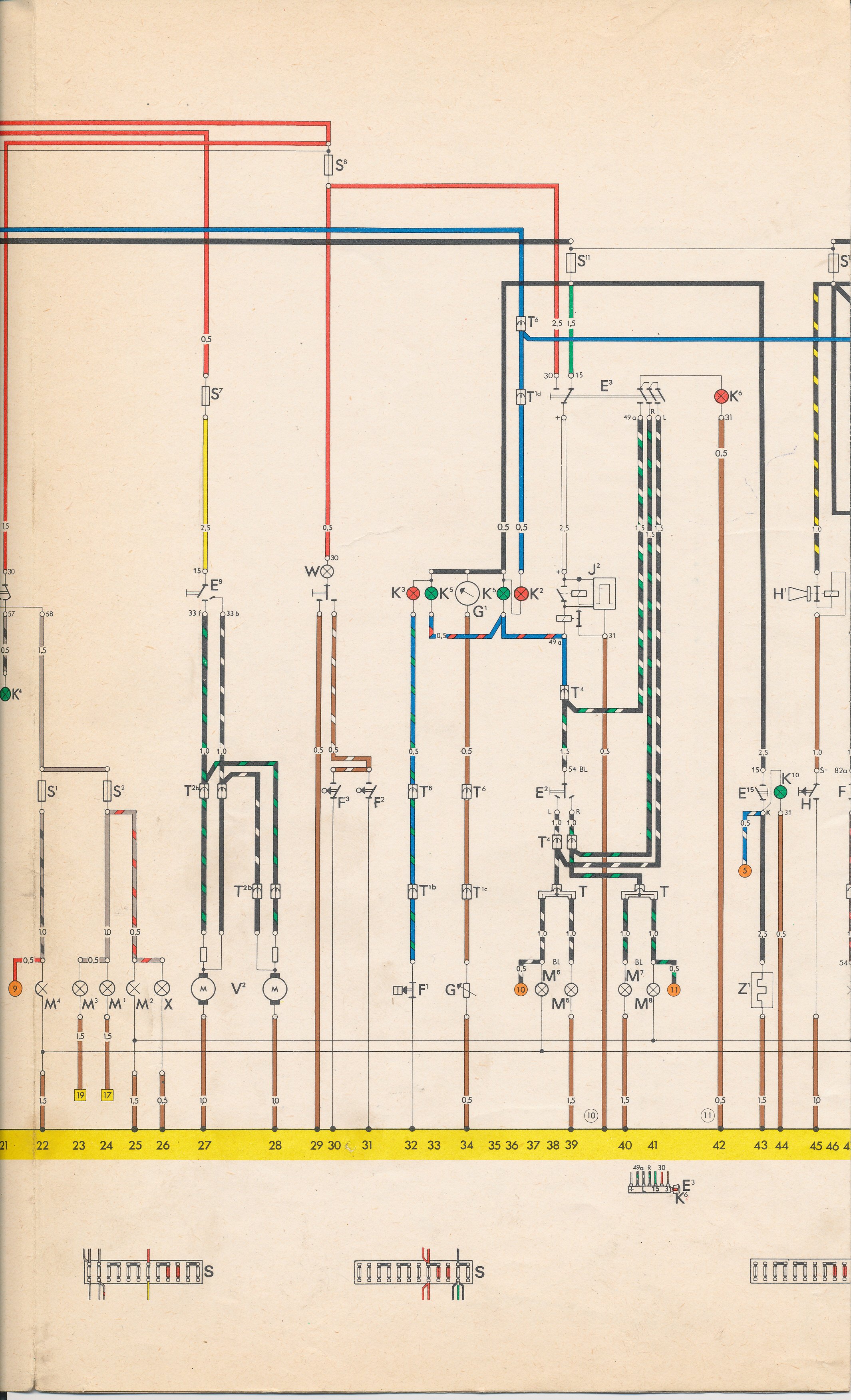

1972   1700cc
1972     Merged version
Headlights highlight
Turn signals highlight

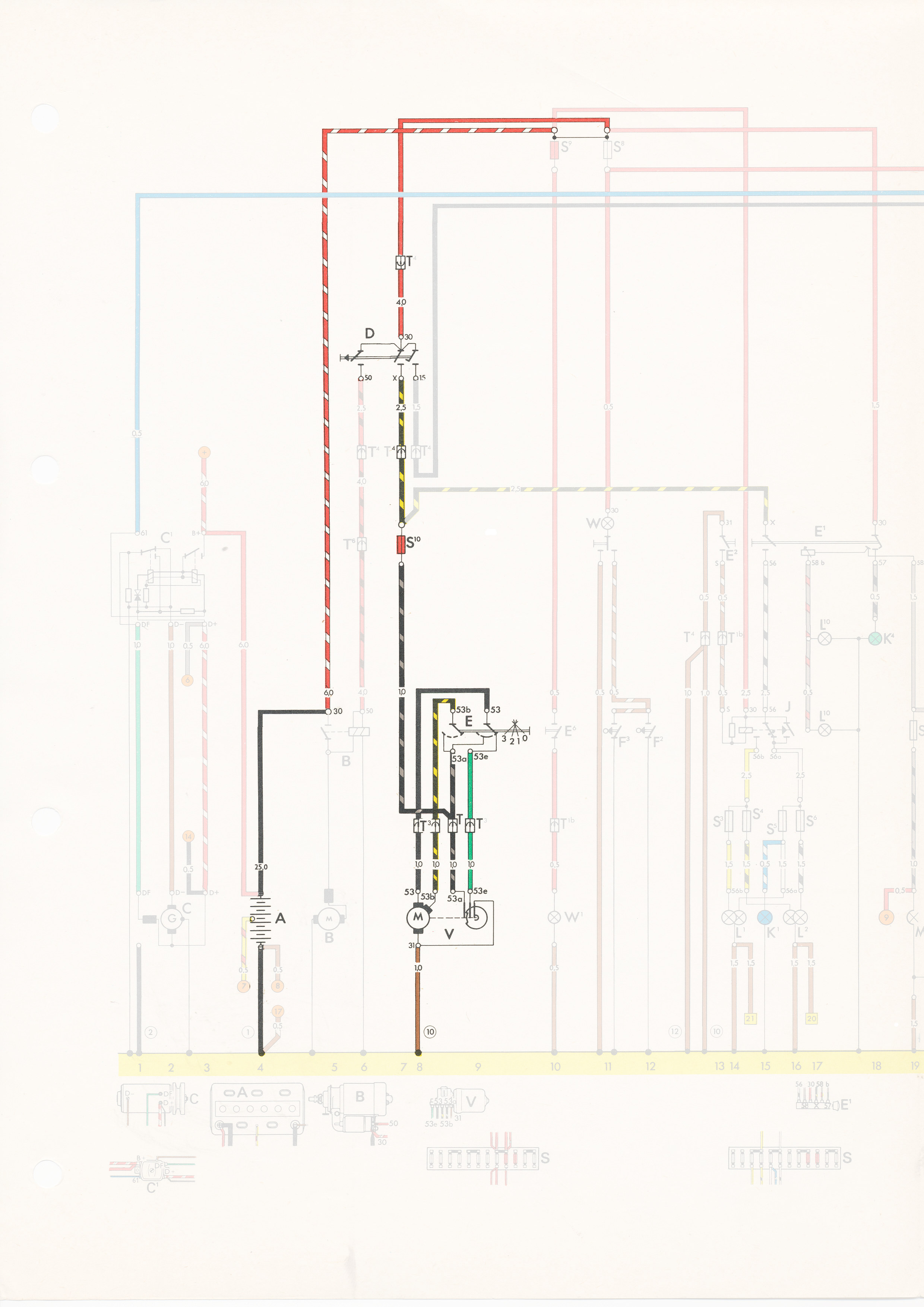

Wiper highlight

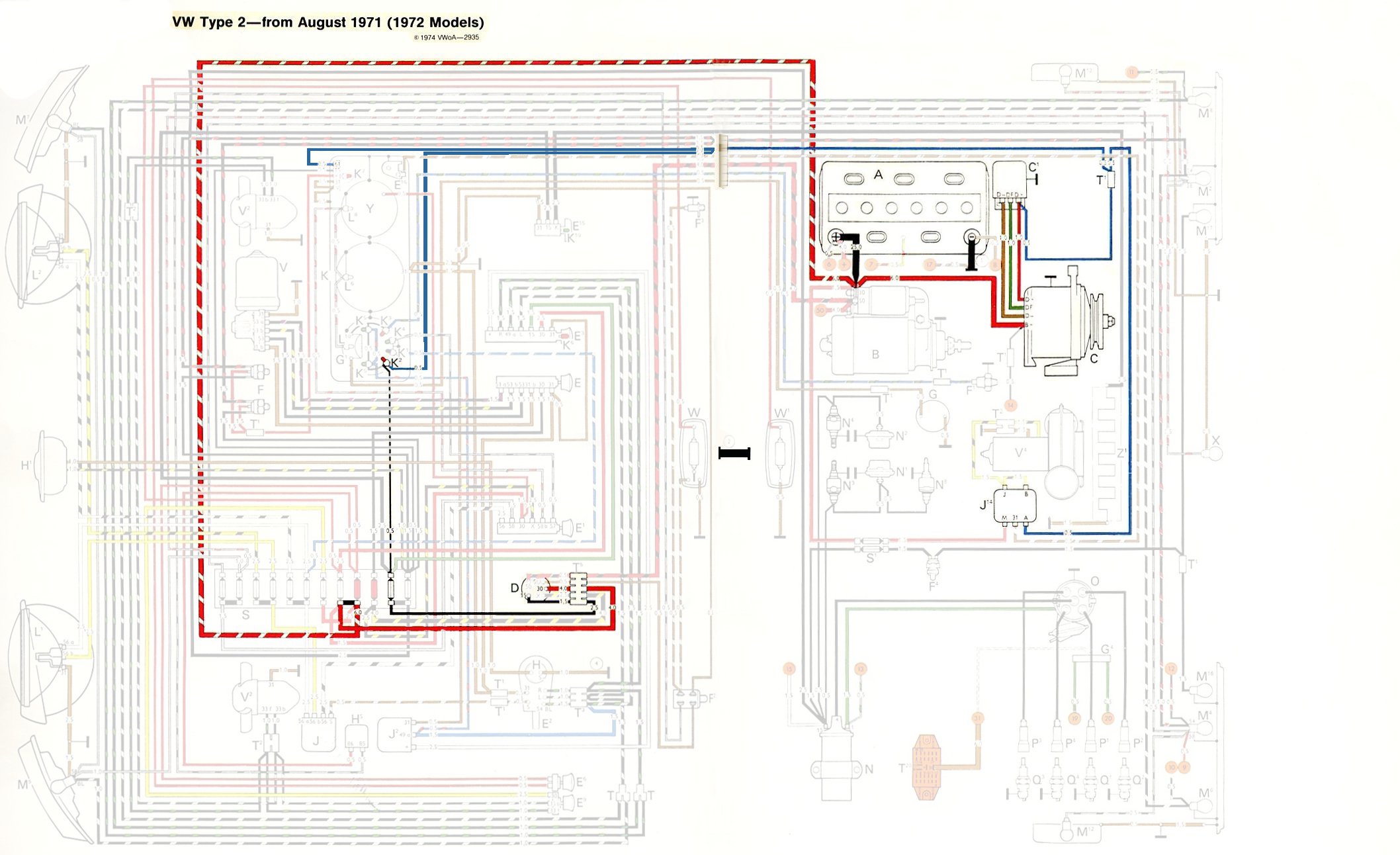

Alternator highlight

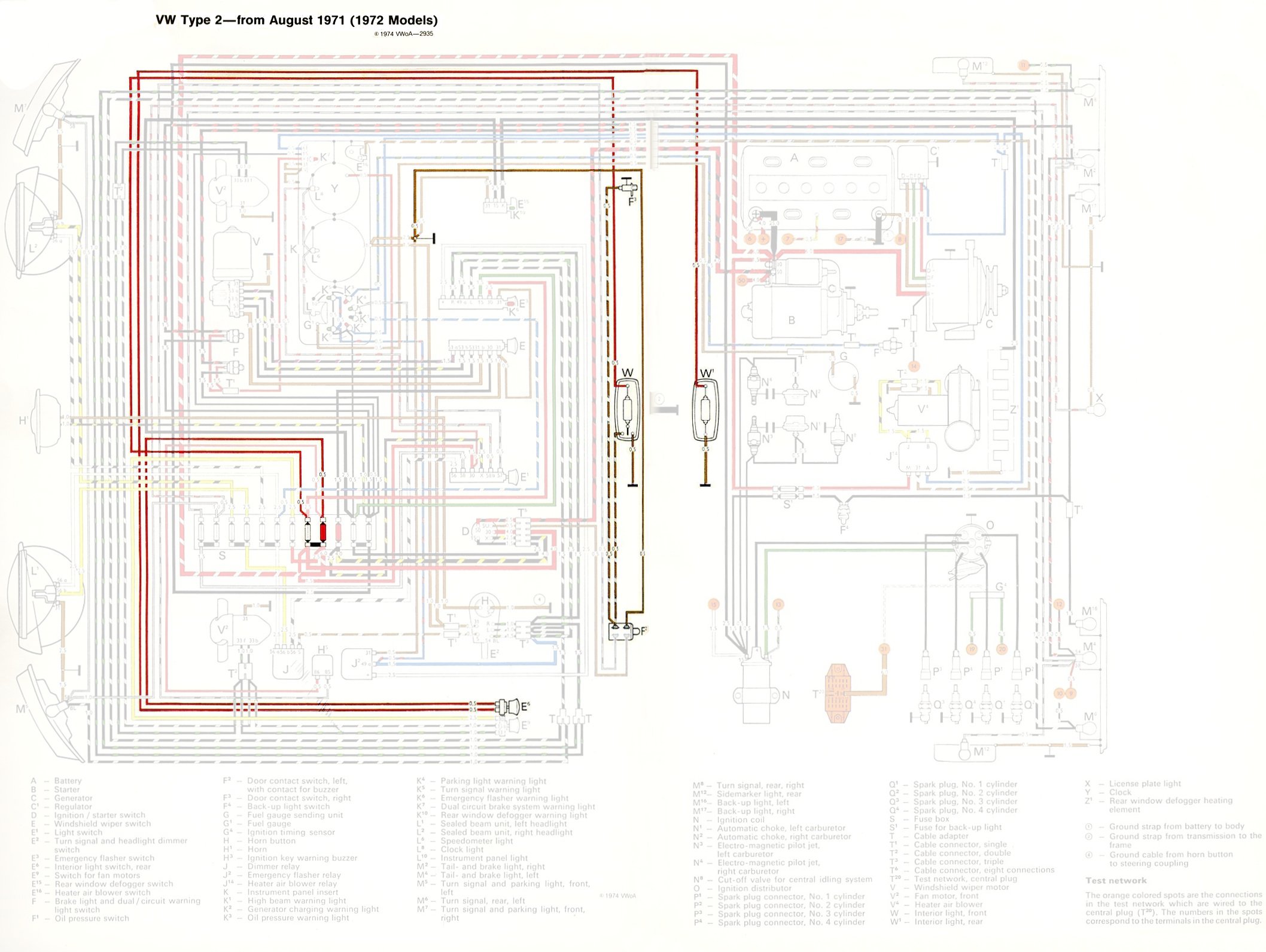

Dome light highlight
Starter circuit highlight

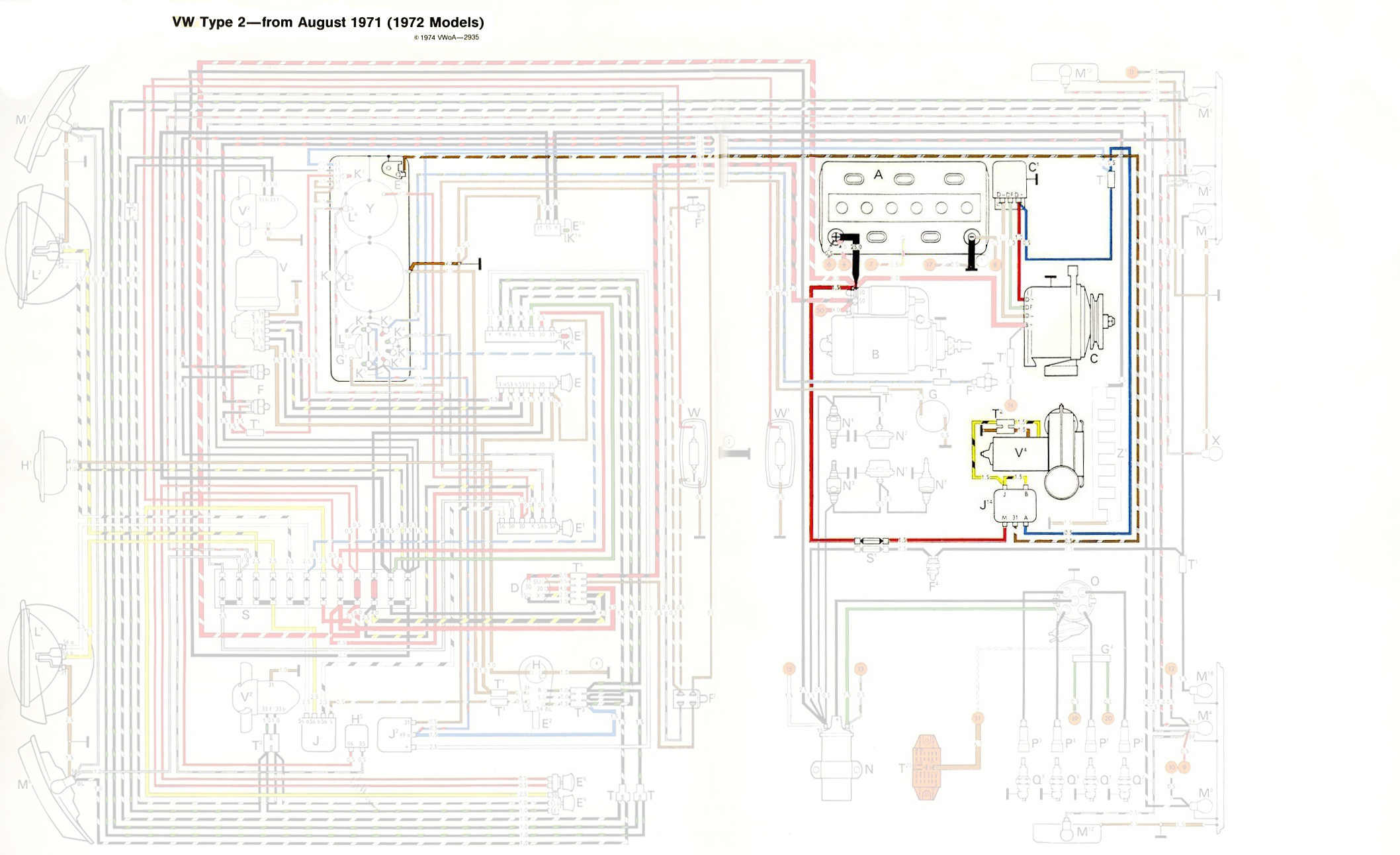

Heater blower highlight

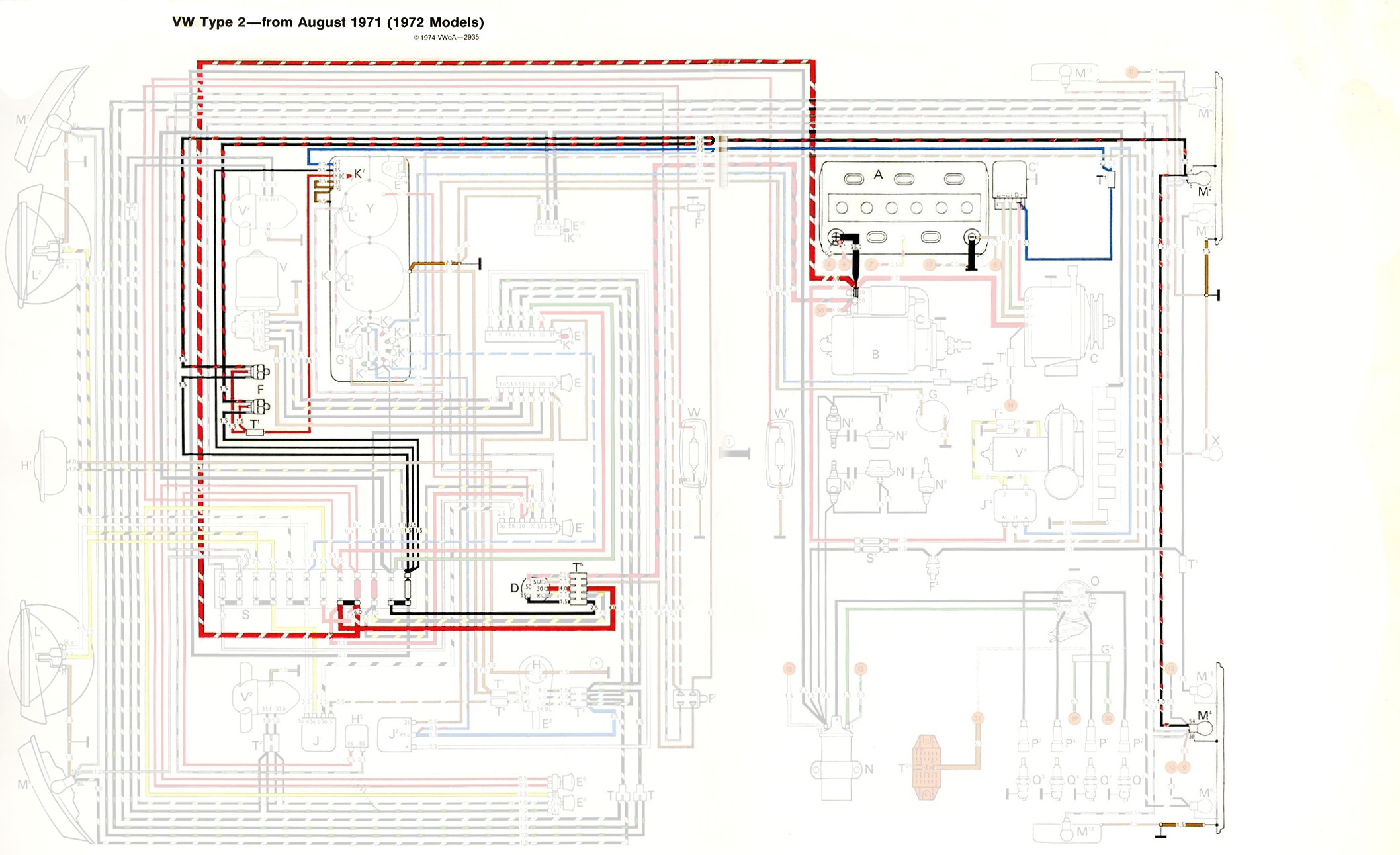

Brake light highlight

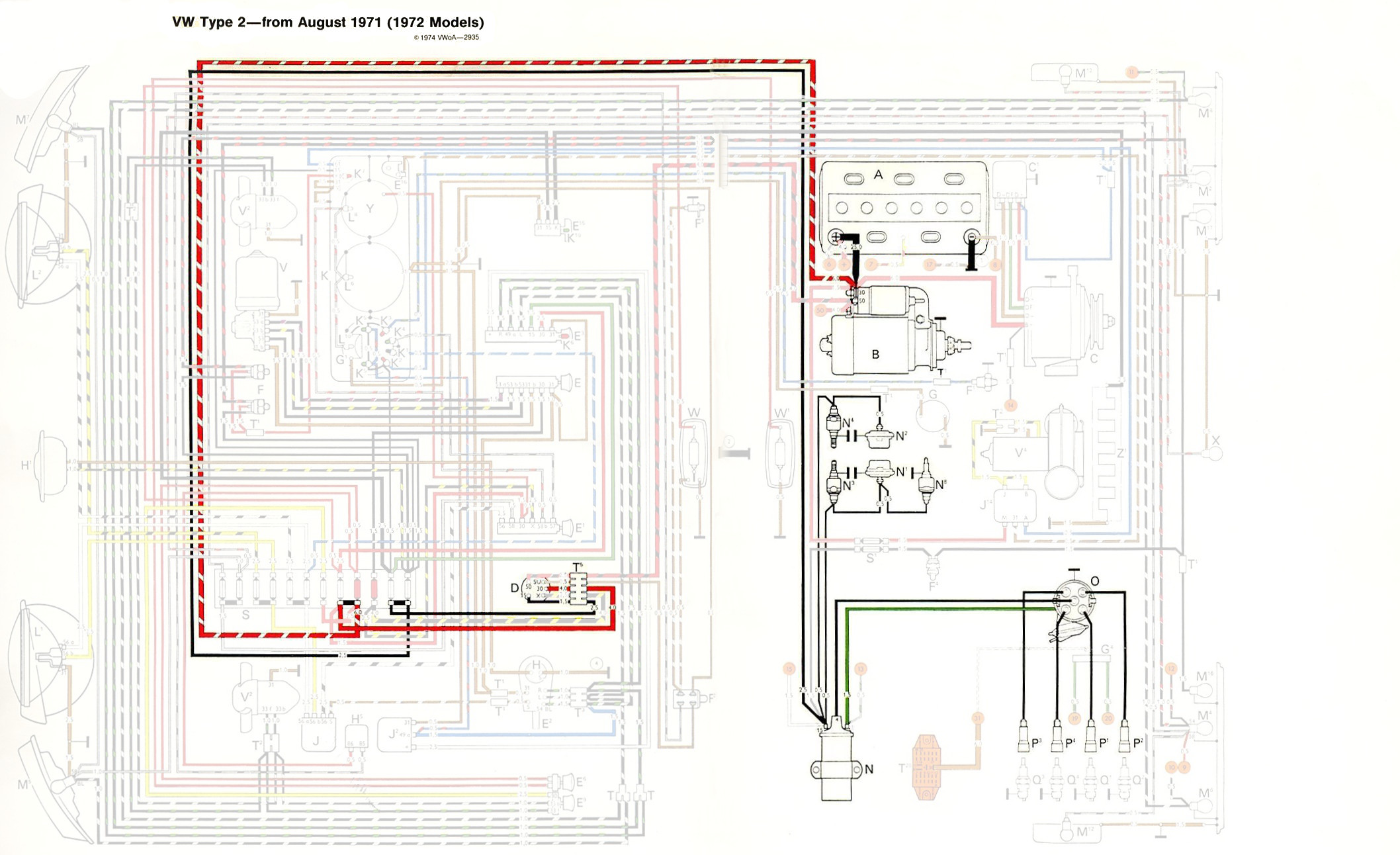

  Ignition and starter wiring highlight
1973     Key inside diagram
1973     USA
Key inside diagram
Turn signals highlight

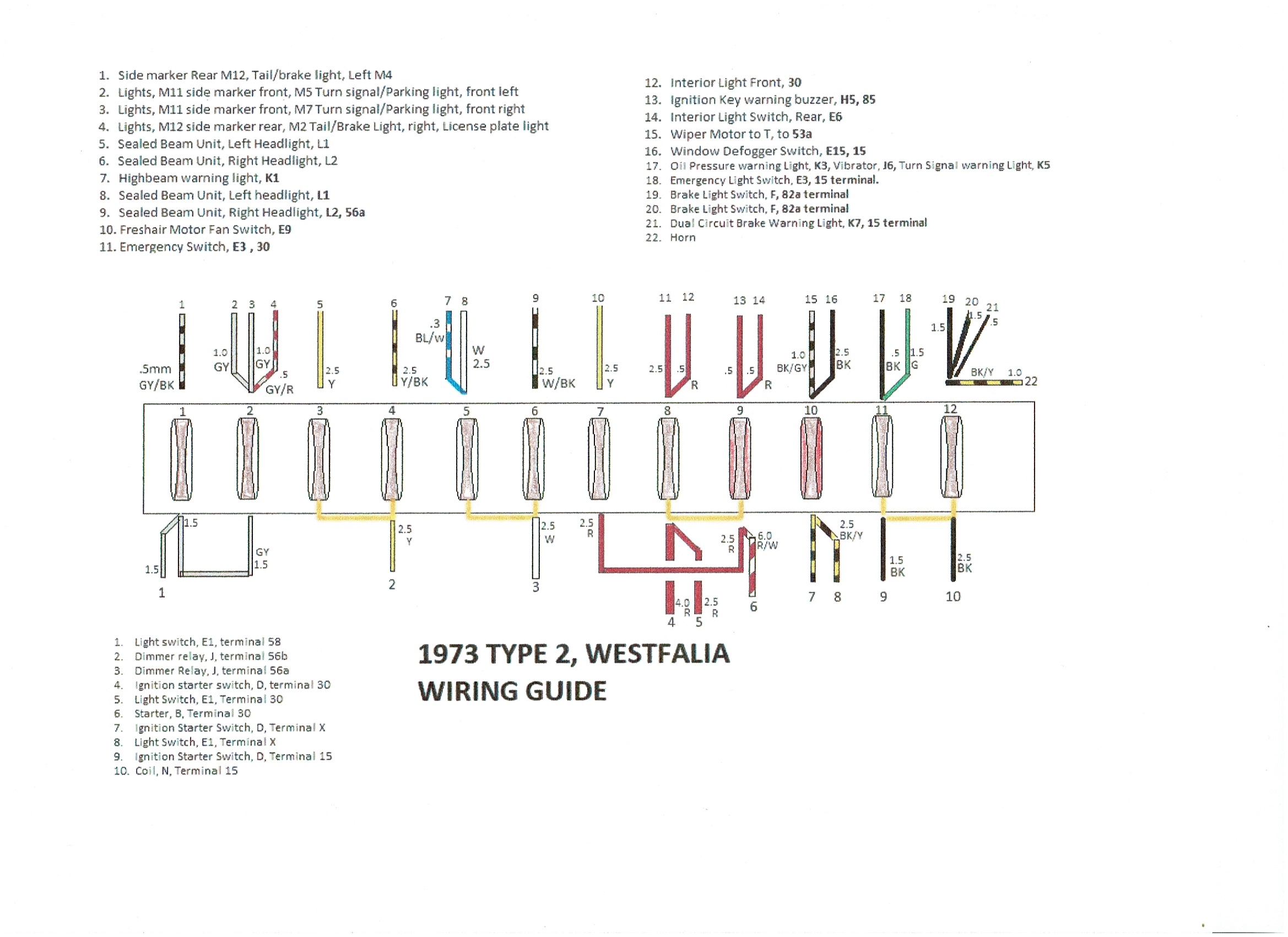

Wiring Cheat Sheet (1973-75)
1973     1700cc
Key inside diagram

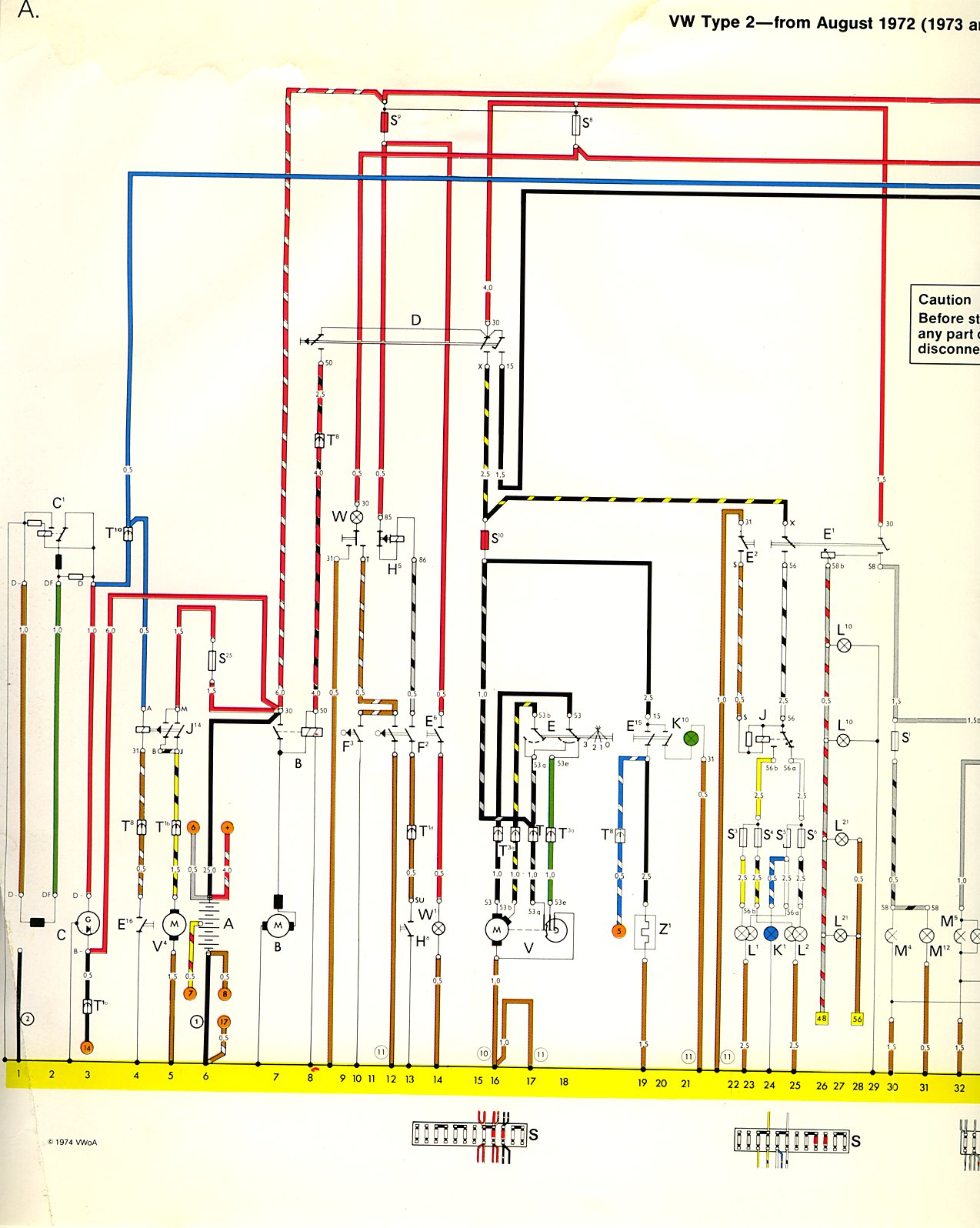

1973-74 Merged version
Symbols sheet
Alternator wiring
Wiring Cheat Sheet (1973-75)

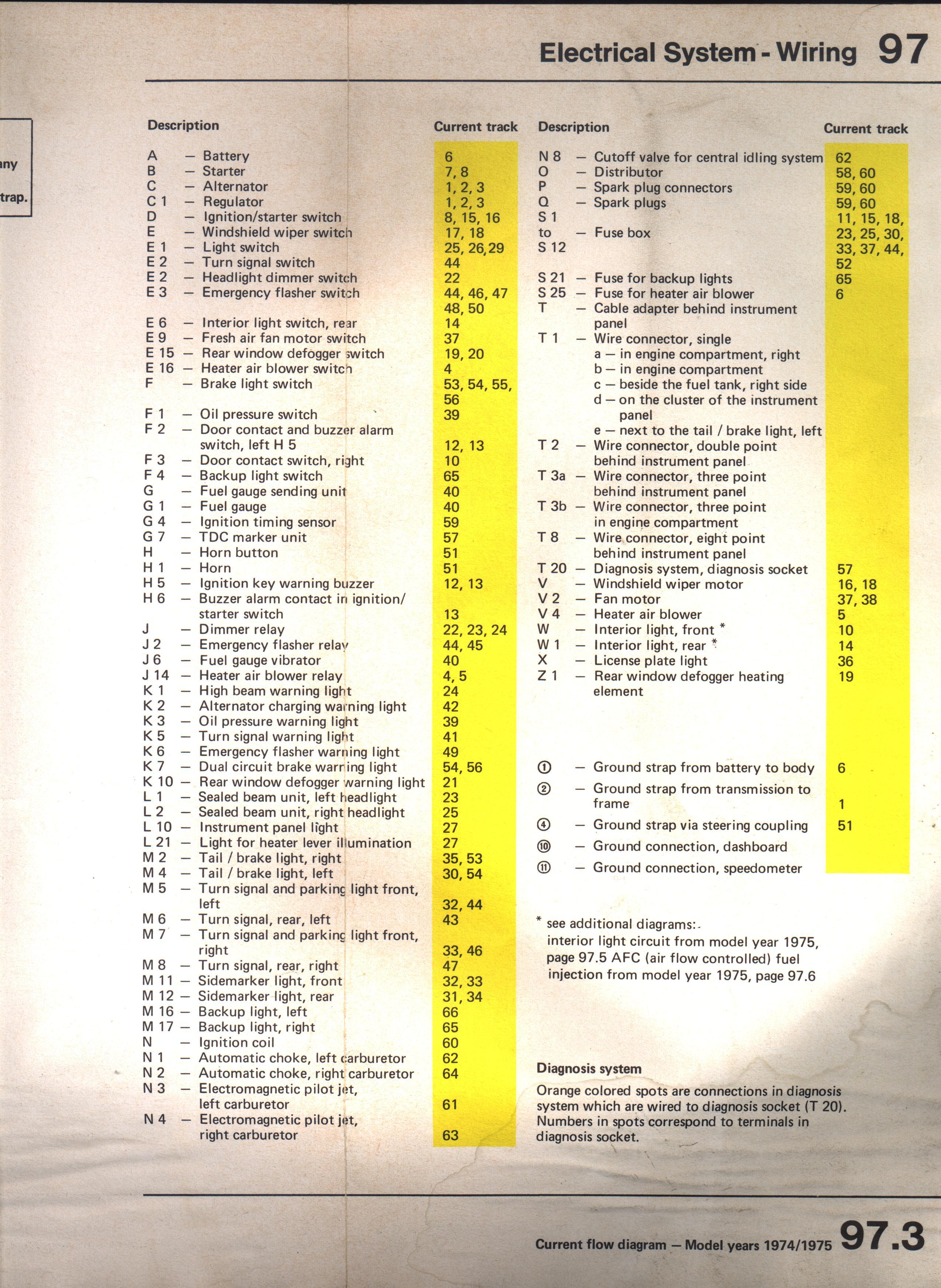

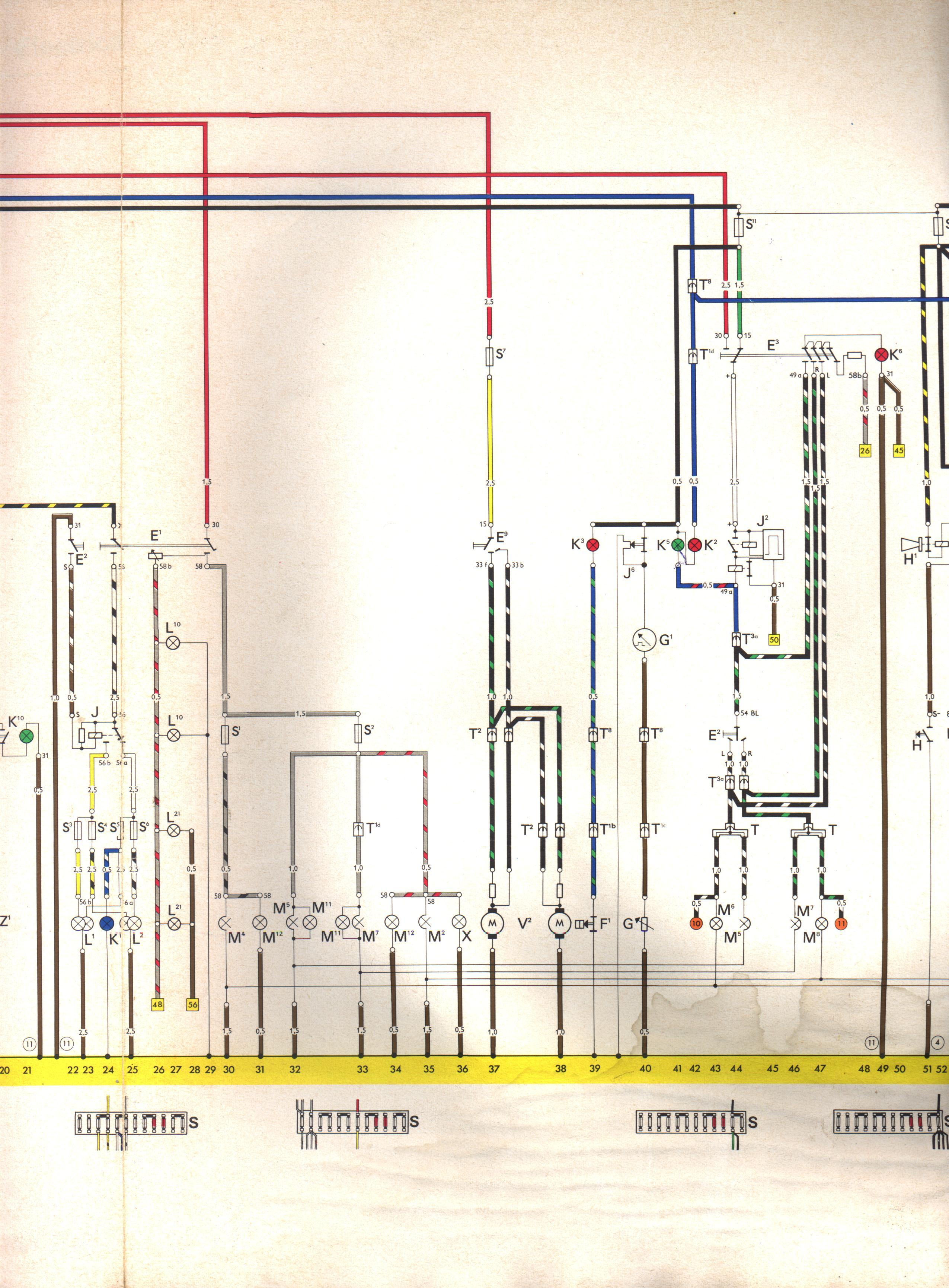

1974-75 Merged version

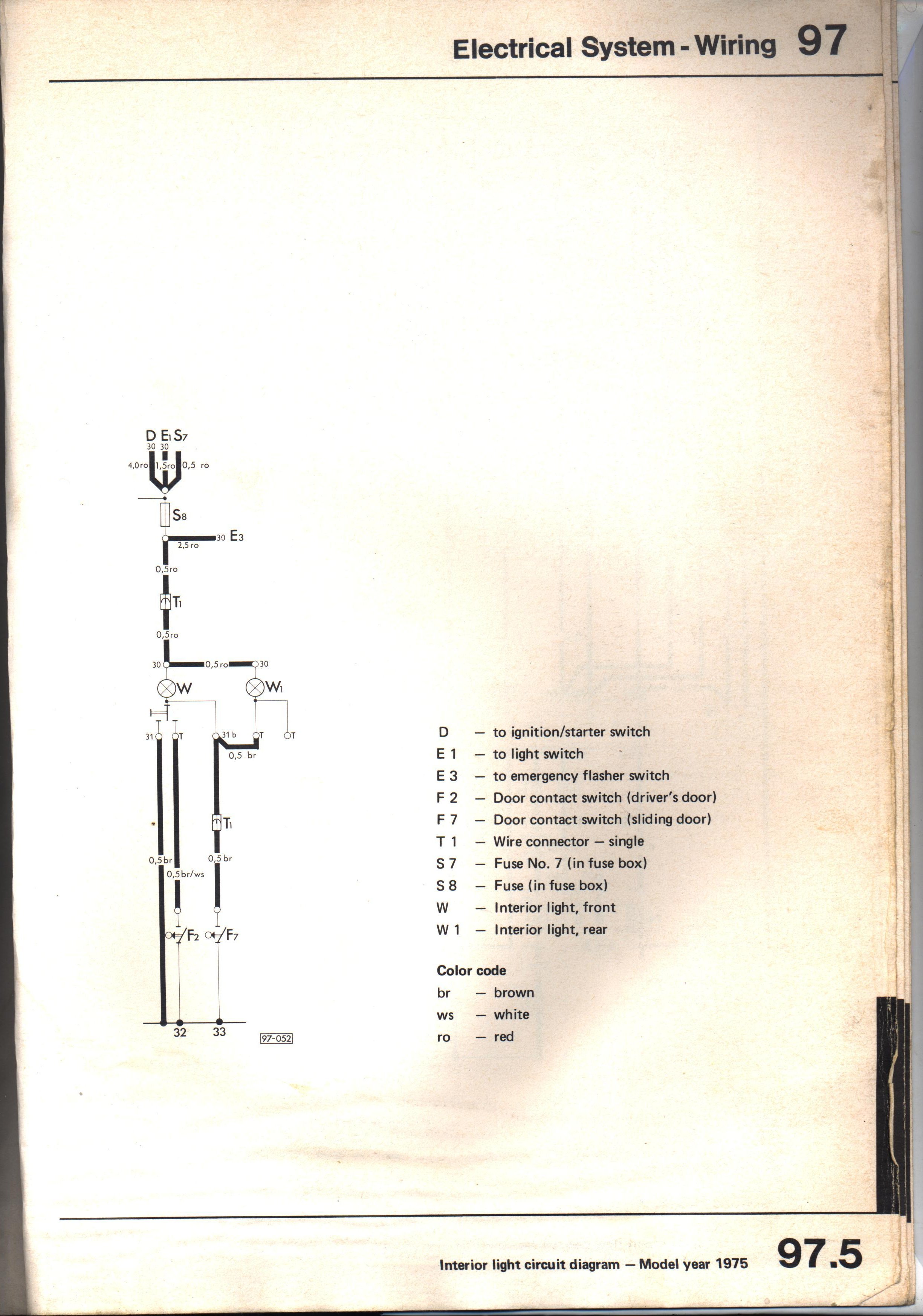

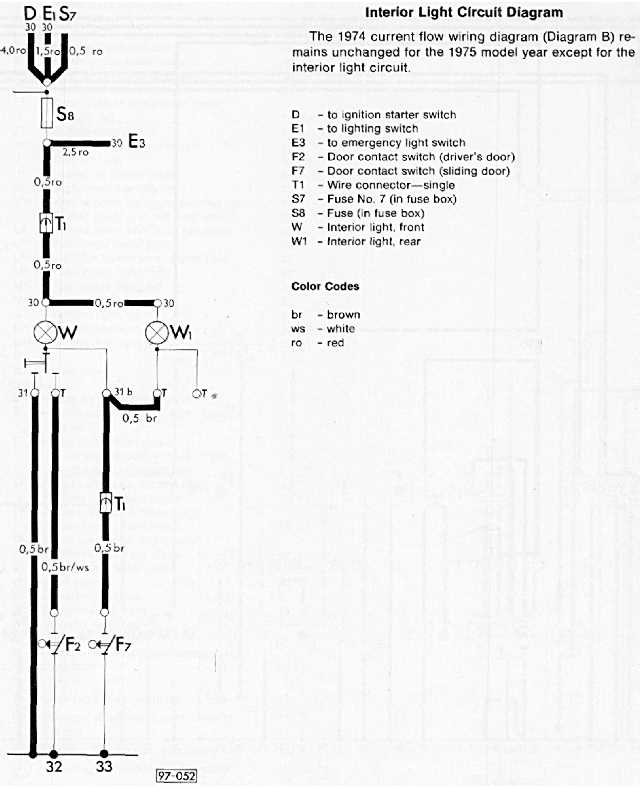

Interior Lighting
Fuel Injection
Headlight washer
Wiper Delay
Front and rear fog light wiper/delay
Wiring Cheat Sheet (1973-75)

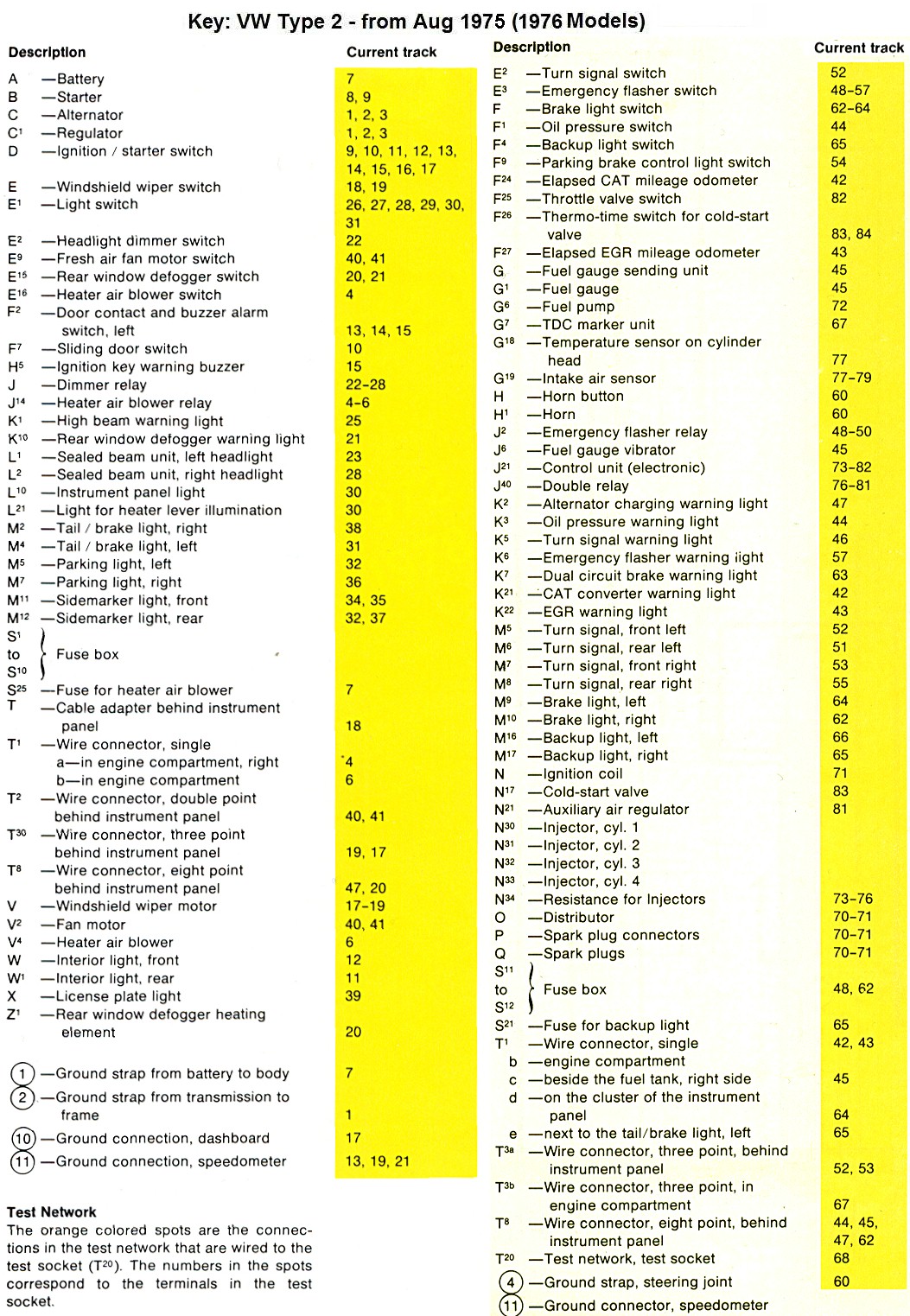

1976   Supplement
Heater blower circuit

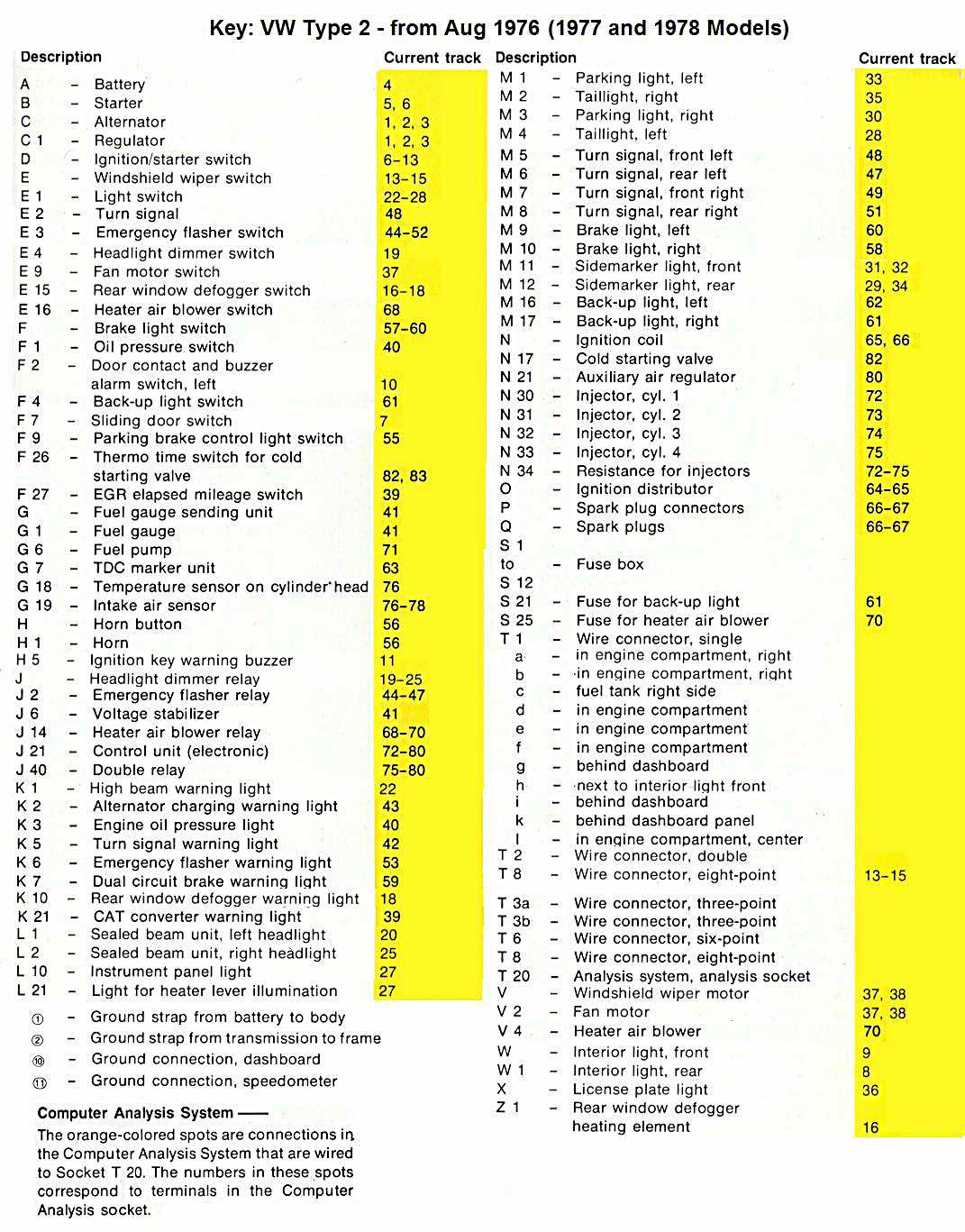

1977-78   Fuel Injection highlight
1979     Original black/white version

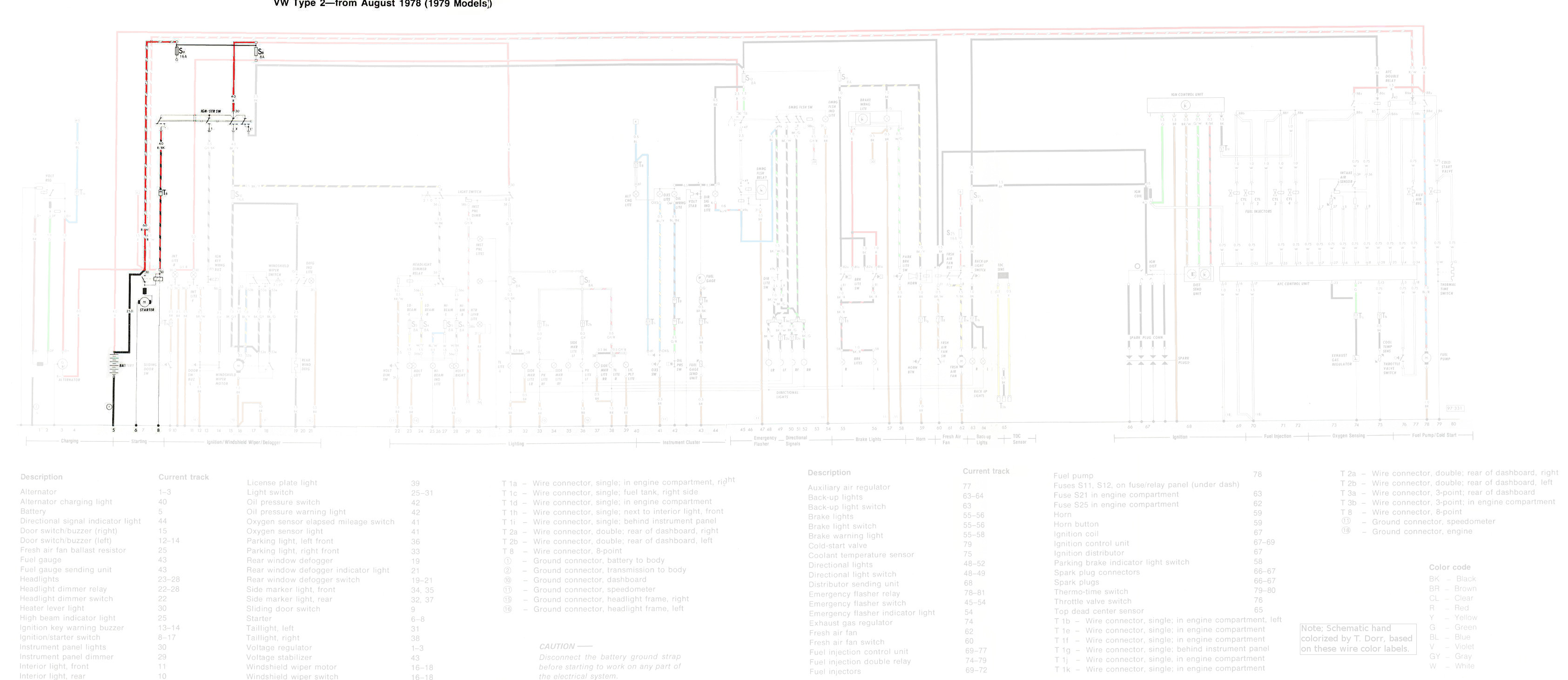

Starter highlight

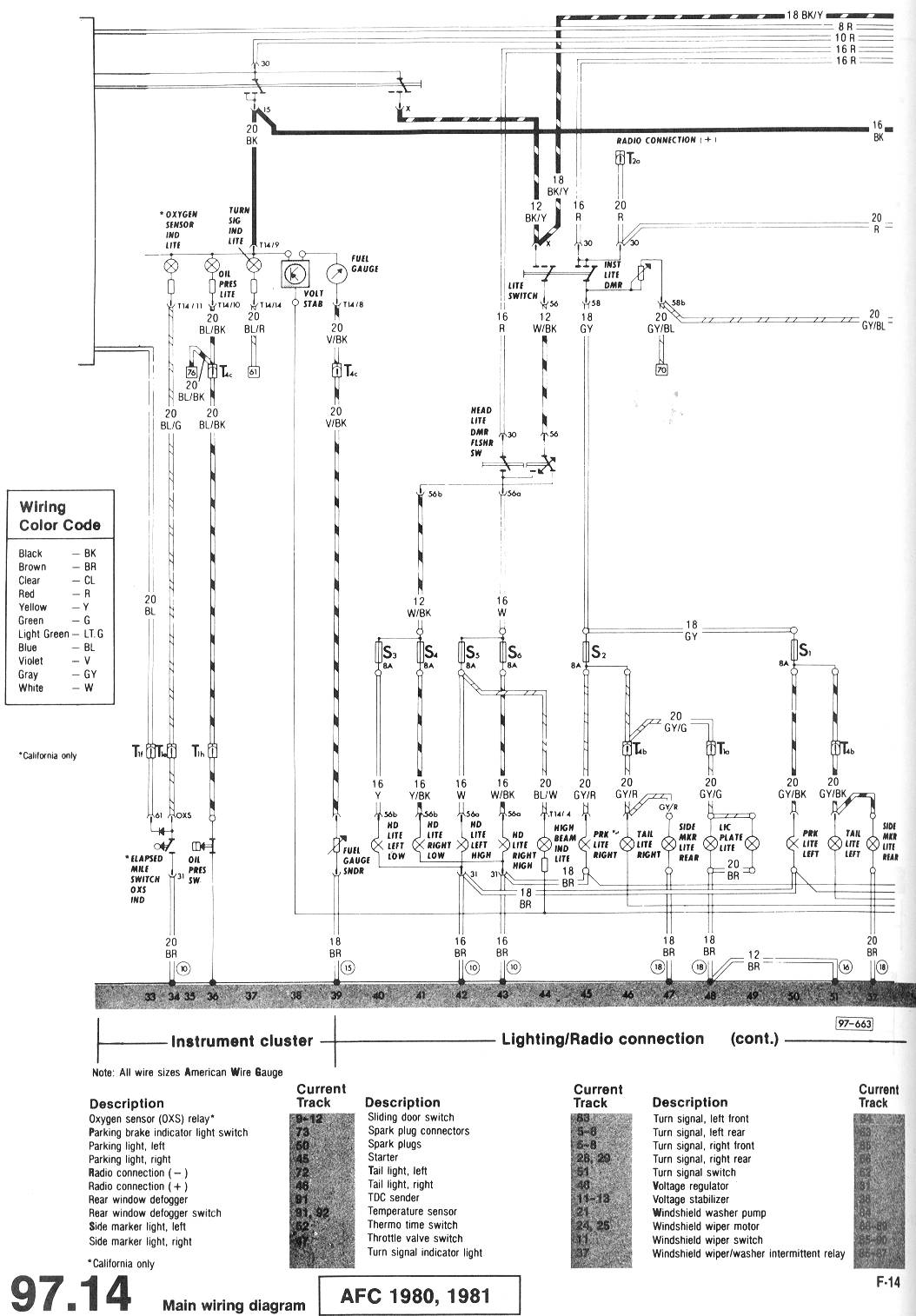

1980-81
1982     Vanagon Diesel (PDF)

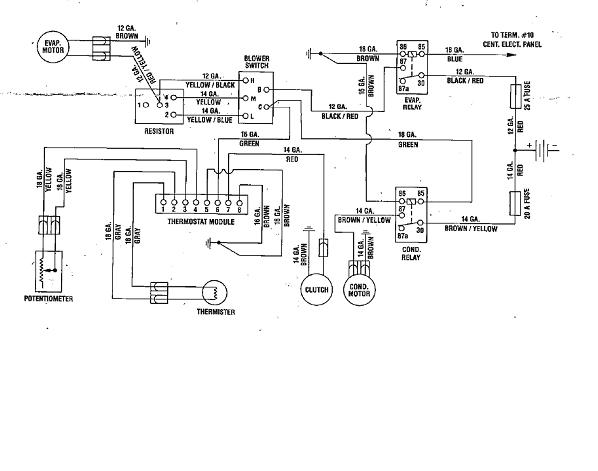

A/C wiring
1983-84     Vanagon (PDF)
1985-86     Vanagon Wiring Book (PDF)



Other wiring diagrams
68-79 Bus fuse numbers of electrical components (PDF)
68-79 Bus Fuse Locations of components in fuse box (PDF)
Vanagon Instrument Panel Rewire Diagram (PDF)
Notes:
"Schematic when wiring the idiot lights. Note that they all don't work the same way. Turn signal/HiBeam diodes are reversed, etc."
1963 Stewart-Warner Southwind Gasoline Heaters

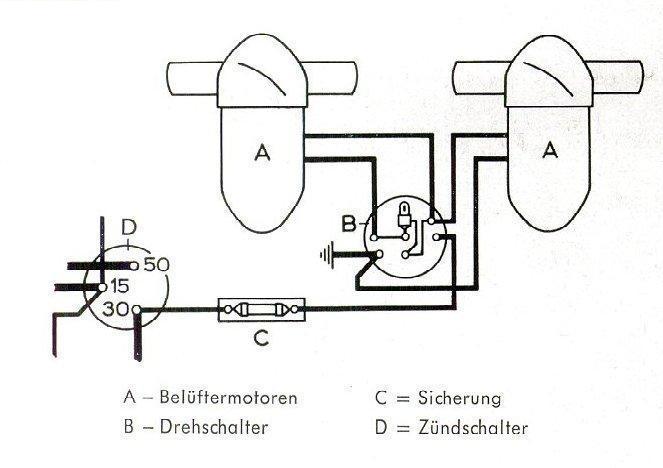

Various Ambulance Fans, powered from ignition switch

For additional Wiring Diagrams info, see Electrical System (E) in the Technical Bulletins Index
For wire sizes, also see Wiring size conversion chart - German mm to USA AWG
Also see Understanding European Wiring Diagrams from Motor Magazine

Contributors to this page include Guido R., Stan Wohlfarth, Andy Thompson, George Ortiz,
Telford, Eleny, Steve, Okey McComis, Pahdmeister, Bretly, Misterbill, and Kreemoweet
