Karmann Ghia Wiring Diagrams
Contributions to this section are always welcome

  Instructions:

  • Right click on the diagram/key/fuse box you want to download
  • Select "Save Link As" or Save Target As" from the pop-up menu
  • Save the diagram to your hard drive, remember where you put it!
  • Open the diagram on your computer with an image program
Please Note: Some of the fuse boxes pictured in the diagrams are
rotated 180 degrees from how they actually mount in the car
For additional Wiring Diagrams info, see Electrical System (E) in the Technical Bulletins Index.
For wire sizes, also see Wiring size conversion chart - German mm to USA AWG
Also see Understanding European Wiring Diagrams from Motor Magazine

Year Diagram Key Fuse box Comments High-resolution
1956-57   Diagram
Fuses
1958-59   Diagram

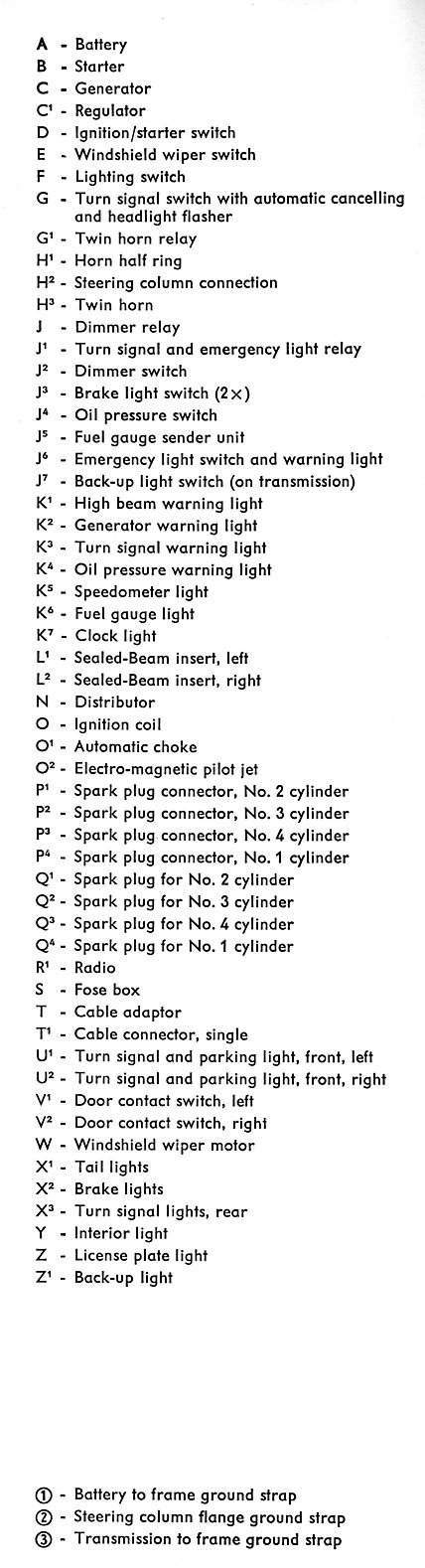

Key
Fuses

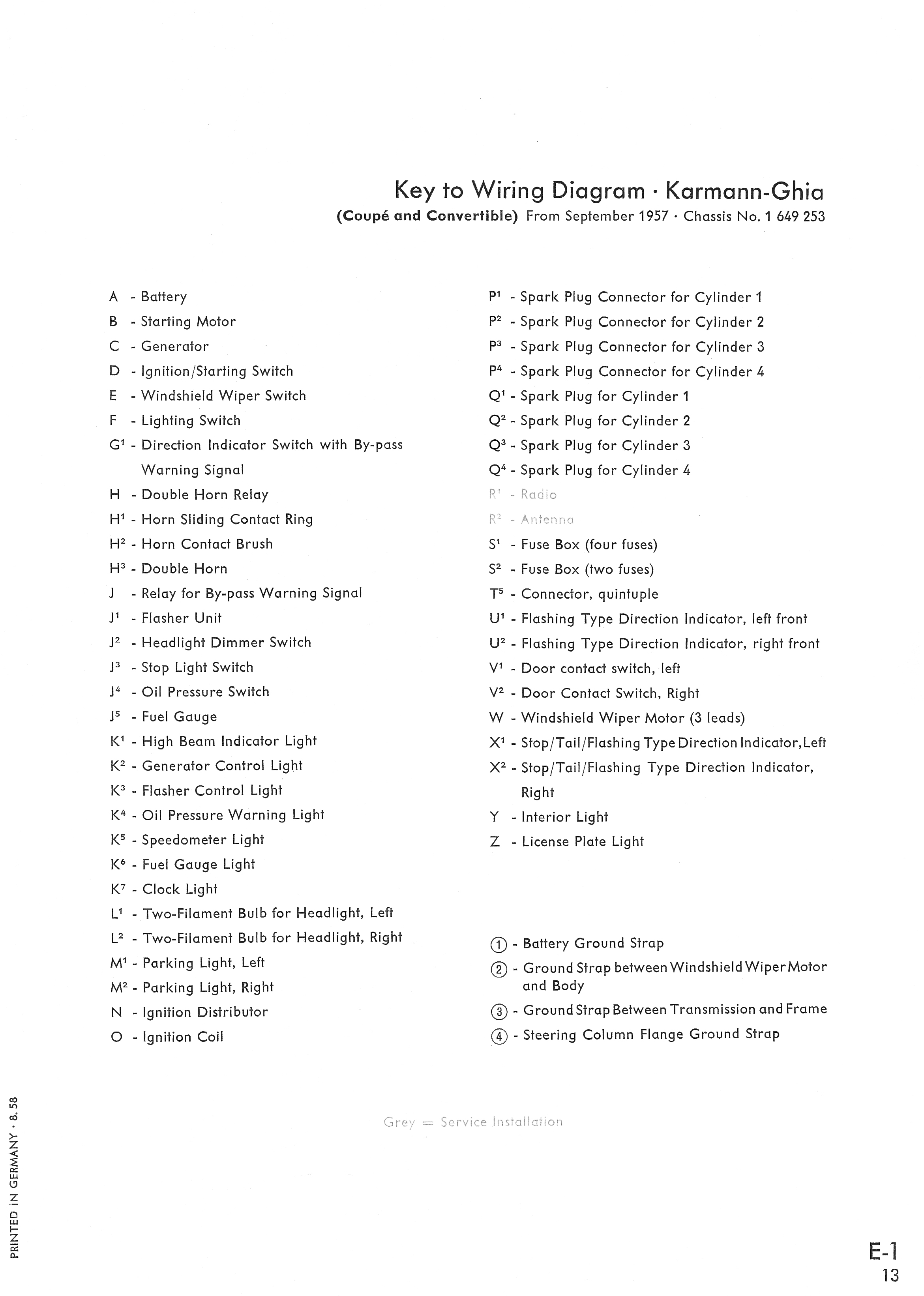

1958     June, 1958

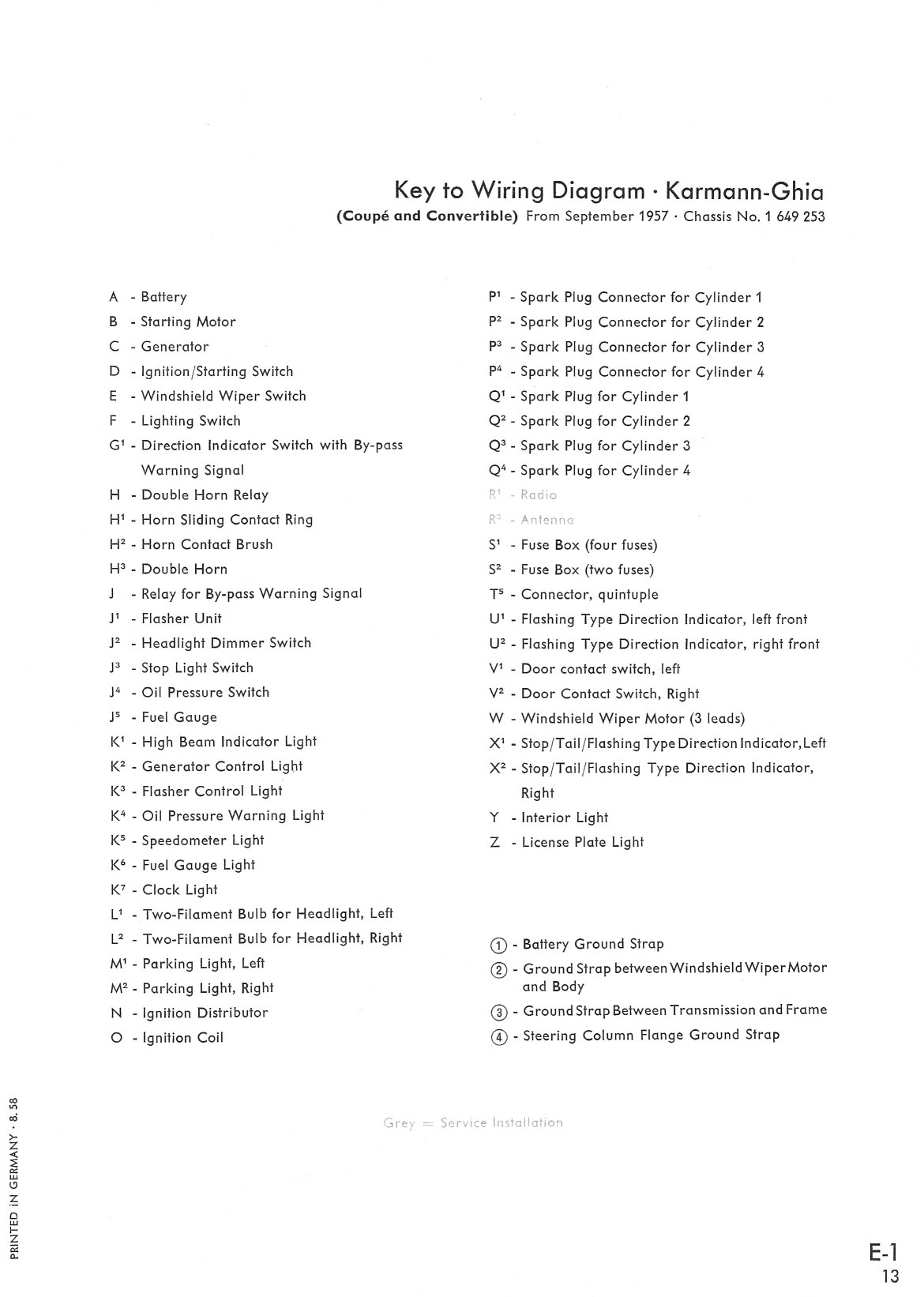

From Owner's Manual

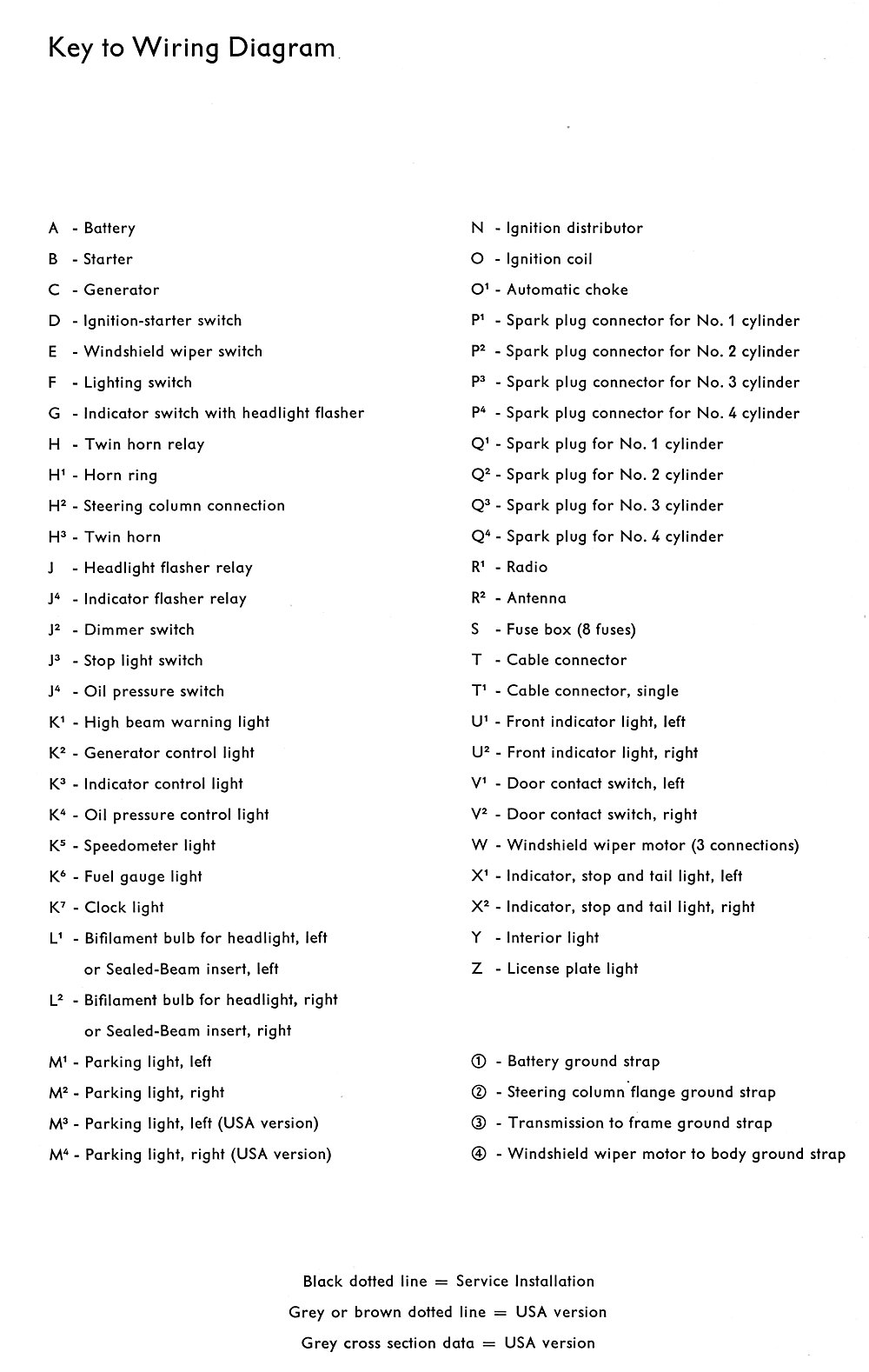

1961-65 USA
1961-65     From Clymer's
1964-65     From National Automotive Service
1965   Non-USA

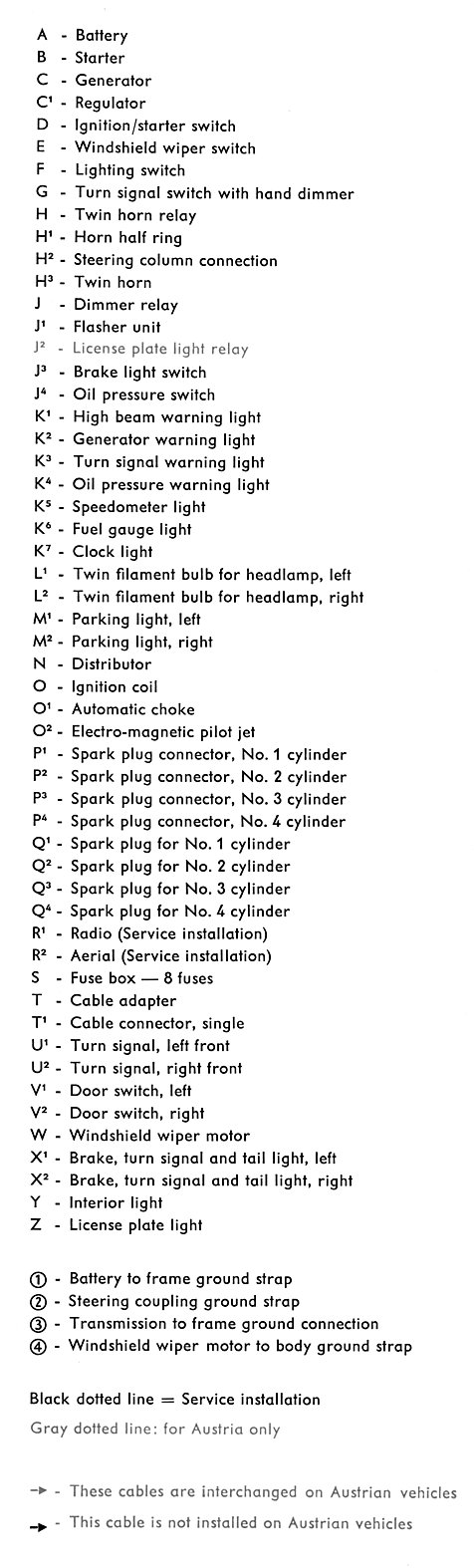

1966   Non-USA

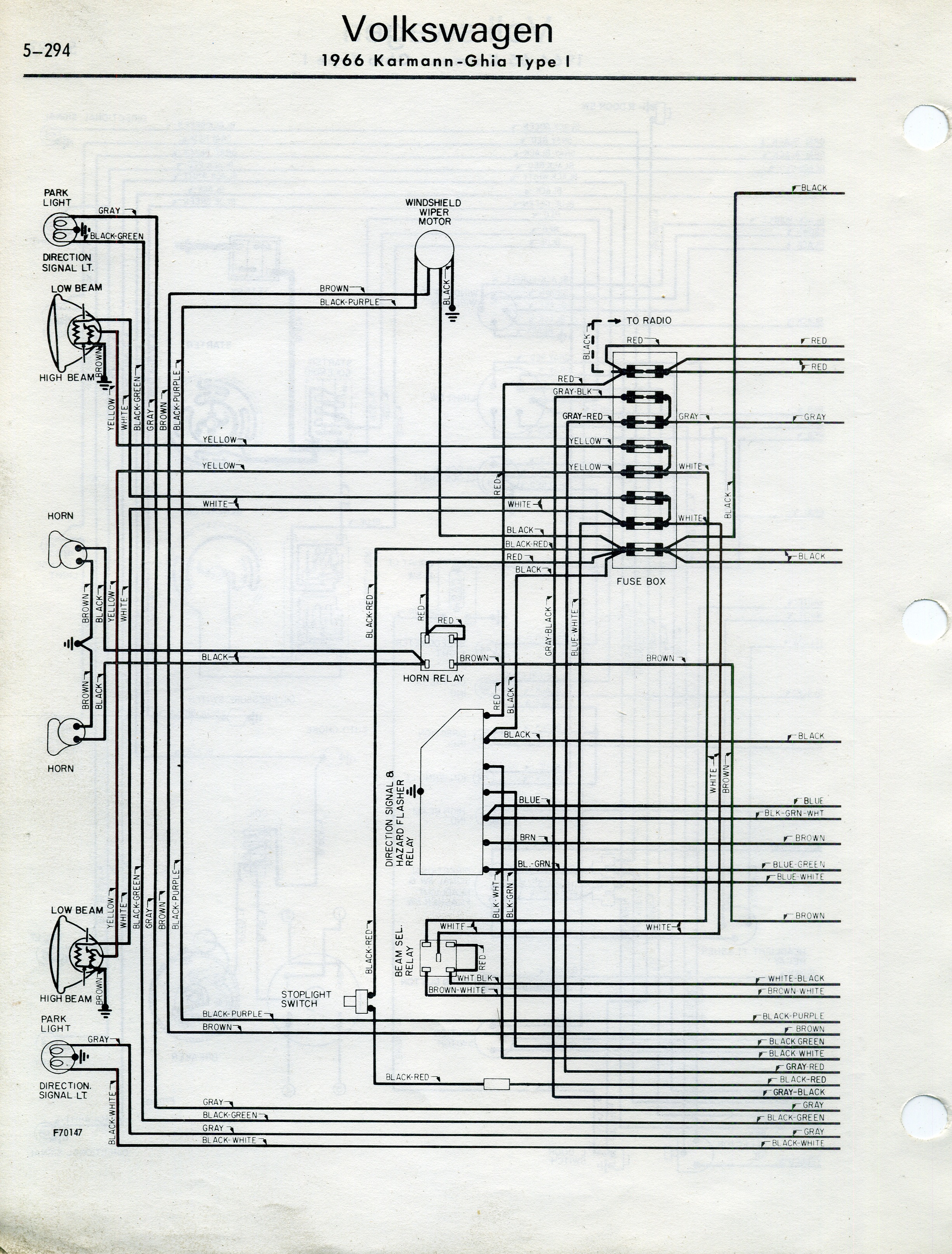

1966   USA
1966     From National Automotive Service

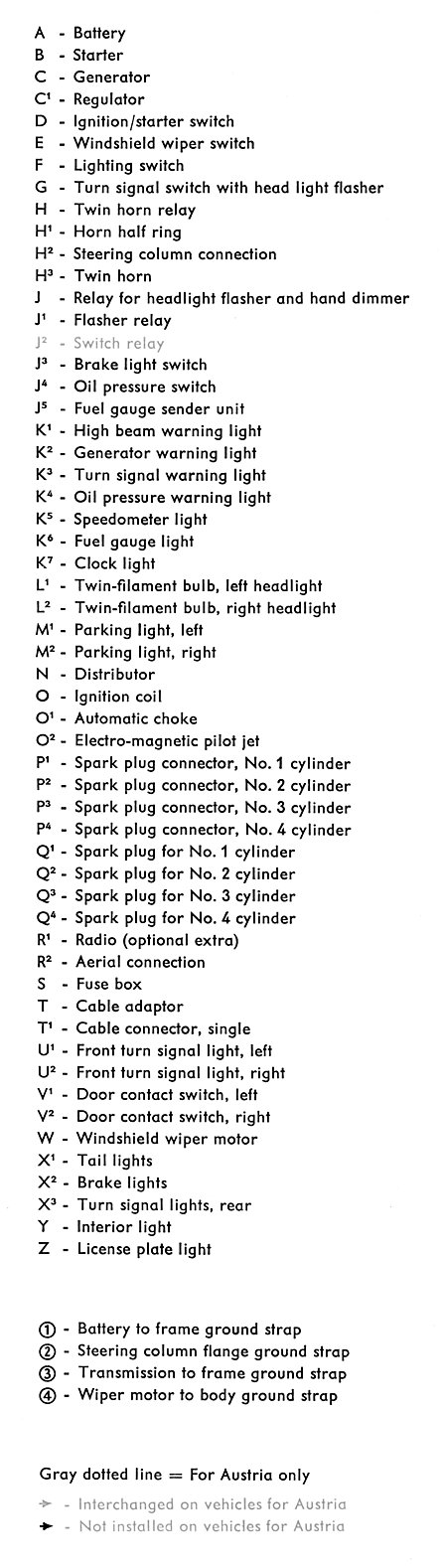

1967   Non-USA
1967-69 USA
1967     From Motor's wiring
1967-69     From Clymer's
1967-69     From National Automotive Service
1969-72       Supplement - Automatic Stick shift and Defroster

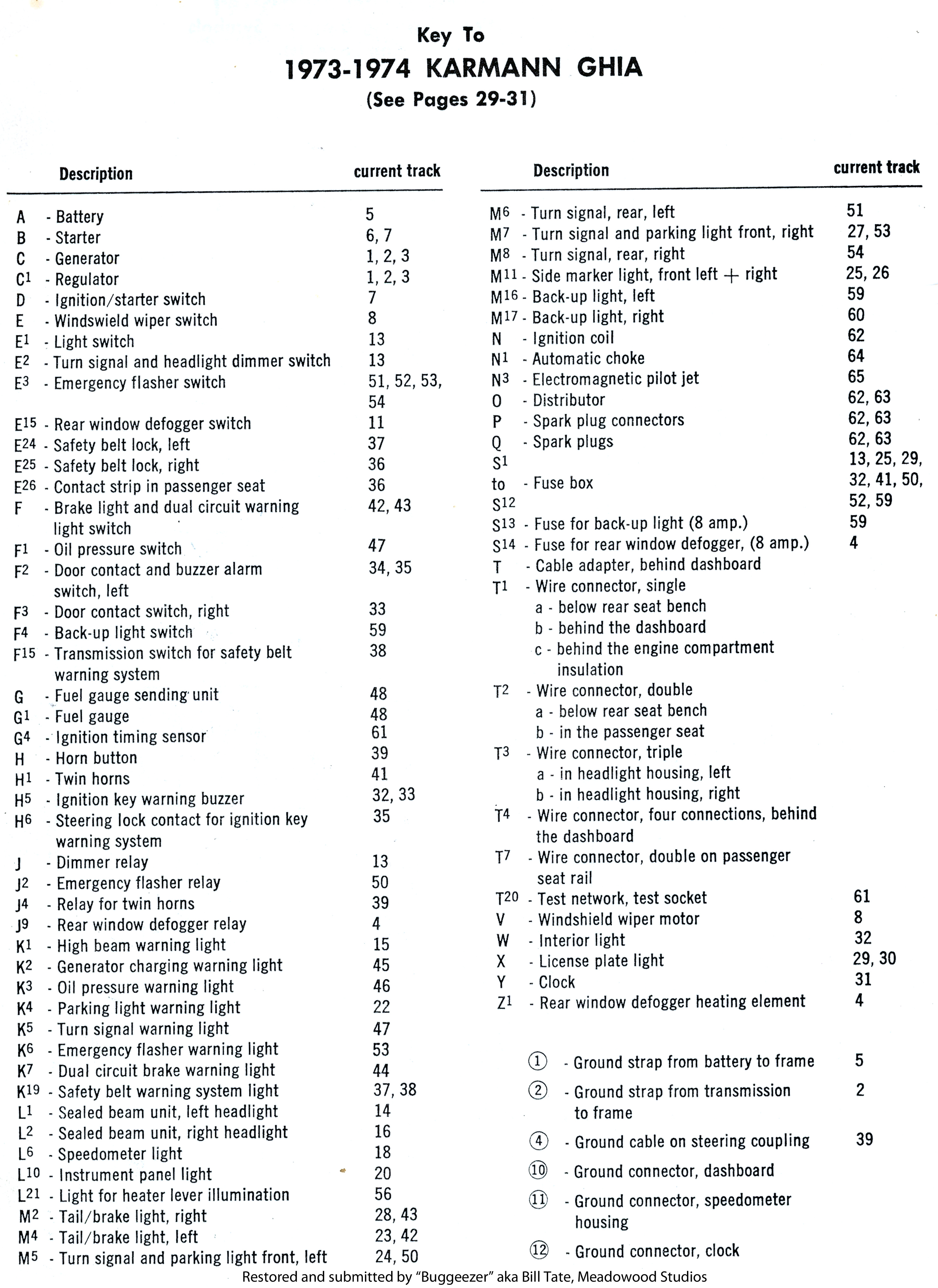

From Clymer's

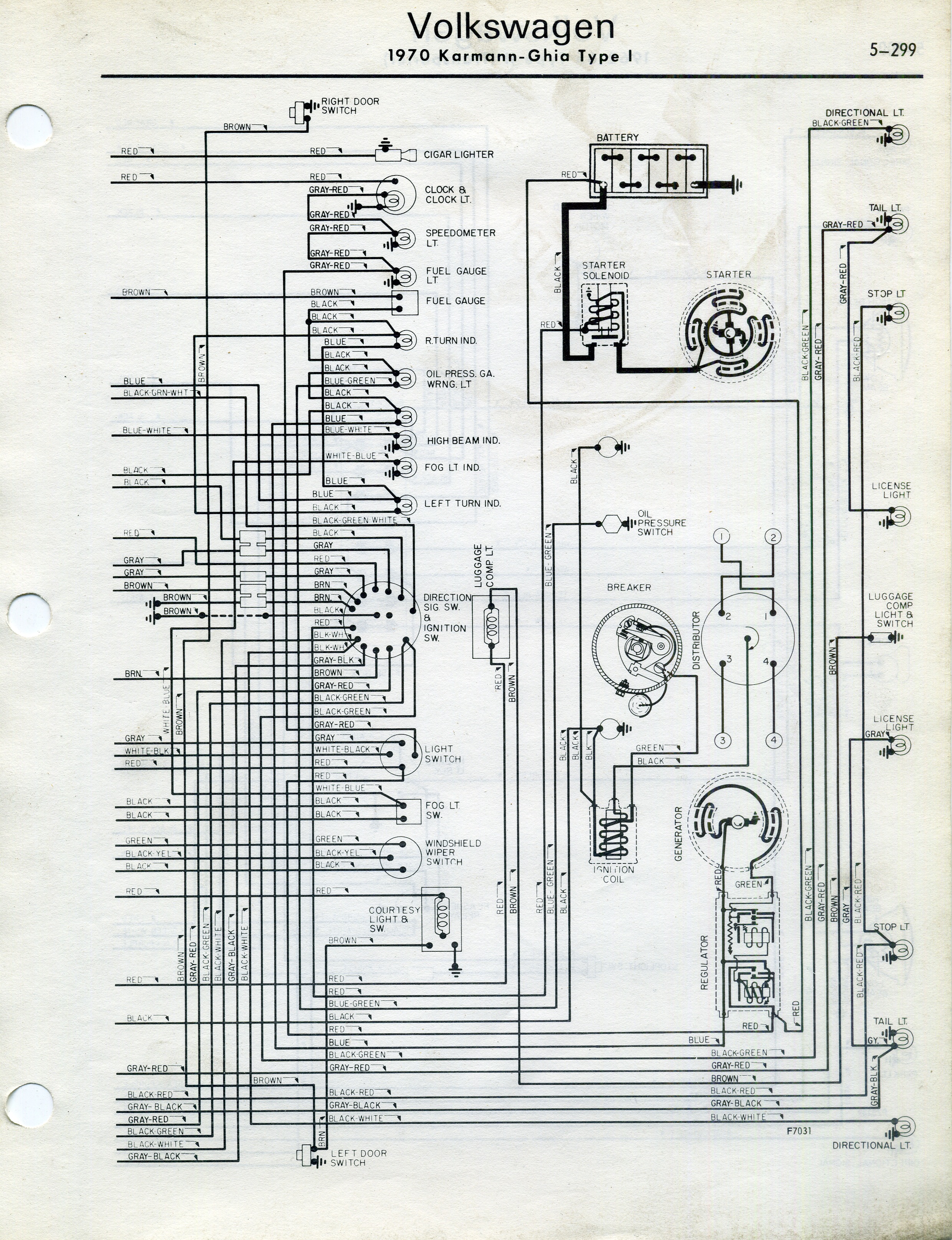

1970   USA
1970   USA
1970     From National Automotive Service
1970-71     From Clymer's
1971
1971   USA
1971 USA
1972   USA
1972     From Clymer's
1973-74 USA
1973-74   From Clymer's

Contributors to this page include Jason Hopper, Bill Tate, and Misterbill
