| oldmanmark wrote: |
if you dont know what your gonna do about the well arches i suggest you solve the problem 1st. because its much easier to work that before you tack in the parcel tray and under the rear window etc. i had some pin holes in the arches after i welded the new metal in. just took my time and tacked them closed. make an outline of where the parcel tray tacks to the wheel arches now. get it all lined up,tray as if it were fine and outline all pieces fitting for future reference. take few measurements too. i did in this order
1. marked parcel tray egde on inside wheel arches n inside of body at all connection areas,drill out spot welds of tray and remove.
2. hacked off top of parcel tray under window leaving metal to weld to. i cut before the drip tray like you show in pic. need that to still use or for reference if cut/weld in new metal.
3. cut out welded in new wheel arches includeing outer arch with body mount bracket. must block up body to keep bracket alingned with bolt hole in frame frame for alignment.(body off on my car at time,but braced and body mount holes bolted to jig))
4. once satisfiend with wheel arches set parcel tray in place and aligned. then made descscions with drip tray metal,use or replace. same with all other connecting metal whelded to parcel tray. its easier to work below the window and drip rail and lower tin crosspiece with tray out. thats why need to make outlines of correct fit of pieces when ready to weld back. hope this helps to b esier. long winded,forgive me.
inotherwords,do as much work with pacel tray removed. you can move around easily to solve the other problems. you made your reference points for alignment so it goges in last...or what works for you. |
Cool. I didn't do an outline of the old tray...reason why is because new tray's lips are thicker than the old tray so the outline wouldn't make any sense. But what I did do was measure from bottom corner of tray to bottom window. But I'm not sure that'll matter either since I kept the rear tin that holds engine gasket from the original tray and cut out the new one. So my worries making sure the new meets the old and getting that nice and tight.
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
 |
oldmanmark
Samba Member
Joined: July 08, 2006
Posts: 843
Location: n.w. indiana,chicagoland
|
| Posted: Sat Mar 30, 2013 8:44 pm Post subject: |
|
|
| sorry didnt take any pics. as long as you have your measureing/alignment methods to line up the parcel tray at the correct horizontal to tack to the wheel arches aand correctly to what metal is remaining under the rear window b fine. then theres the small tin pieces that get tacked under and in back of shelf remaining,you know that by now. dont be afraid to cut out bad metal on the arches and bend and weld in a new patch. it not that hard. the bending is easy,just use the piece u cut out as the template. i found this part easier than replaceing the tray. i buy arches for both sides with the body mounts,only needed one side but i had to have them both same cause im nuts and picky. mid america sells sheets of 20 gauge. not the best way to get metal but its there. mark off what needs to be cut out with marker. get a beer and sit and look at that area a while,then let it jell upstairs for a day or two. its no big thing. |
|
| Back to top |
|
|
oldmanmark
Samba Member
Joined: July 08, 2006
Posts: 843
Location: n.w. indiana,chicagoland
|
| Posted: Sat Mar 30, 2013 9:54 pm Post subject: |
|
|
| check out '[email protected]' in the classifieds.he might have something for you. his name is mike, good to do buisness with. ships grayhound. i orderd a dash,got lost in mail. told him havent recieved it wonder why. talked on phone,he knew right away was lost in mail . sent me another dash,no charge! i sent him back couple of bucks for good faith and buy some parts. has alot of 60's cars,still wheel arches can easily made to fit. let me know how it goes. |
|
| Back to top |
|
|
dubjeep
Samba Member
Joined: December 24, 2011
Posts: 355
Location: Rhode Island
|
| Posted: Sun Mar 31, 2013 3:31 am Post subject: |
|
|
| oldmanmark wrote: |
| check out '[email protected]' in the classifieds.he might have something for you. his name is mike, good to do buisness with. ships grayhound. i orderd a dash,got lost in mail. told him havent recieved it wonder why. talked on phone,he knew right away was lost in mail . sent me another dash,no charge! i sent him back couple of bucks for good faith and buy some parts. has alot of 60's cars,still wheel arches can easily made to fit. let me know how it goes. |
I bought my front clip from him. The service was good, and the shipping was crazy cheap. |
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Wed Apr 17, 2013 4:07 am Post subject: |
|
|

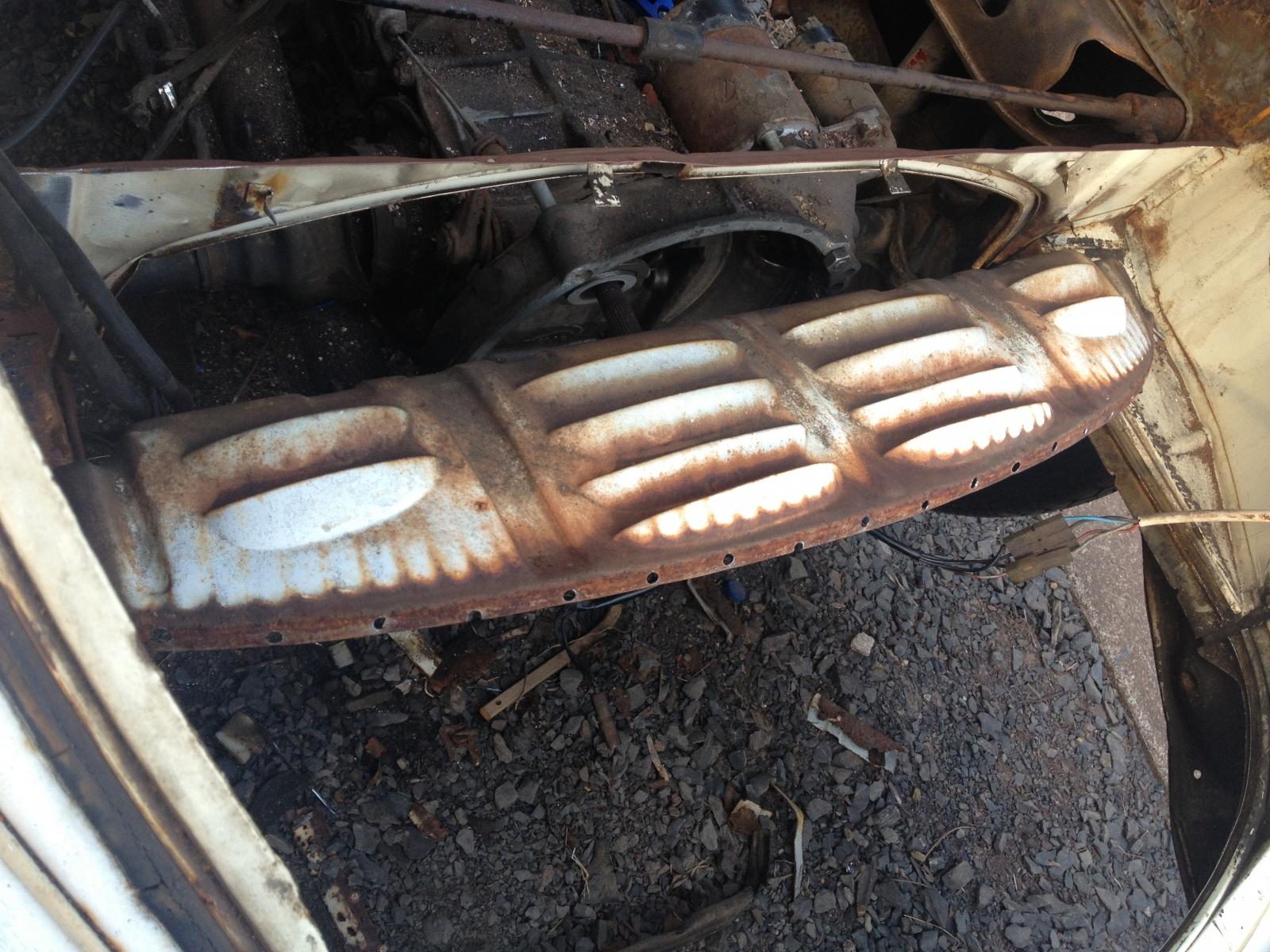

I'm still plugging away at the rear package tray/under the rear window rust.
I took the vented tray/deck lid mounts off to get better access to the rotted area under the window.
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
Q-Dog
Samba Member
Joined: April 05, 2010
Posts: 8850
Location: Sunset, Louisiana
|
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Wed Apr 17, 2013 9:16 am Post subject: |
|
|
Not sure lol. Well the metal under the window isn't strong enough to weld to. It's pitted and rusty so I might have to go further up closer to the window in order to repair the section that the package tray/louvered tray welds too
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Mon May 27, 2013 5:21 pm Post subject: |
|
|
I got it welded up...not the greatest job but oh well. I wanna drive this beetle not trailer it. The metal rot under the window was really bad. I had to get a donor piece just to fix it. I'm not the greatest welder so don't pay attention to that. It's solid and i'm proud of it. The beetle is one step closer to being on the road. It's a heck of a lot better than what it looked like lol
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
Q-Dog
Samba Member
Joined: April 05, 2010
Posts: 8850
Location: Sunset, Louisiana
|
|
| Back to top |
|
|
Joey
Samba Member
Joined: August 12, 2005
Posts: 5376
Location: Nova Scotia - Canada
|
| Posted: Tue May 28, 2013 5:45 am Post subject: |
|
|
| Smurf wrote: |
| I'm not the greatest welder... |
You don't have to be... you just have to be real good at grinding.
_________________
Joey
‘60 Kombi - '74 Bus - '79 Panel - '65 Beetle |
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Tue May 28, 2013 6:01 am Post subject: |
|
|
| Joey wrote: |
| Smurf wrote: |
| I'm not the greatest welder... |
You don't have to be... you just have to be real good at grinding. |
Got that right lol
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
scrivyscriv
Samba Electrician
Joined: October 04, 2011
Posts: 3344
Location: Memphis
|
| Posted: Tue Nov 25, 2014 9:19 am Post subject: |
|
|
| Smurf wrote: |
I'm still plugging away at the rear package tray/under the rear window rust.
I took the vented tray/deck lid mounts off to get better access to the rotted area under the window.
|
You got any more photos of that area? +1 on jumping in and doing it right.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help. |
|
| Back to top |
|
|
Smurf
Samba Member
Joined: January 20, 2004
Posts: 918
Location: Colmar, PA
|
| Posted: Mon Jan 12, 2015 4:11 pm Post subject: |
|
|
| scrivyscriv wrote: |
| Smurf wrote: |
I'm still plugging away at the rear package tray/under the rear window rust.
I took the vented tray/deck lid mounts off to get better access to the rotted area under the window.
|
You got any more photos of that area? +1 on jumping in and doing it right. |
Sorry for the late reply...I don't have anymore photos. This job wasn't that tough as I thought it would be but it wasn't fun! There are so many different curves back there it'll drive you insane.
_________________
1962 Beetle
1977 Westfalia (Subaru Conversion)
"Traveling in a fried-out Kombi
On a hippie trail head full of zombie"
-Men at Work |
|
| Back to top |
|
|
crDaniel
Samba Member
Joined: September 13, 2010
Posts: 43
Location: Portland, OR
|
| Posted: Wed Jun 10, 2015 6:27 am Post subject: fitment of replacement tray |
|
|
| how was the fit of the replacement piece? you bought yours new for a 68 Bug... I have a 69 Bug - would a new replacement piece be better than a tray from a donor 63 Bug? Are all years generally the same size / same louver sizes? |
|
