| Author |
Message |
Notch
Samba Member
Joined: May 31, 2005
Posts: 142
Location: Lodi, CA
|
 Posted: Tue May 06, 2014 9:43 am Post subject: |
 |
|
| GlazedDoughnut wrote: |

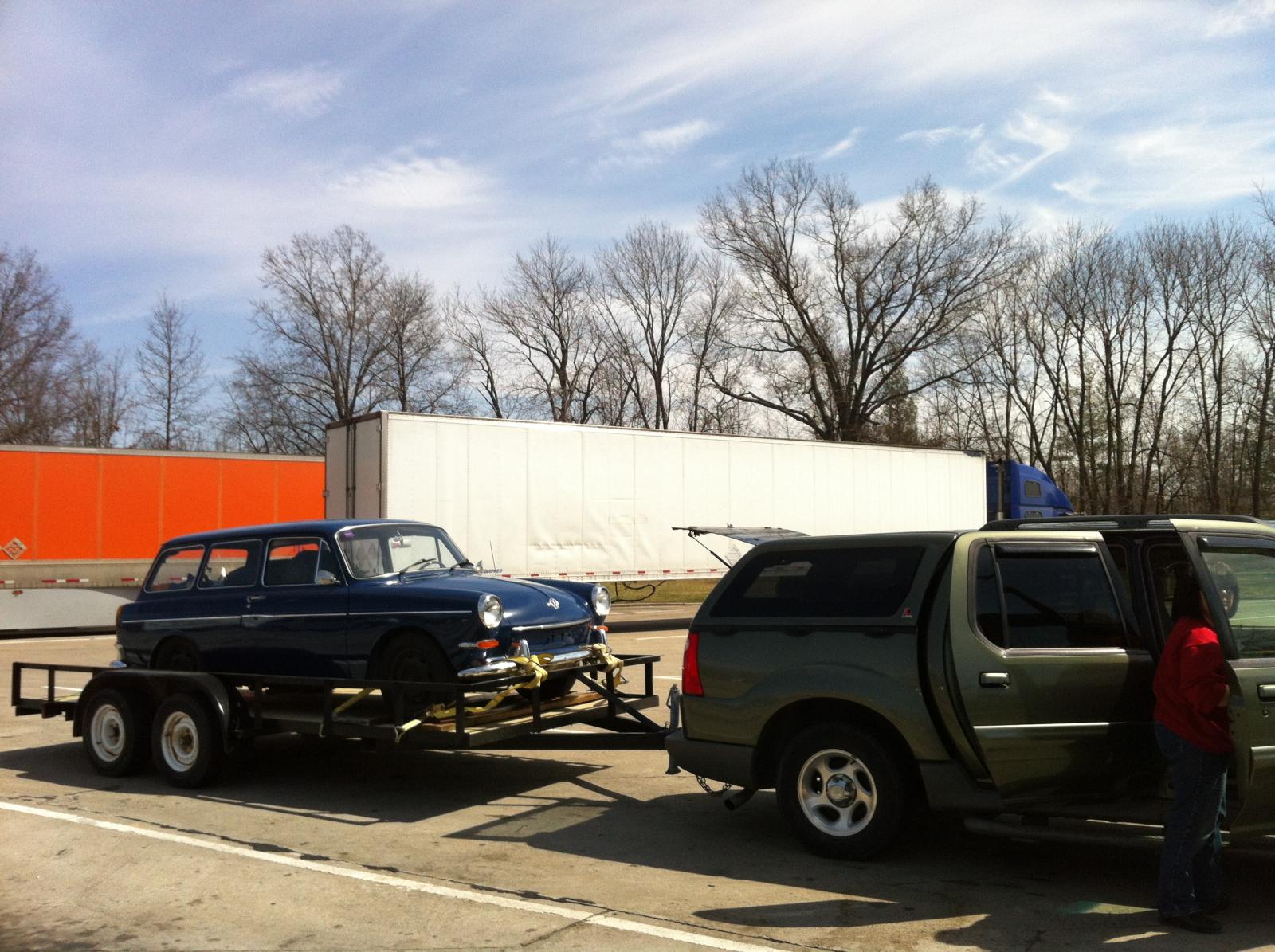

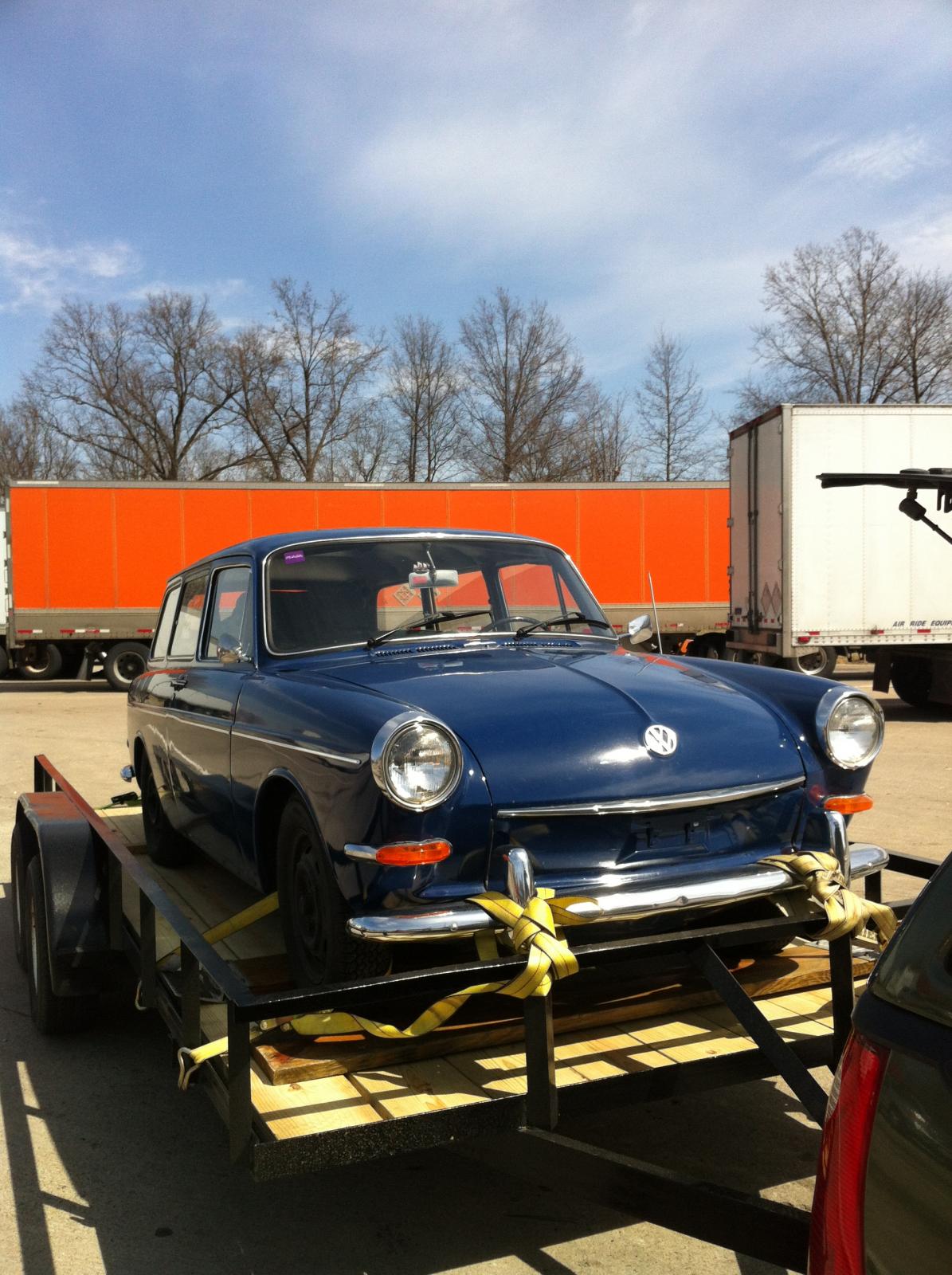

I forgot to mention here what happened on the way down from Missouri, I believe. So I'll relate it now. We had Scone up on a trailer for as long as we could
|
I don't really want to pick on you but tieing down your car in this manner does not appear very safe. There is nothing really preventing the car from coming forward in a panic stop. The car will roll right over the 2X4's and could climb the trailer rail. This could tear up your square or even damage the tow vehicle. We all think it will be ok but "stuff happens'. Just trying to save someone else the headache of damage. I am by no means an expert but I would recommend front axle beam to front of trailer with two separate straps and rear torsion to rear of trailer with two straps.
Doug
_________________
'64 Notchback
'67 Bug
(sunroofs both)
1964 Lavey Craft, Flatbottom V-Drive, 406 Ford |
|
| Back to top |
|
 |
GlazedDoughnut
Samba Member
Joined: February 05, 2013
Posts: 19
Location: Columbus, GA
|
| Posted: Tue May 06, 2014 10:08 am Post subject: |
|
|
| Notch wrote: |
| GlazedDoughnut wrote: |
I forgot to mention here what happened on the way down from Missouri, I believe. So I'll relate it now. We had Scone up on a trailer for as long as we could
|
I don't really want to pick on you but tieing down your car in this manner does not appear very safe. There is nothing really preventing the car from coming forward in a panic stop. The car will roll right over the 2X4's and could climb the trailer rail. This could tear up your square or even damage the tow vehicle. We all think it will be ok but "stuff happens'. Just trying to save someone else the headache of damage. I am by no means an expert but I would recommend front axle beam to front of trailer with two separate straps and rear torsion to rear of trailer with two straps.
Doug |
Thanks, Doug. My grandfather strapped Scone down, so I was just letting him do what he thought was best. |
|
| Back to top |
|
|
GlazedDoughnut
Samba Member
Joined: February 05, 2013
Posts: 19
Location: Columbus, GA
|
| Posted: Fri May 09, 2014 6:36 am Post subject: |
|
|
| Deluxe Lowlight Ghia wrote: |
| how does the trailer hitch mount? |
I went, looked, and found that it is mounted inside the rear bumper. I'll get pictures up later to show you. Haven't had time to take them yet. |
|
| Back to top |
|
|
VWporscheGT3
Samba Member
Joined: September 01, 2006
Posts: 2150
Location: Gardnerville, NV
|
| Posted: Fri May 09, 2014 7:04 am Post subject: |
|
|
Love the driving video... its amazing how much I miss driving my fastback, makes me wish I didn't part out my 68 Square too. you got a truly beautiful car, take care of her!
_________________
If you have any questions about Forged ICON 4032 VW pistons just shoot me a line. |
|
| Back to top |
|
|
GlazedDoughnut
Samba Member
Joined: February 05, 2013
Posts: 19
Location: Columbus, GA
|
| Posted: Tue May 13, 2014 7:29 am Post subject: |
|
|
| VWporscheGT3 wrote: |
| Love the driving video... its amazing how much I miss driving my fastback, makes me wish I didn't part out my 68 Square too. you got a truly beautiful car, take care of her! |
Thanks so much!
That's why I like to make the videos, to share the joy of driving Scone |
|
| Back to top |
|
|
GlazedDoughnut
Samba Member
Joined: February 05, 2013
Posts: 19
Location: Columbus, GA
|
| Posted: Tue May 13, 2014 7:39 am Post subject: |
|
|
so the other day I was driving and the shifter went out. What I mean by that is that I only had first gear and couldn't do any other gear. And the gear pattern was non-existent.
The guys on the type three forum helped me in locating my issue as the shift coupling. I went under one time and couldn't find it, but then was able to with more help.

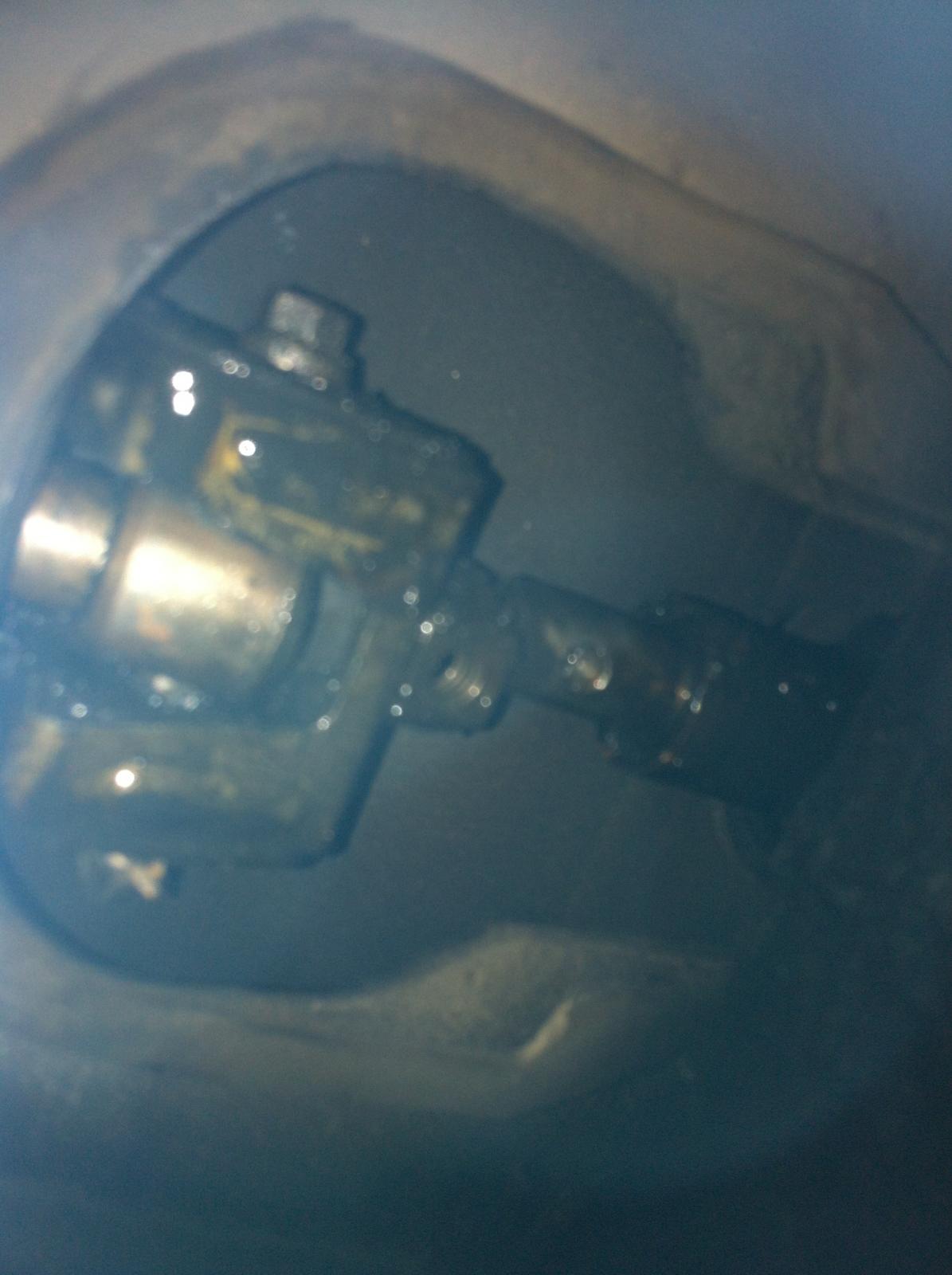

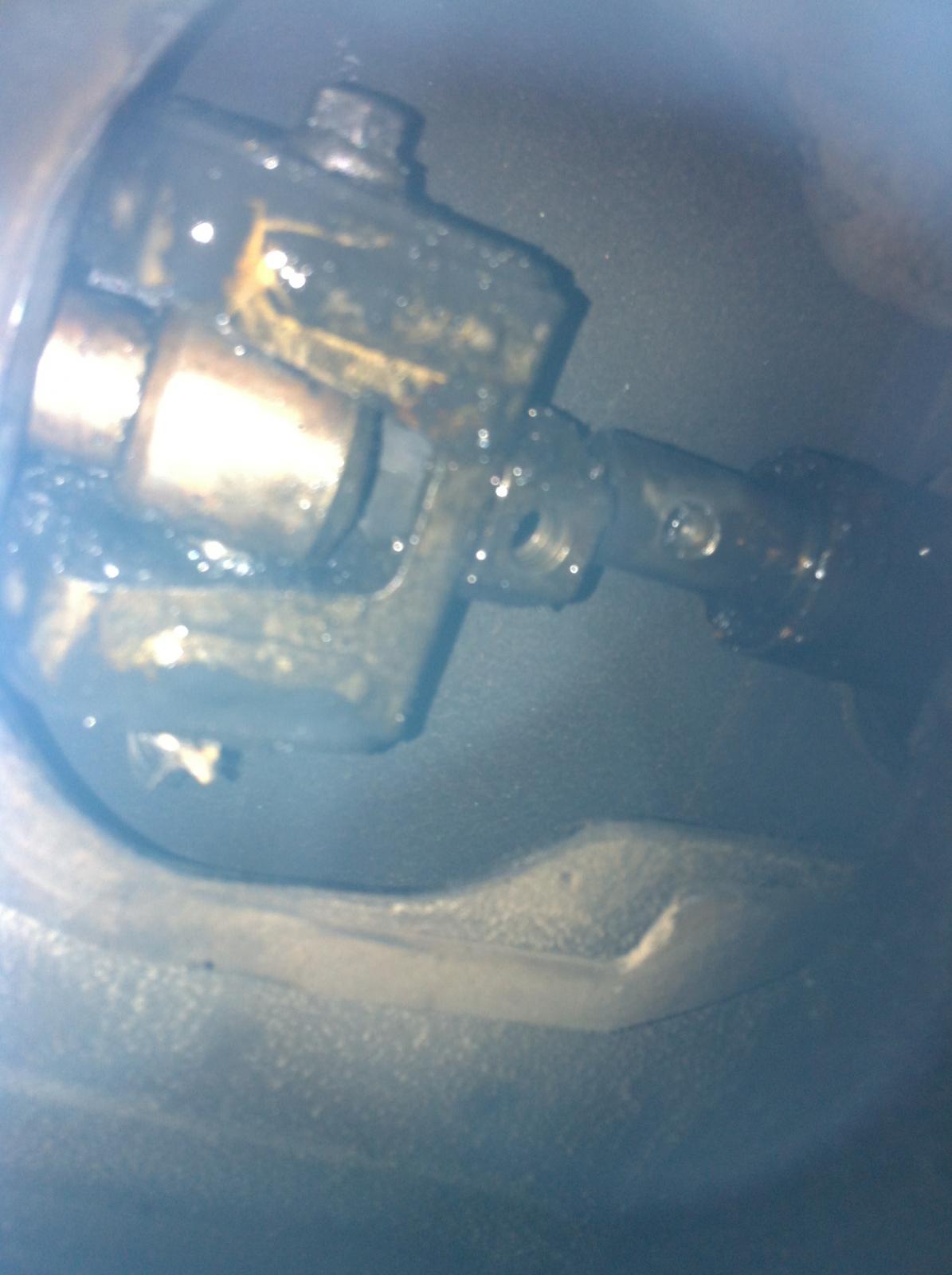

This morning I went under and realized this is my issue:
First of all, I was missing the plate that is supposed to cover the shift coupler. And also, the bolt that connects the rod to the coupler is gone!
so at least I know that is the issue.

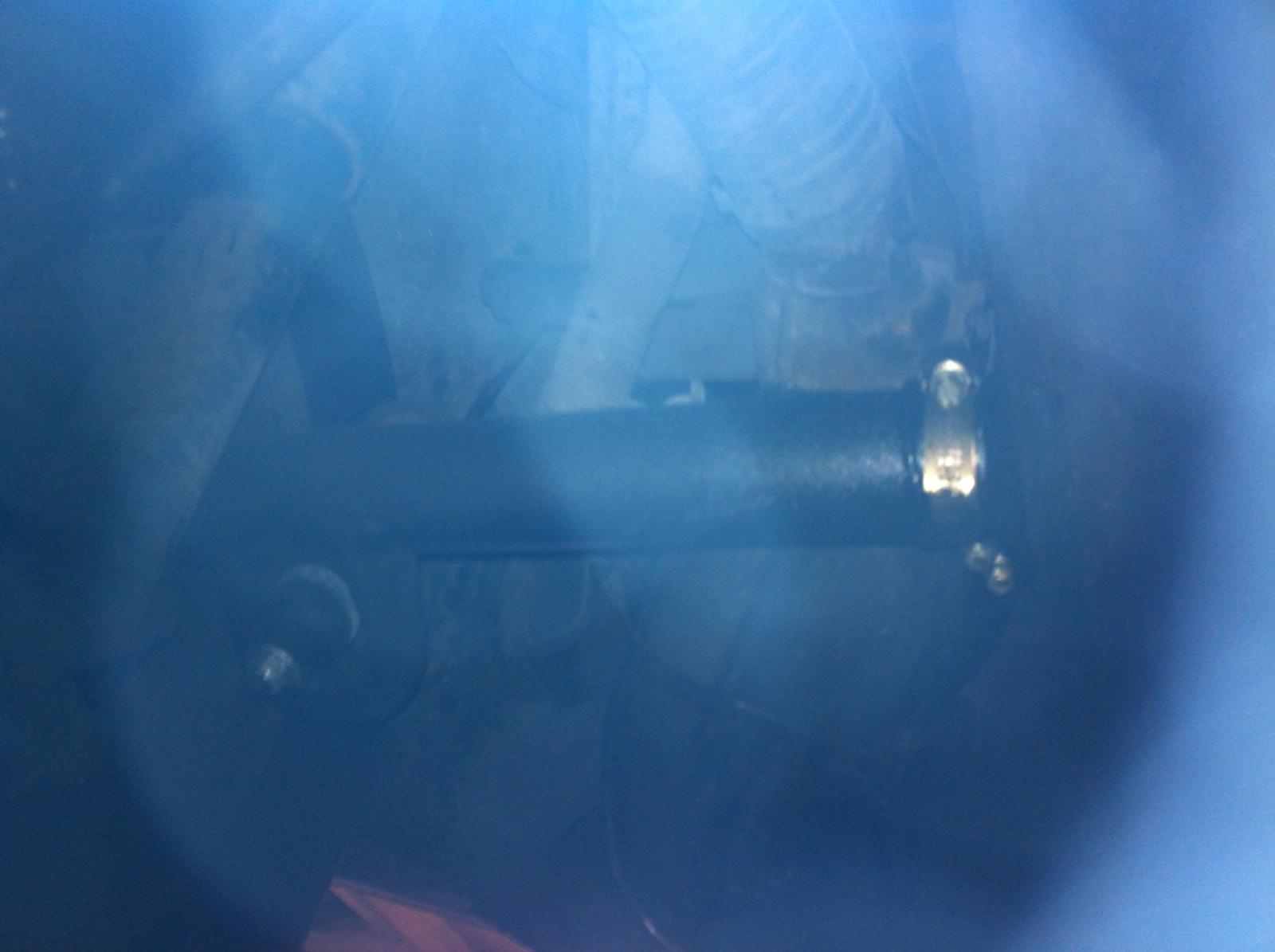

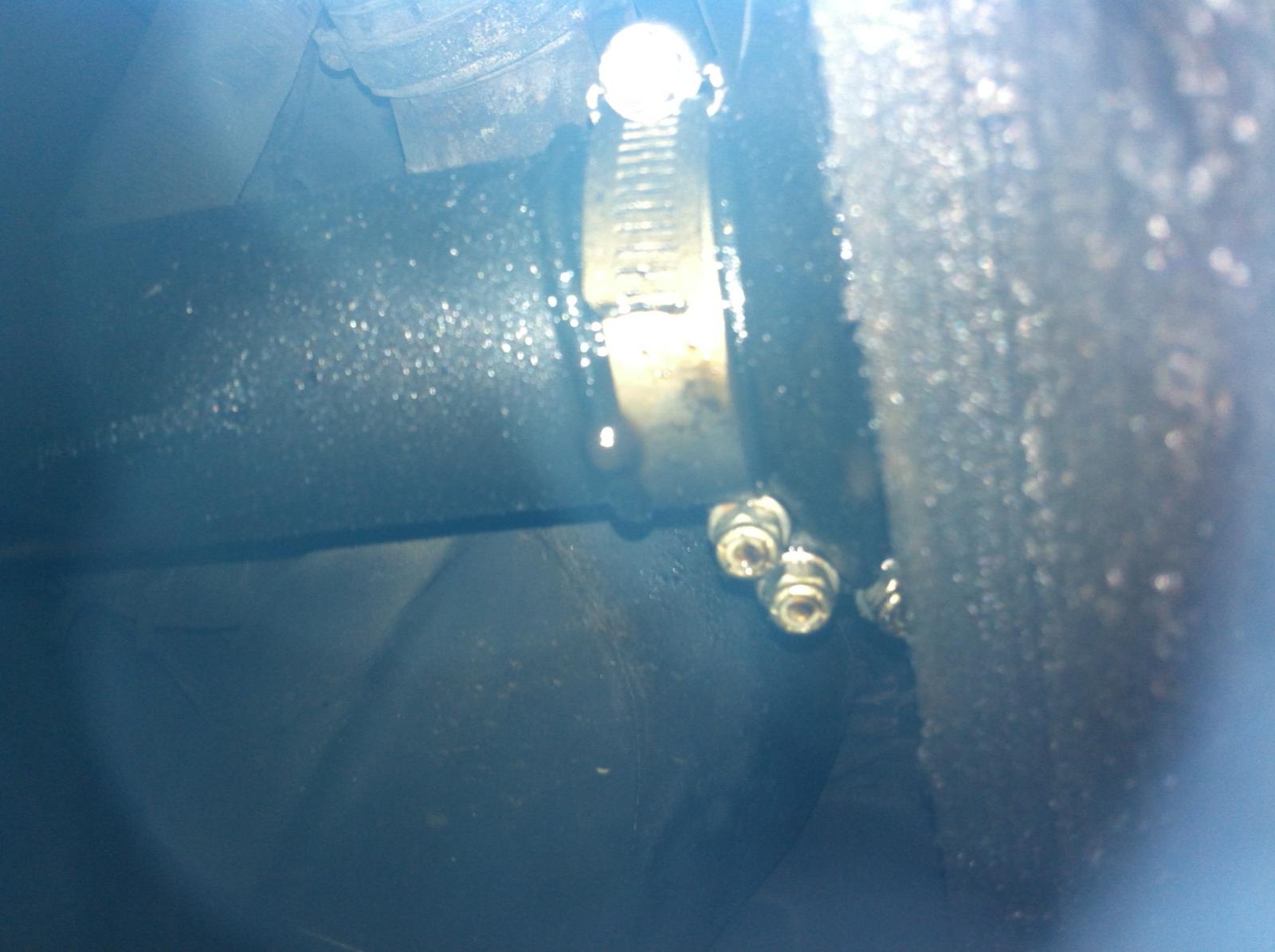

I also think there's a leak coming from here:
What exactly is this? Suspension?
It's right behind the shift coupler opening. by a foot or so.
|
|
| Back to top |
|
|
VWporscheGT3
Samba Member
Joined: September 01, 2006
Posts: 2150
Location: Gardnerville, NV
|
| Posted: Tue May 13, 2014 8:41 am Post subject: |
|
|
it looks like your leaking gear oil, one from your nosecone, and two from your side covers or axle boots. the seal in the nosecone is easy but the tranny has to come out, and while its out its always a good idea to replace the boots.
_________________
If you have any questions about Forged ICON 4032 VW pistons just shoot me a line. |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23198
Location: Kimball, Mi
|
| Posted: Thu May 15, 2014 7:58 pm Post subject: |
|
|
| GlazedDoughnut wrote: |
so the other day I was driving and the shifter went out. What I mean by that is that I only had first gear and couldn't do any other gear. And the gear pattern was non-existent.
The guys on the type three forum helped me in locating my issue as the shift coupling. I went under one time and couldn't find it, but then was able to with more help.
This morning I went under and realized this is my issue:
First of all, I was missing the plate that is supposed to cover the shift coupler. And also, the bolt that connects the rod to the coupler is gone!
|
This is what I suggested you look at on the list. You'll need to get a new square headed set screw for it. ISP should have one. You could also try your local hardware store, but I think it needs to be metric. IF you have a good VW (or Import) parts store you might get lucky and find one there. Ideally it'll have a hole thru the head for safety wiring it, so it won't "fall out", or loosen.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
VWporscheGT3
Samba Member
Joined: September 01, 2006
Posts: 2150
Location: Gardnerville, NV
|
| Posted: Fri May 16, 2014 10:19 am Post subject: |
|
|
^ I agree, personally what i did with mine was found a short metric allen head bolt , chamfered the tip and tightened the living piss out of it, never had a problem with that bastid again
_________________
If you have any questions about Forged ICON 4032 VW pistons just shoot me a line. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71262
Location: Phoenix 602
|
| Posted: Fri May 16, 2014 6:00 pm Post subject: |
|
|
| Bobnotch wrote: |
| GlazedDoughnut wrote: |
so the other day I was driving and the shifter went out. What I mean by that is that I only had first gear and couldn't do any other gear. And the gear pattern was non-existent.
The guys on the type three forum helped me in locating my issue as the shift coupling. I went under one time and couldn't find it, but then was able to with more help.
This morning I went under and realized this is my issue:
First of all, I was missing the plate that is supposed to cover the shift coupler. And also, the bolt that connects the rod to the coupler is gone!
|
This is what I suggested you look at on the list. You'll need to get a new square headed set screw for it. ISP should have one. You could also try your local hardware store, but I think it needs to be metric. IF you have a good VW (or Import) parts store you might get lucky and find one there. Ideally it'll have a hole thru the head for safety wiring it, so it won't "fall out", or loosen. |

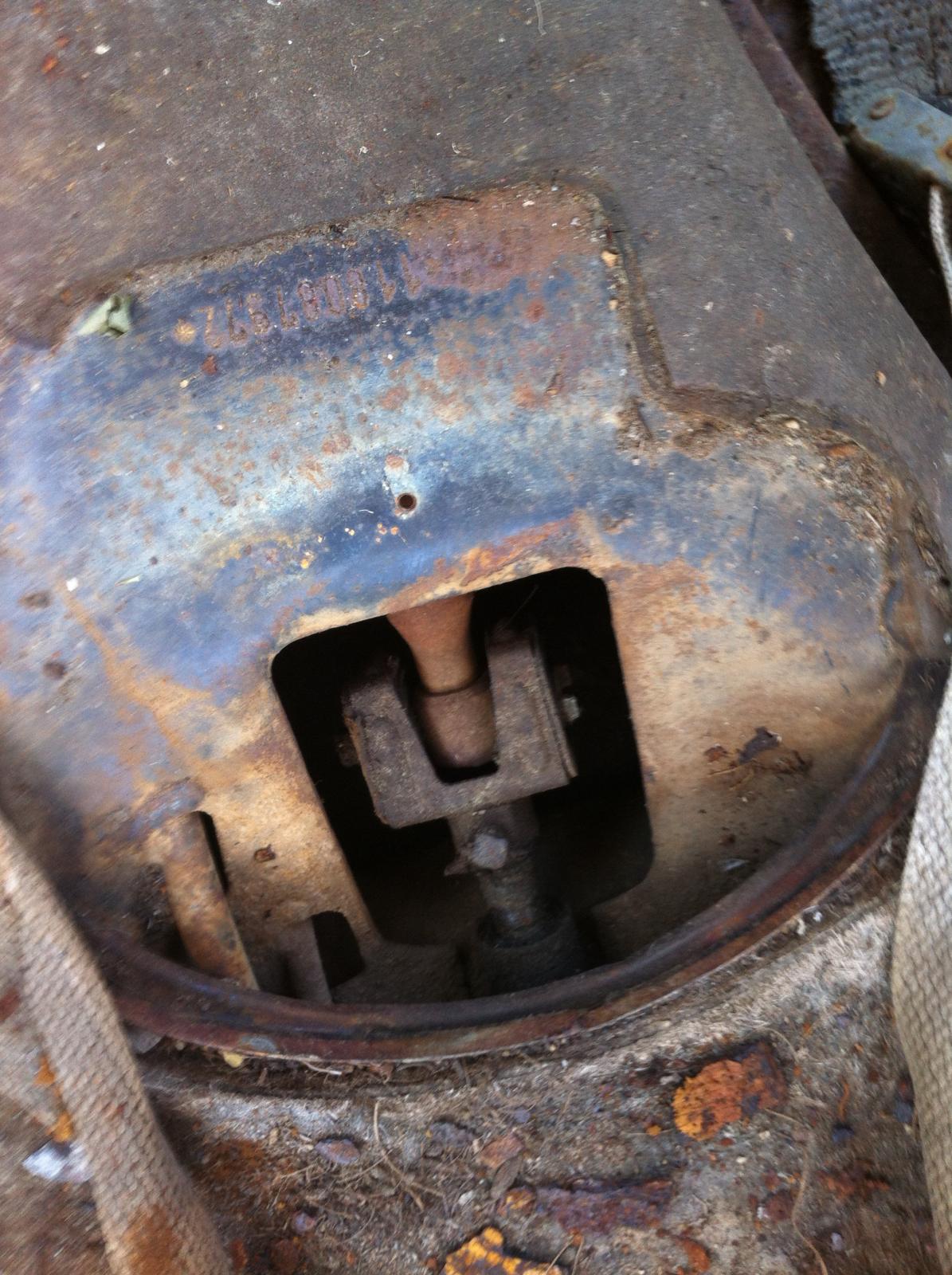

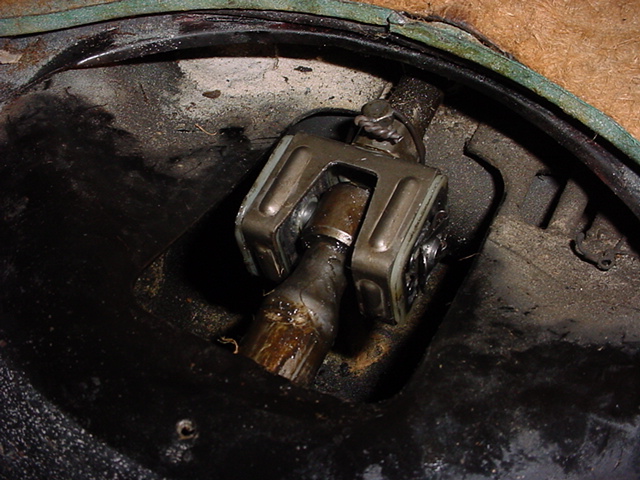

Bug but same idea
If you can't find a screw or figure out an alternative I'll send you one.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
GlazedDoughnut
Samba Member
Joined: February 05, 2013
Posts: 19
Location: Columbus, GA
|
| Posted: Thu May 22, 2014 7:34 am Post subject: |
|
|
I was lucky enough to be able to bike an hour to a pull a part yard that had a torn apart 69 beetle that I was able to take the squareheaded bolt out.
I wire wrapped it up last night, but it's dirty in there since that cover is still missing. I've already asked someone selling one on the samba about shipping. We'll see where that goes.

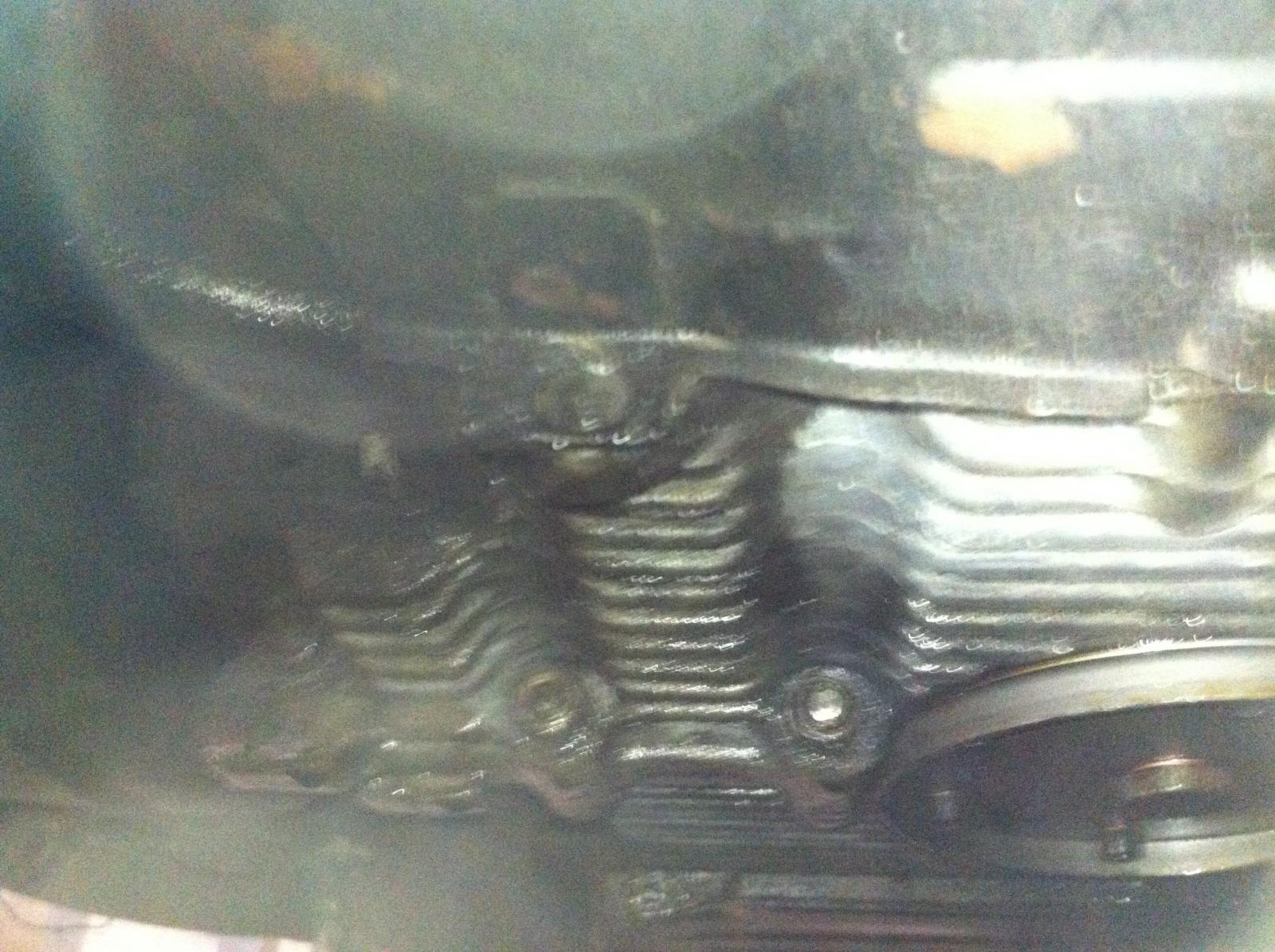

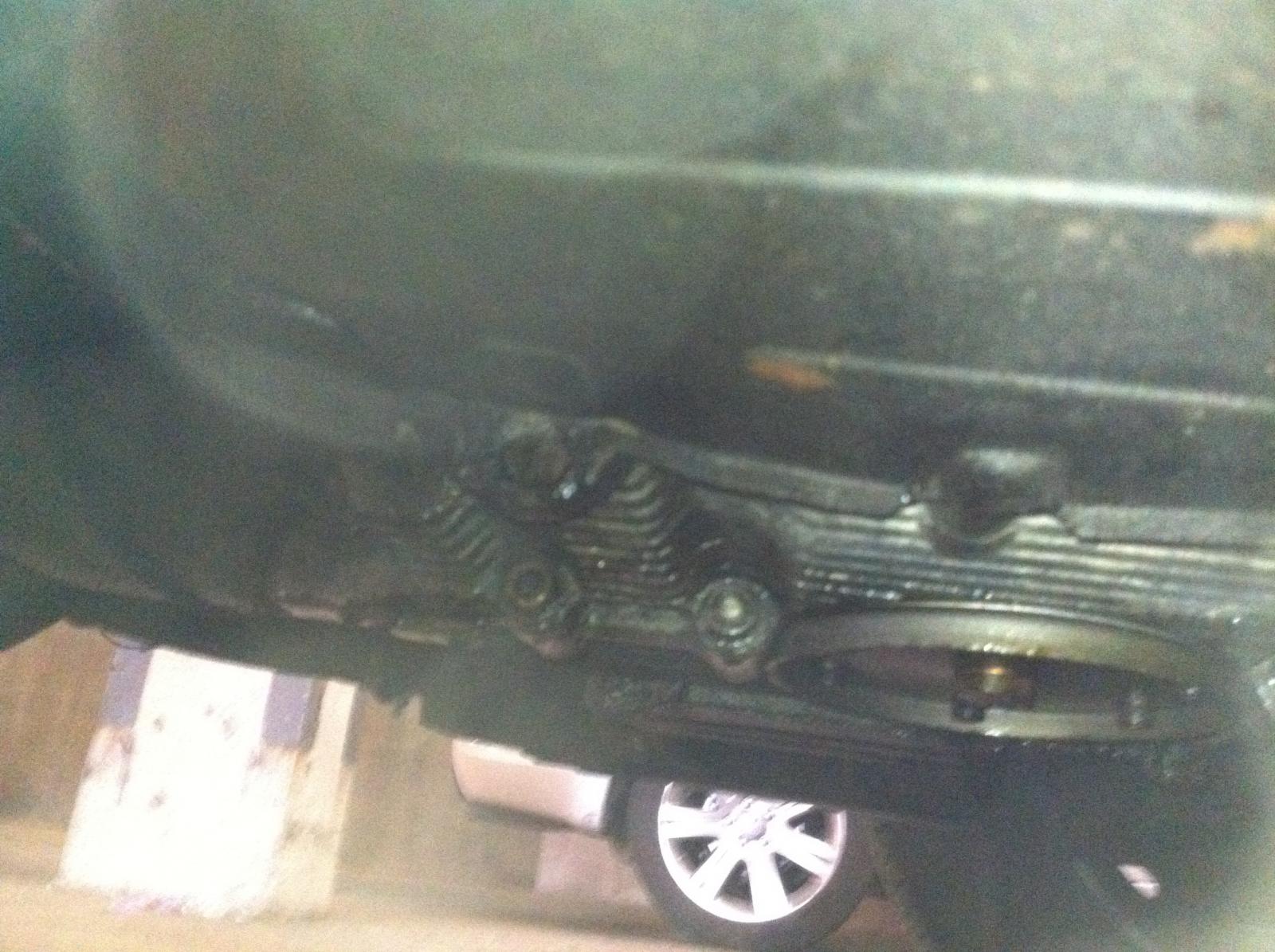

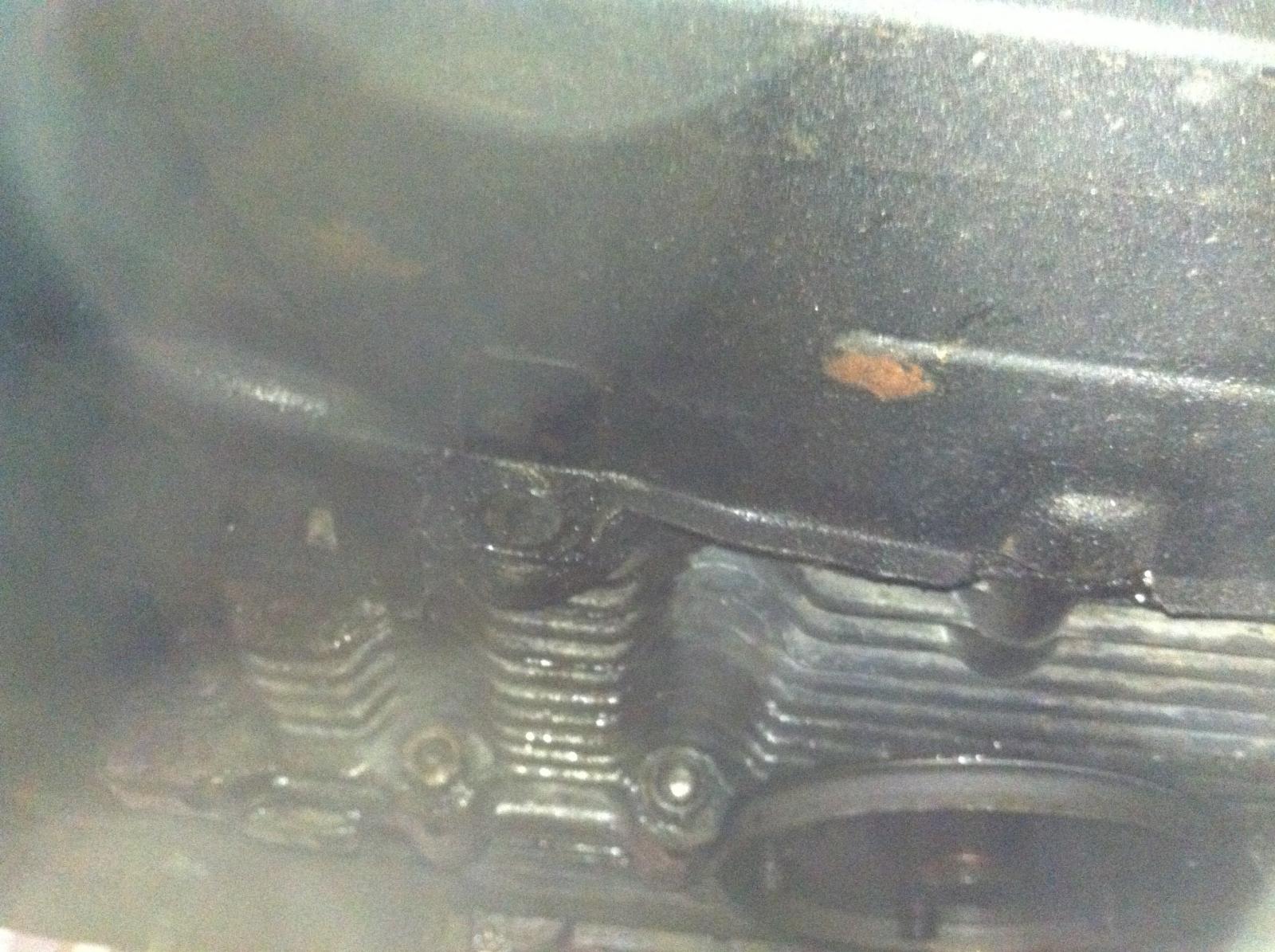

Another problem though, as it appears I'm missing bolts.....

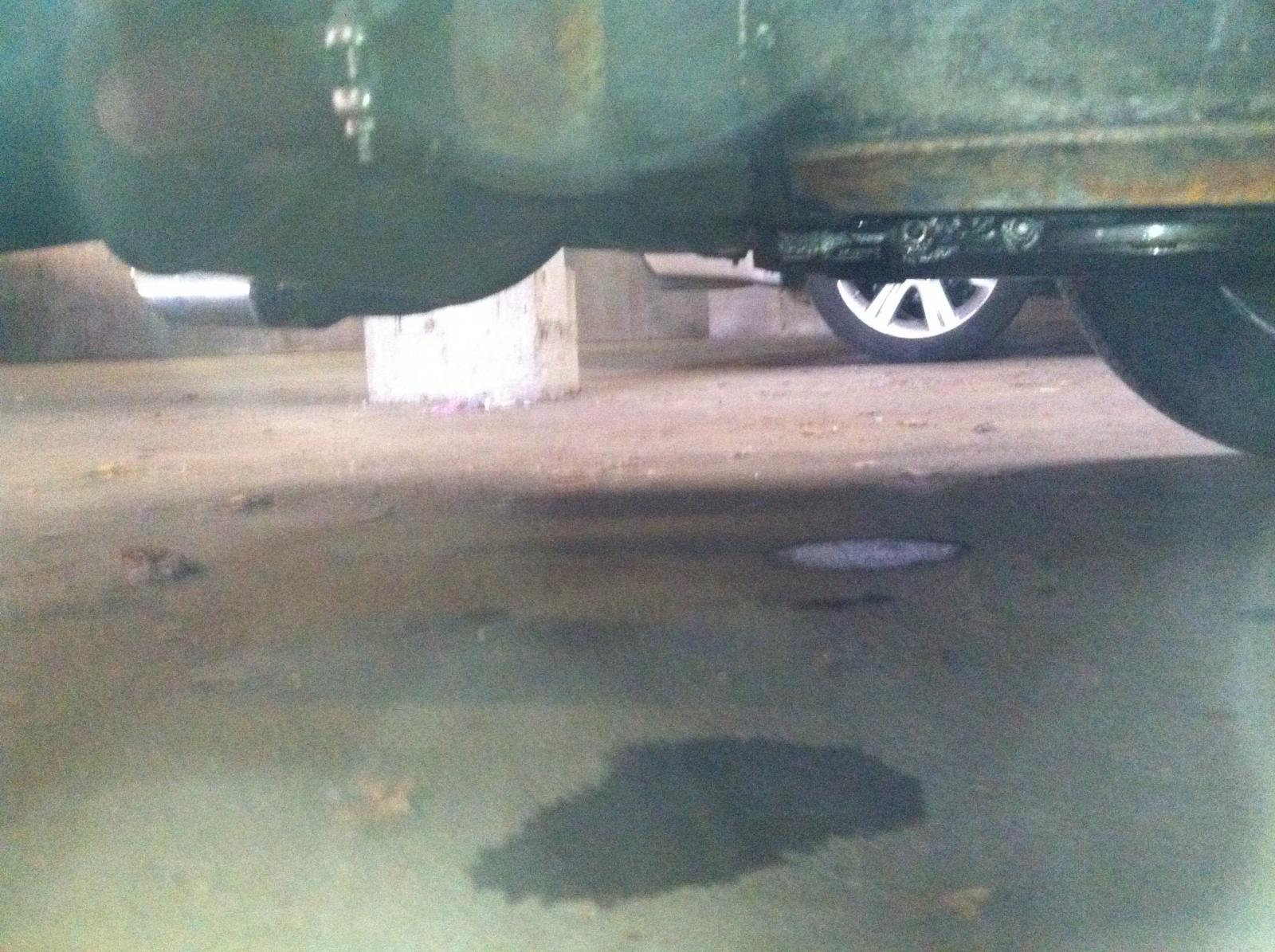

and maybe more leaks?
|
|
| Back to top |
|
|
one4house
Samba Member
Joined: July 18, 2009
Posts: 1121
Location: Sherman Texas
|
| Posted: Thu May 22, 2014 8:31 am Post subject: |
|
|
The only bolts I can see missing are the ones that hold the cooling tin to the engine case. That is pretty typical of a VW of 45 years. Go to your local VW shop, tell them you need some of the screws to hold the tin to the engine case and pick up about 2 dozen of them to have around. You will find that you will need them from time to time.
As far as the leaks go, looks like it is valve cover gasket leaks. The pictures are dark and blurry. When was the last time you replaced these? They typically need to be replaced every oil change / valve adjustment. Somewhere in that area. If you can bring the car to the light and get some pictures without shaking the camera, we might be able to track it down a little better.
_________________
My Old 64 Field Find
My Old 66 Squareback
My Old 66 Beetle
My Old 70 Squareback |
|
| Back to top |
|
|
GlazedDoughnut
Samba Member
Joined: February 05, 2013
Posts: 19
Location: Columbus, GA
|
| Posted: Thu Jun 05, 2014 7:41 am Post subject: |
|
|
| one4house wrote: |
The only bolts I can see missing are the ones that hold the cooling tin to the engine case. That is pretty typical of a VW of 45 years. Go to your local VW shop, tell them you need some of the screws to hold the tin to the engine case and pick up about 2 dozen of them to have around. You will find that you will need them from time to time.
As far as the leaks go, looks like it is valve cover gasket leaks. The pictures are dark and blurry. When was the last time you replaced these? They typically need to be replaced every oil change / valve adjustment. Somewhere in that area. If you can bring the car to the light and get some pictures without shaking the camera, we might be able to track it down a little better. |
That's what my grandfather had thought the problem was as well. We didn't change it last time we did the oil change, so thats what I have next on my list to do. Thanks c: |
|
