Aaron Britcher
Samba Member


Joined: March 31, 2008
Posts: 544
Location: Adelaide, South Australia
Aaron Britcher is offline

PostPosted: Fri Dec 04, 2009 5:14 am    Post subject: Type 3 Panel Van Nirvana Reply with quote

After months of deliberation (procrastination?) - here it is folks, a non definitive but good effort at capturing the Type 3 panel van specific advertising, documention, features, production details and known cars.

First off, let's start with some advertising / factory images.

Image may have been reduced in size. Click image to view fullscreen.

This is the oldest known image we have- looks to be based on a VW-1500 squareback due to the bumper over riders, high side markers, thick rear window trim and slotted wheels.

It might even have slash sill trim but it's hard to see.

Image may have been reduced in size. Click image to view fullscreen.

This is also another VW-1500 based car with the above mentioned features again.

Image may have been reduced in size. Click image to view fullscreen.

This image shows a 1500 'N' version due to the lack of side markers, no over riders, but slotted wheels so a late 63 or perhaps early 64.

Note it has a passengers side door lock- this seems to be consistent with European production of these cars.

Also note passenger side mirror- all panel vans have passenger side mirrors as far as we can tell.

Image may have been reduced in size. Click image to view fullscreen.

This shot shows the difference between an M264 option (top of image) and the M265 option (bottom of image).

The M264 option enabled the buyer to have a back seat as per usual fitment to the T36. Nothing unusual there.

The M265 option, however, included a quite sturdy bulk head comprised of pressed steel and this enabled the fitment of additional storage areas under where the back seat would reside.

More on this later when we examine the Australian CKD version of the panel van (option V30) which is based on the European M265 option- but with variation's.

Image may have been reduced in size. Click image to view fullscreen.

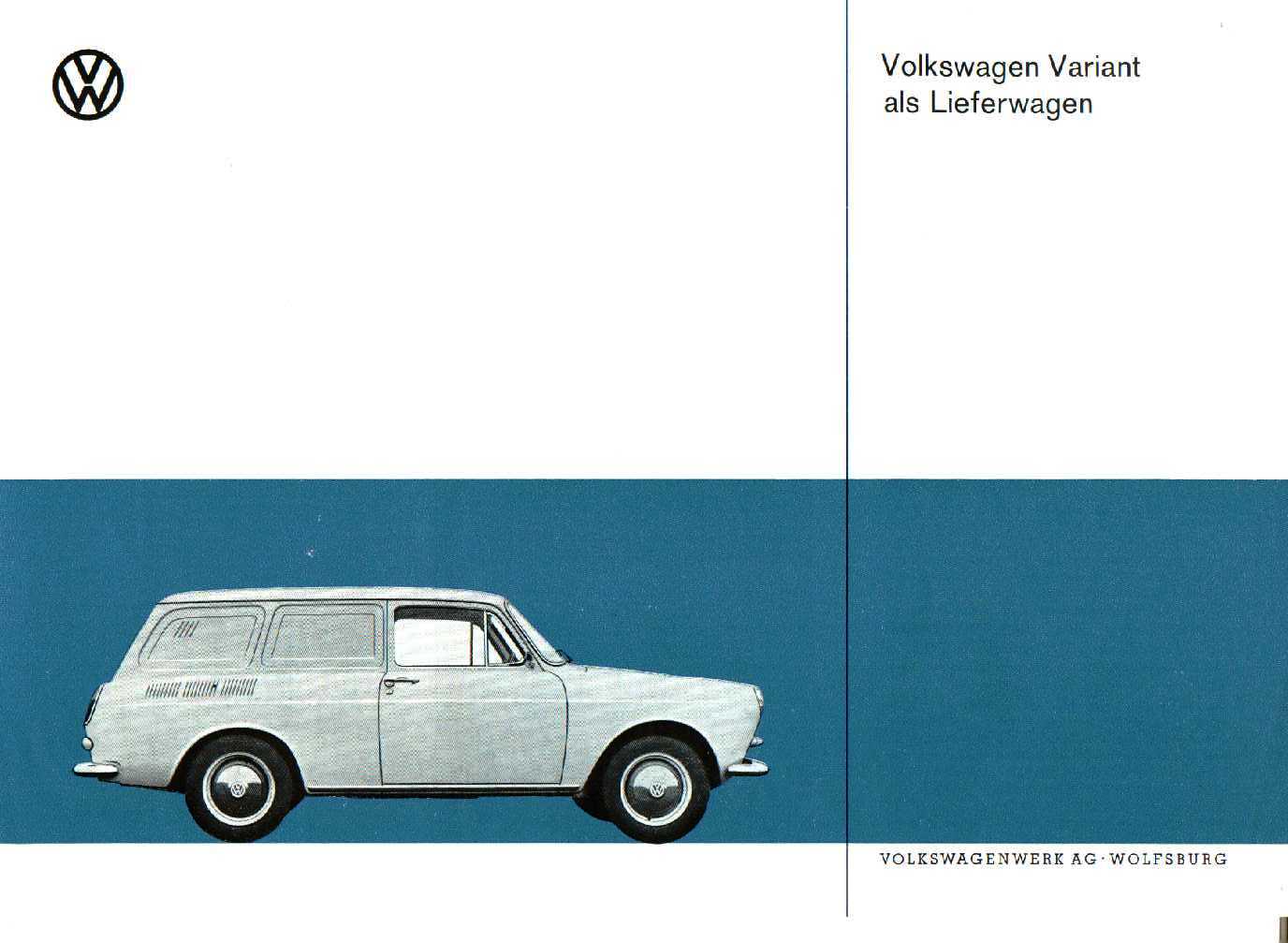

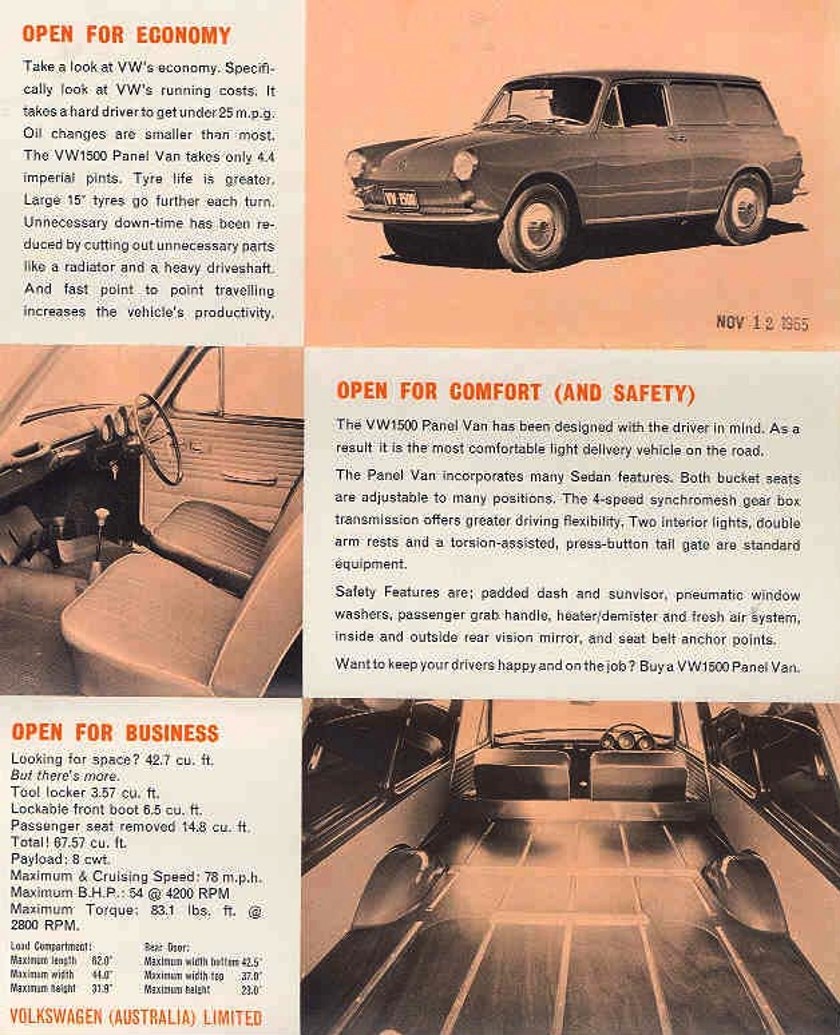

This brochure shows a 64/65 model with lack of the over riders, no side markers at all and solid wheels.

Note that the window pressings are the thicker style- more on this as we go people!

Image may have been reduced in size. Click image to view fullscreen.

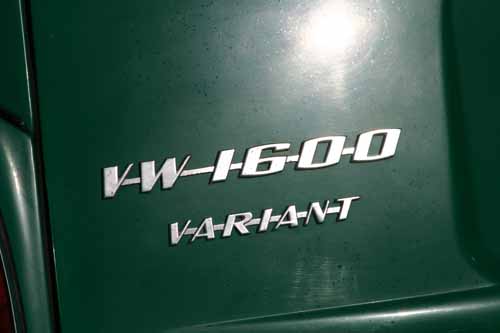

Here we have about a 1966 vintage panel van- note the 1600 badging, late door handle, thin sill trim and 4 stud wheels.

Image may have been reduced in size. Click image to view fullscreen.

Here we have another 66 or so vintage panel van. 4 stud wheels again.

Image may have been reduced in size. Click image to view fullscreen.

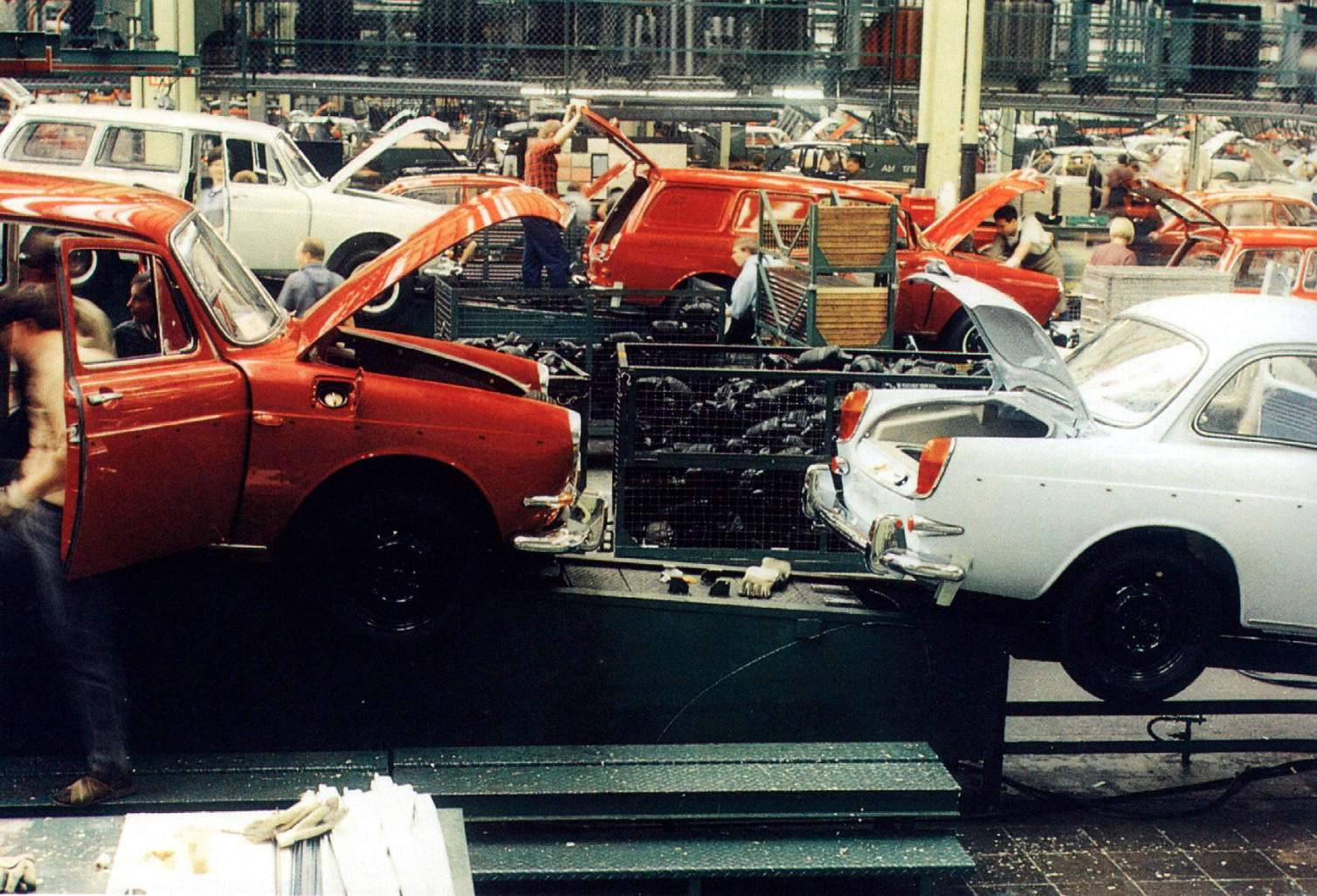

This factory shot shows about a 1968 version due to the fuel flap etc.

Image may have been reduced in size. Click image to view fullscreen.

Here we have an official VW Australia press shot showing the panel van being used.

Note that all Australian built panel van's differ from their European cousins due to being based on true 1500 'N' bodies- no passengers side door lock, only 1 x inside sun visor, clock blank panel, single speed wipers and a couple of other things we forget!

Image may have been reduced in size. Click image to view fullscreen.

Another official VW Australia photo.

Image may have been reduced in size. Click image to view fullscreen.

Here we see the rear cargo area which is unique to the Australian built cars.

Image may have been reduced in size. Click image to view fullscreen.

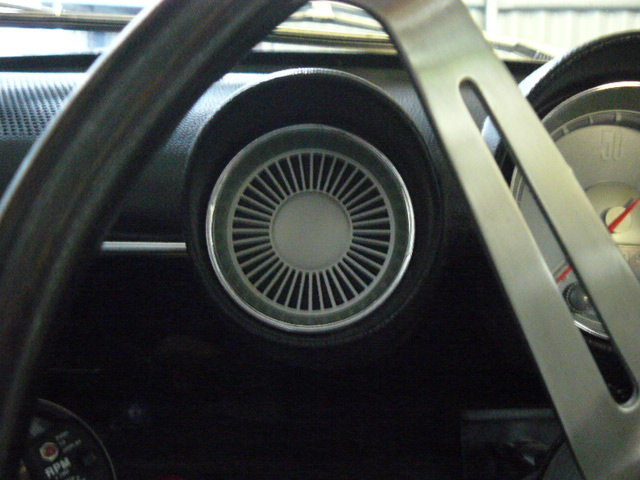

Original clock blank as fitted to Aaron's car.

Image may have been reduced in size. Click image to view fullscreen.

You can't tell but this is a single speed wiper switch and standard headlight switch- silver beige knobs.

Image may have been reduced in size. Click image to view fullscreen.

Here's the dash shot of the panel van- note accessory red needle trip speedo (NOS), red needle fuel gauge (NOS), EMPI GT steering wheel (the real deal) and original NOS condition clock blank. Nice hey?

Image may have been reduced in size. Click image to view fullscreen.

(bear in mind these metal pieces are chromed and not original!)

It comprises of a marine ply timber floor with zinc plated metal strips fixed via philips head screws.

The hinges are also zinc plated.

When the cargo area piece is lifted, there is a small cloth loop affixed under the timber which hook's into an aluminium hook which is identical to a Type 1 back seat hook (where the Type 1 back seat rubber hooks into).

99% of these cloth straps are broken or non existent (woven cotton construction).

Under this cargo lid is another 2 x marine ply boards which sit above the battery and regulator area.

All the marine ply timber in these cars comes from the factory in an unfinished / unstained state however as you will see, it does look good stained, waxed or french polished!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

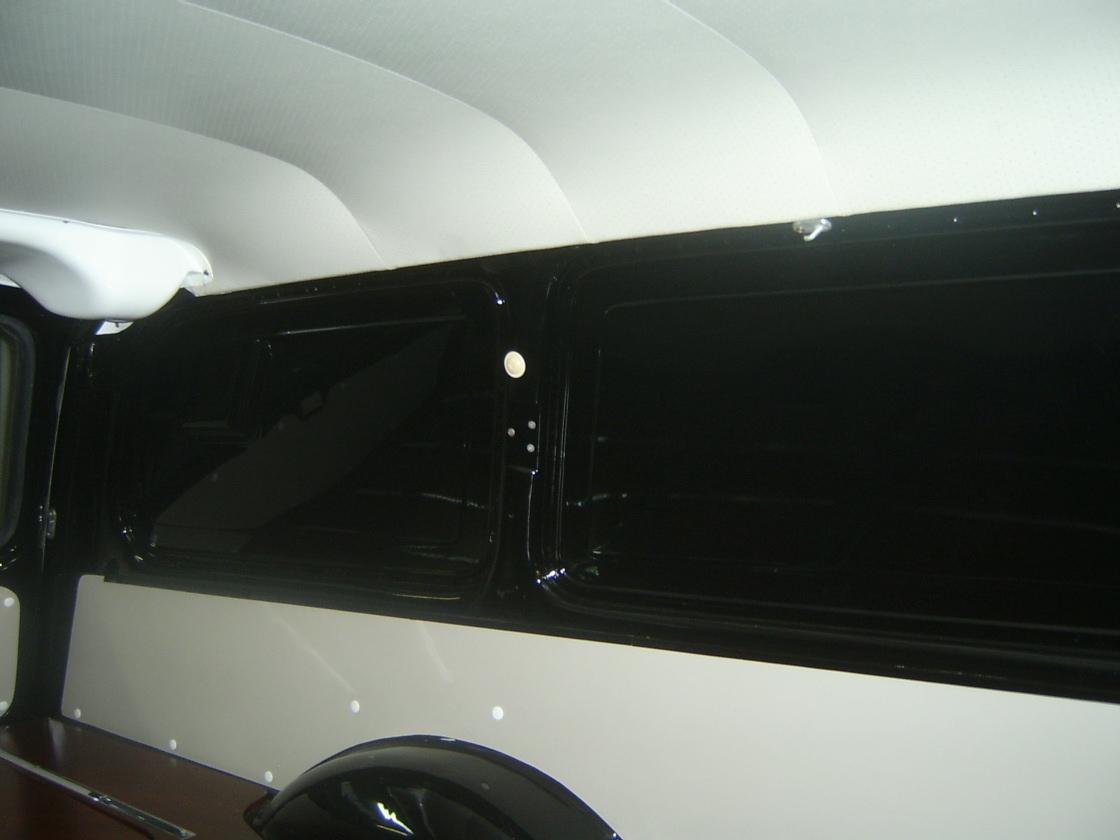

This image show the head liner which does not extend down the pillars anywhere.

Also the hinge screws for the pop out windows are present just to take up the holes.

You can also see at the top of the shot, the aluminium hook for securing the cargo floor when in the raised position.

Image may have been reduced in size. Click image to view fullscreen.

Here you can see the air vents in the rear panels from the outside.

Nothing fancy, but they allow a bit of air flow.

Image may have been reduced in size. Click image to view fullscreen.

Here we see the air vent pocket from the inside of the car.

These are commonly rusted out.

Also due to the design, they can retain a litttle bit of water depending on who welded them in that day at the production line.

Image may have been reduced in size. Click image to view fullscreen.

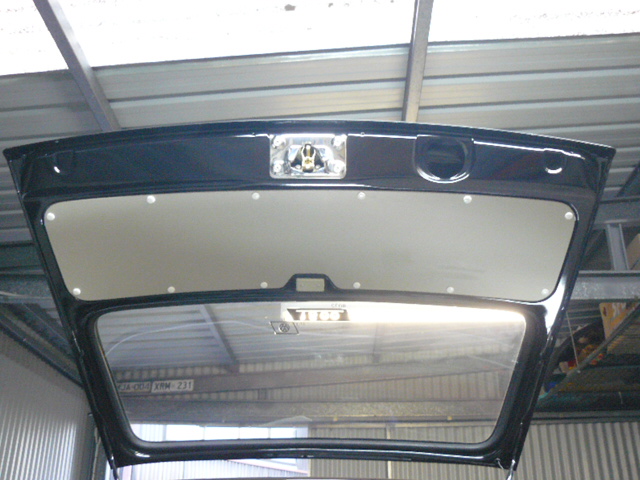

This is the rear lid interior piece.

It is a simple affair, comprising of masonite material with a pressed 'pebble' pattern.

Secured to the lid with metal clips as used on split screen Type 2 and originaly in silver beige colour.

Image may have been reduced in size. Click image to view fullscreen.

Here is the ID tag- note that the tag has an over stamped digit of '0' over the '5'.

I have checked a few panel van's over the years and some of them feature this anomaly.

So effectively this chassis number is 365(0) 120 724. Go figure.

Image may have been reduced in size. Click image to view fullscreen.

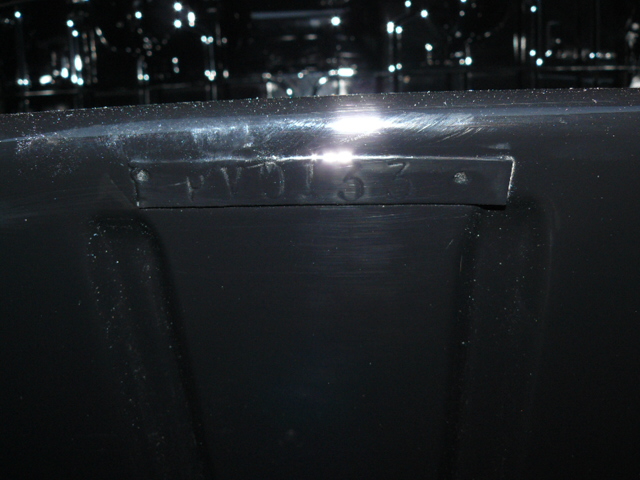

This is the body tag welded to the area immediately behind the spare wheel- my number is PV 0133. Oddly, my '1' looks to be an 'I' stamp so I imagine VW lost the number '1' stamp for my car.

All Australian assembled panel van's have a body tag behind the spare wheel and it always starts with PV and then the number.

Thus far I have identified the following Australian CKD cars:

Body # PV 075 Chassis # 365 121 504 Engine # 0 818 581
Body # PV 133 Chassis # 365 120 724 Engine # 0 850 339
Body # PV 147 Chassis # 365 120 722 Engine # 0 850 256
Body # PV 172 Chassis # 365 120 713
Body # PV 189
Body # PV 210 Chassis # 365 121 497 Engine # 0 856 977
Body # PV 433 Chassis # 366 030 491
Body # PV 437 Chassis # 366 030 703 Engine # 0 973 606

Image may have been reduced in size. Click image to view fullscreen.

Based on the evidence thus far, it would appear that VW Australia made 2 x runs of the panel van's. One was in about February 1965 which covers off most of the cars listed above and then another batch during late 1965.

I have been told that the total number of panel van's assembled by VW in Australia was 455 for the 1965 model year (365 chassis numbers) and 68 for the 1966 model year (366 chassis numbers). This is only what I am told though!

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

These are excerpt's from the Australian Type 3 1500 parts manual, detailing the V30 parts (M265) as used in the production of the panel van's.

Here are some more shots of cars from around the world.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

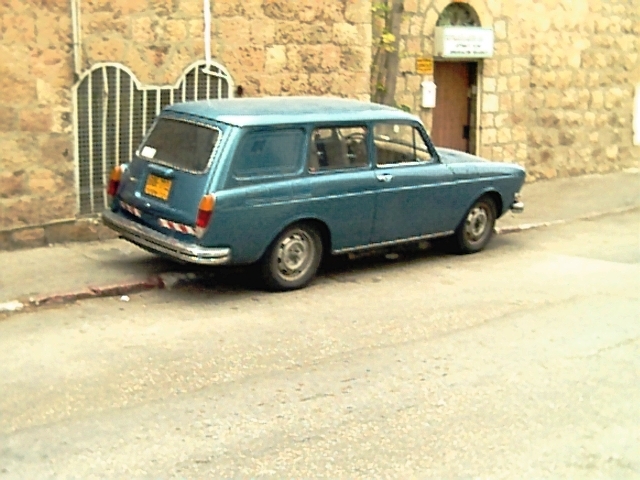

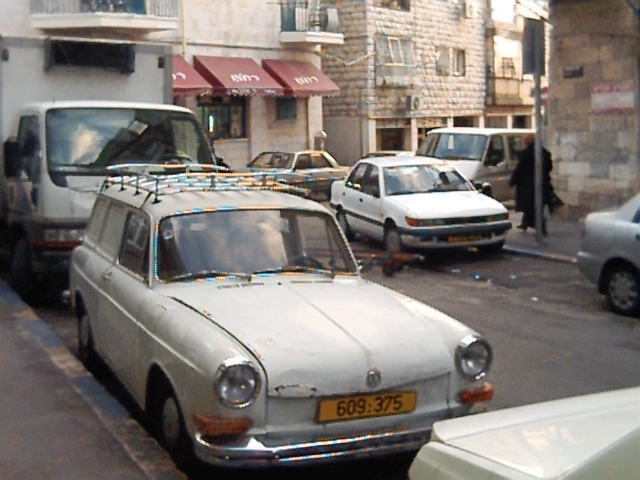

This is a late model panel van from Israel. I can't believe the owner has bent an early model front lid to fit the late body but...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

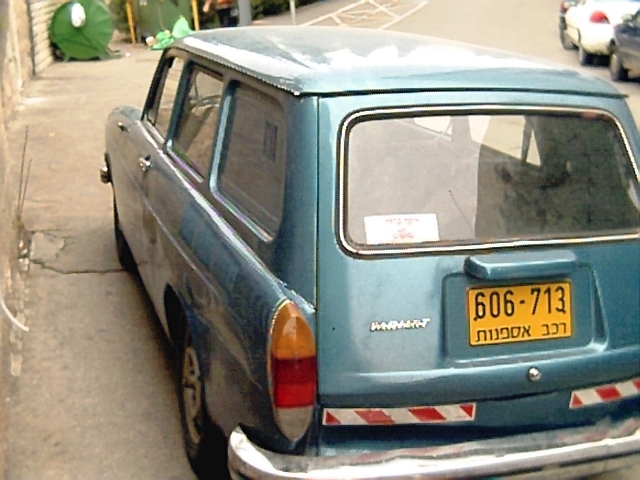

This is another late model panel van from Israel- yes the front panels have been removed from the car and windows installed- non original.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

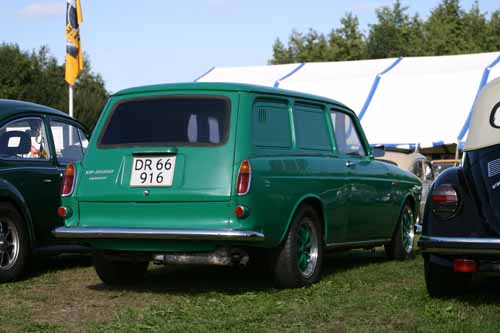

This is a slightly modified Dutch car. Hopefuly the owner will come forward.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

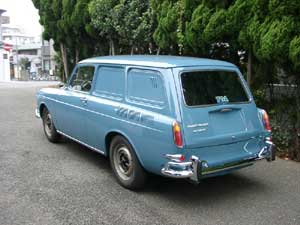

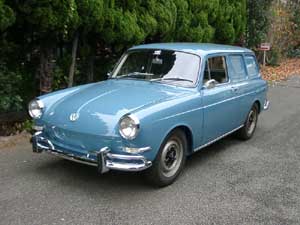

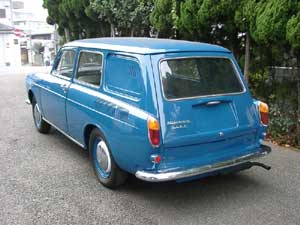

Japanese panel van. I think this car came from Europe.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

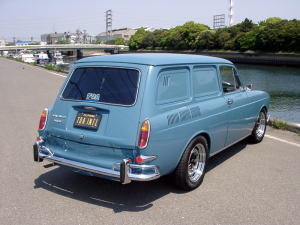

Another car owned by TOA in Japan. This car came from Australia and has had the front panels replaced with glass.

Image may have been reduced in size. Click image to view fullscreen.

Another panel van sitting in storage in New South Wales, Australia: chassis, engine & body number number unknown.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Another Australian panel van photographed years ago. I don't know where it is now.

Image may have been reduced in size. Click image to view fullscreen.

This panel van was on the scene in New South Wales (Australia) for a short while. It currently has a blown up engine but is still in this great original condition. Outside paint is new but the interior paint is original. A neat car.
_________________
Aaron

http://1500notchback.blogspot.com/

Need to contact me? Email is faster than a PM - [email protected]

For T3 Panel Van information:
http://www.thesamba.com/vw/forum/viewtopic.php?t=389465
