PostPosted: Tue Dec 29, 2009 7:00 pm    Post subject: DCNF Fix Reply with quote

The problem with the DCNF design is that when cornering hard, fuel spills out of the float bowl vent and drowns the air corrector jets. This totally wanks the fuel mixture ant two cylinders don't fire.

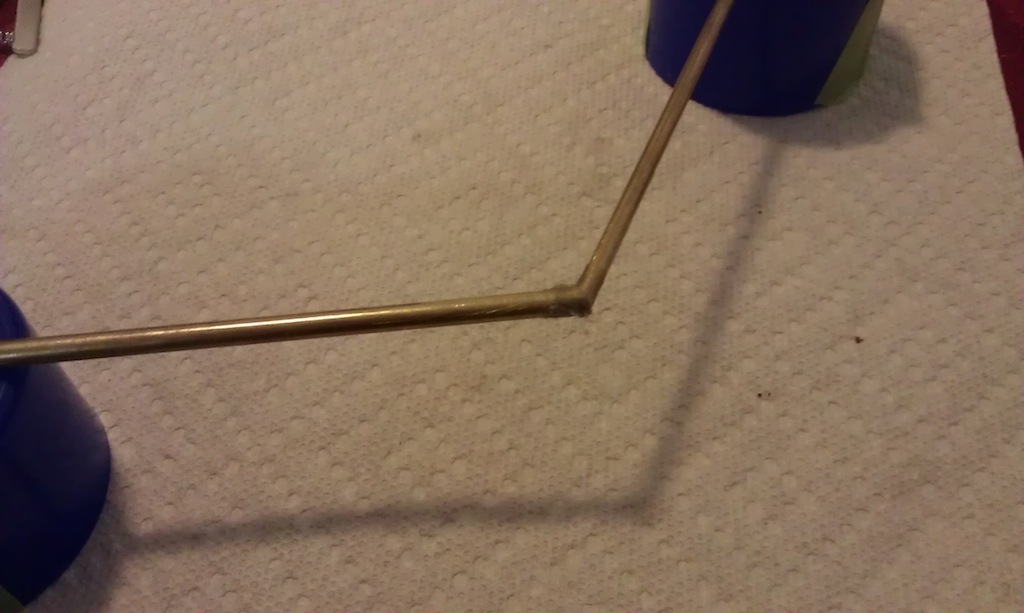

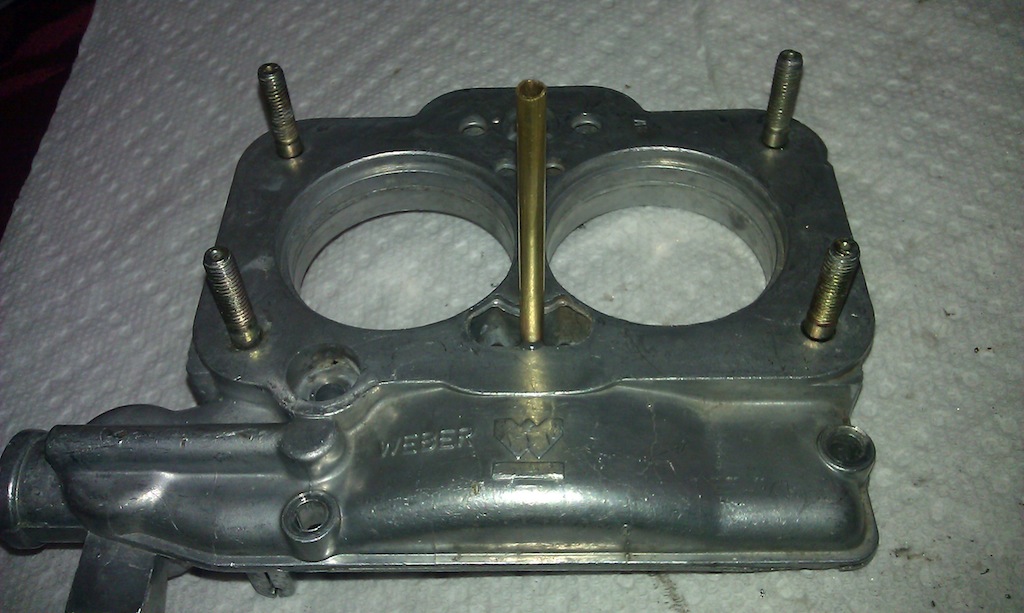

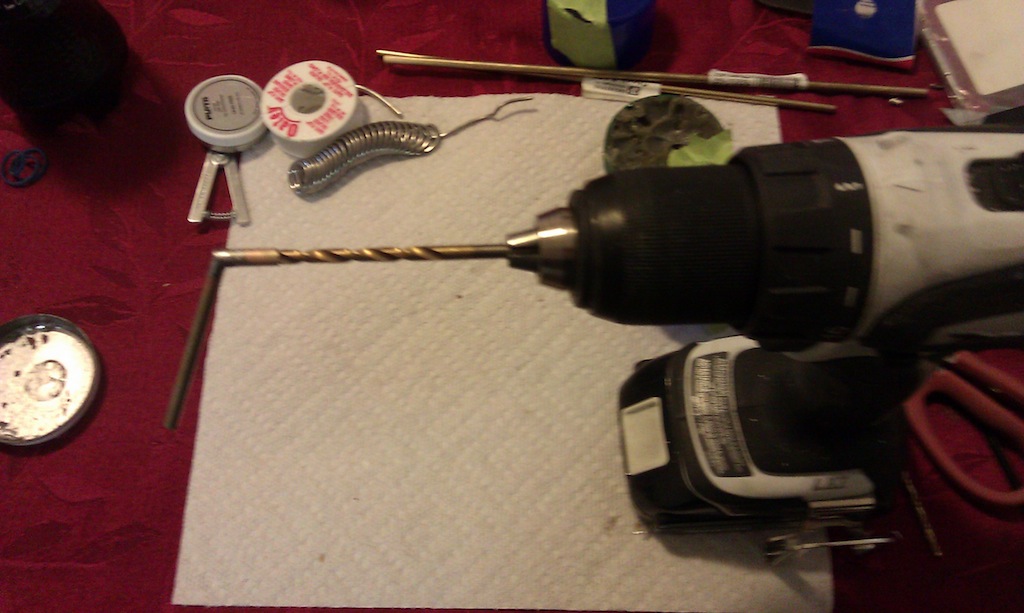

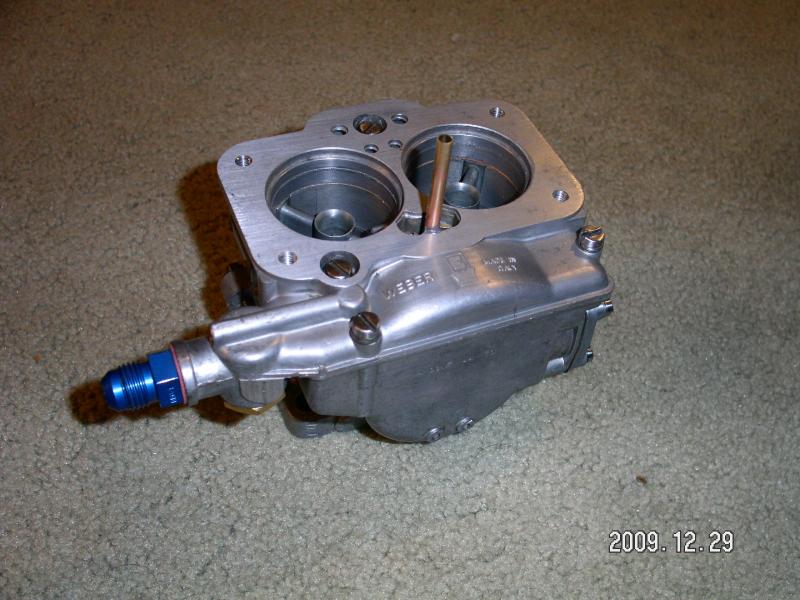

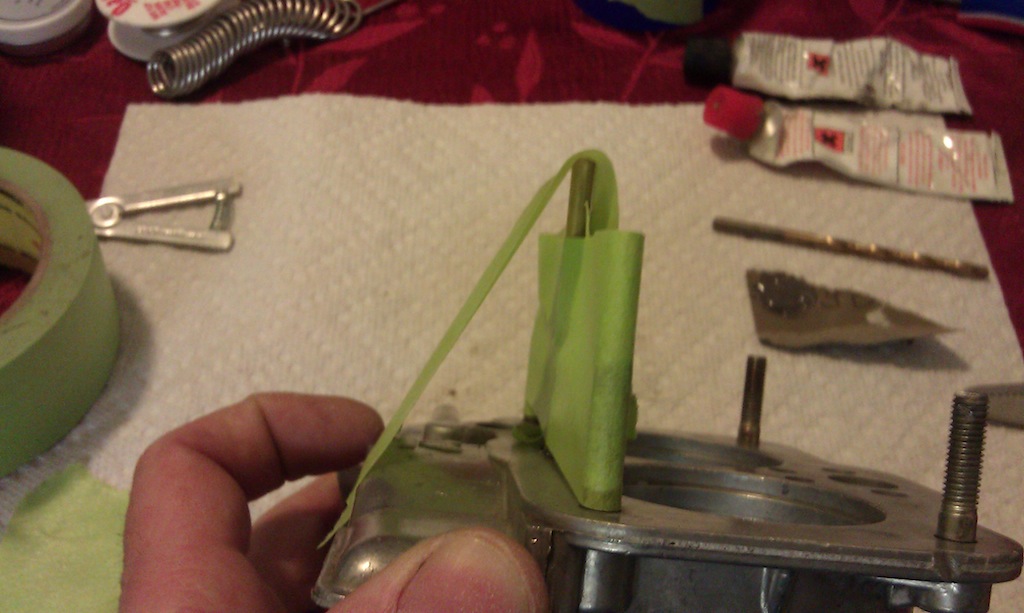

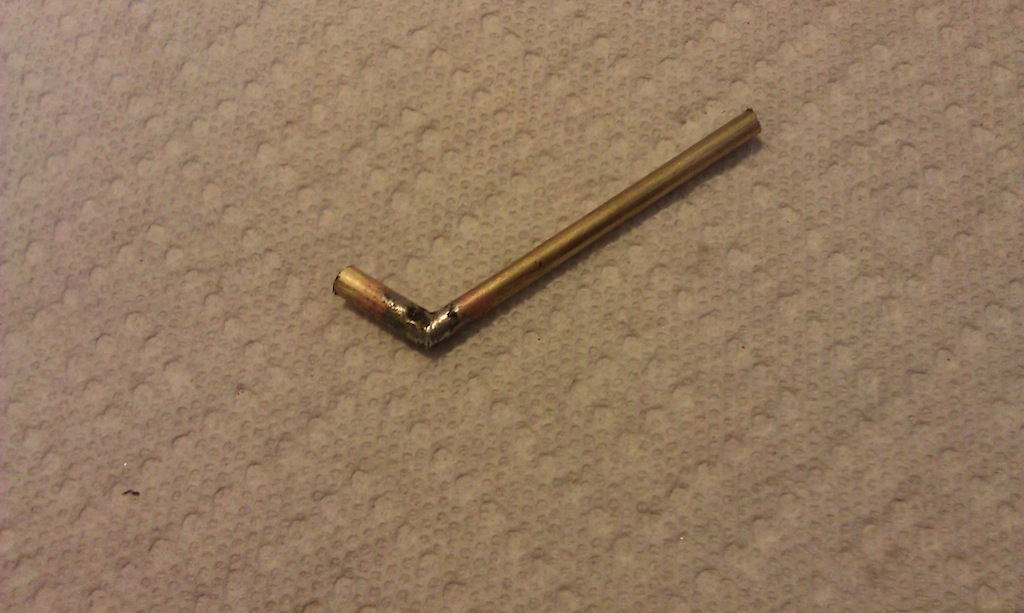

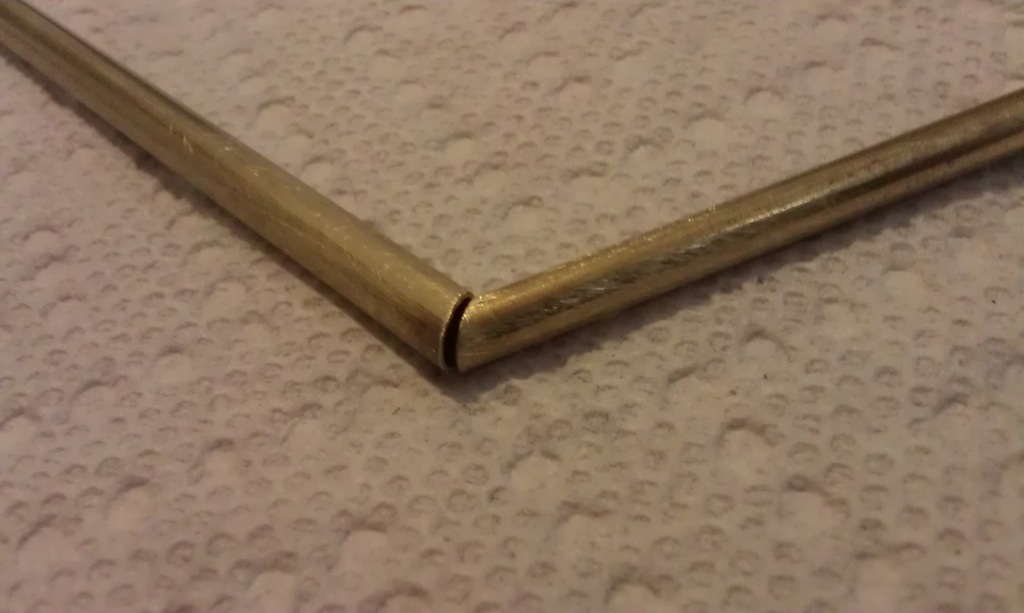

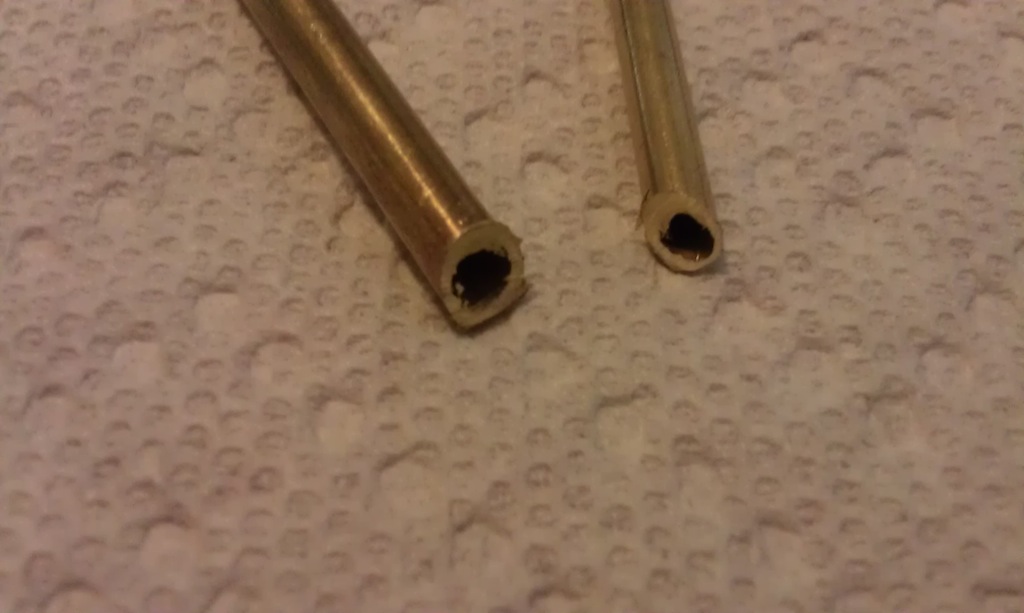

I made these vent stacks from .219 and .188 brass tubing silver soldered at 20°. I had to slightly enlarge the 5mm vent hole to accept the .219 tubing. I also had to slightly reduce the O.D. of the air corrector jet to clear the .188 stack. I then flared the end inside the float bowl so there is no possibility of it coming out. Lastly, I JB Welded it in place so there is no leakage or wiggle.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
--
Eric_S

What are all these extra parts?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 27635
Location: Colorado Springs
modok is offline

PostPosted: Tue Dec 29, 2009 7:32 pm    Post subject: Reply with quote

Nice.
I want some of those dcn's! I bet they fit in the engine compartment so much better than IDFs.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric_S
Samba Member


Joined: August 12, 2007
Posts: 862
Location: Sparks (think Reno) NV
Eric_S is offline

PostPosted: Tue Dec 29, 2009 8:58 pm    Post subject: Reply with quote

These are actually 44DCNFs (as big as they get) and are ultra-rare. They are Berg specials and have Grose ball valves. They weigh 1108g vs IDF 1437g and are .6" shorter than IDFs. They are a bit narrower too and with the square pattern they can be fit up either way. The manifolds are pretty much a straight shot too since the float bowl is beside not between, an especially nice feature in a T3. I haven't run these yet, but I'm sure it'll take way more than a 1g turn (yeah, right! Only possible on rails or wings) to over-top this float bowl vent.
_________________
--
Eric_S

What are all these extra parts?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sturgeongeneral
Samba Member


Joined: June 23, 2005
Posts: 2460
Location: Sacramento, California
sturgeongeneral is offline

PostPosted: Tue Dec 29, 2009 9:05 pm    Post subject: Reply with quote

Very nice modification! If only that was an availiable mod for everyone. You should be extremely happy with the results. Please post an update after you run them for a little bit.
_________________
Street legal fiberglass rocket ship
2005 Lotus Elise supercharged
1974 Chevy Corvette
My fiberglass car collection!

In honor of bowtie56jw:Another victim of the nasty "C" Praying for ya Jeff!

My exwife said if I towed home one more bug she would leave me. You know, every once in a while I miss her
Back to top
View user's profile Send private message Gallery Classifieds Feedback
markinsd
Samba Member


Joined: February 05, 2009
Posts: 159
Location: San Jose, CA
markinsd is offline

PostPosted: Sun Jan 10, 2010 9:16 pm    Post subject: Reply with quote

I was wondering how to do this modification.. Great pics.. Looks like you did a great job!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
frank1380
Samba Member


Joined: June 01, 2007
Posts: 72

frank1380 is offline

PostPosted: Mon Jan 11, 2010 9:47 am    Post subject: Reply with quote

Nice! I may need to do something similar on my 42s. Thanks for posting.
_________________
You claim you have "duel" carburetors, but do they ever actually fight?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
DarthWeber
Samba Member


Joined: November 24, 2007
Posts: 7543
Location: Whittier,CA
DarthWeber is offline

PostPosted: Mon Jan 11, 2010 11:39 am    Post subject: Reply with quote

Eric, In the Berg catalog they said their carbs were redrilled and circuited to match specific VW engine applications. Since you have the Berg 44 specials I was curious if you could see and describe any modifications they actually did.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Joel
Samba Member


Joined: September 04, 2006
Posts: 11099
Location: NSW Australia
Joel is offline

PostPosted: Thu Jan 14, 2010 3:18 am    Post subject: Reply with quote

modok wrote:
Nice.
I want some of those dcn's! I bet they fit in the engine compartment so much better than IDFs.


Wink

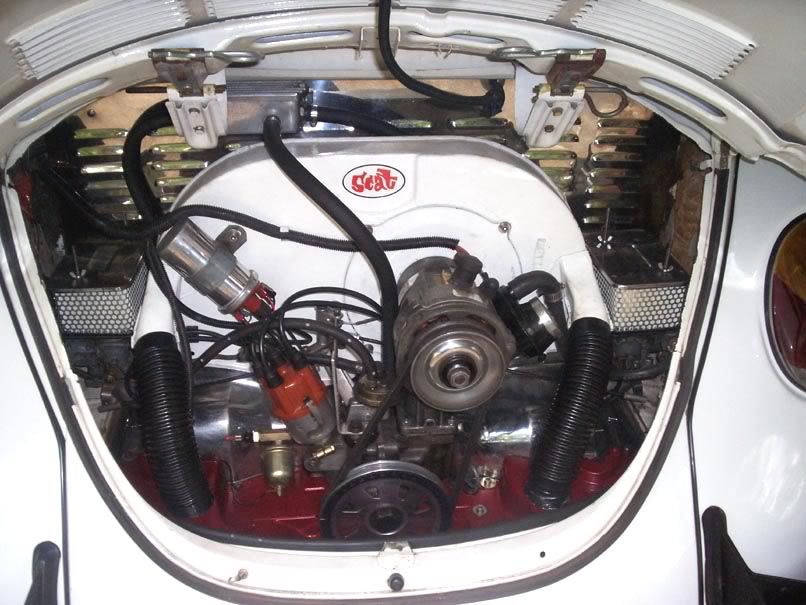

Image may have been reduced in size. Click image to view fullscreen.


great old carbs

i love them

have a pair of them on my old 1776 under the house plus a single on the old mans engine
_________________
Quick little bug, you got a Porsche motor in that?
1974 Germanlook 1303 2.5 Suba-Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
madmike
Samba Member


Joined: July 11, 2005
Posts: 5300
Location: Atlanta,Michigan
madmike is offline

PostPosted: Thu Jan 14, 2010 5:35 am    Post subject: Reply with quote

Hey Eric,Are those the 44's you got from me?Madmike
_________________
'Black Ice'Drag Buggy 'Turbo'
Rail Buggy 1915 turbo
76 Drag/Street bug 2180cc 'Turbo' 11:85 @113 mph"If I go any faster I'll burn up the Hamster" ,gets 28 mpg. also 10/09/22 11.90 @115 mph
"If I'm ever on Life Support,UNPLUG Me, Then Plug me back In see if that Works"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
67Beetle2017
Samba Member


Joined: August 01, 2006
Posts: 399
Location: Pasadena CA
67Beetle2017 is offline

PostPosted: Thu Jan 14, 2010 8:04 am    Post subject: Reply with quote

DarthWeber wrote:
Eric, In the Berg catalog they said their carbs were redrilled and circuited to match specific VW engine applications. Since you have the Berg 44 specials I was curious if you could see and describe any modifications they actually did.


I was told that the 44 and 40 DCNF had progression holes that were too large and there was not way to make them smaller.
(If it is possible to modify the 44's I am interested because I still have my set after all these years)

Bergs said that 42DCNFs were the only ones that had progression holes that were small enough to modify.

I am also curious to know what size and number of progression holes they use.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Eric_S
Samba Member


Joined: August 12, 2007
Posts: 862
Location: Sparks (think Reno) NV
Eric_S is offline

PostPosted: Sun Jan 17, 2010 2:04 am    Post subject: Reply with quote

madmike wrote:
Hey Eric,Are those the 44's you got from me?Madmike


Yup. They turned out pretty sweet! Got some of these babies for them too.

Image may have been reduced in size. Click image to view fullscreen.


DarthWeber wrote:
Eric, In the Berg catalog they said their carbs were redrilled and circuited to match specific VW engine applications. Since you have the Berg 44 specials I was curious if you could see and describe any modifications they actually did.

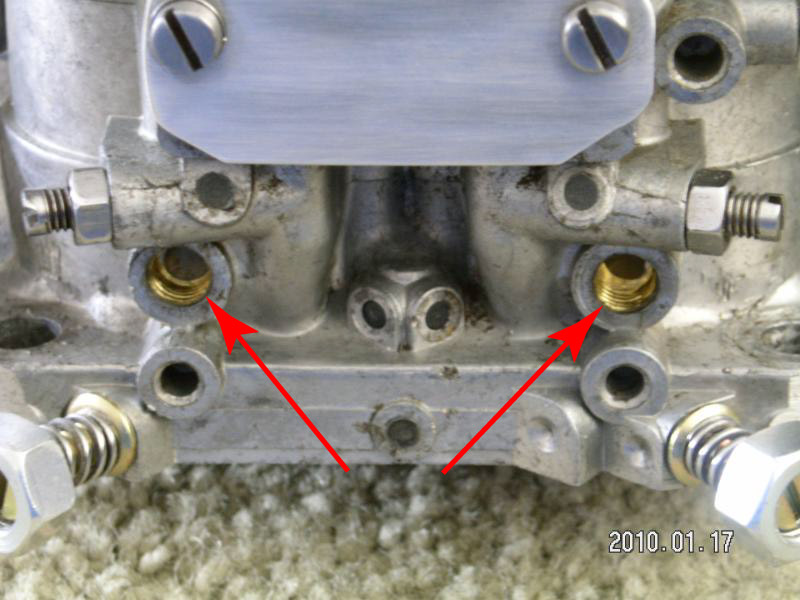

Here you can see where they drilled in from the outside to drill the progression holes. You can also see the nuts they put on the mixture screws to make them easier to turn.

Image may have been reduced in size. Click image to view fullscreen.

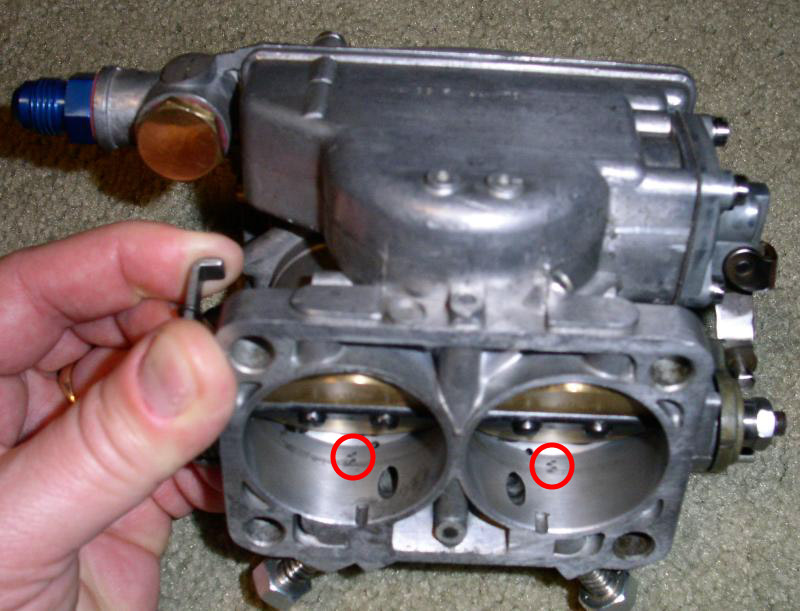

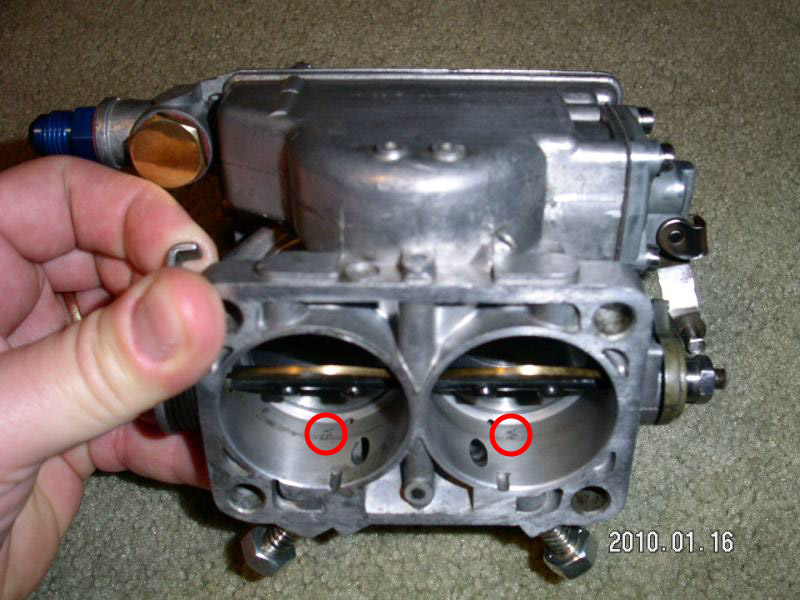

I don't remember how many there were before but there are 4 now.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


They drilled out the air cleaner mounting holes to take 6mm hardware and cleaned them up real nice. They also removed the enrichment valves and put on these kinda home made looking covers. All in all, a real nice job.
_________________
--
Eric_S

What are all these extra parts?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
madmike
Samba Member


Joined: July 11, 2005
Posts: 5300
Location: Atlanta,Michigan
madmike is offline

PostPosted: Sun Jan 17, 2010 6:26 am    Post subject: Reply with quote

They Look Awesome!!!!!Here's the story on them, A So called buggy builder up here Had them hanging on the wall for a few years Confused He know nothing about Dialing in carbs "If he can't bolt them on", out of the box and work ,He's lost Shocked I found out he actually likes the POS progressives Rolling Eyes So I swapped him two sets for those Laughing Shocked for the DCNF's And that's the rest of the story Laughing Laughing Laughing And I prefer the IDF's Cool I'm so Glad they have a Good Home Instead of hanging on some "dipsticks" wall LaughingI really don't mean to put this guy down But he's such a BS'er mouthing off all the time and thinks dual cannons & solexes are high preformance, Selling he's crap from JC Witney to other members of our small club,I try to tell them ?? So I beet him on the Track Cool Laughing , Madmike
_________________
'Black Ice'Drag Buggy 'Turbo'
Rail Buggy 1915 turbo
76 Drag/Street bug 2180cc 'Turbo' 11:85 @113 mph"If I go any faster I'll burn up the Hamster" ,gets 28 mpg. also 10/09/22 11.90 @115 mph
"If I'm ever on Life Support,UNPLUG Me, Then Plug me back In see if that Works"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 7769
Location: Santa Cruz
Clatter is offline

PostPosted: Sun Jan 17, 2010 11:40 am    Post subject: Reply with quote

I have a set of NOS 44DCNFs in a box around here somewhere.

Will look and see if they have 4 progression holes...

***Edit**** I just checked mine..
They DO have 4 progression holes, staggered just like yours.
The brass plugs to access them are just like yours.
In the same place, and probably made with the carb...

It would be cool to see what the things they did to those were.
After reading all about the mysteerious "Berg Specials" all these years.
With them not doing the Specials anymore, it wouldn't be copying something, right?

So far, its:

1. Bigger aircleaner mounting studs.
2. Nuts on the adjuster screws.
3. Grind the numbers off the side.
4. Choke block-off plates.
5. Ball-valve needle and seat

Are these going onto a type 3?
Won't the velocity stacks run afoul of the short aircleaner lid?

-So....-

What's the chance you could make me up/sell me a set of those vent stacks?
_________________
Bus Motor Build

I have excellent news for the world...
There is no such thing as patina.
It does not exist!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric_S
Samba Member


Joined: August 12, 2007
Posts: 862
Location: Sparks (think Reno) NV
Eric_S is offline

PostPosted: Sun Jan 17, 2010 3:16 pm    Post subject: Reply with quote

madmike wrote:
Here's the story on them...


Ha ha!! Keep beating him and he'll keep wondering why!

Clatter wrote:
I have a set of NOS 44DCNFs in a box around here somewhere.


Nice!!!

Clatter wrote:
They DO have 4 progression holes, staggered just like yours.
The brass plugs to access them are just like yours.
In the same place, and probably made with the carb...


Mine have obviously been tampered with...drilled and filled with lead. Don't know if it was for cleaning, enlarging passages or what.

Image may have been reduced in size. Click image to view fullscreen.


Clatter wrote:
It would be cool to see what the things they did to those were.
After reading all about the mysteerious "Berg Specials" all these years.
With them not doing the Specials anymore, it wouldn't be copying something, right?


When did they quit? I had these worked about 1 1/2 years ago.

Clatter wrote:
So far, its:

1. Bigger aircleaner mounting studs.
2. Nuts on the adjuster screws.
3. Grind the numbers off the side.
4. Choke block-off plates.
5. Ball-valve needle and seat


1. Yup.
2. Yup...it looks a bit home made to me but I think it'll work well. Kind of Berg Special indicator to look for when buying though.
3. Didn't happen. The "W" logo got slightly ground off when they surfaced the tops. They lightly surfaced the bottoms too.
4. Yup. But again, for looks, I think I'll shop for some stock Weber ones.
5. I did that. I got lucky and got some here in the ads.

Clatter wrote:
Are these going onto a type 3?
Won't the velocity stacks run afoul of the short aircleaner lid?


Yup. Stacks won't fit a T3 without a saws-all Shocked but they sure are cool! I have a few Bugs too. They need to be modified to even fit the 44DCNF too.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Clatter wrote:
-So....-

What's the chance you could make me up/sell me a set of those vent stacks?


After a while. I'm slammed right now. My wife and I are both working overtime, have 3 kids under age 10 and I'm trying to launch some of my ACVW product line sometime in March.
_________________
--
Eric_S

What are all these extra parts?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Clatter
Samba Member


Joined: September 24, 2003
Posts: 7769
Location: Santa Cruz
Clatter is offline

PostPosted: Sun Jan 17, 2010 6:20 pm    Post subject: Reply with quote

So they are still doing the specials!

Clyde, or GBE?
What that set you back?



Quote:
redrilled and circuited to match specific VW engine applications


I wonder what that really means?

Interesting lead plugs...

I just got a set of IDFs back from Art Thraen, and they had obviously new, factory-style plugs put in.
Maybe the DCNF ones are easier to get/different....

I'm getting really antsy to see hwo bad the slosh issues really are.
I remember an old post by Shad Laws about how he could have an auto shut-off:
Turn into a parking space with a snappy little swing,
And the slosh would put out the fire and kill the motor...

Let's hope it's not that bad... Embarassed

I remember the Bergs doing something to improve the slosh issue.
Anybody know what that was??
_________________
Bus Motor Build

I have excellent news for the world...
There is no such thing as patina.
It does not exist!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Eric_S
Samba Member


Joined: August 12, 2007
Posts: 862
Location: Sparks (think Reno) NV
Eric_S is offline

PostPosted: Sun Jan 17, 2010 8:28 pm    Post subject: Reply with quote

GBE in Orange. It was about $405 shipped cause I needed some parts. The needle screws that have the nuts on them were bent and a couple other odds and ends.
_________________
--
Eric_S

What are all these extra parts?
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Brent
Samba Member


Joined: April 28, 2010
Posts: 1622
Location: San Tan Valley, AZ
Brent is offline

PostPosted: Sat Jan 28, 2012 1:20 pm    Post subject: Reply with quote

Bringing this one back from the dead.

I've done the bowl vent mod to a couple of these now and took pictures all along. Thought I'd put them up.

Here goes. I'm starting with 44's here. The vent hole is a little bigger, so I used two sizes of tubing. Larger one for the hole, and the next size smaller for the stack. Doing it this way there is no need to shave the air correctors down. I also get the right size drill bits for use later.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I'd say the angle were looking for here is about 135*. I keep the tubes long, then just grind them on the bench grinder until they fit right. After that I clean them up with a drill and a little emory cloth.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Next, I mock them up using some brake cleaner lids and a bit of flux on the ends.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And solder them.

Image may have been reduced in size. Click image to view fullscreen.


Now cut them a bit shorter with a Dremel cut off wheel. We want them a little long and will trim later. Very carefully run the bits through both sides to clean out any solder on the inside. You can see what came out. Blow through it and check the seal by blowing with a finger over the other end too.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And then clean up any remaining flux that's burnt. I just used a green scrubby pad.

Image may have been reduced in size. Click image to view fullscreen.


Then test fit and cut the bowl side a little shorter, but you still want it to be a bit long on the inside to cut later.

Image may have been reduced in size. Click image to view fullscreen.


This ridge need to be shaved down a little. A little grinding stone on a Dremel works great.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And final test fit.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Just a little JB weld under the stack, along the sides, and around the bowl penetration. I like to use a toothpick and swirl it on to work out any air bubbles. Some tape to hold it overnight for JB to cure.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Next morning we're here. The stack is still to long, so cut it down. These particular carbs are going to be uses with rather thin air cleaners so it needed to be short enough to fit under there; for use in a Type 3, woot!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The inside will look like this. We need to trim it down with that cutoff wheel.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


And finally a bit of JB applied the same way to the inside.

Image may have been reduced in size. Click image to view fullscreen.


I put a little silver Masterseries over the inside, but it's probably not necessary. And that's it.
_________________
69 Fastback Build
Berg5 Build
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
luckystiff
Samba Member


Joined: September 28, 2005
Posts: 2252
Location: hickory,nc
luckystiff is offline

PostPosted: Sun Jan 29, 2012 12:52 pm    Post subject: Reply with quote

Cool Cool Cool Cool
_________________
ITMC
Secret Service
Back to top
View user's profile Send private message Gallery Classifieds Feedback
flyinglow94
Samba Member


Joined: January 17, 2005
Posts: 1173
Location: Las Vegas, Nevada
flyinglow94 is offline

PostPosted: Sun Jan 29, 2012 3:15 pm    Post subject: Re: DCNF Fix Reply with quote

Great wright up I have some 40's, 42's and 44's I am going to be modding something like this in the future.
But it is curious that for the Berg mod that they didnt grind off the stamping of the 44 dcnf from the float casting.
I had sold a set of 42's back to Dee in the mid 90's at the classics and they had all the mods described above.

Image may have been reduced in size. Click image to view fullscreen.

_________________
"What we obtain too cheap, we esteem too lightly: 'tis dearness only that gives everything its value. Heaven knows how to put a proper price upon its goods; and it would be strange indeed if so celestial an article as FREEDOM should not be highly rated."
"Socialism is a philosophy of failure,the creed of ignorance, and the gospel of envy,its inherent virtue is the equal sharing of misery.."
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger Gallery Classifieds Feedback
Brent
Samba Member


Joined: April 28, 2010
Posts: 1622
Location: San Tan Valley, AZ
Brent is offline

PostPosted: Sun Jan 29, 2012 3:56 pm    Post subject: Reply with quote

One mod that hasn't been mentioned is cutting off of the pointy nubs next to the mixture screws.

When I put the carbs back together, I'll post more pictures of the modifications. They'll be the [almost] Berg specials. Smile
_________________
69 Fastback Build
Berg5 Build
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
