| Author |
Message |
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
 Posted: Mon Sep 11, 2023 1:46 pm Post subject: Brent’s Berg5 |
 |
|
Here we go again!
This time it’s a 5-speed for my man Brent.
Really glad to even start helping out a guy who’s styled me out so many times.
This one should be some good fun.

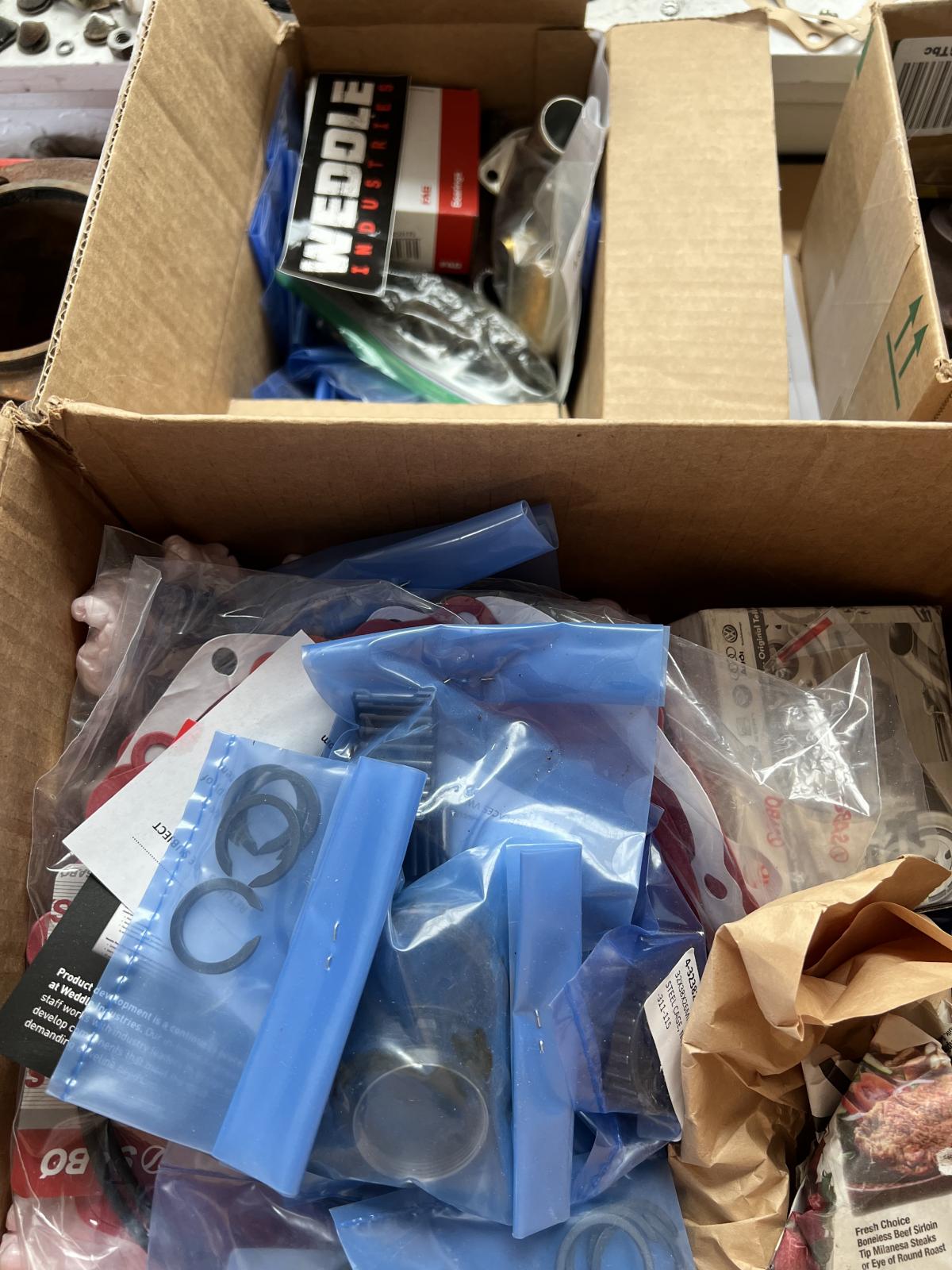

Some nice stuff to play with!
Looking forward to input from the wise masters here,

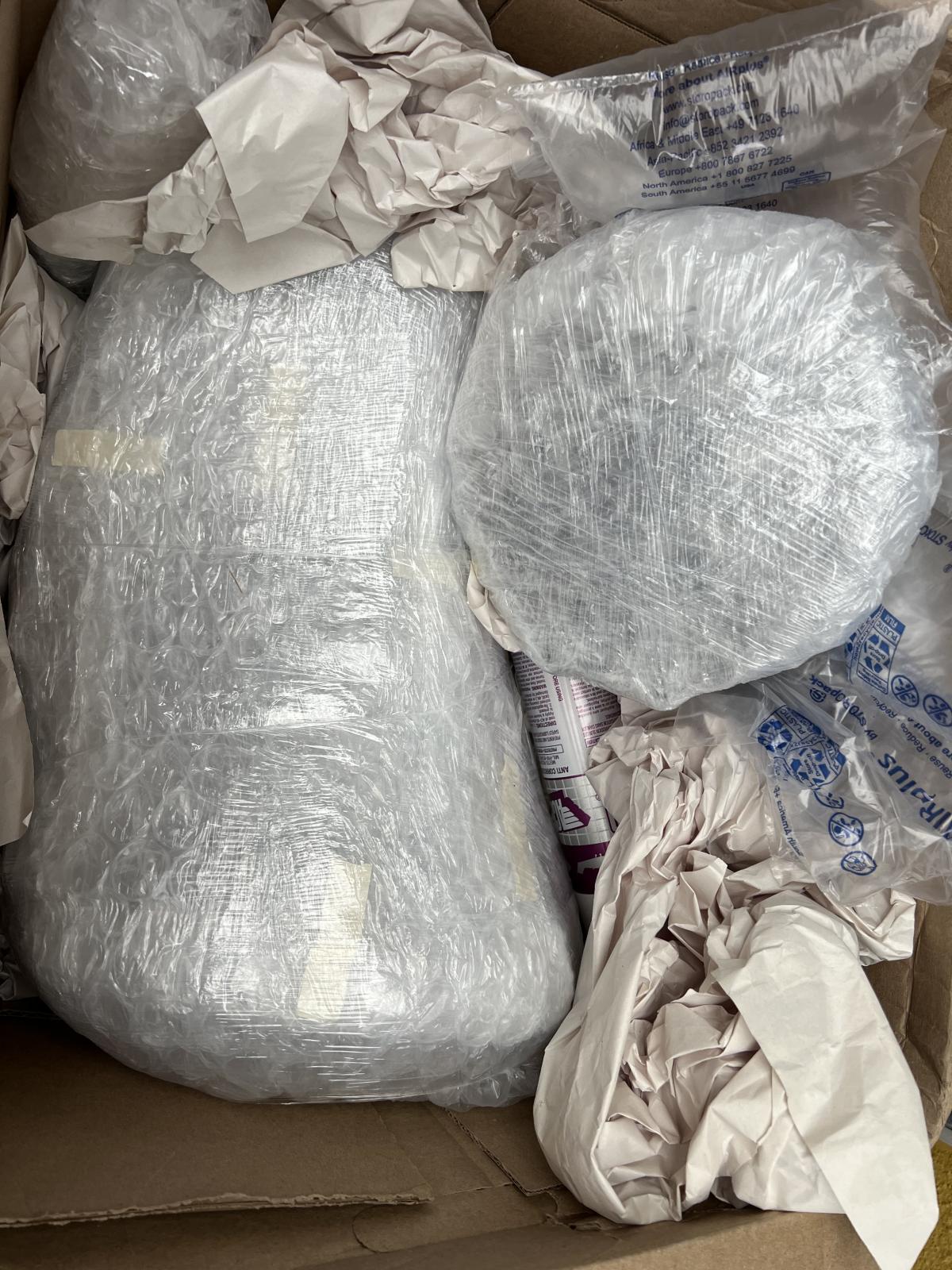

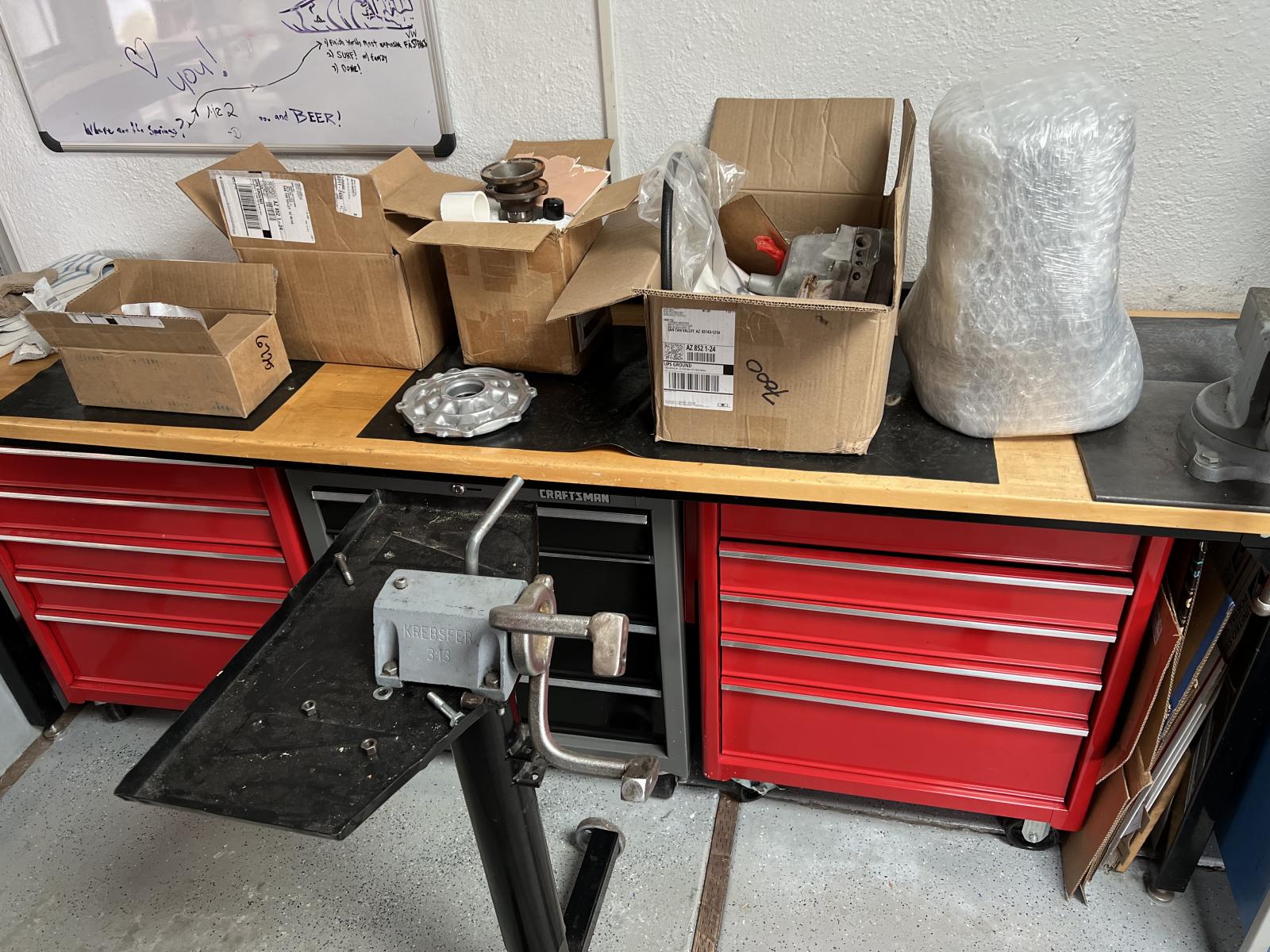

Went to Phoenix and picked up some stuff.
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
 |
VWporscheGT3
Samba Member
Joined: September 01, 2006
Posts: 2192
Location: Gardnerville, NV
|
| Posted: Mon Sep 11, 2023 1:50 pm Post subject: Re: Brent’s Berg5 |
|
|
ooooooh yes, Brent ya lucky bastid! watching this one closely
_________________
If you have any questions about Forged ICON 4032 VW pistons just shoot me a line. |
|
| Back to top |
|
|
sled
Samba Member
Joined: February 16, 2005
Posts: 6276
|
| Posted: Mon Sep 11, 2023 2:01 pm Post subject: Re: Brent’s Berg5 |
|
|
yes, also watching this one!
_________________
drive your split. |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80055
Location: Sneaking up behind you
|
| Posted: Mon Sep 11, 2023 2:04 pm Post subject: Re: Brent’s Berg5 |
|
|
How about some specs?
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Root_Werks
Samba Member
Joined: December 31, 2007
Posts: 1071
Location: San Juan Islands
|
| Posted: Mon Sep 11, 2023 3:09 pm Post subject: Re: Brent’s Berg5 |
|
|
I would like to know the specs as well, gears, R&P etc.
I had a Berg 5spd built and didn't provide input as a customer to what I wanted out of gears = not very happy with the 5spd. I'm going to pull it and have 2nd - 5th replaced.
-Dan
_________________
When I set my timing, why do I flush, then take a pee? |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80055
Location: Sneaking up behind you
|
| Posted: Mon Sep 11, 2023 3:16 pm Post subject: Re: Brent’s Berg5 |
|
|
| Root_Werks wrote: |
I had a Berg 5spd built and didn't provide input as a customer to what I wanted out of gears
-Dan |
I had the opposite, we spoke about my engine, tire size, driving style and terrain.
Very happy with the end product.
A Berg 5 is a "custom" build, the customer should be involved.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Root_Werks
Samba Member
Joined: December 31, 2007
Posts: 1071
Location: San Juan Islands
|
| Posted: Mon Sep 11, 2023 3:42 pm Post subject: Re: Brent’s Berg5 |
|
|
| Glenn wrote: |
| Root_Werks wrote: |
I had a Berg 5spd built and didn't provide input as a customer to what I wanted out of gears
-Dan |
I had the opposite, we spoke about my engine, tire size, driving style and terrain.
Very happy with the end product.
A Berg 5 is a "custom" build, the customer should be involved. |
Yup, sometimes I'll bolt and engine back into a Bug and see the T/O Bearing clip on the ground or just finish torqueing the heads and notice the CHT threaded hole is on the wrong side. Or worse, forget to involve myself when a tranny is built.
Hopefully some fun pics will show up on this thread.
_________________
When I set my timing, why do I flush, then take a pee? |
|
| Back to top |
|
|
SBD
Samba Member
Joined: October 24, 2012
Posts: 3298
Location: SOUTH DAKOTA
|
| Posted: Mon Sep 11, 2023 5:20 pm Post subject: Re: Brent’s Berg5 |
|
|
_________________
"Just $99 down and $64 a month for 36 months buys you a brand new Volkswagen Beetle!"
| mark tucker wrote: |
| I wouldent waste $ or thyme on building a small motor. build it big so it dosent have to work hard.remember it's only as fast as your foot alows it to be unless you build a small turd then it just stinks as it squishes up through your toes when you step on it. |
|
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 5:29 pm Post subject: Re: Brent’s Berg5 |
|
|
Oh Yeah…
We got some baller shit on the bench these days.
Peloquin diff, ARP ring gear bolts:
Anybody know the correct procedure for these bolts?
ARP lube? Lock-Tite? Torque?
300M torsional input shaft:
This one’s gonna be SwEET!
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 5:56 pm Post subject: Re: Brent’s Berg5 |
|
|
| Root_Werks wrote: |
I would like to know the specs as well, gears, R&P etc.
I had a Berg 5spd built and didn't provide input as a customer to what I wanted out of gears = not very happy with the 5spd. I'm going to pull it and have 2nd - 5th replaced.
-Dan |
Dan,
Takes a real man to be humble and admit his mistakes.
Perhaps you would be willing to share details?
Brent’s car is a street-driven convertible Ghia.
It’s going to have a big turbo motor, 2275 or 2332 or so.
Right now, we definitely have a 3.88 ring n’ pinion,
And, for now, a “super beetle” 3.78/2.06 mainshaft.
Here, we have an 091 idler for first,
But Brent has already started thinking about an aftermarket mainshaft.
3.75/2.25/1.56/1.13/.82 has been thrown out there…
But, the 3.78/2.06/1.48/1.14 1-4 is a very popular tight 4-speed box,
And we can just add our favorite 5th - say .089 to keep the fan spinning?
Too many choices!
Your real experience is very much appreciated.
If we can learn from your mistakes we can save ourselves another build! 🤪
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 5:58 pm Post subject: Re: Brent’s Berg5 |
|
|
| Glenn wrote: |
| Root_Werks wrote: |
I had a Berg 5spd built and didn't provide input as a customer to what I wanted out of gears
-Dan |
I had the opposite, we spoke about my engine, tire size, driving style and terrain.
Very happy with the end product.
A Berg 5 is a "custom" build, the customer should be involved. |
Dag,
Your article in HotVWs with the ultimate worked Berg Box was all time.
Can’t seem to find it anywhere..!
Got a link or details?
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80055
Location: Sneaking up behind you
|
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 6:26 pm Post subject: Re: Brent’s Berg5 |
|
|
Nice! Much thanks my man.
Didn’t you have a link to your article?
Coulda sworn i saw a copy of that online..
Oiling tricks are key with these, right?
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 6:40 pm Post subject: Re: Brent’s Berg5 |
|
|
Since the ring n’ pinion is for sure a 3.88…
A Gleason in good shape to match the pinion.

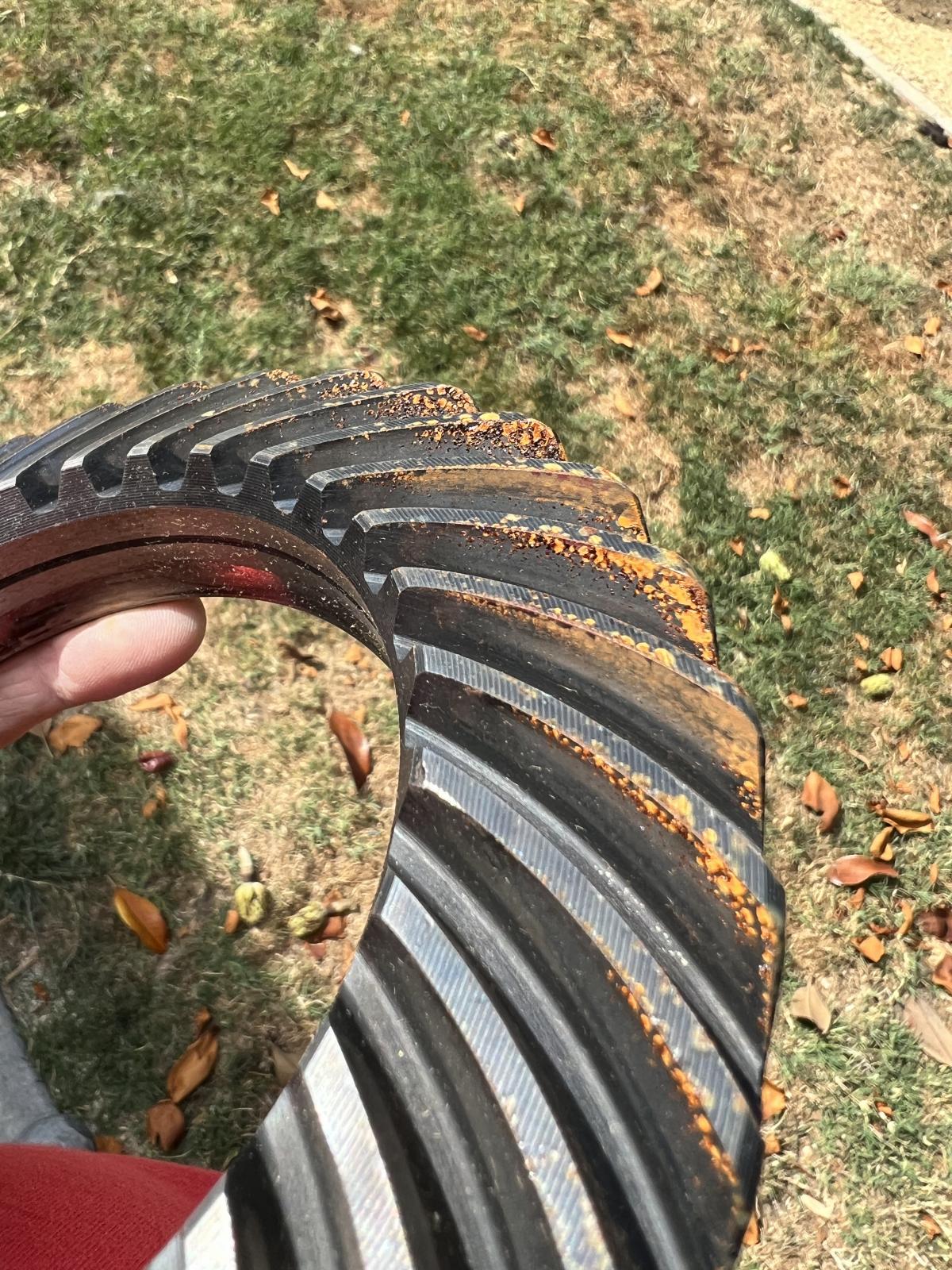

Was looking a bit rusty from years of storage:
Turns out it just wiped off.
Managed to find the diamond Dremel bits shown me by the great Paul Guard:
Did a de-burring on the ring n’ pinion.
Stay away from the contact surfaces!
Finished up with a heavy glass-bead session.
De-burr the de-burring!
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist!
Last edited by Clatter on Mon Sep 11, 2023 6:43 pm; edited 2 times in total |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80055
Location: Sneaking up behind you
|
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 6:44 pm Post subject: Re: Brent’s Berg5 |
|
|
YEAH!
Much thanks my brother.
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 6:50 pm Post subject: Re: Brent’s Berg5 |
|
|
Case for this one is a “shift rib”.
Brent had it vapor-blasted.
Shot it with some epoxy primer after a good cleaning:
Hot Rod Black:
Followed by a Spellbinder from Wren House:
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
Clatter
Samba Member
Joined: September 24, 2003
Posts: 7838
Location: Santa Cruz
|
| Posted: Mon Sep 11, 2023 6:56 pm Post subject: Re: Brent’s Berg5 |
|
|
After a couple days’ drying the inside got scrubbed out with some Simple Green and a brush.
Then rinsed and rinsed to get all the leftover blasting grit from inside.
Big heavy billet cover arrived:
And here’s the look Brent is after for this one:
Kind of a two-tone;
No mistaking the 5-speed part.
_________________
Bus Motor Build
I have excellent news for the world...
There is no such thing as patina.
It does not exist! |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80055
Location: Sneaking up behind you
|
| Posted: Mon Sep 11, 2023 7:11 pm Post subject: Re: Brent’s Berg5 |
|
|
Did you add a 2nd vent above the diff?
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Brent
Samba Member
Joined: April 28, 2010
Posts: 1622
Location: San Tan Valley, AZ
|
| Posted: Mon Sep 11, 2023 8:44 pm Post subject: Re: Brent’s Berg5 |
|
|
| VWporscheGT3 wrote: |
| ooooooh yes, Brent ya lucky bastid! watching this one closely |
Steve's just trying to get me back on here and post again... lol. Bought a new house and moved, retired from the Navy (5 years ago already), new job, blah blah blah. And I have a diesel truck fascination.
I've been saving all this stuff for probably 10 years.
This is getting me going though. Ghia build will start next year.
Steve - you got some parts coming in a week or so.
_________________
69 Fastback Build
Berg5 Build |
|
