PostPosted: Sat Mar 16, 2013 5:22 pm    Post subject: Ground Locations - 2.1L Reply with quote

Can we list all the ground locations needed for a 1986-on Vanagon to start, and run properly?

Everyone says "clean the grounds" but without explaining where they are.

----------------------------------------------------------------------
Moderator edit: The following are numbered/labeled according to the Bentley Service Manual lists (photos provided by numerous Samba members):

#1 Battery to body (starting battery)
#3 Battery to body (auxiliary battery, 1986-1989)
#5 Battery to body (auxiliary battery, 1990)
Passenger battery box (starting battery) shown
Image may have been reduced in size. Click image to view fullscreen.

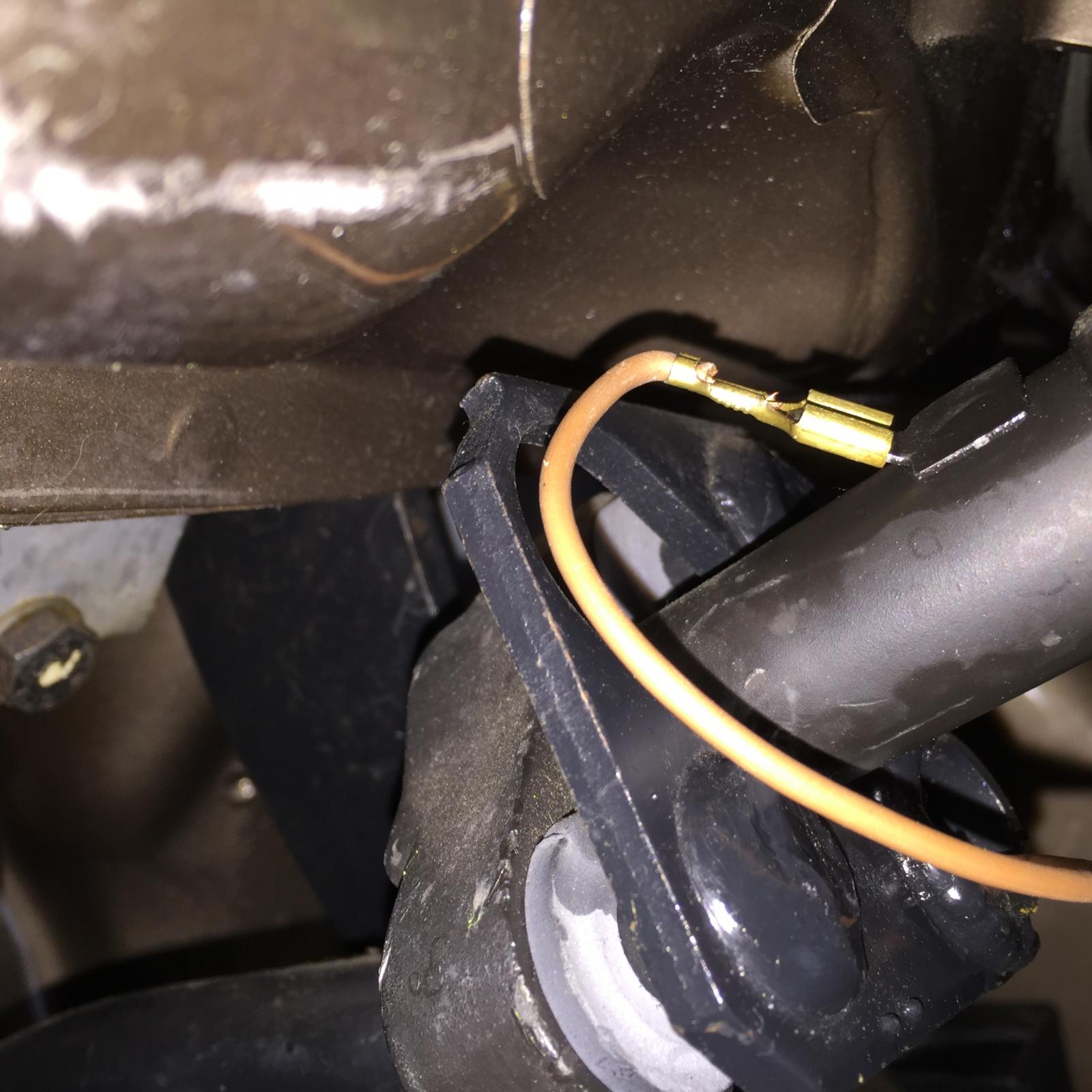

#2 Transmission to body
Image may have been reduced in size. Click image to view fullscreen.


#18 Near fuel pump (1986)
Image may have been reduced in size. Click image to view fullscreen.


#9 Under instrument panel (cruise control – auto trans)
#10 Under instrument panel (central locking)
#11 Behind instrument panel (Heated driver's seat & power mirrors, 1986)
#14 Under instrument panel (cruise control – manual trans, 1986)

#12 In engine compartment, left
#15 In engine compartment, under ignition coil (cruise control – 1986; Syncro diff lock, 1986-1989)
#19 In engine compartment, left (cruise control – 1987-1989)

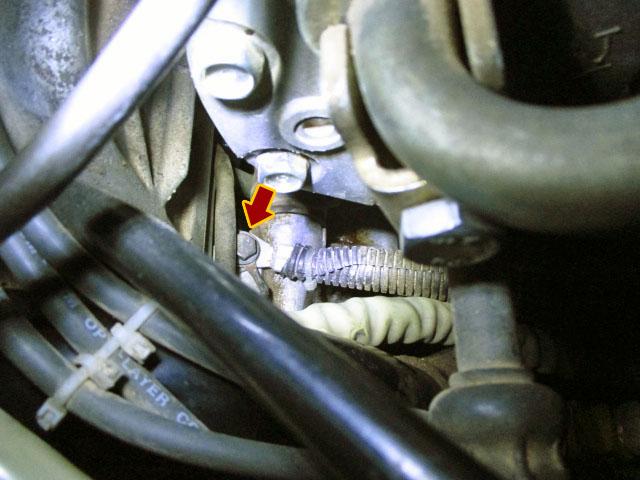

Braided strap at #12 connects to #18 on engine.
Image may have been reduced in size. Click image to view fullscreen.


#16 On left cylinder head (crankcase ventilation heating element)
#18 On engine block, left
#19 On cylinder head (1986)
Image may have been reduced in size. Click image to view fullscreen.


#19 In balance control wiring harness (radio, 1986)

#20 In instrument panel wiring harness (1986)

#7 On steering rack
#23 Above steering gear (aka on steering column)
Image may have been reduced in size. Click image to view fullscreen.


#10 Behind instrument panel, near fuse/relay panel (power windows, 1986; 450-watt radiator fan, 1986-1989; air conditioning, 1986-1988)
#10 Near relay panel (1986)
#30 Near relay panel (1987-1991)
Image may have been reduced in size. Click image to view fullscreen.


#12 On left front crossmember (1986)
#12 On left front crossmember/On sub-frame, LF (cruise control – auto trans, 1986; shift lights – auto trans, 1986-1989)

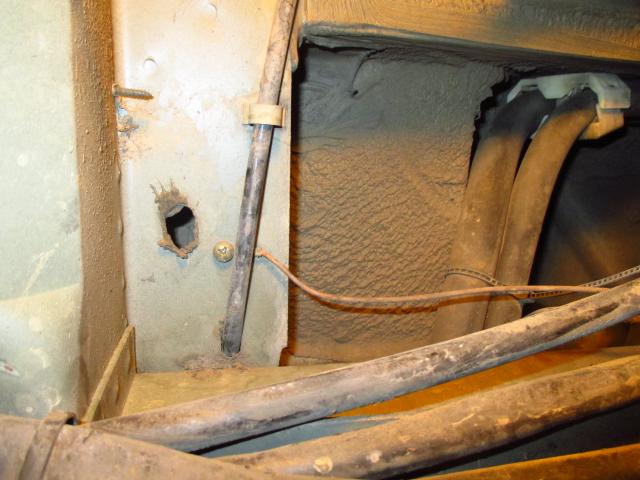

#29 Near fuel gauge sending unit* (1990-1991)
#67 On left front crossmember (cruise control – auto trans, 1987-1989)
(Chassis, driver's side, above the fuel tank)
Image may have been reduced in size. Click image to view fullscreen.

*This appears to be a mistake in Bentley; should read "Near Digifant control unit"— see #29 below

#45 Under instrument panel, middle
Image may have been reduced in size. Click image to view fullscreen.

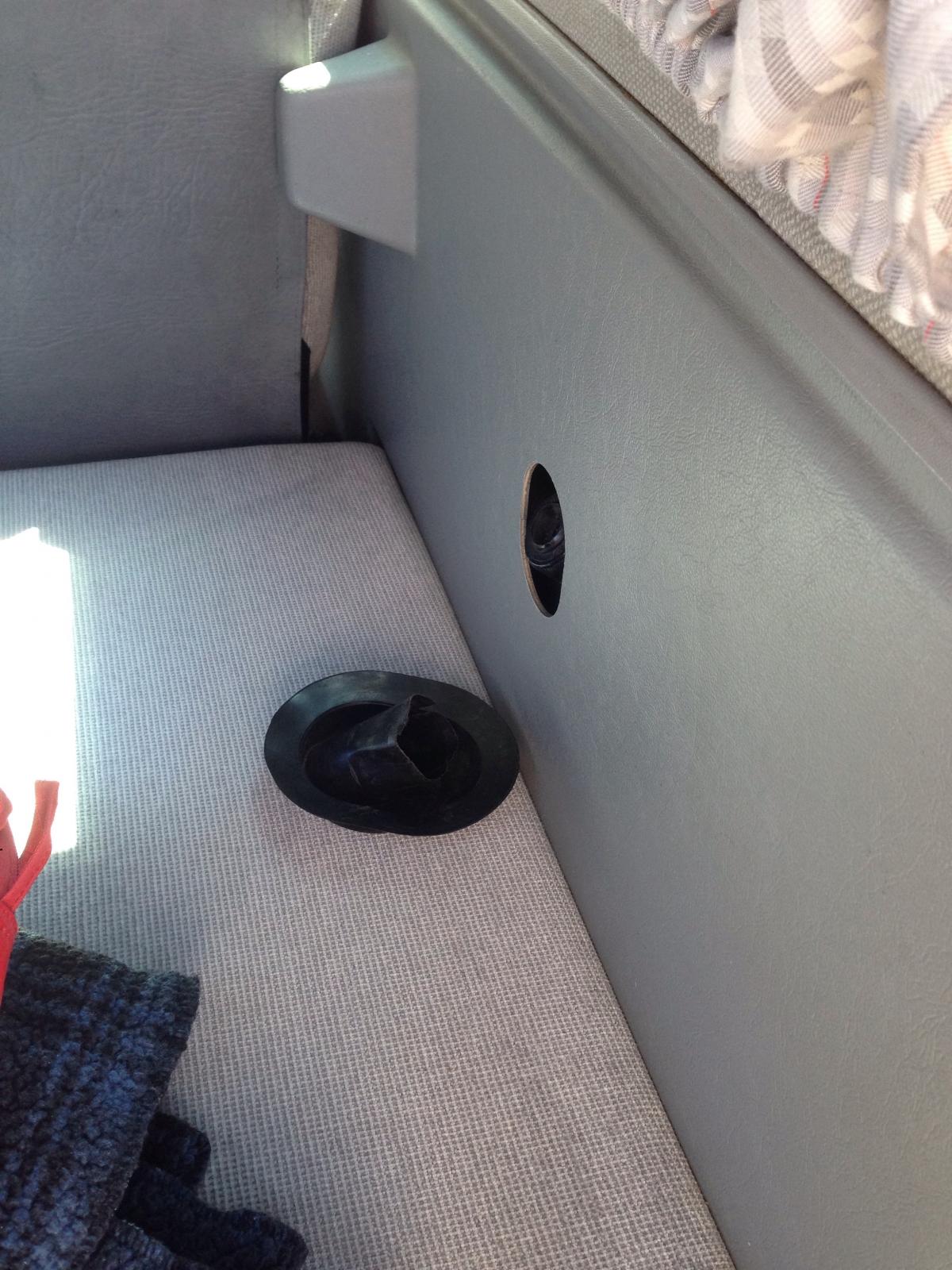

#11 In rear decklid (1986)
#52 In rear decklid, left
#53 In rear decklid, right
(aka Rear hatch, upper corners)
Image may have been reduced in size. Click image to view fullscreen.


#13 Near rear washer bottle holder (1986)
#56 Near rear washer bottle holder
(behind panel)
Image may have been reduced in size. Click image to view fullscreen.


#18 Near left rear pillar (air conditioning, late 1986-1988)
#57 On left rear pillar (air conditioning, 1989-1991)
Image may have been reduced in size. Click image to view fullscreen.


#58 Near rear window wiper motor
(behind panel)
Image may have been reduced in size. Click image to view fullscreen.


#63 On left tail light bulb holder (cruise control, 1990-1991)
#64 On left tail light bulb holder (cruise control, 1990-1991)

#79 Near left rear decklid (hatch) hinge

#81 Instrument panel wiring harness
(This is a multi-point connection in the dash wiring harness that leads to the ground trees/stars above the relay panel.)

#14 Under rear seat bench (1986)
#17 Under rear seat bench (1986)
#29 Near Digifant control unit (1987-1989)
Image may have been reduced in size. Click image to view fullscreen.

Above photo shows ECU location in a non-camper, which is where the ground is located on all 2.1L vans (buried behind cabinet in the full-campers).

#24 Near Digifant wiring harness(1986)
#26 In Digifant wiring harness
#94 In Digifant wiring harness
Image may have been reduced in size. Click image to view fullscreen.

(This is a multi-point connection on the left side of the engine bay -- white wires in above photo -- in the fuel injection wiring harness that leads to ECU pin 6; ECU is then grounded locally under the rear bench seat and/or in the engine bay.)

----------------------------------------------------------------------

Some critical components have their own ground wire (Oxygen Sensor has a small dia. coaxial cable with the braid being grounded somewhere I suppose; the Hall Effect sender seems to have its own ground wire)
_________________
1986 2.1L Westy 2wd Auto Trans.


Last edited by randywebb on Sun Mar 31, 2013 4:27 pm; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Phishman068
Samba Member


Joined: February 19, 2007
Posts: 1865
Location: Pittsburgh PA (ish)
Phishman068 is offline

PostPosted: Sat Mar 16, 2013 5:26 pm    Post subject: Reply with quote

While you're at it, you'll find that there is another grounding bolt with a few connections on it near the one that resides under the coil. Clean those guys up too, they usually can use it. That's tail lights and turn signals.

I think you've got them all.

I replace the engine to fire wall ones, clean all the rest, and add one from the starter bolt to the frame on all my busses.
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=559766&highlight=winter+rust
http://www.thesamba.com/vw/forum/viewtopic.php?t=482402&highlight=sunroof+syncro
http://www.thesamba.com/vw/forum/viewtopic.php?t=569774
http://www.thesamba.com/vw/forum/viewtopic.php?p=6864936#6864936

"Along with the ability to go fast, one looses the desire to hurry."
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Sat Mar 16, 2013 5:28 pm    Post subject: Reply with quote

I think this braid is only for RFI, tho maybe it could affect the ECU (?)

Image may have been reduced in size. Click image to view fullscreen.

_________________
1986 2.1L Westy 2wd Auto Trans.


Last edited by randywebb on Thu Mar 28, 2013 6:31 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Sat Mar 16, 2013 5:53 pm    Post subject: Reply with quote

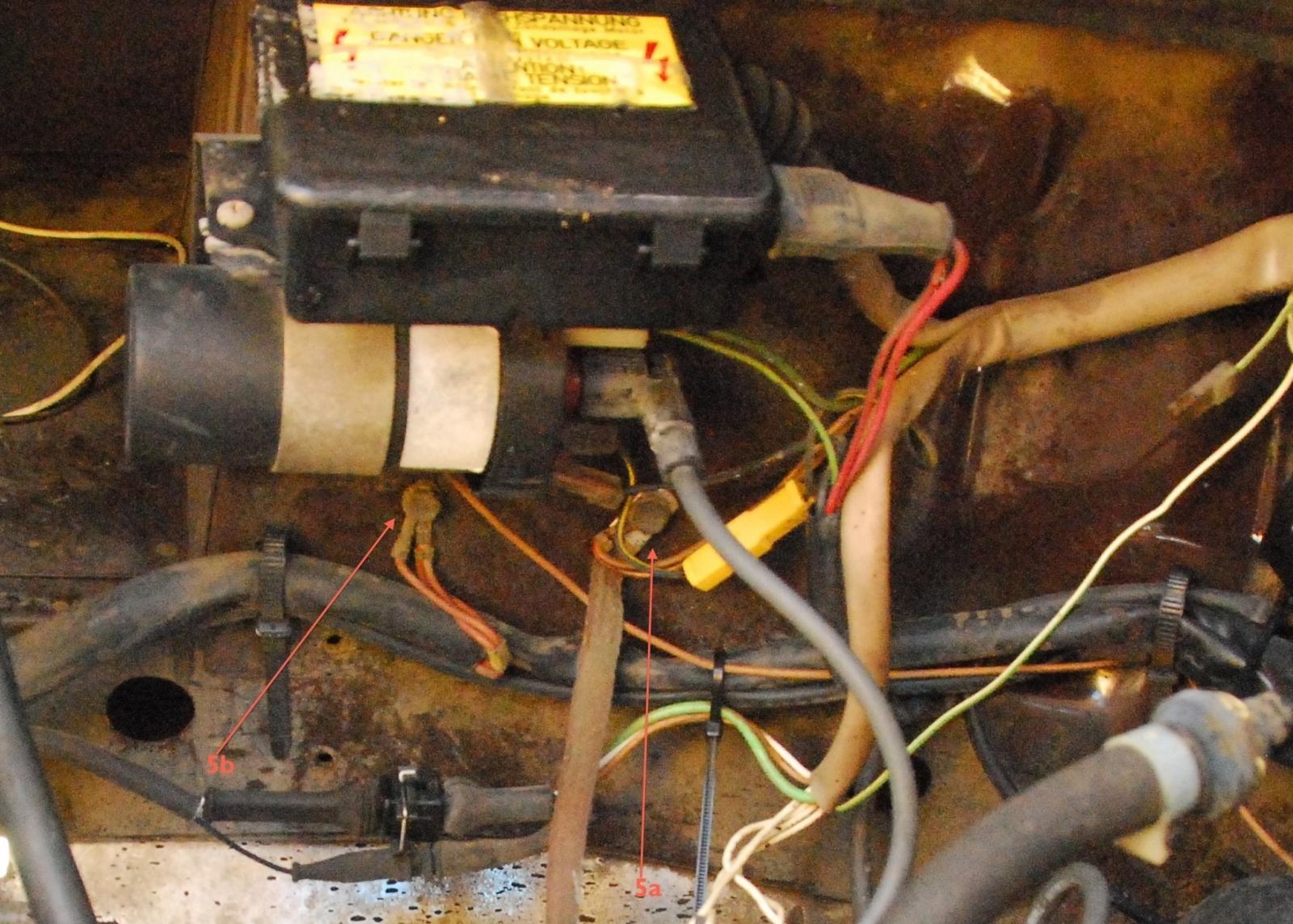

the 2 grounds by the coil; see post by Phishman068

Image may have been reduced in size. Click image to view fullscreen.

_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Sun Mar 31, 2013 4:31 pm    Post subject: Reply with quote

some threads on maintenance:

http://www.thesamba.com/vw/forum/viewtopic.php?t=541773

http://www.thesamba.com/vw/forum/viewtopic.php?t=539315

http://www.thesamba.com/vw/forum/viewtopic.php?t=461097

http://www.thesamba.com/vw/forum/viewtopic.php?t=242116

gnds to painted metal used when new:
http://www.thesamba.com/vw/forum/viewtopic.php?t=518167
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
16CVs Premium Member
Samba Member


Joined: February 22, 2004
Posts: 4014
Location: Redwood City, California
16CVs is offline

PostPosted: Sun Sep 08, 2013 9:31 pm    Post subject: Reply with quote

So has anyone found the Syncro fuel sender ground ? I have an 89 and an 87 .
I've looked and could not locate them .

Stacy
_________________
1987 Syncro Westfalia Triple knob (bastard)
1989 Syncro Tristar Triple knob "Swedish"
2013 Jetta Hybrid a true "Zwitter"
Samba member # 14980
Call anytime number 650 722 4914 .
Keep Your van running and upkept tastefully for the love of the hobby.
Don't let your van end up in an "abortions" thread.
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 9888
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Mon Sep 09, 2013 2:00 am    Post subject: Reply with quote

Sure, it goes to one of the 2 ground bolts under the ignition coil. Same as the locker switch grounds. There is a notation about the Syncro fuel sender ground on Bentley page 97.109 of 87 diagrams, an obscure place for it to be mentioned but better than no mention like in the other years diagrams.

Mark


16CV's wrote:
So has anyone found the Syncro fuel sender ground ? I have an 89 and an 87 .
I've looked and could not locate them .

Stacy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
blaze80
Samba Member


Joined: July 23, 2013
Posts: 150
Location: Farmville, VA
blaze80 is offline

PostPosted: Tue May 13, 2014 6:47 am    Post subject: Reply with quote

Thanks for posting this- totally needed to know where they all were!
_________________
/// '89 Syncro Sport Joker, Reimo Hightop, mTDI
/// '90 Carat (SOLD)
/// '06 Audi A4 Avant S-line (SOLD)
/// '92 mk2 Jetta GL 8v (SOLD)
/// '89 'Bluestar' (SOLD)
/// '04 Audi S4 (SOLD)
/// '99 Jetta GLX VR6 (SOLD)
/// '84 Vanagon GL (SOLD)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jk_eaton
Samba Member


Joined: August 22, 2013
Posts: 3
Location: Ottawa
jk_eaton is offline

PostPosted: Wed Jul 30, 2014 7:36 pm    Post subject: RH ground? Reply with quote

On our '91, there is a ground on the RH side of the engine compartment, just to the right of the power steering reservoir - I was checking fluids last year and found it completely adrift. Is this only on later vans?
Back to top
View user's profile Send private message Classifieds Feedback
RBEmerson
Samba Member


Joined: November 05, 2011
Posts: 2108
Location: SE PA
RBEmerson is offline

PostPosted: Wed Jul 30, 2014 9:17 pm    Post subject: Reply with quote

Good thread!! [/lurking]
_________________
Lord, give me coffee to change the things I can change, and wine to accept the things I can't change.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Canoli
Samba Member


Joined: September 01, 2014
Posts: 47
Location: Rockford Il
Canoli is offline

PostPosted: Mon Sep 01, 2014 6:12 pm    Post subject: Where on the uni-body? Reply with quote

I can find the one in the picture but I cant find the other end on the unibody?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9769
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Mon Sep 01, 2014 6:26 pm    Post subject: Re: Where on the uni-body? Reply with quote

Canoli wrote:
I can find the one in the picture...


Which picture? Or, which ground?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Canoli
Samba Member


Joined: September 01, 2014
Posts: 47
Location: Rockford Il
Canoli is offline

PostPosted: Mon Sep 01, 2014 6:36 pm    Post subject: Ground Reply with quote

The very first picture, I know where that one is but it has been cut so i cant find where the other end is.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Merian
Samba Member


Joined: January 04, 2014
Posts: 5212
Location: Orygun
Merian is offline

PostPosted: Mon Sep 01, 2014 8:25 pm    Post subject: Re: Engine Ground Locations - 2.1L Reply with quote

randywebb wrote:


3. Ground strap at the nose of the transmission to the uni-body
...


this is the 1st pic - is it what you mean?

if so, I think there is also a diagram in the Bentley besides the text above

you DO need a Bentley manual
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Canoli
Samba Member


Joined: September 01, 2014
Posts: 47
Location: Rockford Il
Canoli is offline

PostPosted: Tue Sep 02, 2014 2:02 am    Post subject: Yes, the first picture Reply with quote

Yes it is the first picture, I thought maybe someone would have a picture of where the other end is located to. I know where the one in the picture is.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Tue Sep 02, 2014 4:20 am    Post subject: Reply with quote

From the Bentley...... BUY ONE!!!!!! You NEED it.

Automatic ground strap location........
Image may have been reduced in size. Click image to view fullscreen.


Standard ground strap location......
Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Canoli
Samba Member


Joined: September 01, 2014
Posts: 47
Location: Rockford Il
Canoli is offline

PostPosted: Tue Sep 02, 2014 4:37 am    Post subject: Thanks Reply with quote

Thanks again
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mr_vanagon
Samba Member


Joined: March 31, 2005
Posts: 589
Location: Southern Illinois (GO SALUKIS)
mr_vanagon is offline

PostPosted: Tue Sep 02, 2014 10:26 am    Post subject: Reply with quote

My dad was an electrical engineer by trade with a lot of experience in aircraft radio design. After a series of Digifant problems he decided that the VW grounding system was not good enough so he added a #8 wire from the battery to the engine bay with stops at all the stock ground locations. Since then, no ground-related issues. This would be pretty easy to do, especially with a lift.
_________________
'68 Autostick Bug Mom bought new
'89 Tintop Vanagon Dad bought new
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ahwahnee
Samba Member


Joined: June 05, 2010
Posts: 9769
Location: Mt Lemmon, AZ
Ahwahnee is offline

PostPosted: Tue Sep 02, 2014 2:48 pm    Post subject: Reply with quote

For similar reasons, I added a body-to-starter ground here:

Image may have been reduced in size. Click image to view fullscreen.


Just a short length of battery cable from the FLAPS.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Tue Sep 02, 2014 3:01 pm    Post subject: Reply with quote

Ahwahnee wrote:
For similar reasons, I added a body-to-starter ground here:

Image may have been reduced in size. Click image to view fullscreen.


Just a short length of battery cable from the FLAPS.


Whoa! Really big HERE!

Can't see the forest through the trees! Which corner of the engine area is this ground?

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
