 Posted: Wed Dec 25, 2013 4:01 pm Post subject: Bought 85 Joker Jubilee to drive home from Chile, now dead. |
 |
|
Hello Samba (Merry Christmas!).
Like many, I have been lurking and learning on the samba for some time.
I am no VW expert but am unafraid of working on cars. Way back when, I was brought home from the hospital in a 73’ squareback. I brought my own son home in a ’91 Golf hatchback. Since June 2013, I have been a visiting professor of Geology on sabbatical in Concepcion, Chile. Long before our arrival, we fascinated about the idea of driving home. A pre-89’ vanagon camper seemed like our best option as the import would be relatively easy and camping would make the journey affordable. I looked into the options in Chile and after 6 months of searching settled on a rare 1985 Joker Jubilee (Jubiläums Joker) located 7 hours north in Santiago. The special model commemorates the production of the 250,000th Westfalia. From a look around, these appear very rare.

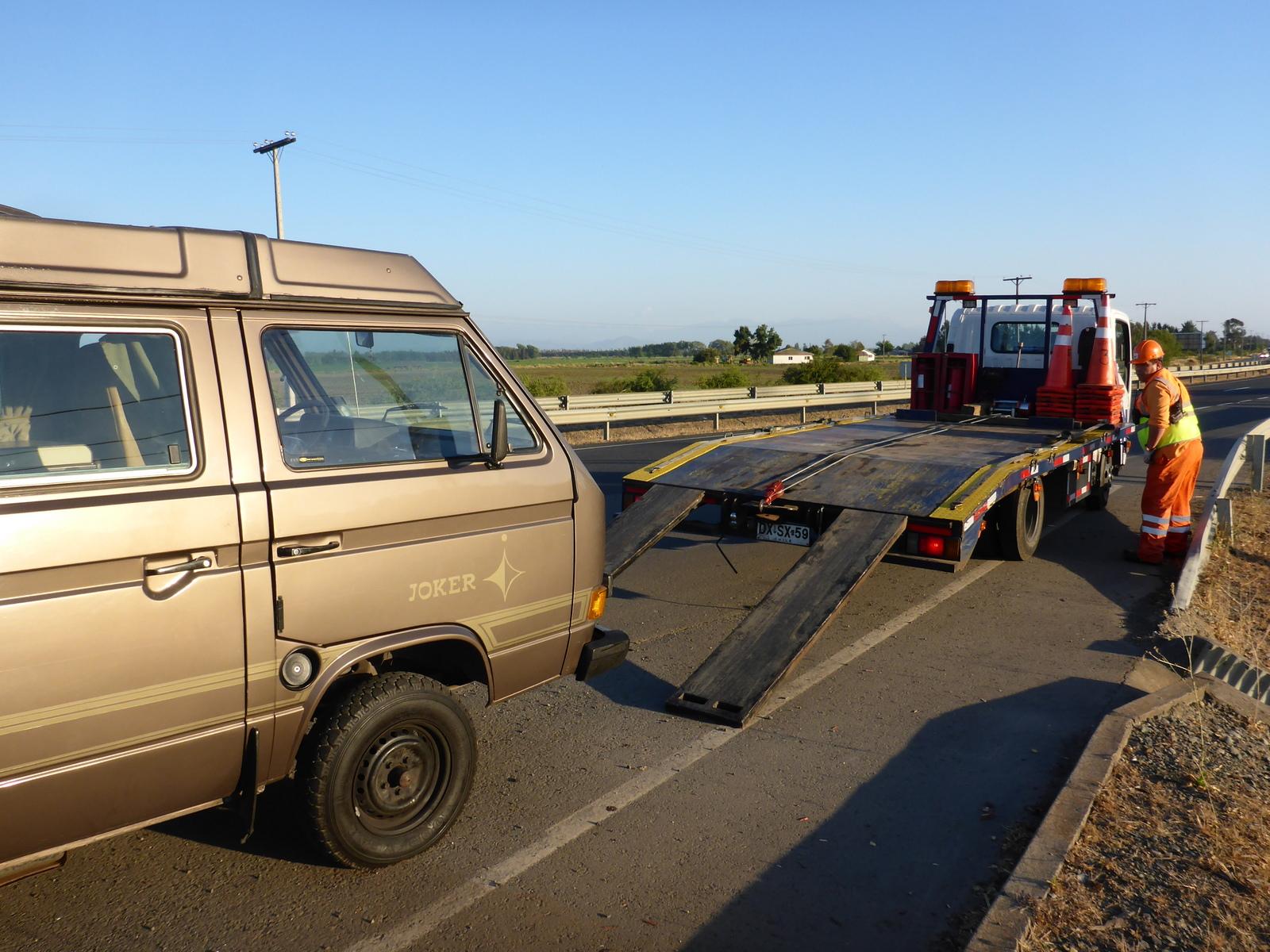

I completed the sale on Dec 17th. Within 6 hours of driving at moderate highway speeds with no warning signs the power disappeared, white smoke emerged and I pulled over within ~15 seconds. A thin trail of oil led up to the van and a small puddle collected beneath as we quickly unloaded luggage, extinguisher in hand. Opening the hatch, there was only a small smattering of oil mostly on the passenger side, near the head gasket. Looking into the coolant reservoir (not pressurized), an oily dark soup sunk my spirits (the previous owner had used a ceramic additive, explaining the dark color). As there was no option for roadside repair, I had the van towed to Concepcion and currently have a mechanic diagnosing the problem. The question is, “what next?”
I know there are a few options for what could have gone wrong: (a) cracked block, (b) blown gasket. As summer vacation has now begun, I can dedicate a fair amount of time to renovating the van before heading north in May. If the block is cracked, the options are to find a replacement volkswagon or other make engine here or have an engine shipped down from the states. I have heard of shops in Peru that have done Subaru conversions but have not found a similar shop yet in Chile. My concern with the conversion is that the 85 Joker is an OEM 5 speed (Watercooled 1.9 Litre Otto Motor DG (1913cc) 57 Kw 78PS 5 speed manual gearbox, carbureted) which is not common in the US and may complicated some of the conversion kits.
Regardless of the engine repair, I will take the opportunity to upgrade a lot of the other systems while doing big work: fuel, cooling, brakes, bearings, etc. The suspension had already been redone by the previous owner (gowesty springs and ranchos).
My big question to the community is…what would you do regarding the engine replacement if you were in my shoes?
|
|
| Back to top |
|
 |
Gauche1968
Samba Member
Joined: April 13, 2006
Posts: 1554
|
| Posted: Wed Dec 25, 2013 4:20 pm Post subject: |
|
|
Check out your push rod tubes.
_________________
1984 Vanagon GL
1984 Vanagon Westy |
|
| Back to top |
|
|
Summers420us
Samba Member
Joined: June 14, 2010
Posts: 759
Location: Amissville, Virginia
|
| Posted: Thu Dec 26, 2013 6:39 am Post subject: |
|
|
First off, looks like you got a sweet rig there!
If I were in your position, I would first wait for diagnosis. Might be something simple and you can be on your way again. If the engine is toast then I might pursue looking for a good suby swapper in the area. If the price was right (got to imagine cheaper than the states) I might consider it.
Otherwise I would look to rebuild what you have or look for another replacement motor in the area.
_________________
1997 EVC
1988 2WD Westfalia with OE 2.1 (R.I.P.) |
|
| Back to top |
|
|
mfriquel
Samba Member
Joined: August 16, 2010
Posts: 22
Location: Lima, Peru
|
| Posted: Thu Dec 26, 2013 7:37 am Post subject: |
|
|
| Hello,, you may want to check with the guys from Kleinbus in Santiago, im sure they can give you some ideas of mechanics or maybe another engine. |
|
| Back to top |
|
|
IdahoDoug
Samba Member
Joined: June 12, 2010
Posts: 10352
Location: N. Idaho
|
| Posted: Thu Dec 26, 2013 7:53 am Post subject: |
|
|
I suspect it will turn out to be fixable. Could you explain the comment about dark coolant and then about a ,ceramic, additive? It was dark when u bought it and ceramic is reason? Or it suddenly got dark when this happened?
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2017 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential, 1990 burgundy parts Vanagon. 1984 Porsche 944, 1988 Toyota Supra 5 speed targa, 2002 BMW 325iX, 1982 Toyota Sunrader |
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5220
Location: denver
|
|
| Back to top |
|
|
pedrokrusher
Samba Member
Joined: July 11, 2011
Posts: 654
Location: Montreal, Quebec, Canada
|
|
| Back to top |
|
|
Rocky Mountain Westy
Samba Member
Joined: April 17, 2008
Posts: 1032
Location: Fort Collins Colorado
|
|
| Back to top |
|
|
insyncro
Banned
Joined: March 07, 2002
Posts: 15086
Location: New York
|
| Posted: Thu Dec 26, 2013 9:04 am Post subject: |
|
|
Bostig or Subaru...ditch the stock motor and move on.
The van looks nice. |
|
| Back to top |
|
|
pedrokrusher
Samba Member
Joined: July 11, 2011
Posts: 654
Location: Montreal, Quebec, Canada
|
|
| Back to top |
|
|
tristessa
Samba Member
Joined: April 07, 2004
Posts: 3993
Location: Portland, OR
|
| Posted: Thu Dec 26, 2013 11:10 am Post subject: |
|
|
I think the exhaust is factory; I saw a similar setup on the Syncro being displayed in the VW Commercial Vehicles pavilion at the Autostadt. Muffler is the same as '72-'74 US-spec Bay Bus, factory adapter to pipes to connect it to the WBX engine, and an additional angle adapter to tuck the muffler up for clearance.
|
|
| Back to top |
|
|
zippyslug31
Samba Member
Joined: July 20, 2007
Posts: 799
Location: Central Oregon
|
| Posted: Thu Dec 26, 2013 11:33 am Post subject: |
|
|
| Summers420us wrote: |
| If I were in your position, I would first wait for diagnosis. Might be something simple and you can be on your way again. |
+1
Try to keep optimistic until you know you have a major issue.
If you go the conversion route, you might loose some of the "rarity" that makes your van such a find; something to keep in mind.
Trade-offs considered, personally I'd still convert if the motor were really shot.
Nice van; congrats!
_________________
previous:
'80 westy
current:
'90 syncro westy 2.5L subi, triple knob, 16" wheels.
'84 sunroof van, 2.1L motor. |
|
| Back to top |
|
|
Vanagon Nut
Samba Member
Joined: February 08, 2008
Posts: 10491
Location: Sunshine Coast B.C.
|
| Posted: Thu Dec 26, 2013 1:05 pm Post subject: |
|
|
ya interesting re: exhaust. At first glance, I had to wonder if there was an air cooled engine in there!
Sorry to hear of your woes though it sounds like you're able and available to do some work yourself.
Though I'm a fan of engine conversions, +2 on keeping the engine OEM. (and for the record am NOT against the WBX. I own one and in some ways like it)
I'm pretty sure that the 5 spd. doesn't inhibit a given engine conversion. The position of the transmission may change things (engine supports) depending on which engine conversion one might use.
Neil.
_________________
"VW gas I4 Conversions" Google Group is being shut down.
1981 Westy DIY 15º ABA
1988 West DIY 50º ABA
VE7TBN |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52099
|
| Posted: Thu Dec 26, 2013 1:24 pm Post subject: |
|
|
| I would certainly find out what is wrong with what you have before doing any thinking of a non WBXer engine swapped. Hopefully your problems are minor. I would avoid doing a conversion using an mechanic who has not done any high end conversion work before, you need something really clean if you are wanting to have a dependable rig and most mechanics aren't up to that. Have no idea on the import tariffs to Chile, but I would be thinking of a Vanistan or Go Westy rebuild if you need an engine and the taxes aren't too bad. |
|
| Back to top |
|
|
WestyBob
Samba Member
Joined: June 11, 2004
Posts: 2346
Location: Portland, Oregon
|
| Posted: Thu Dec 26, 2013 2:51 pm Post subject: |
|
|
IMHO, part of which reinforces some of what others have said ...
If the engine can be reliably repaired, that's the way I would go for now down there. Have all the other systems and hoses checked out too before a return trip.
Presuming the worst regarding the existing engine, I'd do a conversion down there only if there was a reliable, proven mechanic available ... subie or zetec.
A conversion would likely not hurt the value of the vehicle uniqueness or rarity. The exception would be those who prefer stock or german with german. But there are far more who would consider it value added. |
|
| Back to top |
|
|
jberger
Samba Member
Joined: November 17, 2003
Posts: 2476
|
| Posted: Thu Dec 26, 2013 7:35 pm Post subject: |
|
|
| pedrokrusher wrote: |
| Rocky Mountain Westy wrote: |
| Looks like some possible homebrewed exhaust on that thing. Anybody know whats going on there? |
Yeah i saw that too... Adaptation from an aircooled vw beetle muffler that are plentiful over there? |
Home made or factory, I would think the heat exchanger is for carb pre heat.. Pretty slick |
|
| Back to top |
|
|
ben_in_bus
Samba Member
Joined: December 05, 2013
Posts: 41
Location: Chile/Idaho
|
| Posted: Tue Dec 31, 2013 11:17 am Post subject: |
|
|
Hello All.
Thanks for your advice and suggestions. My mechanic has now completed his diagnosis and I have information and pictures to share as well as more questions for you. As a reminder:
-1985 Joker Jubilee,
-1.9L DG engine, 5 speed ABN transmission
-Bought and 6 hours later leaked coolant and oil during highway driving. Pulled over as soon as white smoke was spotted.
-Our goal is to repair and restore the vehicle to a sufficient quality that we can drive home from Chile to the USA over three months (May-Aug, 2014)
The mechanic took off the heads and valve covers to diagnose and in summary found that the lips of the place where the cylinder mates with the head is pitted, dented and likely not able to make a good seal with the cylinders. Interestingly, there was little corrosion around water jacket seal ('head gasket') as many others have reported. The mechanic suggest that this cumulative damage would be tough to repair by machining and that the extent of corrosion in the cooling system is extensive. He suggests that the motor has not been well cared for (low coolant, water creating scale, etc.). As a consequence, it is like a time-bomb and that even if we fix the heads and reseal the system, there will likely be another failure.
The big questions I now have are:
-Given what we now know, is there good reason to go through the process of restoring this engine? Are the issues here easily resolved? I worry that I might be able to get this running again, but because of the state of the other parts of the motor/cooling system, there are likely to be future issues.
-From my research, there are no experts in vanagon engine replacements in Chile. I have heard from other travelers that there are good builders in Peru, but that is too far for me to tow the vehicle. Though my mechanic is competent and confident with Subarus, he has a back-yard shop and does not like messing with electrical. This suggests that a subaru replacement won't work. I think I could find a zetech and get a bostig kit shipped down...but this will take time, months of time. Is replacement still the best option? If dependability over the long drive home is a priority, I think that I need to go Bostig and replace the current cooling system. Thoughts?
(Here are the photos and comments)

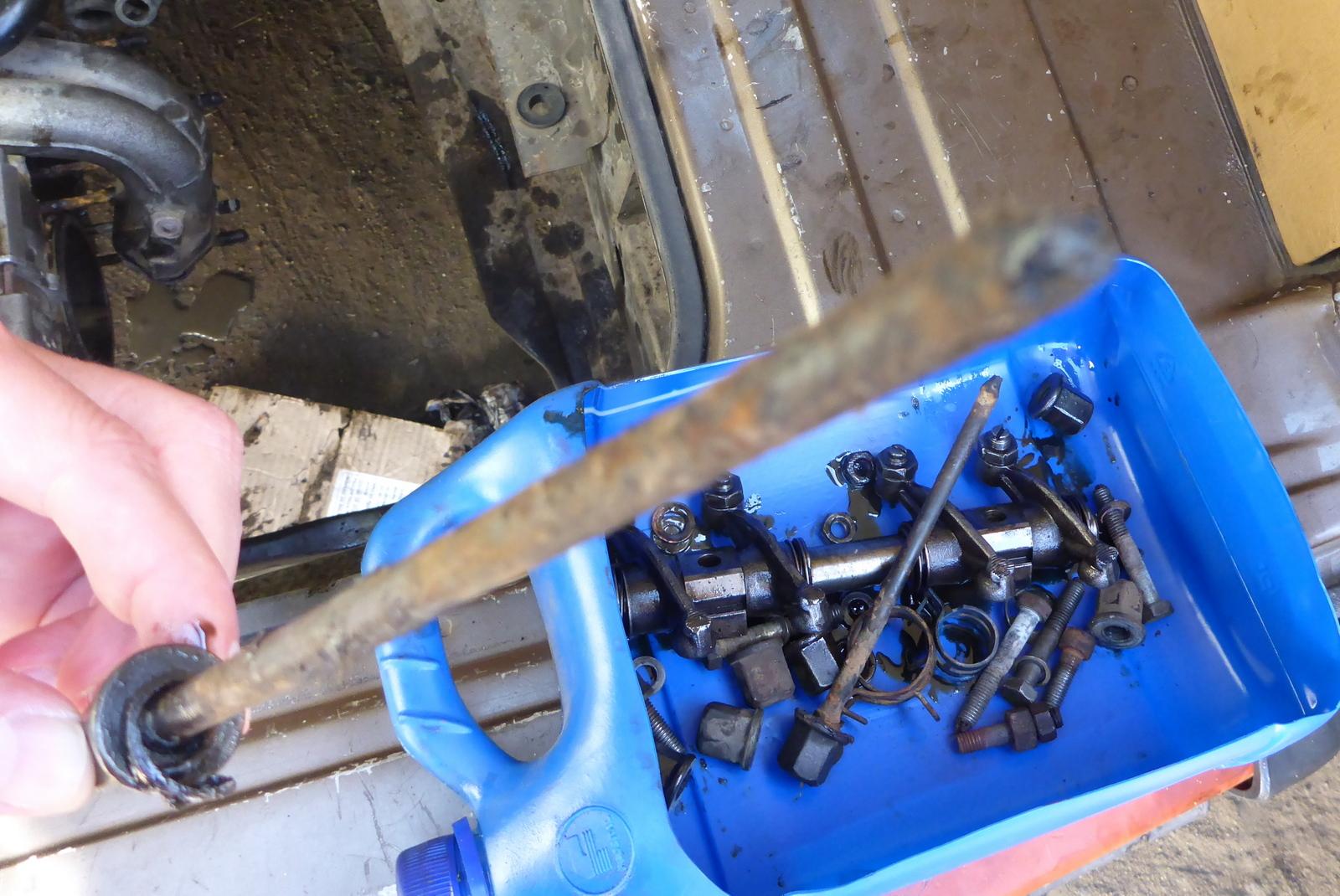

During the diagnosis, the mechanic snapped the threaded tips off these long screws (one in the blue bin). The tip are still inside the motor and he worries that they will be hard to extract? Any advice or experience with this?

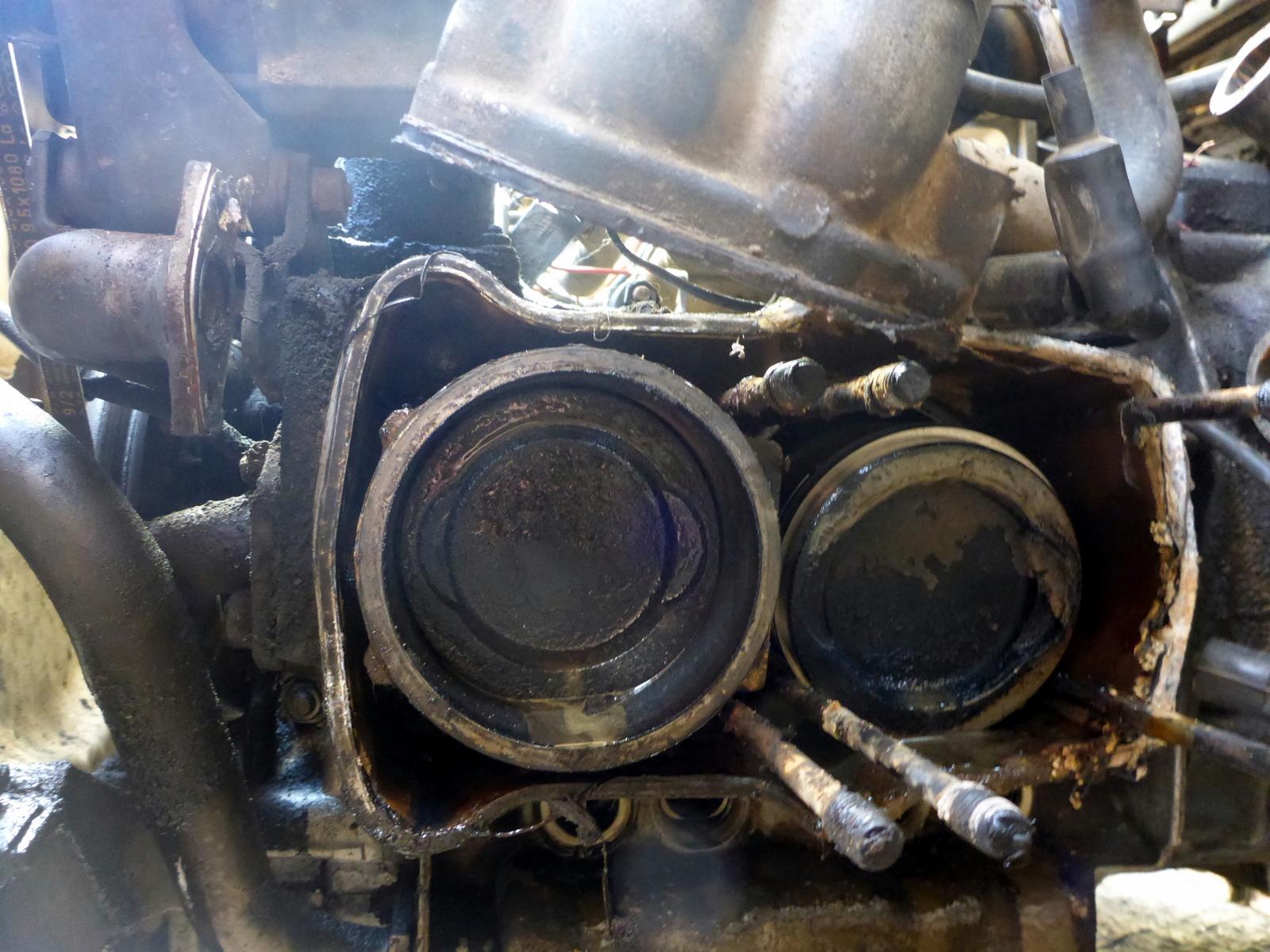

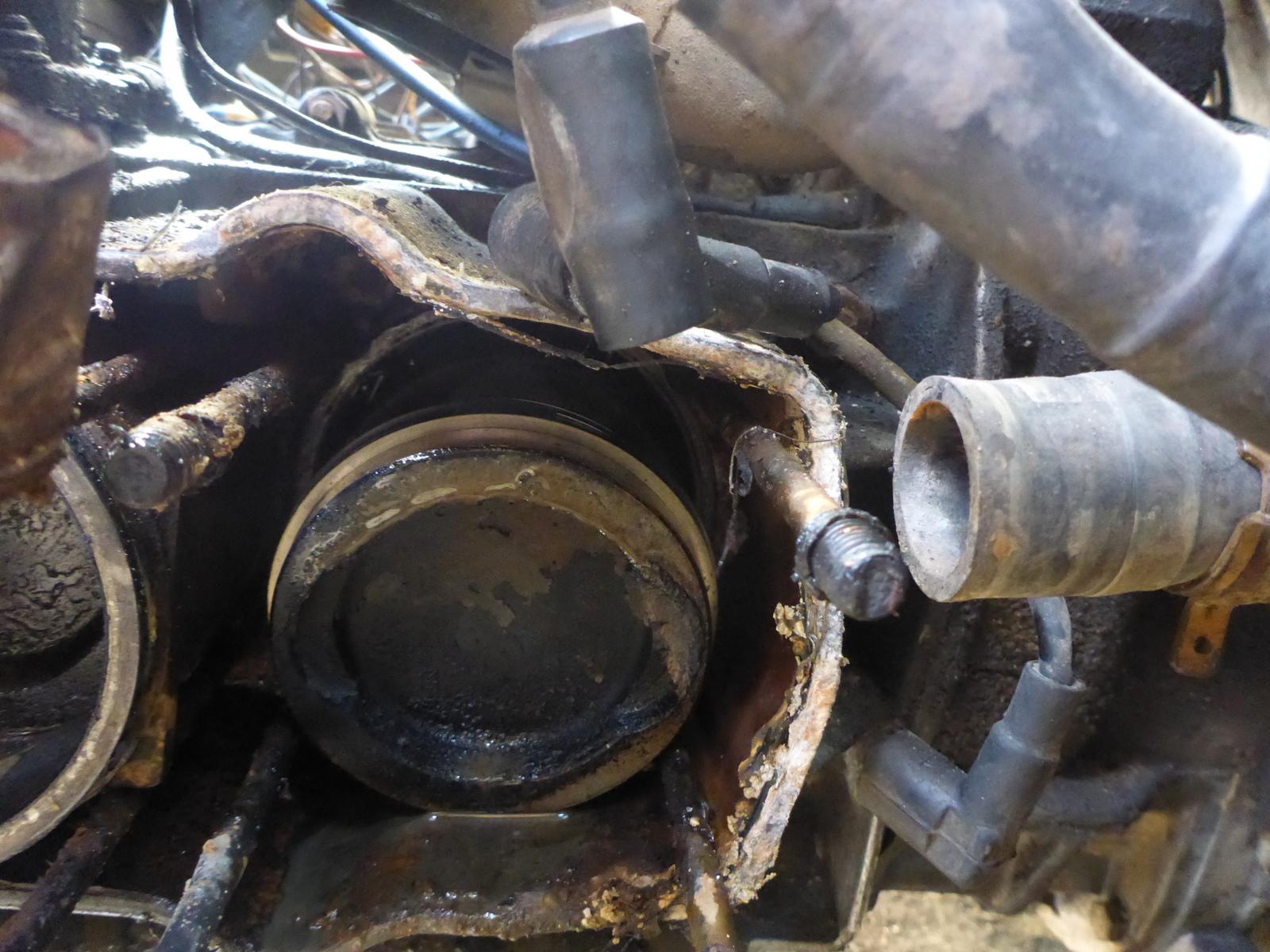

You can see the scale and oil inside the block once the seal was breached. The mechanic worries that there might be other problems deeper inside that he has not yet identified. Here are rear and forward images of the two cylinders.

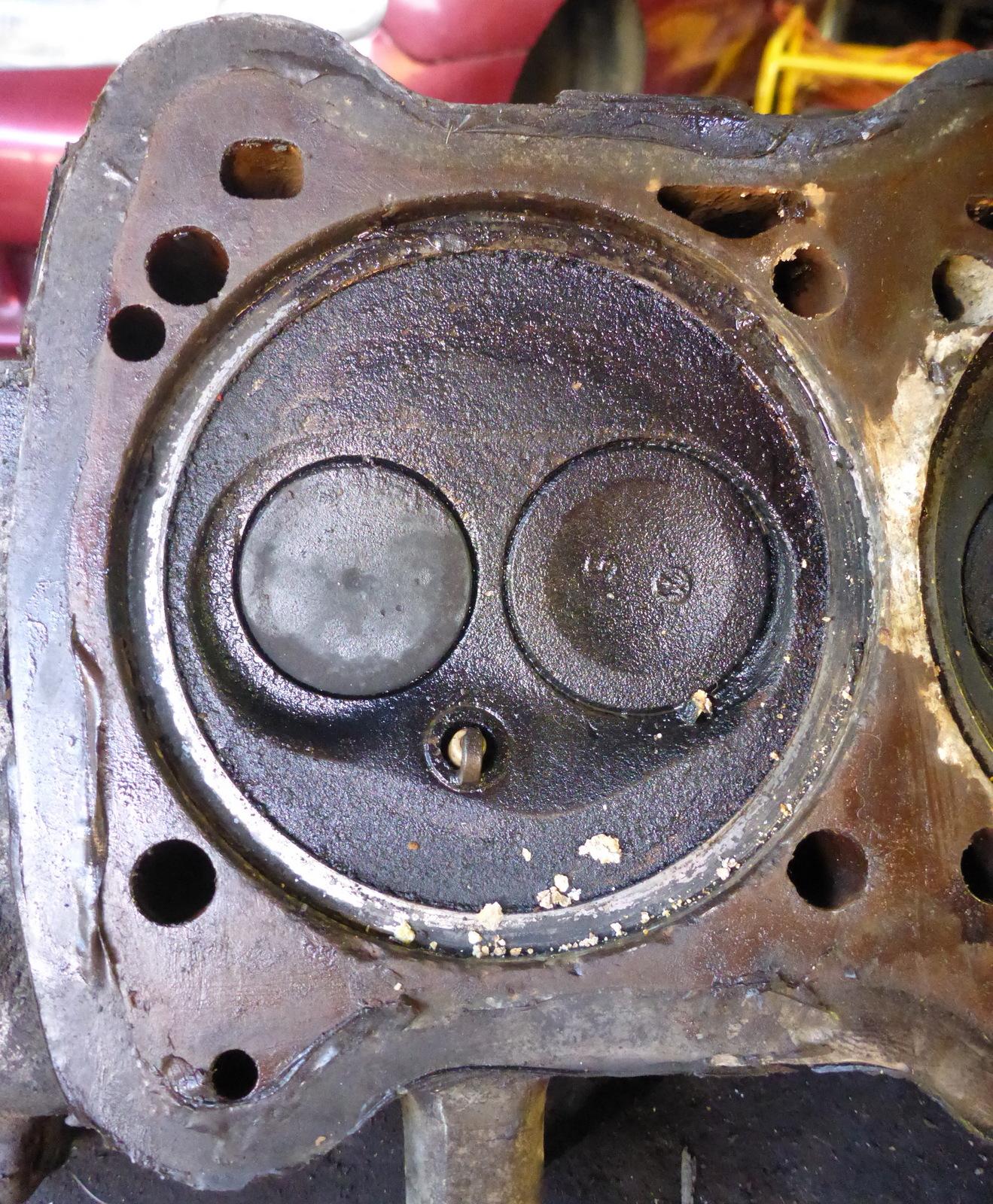

Here are images of the head with the damage around the cylinder-mating lip. Note the dents around the edge. Are these from corosion or a botched reassembly some time back? Note that there is little pitting on the flat surfaces of the head.

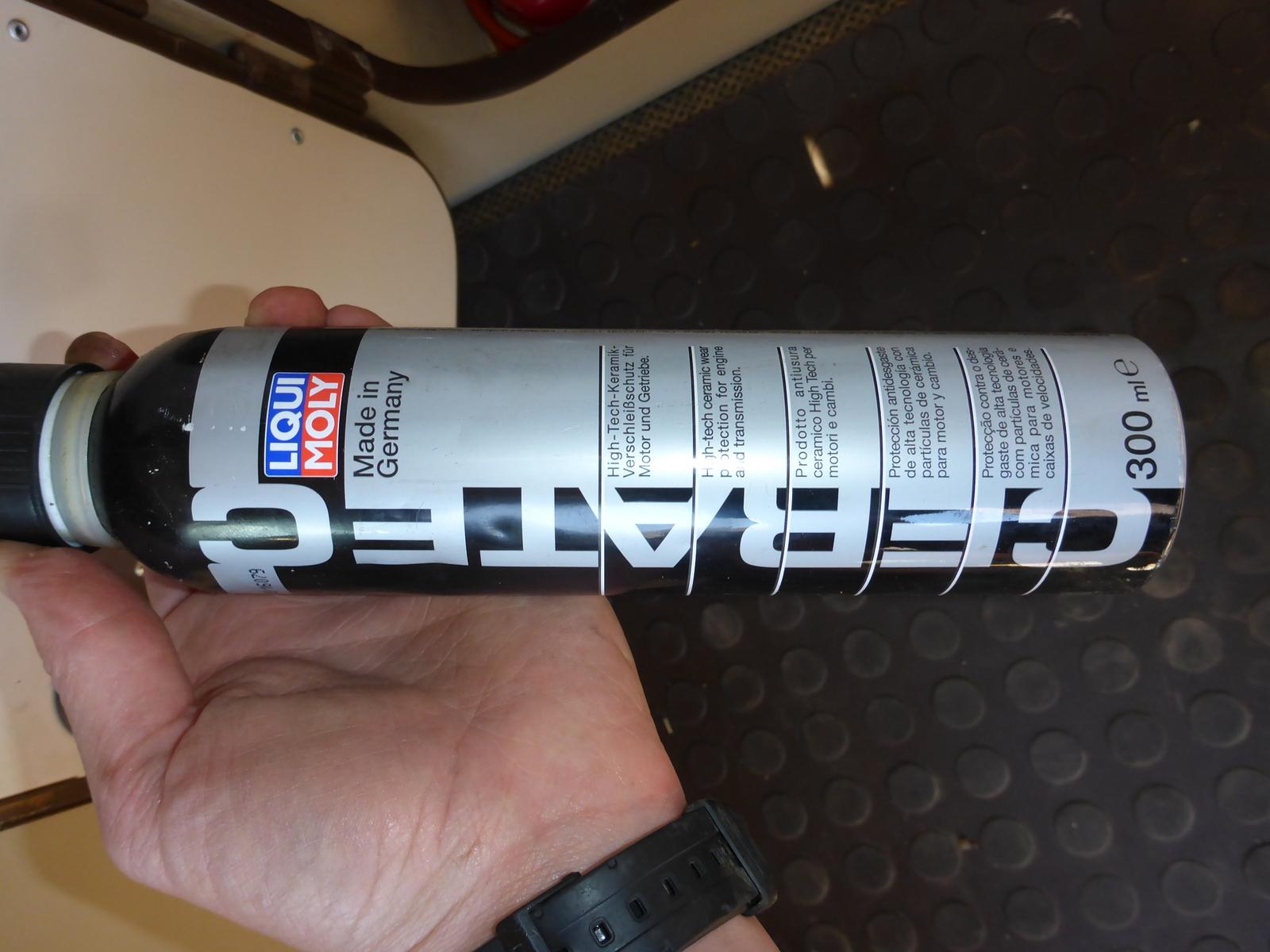

As a previous poster asked, here is an image of the ceramic additive (LiquiMolly) that the PO used. Maybe he used this because he know that there were problems brewing.
|
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52099
|
|
| Back to top |
|
|
Summers420us
Samba Member
Joined: June 14, 2010
Posts: 759
Location: Amissville, Virginia
|
| Posted: Tue Dec 31, 2013 11:50 am Post subject: |
|
|
It sounds as if your mechanic is not interested in repairing your current engine. What is he suggesting?
Have you looked for any VeeDub Clubs in your area? Perhaps a replacement motor is sitting in someone's nearby garage...
All is not lost, hang in there. It is a beautiful van and once you get this sorted you will be sure to have many happy miles.
_________________
1997 EVC
1988 2WD Westfalia with OE 2.1 (R.I.P.) |
|
