 Posted: Thu Feb 10, 2011 10:49 pm Post subject: 3 Point seat belts in rear seat of convertible |
 |
|
| Has anyone added 3 point seat belts to a convertible? If so, where did you put the anchor point? Is there a anchor point for the shoulder strap? Any help or pics would be great! |
|
| Back to top |
|
 |
Bierboy
Samba Member
Joined: June 17, 2009
Posts: 819
Location: East Moline, Ill.
|
| Posted: Fri Feb 11, 2011 6:00 am Post subject: |
|
|
I've only been on this forum a year and a half, but I don't recall anyone talking about installing three point belts in the rear seat of a vert. I support you could drill for anchor points on the window sill...but I think it wouldn't look very good.
_________________
"Otto" -- my '68 vert
Bi-State VW Club
VVWCA
|
|
| Back to top |
|
|
sbigelow
Samba Member
Joined: February 06, 2011
Posts: 7
Location: Gilbert, AZ
|
|
| Back to top |
|
|
Q-Dog
Samba Member
Joined: April 05, 2010
Posts: 8840
Location: Sunset, Louisiana
|
| Posted: Fri Feb 11, 2011 11:20 am Post subject: |
|
|

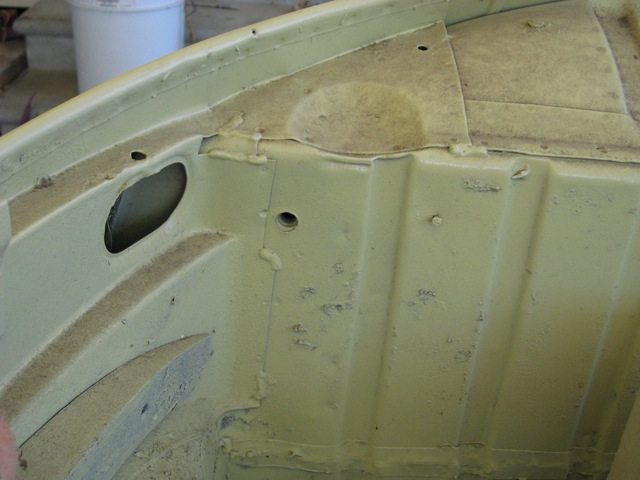

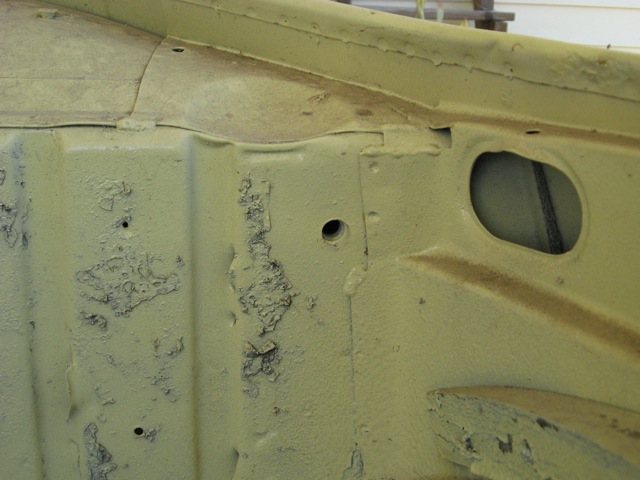

My '69 has what look like seat belt mounting points high up on the rear firewall, but I have not tried to put anything there. For some reason I think it used to have plastic caps over the holes, but it's been so long since I stripped the car that I don't exactly remember. Seems like a non-retractable seat belt would work in the rear, but I haven't tried ... yet.
Don't know if later years have those holes?
_________________
Brian
'69 Dune Buggy
'69 Beetle Convertible
'70 Beetle |
|
| Back to top |
|
|
Semper_Dad
Samba Member
Joined: May 14, 2005
Posts: 3533
Location: Indiana
|
| Posted: Fri Feb 11, 2011 11:29 am Post subject: |
|
|
The upper attachment point should be higher than the shoulder of the occupant otherwise serious back injury may occur from spine compression.
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492 |
|
| Back to top |
|
|
garbageman
Samba Member
Joined: March 10, 2010
Posts: 21
Location: Lexington, SC
|
| Posted: Fri Feb 11, 2011 11:32 am Post subject: |
|
|
Did this last fall after some research. Built a frame anchored to wheel wells, floor and back firewall. There are large plates on the other side that each foot is anchored to. You can't see it, but there are two supports from the top going back to the firewall that tie it all in. The shoulder strap is in the middle then on the sides, but to get the correct angle for both an adult and one of my kids, it had to be this way.
*** The female ends were about 3" too long but have been changed out since.
|
|
| Back to top |
|
|
Semper_Dad
Samba Member
Joined: May 14, 2005
Posts: 3533
Location: Indiana
|
| Posted: Fri Feb 11, 2011 11:35 am Post subject: |
|
|
| garbageman wrote: |
Did this last fall after some research. Built a frame anchored to wheel wells, floor and back firewall. There are large plates on the other side that each foot is anchored to. You can't see it, but there are two supports from the top going back to the firewall that tie it all in. The shoulder strap is in the middle then on the sides, but to get the correct angle for both an adult and one of my kids, it had to be this way.
*** The female ends were about 3" too long but have been changed out since.
] |
Nice set-up
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492 |
|
| Back to top |
|
|
Q-Dog
Samba Member
Joined: April 05, 2010
Posts: 8840
Location: Sunset, Louisiana
|
|
| Back to top |
|
|
sbigelow
Samba Member
Joined: February 06, 2011
Posts: 7
Location: Gilbert, AZ
|
| Posted: Fri Feb 11, 2011 2:49 pm Post subject: |
|
|
Excellent Info. Thanks so much. Here is the diagram of the Roadster mounted to the wheel well.
|
|
