Technical Bulletin M1 - VW Engines
Click on any image to see it full size.

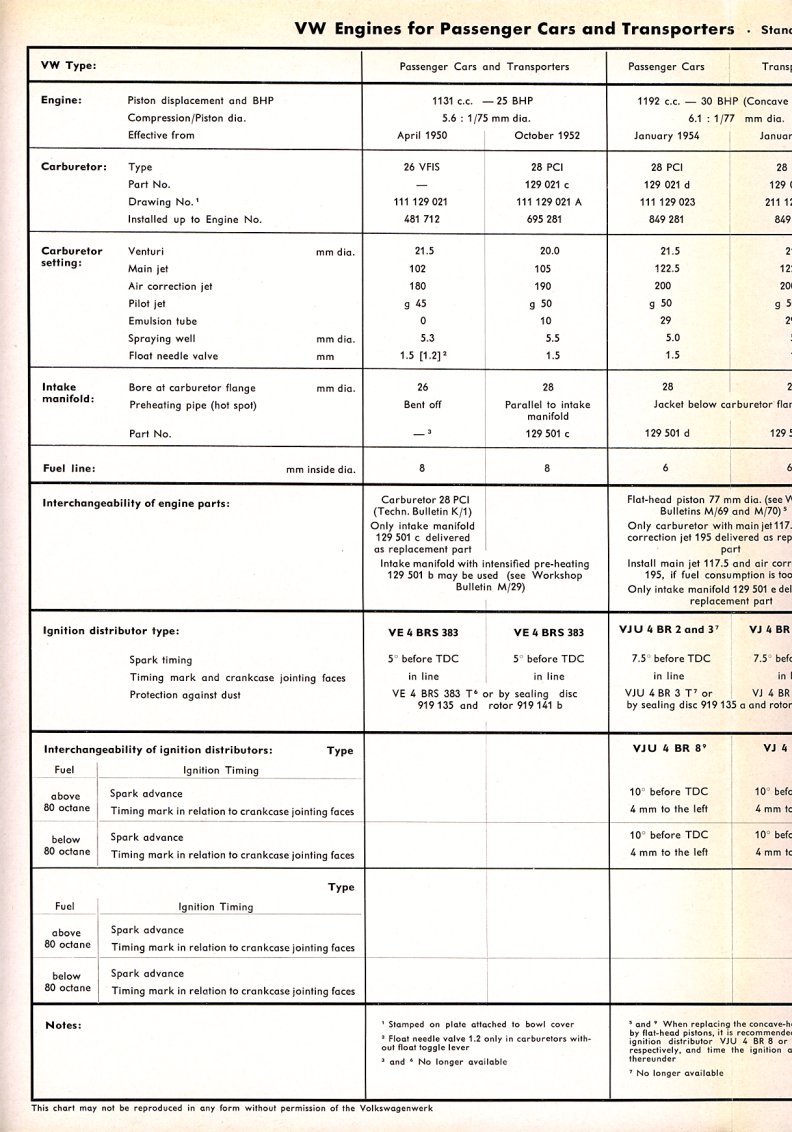

| 9/1955 Engine Reference Chart |
 |
 |
 |
|||||

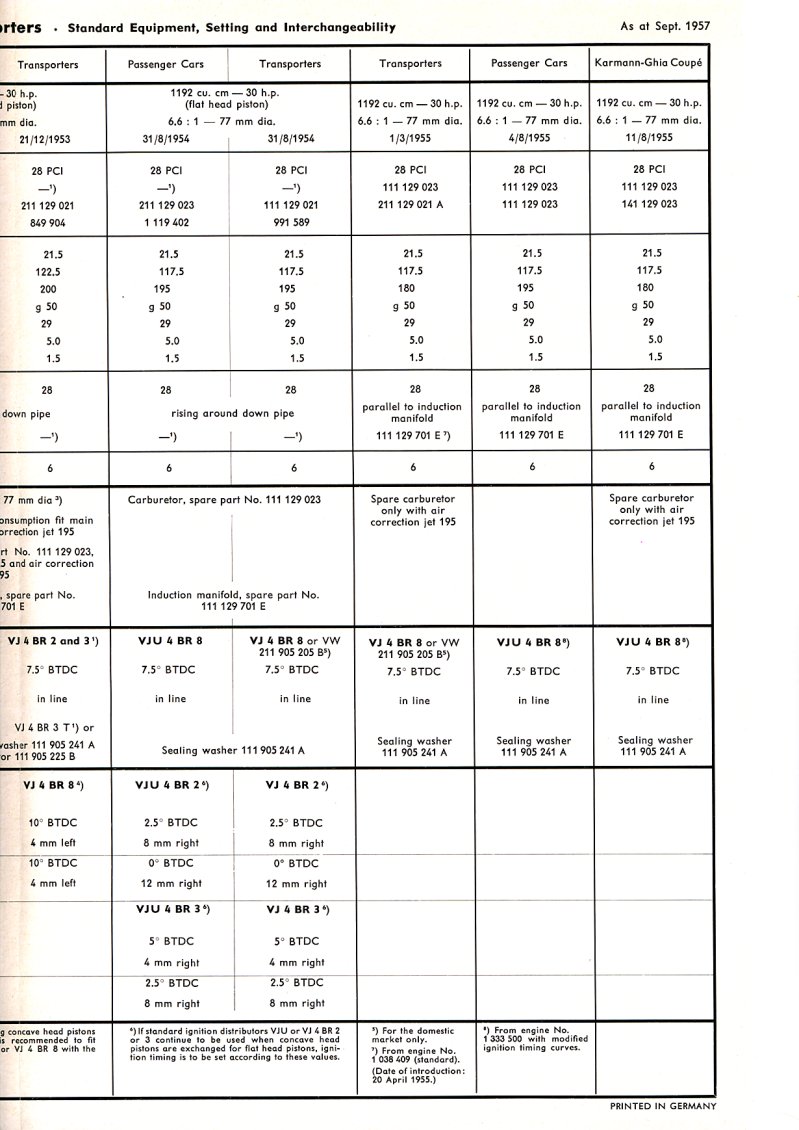

| 9/1957 VW Engines - Type 1, 2 |
 |
 |
 |
|||||

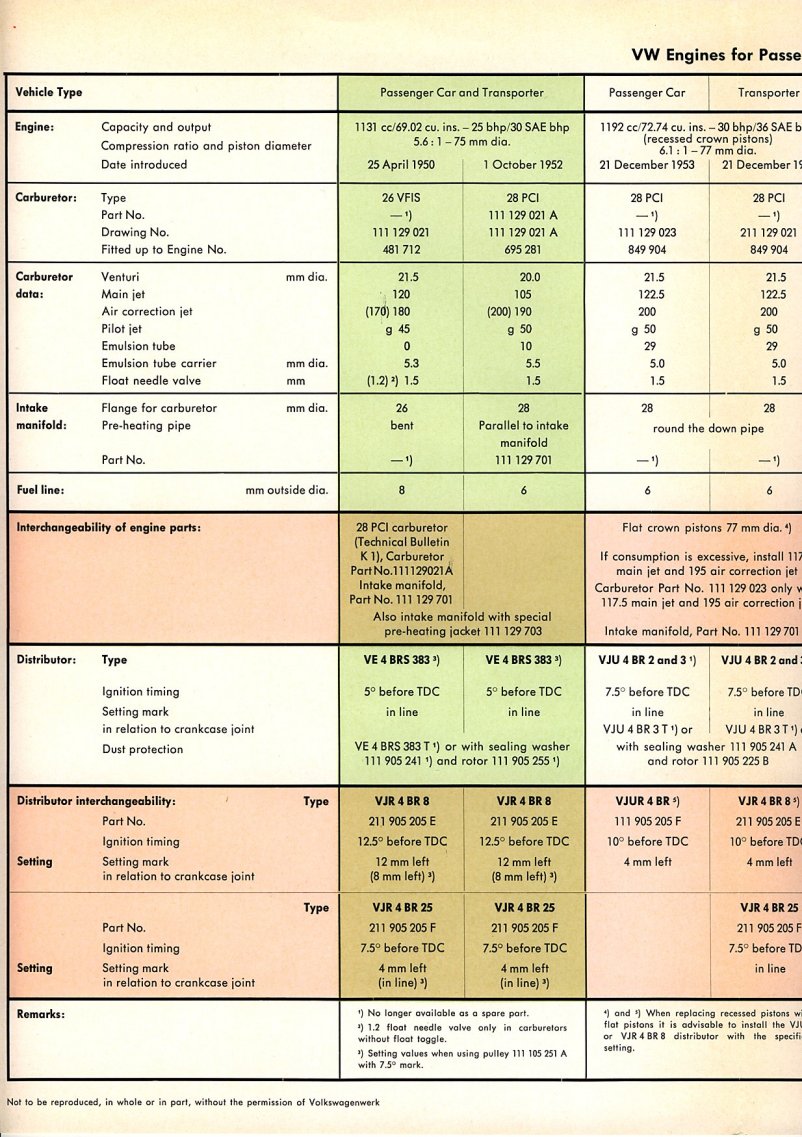

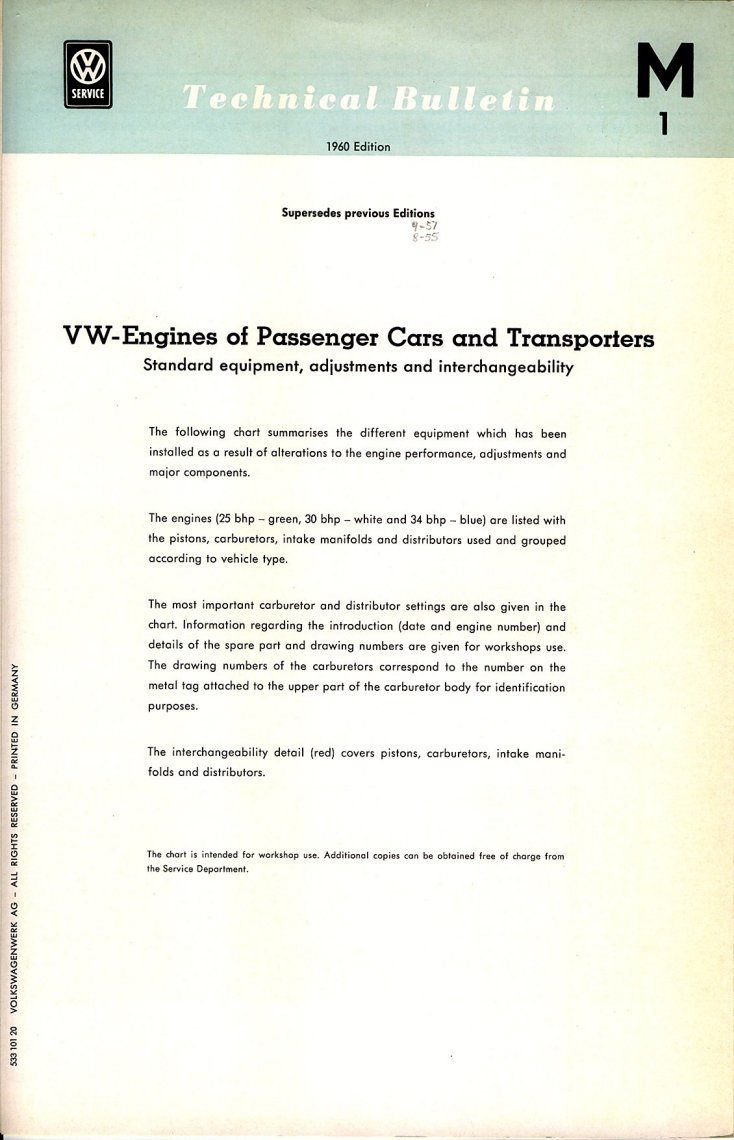

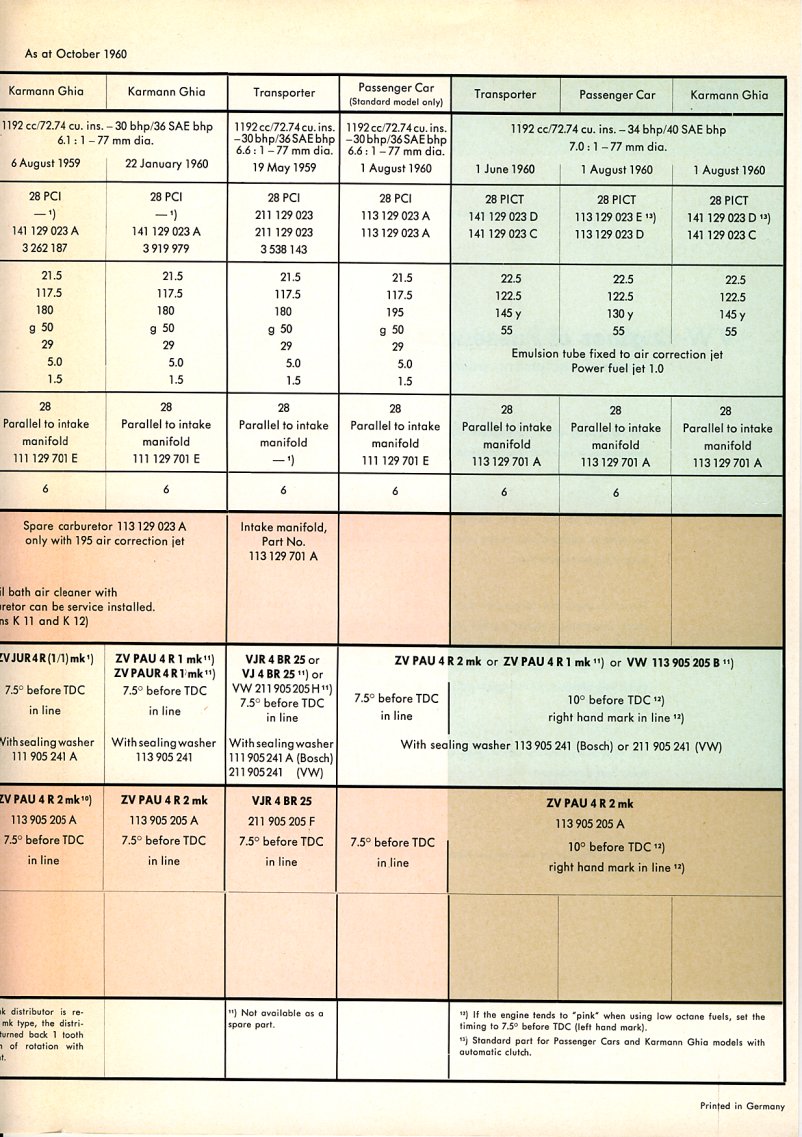

| 1960 VW Engines - Type 1, 2 |
 |
 |
 |
 |
||||

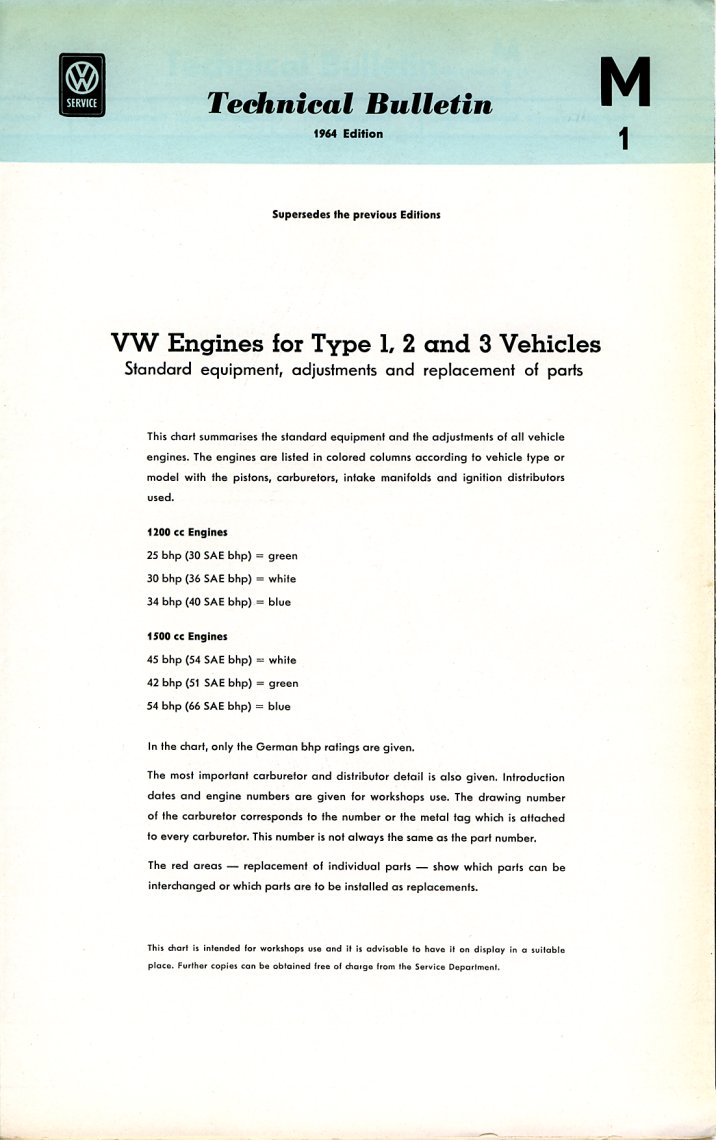

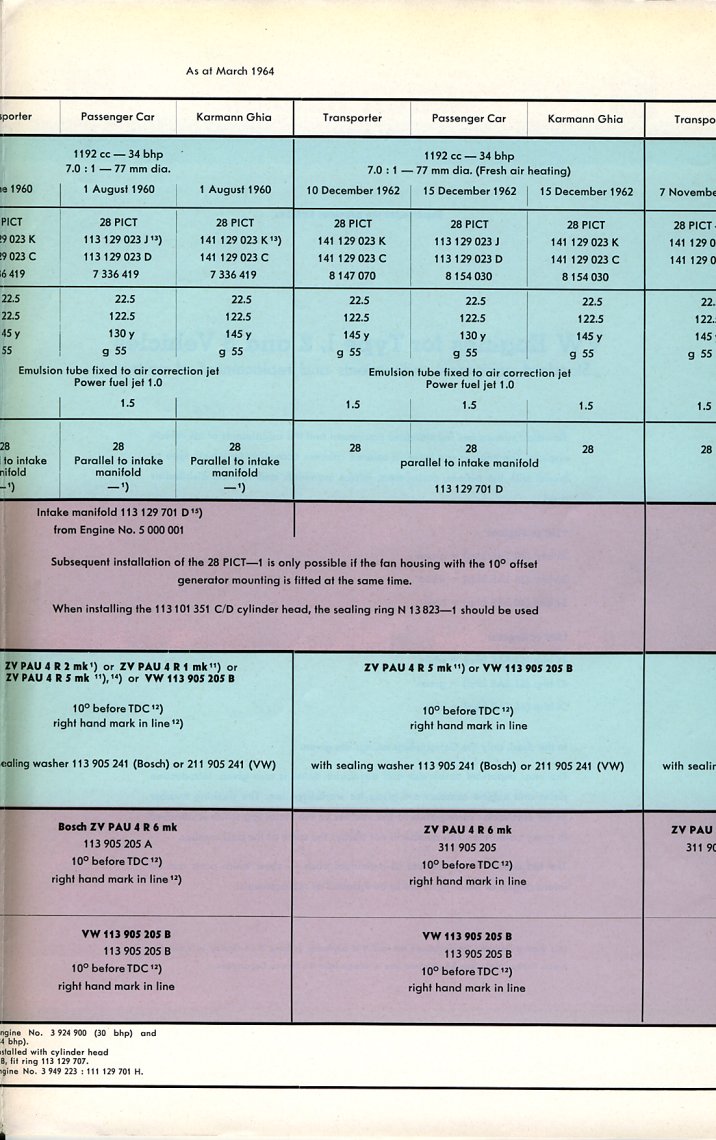

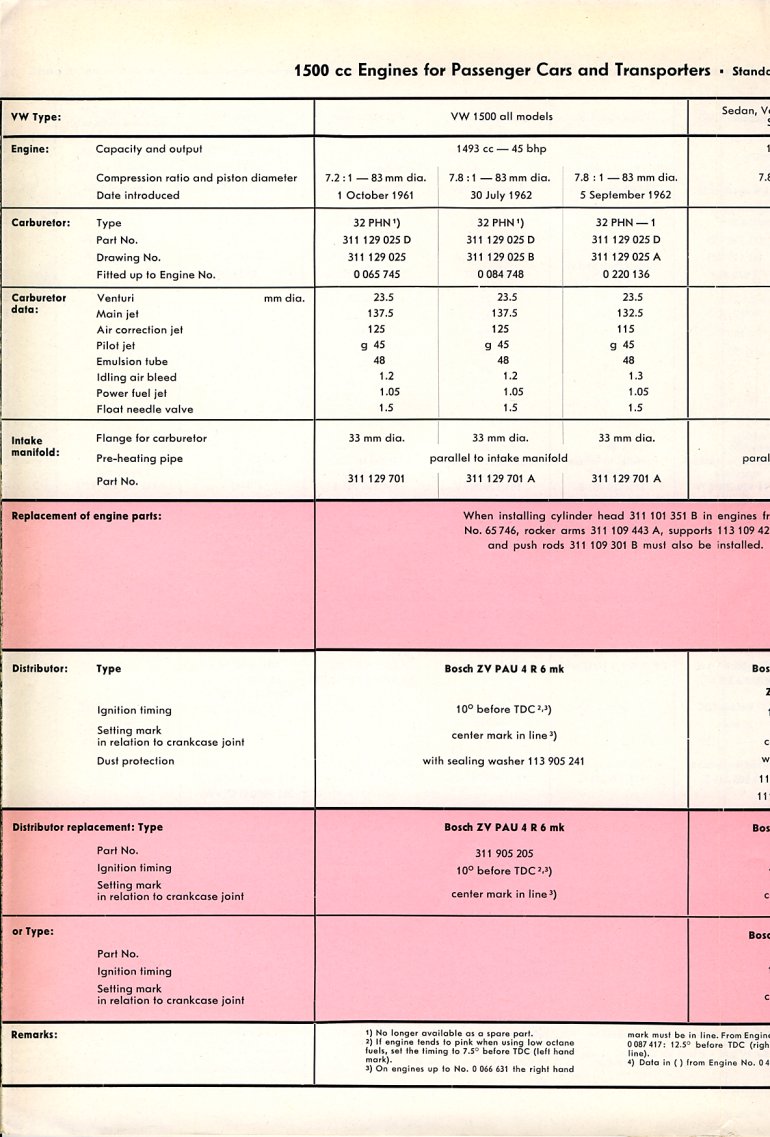

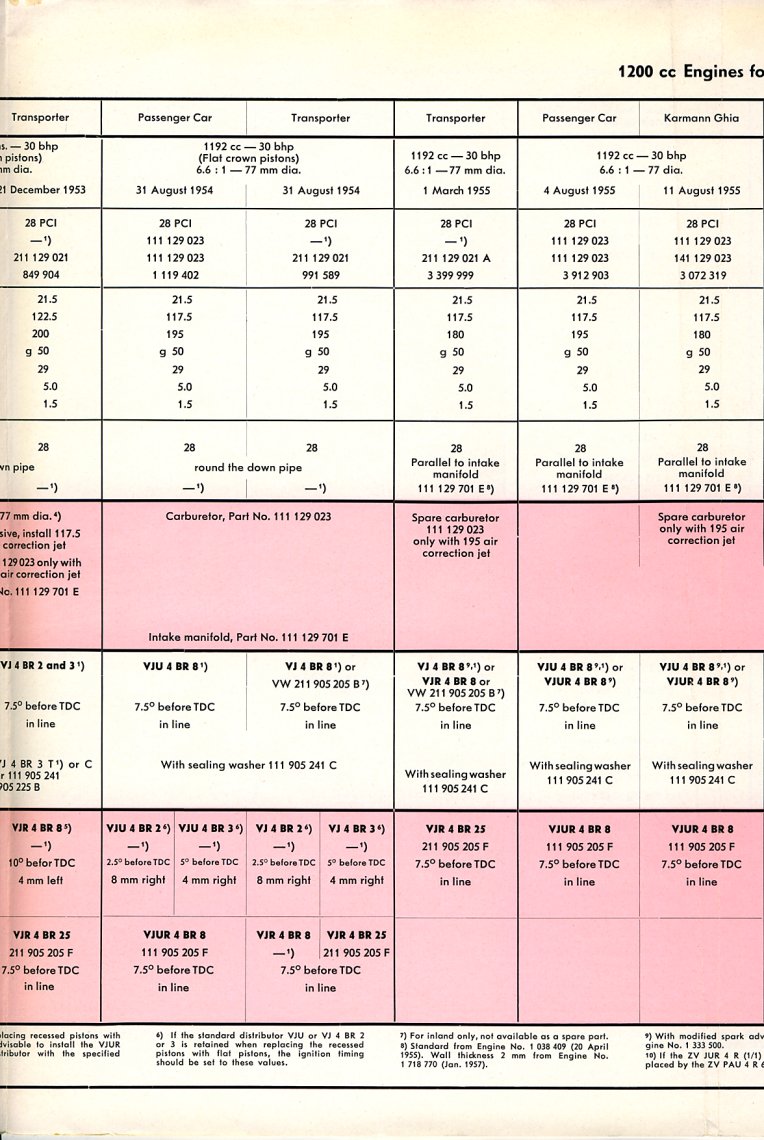

| 1964 VW Engines - Type 1, 2, 3 |
 |
 |
 |
 |
 |
 |
 |
 |
| 1966 VW Engines - 25 & 30 bhp |
 |
 |
 |
 |
||||
| 1966 Supplement 1 VW Engines - 34 bhp |
 |
 |
 |
 |
||||

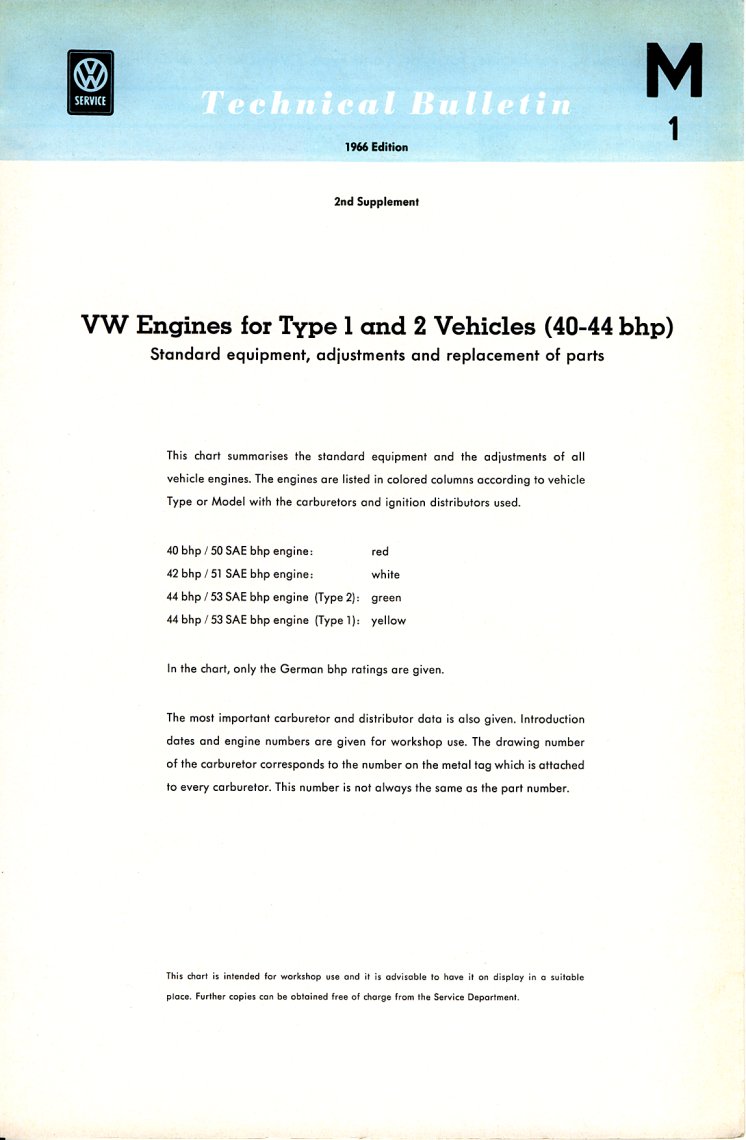

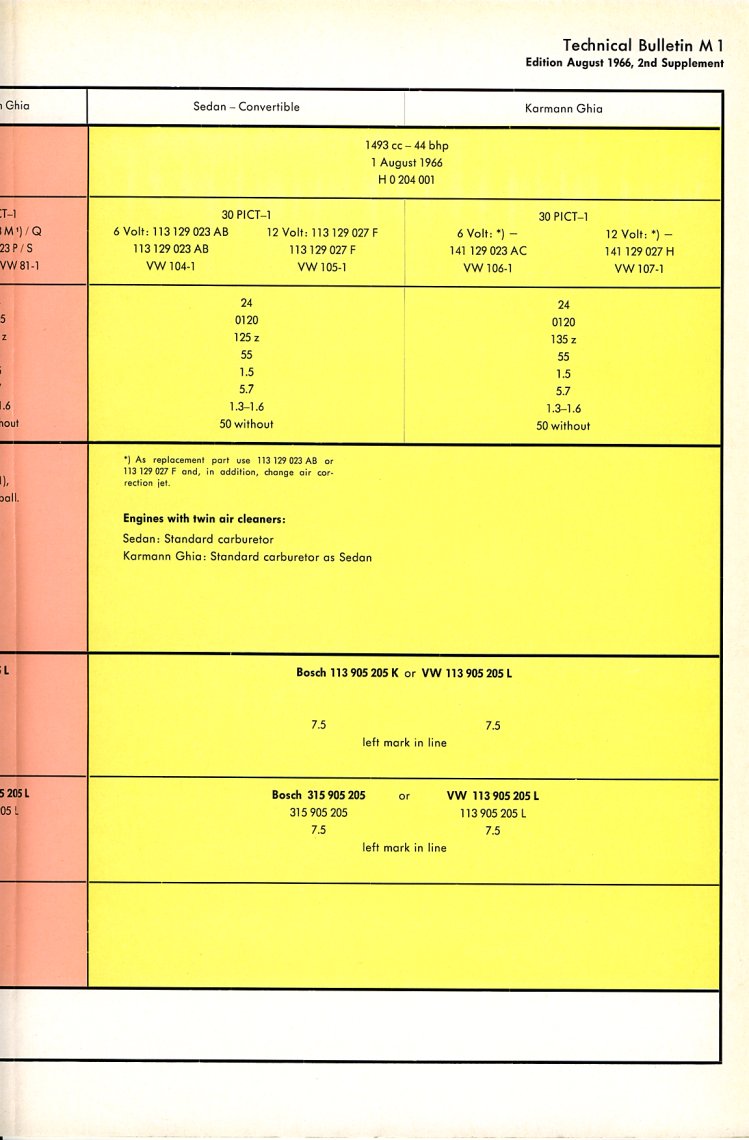

| 1966 Supplement 2 VW Engines - 40 - 44 bhp |
 |
 |
 |
 |
||||

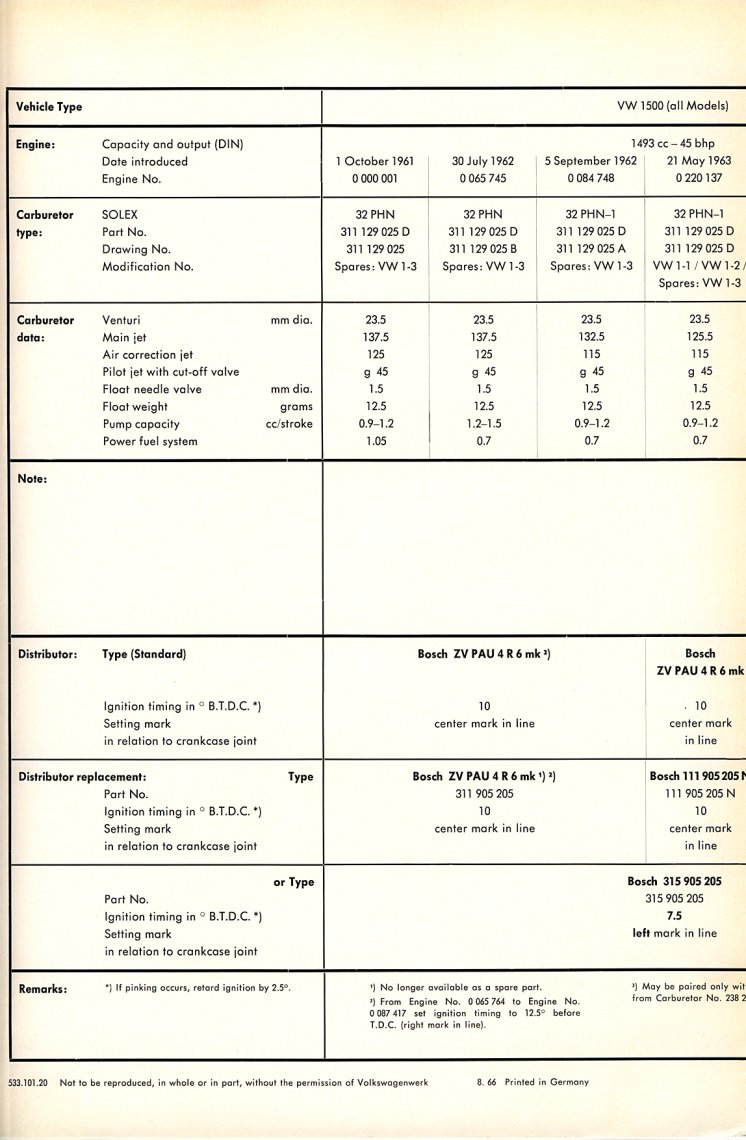

| 1966 Supplement 3 VW Engines - 45 & 54 bhp |
 |
 |
 |
 |
||||
| 1967 Supplement 1 VW Engines - 34 bhp Submitted by Roger N. |
 |
 |
 |
 |
||||
| 1967 Supplement 2 VW Engines - 40 - 44 bhp Submitted by Roger N. |
 |
 |
 |
 |
||||

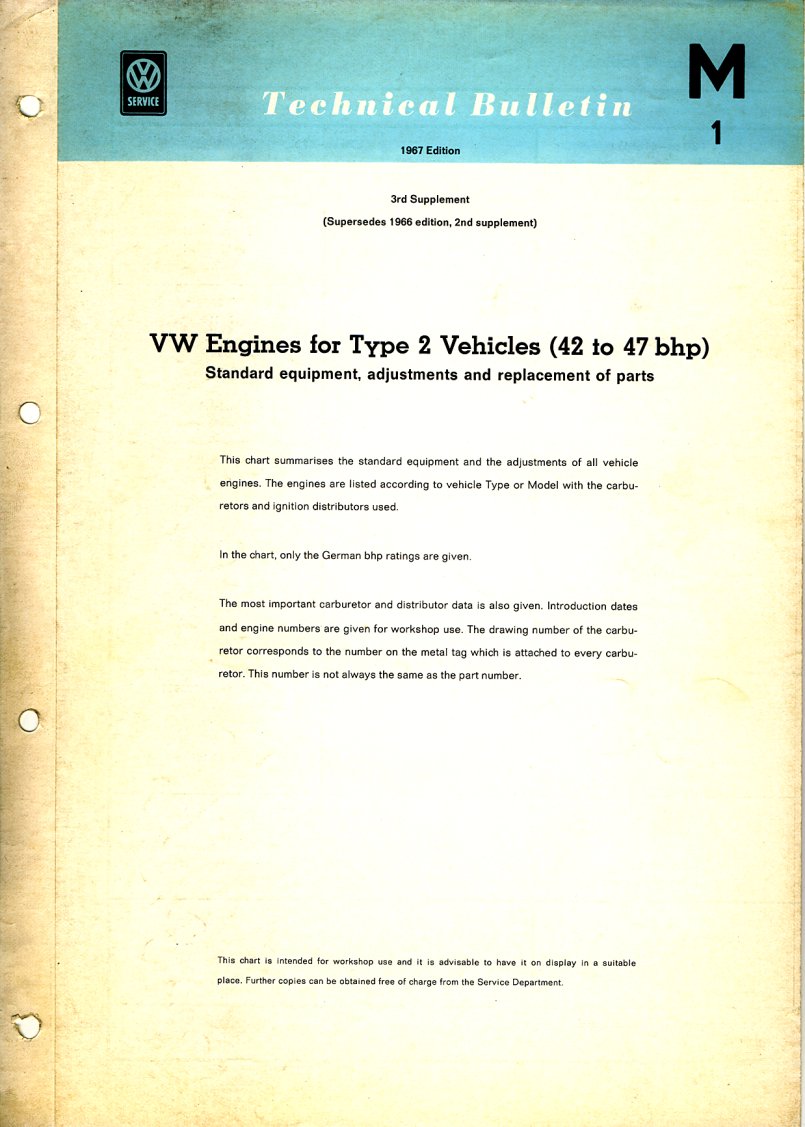

| 1967 Supplement 3 VW Engines - 42 - 47 bhp Submitted by Roger N. |
 |
 |
 |
|||||

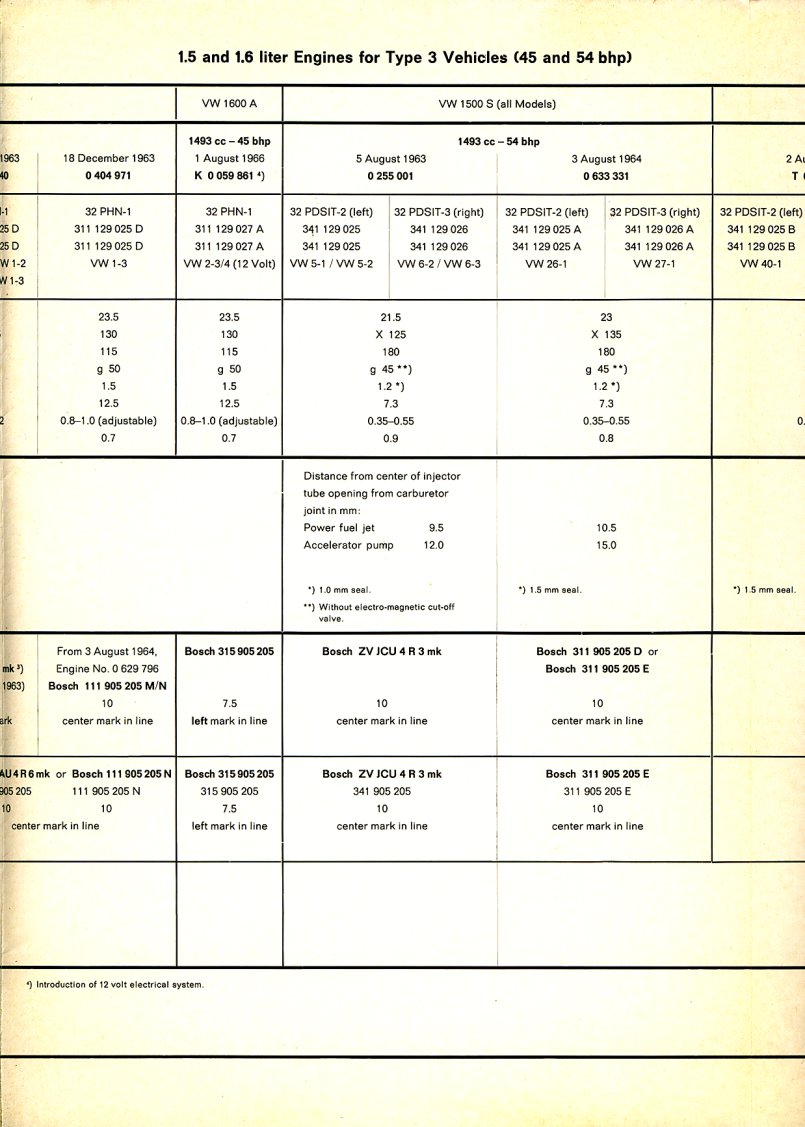

| 1967 Supplement 4 VW Engines - 45 & 54 bhp Submitted by Roger N. |
 |
 |
 |
 |
