Bus reduction box adaptors

Jackvw · Samba Member Joined: April 23, 2005 Posts: 5

Hi,
Anyone know if its possible to get some bus reduction box adaptors to the UK? Any idea how much they go for these days?
Thanks!

BugZyla.com · Posted: Sun Sep 18, 2005 6:47 am Post subject:

Hi, I make the adapters for the Big Nut bus boxes. Just e-mail me your shipping address, and I can get you a shipping quote. Check out the adapters at http://www.bugzyla.com and then click on the parts link.
_________________
Daryll http://www.azbaja.com P.R.

http://www.bugzyla.com

"Why is there Braille on a Drive Thru ATM?"

Jackvw · Samba Member Joined: April 23, 2005 Posts: 5

Are these the laydown type or the upright type you make? Are they similar to John Johnsons adaptors?

BugZyla.com · Posted: Mon Sep 19, 2005 8:46 am Post subject:

Hi, These are upright. Go to the BugZyla link for pictures.
_________________
Daryll http://www.azbaja.com P.R.

http://www.bugzyla.com

"Why is there Braille on a Drive Thru ATM?"

panzerfuska · Samba Member Joined: September 13, 2005 Posts: 142

daryll,
i have a question about your trans adapters. where and to what extent must the spring plate be clearanced?
i'm going to set up a big nut trans into a 66 for an old school class 11 type bug. thanks.
mario

Vanhag · Posted: Sat Nov 12, 2005 11:01 am Post subject:

3/4 of an inch or so. I ended up cutting out 1 inch by the time I got them even (hey my first time).

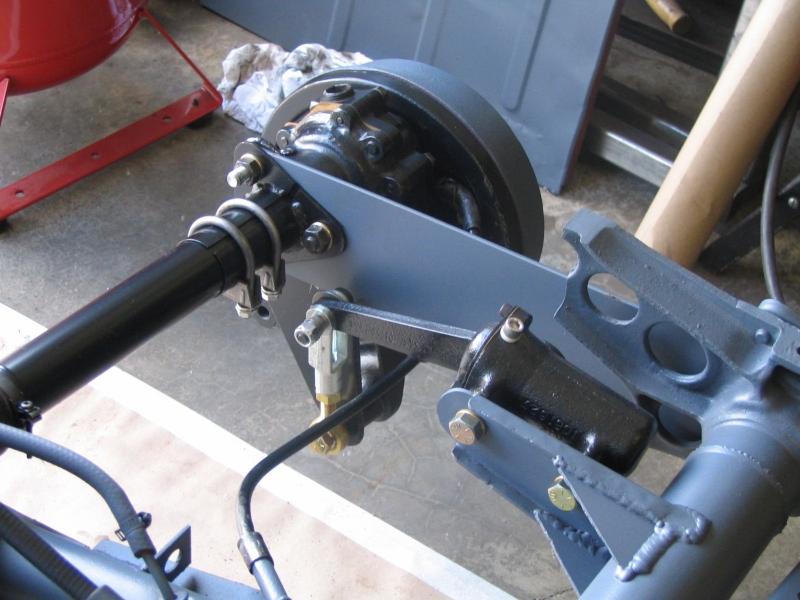

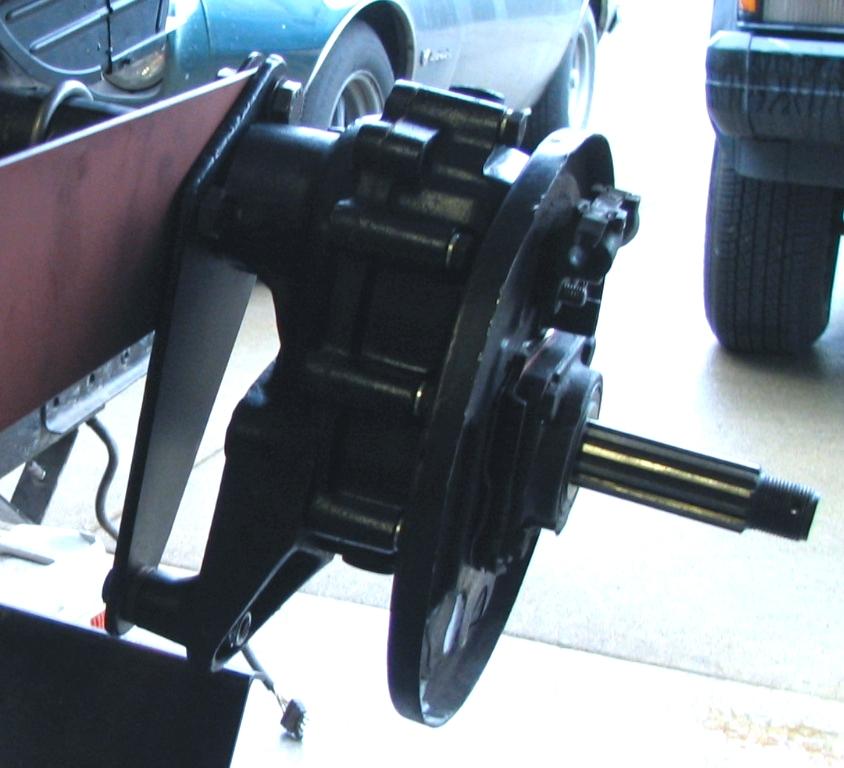

Here are some pics of my install.

Image may have been reduced in size. Click image to view fullscreen.

_________________
CU05 w/HBB
HOODRIDANCE

HamburgerBrad · Posted: Sat Nov 12, 2005 2:34 pm Post subject:

if you notch too far, you could always add limit straps
_________________
OGST | CU05 | OGJHC
1970 baja|1953 oval

Wanted: two beat up, ugly, curb rashed 6" phone dial wheels

bljones · Posted: Sat Nov 12, 2005 4:20 pm Post subject:

nice work hag.

next time, hide the bags of body disposal mix, er, mortar mix, before you take pics.
_________________
OG JHC
Author of Original Rant #1
"It stingd itself to dead... now that is control on you"

2%

panzerfuska · Samba Member Joined: September 13, 2005 Posts: 142

great pics. thanks.

vintagemx0 · Posted: Sat Nov 12, 2005 9:28 pm Post subject:

I wasn't able to locate any adapters at the time I wanted to build my set-up. I welded a large bracket to the axle tube (outside side of spring plates) and backed it up on the other side of the spring plates with a "sliding" collar/flange tightened to the axle tube with U-clamps. Do you guys see any forseeable issues with this setup? I don't plan on any harsh off-roading, but I wonder about wheel hop and torsional stresses to the spring plates???

_________________
Where ever you go, there you are.

BugZyla.com · Posted: Sun Nov 13, 2005 7:50 am Post subject:

The only problem I see is the clamps may allow the axle tube to rotate under load. There is a tremendous amount of torque on these axles with the reduction boxes. What I would recomend is using a couple more bolt holes on the reduction boxes, and bolting them to your existing bracket to prevent the rotation.

Vanhag Nice job on the install. If wasnt so focused on the build, I might have taken better pics of mine. Can I use your pics on my site?
_________________
Daryll http://www.azbaja.com P.R.

http://www.bugzyla.com

"Why is there Braille on a Drive Thru ATM?"

panzerfuska · Samba Member Joined: September 13, 2005 Posts: 142

question: would one lose lift by making the spring plate come down lower than the center axis of the axle-shaft? or would one still gain the same amount of lift regardless. just a thought by looking at both adaptor designs.

BugZyla.com · Posted: Mon Nov 14, 2005 7:10 am Post subject:

You still get the same amount of lift with the first adapters shown, you just have to notch the spring plates to allow them to drop farther.
_________________
Daryll http://www.azbaja.com P.R.

http://www.bugzyla.com

"Why is there Braille on a Drive Thru ATM?"

der turd · Posted: Mon Nov 14, 2005 10:11 am Post subject: r/b shock mount

reffering to vanhags pics, with the shock mount. is it needed to space out the mount like that or will a coilover set-up reach the stock r/b mount.

kbwakesk8 · Posted: Wed May 02, 2007 11:02 am Post subject:

UKbillybob · Posted: Wed May 02, 2007 3:15 pm Post subject:

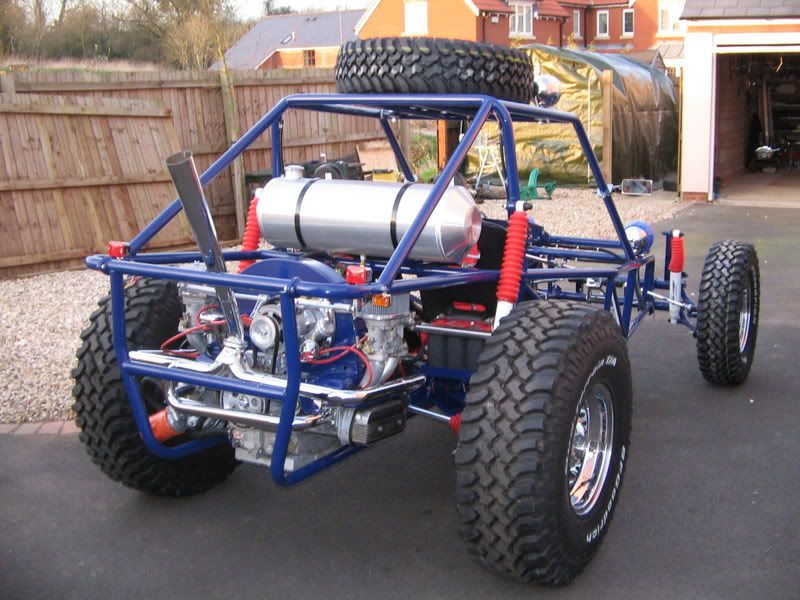

Here is a pic of a baja I built using the adapters from Bugzyla

BugZyla.com · Posted: Thu May 03, 2007 3:57 pm Post subject:

Nice Baja!! Good to see you guys in the UK building Bajas.
_________________
Daryll http://www.azbaja.com P.R.

http://www.bugzyla.com

"Why is there Braille on a Drive Thru ATM?"

UKbillybob · Posted: Thu May 03, 2007 4:12 pm Post subject:

Cheers, your adapters helped.

I also build rails here in the UK.

BugZyla.com · Posted: Thu May 03, 2007 4:33 pm Post subject:

Very Nice!!!
_________________
Daryll http://www.azbaja.com P.R.

http://www.bugzyla.com

"Why is there Braille on a Drive Thru ATM?"

UKbillybob · Posted: Fri May 04, 2007 9:45 am Post subject:

Very nice of you to say!!
