I am going to order a dakota digital cylinder head temp guage and sender for Gonzo.
I have a couple questions for those who've got them already.
1. What length sender do i need to order??
2. how does the sender mount? under a spark plug? which one?
3. do they come with a guage cup? where do you drill the holes for the mount? i tried to put in an oil pressure gauge and the screws didnt even reach to the metal on the underside of the dash.
any advice will be most appreciated.
thanks fot all that you do sambaites.
justin.
_________________
1978 bus. 2.0 f.i. manual trans. "the great gonzo" |
|
| Back to top |
|
 |
suzygrnburg
Samba Member
Joined: February 23, 2005
Posts: 264
Location: Teaticket MA
|
| Posted: Wed May 17, 2006 12:29 pm Post subject: |
|
|
don't have mine completly hooked up yet but you need an 18 foot sender with a 14mm ring that goes under spark plug # 3. I ordered the single mount that screws to the underside of the dash..
My question is what fuse to use to hook up the power to the CHT. I know it doesn't need much and I've heard people talking about splicing into the one that run the iginition but I'm not sure what # fuse that is or if I should hook it upto another one....
I'll let you know what i end up doing
_________________
Without Love in the Dream It Will Never Come True! |
|
| Back to top |
|
|
Randy in Maine
Samba Member
Joined: August 03, 2003
Posts: 34890
Location: The Beach
|
| Posted: Wed May 17, 2006 12:59 pm Post subject: |
|
|
17-18' long and mounts under spark plug #3.
Power comes from the ignition "on" position on any line that is hot when the ignition is on. Perhaps the "silver socket"?
Go over here and look at mounting accessories. http://www.egauges.com/veh_make.asp
The easy way to mount the gauge in under the dash. Some use "mounting pods". I mounted mine in the dash with my handy 3 gauge gizmo that I got from busboys. Works.
Both whip 216 and germansupplyscott managed to drill their 2 1/16" holes very nicely in the dash so it looked very professional right in that sweet dash material. I am not that good and my hole saw made too rough of a cut and the little surround was required.
I used a compass and a white sharpie to figure out the center of the 3 2 1/16" holes and drilled a pilot hole for the hole saw.
I will defer to better advice from anyone who knows how to do it better. |
|
| Back to top |
|
|
suzygrnburg
Samba Member
Joined: February 23, 2005
Posts: 264
Location: Teaticket MA
|
| Posted: Wed May 17, 2006 1:18 pm Post subject: |
|
|
| Randy in Maine wrote: |
Power comes from the ignition "on" position on any line that is hot when the ignition is on. Perhaps the "silver socket"?
|
Thanks for this Randy!!!
_________________
Without Love in the Dream It Will Never Come True! |
|
| Back to top |
|
|
flat4freak1978
Samba Member
Joined: June 02, 2003
Posts: 793
Location: stone mountain georgia
|
| Posted: Wed May 17, 2006 2:17 pm Post subject: |
|
|
cool. thanks guys.
_________________
1978 bus. 2.0 f.i. manual trans. "the great gonzo" |
|
| Back to top |
|
|
whip618
Samba Member
Joined: October 16, 2002
Posts: 762
Location: Albuquerque
|
| Posted: Thu May 18, 2006 5:33 am Post subject: |
|
|
I connected the red or hot wire to fuse 12 which becomes hot when the ignition is turned on. The blue wire for dimming the display was hooked to a spare terminal on the light switch that becomes hot only when the light are on and I'm sure you will want to connect the blue wire because the display on these gauges is extremly bright at night, you could also connect the blue wire to the grey/red dash light wire. The ground of course can be run to any of several grounds behind the dash. I ordered the 18 foot thermocouple wire from DD and it was plenty long enough.
I've included a few pics of my gauge installation.

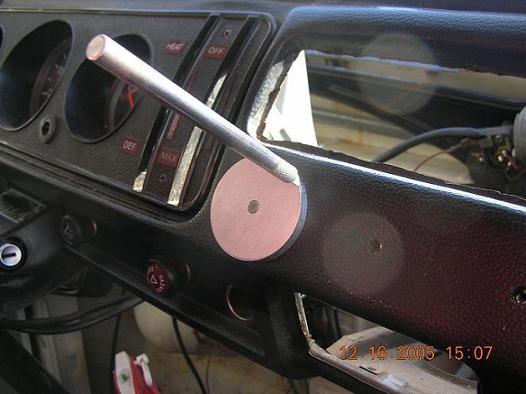

I made a drill template to locate the holes evenly.
Then using another template, I cut the dash material.

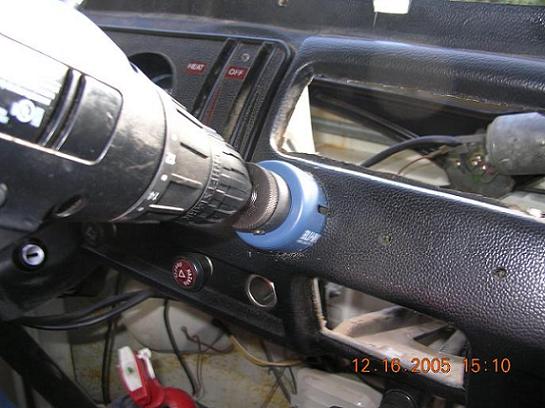

Then using a 2 1/16 holes saw the metal was removed
