 Posted: Wed May 15, 2024 9:40 am Post subject: Jack points front 73 Super? |
 |
|

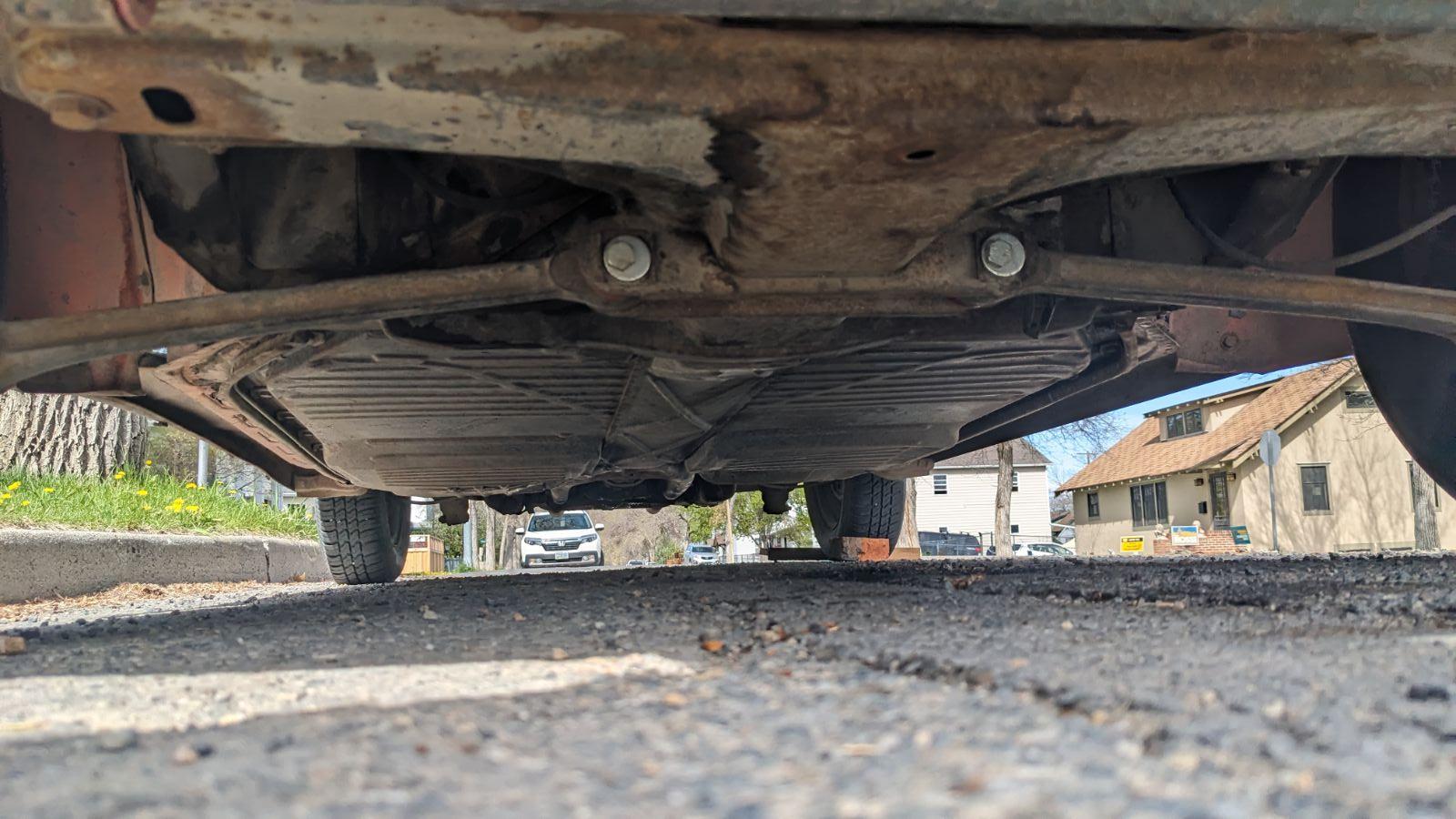

Hi could someone check out these photos and point out the good jack and stand points for the front of the
|
|
| Back to top |
|
 |
OTTO 1303
Samba Member
Joined: March 17, 2020
Posts: 711
Location: Louisiana
|
| Posted: Wed May 15, 2024 10:12 am Post subject: Re: Jack points front 73 Super? |
|
|

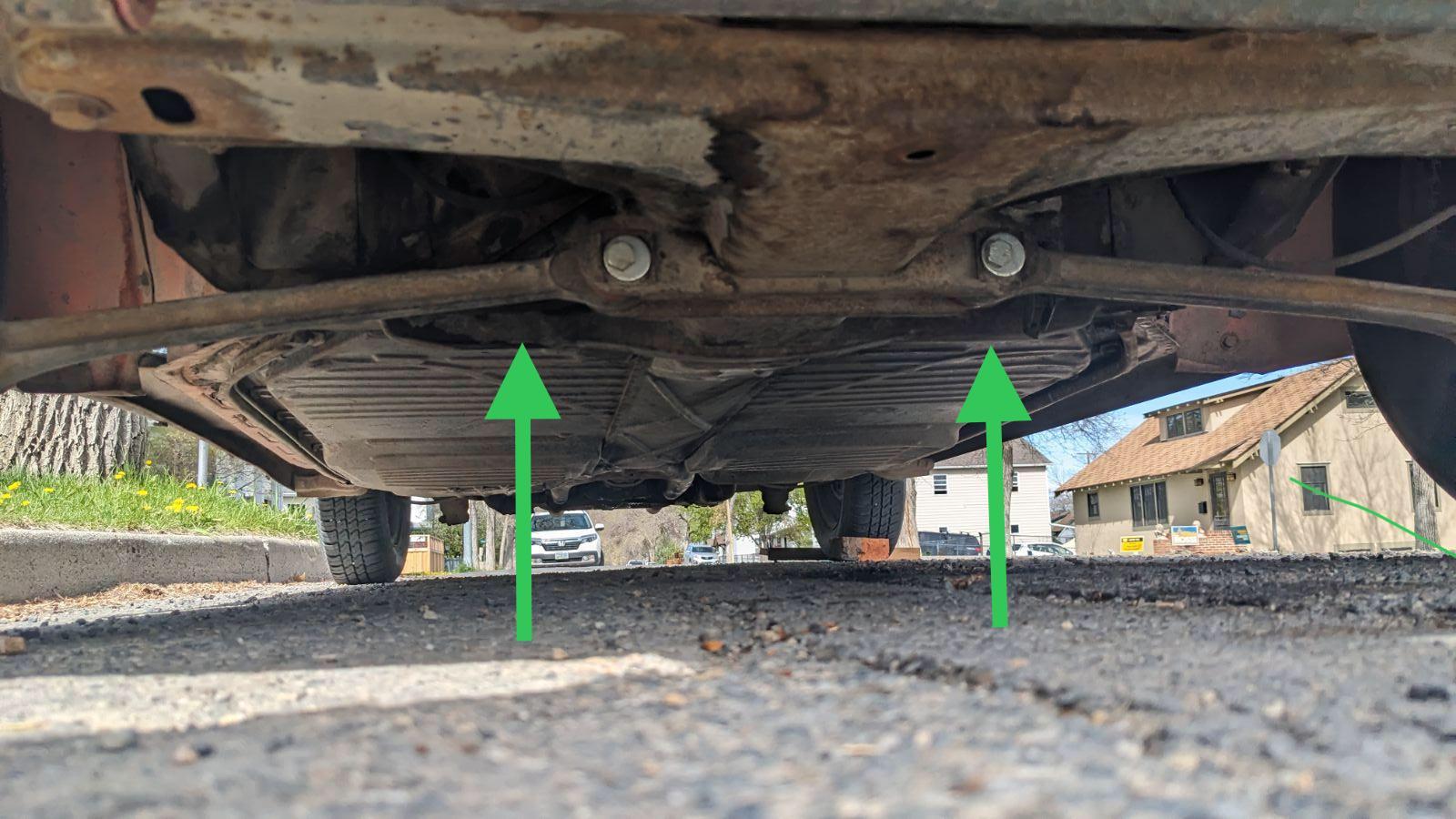

Jack and stands can go under the front cross member (green arrow) below Napoleon hat
If not enough room for jack and stand, I have placed jack under the body bolts at the outside of the crossmember, jack up, and place jacks under the crossmember (green arrows)

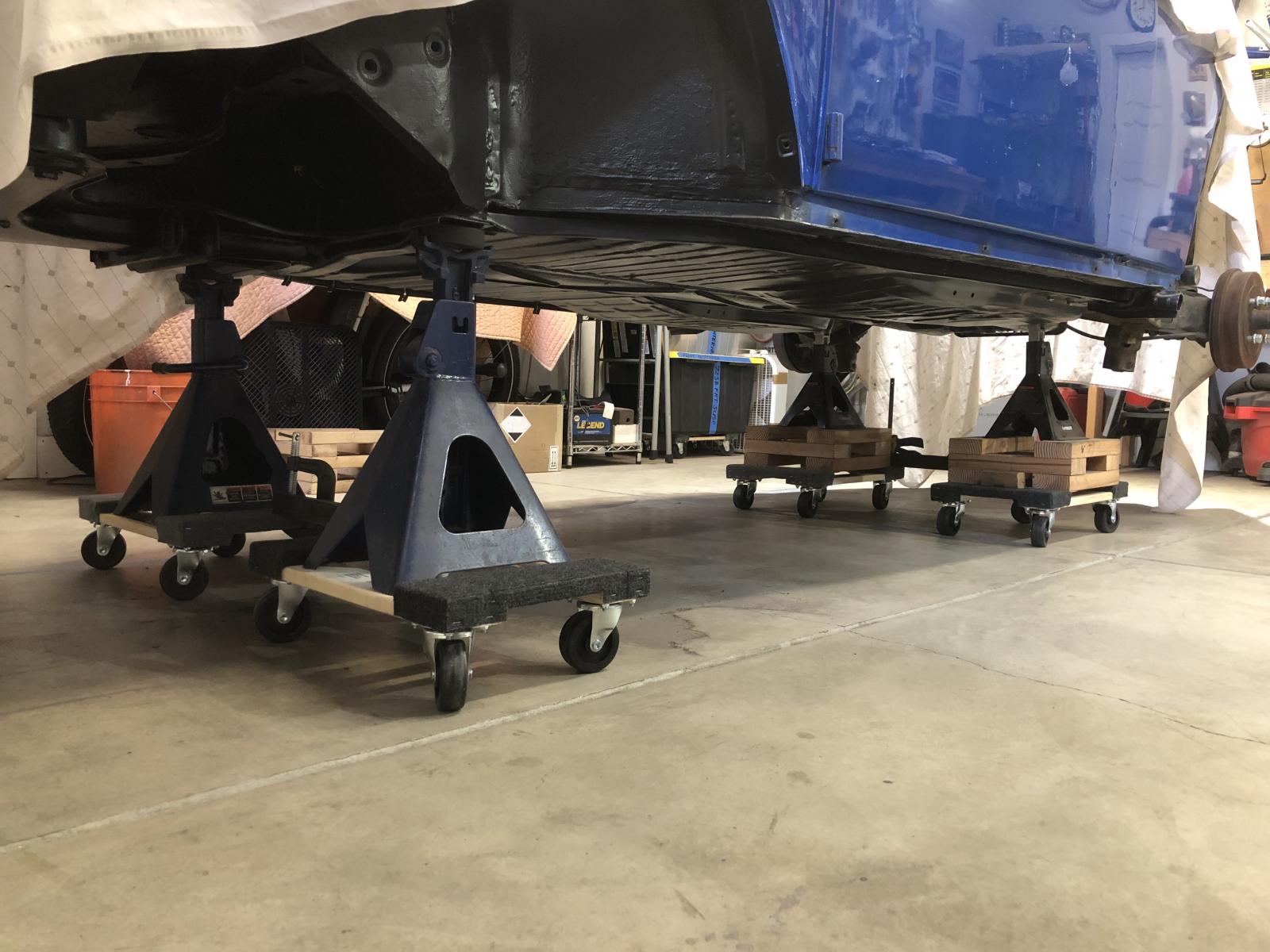

You can see where mine are placed
Good Luck
_________________
74 Super Sun Bug - OTTO
74 Super - DANZIG
74 Super - HERZOG
16 R-Line |
|
| Back to top |
|
|
DUNGBTL
Samba Member
Joined: October 17, 2022
Posts: 505
Location: Ashland, OR
|
| Posted: Wed May 15, 2024 11:02 am Post subject: Re: Jack points front 73 Super? |
|
|
I like to put the stands under the hard point of the pan to body mount…and use hard rubber hockey pucks for protection.
J. |
|
| Back to top |
|
|
mjust
Samba Member
Joined: February 19, 2024
Posts: 29
Location: 59601
|
| Posted: Thu May 16, 2024 4:09 pm Post subject: Re: Jack points front 73 Super? |
|
|
| DUNGBTL wrote: |
I like to put the stands under the hard point of the pan to body mount…and use hard rubber hockey pucks for protection.
J. |
Thanks! |
|
| Back to top |
|
|
mjust
Samba Member
Joined: February 19, 2024
Posts: 29
Location: 59601
|
| Posted: Thu May 16, 2024 4:10 pm Post subject: Re: Jack points front 73 Super? |
|
|
| OTTO 1303 wrote: |
Jack and stands can go under the front cross member (green arrow) below Napoleon hat
If not enough room for jack and stand, I have placed jack under the body bolts at the outside of the crossmember, jack up, and place jacks under the crossmember (green arrows)
You can see where mine are placed
Good Luck |
Sorry, I thought I replied to this...Thanks! This helped a lot! |
|
